The ABCs of APIs
Angie Jones
http://angiejones.tech
@techgirl1908
Senior Automation Engineer
Twitter, San Francisco, CA, USA
Application
Programming
Interface
@techgirl1908
@techgirl1908
@techgirl1908
@techgirl1908
Internet
Of
Things
@techgirl1908
Microservices
@techgirl1908
UI Testing
@techgirl1908
Why is
API
testing so important?
@techgirl1908
@techgirl1908
Anatomy
of an
API
@techgirl1908
@techgirl1908
API
collection of endpoints
@techgirl1908
Credit: Mark Winteringham
Resource: https://restful-booker.herokuapp.com
@techgirl1908
API
collection of endpoints
request
response
@techgirl1908
API
collection of endpoints
request
response
URL
headers
body
method
| CRUD | REST Methods | Tests |
|---|---|---|
| create | POST | |
| read | GET | |
| update | PUT | |
| delete | DELETE |
@techgirl1908
| CRUD | REST Methods | Tests |
|---|---|---|
| create | POST | post with all optional and required data post with only required data post with required data missing post with invalid data for the parameters |
| read | GET | |
| update | PUT | |
| delete | DELETE |
@techgirl1908
| CRUD | REST Methods | Tests |
|---|---|---|
| create | POST | post with all optional and required data post with only required data post with required data missing post with invalid data for the parameters |
| read | GET | get when profile doesn't exist get when profile exists create profile then get update profile then get delete profile then get |
| update | PUT | |
| delete | DELETE |
@techgirl1908
| CRUD | REST Methods | Tests |
|---|---|---|
| create | POST | post with all optional and required data post with only required data post with required data missing post with invalid data for the parameters |
| read | GET | get when profile doesn't exist get when profile exists create profile then get update profile then get delete profile then get |
| update | PUT | update existing profile update non-existing profile update deleted profile update then update again |
| delete | DELETE |
@techgirl1908
| CRUD | REST Methods | Tests |
|---|---|---|
| create | POST | post with all optional and required data post with only required data post with required data missing post with invalid data for the parameters |
| read | GET | get when profile doesn't exist get when profile exists create profile then get update profile then get delete profile then get |
| update | PUT | update existing profile update non-existing profile update deleted profile update then update again |
| delete | DELETE | delete profile delete when there are dependencies delete after delete delete non-existing |
@techgirl1908
@techgirl1908
API
collection of endpoints
request
response

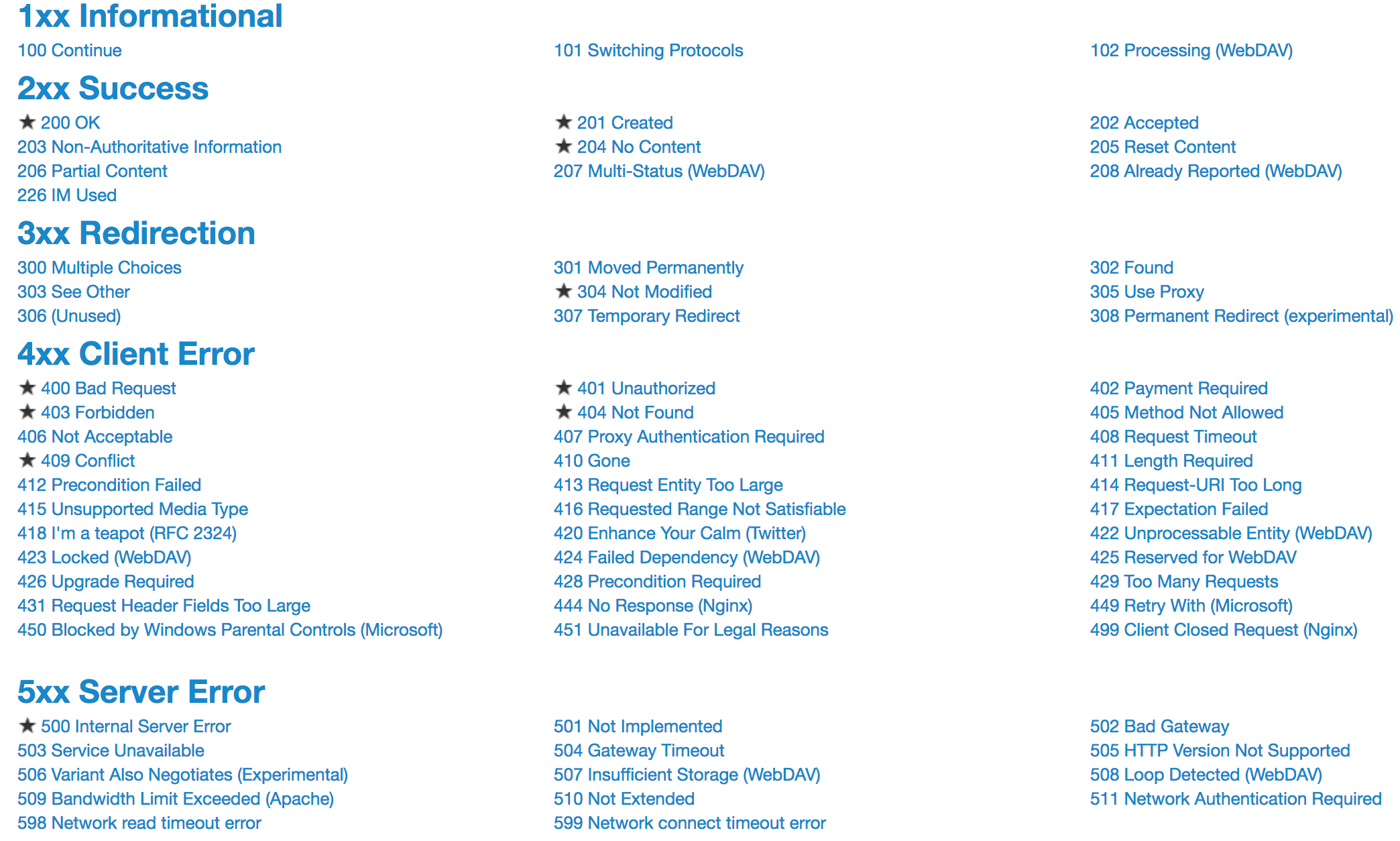

status
headers
body
URL
headers
body
method
@techgirl1908
@techgirl1908
Let's explore!
https://restful-booker.herokuapp.com/booking/{id}
@techgirl1908
Write a list of test cases for this endpoint
@techgirl1908
Execute
one of your tests
@techgirl1908
Did you verify the
status code?
@techgirl1908
Did you verify the
response header?
@techgirl1908
Did you verify every part of the response body?
@techgirl1908
Let's automate some tests!
@techgirl1908
https://api.twitter.com/1.1/search/tweets.json?q={query}
@techgirl1908
https://api.twitter.com/1.1/search/tweets.json?q={query}
@techgirl1908
| Test | Expectation |
|---|---|
| single word | every returned tweet's text should contain word |
| multiple words (logical AND) | every returned tweet's text should contain each of the words |
| "multiple words" | every returned tweet's text should contain the exact phrase |
| logical OR | every returned tweet's text should contain at least one of the words |
| word + negated (-) other word | every returned tweet's text should contain word but not contain negated word |
https://api.twitter.com/1.1/search/tweets.json?q={query}
@techgirl1908
| Test | Expectation |
|---|---|
| from:author + word | every returned tweet's author should be the one specified and the tweet's text should contain the word |
| filter:{attribute} + word attribute can be verified, media, links, retweets, etc |
every returned tweet should have the attribute that was filtered and the tweet's text should contain the word |
| blank search | invalid search |
| search produces no results | empty response body |
| word with special characters | every returned tweet's text should contain the word |
https://api.twitter.com/1.1/search/tweets.json
@techgirl1908
| Additional areas |
|---|
| rate limit |
| character limit |
| authorization |
| combinations of the other 9 optional paramaters |
@techgirl1908
More Resources
@techgirl1908
The ABCs of APIs
By Angie Jones
