Ardui...What?

Arduin...What?

Arduino!!!

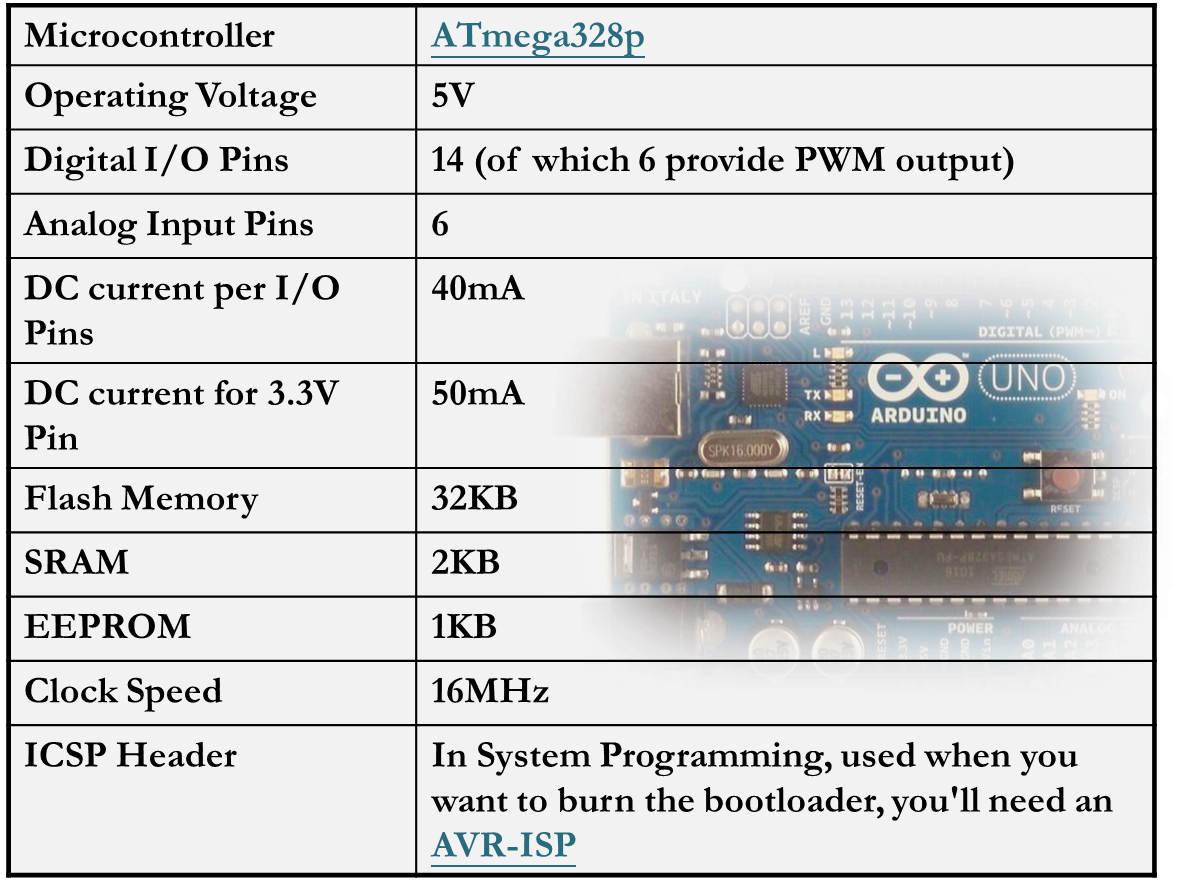

What's inside?

How powerful is that gizmo?

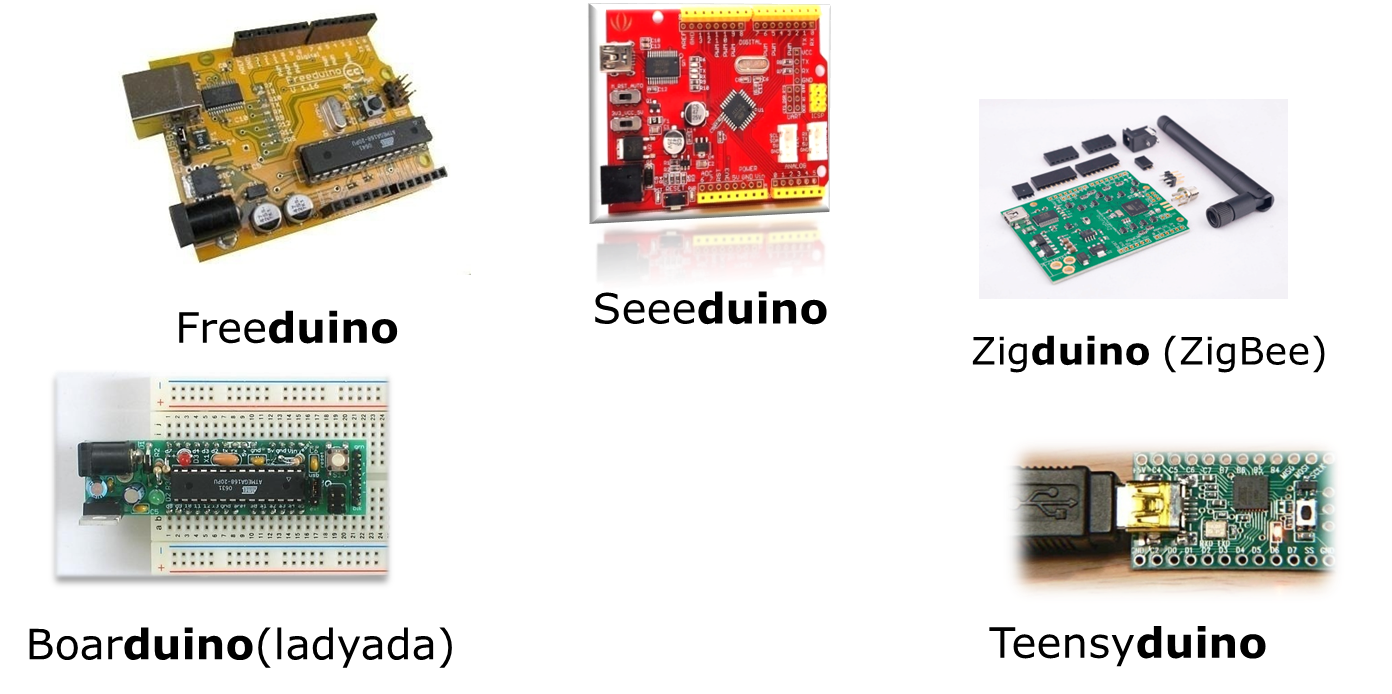

How many boards are out there?

How many boards are out there?

How many boards are out there?

Arduino is OHSW

What does it means?

What does it mean?

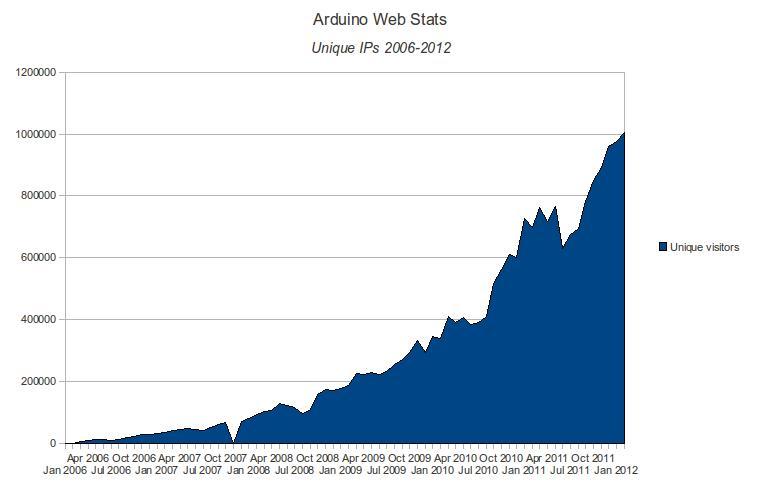

Community

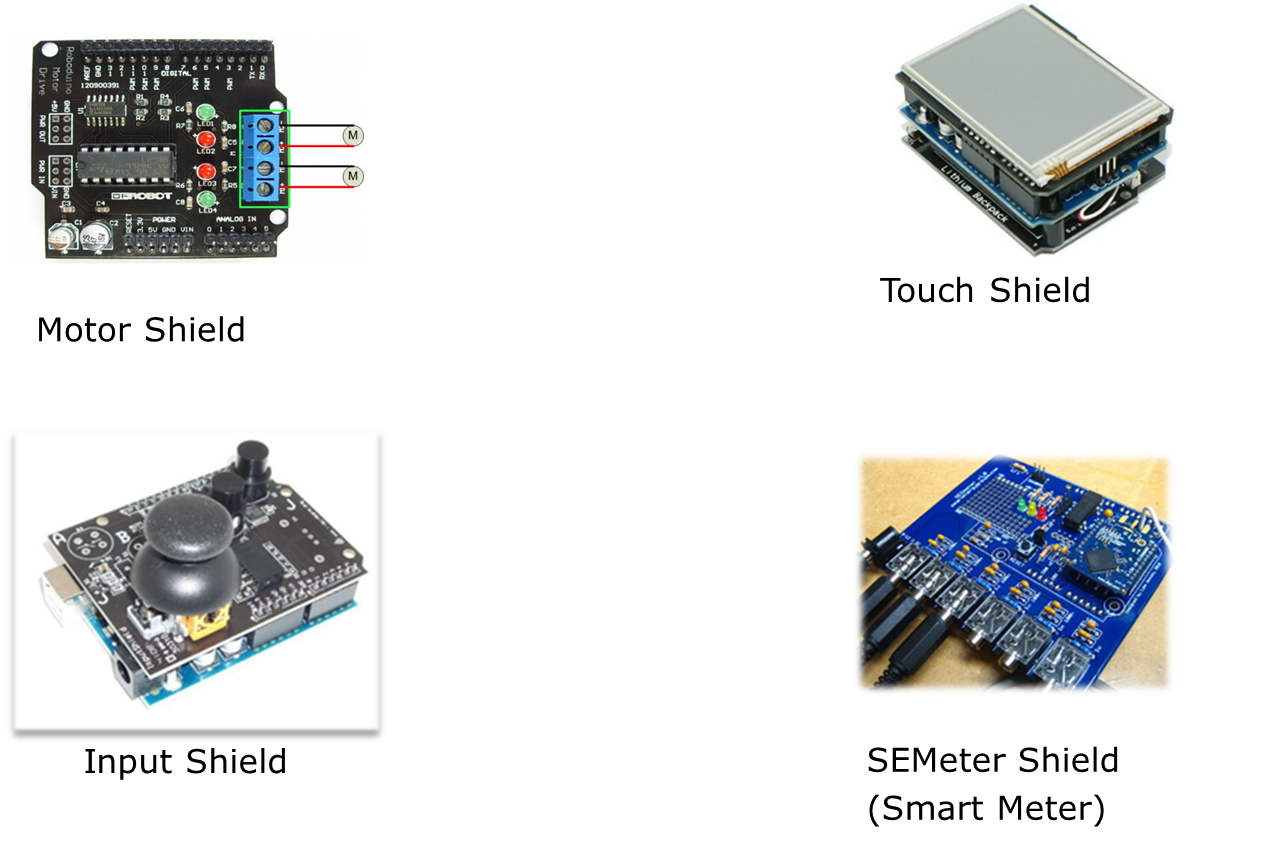

The Shields

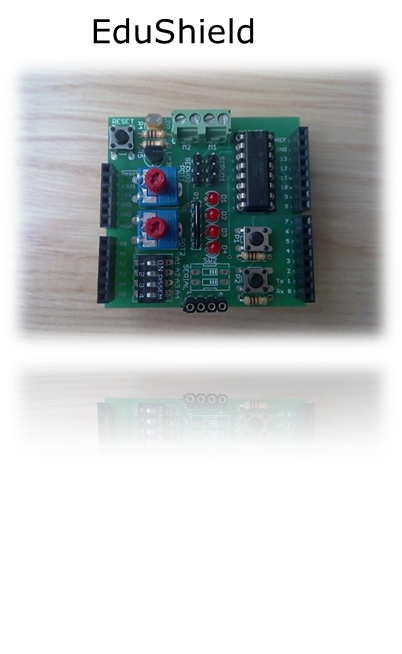

Shields

                    Communication

Hello??

What can I do with all that?

Sensors

even more?

Which Arduino is for me?

Comparing...

Easing...

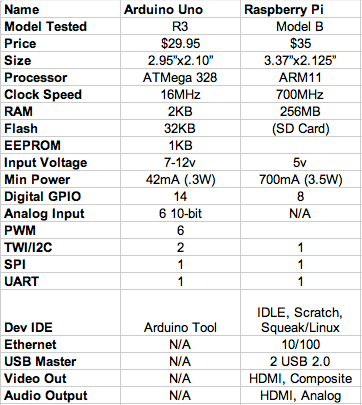

What's about the Pi?

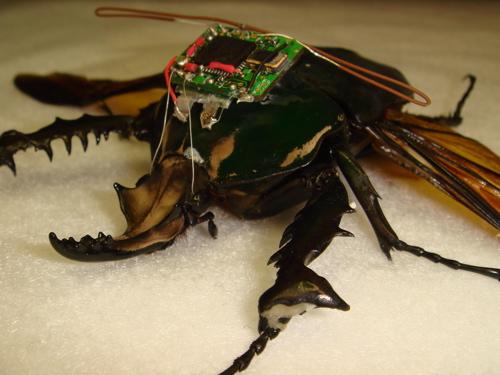

Cool Projects 1

Cool Projects 2

I want UNO!

In Bilbao and Online

• http://www.reflexiona.biz/ (BI)

• http://www.msebilbao.com/tienda/index.php (BI)

• http://www.cooking-hacks.com  (Online)

• http://www.bricogeek.com/ (Online)

• http://www.sparkfun.com/ (Online)


Hands On!!!

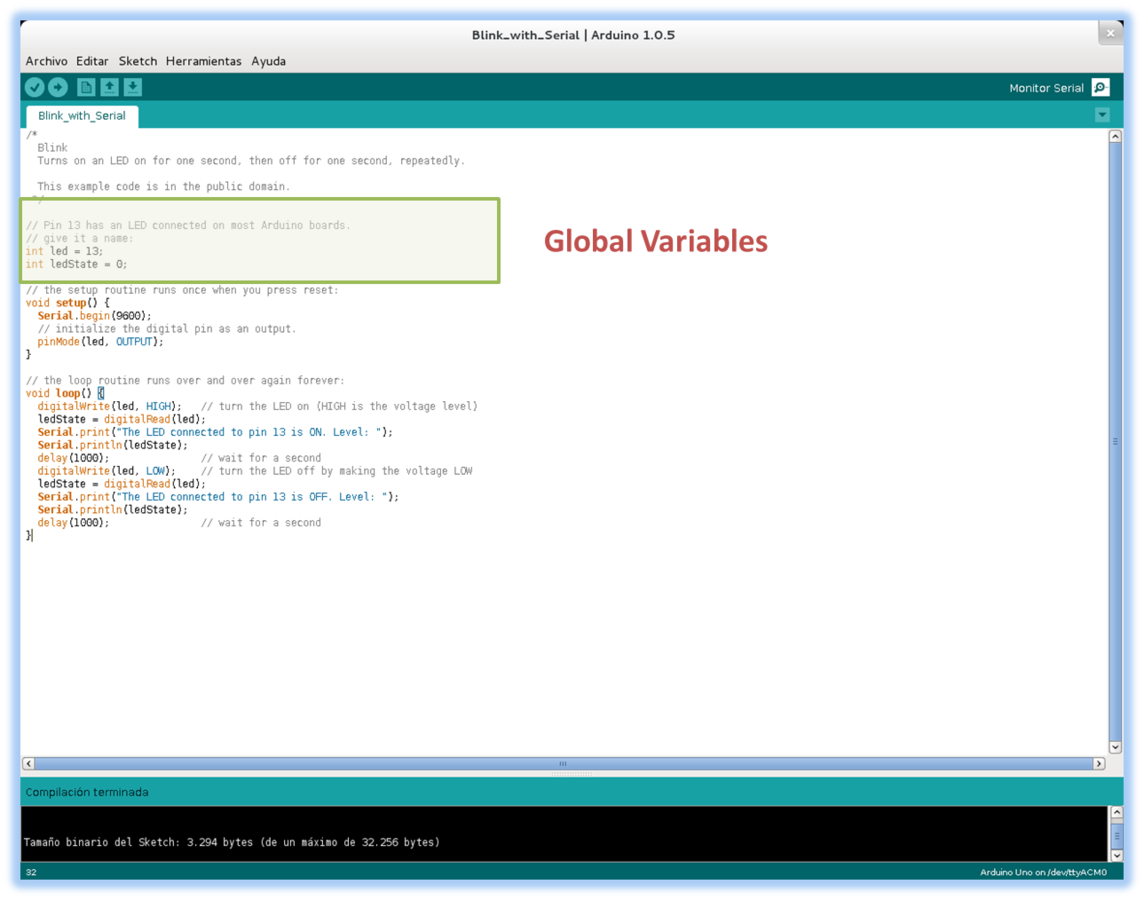

The IDE

Your first example

Blink..what?

Select a board

This is your schema

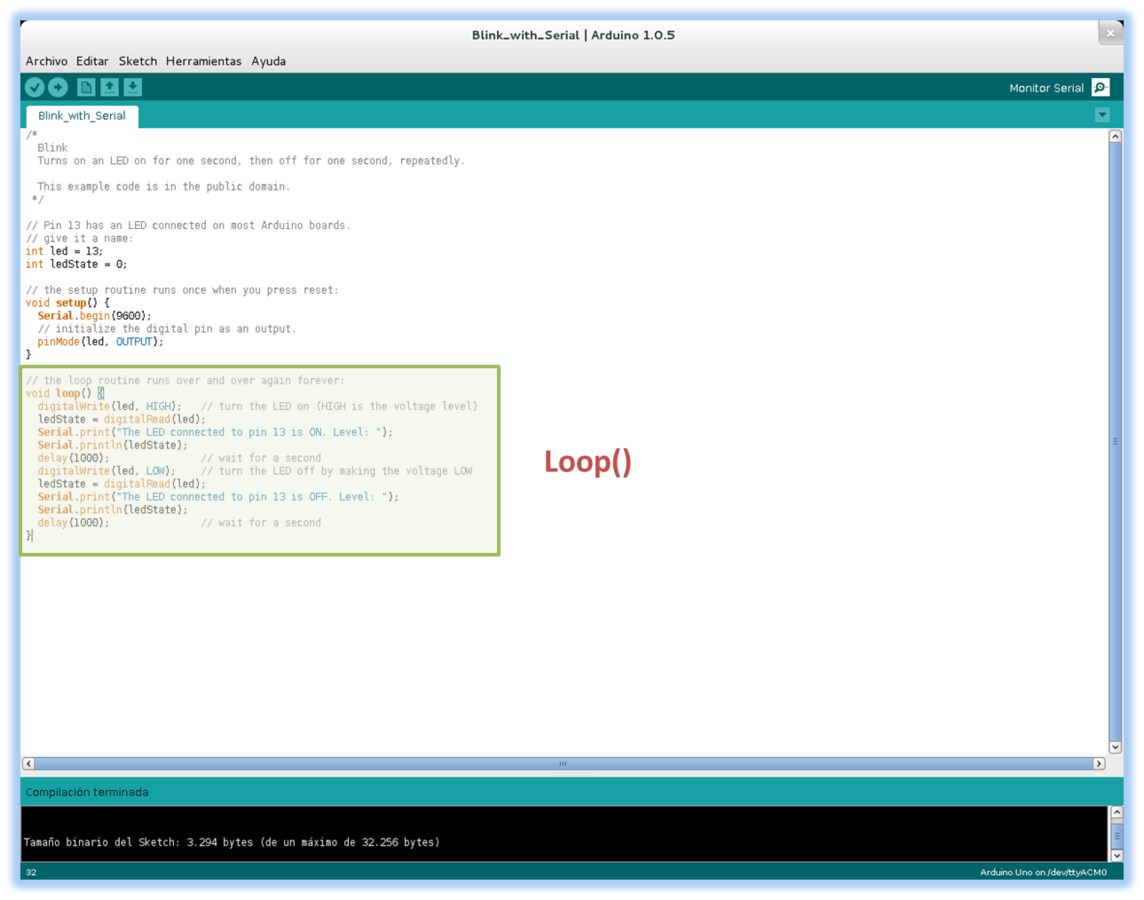

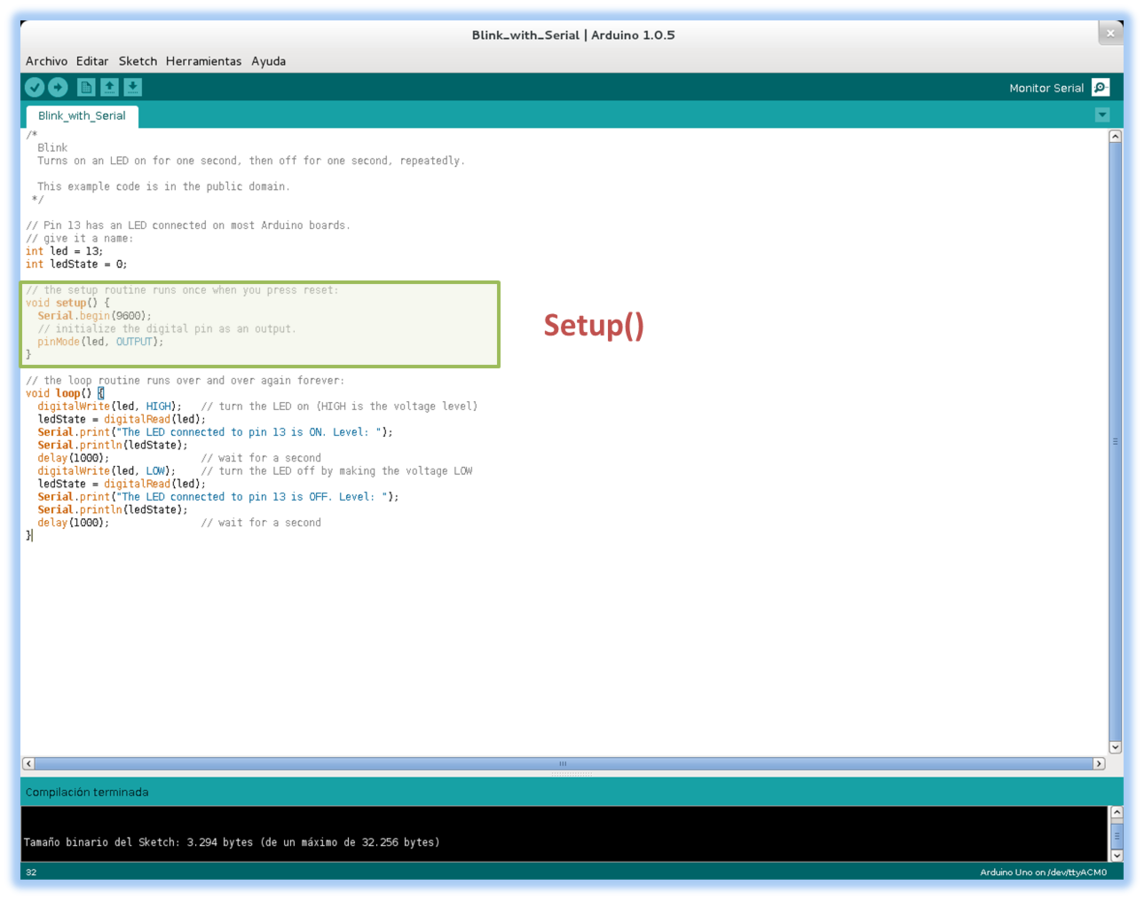

Let's see what's happening!

Rember your schema

Your first circuit (loving LEDs)

Fade...fading

int ledPin = 1;    // LED connected to digital pin 9

void setup()  {
  // nothing happens in setup
}

void loop()  {
  // fade in from min to max in increments of 5 points:
  for(int fadeValue = 0 ; fadeValue <= 255; fadeValue +=5) {
    analogWrite(ledPin, fadeValue); // sets value (range from 0 to 255):             delay(30);  // wait for 30 milliseconds to see the dimming effect                                }
  // fade out from max to min in increments of 5 points:
  for(int fadeValue = 255 ; fadeValue >= 0; fadeValue -=5) {
    // sets the value (range from 0 to 255):
    analogWrite(ledPin, fadeValue);
    // wait for 30 milliseconds to see the dimming effect
    delay(30);
  }
}

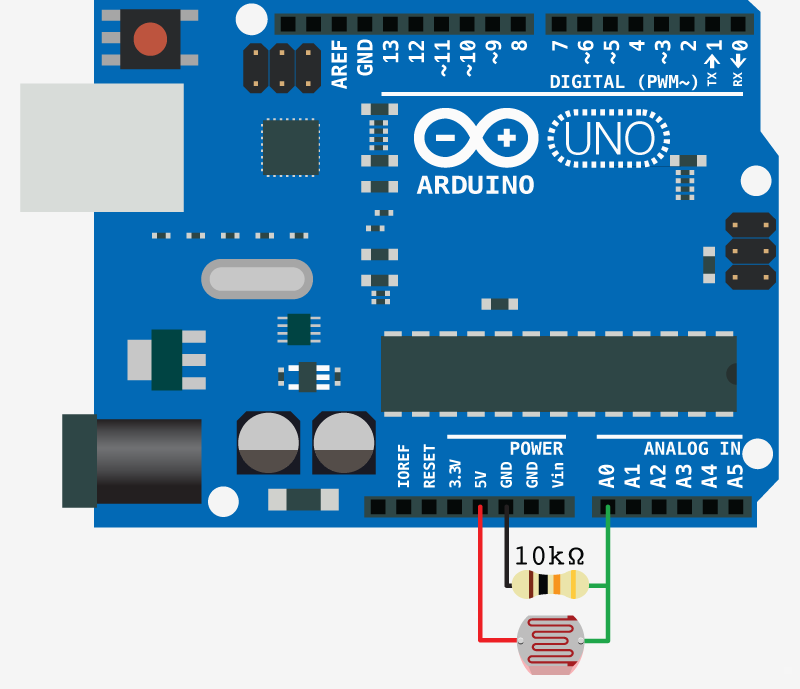

Time for physical interaction

Physical interaction COdE


int led = 11;    // LED connected to digital pin 9
int LDR = A0; //analog pin 0

void setup()  {
  Serial.begin(9600);
  pinMode( led, OUTPUT );
}
void loop()  {
    int LDRReading = analogRead(LDR);
    Serial.println(LDRReading);
    LDRReading = map(LDRReading, 600, 50, 0, 255);
    analogWrite(led, LDRReading);
    delay(10);
}

TONE 1


int led = 11;    // LED connected to digital pin 9
int LDR = A0; //analog pin 0

void setup()  {
  Serial.begin(9600);
  pinMode( led, OUTPUT );
}
void loop()  {
    int LDRReading = analogRead(LDR);
    Serial.println(LDRReading);
    LDRReading = map(LDRReading, 600, 50, 0, 255);
    analogWrite(led, LDRReading);
    delay(10);
}
