Media Streaming

MPEG-DASH

Arnav Kumar

Senior Software Engineer, BrowserStack

Media Streaming

History

MPEG Transport Stream (TS)

  • Digital Video Broadcasting (DVB), IPTV
  • Differs from standard MPEG
    • Packetized Elementary Stream (PES)
    • Error correction and synchronization pattern
  • Constant Bitrate (CBR) to maintain a consistent broadcast rate

TS Problems

  • Broadcaster Controlled - Clients Join, Wait, Buffer
  • For managed networks with controlled Quality of Services (QoS)
    • Fail to sustain bandwidth - video would stutter, stop, and then start over
  • Rigidity towards codecs
    • CBR
    • Tightly Coupled

RTMP/Flash to Rescue

  • Proprietary protocol by Macromedia (Adobe) in conjunction to Flash
  • Application layer - TCP (Port 1935)
  • Encapsulates MP3/AAC audio and MP4/FLV video (& RPC) using Action Message Format (AMF)
  • Stream fragment size negotiated dynamically between client and server
  • RTMP Tunneled (RTMPT), RTMP data is encapsulated and exchanged via HTTP

Proprietary!

  • Bandwidth must be larger than the video bit rate
    • no easy way to switch
  • Protocol was reverse engineered before Adobe released spec
  • Cannot add support for other formats/codecs
  • DRM Limitations
  • Married to FLASH!!

Wait a minute 🤔

  • What if I
    • serve "web optimized" `video/mp4` or `video/webm`
    • via webserver with `Accept-Ranges: bytes`
  • and voila, it works as media playback in browsers is sophisticated enough to download video in chunks
  • Metadata (moov) containing the size of whole container is defined in the beginning of a "web optimized" media file, and dang, it won't work with Live!
  • Still no solution to bitrate switch

Enter Adaptive bitrate streaming (ABR)

  • Builds on segmenting media in several bitrates, and delivering a timestamped manifest (playlist) of gapless segments
  • Single-vendor controlled solutions
    • Independent Implementations
      • Apple HTTP Live Streaming (HLS)
      • Microsoft Smooth Streaming (MSS)
      • Adobe HTTP Dynamic Flash Streaming
    • Flexible CDN
    • Coupled codecs, DRM, segmentation
    • Playback (clients) limited to ecosystems

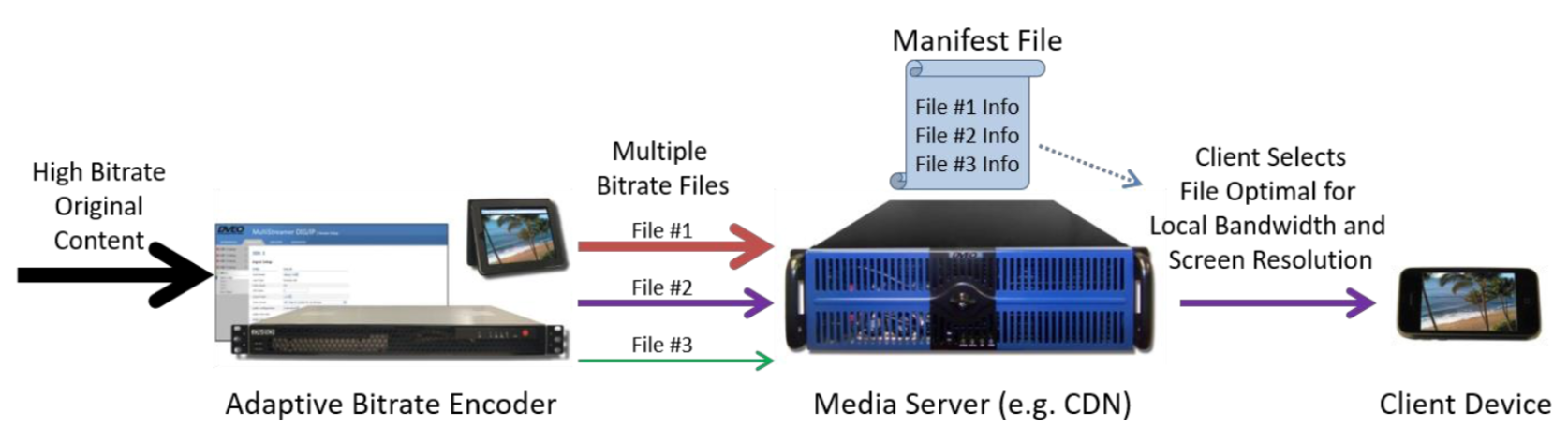

ABR Overview

MPEG-DASH

✌

  • Dynamic Adaptive Streaming over HTTP
  • Independent, open and international standard
  • Phases out Flash for HTML5 Media Source Extentions (MSE) of W3C
  • Standard DRM via HTML5 Encrypted Media Extentions (EME)
  • Uses TCP, delivered over conventional HTTP servers
  • Codec-agnostic

Secret Sauce

  • manifest file (.mpd)
  • the segments
    • (short) individual files - Livestream
    • byte-range on a static file
  • MSE



download segments of video at an appropriate bitrate, and feed them to a video element when it gets hungry — using existing HTTP infrastructure

MPD - Media Presentation Description

  • XML maps out
    • dynamic (live) / static
    • all of the available stream URL, bitrates, dimensions & codecs
    • start time, segment timings (as delta to the start time)
    • min buffer time, mpd update time (avoiding manifest download with every segment), timescale
./audio/
  ├── ./esperanto/
  |     ├── ./128kbps/
  |     |     ├── segment0.mp4
  |     |     ├── segment1.mp4
  |     |     └── segment2.mp4
  |     └── ./320kbps/
  |           ├── segment0.mp4
  |           ├── segment1.mp4
  |           └── segment2.mp4
  └── ./french/
        ├── ./128kbps/
        |     ├── segment0.mp4
        |     ├── segment1.mp4
        |     └── segment2.mp4
        └── ./320kbps/
              ├── segment0.mp4
              ├── segment1.mp4
              └── segment2.mp4
./video/
  ├── ./240p/
  |     ├── segment0.mp4
  |     ├── segment1.mp4
  |     └── segment2.mp4
  └── ./720p/
        ├── segment0.mp4
        ├── segment1.mp4
        └── segment2.mp4

Segment Hierarchy

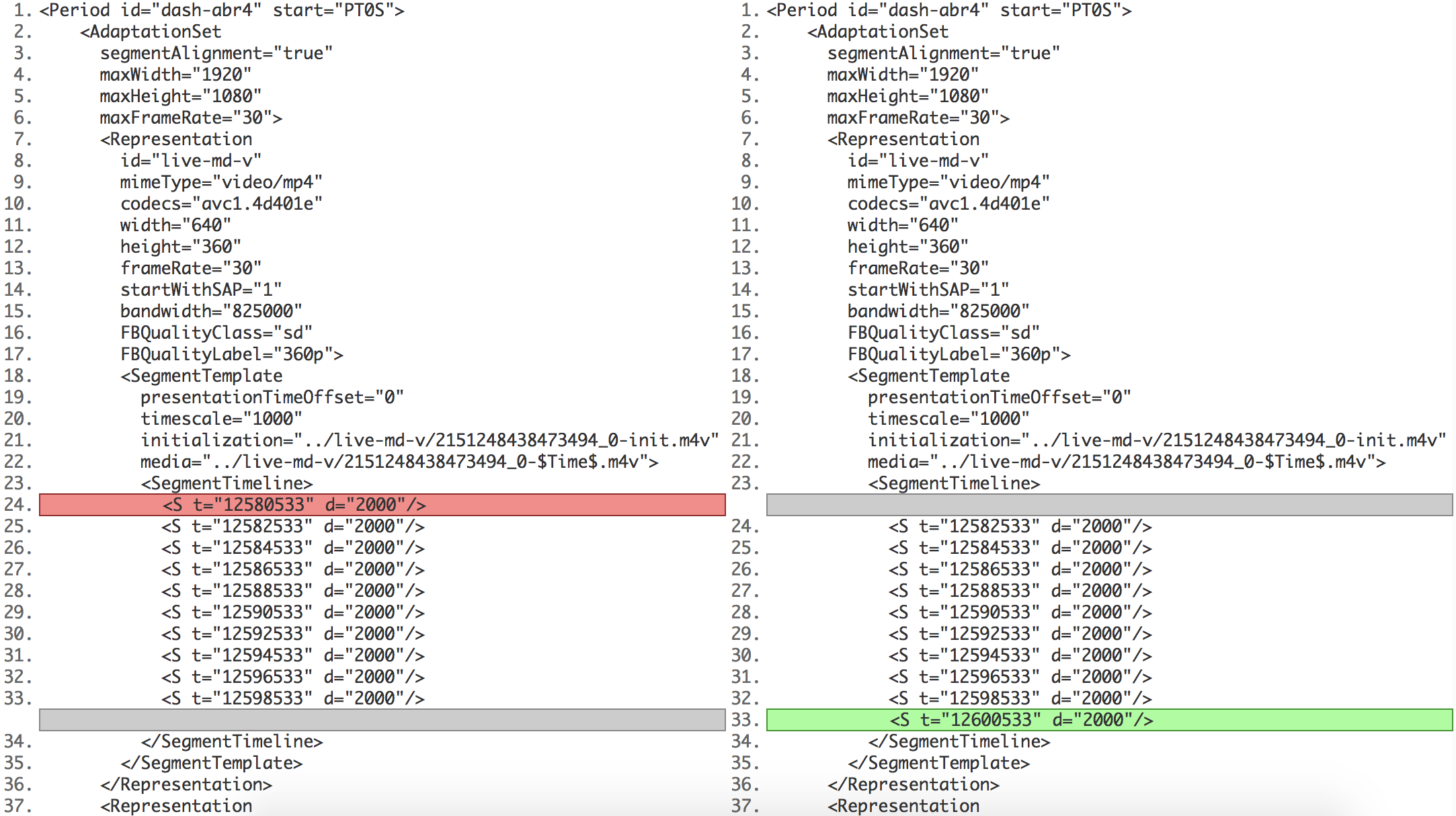

Live MPD Example

Media Source Extensions (MSE)

  • We can load, decode and play media simply by providing a src URL to HTMLMediaElement



  • Media Source API is an extension to HTMLMediaElement
    • Enabling more fine-grained control over the source of media, by allowing JavaScript to build streams for playback from 'chunks' of video
    • This in turn enables adaptive streaming and time shifting
<video src='foo.webm'></video>

DRM Implementation - Widevine

Production Strategy

  • Using ffmpeg to generate segments and descriptors from either a media file or various live inputs
  • Using any HTTP server to serve them statically
ffmpeg \

  -f v4l2 -input_format mjpeg -r 30 -s 1280x720 -i /dev/video0 \

  -f alsa -ar 44100 -ac 2 -i hw:2 -map 0:0 -pix_fmt yuv420p \

  -c:v libvpx-vp9 -s 1280x720 -keyint_min 60 -g 60 ${VP9_LIVE_PARAMS} -b:v 3000k \

  -f webm_chunk -header "/var/www/webm_live/glass_360.hdr" -chunk_start_index 1 \

  /var/www/webm_live/glass_360_%d.chk \

  -map 1:0 \

  -c:a libvorbis -b:a 128k -ar 44100 \

  -f webm_chunk \

    -audio_chunk_duration 2000 \

    -header "/var/www/webm_live/glass_171.hdr" \

    -chunk_start_index 1 \

  /var/www/webm_live/glass_171_%d.chk

Sample ffmpeg - Header Generation

ffmpeg \

  -f webm_dash_manifest -live 1 \

  -i /var/www/webm_live/glass_360.hdr \

  -f webm_dash_manifest -live 1 \

  -i /var/www/webm_live/glass_171.hdr \

  -c copy \

  -map 0 -map 1 \

  -f webm_dash_manifest -live 1 \

    -adaptation_sets "id=0,streams=0 id=1,streams=1" \

    -chunk_start_index 1 \

    -chunk_duration_ms 2000 \

    -time_shift_buffer_depth 7200 \

    -minimum_update_period 7200 \

  /var/www/webm_live/glass_live_manifest.mpd

Sample ffmpeg - Generate MPD

Consumption Strategy

  • For browsers, use dash.js from DASH Industry Forum
  • Fetch the MPD continually, respecting the min update time
  • Maintain the segment tree and timestamp association from the start time
  • Mux the required audio & video segments

Misc. Ops.

  • Mirroring
    • Fetch the manifest similar to consumption
    • Instead of selectively muxing segments, fetch all available segments, mirror them
    • Update the .mpd segment URLs to point to above
  • Ad Insertion
    • Fetch source manifest & mirror it with the source segments
    • When ad needs to be inserted, stop serving the mirrored manifest, and insert the ad manifest

Clipping

  • Keep a map of timestamps and segments corresponding to available qualities
  • Identify series of segments that needs to be merged as per clipping request's time and quality
  • Crop the start and end segment as per requirement
  • Merge & mux them appropriately

FIN
