Platform Transaction Manager

public interface PlatformTransactionManager {
    TransactionStatus getTransaction(
            TransactionDefinition definition) throws TransactionException;

    void commit(TransactionStatus status) throws TransactionException;

    void rollback(TransactionStatus status) throws TransactionException;
}

public interface TransactionDefinition {
    int PROPAGATION_REQUIRED = 0;
    int PROPAGATION_SUPPORTS = 1;
    int PROPAGATION_MANDATORY = 2;
    int PROPAGATION_REQUIRES_NEW = 3;
    int PROPAGATION_NOT_SUPPORTED = 4;
    int PROPAGATION_NEVER = 5;
    int PROPAGATION_NESTED = 6;
    int ISOLATION_DEFAULT = -1;
    int ISOLATION_READ_UNCOMMITTED = Connection.TRANSACTION_READ_UNCOMMITTED;
    int ISOLATION_READ_COMMITTED = Connection.TRANSACTION_READ_COMMITTED;
    int ISOLATION_REPEATABLE_READ = Connection.TRANSACTION_REPEATABLE_READ;
    int ISOLATION_SERIALIZABLE = Connection.TRANSACTION_SERIALIZABLE;
    int TIMEOUT_DEFAULT = -1;

    int getPropagationBehavior();
    int getIsolationLevel();
    int getTimeout();
    boolean isReadOnly();
    String getName();
}

public interface TransactionStatus extends SavepointManager, Flushable {
    boolean isNewTransaction();
    boolean hasSavepoint();
    void setRollbackOnly();
    boolean isRollbackOnly();
    void flush();
    boolean isCompleted();
}

JDBC

<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
    <property name="driverClassName" value="${jdbc.driverClassName}" />
    <property name="url" value="${jdbc.url}" />
    <property name="username" value="${jdbc.username}" />
    <property name="password" value="${jdbc.password}" />
</bean>
<bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
</bean>

JTA

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:jee="http://www.springframework.org/schema/jee"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/jee
        http://www.springframework.org/schema/jee/spring-jee.xsd">

    <jee:jndi-lookup id="dataSource" jndi-name="jdbc/jpetstore"/>

    <bean id="txManager" class="org.springframework.transaction.jta.JtaTransactionManager" />
</beans>

Hibernate

<bean id="sessionFactory"
    class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
    <property name="dataSource" ref="dataSource" />
    <property name="mappingResources">
        <list>
            <value>org/springframework/samples/petclinic/hibernate/petclinic.hbm.xml</value>
        </list>
    </property>
    <property name="hibernateProperties">
        <value>
            hibernate.dialect=${hibernate.dialect}
        </value>
    </property>
</bean>

<bean id="txManager"
    class="org.springframework.orm.hibernate3.HibernateTransactionManager">
    <property name="sessionFactory" ref="sessionFactory" />
</bean>

Transactions

• @Transactional and @EnableTransactionManagement

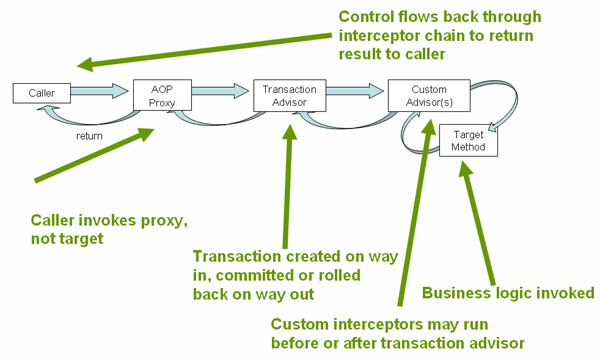

• Implemented with AOP proxies driven by xml or annotation-based metadata
• TransactionInterceptor with PlatformTransactionManager

Transactions

XML example

Some service

public interface FooService {
    Foo getFoo(String fooName);
    Foo getFoo(String fooName, String barName);
    void insertFoo(Foo foo);
    void updateFoo(Foo foo);
}

public class DefaultFooService implements FooService {

    public Foo getFoo(String fooName) {
        ... // readonly
    }

    public Foo getFoo(String fooName, String barName) {
        ... // readonly
    }

    public void insertFoo(Foo foo) {
        ... // normal transaction
    }

    public void updateFoo(Foo foo) {
        ... // normal transaction
    }

}

datasource.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd>

    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close">
        <property name="driverClassName" value="oracle.jdbc.driver.OracleDriver"/>
        <property name="url" value="jdbc:oracle:thin:@rj-t42:1521:elvis"/>
        <property name="username" value="scott"/>
        <property name="password" value="tiger"/>
    </bean>

    <bean id="txManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
</beans>

context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd>

    <bean id="fooService" class="x.y.service.DefaultFooService"/>

</beans>

transactions.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd">

    <!-- the transactional advice (what 'happens'; see the <aop:advisor/> bean below) -->
    <tx:advice id="txAdvice" transaction-manager="txManager">
        <!-- the transactional semantics... -->
        <tx:attributes>
            <!-- all methods starting with 'get' are read-only -->
            <tx:method name="get*" read-only="true"/>
            <!-- other methods use the default transaction settings -->
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>

    <!-- ensure that the above transactional advice runs for any execution
        of an operation defined by the FooService interface -->
    <aop:config>
        <aop:pointcut id="fooServiceOperation" expression="execution(* x.y.service.FooService.*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="fooServiceOperation"/>
    </aop:config>

</beans>

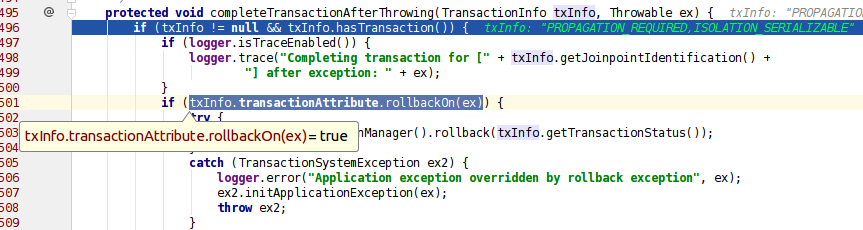

Rolling back

• Rollback on RuntimeException
• Checked Exceptions do not rollback
• Strongest matching rule wins

<tx:advice id="txAdvice" transaction-manager="txManager">
    <tx:attributes>
    <!-- rollback for our own Exception -->
    <tx:method name="get*" read-only="true" rollback-for="NoProductInStockException"/>
    <tx:method name="updateStock" no-rollback-for="InstrumentNotFoundException"/>
    <tx:method name="*"/>
    </tx:attributes>
</tx:advice>

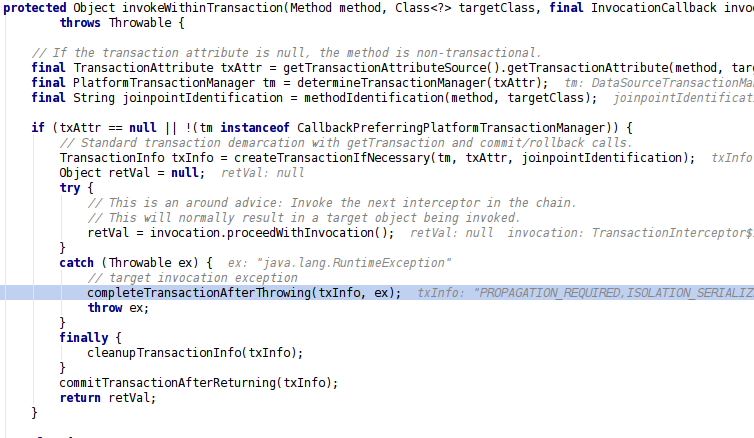

TransactionInterceptor

TransactionAspectSupport

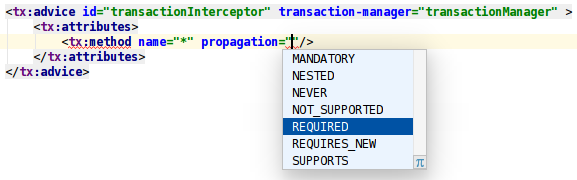

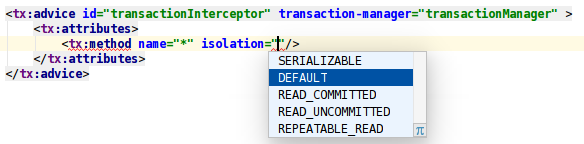

<tx:advice/>

<tx:advice/>

<tx:advice/>

<tx:advice/>

<tx:advice/>

Annotation config

Some service

@Transactional
public class DefaultFooService implements FooService {

    Foo getFoo(String fooName) {
    ...
    }

    Foo getFoo(String fooName, String barName) {
    ...
    }

    void insertFoo(Foo foo) {
    ...
    }

    void updateFoo(Foo foo) {
    ...
    }
}

Configuration in xml

<bean id="fooService" class="x.y.service.DefaultFooService"/>

<tx:annotation-driven transaction-manager="txManager"/>

<bean id="txManager"
    class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <!-- (this dependency is defined somewhere else) -->
    <property name="dataSource" ref="dataSource"/>
</bean>

• We can omit transaction-manager if it has name transactionManager

Configuration in Java

@Configuration
@EnableTransactionManagement
public class DataSourceConfiguration {
    @Bean(autowire = Autowire.BY_TYPE)
    PlatformTransactionManager transactionManager() {
        return new DataSourceTransactionManager();
    }

    @Bean
    public DataSource h2DataSource() {
        JdbcDataSource jdbcDataSource = new JdbcDataSource();
        jdbcDataSource.setURL("jdbc:h2:/home/artur/h2_test.db");
        jdbcDataSource.setUser("sa");
        return jdbcDataSource;
    }
}

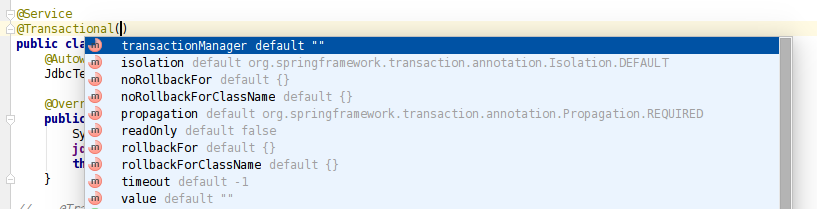

@Transactional

• On class
• On method
• On interface (not recommended)
• Inner invocation are not proxied

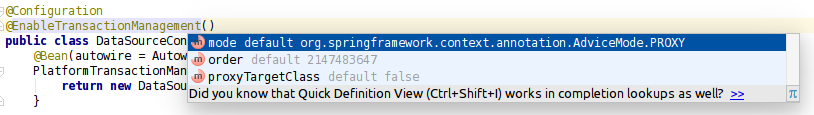

@EnableTransaction

Management

@Transactional

• Transaction name is fully-qualified class name + method name

Custom shortcut annotations

@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Transactional("order")
public @interface OrderTx {
}

@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Transactional("account")
public @interface AccountTx {
}

public class TransactionalService {
    @OrderTx
    public void setSomething(String name) { ... }

    @AccountTx
    public void doSomething() { ... }
}
