Pentesting WebApp & WebServices using Burp Suite

www.linkedin.com/in/arun1105

 @Arunthomas115

@prvnkumark

https://in.linkedin.com/in/prvnkumark

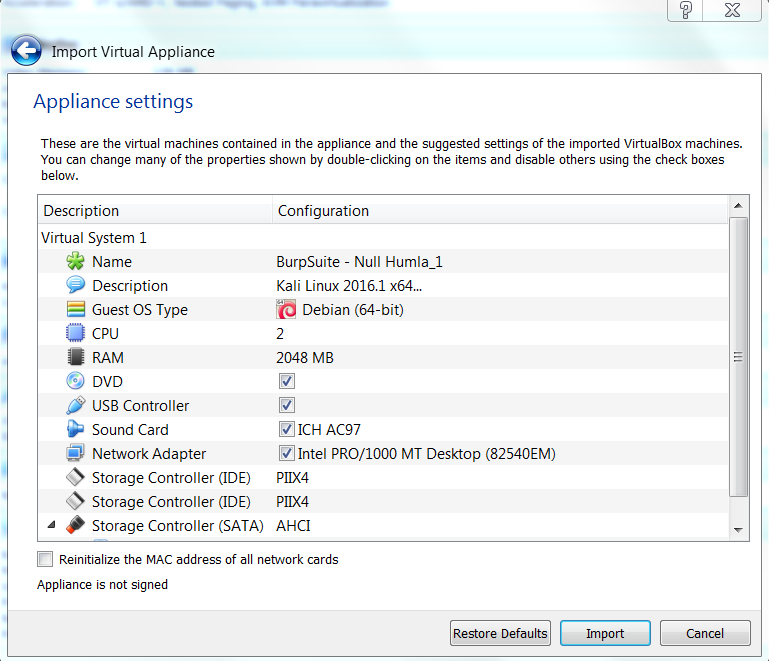

Import the .ova

What is there in the .ova???

It just a kali linux(2016.1) x64 image with following tools;

• Postman & FoxyProxy Browser Addon
• Github - Seclist files
• BurpSuite Free Edition with few free Extenders.
• Docker Container with runs vulnerable applications like;

Vuln Apps :

DVWA, DVWServices, DVWSockets, WebGoat, JuiceShop, Railsgoat, django.NV, Biggy Bank, Mutilidae II

Tools :

MailCatcher, Brakeman - Ruby on Rails Scanner, RIPS - PHP Code Scanner

HTTP Protocol Basics

• HTTP Request & Response & Methods.

• HTTPS / SSL Handshake.

• Same Origin Policy.

• Cookies.

• Sessions.

• Web Proxies.

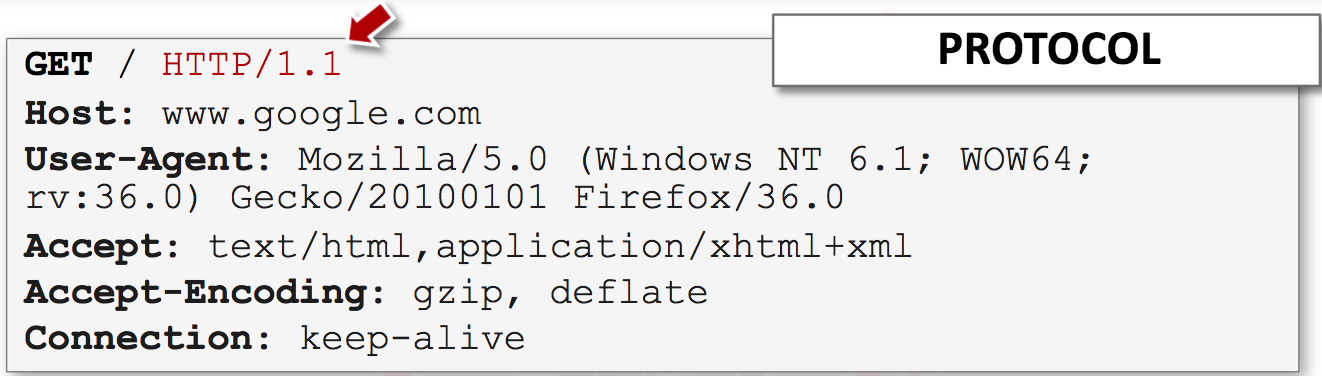

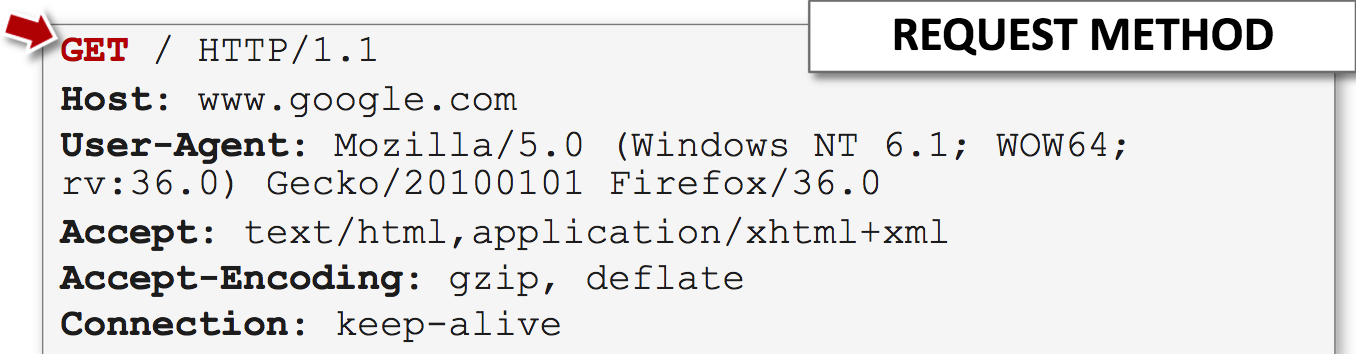

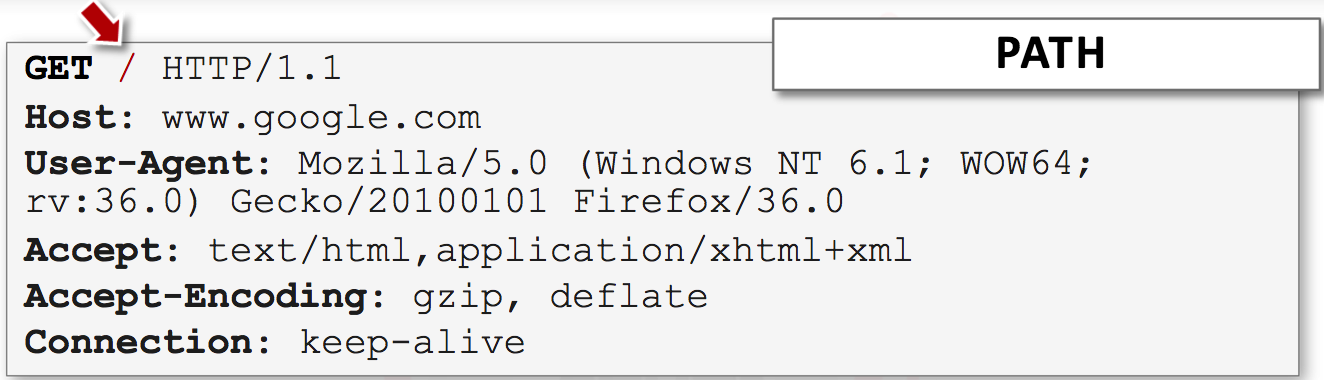

HTTP Request

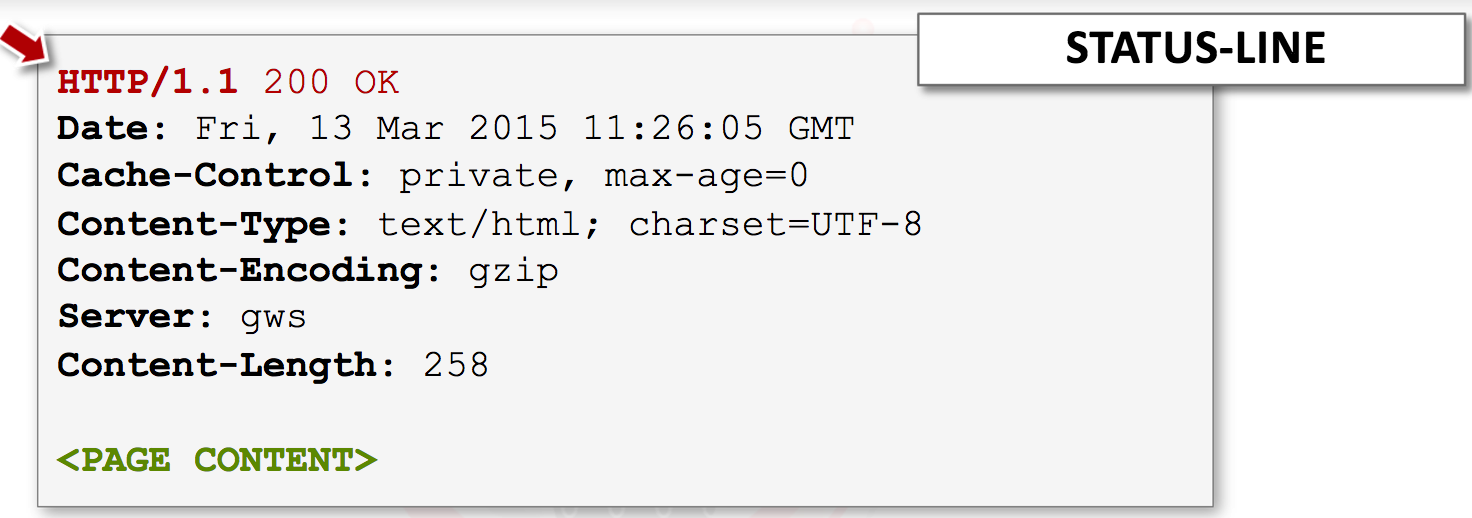

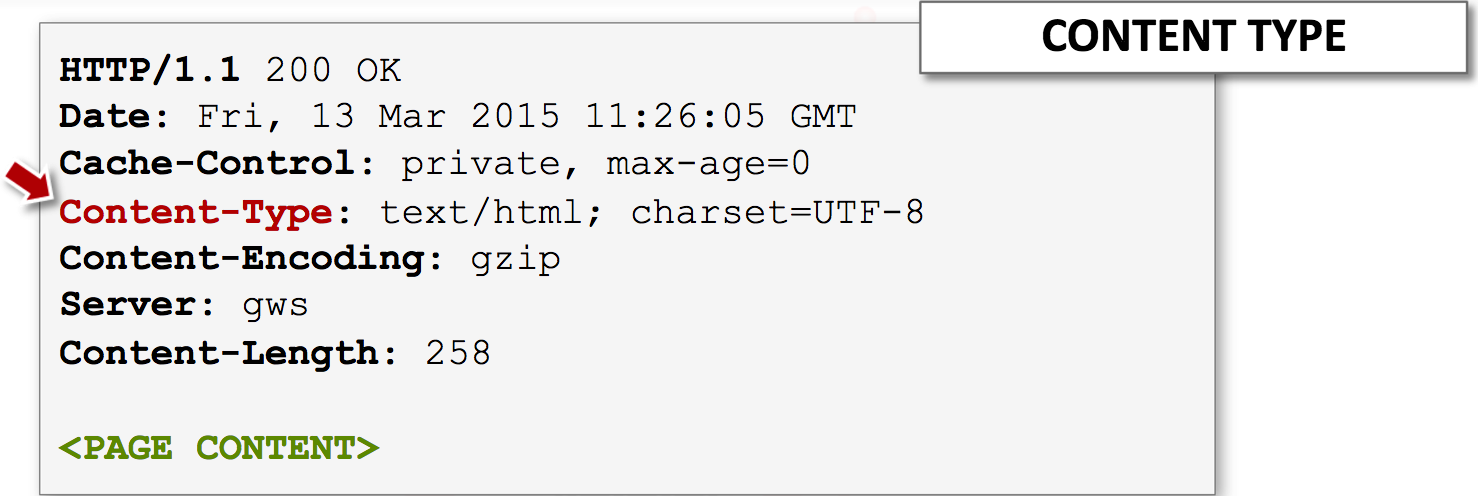

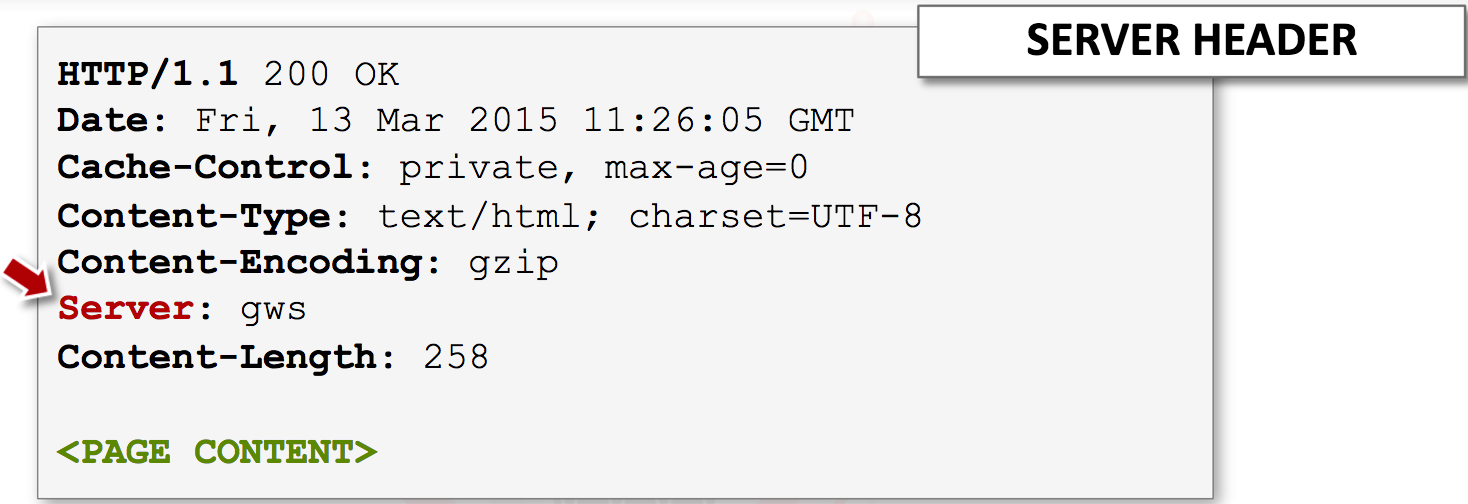

HTTP Response

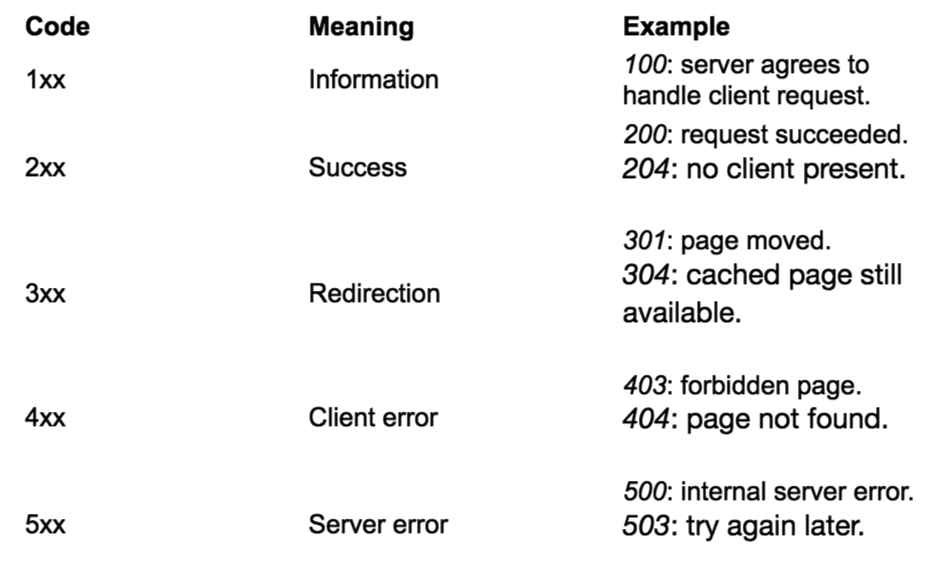

HTTP Status Codes

• Exhaustive List here : https://httpstatuses.com/

Let's Try it Out!!!

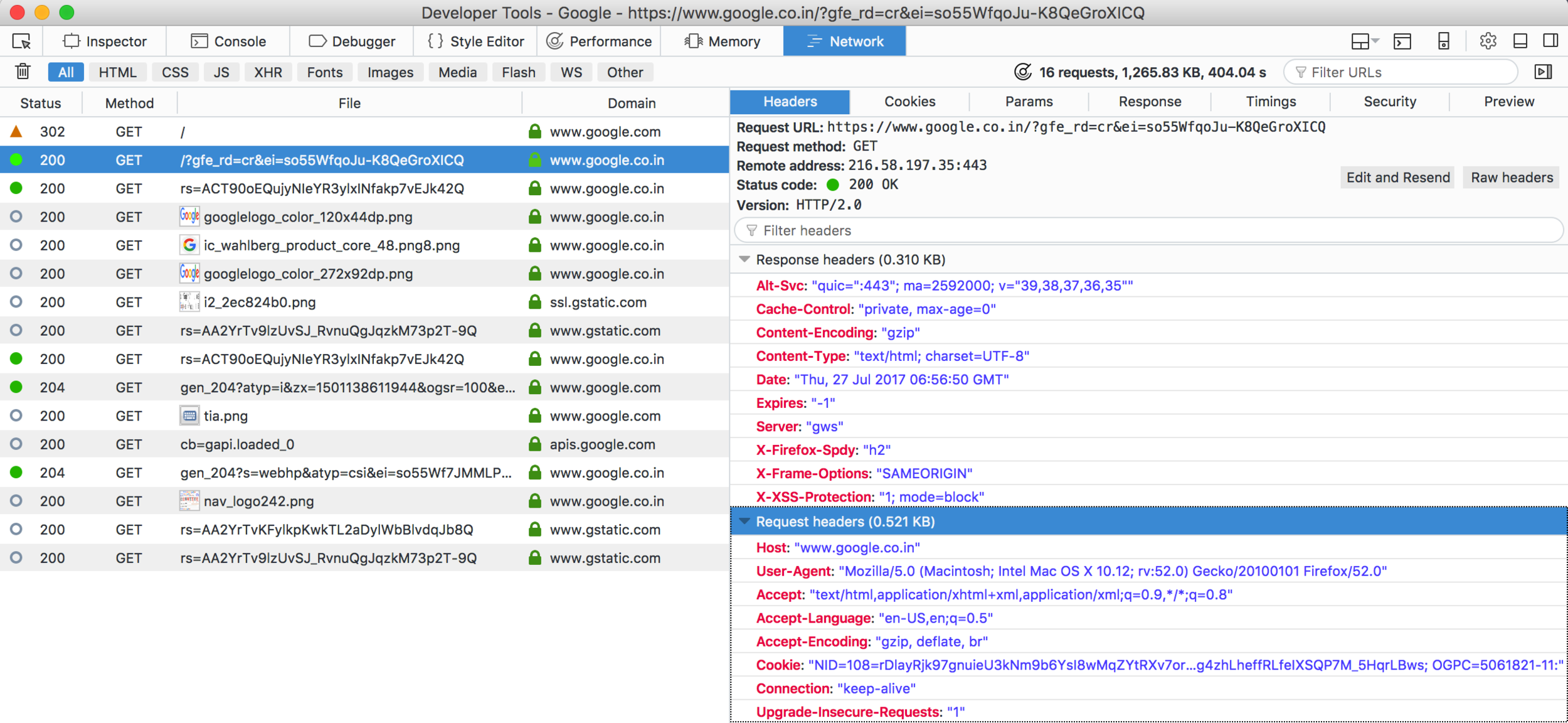

HTTP Request & Response

• Firefox > Settings > Developer > Network

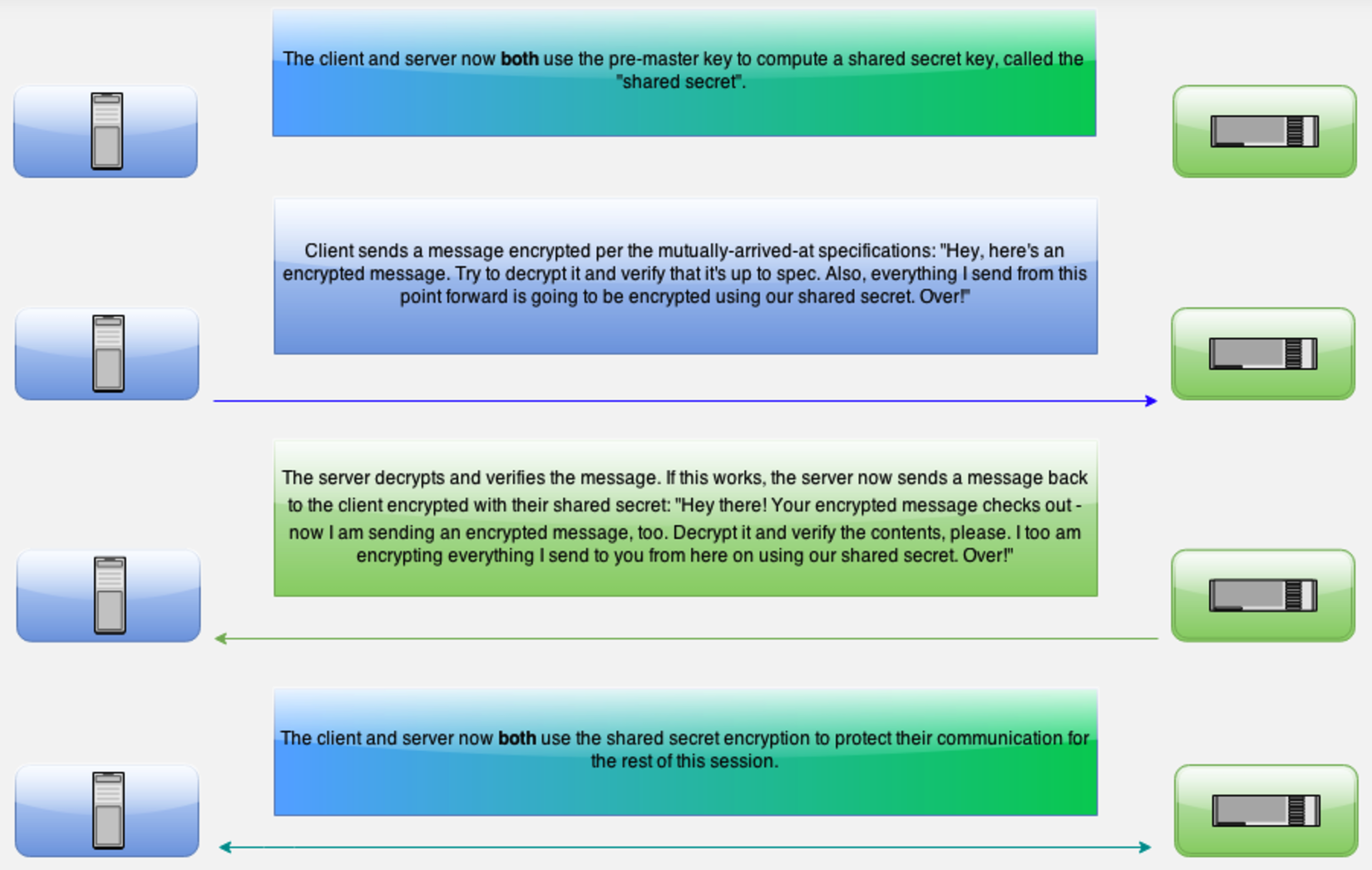

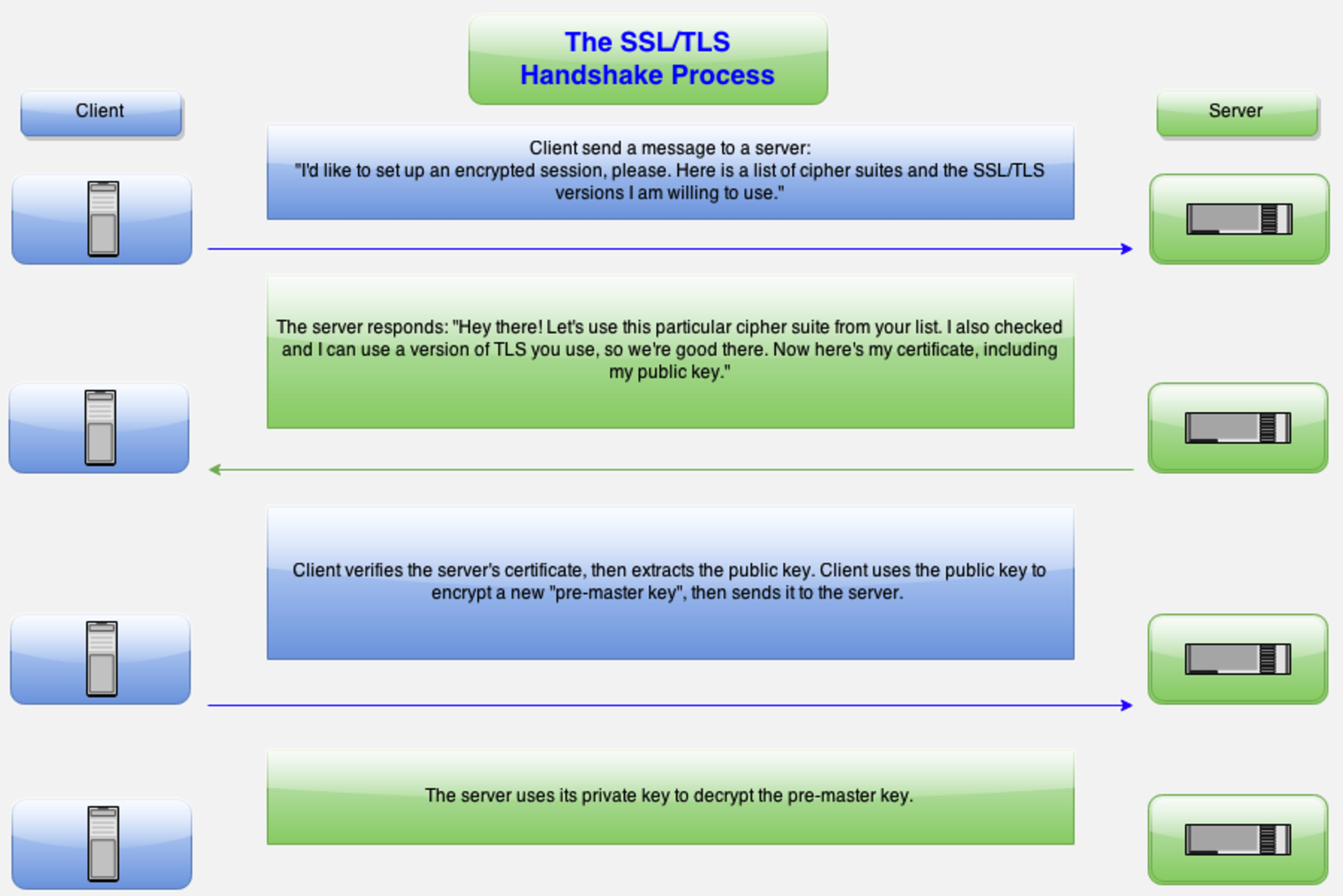

HTTPS/SSL Handshake

Same Origin Policy

• SOP - prevents a script or a document from getting or setting properties of another document that comes from a different origin.

• CSS stylesheets, images and scripts are loaded by the browser without consulting the policy.

• SOP is consulted only when cross-site HTTP requests are initiated from within client side scripts ( IE: JavaScript), or when an Ajax request is run.

Same Origin Policy

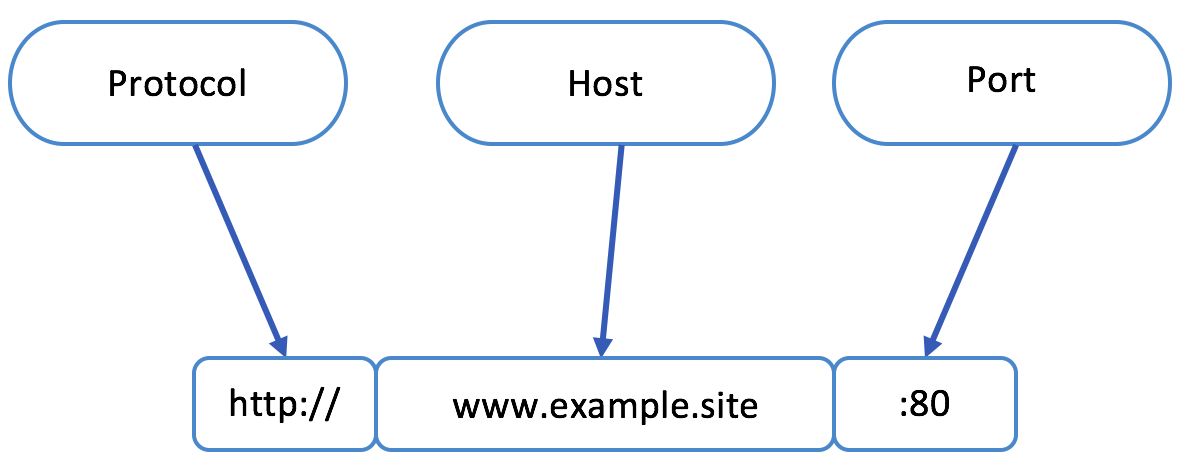

• The origin is based on the following Conditions;

Same Origin Policy

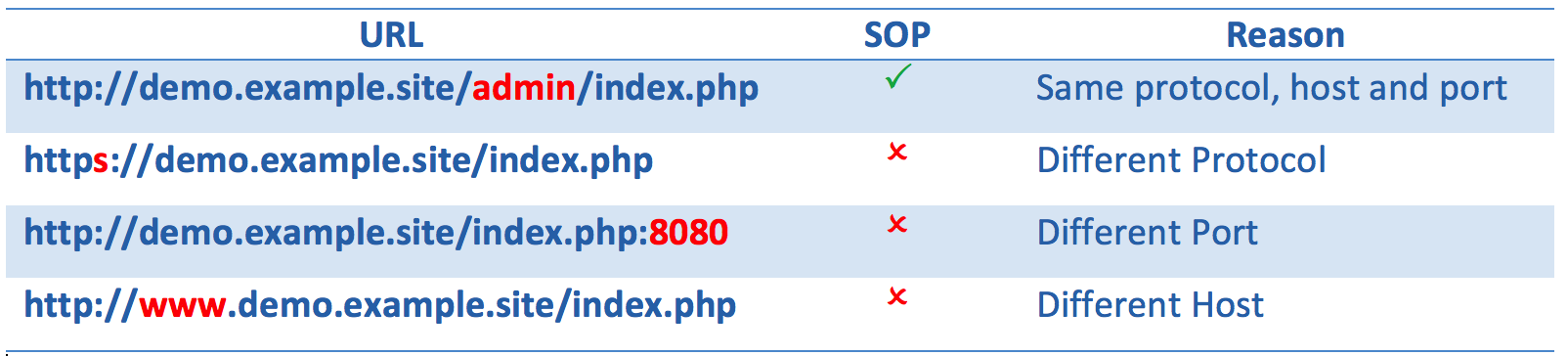

• Let's see an example with the following address;

• http://demo.example.site/index.php

Cookies

Cookies

• HTTP is stateless protocol.

• Cookies are just textual information installed by a website into the "cookie jar" of the web browser.

• Cookie jar is a storage space where a web browser stores the cookies.

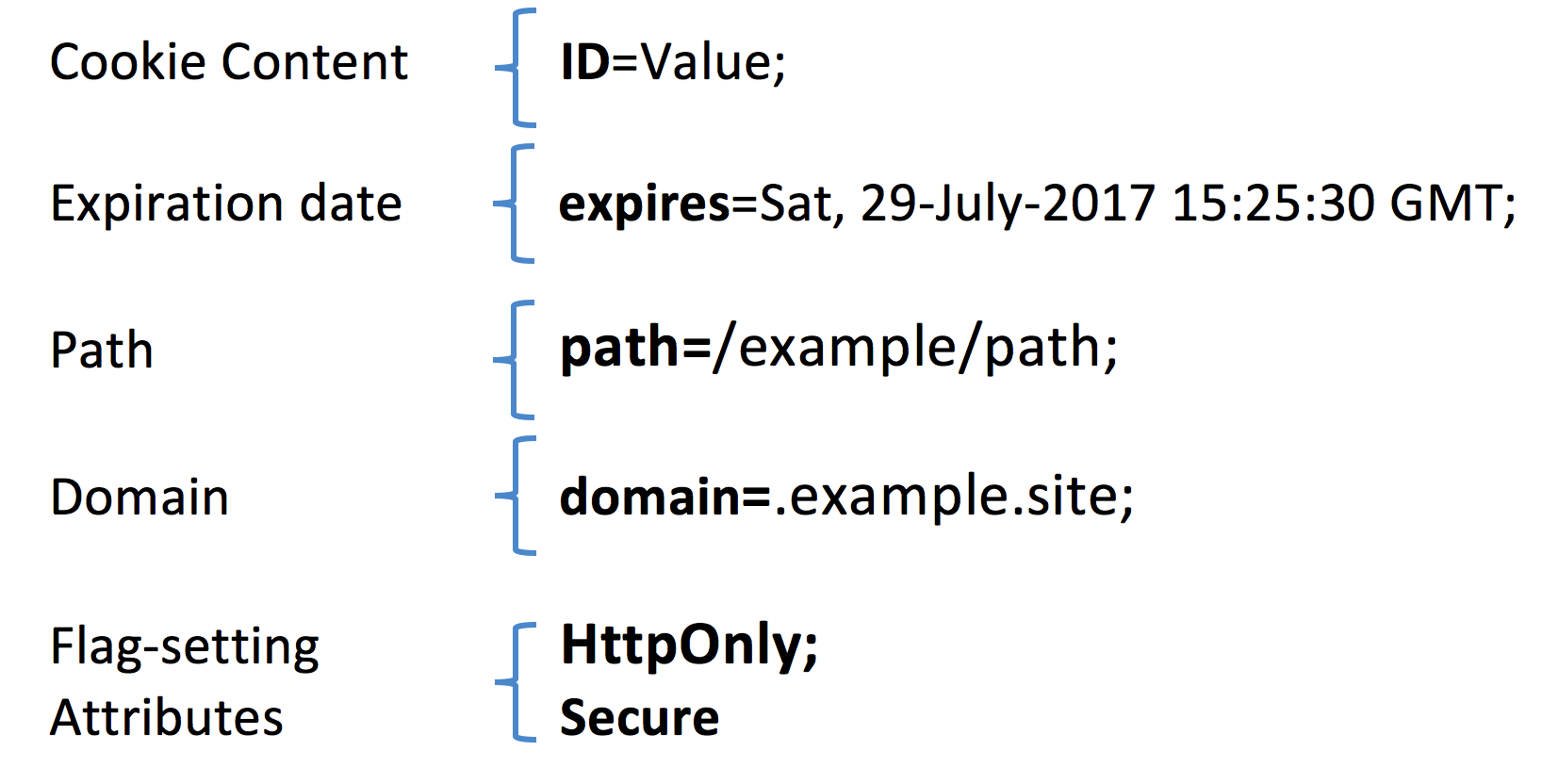

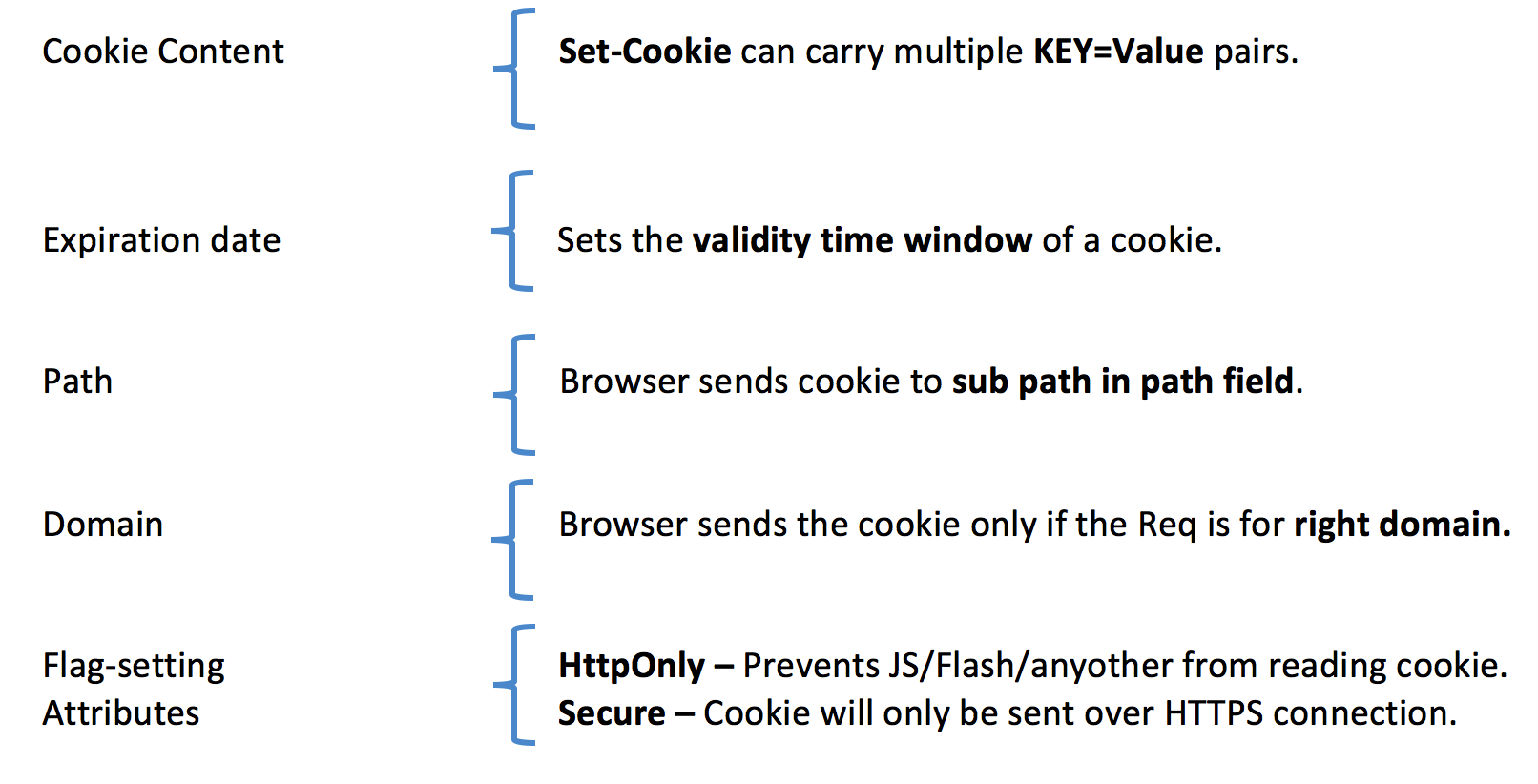

Cookie Format

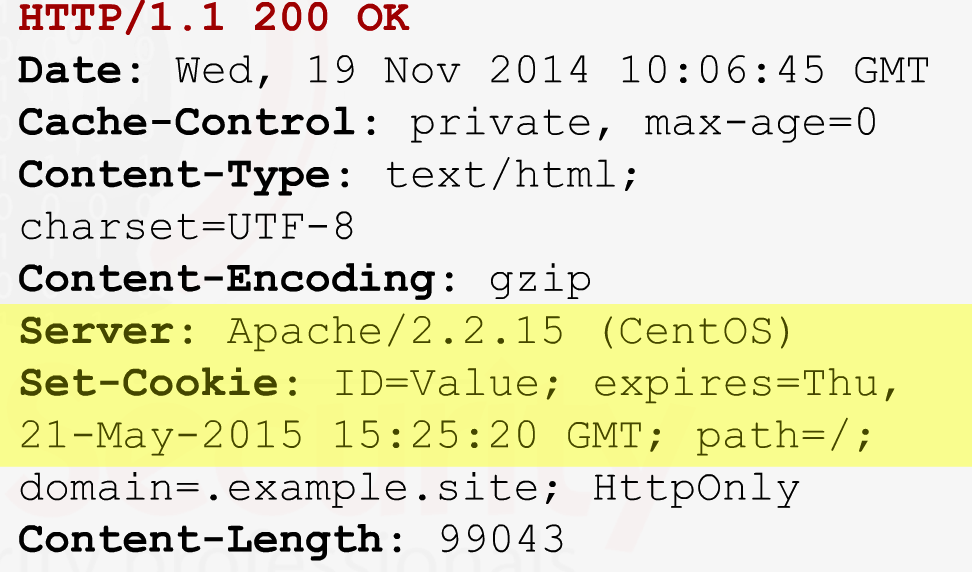

Cookie Format

Intercepting Proxy

An intercepting proxy is a tool that lets you analyze and modify any request and any response exchanged between an HTTP client and a server.

By intercepting HTTP messages a pentester can study a web application behavior and manually test for vulnerabilities.

Intercepting Proxy

• Most used proxies are Burpsuite & ZAP.

• Proxy servers have different purposes: bandwidth optimization, content filtering and more

• Please do not confuse intercepting proxies with common proxy server like squid.

• The next two images will make that clearer.

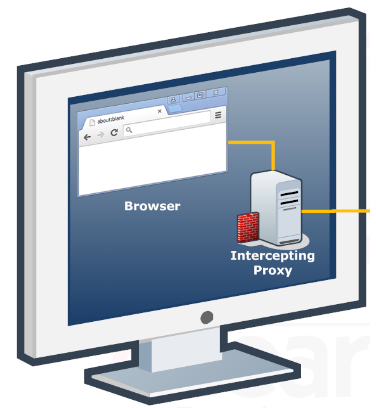

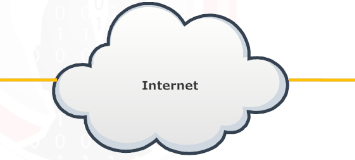

Intercepting Proxy

• Here the proxy is an application which intercepts the user’s browser traffic.

Proxy Server

• Here proxy server filters all traffic coming from internal network.

BurpSuite Free Vs Professional Edition

BurpSuite Essential Components

Burp Proxy

- Intercepts  HTTP/S connections.
Burp Spider
- Crawls a Web Application.
Burp Intruder
- Attack tool that contains a large number of attack methods.
Burp Repeater
- Repeats interactions/attacks.
Burp Sequencer
- Analyzes session tokens.
Burp Decoder
- Decodes various types of encoding for textual information.
Burp Comparer
- Compares two pages together, implementing a form of “diff”

BurpSuite Essentials

• Basics of burp suite and Proxy configuration, local and remote proxy.
• Import Burp SSL cert in chrome
• Site map, Scope, filters, highlight , Compare site map
• Socks proxy – SSH.
• Spider, Repeater, Sequencer, Decoder, Comparer, Project Options, User Options, Alerts.

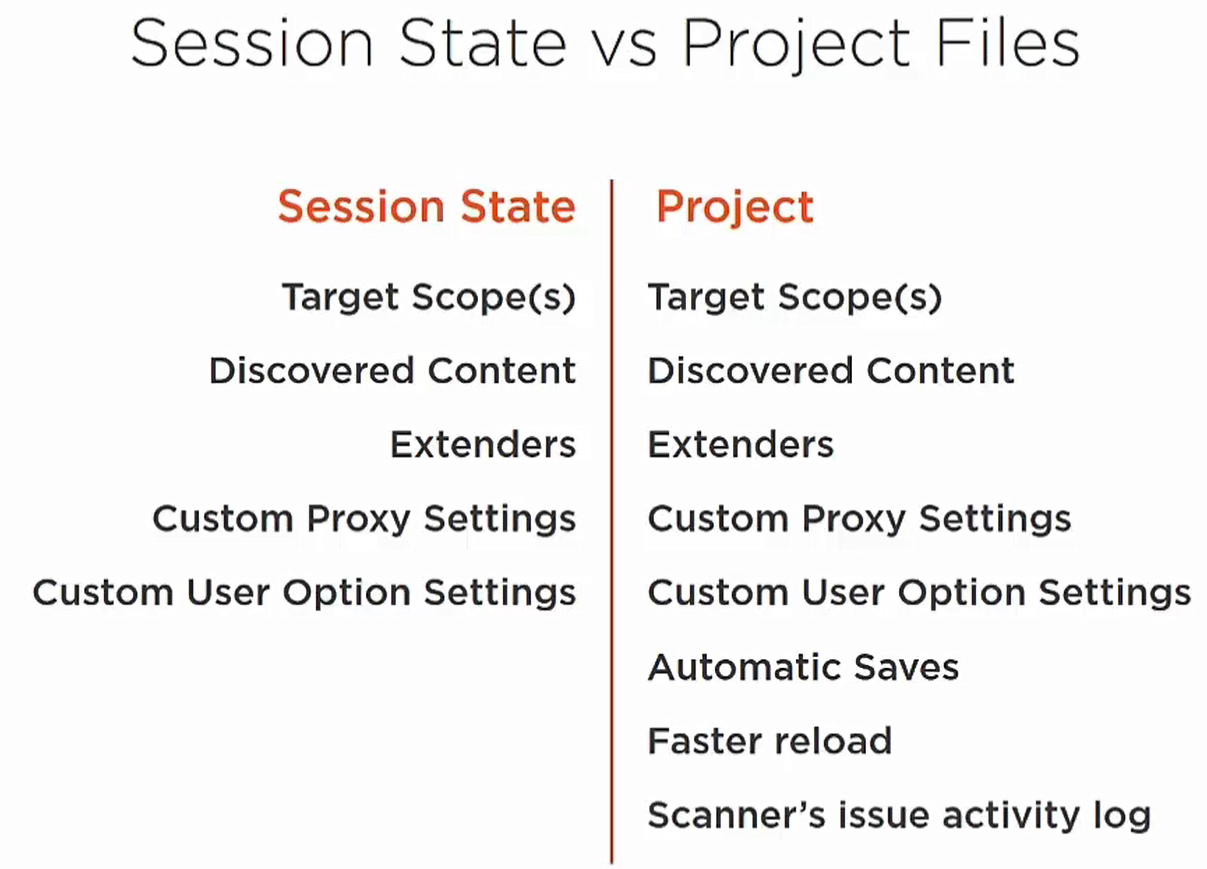

Project Options

BurpSuite Tips & Tricks

• User Options -> Misc -> Hotkeys – Edit use keyboard combination
• Classic – ctr+x|c|v for “cut|copy|paste” ctr+t
• Decoding – ctr+[shift]+u|h|b for url|html|base64
• Navigation – Ctr+shift+T|P|S|I|R –
• Custom – Ctr+G for “issue repeater request”
• History auto scroll
• Change request method

BurpSuite Intruder

• Drawback of burp free version intruder ,compensate with dirbuster and other brute force tools
• Payload from seclist
• Payload processing
• Grep match
• Base64 authentication brute-force
• Anti CSRF tokens

BurpSuite Extensions

• Free and Pro Extensions
• Automatic and Manual Installations – setting lib in folder
• Default Data parsing by burp - Parameters, XML, AMF, Viewstate
• Data Parsing with Extensions - Json Decoder, javascript
• Authz, CO2, logger++, wsdler
• https://github.com/Meatballs1/burp-extensions

BurpSuite Webservices Demo

• API testing plugins like PostMan for Chrome or RESTClient for Firefox allow you to communicate with the RESTful backend of a web application directly.
• Using these plugins you can create requests for all available HTTP verbs (GET, POST, PUT, DELETE etc.) with all kinds of content-types, request headers etc.

BurpSuite  - Webservices Addon

• Burp suite Essentials Book – Akash Mahajan

• Agarri - http://www.agarri.fr/en/

References
