#Whoami

• Álex Soler (murphy)
  • @as0ler

• Red Team member in

• Barcelona Cybersecurity Meetups

Why i am here

• Let's see a real example of...
• • how easy is to learn and use r2.
  • how to create your own r2-based tool.
• This is an example about how to use r2 during iOS apps security assessments.

Index

• iOS Binary format
• iOS Security Architecture
• r2 on an iPhone
• Parsing and Patching
• Automating the process

iOS Binary Format

Mach-0 File Layout

Mach-0 Header

Load Commands

Data

• Header: general information about the binary.
• Load Commands: kind of table of contents.
• Data: Organized in Segments and Sections.

iOS Binary Format

FatMach-O File Layout

FAT Header

FAT Arch

Mach-0 File

struct fat_header {
	uint32_t magic;
	uint32_t nfat_arch; //Bin number
};


struct fat_arch {
  uint32_t cputype;    //Arch
  uint32_t cpusubtype;
  uint32_t offset;     //Bin offset
  uint32_t size;       //BIn size
  uint32_t alighn;
};

FAT Arch

Mach-0 File

iOS Binary Format

pf Command

• print/define binary structures

$pf obj=xxdz prev next size name     #Define an "obj" struct (hexflag hexflag hex string)

$pf.obj @ <addr>                                     #Apply "obj" struct to addr

$pf.                                                               #List all formats

[0x00000100]> pf??
|pf: pf[.k[.f[=v]]|[ v]]|[n]|[0][ [sz] fmt] [a0 a1 ...]
| Format:
|  b       byte (unsigned)
|  B       resolve enum bitfield (see t?)
|  c       char (signed byte)
|  d       0x%%08x hexadecimal value (4 bytes)
|  D       disassemble one opcode
|  e       temporally swap endian
|  E       resolve enum name (see t?)
|  f       float value (4 bytes)
|  i       %%i integer value (4 bytes)
|  n       next char specifies size of signed value (1, 2, 4 or 8 byte(s))
|  N       next char specifies size of unsigned value (1, 2, 4 or 8 byte(s))
|  o       0x%%08o octal value (4 byte)

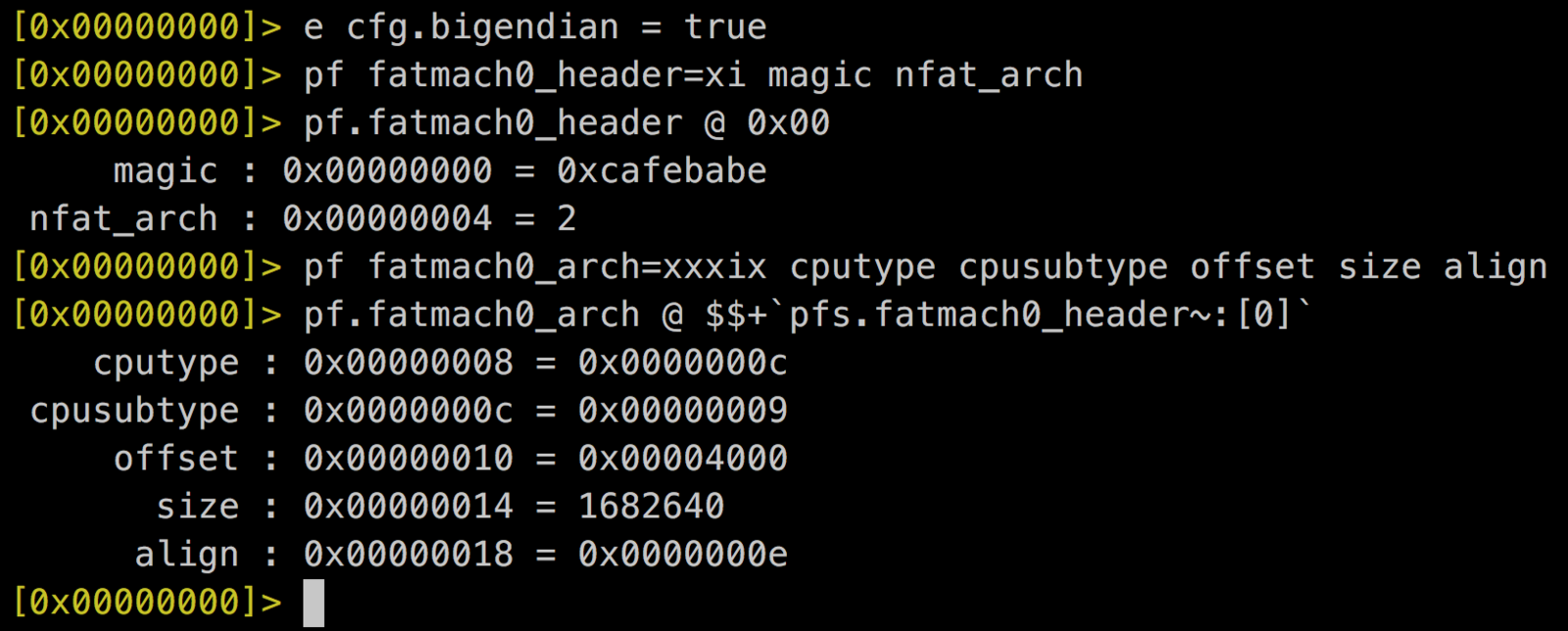

iOS Binary Format

FatMach-0 Header

struct fat_header {
	uint32_t magic;
	uint32_t nfat_arch; //numBin
};

FAT Struct is in big endian!

struct fat_arch {
  uint32_t cputype;    //Arch
  uint32_t cpusubtype;
  uint32_t offset;     //Bin offset
  uint32_t size;       //BIn size
  uint32_t align;
};

iOS Binary Format

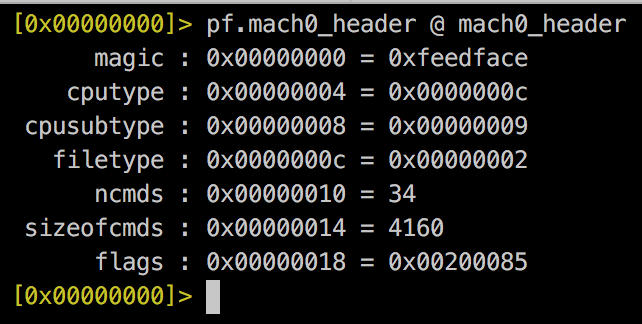

Mach-0 Header

struct mach_header {
   uint32_t magic;
   uint32_t cputype;
   uint32_t cpusubtype;
   uint32_t filetype;
   uint32_t ncmds;
   uint32_t sizeofcmds;
   uint32_t flags;
};

iOS Binary Format

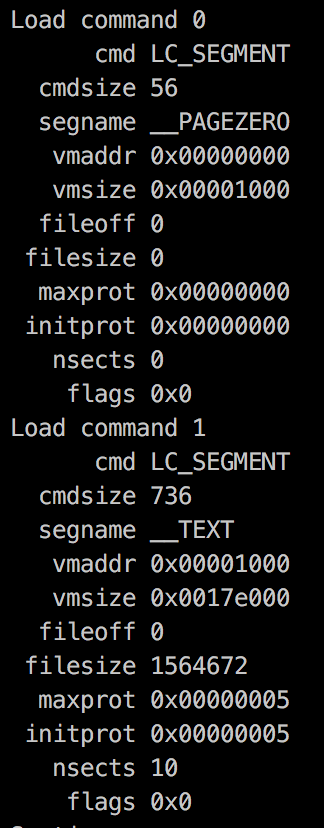

Load Commands

struct lc {
	uint32_t cmd;
	uint32_t cmdsize;
        //Custom fields
};

iOS Binary Format

Interesting sections

• __TEXT,__text: Code
• __TEXT,__cstring: Constant C strings. A C string is a sequence of non-null bytes that ends with a null byte ('\0')
• __TEXT,__objc_classname: Class names
• __TEXT,__objc_methname: Class method names

Classdump

0x00c96248 class 0 IGAlbumCameraPermissionView
0x0011e3b0 method 0 initWithFrame:_8
0x0011ea2a method 1 layoutSubviews_15
0x0011ed48 method 2 refreshViewStateAnimated:
0x0011ef8c method 3 didTapCameraEnable
0x0011efca method 4 didTapMicrophoneEnable
0x0011f07a method 5 .cxx_destruct_42
0x0011f008 method 6 delegate_27
0x0011f026 method 7 setDelegate:_25
0x0011f03a method 8 cameraBlurOverlay
0x0011f04a method 9 textLabel_2
0x0011f05a method 10 cameraButton
0x0011f06a method 11 microphoneButton

$rabin2 -c Instagram.arm_32.0

[0x100000de0]> iC

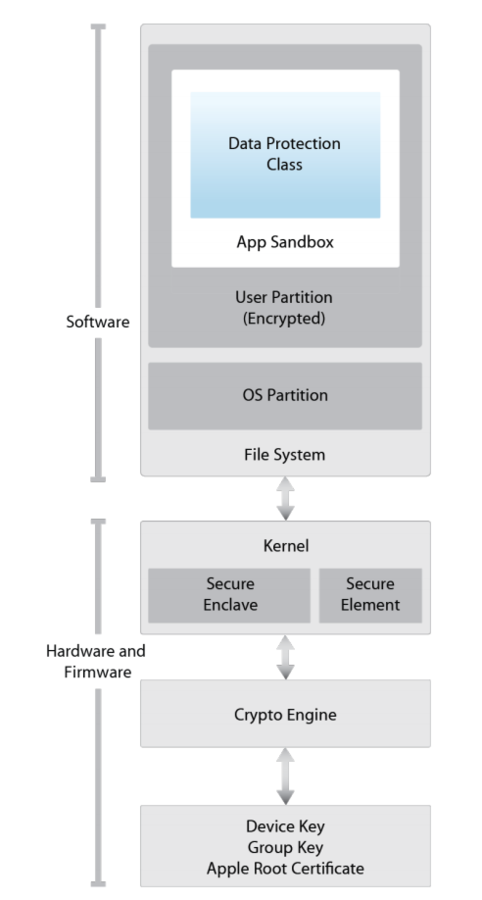

• Sandboxing
• non-privileged user
• Encryption
• Address Space Layout Randomization
• Code Signing
• ....

Application Security

iOS Security Architecture

LC_ENCRYPTION_INFO

struct encryption_info_command {
   uint32_t cmd;    /* LC_ENCRYPTION_INFO */
   uint32_t cmdsize;  /* sizeof(struct encryption_info_command) */
   uint32_t cryptoff; /* file offset of encrypted range */
   uint32_t cryptsize;  /* file size of encrypted range */
   uint32_t cryptid;  /* which enryption system,
           0 means not-encrypted yet */
};

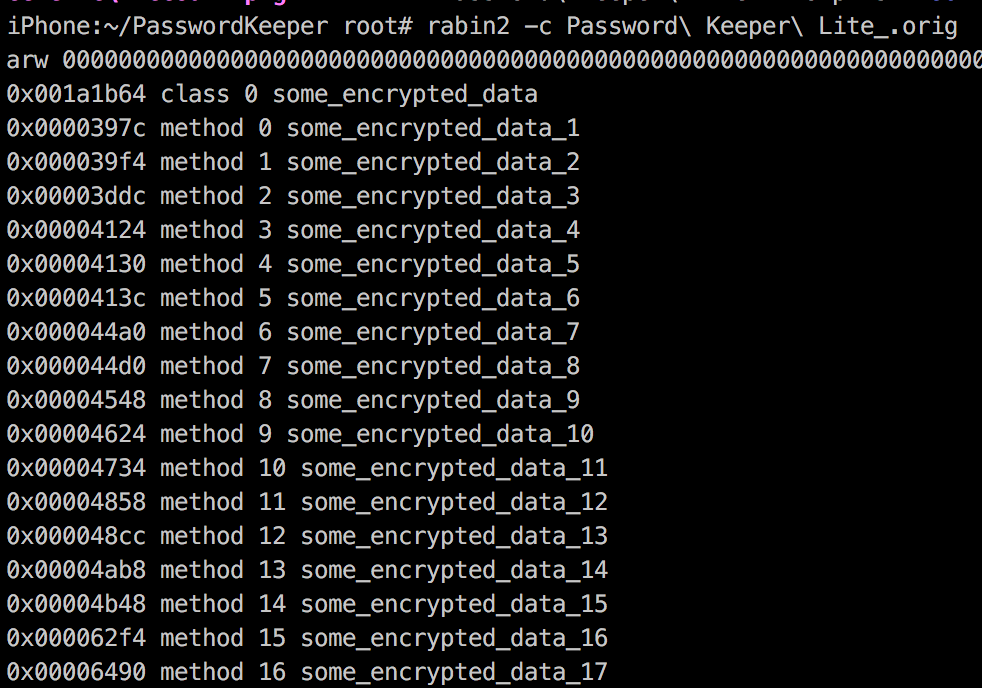

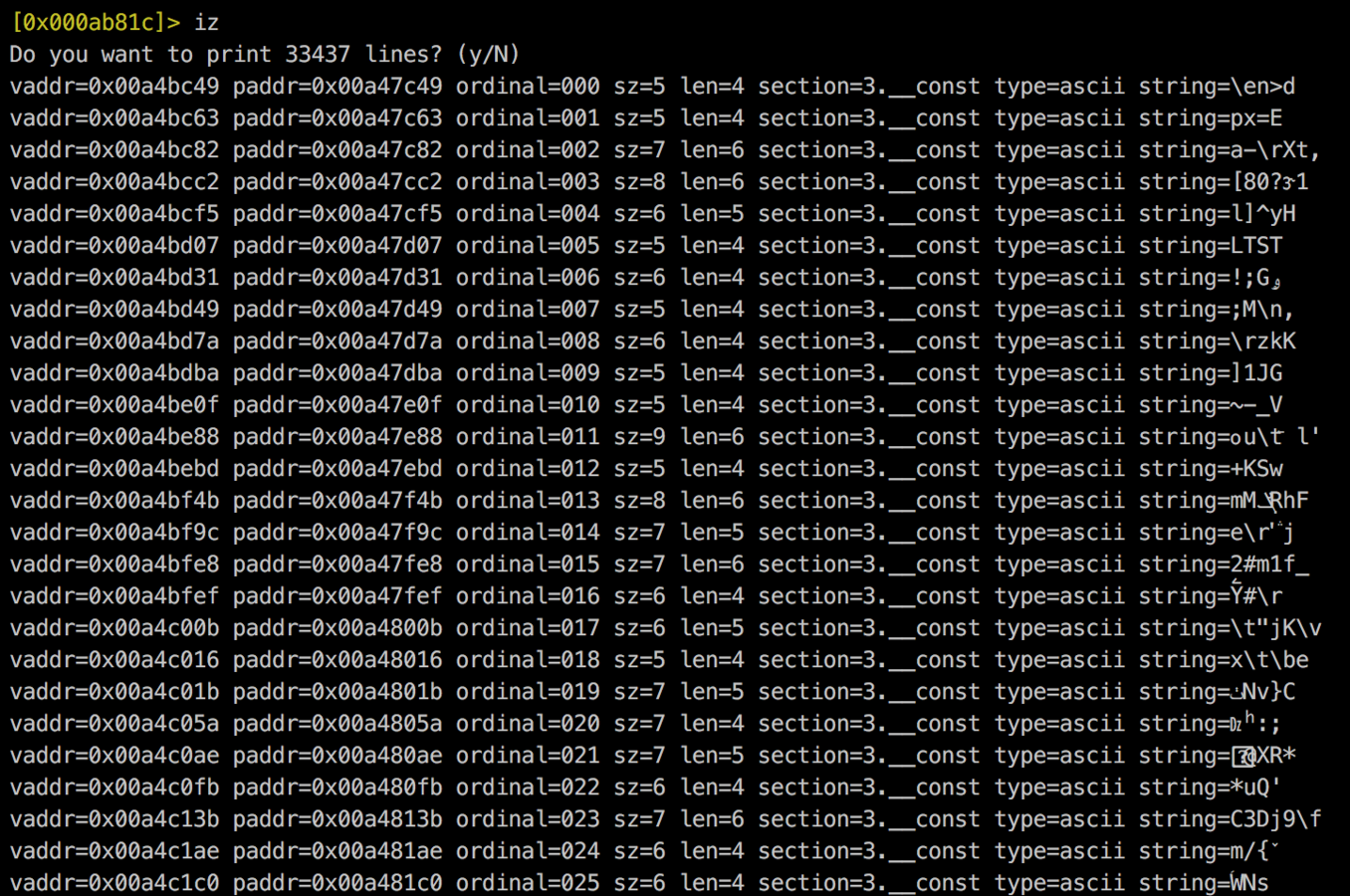

iOS Security Architecture

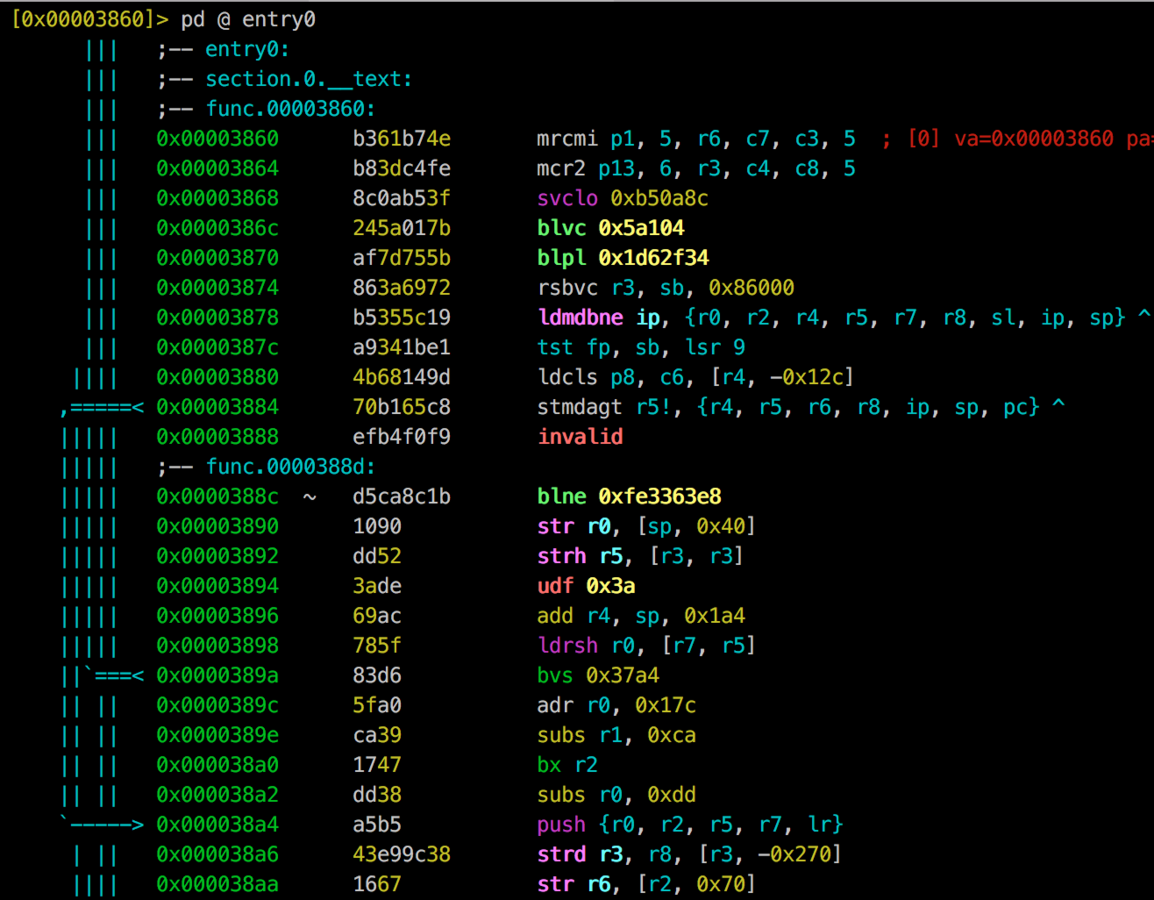

Solutions?

The binary is decrypted in memory

iOS Security Architecture

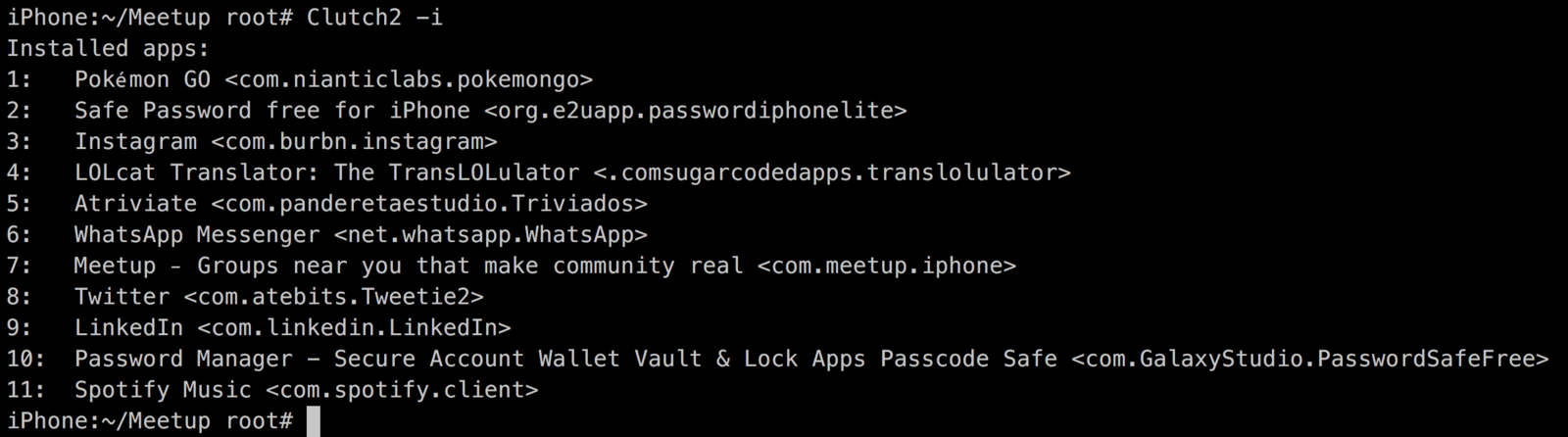

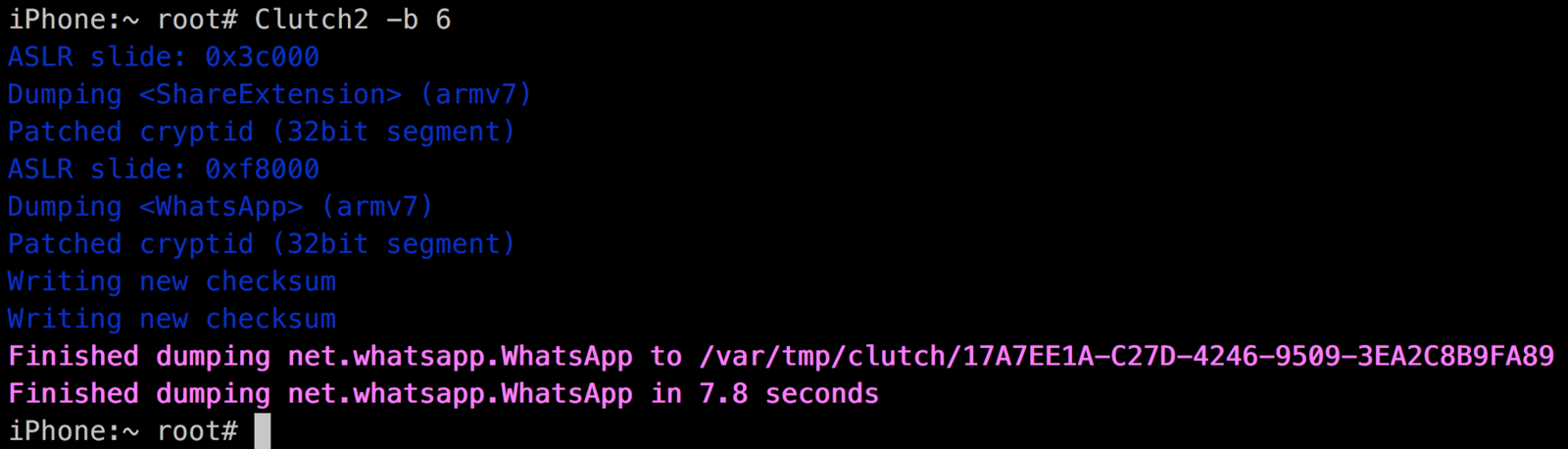

Clutch / Clutch2

iOS Security Architecture

Clutch is not good...

• Can't decrypt some binaries

• Decrypt everything all the time (=slow)

• Lots of lines of code (difficult to fix)

iOS Security Architecture

R2 in your iPhone

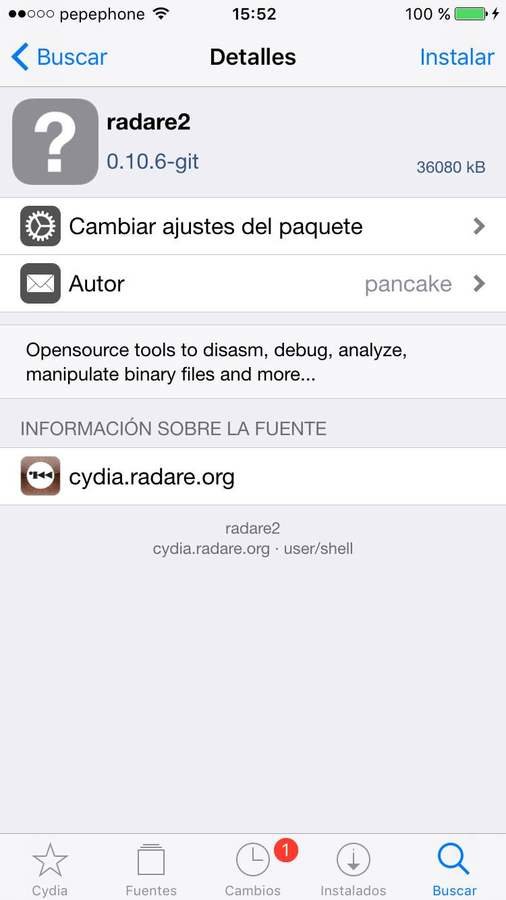

From Cydia

(http://cydia.radare.org)

R2 in your iPhone

From GIT

$git clone http://github.com/radare/radare2
$sys/ios-cydia.sh

iphone$ dpkg -i radare2_0.10.6-git_iphoneos-arm.deb

• Compile Radare2 in local.

• Copy .deb file into the iphone.

radare2/sys/cydia/radare2/radare2_0.10.6-git_iphoneos-arm.deb

• Installing deb

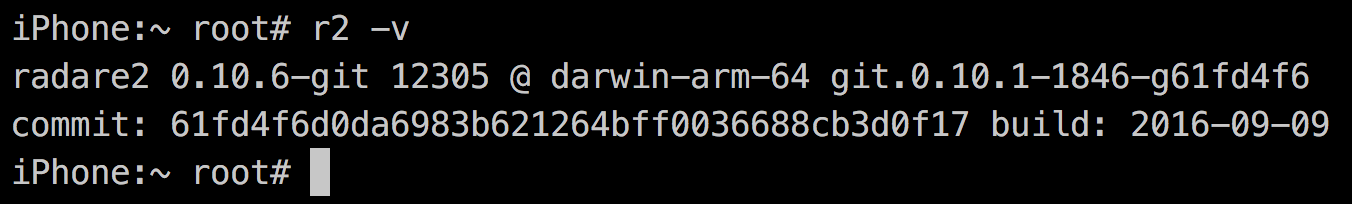

• Check version

R2 in your iPhone

Default

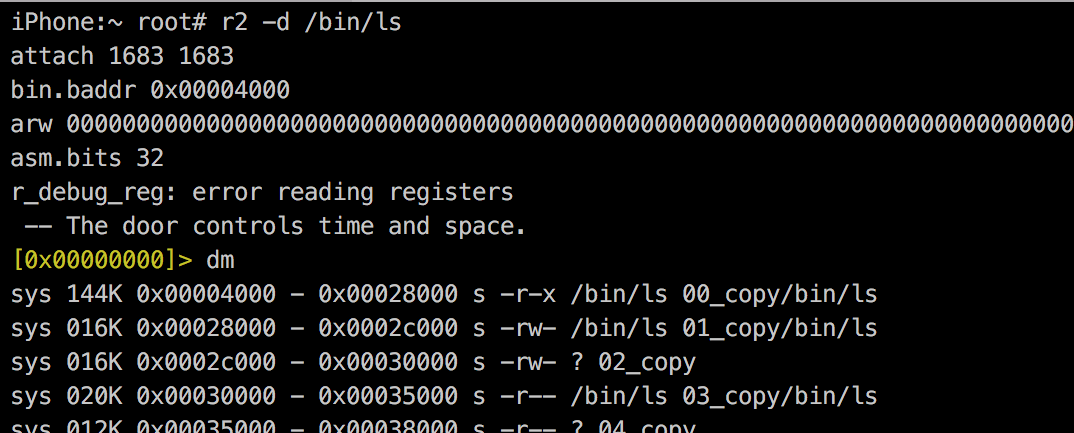

Debug

R2 in your iPhone

Remember to add the correct Entitlements

iPhone:~ root# cat radare.xml
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN"
"http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
 <dict>
  <key>app-identifier</key>
  <true/>
  <key>get-task-allow</key>
  <true/>
  <key>task_for_pid-allow</key>
  <true/>
 </dict>
</plist>
<!--
  This file must be used to 'sign' the 'radare' binary
  after compiling to permit debugging on the iphone-os
  $ ldid -Sradare.xml radare
-->
iPhone:~ root# ldid -Sradare.xml /usr/bin/radare2

R2 in your iPhone

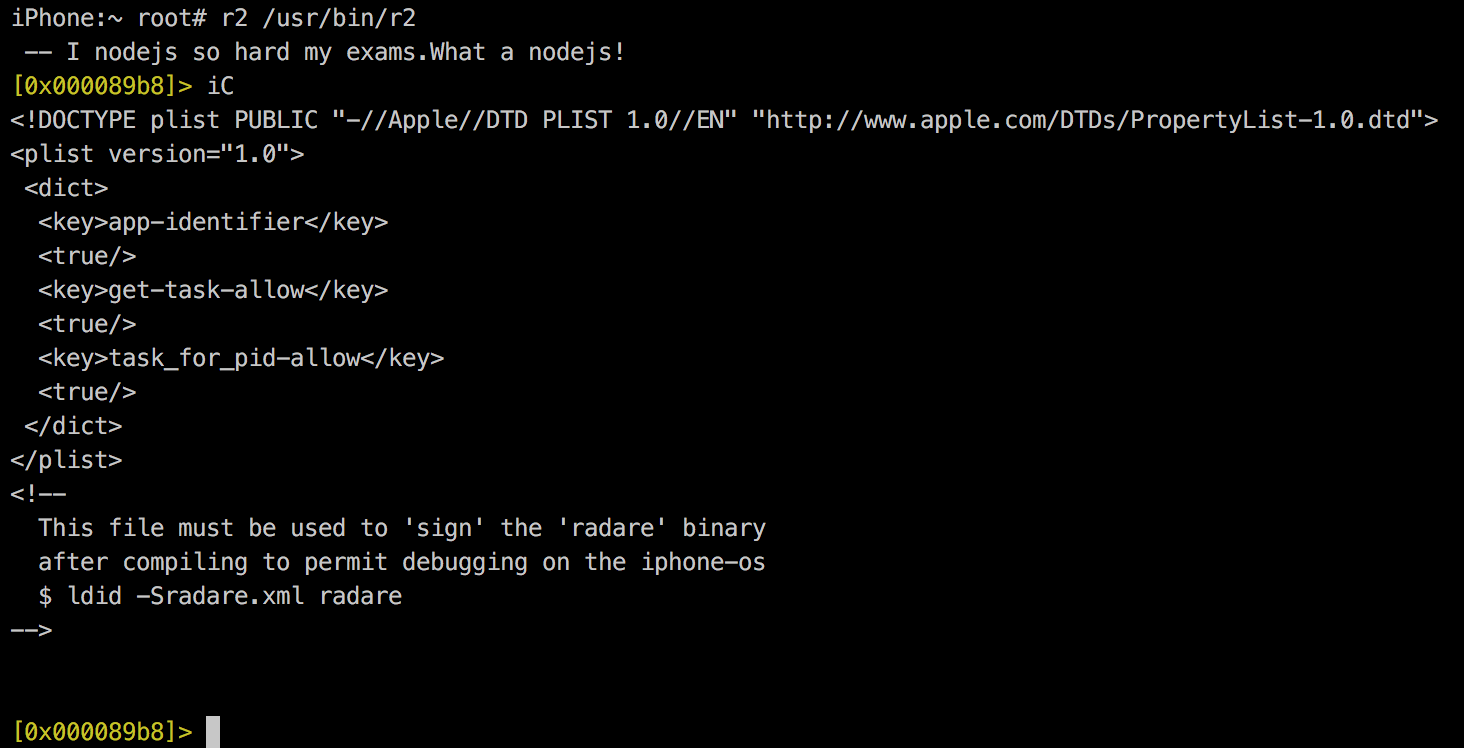

And of course, you can check it with R2...

Parsing & Patching

To decrypt an app...

1. Extract mach0 bin from FatMach0 (if needed)
2. Identify whether PIE is enabled or not.
3. Identify encryption information.
4. Identify process address space.
5. Dump decrypted process into a file.
6. Overwrite original binary with the decrypted one.
7. Patch binary structure as a decrypted one.

Parsing & Patching

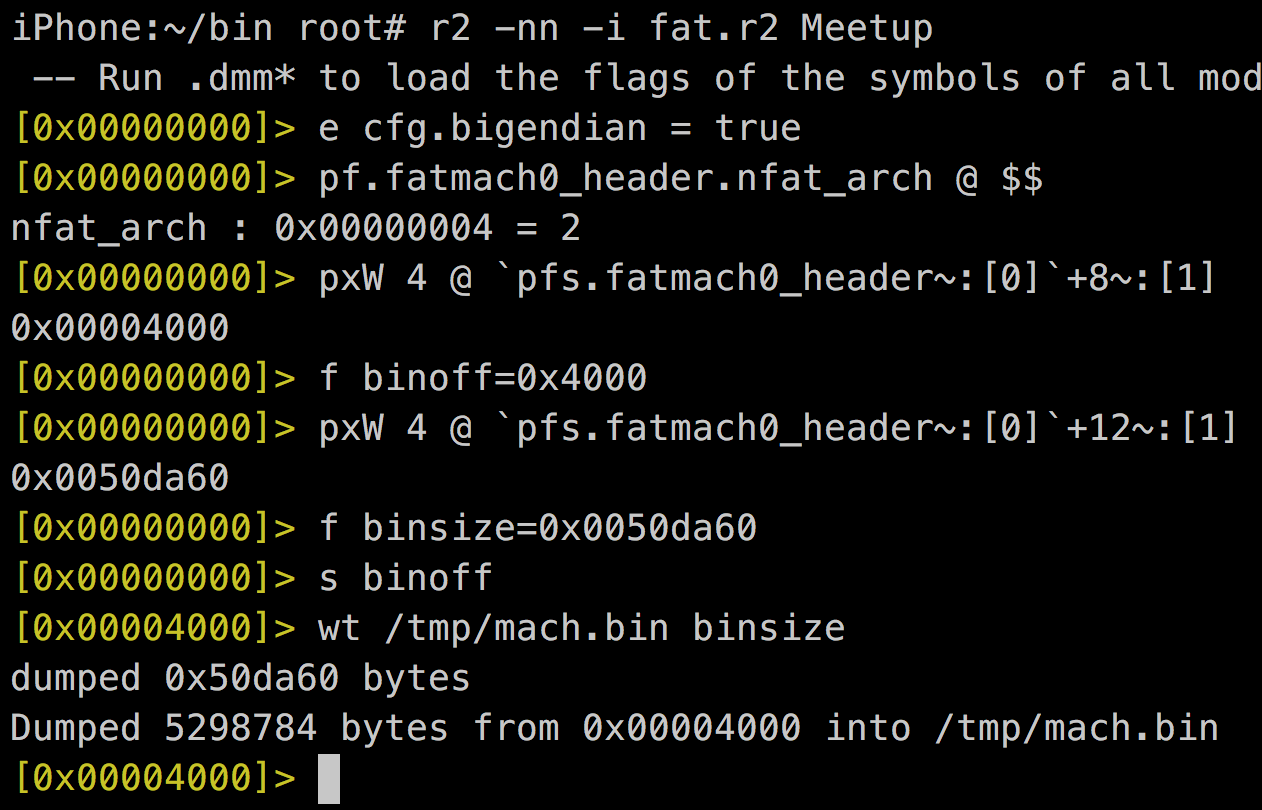

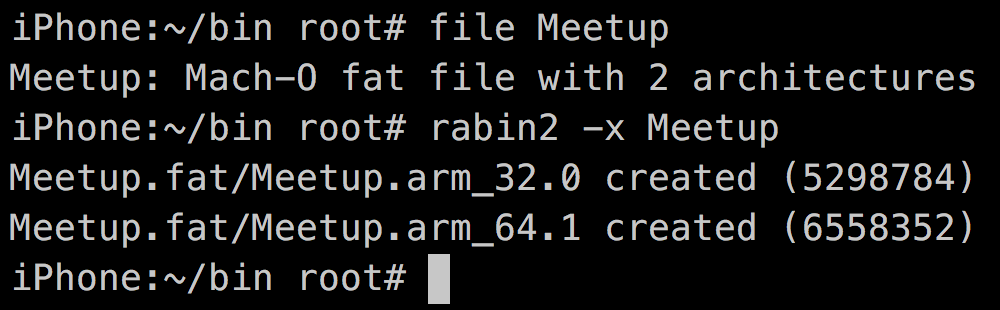

1. Extract mach0 bin from FatMach0 (if needed)

Mach-o file

Mach-o file

FatMach-o Header

Fat Arch

0x00000000

struct fat_arch {
  uint32_t cputype;
  uint32_t cpusubtype;
  uint32_t offset;  //fat_arch + 8
  uint32_t size;    //fat_arch + 12
  uint32_t alighn;
};

Fat Arch

8 bytes

rabin2

Custom

Parsing & Patching

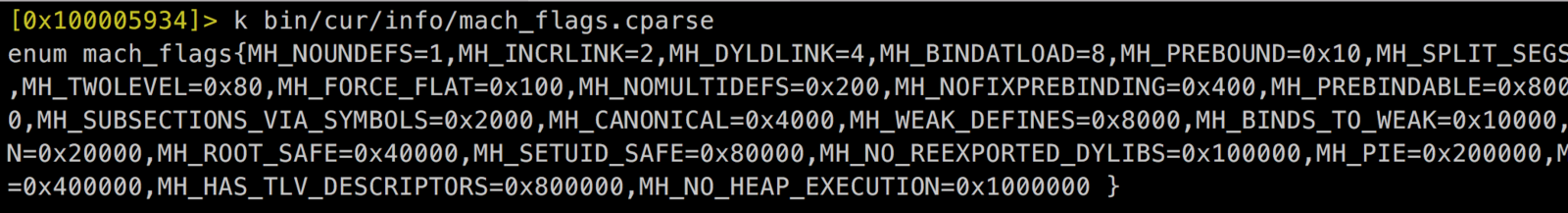

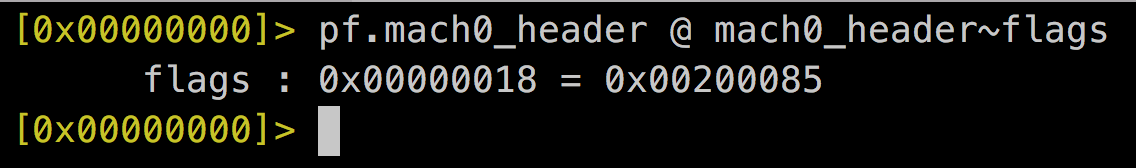

2. Identify whether PIE is enabled or not.

• Parse Mach-o Header
• Get flags field
• If contains 0x00200000 => PIE Enabled

Parsing & Patching

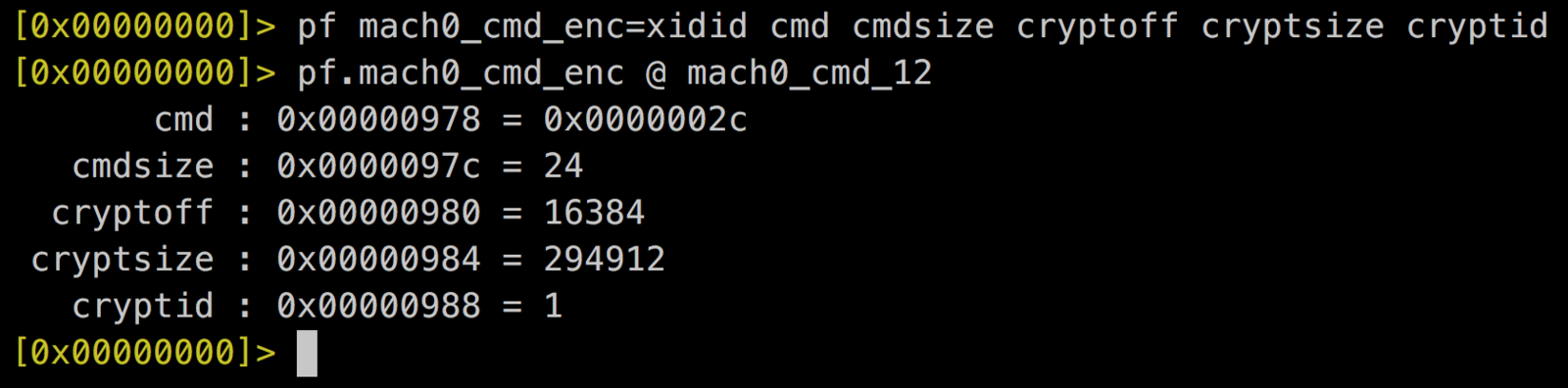

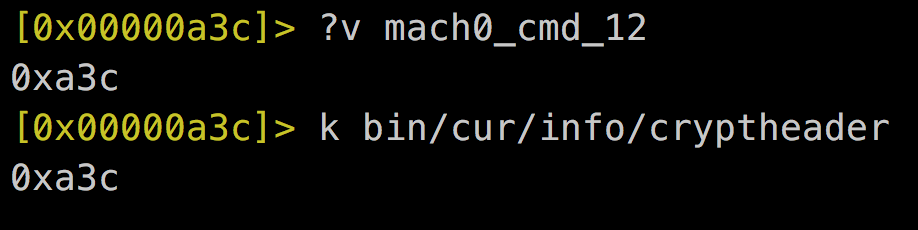

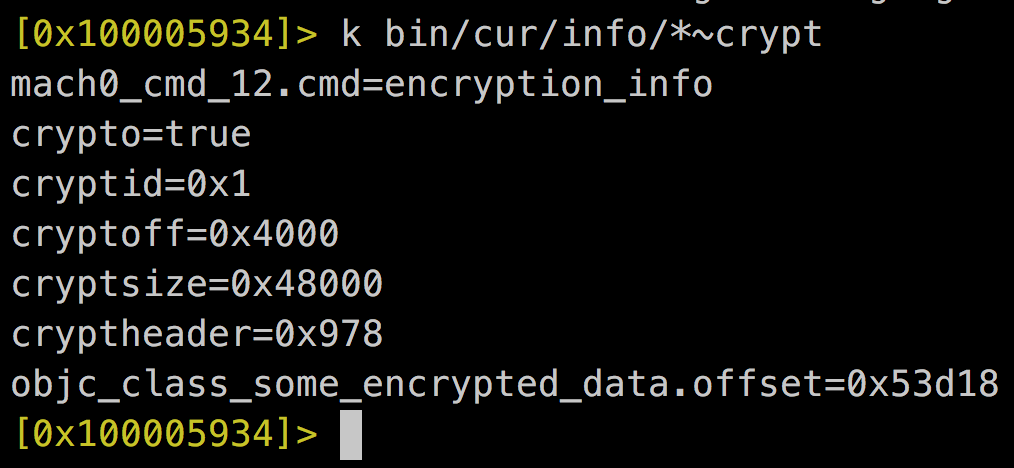

3. Identify encryption information

00121       LC_ENCRYPTION_INFO      = 0x00000021u,
00133       LC_ENCRYPTION_INFO_64   = 0x0000002Cu,

Parsing & Patching

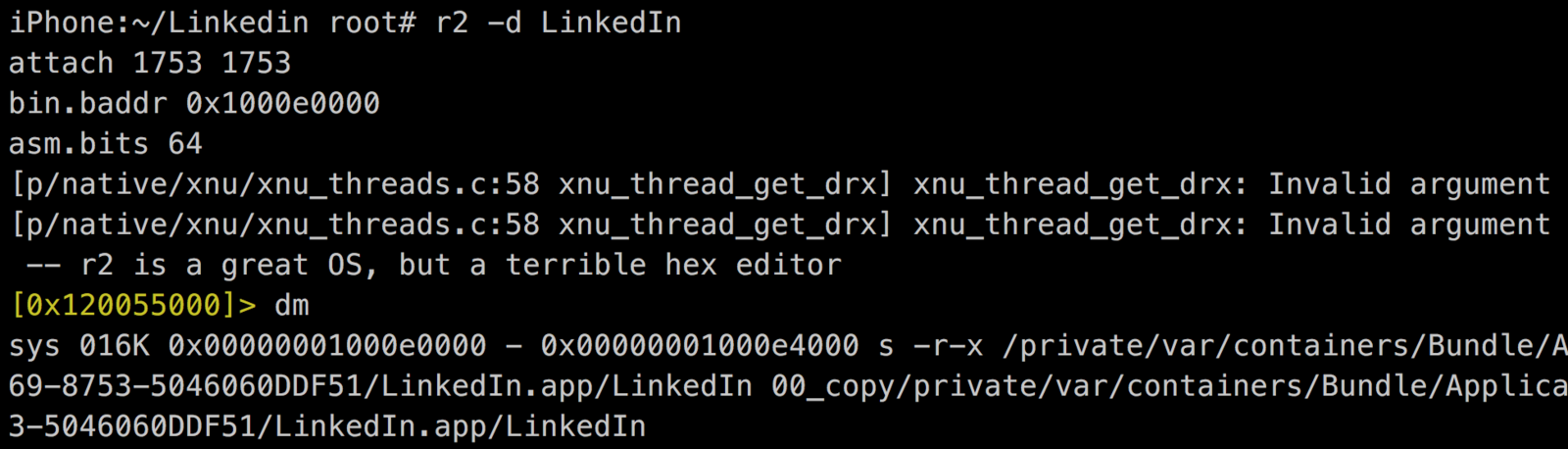

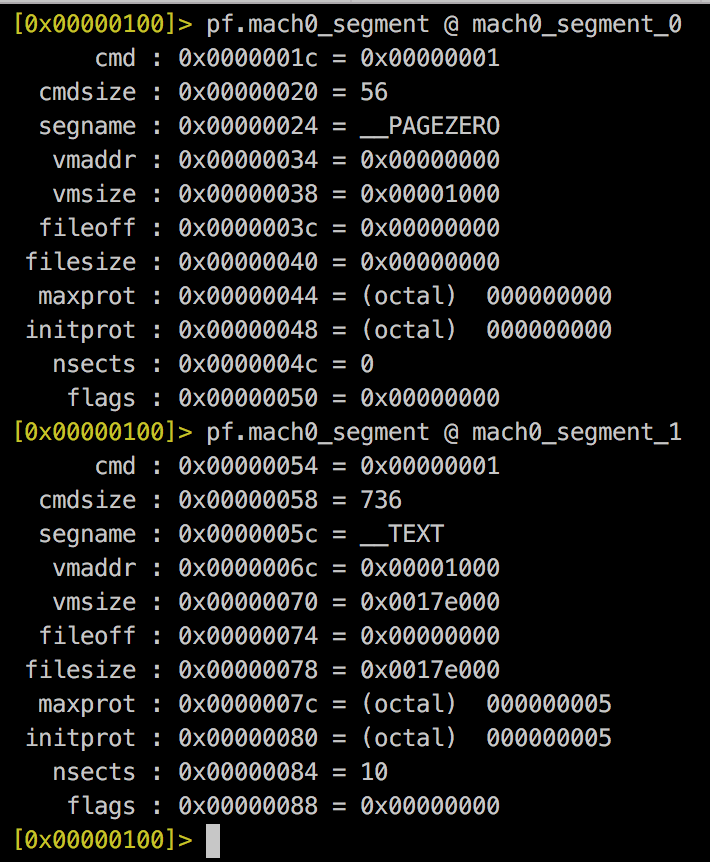

4. Identify process address space.

• Get binary memory map.

PIE

non-PIE

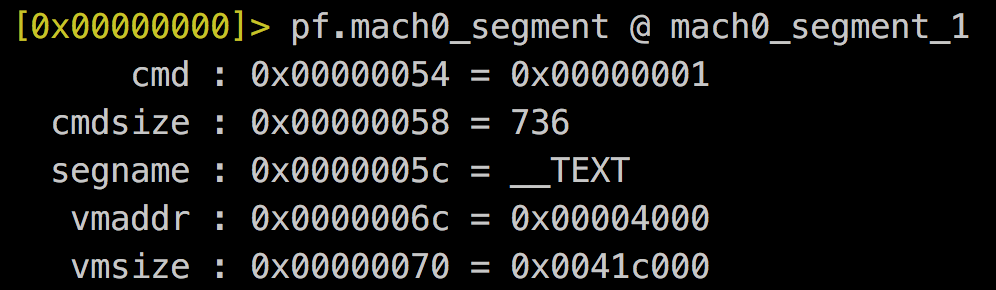

• Get vmaddr in TEXT segment

Parsing & Patching

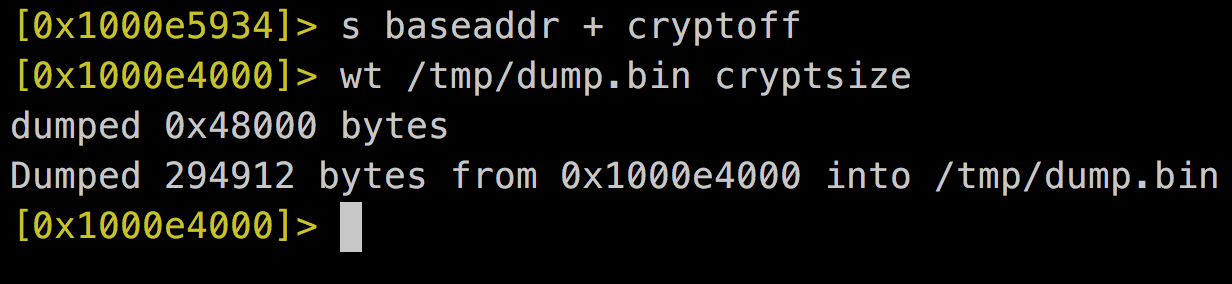

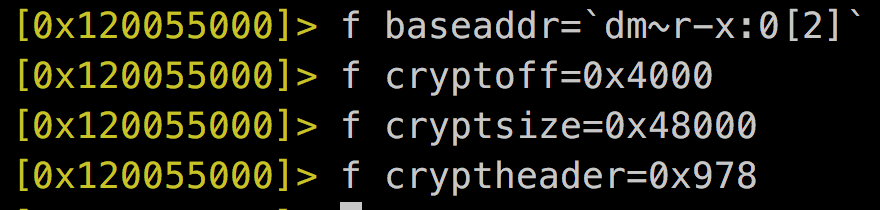

5. Dump decrypted process into a file​

Mach-0 Header

Encrypted Data

cryptoff

baseaddr

dump.bin

Mach-o Header

Parsing & Patching

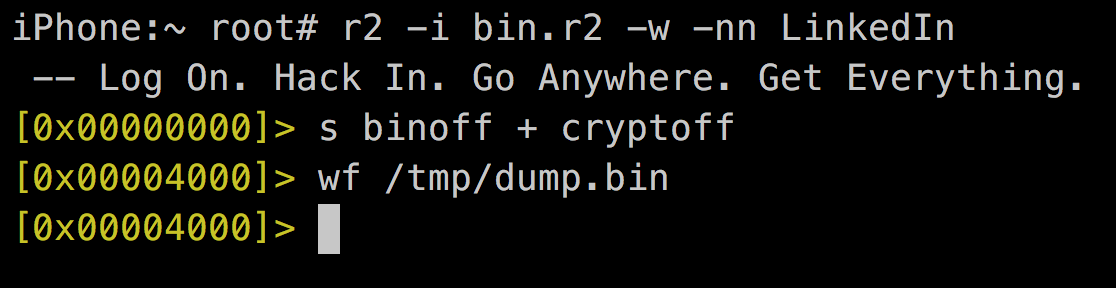

6. Overwrite original binary with the decrypted one​

iPhone:~ root# cat bin.r2
f cryptoff=0x4000
f cryptsize=0x48000
f binoff=0x4000
iPhone:~ root#

Mach-0 Header

Encrypted Data

cryptoff

binoff

dump.bin

Mach-o Header

FatMach-o Header

Fat Arch

0x00000000

Parsing & Patching

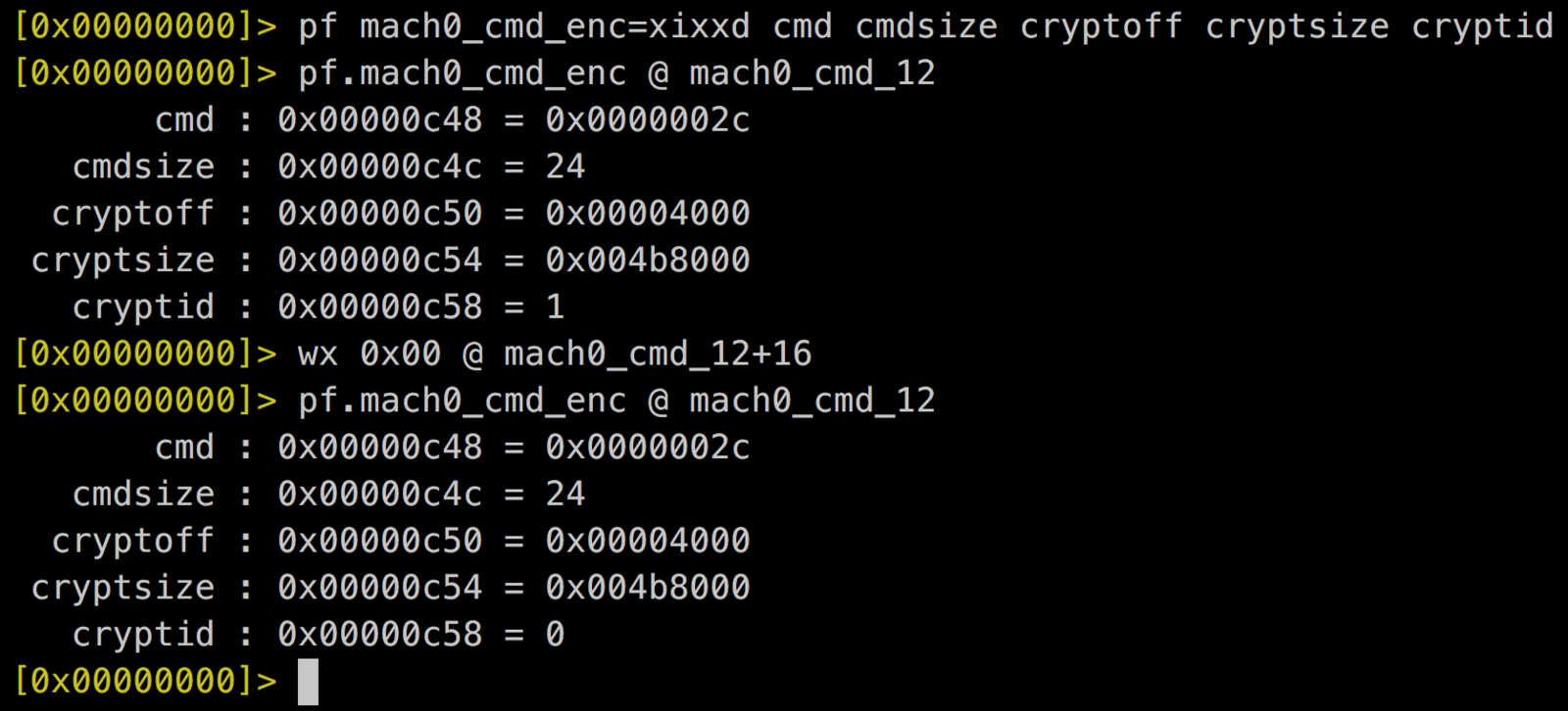

7. Patch binary structure as a decrypted one.

struct encryption_info_command {
   uint32_t cmd;
   uint32_t cmdsize;
   uint32_t cryptoff;
   uint32_t cryptsize;
   uint32_t cryptid;
};

Automation

• Python
• R2Pipe
• 32 / 64 bit Support

R2Clutch

Automation

https://github.com/as0ler/r2clutch

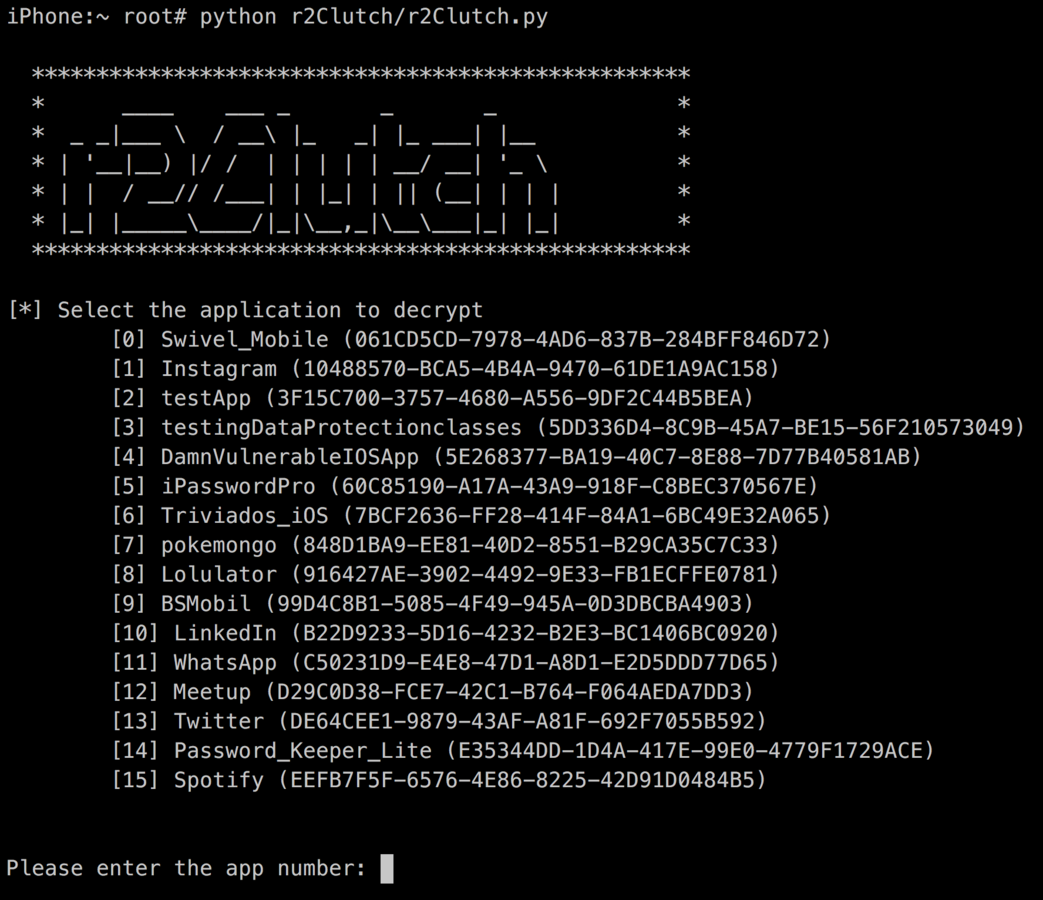

R2Clutch Demo

Future work

• Improve speed
• Review some controls anti-cracking
• Integration with a iOS native App (RUST?)
• Distribution through Cydia

Thanks for Listening!

Questions?

 @as0ler
