Gaining Confidence
Frederik Hahne
Qualitätssicherung & Testen OWL/Paderborn
April 4th, 2019
About Me
Frederik Hahne
@atomfrede
Software Developer @wescalehq
@java_hipster board member
@jugpaderborn organizer
@devoxx4kids mentor
Disclaimer
This talk was created for JUG talk and with coding demos and takes usually 1.5 hours
But not today
Gaining Confidence
Context
- a lot of (micro)services
- api first
- diverse stack

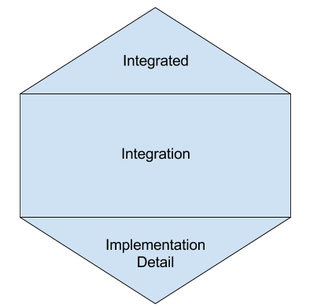

https://www.martinfowler.com/articles/microservice-testing/#conclusion-test-pyramid
https://labs.spotify.com/2018/01/11/testing-of-microservices/
Integration Testing
- Do not rely on the correctness of other services
- Database (Mocks)
- Service Mocks
- API/Contracts
But still
Give us confidence that the code does what it should.
Provide feedback that is fast, accurate, reliable and predictable.
https://labs.spotify.com/2018/01/11/testing-of-microservices/
Databases
Services
APIs
Databases
- Mock/Stub Database
- in memory database
- mongo
- solr, elastic
- jsonb in psql
Testcontainers
- Database Containers
- Selenium Containers
- Kafka, Elastic, ...
- Toxi Proxy
- Generic Containers
- Docker Compose
- Dockerfiles
@Autowired
public JooqProductRepository(DSLContext jooq) {
this.jooq = jooq;
}
@Override
public Optional<Product> findOneById(Long id) {
return jooq.selectFrom(PRODUCT_TABLE)
.where(PRODUCT_TABLE.ID.eq(id))
.fetchOptional()
.map(record -> recordMapper.toProduct(record));
}
@JooqTest
class JooqProductRepositoryIT extends Specification {
@Autowired
DSLContext jooq
def 'fetch non existing product by id'() {
given:
def subject = new JooqProductRepository(jooq)
when:
def result = subject.findOneById(4711)
then:
result != null
result.isEmpty()
}
}
Demo
spring.datasource.url=jdbc:tc:postgresql:11.0://localhost:5432/confidence
spring.datasource.driver-class-name=org.testcontainers.jdbc.ContainerDatabaseDriver
@Testcontainers
class JooqProductRepositoryIT extends Specification {
@Shared
PostgreSQLContainer postgreSQLContainer = new PostgreSQLContainer()
.withDatabaseName("confidence")
.withUsername("confidence")
.withPassword("confidence")
@Shared
DataSource datasource
def setupSpec() {
HikariConfig config = new HikariConfig()
config.setUsername(postgreSQLContainer.username)
config.setJdbcUrl(postgreSQLContainer.jdbcUrl)
config.setPassword(postgreSQLContainer.password)
datasource = new HikariDataSource(config)
Flyway flyway = new Flyway().configure()
.dataSource(datasource)
.load()
flyway.migrate()
}
def '...'() {
given:
def subject = new JooqProductRepository(DSL.using(datasource, SQLDialect.POSTGRES))
}
Title Text
There is more...
- Testing interaction with other services
- Wrap call into an adapter
- Mock the adapter
- Returns POJOs
- Test your logic
Not Good Enough
- De/Serialization
- Handling of Web Exceptions
- Caches, Retries, ...
@Rule
WireMockRule wireMockRule = new WireMockRule(options().dynamicPort())
def "should load ratings"() {
given:
def subject = new ProductRatingConnector(new OkHttpClientFactory(),
"http://localhost:${wireMockRule.port()}")
and:
//language=json
def successBody = '''[
{
"id": 1,
"title": "Nice Product",
"rating": 5,
"description": "Lorem Ipsum",
"productId": 1
}
]
'''
and:
stubFor(get(urlPathEqualTo("/reviews"))
.withQueryParam("productId", equalTo("1"))
.willReturn(aResponse()
.withStatus(200)
.withBody(successBody)))
when:
def result = subject.fetchProductRatings(1)
then:
result != null
result.size() == 1
}
APIs
- OpenAPI
- Works as expected
- Breaking Changes
- Implementation adhere to spec
How?
- Spring Boot Test
- REST Assured
- Swagger Request Validator
A Java library for validating HTTP request/responses against an OpenAPI / Swagger specification.
https://bitbucket.org/atlassian/swagger-request-validator
TestFilters(String swaggerFileLocation) {
def file = new File(swaggerFileLocation)
def map = file.withReader {
Yaml yaml = new Yaml()
return yaml.load(it)
}
def whitelist = ValidationErrorsWhitelist.create()
.withRule("Ignore 'application/problem+json' does not match any allowed types.",
allOf(
messageContains("Response Content-Type header 'application/problem\\+json' does not match any allowed types.*")))
def interactionValidator = OpenApiInteractionValidator
.createFor(new JSONObject(map).toString())
.withWhitelist(whitelist)
.build()
swaggerValidationFilter = new OpenApiValidationFilter(interactionValidator)
}
@Test
void create_product() {
//language=json
def productCreate = '''
{
"name": "Thinkpad T480s",
"description": "A thinkpad, as simple as that"
}
'''
given()
.contentType(ContentType.JSON)
.body(productCreate)
.when()
.post("/products")
.then().statusCode(201)
}
@ClassRule
static PostgreSQLContainer postgreSQLContainer = new PostgreSQLContainer("postgres:11.0")
.withDatabaseName("confidence")
.withUsername("confidence")
.withPassword("confidence")
.withNetwork(Network.SHARED)
.withNetworkAliases("postgres")
static GenericContainer bootJar
@BeforeClass
static void setup() {
bootJar = new GenericContainer(new ImageFromDockerfile().withDockerfileFromBuilder(
{ builder ->
builder.from("openjdk:11-jdk-stretch")
.volume("/tmp")
.copy("confidence-0.0.1-SNAPSHOT.jar", "app.jar")
.entryPoint("java", "-Dspring.datasource.password=confidence",
"-Dspring.datasource.url=jdbc:postgresql:postgres:5432/confidence",
"-Djava.security.egd=file:/dev/./urandom", "-jar", "/app.jar")
.build()
})
.withFileFromPath("confidence-0.0.1-SNAPSHOT.jar",
TestPaths.resolve("../../../build/libs/confidence-0.0.1-SNAPSHOT.jar")))
.withExposedPorts(8080)
.withNetwork(postgreSQLContainer.getNetwork())
bootJar.start()
}
@Before
void clear() {
RestAssured.baseURI = "http://${bootJar.getContainerIpAddress()}:${bootJar.getMappedPort(8080)}/v1"
}
Request/Response Validation
- Works your implementation as expected?
- Does the request match the specification?
- Does the response and codes match the specification?
Testcontainers helped us
- to test legacy apps
- to protect our apis against regressions
- have fun with integration tests
- extend our range of tests
- but be careful no to forget unit tests and testable design!
Keep your tests
One More Thing...
def "failed login is visualized"() {
given:
to GebLoginPage
when: "user logs in with incorrect password"
loginPage.login("user", "wrongpassword")
then: "the user stays on the login page"
at GebLoginPage
and: "a generic error message is shown"
find { $(".e2e__login-failed-message") }
}
def "successful login forwards to index page"() {
given:
to GebLoginPage
when: "user logs in"
loginPage.login("user", "user")
then: "the user is forwarded to index page"
at GebIndexPage
}
Questions?
Resources
- https://slides.com/kiview/testcontainers-whs
- https://github.com/testcontainers/testcontainers-java
- https://gitlab.com/atomfrede/confidence
- https://slides.com/kiview/testcontainers-intro
