Clustering and caching infrastructure based on Ignite

Agenda

• High level architecture
• Ignite wrapper
• Key changes in Cube Manager
• Demo

High level architecture

• Ignite overview
• Cluster architecture with Ignite
• Cube sync flow change

What is Apache Ignite

Apache Ignite™ is ...
memory-centric distributed database, caching, and processing platform
for transactional, analytical, and streaming workloads
delivering in-memory speeds at petabyte scale

Supported features

Hierarchical Architecture

Ignite Clustering

• Server nodes
  • Act as containers for data and computations
  • Generally started as standalone processes
• Client nodes
  • Provide a cluster entry point to run operations
  • Embedded in applications code

Deployment

• Nodes are logical entities
  • Runs in a JVM process
  • Many nodes in a single JVM process
• On-Premise and Cloud
  • Physical server or VM
  • AWS, Azure, Google Compute Engine
• Docker

GridGain

Professional

Enterprise

Ultimate Edition

More details...

Apache® Ignite™ Features

Security Updates

Maintenance Releases & Fixes

Management Tool

Network Segmentation Protection

Enterprise Grade Security

Rolling Production Upgrades

Data Center Replication

GoldenGate Integration

Cluster Snapshots

Snapshots Management Tool

Ignite v.s. Redis

• For read, Ignite is generally better than Redis
• For write,
  • By default, Ignite is sill better than Redis
  • When the cache is configured with more backups, Ignite can be worse than Redis

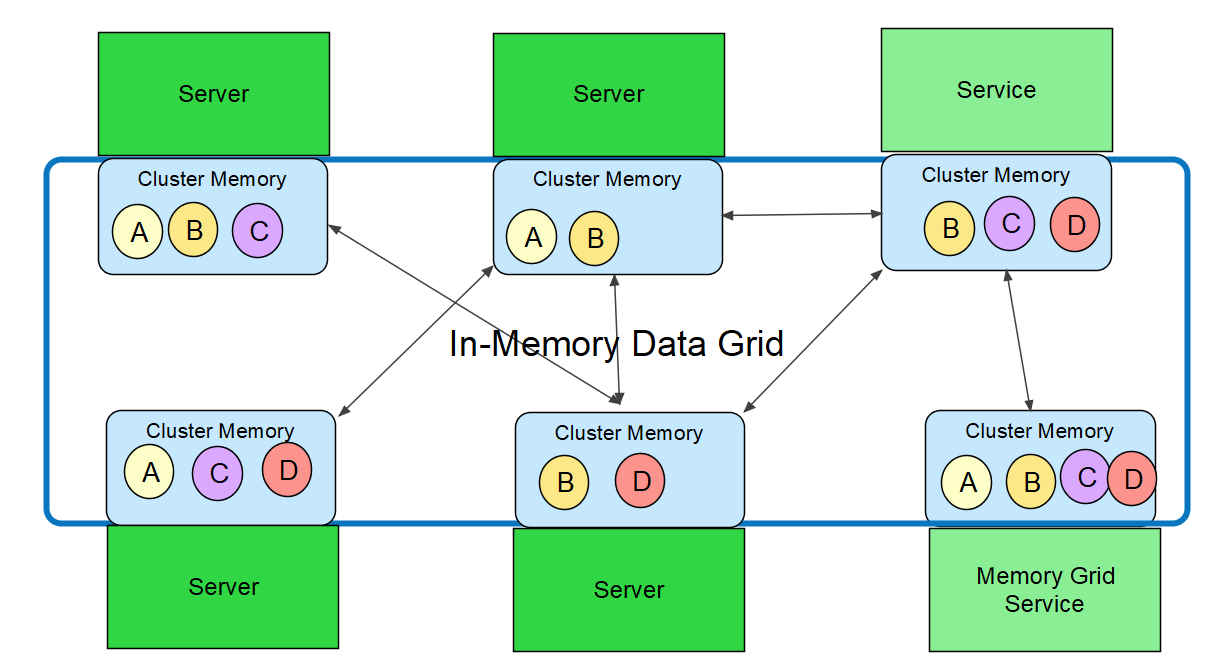

Cluster architecture with Ignite

Cube sync flow change

Key changes in Cube Manager

• New cube manager derived from existing cube manager
• States are now centralized
• Local/remote distinction is removed

Cube Manager

New Cube Manager

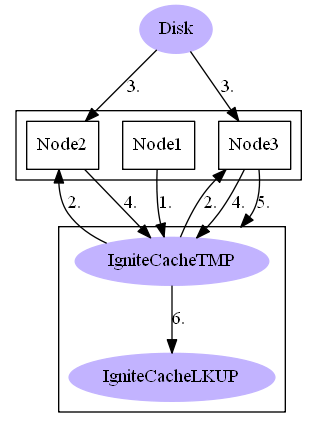

The big cube load work flow

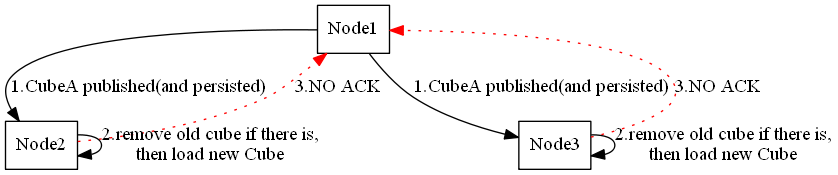

Current workflow with ClusterManager

New workflow with Ignite
