Web Scraping

Client-Network-Server

Stack Connections

Transport Control Protocol (TCP):

• Built on top of IP (Internet Protocol)

• Assume IP may lose some data during transmission, and it will store and retransmit these data

• Provides a reliable pipe

Stream Sockets / TCP Connections

A stream socket is a type of interprocess communications socket or network socket which provides a connection-oriented, sequenced, and unique flow of data without record boundaries, with well-defined mechanisms for creating and destroying connections and for detecting errors.

Internet

Socket

TCP Port

• A port is an application-specific or process specific software communications endpoint

• It allows multiple networked applications to coexist on the same server

• List of well-known TCP port numbers

TCP Port (continued)

Sometimes, the port number is shown (if the server is running on a non-standard port)

Application Protocol

• What can we do with the TCP socket?

• Application protocols:
  -  a set of rules that all parties follow so that we can predict each other's behavior and not bump into each other

• Examples:
  -  mail
  -  World Wide Web

HTTP

• The set of rules that allow browsers to retrieve web documents from servers over the internet

• The dominant Application Protocol on the internet

• Invented for the web to retrieve HTML, images, documents, ...

• Extended to be data in addition to documents. E.g. RSS, web services, ...

• Basic flow:
  -  make a connection
  -  request a document
  -  retrieve the document
  -  close the connection

Hypertext Transport Protocol

HTTP

Retrieving Data from the Server

• Each time the user opens a new page, the browser makes a connection to the server and issues a "GET" request - to retrieve the content of the page at the specified URL

• The server returns the HTML document to the browser, which formats and displays the HTML document to the user

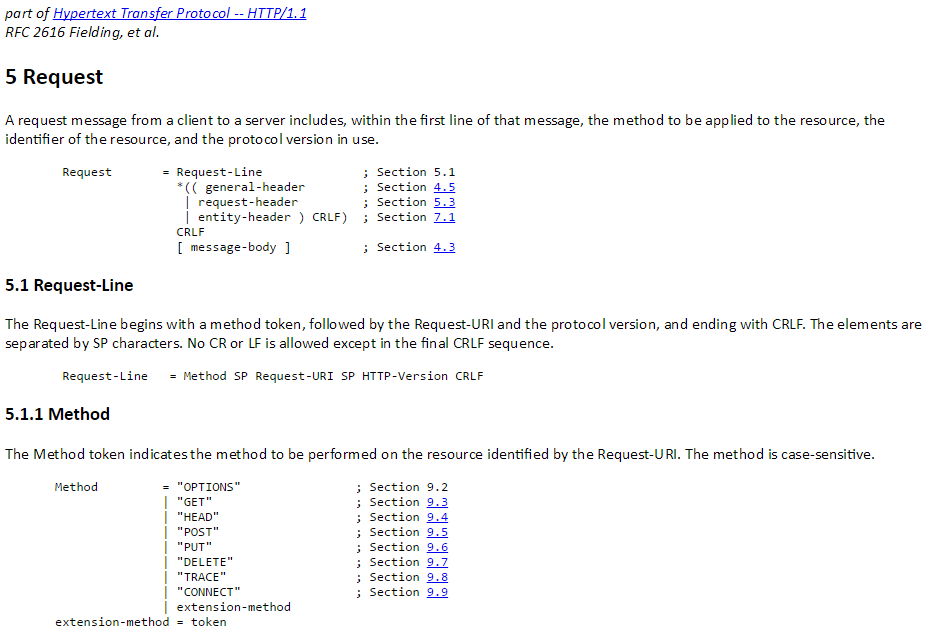

Making an HTTP Request

• Connect to the server, e.g. www.ufl.edu
  -  a "hand shake"

• Request a document
  -  GET http://www.ufl.edu/index.html

• Port 80 is the non-encrypted HTTP port

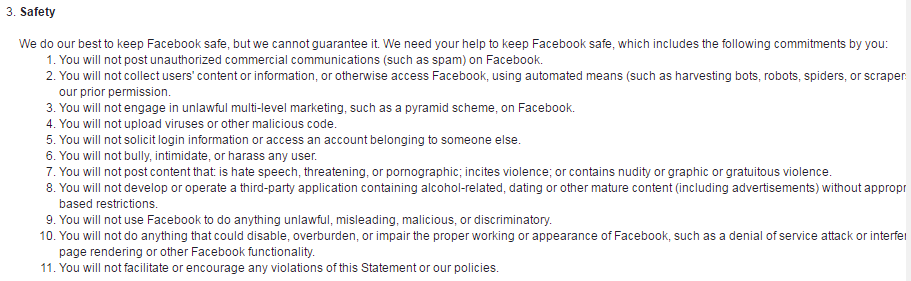

Web Scraping

Parsing HTML

• When a program or script pretends to be a browser to retrieve web pages and to extract information

• Search engines scrape web pages - "web crawling"

Server

Get

HTML

Why Web Scraping?

• Get data:
  -  e.g. social network data

• Get your own data from some system that has no export capability

• Monitor a site for new information

• Crawl the web to make a search engine

API

Wire Protocol

• HTML is not really intended for consumption by an application which is interested in data

• We need an agreed way to represent data going between applications and across networks
  -  Wire Protocol
  -  Two common wire format: XML, JSON

Web Services

• Most web applications use services
  -  use services from other applications: credit card charge, etc.

• Services publish the "rules" which must be followed by applications to make use of the service

Application Program Interface

• Application programming interface (API) is a set of subroutine definitions, protocols, and tools for building application software

• In general terms, it's a set of clearly defined methods of communication between various software components

• Common web service technologies:
  -  SOAP - Simple Object Access Protocol
  -  REST - Representational State Transfer

Google Geocoding API

• Documentation

• http://maps.googleapis.com/
  maps/api/geocode/json?sensor=false&address=
  Gainesville%2C+FL

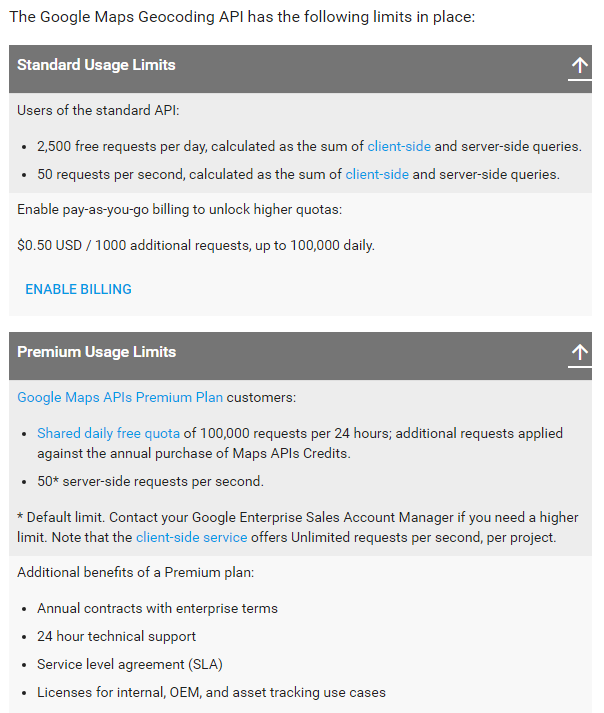

Security and Rate Limiting

• The data provided by these APIs is usually valuable

• The data providers might
  -  limit the number of requests per day,
  -  or demand an API "key",
  -  or charge for usage

https://developers.google.com/maps/documentation/geocoding/start

Increase the limit here: e.g. 1000

Twitter API

• Documentation

• Twitter uses OAuth to verify authorized requests

• Steps to obtain an access token:
  -  create a new App (need to have a twitter account)
  -  go to "Keys and Access Tokens"
  -  "Create my Access Token"

Lab: Access Web Data

git pull
