Limit Switch
陳子毓
limit switch

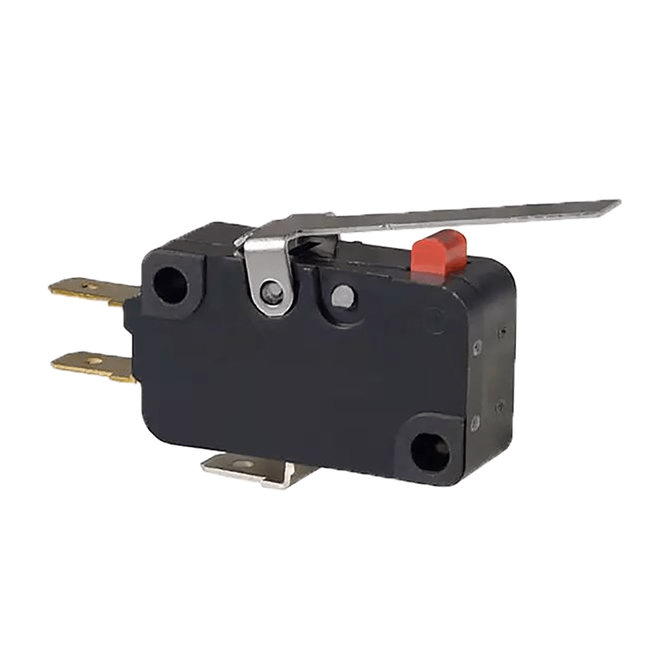

Limit Switch 是什麼?
limit switch
- 極限開關
- 可以避免機器人撞到自己造成損傷
- 不能停在半空中

如何接線?
limit switch 怎麼接?
- Digital Input/Output
- Signal -> 1
- Ground -> 0
Ground(接地)
Signal(訊號)
limit switch 怎麼接?
- Normally open
- limit switch沒有被壓下
- Signal -> 1
- limit switch 被壓下
- Ground -> 0
- limit switch沒有被壓下
- Normally closed
- 反過來
程式
想法:
- 上、下各有一個limit switch
- 任何一個limit switch被壓下
- 馬達的速度設為0
- 兩個limit switch都沒有被壓下
- 馬達的速度設為預設的速度
程式
//從Roborio的角位讀取limit switch
DigitalInput toplimitSwitch = new DigitalInput(0);
DigitalInput bottomlimitSwitch = new DigitalInput(1);
PWMVictorSPX motor = new PWMVictorSPX(0);
Joystick joystick = new Joystick(0);
@Override
public void teleopPeriodic() {
setMotorSpeed(joystick.getRawAxis(2));
}
public void setMotorSpeed(double speed) {
if (speed > 0) {
if (toplimitSwitch.get()) {
// 上面的limit switch被壓到
motor.set(0); //馬達的速度設為0
} else {
// 沒有碰到limit switch
motor.set(speed); //馬達的速度設為預設的速度
}
} else {
if (bottomlimitSwitch.get()) {
// 下面的limit switch被壓到
motor.set(0);
} else {
motor.set(speed);
}
}
}
資料來源
謝謝大家
機研程式試教簡報
By Beth chen
