Intro to Algorithms

A Practical Introduction to Algorithms

slides.com/bgando/intro-to-algorithms

What is an algorithm?

Why should you care?

What will we cover today?

1. Estimate generally how fast an algorithm is.

2. Use some techniques to optimize certain types of algorithms.

3. Get comfortable with recursion.

4. Implement a couple sorting and searching algorithms.

5. Understand the difference between Divide & Conquer and Dynamic Programming.

6. Learn about the pros and cons of the Greedy technique.

7. Cover a recursive brute force algorithm.



That's A LOT!

You won't be able to complete all the exercises during class time, but I encourage you to take these home, practice and share your solutions with me!

Time Complexity

What makes an algorithm fast?

Time Complexity

Space Complexity

How much memory is used?

How many primitive operations are executed?

...with respect to input size

...and assuming worst case scenarios

                                @BIANCAGANDO


Problem:

Given a list of hotels, return the price range of hotels in a given search result.



                                @BIANCAGANDO

                                @BIANCAGANDO


Problem:

Given a list of hotels, return the price range of hotels in a given search result.



                                @BIANCAGANDO

                                @BIANCAGANDO


Let's write an algorithm to do the job!

We'd expect that the more data we have, the longer it will take to figure out the min and max required for the range

However, as our dataset grows, the cost can grow really fast or slow!

                                @BIANCAGANDO

var hotels = [
    {price: 200, brand: 'Estin'},
    {price: 50, brand: 'Best Eastern'},
    ...
    ...
    {price: 175, brand: 'Radishin'}
]

Approach 1: compare all numbers to one another

                                @BIANCAGANDO

var hotels = [
    {price: 200, brand: 'Estin'},
    {price: 50, brand: 'Best Eastern'},
    ...
    ...
    {price: 175, brand: 'Radishin'}
]
200 50 ... 175
200 sdfa
50 adfa
...
175

How many comparisons were made?

Approach 1: compare all numbers to one another

                                @BIANCAGANDO

var hotels = [
    {price: 200, brand: 'Estin'},
    {price: 50, brand: 'Best Eastern'},
    ...
    ...
    {price: 175, brand: 'Radishin'}
]
# of hotels (n) 3 5 10 100
# Ops 9 15 100 1000

We call this n^2, where n is the number of hotels. As n grows, the amount of work increases at that rate

As our data grows, how much does our work increase?

Approach 1: compare all numbers to one another

                                @BIANCAGANDO

var hotels = [
    {price: 200, brand: 'Estin'},
    {price: 50, brand: 'Best Eastern'},
    ...
    ...
    {price: 175, brand: 'Radishin'}
]
200 50 ... 175
Max? 200
Min?

How many comparisons were made?

We consider this 2n because as the data grows, the amount of work increases by 2.

Approach #2: Track min & max

                                @BIANCAGANDO

var hotels = [
    {price: 50, brand: 'Best Eastern'},
    ...
    ...
    {price: 175, brand: 'Radishin'},
    {price: 200, brand: 'Estin'}
]

//How about if we knew the list was already sorted?

How many comparisons were made?

Approach #3: Sorted List

                                @BIANCAGANDO

# of Operations Algorithm
n^2 compare all numbers
2n Find min and max numbers
2 Sorted list, find first and last
                                @BIANCAGANDO

Big-O, name # of Operations Algorithm
O(n^2), quadratic n^2 compare all numbers
O(n), linear 2n Find min and max numbers
O(1), constant 2 Sorted list, find first and last
Name constant logarithmic linear quadratic exponential
Notation O(1) O(logn) O(n) O(n^2) O(k^n)

SUPER FAST

SUPER SLoooooW

                                @BIANCAGANDO


SUPER FAST

SUPER SLoooooW

                                @BIANCAGANDO

Name constant logarithmic linear quadratic exponential
Notation O(1) O(logn) O(n) O(n^2) O(k^n)

Text

Native Methods & JS Expressions

SUPER FAST

SUPER SLoooooW

//What are some simple, native JS
//methods/expressions/operations?
                                @BIANCAGANDO

Name constant logarithmic linear quadratic exponential
Notation O(1) O(logn) O(n) O(n^2) O(k^n)

Text

Calculating Time Complexity

SUPER FAST

SUPER SLoooooW

What do we do if we have multiple expressions/loops/etc?
                                @BIANCAGANDO

Name constant logarithmic linear quadratic exponential
Notation O(1) O(logn) O(n) O(n^2) O(k^n)

Text

Calculating Time Complexity

SUPER FAST

SUPER SLoooooW

//What about O(logn)?
                                @BIANCAGANDO

Name constant logarithmic linear quadratic exponential
Notation O(1) O(logn) O(n) O(n^2) O(k^n)

 Complexity of Common Operations

Complexity Operation
O(1) Running a statement
O(1) Value look-up on an array, object, variable
O(logn) Loop that cuts problem in half every iteration
O(n) Looping through the values of an array
O(n^2) Double nested loops
O(n^3) Triple nested loops
                                @BIANCAGANDO


Given what we have discovered about time complexity, can you guess how we can calculate space complexity?

Space Complexity

                                @BIANCAGANDO


Time complexity of an algorithm signifies the total time required by the program to run to completion. The time complexity of algorithms is most commonly expressed using the big O notation.



Big O notation gives us an industry-standard language to discuss the performance of algorithms. Not knowing how to speak this language can make you stand out as an inexperienced programmer.



Did you know there are other notations that are typically used in academic settings? Learn more here.

                                @BIANCAGANDO


The complexity differs depending on the input data, but we tend to weigh the worst-case.

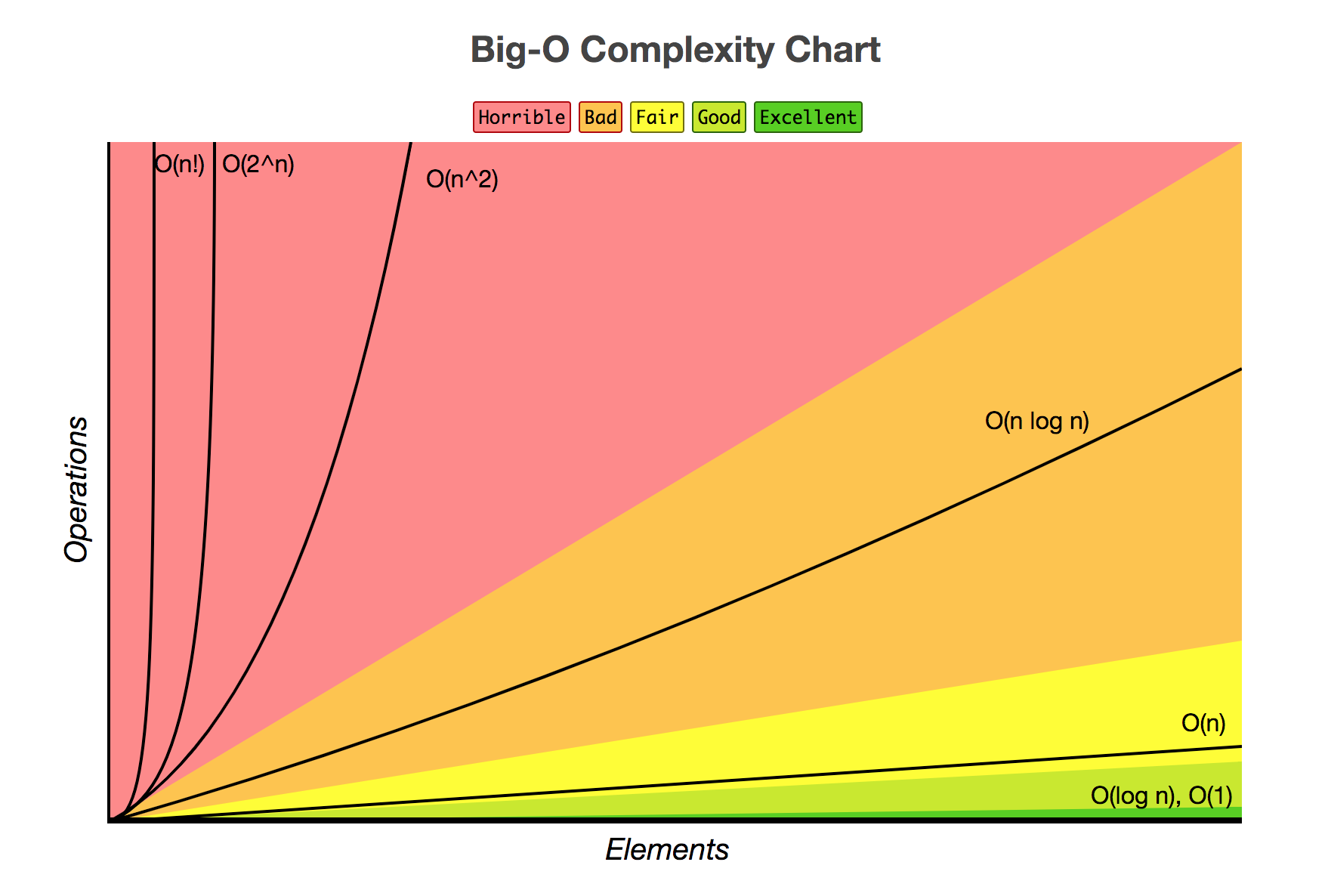

We graph the performance of our algorithms with one axis being the amount of data, normally denoted by 'n' and the other axis being the amount of time/space needed to execute completely.


                                @BIANCAGANDO



















Worst-case scenario, dropping any non-significant operations or constants.

Big 'O' Notation

                                @BIANCAGANDO


Break Time!

What is the TC?

var countChars = function(str){
    var count = 0;

    for(var i = 0; i < str.length; i++) {
        count++;
    }

    return count;
};

countChars("dance");

countChars("walk");
                                @BIANCAGANDO

var countChars = function(str){

    return str.length;

};

countChars("dance");

countChars("walk");


// How much more work would it take
// to get the length of 1 million
//char string?
                                @BIANCAGANDO


What is the TC?

What is the TC?

var myList = ["hello", "hola"];

myList.push("bonjour");

myList.unshift();


//calculate the time complexity for the
//native methods above (separately)
                                @BIANCAGANDO


Faster Algorithms!

Time Complexity?

                                @BIANCAGANDO


We can do better!

                                @BIANCAGANDO


Your Turn

                                @BIANCAGANDO


Solution

                                @BIANCAGANDO


Memoization

Memoization: caching the value that a function returns

const factorial = (n) => {
    // Calculations: n * (n-1) * (n-2) * ... (2) * (1)
    return factorial;
}

factorial(35);
                                @BIANCAGANDO


Memoization

Memoization: caching the value that a function returns

const factorial = (n) => {
    // Calculations: n * (n-1) * (n-2) * ... (2) * (1)
    return factorial;
}

factorial(35);

factorial(36); // factorial(36) = factorial(35) * 36;
                                @BIANCAGANDO


Exercise 1

                                @BIANCAGANDO


Memoization

Exercise 2

                                @BIANCAGANDO


Exercise 3

                                @BIANCAGANDO


Solutions

                                @BIANCAGANDO


Recursion

RECURSION

Recursion is simply when a function calls itself; however it doesn't stop there.

                                @BIANCAGANDO


WHY RECURSION?

Elegant solutions to keep your code D.R.Y.

Expected CS knowledge


var callMe = function() {
  callMe();
  callMe();
  callMe("anytime");
};
                                @BIANCAGANDO

                                @BIANCAGANDO


Call Stack Game

1. Push called Fn on stack.

2. Execute Fn body.

until...

... another fn is called:

     Pause the current execution and start at step 1.

... a return is hit:

     Pop the current Fn off the stack.

     Resume executing the previous Fn.









var callMe = function() {
  callMe();
  callMe();
  callMe('anytime');
};
                                @BIANCAGANDO


What is this doing?

var tracker = 0;
var callMe = function() {
  tracker++
  if (tracker === 3) {
      return 'loops!';
  }
  callMe('anytime');
};

Call Stack Game

                                @BIANCAGANDO


1. Push called Fn on stack.

2. Execute Fn body.

until...

... another fn is called:

     Pause the current execution and start at step 1.

... a return is hit:

     Pop the current Fn off the stack.

     Resume executing the previous Fn.









Recursion in 4 Steps

var callMyself = function() {

  if() {
    // base case
    return;
  } else {
    // recursive case
    callMyself();
  }

  return;
};

1. Identify base case(s).

2. Identify recursive case(s).

3. Return where appropriate.

4. Write procedures for each case that bring you closer to the base case(s).

                                @BIANCAGANDO


LOOPING

                                @BIANCAGANDO


FACTORIAL WITH LOOP

                                @BIANCAGANDO


FACTORIAL WITH LOOP

function computeFactorial(num) {
  var result = 1;

  for(var i = 2; i <= num; i++) {
    result *= i;
  }

  return result;
}
results *= 2;
results *= 3;
results *= 4;
results *= 5;

If we call computeFactorial(5), then the loop will run:

What pattern do you notice?

                                @BIANCAGANDO


WITH RECURSION

                                @BIANCAGANDO


LOOP TO RECURSION

                                @BIANCAGANDO


RECURSIONS vs LOOPS

Recursion can always be implemented as a loop, but in some situations, believe it or not, it is simpler to use recursion

ES6 offers TCO, which allows some functions to be called without growing the call stack.

Read more here and here.



Tail-Call

Optimization


                                @BIANCAGANDO


COMMON PATTERNS

FOR RECURSION

  • Wrapper Functions

  • Accumulators

                                @BIANCAGANDO


WRAPPER FUNCTIONS

                                @BIANCAGANDO


ACCUMULATORS

                                @BIANCAGANDO


EXERCISE

                                @BIANCAGANDO


SOLUTION

                                @BIANCAGANDO


Exercise

                                @BIANCAGANDO


Solution

                                @BIANCAGANDO


Divide and Conquer

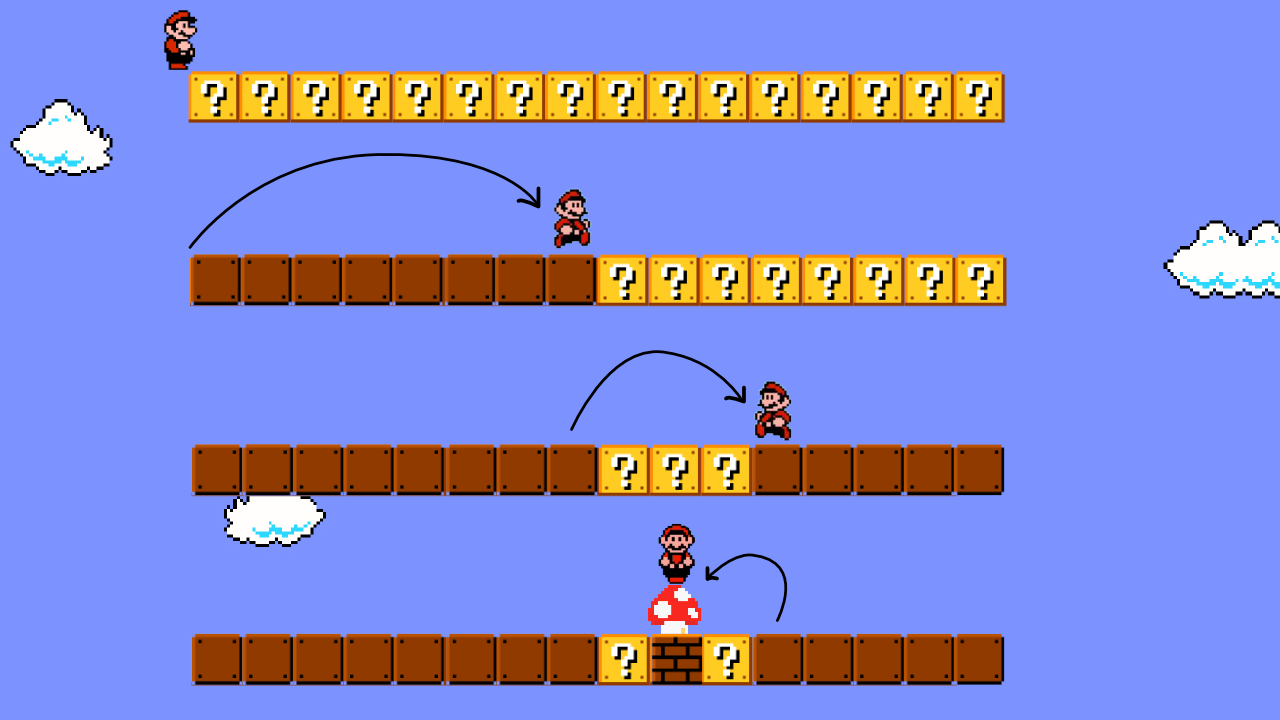

Binary Search

Binary Search

Search for a value in a sorted array by cutting the side of the search area in half.





                                @BIANCAGANDO


Linear Search

Linear Search

Search for a value in an array by checking each value in order.





                                @BIANCAGANDO


Exercise 1

                                @BIANCAGANDO


Exercise 2

                                @BIANCAGANDO


Divide and Conquer

0. Recognize base case

1. Divide: Break problem down during each call

2. Conquer: Do work on each subset

3. Combine: Solutions

Recursive calls to a subset of the problem

                                @BIANCAGANDO


Naive Sorts

Keep looping and comparing values until the list is sorted

Divide & Conquer Sorts

Recursively divide lists and sort smaller parts of list until entire list is sorted





Bubble Sort

Insertion Sort

Selection Sort

Mergesort

Quiksort

Comparison Sorts

                                @BIANCAGANDO


BUBBLE SORT

Bubble Sort

Loop through an array, comparing adjacent indices and swapping the greater value to the end

                                @BIANCAGANDO


MERGESORT

Merge Sort

Recursively merge sorted sub-lists.

                                @BIANCAGANDO


The merge step takes two sorted lists and merges them into 1 sorted list.



Concept: Merging Lists



9

10

27

38

43

82

X

X

X

X

X

X

X

                                @BIANCAGANDO

                                @BIANCAGANDO


Pseudocode: Merge Routine


merge(L,R)
                                @BIANCAGANDO


Concept: Merge Sort

Step 1:

Divide input array into 'n' single element subarrays

                                @BIANCAGANDO


Step 2:

Repeatedly merge subarrays and sort on each merge

Concept: Merge Sort

                                @BIANCAGANDO


Concept: Merge Sort

interactive visualizations here

https://www.youtube.com/watch?v=XaqR3G_NVoo

                                @BIANCAGANDO


Pseudocode: Merge Sort

mergeSort(list)
  base case: if list.length < 2, return
  break the list into halves L & R
  Lsorted = mergeSort(L)
  Rsorted = mergeSort(R)
  return merge(Lsorted, Rsorted)


                                @BIANCAGANDO


Text

Pseudocode: Merge Sort

mergeSort(list)
  initialize n to the length of the list

  base case is if n < 2, just return

  initialize mid to n/2

  left = left slice of array to mid - 1

  right = right slice of array mid to n - 1

  mergeSort(left)
  mergeSort(right)

  merge(left, right)
                                @BIANCAGANDO


Text

Simplified Analysis


mergeSort(list)
  initialize n to the length of the list

  base case is if n < 2, just return

  initialize mid to n/2

  left = left slice of array to mid - 1

  right = right slice of array mid to n - 1

  mergeSort(left)

  mergeSort(right)

  merge(left, right, a)




constant



N/A

linear

n/2

 O(n*logn)


                                @BIANCAGANDO

                                @BIANCAGANDO


Exercise 1 - Bubblesort

                                @BIANCAGANDO


Exercise 2 - MergeSort

                                @BIANCAGANDO


Solution - Bubblesort

                                @BIANCAGANDO


Solution - Mergesort

                                @BIANCAGANDO


Greedy Algorithms

Text

                                @BIANCAGANDO


Text

                                @BIANCAGANDO

                                @BIANCAGANDO


Greedy Approach

Greedy algorithms always make the locally optimal choice!

                                @BIANCAGANDO


Locally Optimal Solution

                                @BIANCAGANDO


Locally Optimal Solution

Total: 3 + 4 + 2 + 3 + 4

16!

                                @BIANCAGANDO


Locally Optimal Solution

Total: 12

                                @BIANCAGANDO


You are the banker in Monopoly with your family who has lost many of the game pieces so you only have bills in these denominations:

$5 $10 $25



You need only pay out your family in the least number of bills possible so you don't run out before the game is over. Write a function that calculates the least number of bills required for any given dollar amount that is divisible by 5.



                                @BIANCAGANDO


Greedy Approach

Write a function, makeChange, that returns the least number of coins that add up to that amount.



coin values: 5, 10, 25



input: 40 , output: 3 (25, 10, 5)

input: 35, output 2 (25, 10)

Exercise

                                @BIANCAGANDO


Greedy Approach

Write a function, makeChange, that returns the least number of coins that add up to that amount.



coin values: 5, 10, 25



input: 40 , output: 3 (25, 10, 5)

input: 35, output 2 (25, 10)

SOLUTION

                                @BIANCAGANDO


Would these values work with your greedy solution?

coin values: 1, 6, 10

input: 12

Greedy Approach:

Always subtract the largest coin possible from the current amount.





const makeChange = (coins, amount) => {
  coins.sort((a, b) => b - a);
  let coinTotal = 0;
  let i = 0;
  while (amount > 0) {
    if (coins[i] <= amount) {
      amount -= coins[i];
      coinTotal++;
    } else {
      i++;
    }
  }
  return coinTotal;
};

makeChange([1, 6, 10], 12);
                                @BIANCAGANDO


Would these values work with your greedy solution?

coin values: 1, 6, 10

input: 12

Algorithmic Correctness

Does your algorithm correctly solve the problem?





const makeChange = (coins, amount) => {
  coins.sort((a, b) => b - a);
  let coinTotal = 0;
  let i = 0;
  while (amount > 0) {
    if (coins[i] <= amount) {
      amount -= coins[i];
      coinTotal++;
    } else {
      i++;
    }
  }
  return coinTotal;
};

makeChange([1, 6, 10], 12);
                                @BIANCAGANDO

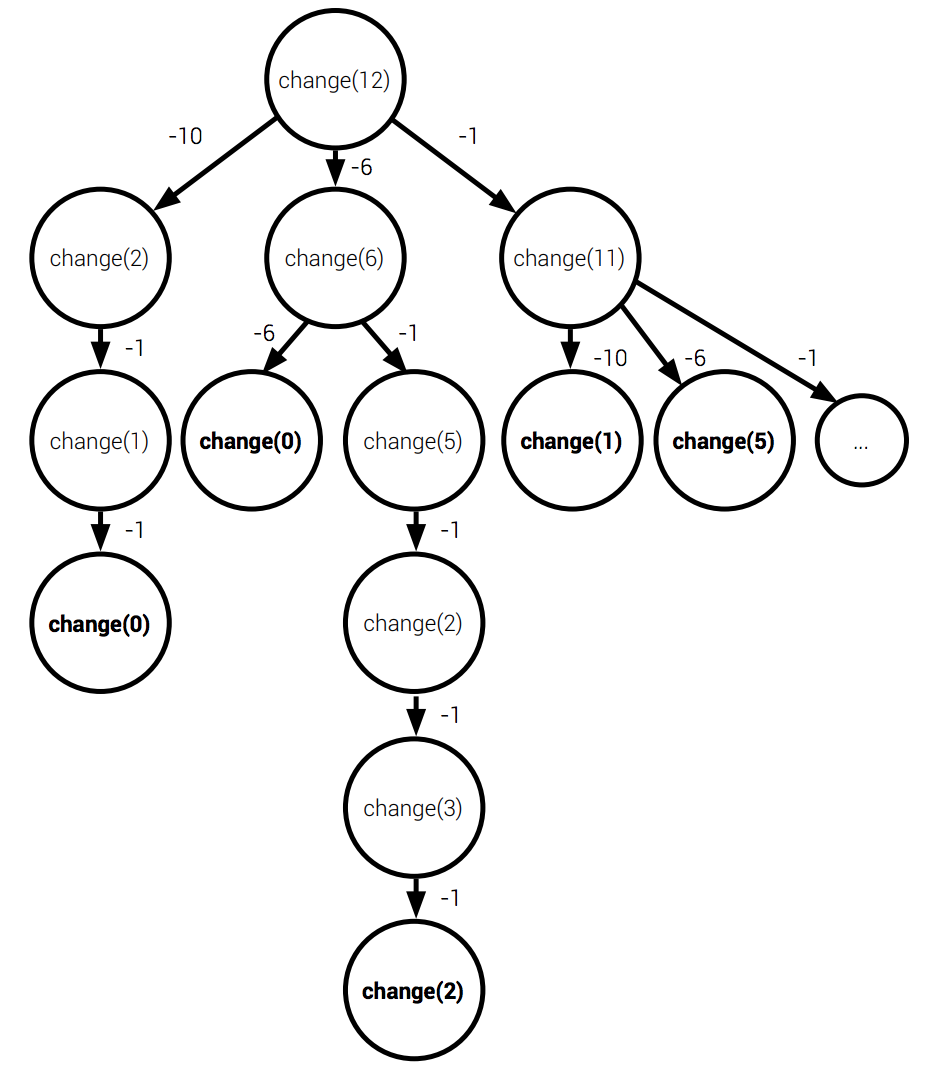

Brute Force Algorithms

Brute Force Approach:

Calculate every single combination possible and keep track of the minimum.





                                @BIANCAGANDO


BRUTE FORCE

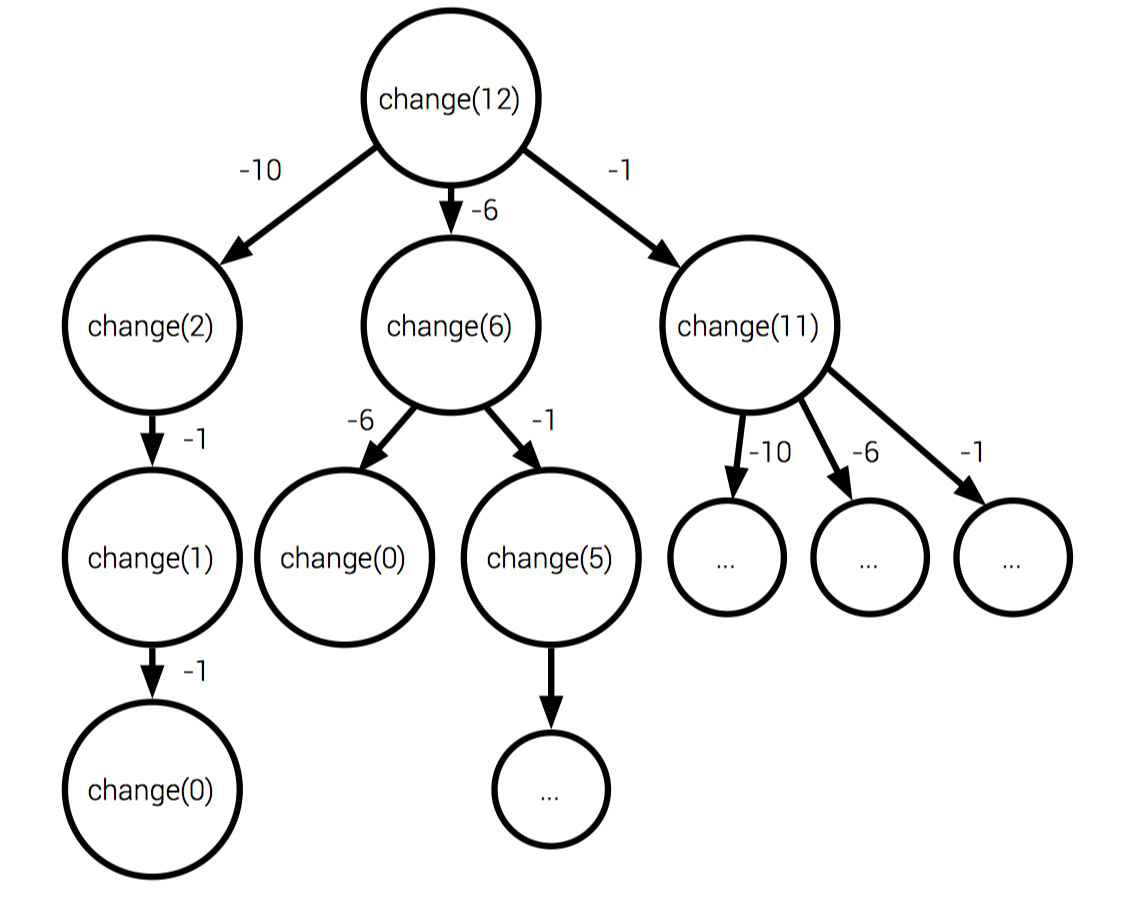

Dynamic Programming

                                @BIANCAGANDO


DYNAMIC PROGRAMMING

                                @BIANCAGANDO


DYNAMIC PROGRAMMING

Dynamic Approach:

Cache values to avoid repeated calculations





                                @BIANCAGANDO


DYNAMIC PROGRAMMING

DP Qualities:

Optimal Substructure (tends to be recursive)

Overlapping Subproblems



DP vs Divide & Conquer



DP Approaches:

Top Down (recursive) vs Bottom Up (iterative)





                                @BIANCAGANDO


Top- Down Memoization

Bottom-Up Iterative

                                @BIANCAGANDO


Memoization + Recursive Approach

                                @BIANCAGANDO


Exercise

                                @BIANCAGANDO


Solution

Introduction to Algorithms

By Bianca Gandolfo

Introduction to Algorithms

WIP

  • 15,483
Loading comments...

More from Bianca Gandolfo
