What is Locksmith?

Web service that elevates a user's PCF privileges to allow for change (either through a scheduled change request OR an incident)

Why?

• People were making changes without CHGs...yada yada yada

• Locked down changes to be done by ITO...yada yada yada

• Locksmith provides a self-service mechanism for performing change that enables traceability

In the Beginning...

"THE CLOUD IS AWESOME!"

"I can deploy all day long"

"I gotta fix this...I can't waste time with a change request"

Then THE AUDIT...

"No more service accounts?!?"

"We can't deploy this ourselves?"

"Oh no, my script has a typo"

"I have an Incident...what do I do?"

"I can only deploy between 9 and 4?"

And Now...

"I can deploy my own stuff again!"

"I still need a change...but I probably should have had one all along"

"Self-service offering for elevating IDs - THANKS

How?

• Create a change in Service Now

• Get approval for change (IRB, Service Now, RE, etc.)

• Before deploying, execute API call to Locksmith to elevate credentials of person "assigned" to changed in Service Now

• Assigned to person performs change in PCF (ideally this is done through an automated script)

Be aware...

• Due to separation of duties, assigned to person CANNOT have source control access (e.g. github) by being part of the GG_SCM_Access group

  • Good opportunity for RE or Product Managers?

  • Make sure this person is a SpaceAuditor in the production org/space

• For standard changes, only works during change request window

• Only lasts for 4 hours - need to re-request elevation after that (as long as it's in the change window)

• Usual requirements around how to create a PCF change (Automation, CI, etc.)

  • Check out the #cloudfoundry channel and wiki for more details

Do

• Automate your deployment to production

• Use your deployment script in non-prod AND production

• Make sure you have a SpaceAuditor without GG_SCM_Access
• Test locksmith with an incident
• Get RE to deploy your code (soon)

Do Not

• Have the assigned person execute cf push

• Assign the change to someone with GG_SCM_Access
• Wait until the last minute to realize you do not have someone to execute the change

"I can't wait to deploy your app!"

Call me any time on my cell phone: 404-555-8997

Demo

• Locksmith Mock codebase: https://github.homedepot.com/bxr2249/locksmith-mock
• Locksmith Mock deployed: https://locksmith-mock.apps-np.homedepot.com/

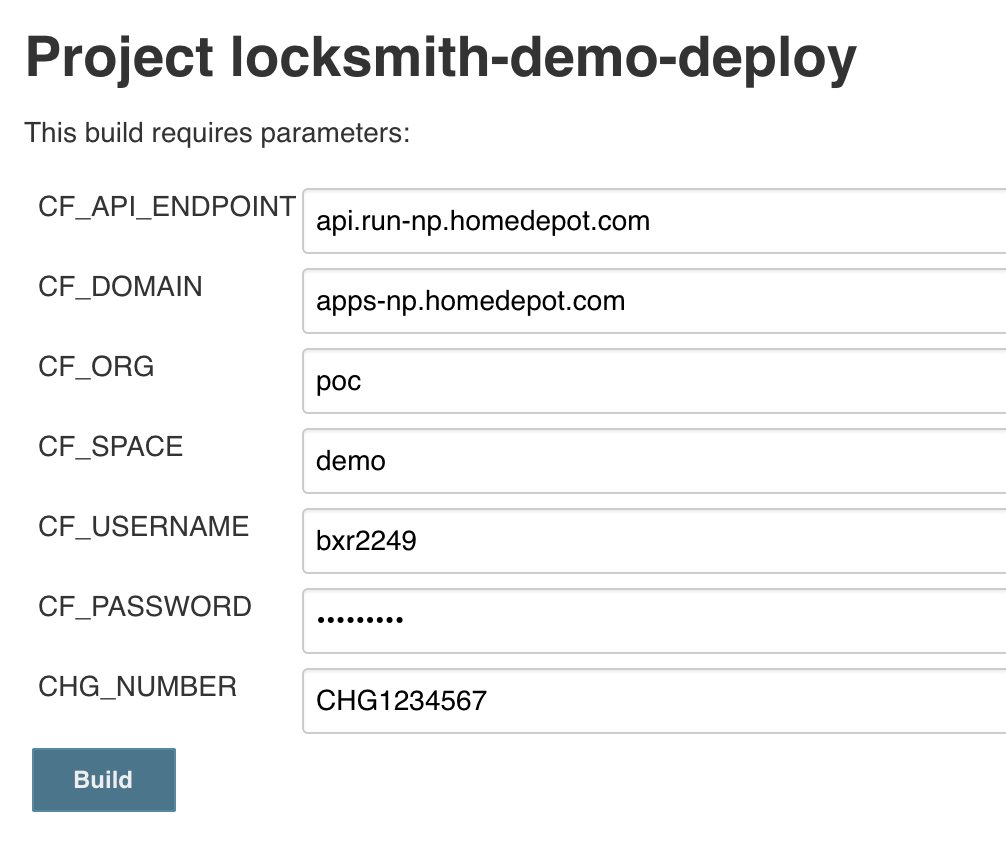

• Locksmith Demo: https://github.homedepot.com/bxr2249/locksmith-demo
• Jenkins (temp) Server: http://ld00841.homedepot.com/

• Built a mock locksmith app that you can test scripts with

• Demo app that scripts out locksmith and deployment

Important Code

# use locksmith (mock) to elevate credentials
LOCKSMITH_RESPONSE=$(curl -i -X POST "http://locksmith-mock.apps-np.homedepot.com/api/grants" \
    -H "accept: application/json" -H "content-type: application/json" -d "{ \"service_now_record\": \"${CHG_NUMBER}\"}")

#echo "*******"
#echo "Locksmith HTTP Response:"
#echo ${LOCKSMITH_RESPONSE}
#echo "*******"
#echo ""

REGEX_ELEVATED_USER="\"user\":\"([A-Za-z0-9 ]+)\""
REGEX_ERRORS="(\{\"errors\":\[[\{\}\"A-Za-z0-9\: ,]+\]\})"
REGEX_HTTP_CODE_201="201"
REGEX_HTTP_CODE_400="400"
REGEX_RESPONSE_CODE="^HTTP\/[0-9].[0-9] ([0-9]{3})"

if [[ ${LOCKSMITH_RESPONSE} =~ ${REGEX_RESPONSE_CODE} ]]; then
    LOCKSMITH_HTTP_CODE=${BASH_REMATCH[1]}
    echo "Locksmith HTTP Code: ${LOCKSMITH_HTTP_CODE}"
else
	echo "Response code from locksmith not found"
    exit 1
fi

if [ "${LOCKSMITH_HTTP_CODE}" == "${REGEX_HTTP_CODE_201}" ]; then
	if [[ ${LOCKSMITH_RESPONSE} =~ ${REGEX_ELEVATED_USER} ]]; then
    	ELEVATED_USER=${BASH_REMATCH[1]}
		echo "User \"${ELEVATED_USER}\" permissions have been elevated to execute change"
	fi
elif [ "${LOCKSMITH_HTTP_CODE}" == "${REGEX_HTTP_CODE_400}" ]; then
	if [[ ${LOCKSMITH_RESPONSE} =~ ${REGEX_ERRORS} ]]; then
    	LOCKSMITH_ERRORS=${BASH_REMATCH[1]}
		echo "Locksmith Errors:"
    	echo ${LOCKSMITH_ERRORS}
    	exit 1
	fi
else
	echo "Response code unhandled: ${LOCKSMITH_HTTP_CODE}"
    exit 1
fi

Call Locksmith

Get HTTP Code

Handle success or error

Alternative

• As of 7/26, ci-cd/concourse-common has a locksmith.sh script
• https://github.homedepot.com/ci-cd/concourse-common/blob/master/scripts/locksmith.sh
