SMIL

SMIL

(Synchronized Multimedia Integration Language)

4 základní tagy pro animaci

  • animate
  • set
  • animateMotion
  • animateTransform

animate

<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
    xmlns="http://www.w3.org/2000/svg" version="1.1">
    <rect id="rectangle" x="400" y="100" width="400" height="200"
        fill="yellow" stroke="navy" stroke-width="10" />
    <animate xlink:href="#rectangle" fill="freeze" dur="5s" begin="1s"
        from="yellow" to="#FFFFFF" calMode="linear" attributeName="fill"/>
</svg>

set

<svg width="12cm" height="4cm" viewBox="0 0 1200 400"
    xmlns="http://www.w3.org/2000/svg" version="1.1">
  <rect id="rectangle" x="400" y="100" width="400" height="200"
        fill="yellow" stroke="navy" stroke-width="10" />
  <set xlink:href="#rectangle" attributeName="fill" to="black"
      begin="2s" dur="5s" />
</svg>

animateMotion

<svg width="1000px" height="1000px">
    <circle cx="0" cy="50" r="15" fill="blue"
        stroke="black" stroke-width="1">
        <animateMotion path="M 0 0 H 300 Z" dur="3s"
            repeatCount="indefinite" />
    </circle>
</svg>

animateTransform

<svg width="1000px" height="1000px">
    <rect x="0" y="50" width="15" height="34" fill="blue"
        stroke="black" stroke-width="1">
        <animateTransform
                attributeName="transform"
                begin="0s"
                dur="20s"
                type="rotate"
                from="0 60 60"
                to="360 100 60"
                repeatCount="indefinite" />
    </rect>
</svg>

Řetězení animace

<svg width="600" height="100" xmlns="http://www.w3.org/2000/svg">
    <rect id="BlueSquare" stroke="blue" height="80" width="23"
        stroke-width="5" fill="#ffffff">
        <animate attributeName="x" attributeType="XML" begin="g_anim.end"
            dur="3s" fill="freeze" from="0" to="300"/>
    </rect>

    <rect id="GreenSquare" stroke="green" height="80" width="67"
        stroke-width="5" fill="#ffffff">
        <animate id="g_anim" attributeName="x" attributeType="XML"
            begin="0s" dur="6s" fill="freeze" from="300" to="0"/>
    </rect>
</svg>

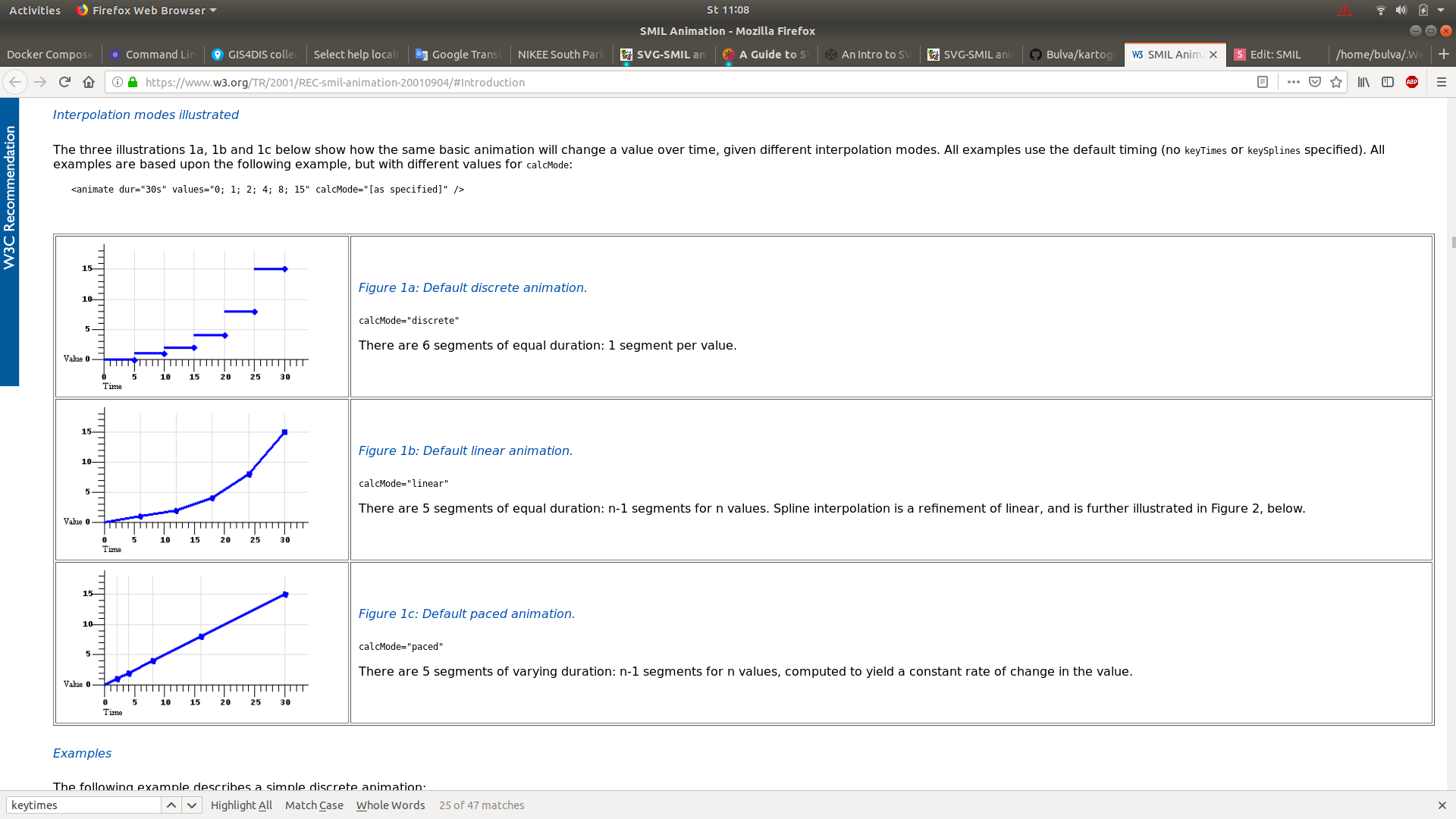

calcMode

<svg width="12cm" height="20cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
    <rect id="rectangle" x="0" y="100" width="400" height="200"
          fill="yellow" stroke="navy" stroke-width="10">
        <animate attributeName="x" dur="10s" values="0; 50; 200"
                 calcMode="linear"/>
    </rect>
</svg>

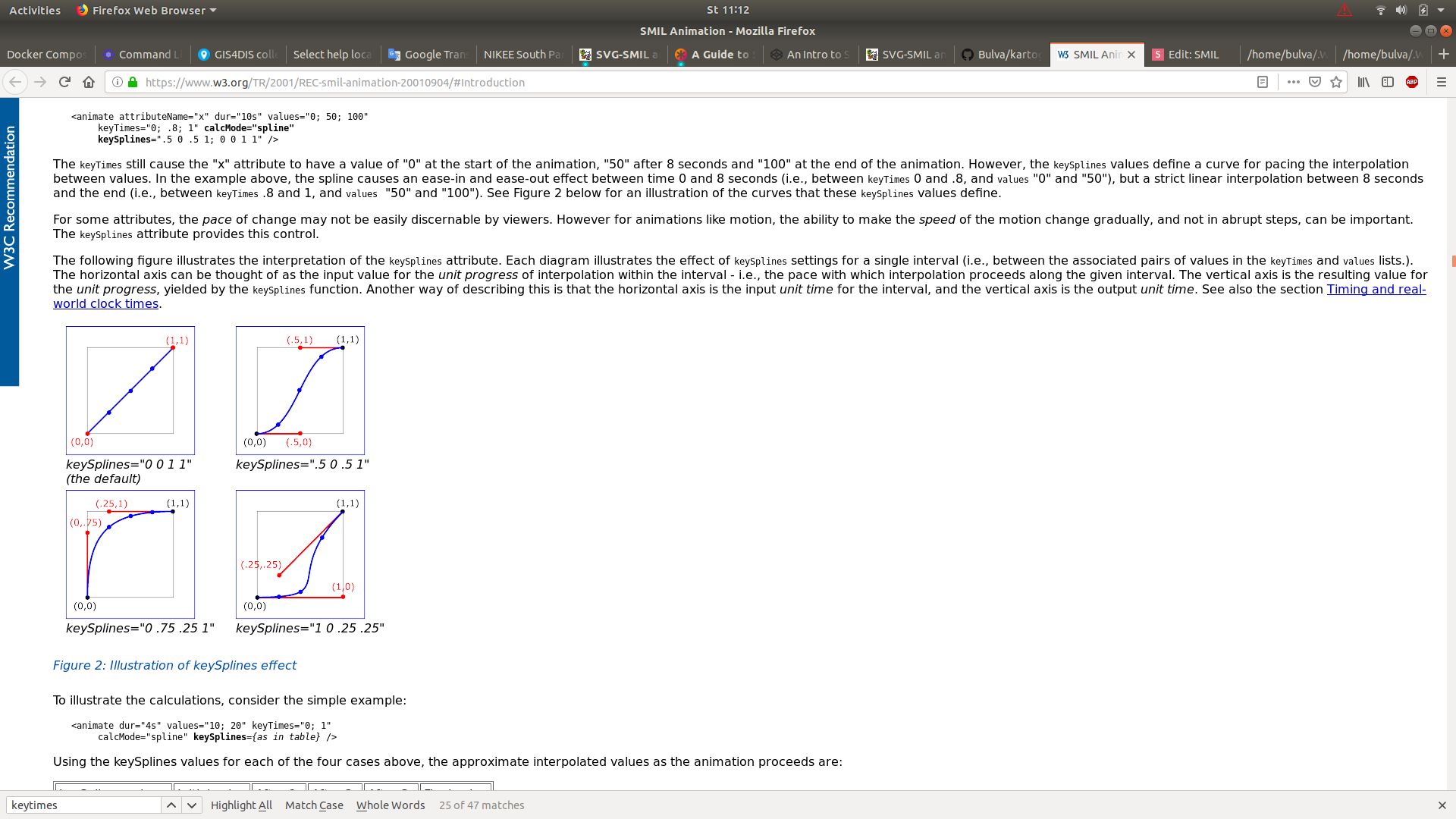

keyTimes a keySplines

<svg width="12cm" height="20cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
    <rect id="rectangle" x="0" y="100" width="400" height="200"
          fill="yellow" stroke="navy" stroke-width="10">
        <animate attributeName="x" dur="10s" values="0; 50; 100"
                 keyTimes="0; .8; 1" calcMode="spline"
                 keySplines=".5 0 .5 1; 0 0 1 1" />
    </rect>
</svg>

repeatCount a repeatDur

<svg width="12cm" height="20cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg" version="1.1">
    <rect id="rectangle" x="0" y="100" width="400" height="200"
          fill="yellow" stroke="navy" stroke-width="10">
        <animate attributeName="x" dur="10s" values="0; 50; 100"
                 keyTimes="0; .8; 1" calcMode="spline"
                 keySplines=".5 0 .5 1; 0 0 1 1" repeatCount="2.5" />
    </rect>
    <rect id="rectangle" x="0" y="400" width="400" height="200"
          fill="yellow" stroke="navy" stroke-width="10">
        <animate attributeName="x" dur="10s" values="0; 50; 100"
                 keyTimes="0; .8; 1" calcMode="spline"
                 keySplines=".5 0 .5 1; 0 0 1 1" repeatDur="5s" />
    </rect>
</svg>

Interaktivní SVG

<svg height="200" width="500" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns="http://www.w3.org/2000/svg">
  <ellipse stroke-width="2" stroke="black" fill="yellow" cx="3cm" cy="2cm" ry="1cm" rx="2cm">
    <animate fill="freeze" dur="0.1s" to="blue" from="yellow" attributeName="fill" begin="mouseover"/>
    <animate fill="freeze" dur="0.1s" to="yellow" from="blue" attributeName="fill" begin="mouseout"/>
  </ellipse>
</svg>
