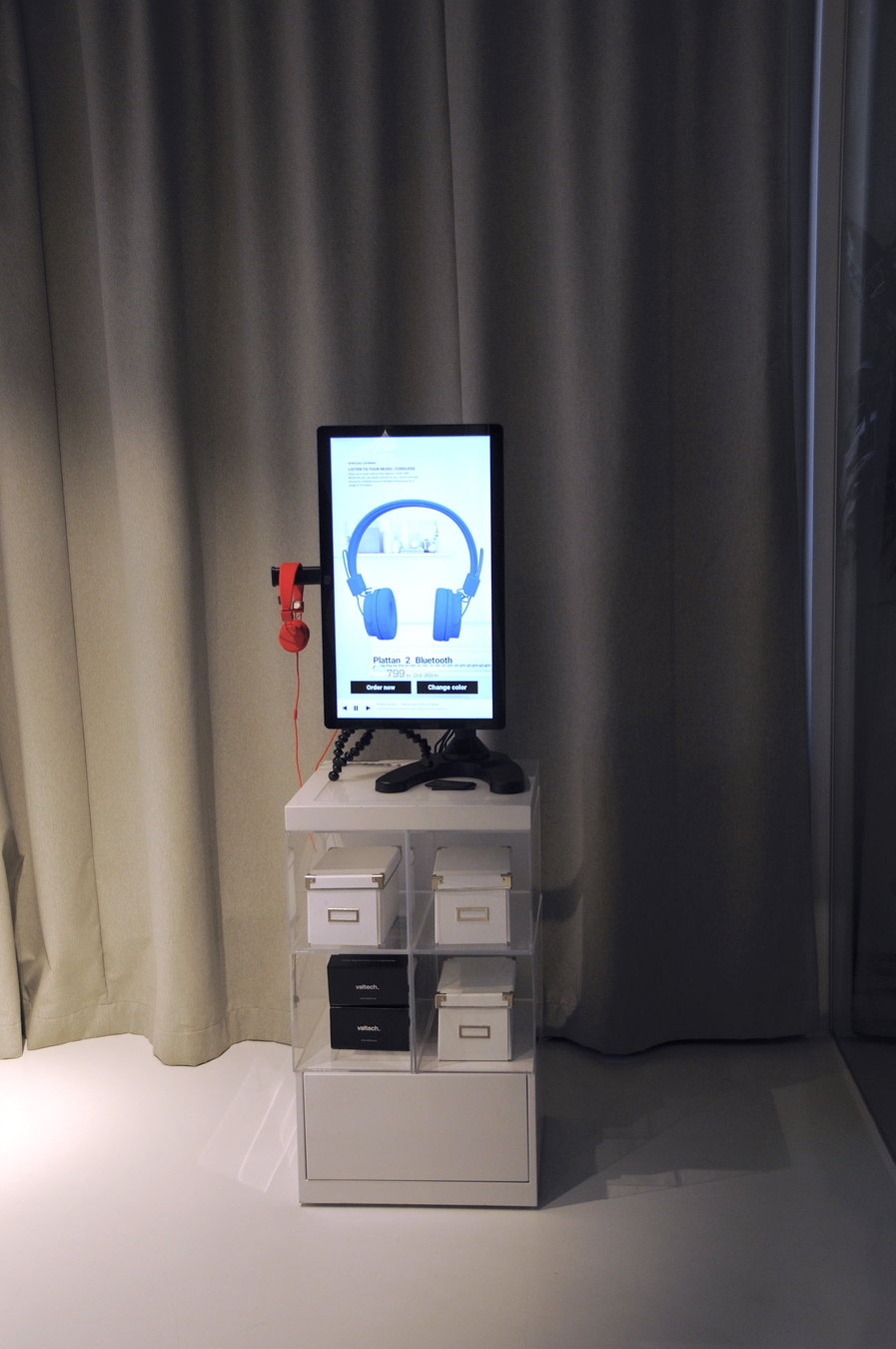

About the

project

• Interactive product display
• Built for store-in-store use
• Online purchase
• Low manufacturing cost
• Sensors, like camera, touch and pick-up detection

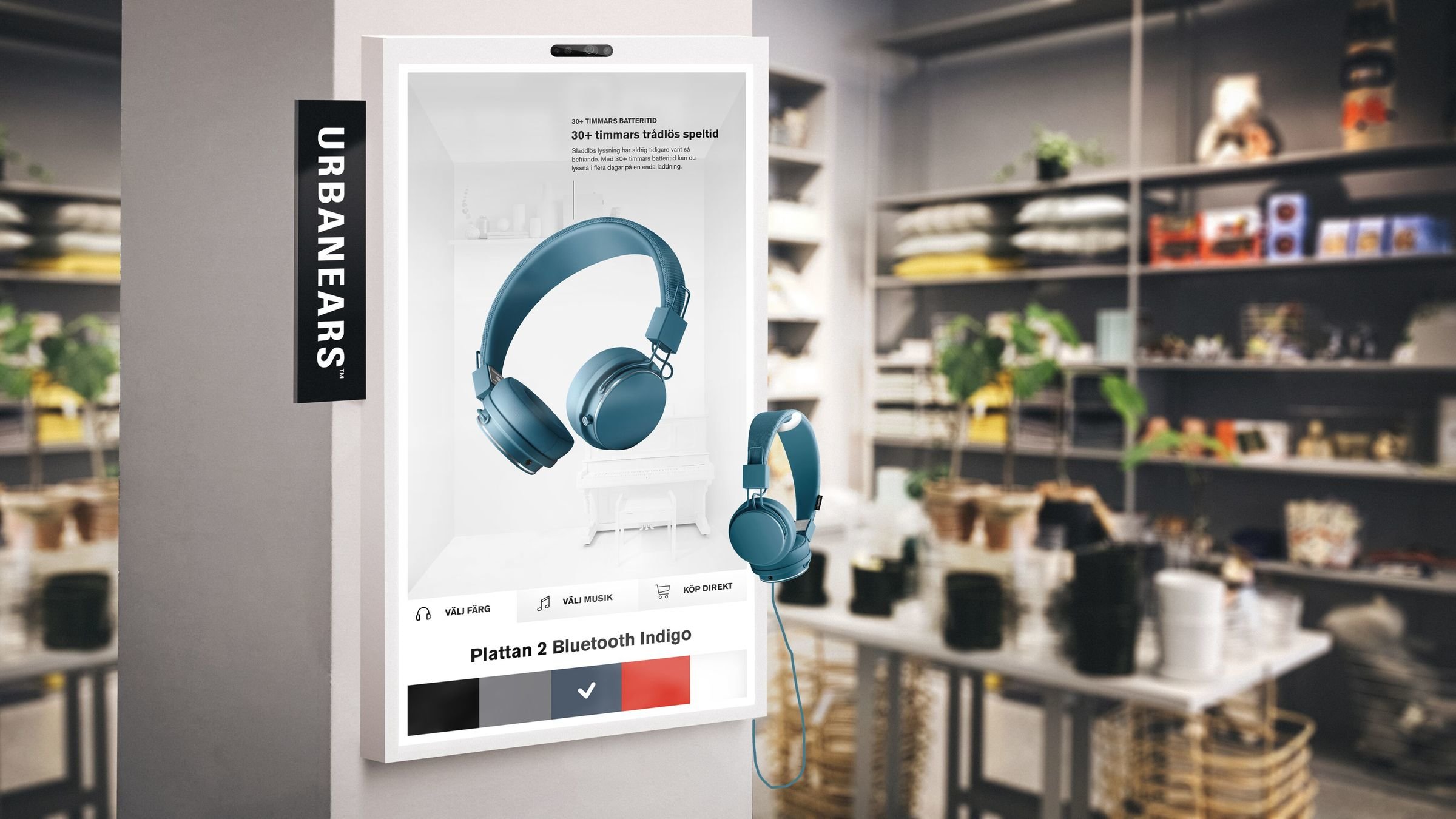

VISOR: VIrtualShOwRoom

Technology used

• OpenGL                               (UI and product rendering, glium)
• Intel RealSense Camera   (FFI-API, C/proprietary)
• OpenCV                               (face recognition, CascadeClassifier)
• Linux libevdev-api             (touch, /dev/input/[XXXXX])
• Assimp                                (3D asset importer, mostly FBX-files)
• rodio                                   (audio, backed by cpal/ALSA)
• UDOO x86                          ($170 single board PC)

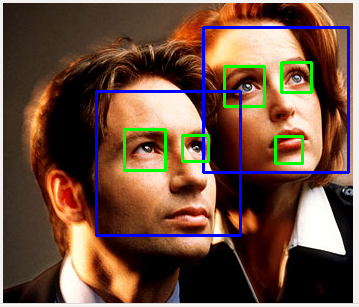

Face tracking

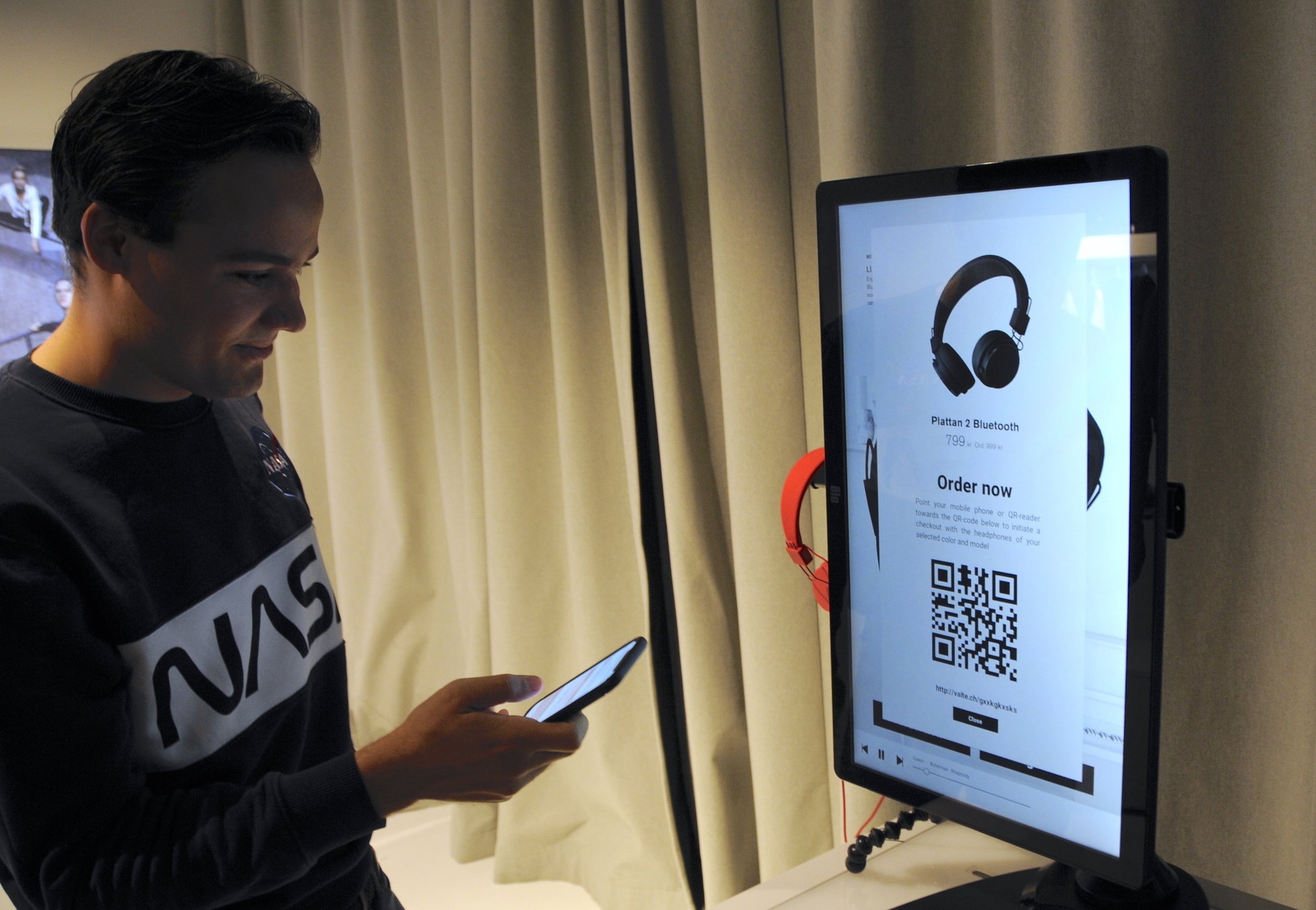

Interaction

Online shop

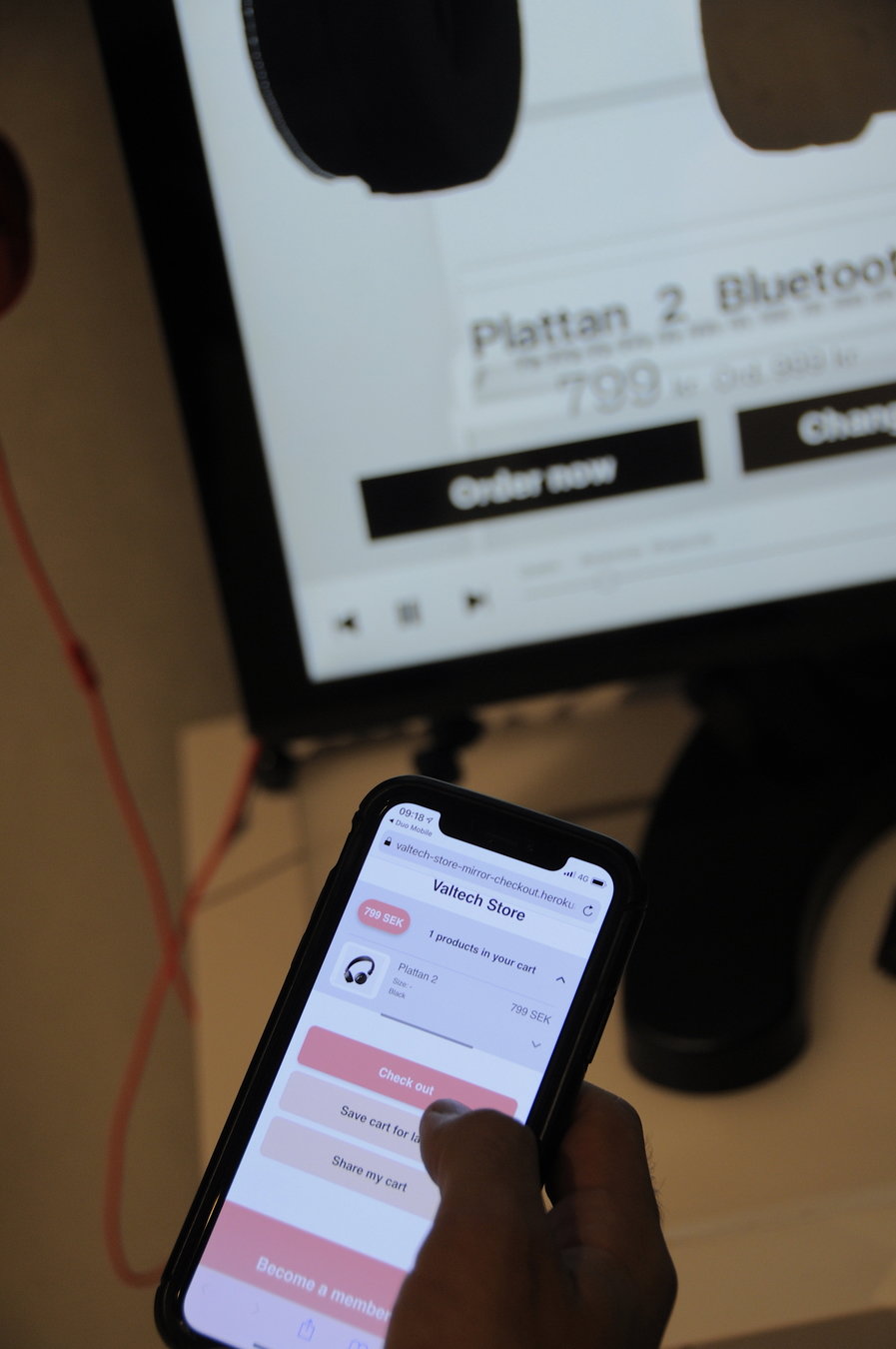

Checkout in mobile

Why Rust?

• Lightweight
• Portable
• High performance
• Good FFI-support
• Great support for concurrency
• Failsafe
• Expression based(!)
• ... and because I like it

Some drawbacks

• No good FFI with C++
  • Possible, but I recommend a C-shim
• Less mature ecosystem than Java/C++/.NET etc...
  • But good enough for most uses
• Not the fastest language for rapid prototyping. (aka "Rust tax")
  • But wins in the long run (IMHO)
• Only partial support for embedded development
  • But there is a WG and it is getting there

Concurrency in Rust

• Threads                             (std::thread)
• Lock-free/CAS-variables (std::sync::atomic)
• Message passing             (std::sync::mpsc)
• Callbacks                           (std::ops::{Fn, FnMut, FnOnce}
• Futures                              (std::future::Future)
• (async/await)                    (coming soon...)

Concurrency in Rust

• Threads                             (std::thread)
• Lock-free/CAS-variables (std::sync::atomic)
• Message passing             (std::sync::mpsc)
• Callbacks                           (std::ops::{Fn, FnMut, FnOnce}

• Futures                              (std::future::Future)

• (async/await)                    (coming soon...)

Threading

Application

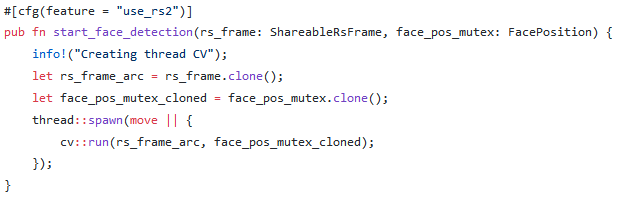

OpenCV

Text

Threading

Threading, cont...

Message passing

Application

evdev events

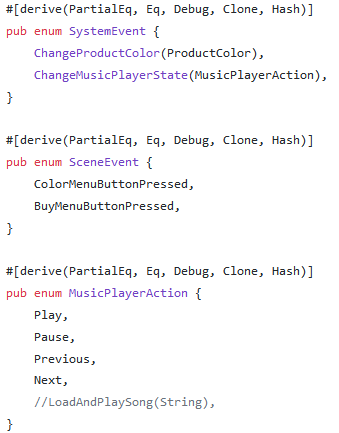

Message types

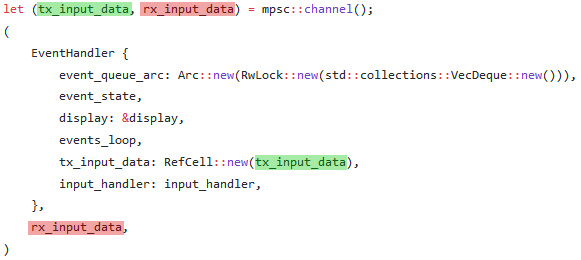

Channel setup

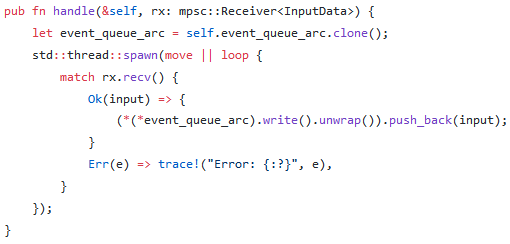

Receive messages

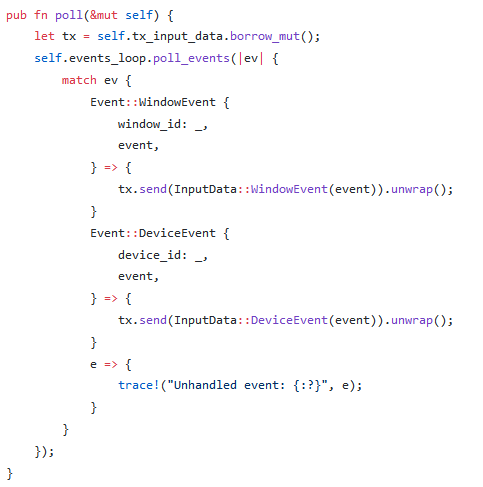

Polling events

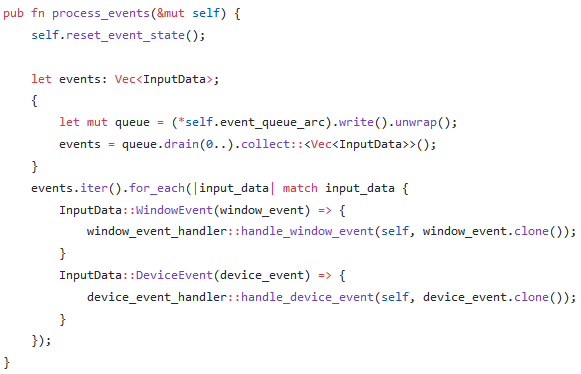

Process domain events

Conclusion

• There are a number of methods, all with their own benefits and drawbacks
• You often get the best result by picking more than one method
• Rust is awesome for concurrency and the promises holds true regarding security!
• Futures and async will make a lot of boiler plate go away

The good parts

Conclusion

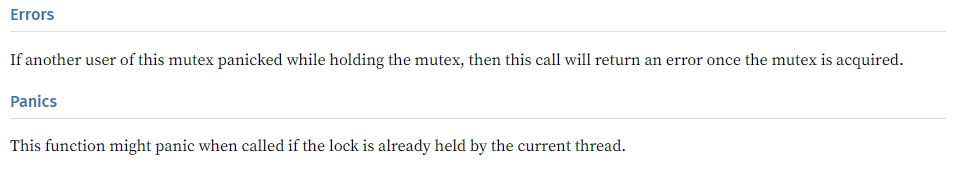

• It does not protect you against deadlocking/livelocking and other logic bugs
  • But it is easier to track!
• Safety makes the code verbose:
  • Arc::new(Mutex::new(None))
• Simple things in unsafe languages can be frustratingly hard to model in Rust.
  • For example a mutable reference to an element in a mutable list.

The ugly parts
