DB Schema Design
For huge data consumption
Condition
Huge Reads
Huge Writes
In basic
Client App
Table Index
Data Rows
PK, Foreign Key
20 MegaBytes
500 MegaBytes
Decision Tree
Table Index
Data Rows
Hardware Limit
Storage: SSD
Up to 500MB/s
Full Table Search
Q: 5TB data generated per date, (1.44 trillion rows)
10s to scan
Optimized Index
Index to 5 million rows
1.4 M rows per disunion
36 Bytes per row
0.3s in 150MB
0.1s in 50MB
Reduce Index Size
Timestamp
Integer
Double
Varchar
Text
Integer
Data Reduce
Timestamp
Integer
Double
Varchar
Text
Integer
Enum
Rebased Timestamp

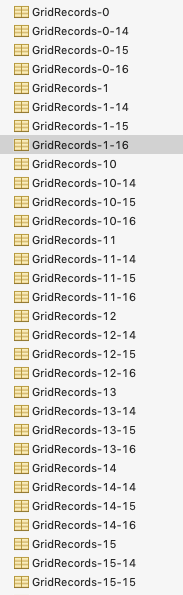

Data Partition
Map App
Zoom
Grid
Time
Client Aggregate
DB Warehouse
Dynamic Aggregate
15 mins
2 hours
8 hours
1 day
30 mins
45 mins
1 hour
1 hour 15 mins
1 hour 30 mins
1 hour 45 mins
2 hours 15 mins
…
Huge Write
Batch insert
File Insert
Predefined PK
Prealloc Rows
Split Partition
Batch Insert
INSERT INTO `Records` (`id`, `amount`, `time`) VALUES (1, 24, 1), (2, 25, 2)...
Reduce handshake
Optimize SQL parse
File Insert
LOAD DATA IN 'path/to/csv/file' INTO TABLE `Records`
Split Data Aggregate
Optimize SQL parse
Reduce handshake
Predefined PK
Auto increment will LOCK table to find unique id
Snowflake
But UUID is not effective type on query (Not integer)
Prealloc Rows
Alloc rows disk space on huge insert is not effective
Alloc with predefined PK
Update on data prepared
Split Partition
Decision Tree
Prepare for query
Storage Cluster
Thanks
DB Schema Design
By Chia Yu Pai
