Hyper-V FLR UI

UI / Node / Build / Packaging

Covering

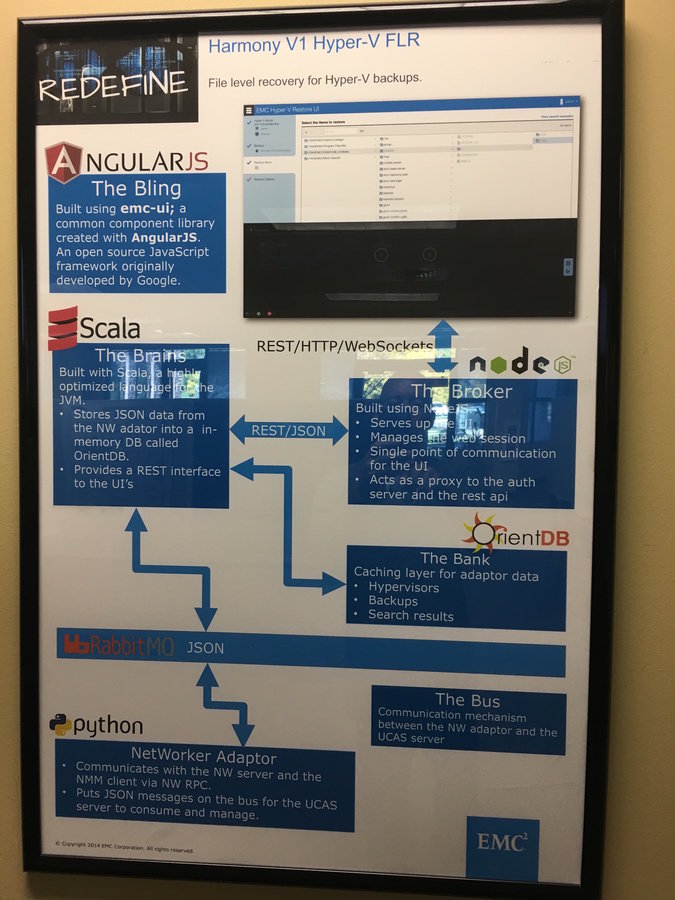

• Overview of UI and and Node components and related tech
• Build and packaging
• Description of different git repos
• Trace a call to GET /hypervisors

The UI

• Build with Angular version 1.2
• Uses EMC-UI components version 0.2
• Grunt for task automation (sass, css minification, ...)
• Git repo is emc-hypervflr-gui

The UI Server (node.js)

• node (Javascript) version 0.10.29
• express - http server.  Serves static files and REST endpoints
• Grunt for task automation
• Makes REST calls to Scala layer (messaging service) to fulfill client requests
• Git repo is emc-rest-hypervflr

Important git repos

• well documented on wiki

• emc-hypervflr-gui - .html, .css, .js, and dependencies

  • final build artifact is a .tgz , gets published to Ivy

• emc-rest-hypervflr - (.js) the node server

  • final build artifact is a .tgz, gets published to Ivy

  • uses Grunt for most build tasks, Gradle to publish

​​...

Important git repos (cont.)

• raven-node-service - pulls the UI and Node artifacts together

  • ​written in scala

  • builds with Gradle

  • final artifact is a .jar

  • when service runs, starts node (exec)

• raven-launcher - the final mega .jar that contains everything

  • main method is here

  • starts all services

Overview of Jenkins Build

• link to jenkins build server

• look at build configuration to see build targets

• UI and Node builds upload .tgz to Ivy repository

• It's an Ivy repo, even though the hostname is nexus

  • port 8081/nexus runs nexus

  • port 80 runs generic WebDav via nginx

• See custom gradle plugins here

Chain of Builds

1. raven-emc-rest-hypervflr OR raven-hypervflr-gui
2. raven-node-service
3. raven-launcher
4. integration test and deploy tasks

Tracing GET /hypervisors

• Let's trace a GET /hypervisors through the UI and node layers
• In repo emc-hyperflr-gui...
• app/scripts/controllers/guiHyperVServersCtrl.js
  • has an init() method that calls loadServers()
  • which calls ...
• app/scripts/services/hypervisorService.js
  • getHypervisors()
  • which makes a REST call GET /hypervisors

...

Tracing GET /hypervisors (cont.)

• in repo emc-rest-hypervflr
• lib/hypervisors/hypervisors.js
  • REST handler for /hypervisors
  • makes a call to the flrService (scala) GET /hypervisors

Other Misc Tips

• Get familiar with the system by:
  • examining REST calls made by UI with browser tools
  • search emc-rest-hypervflr lib/ for REST endpoints

Questions?
