According to RTU Syllabus

SURVEYING-II

CURVE SURVEYING

Part-1

• Curves are provided whenever a road changes its direction from right to left (vice versa) or changes its alignment from up to down (vice versa).

CURVES

                                Types of Curves

There are two types of curves provided primarily for the comfort and ease of the motorists in the road namely:

• Horizontal Curve
• Vertical Curve

Horizontal Curve

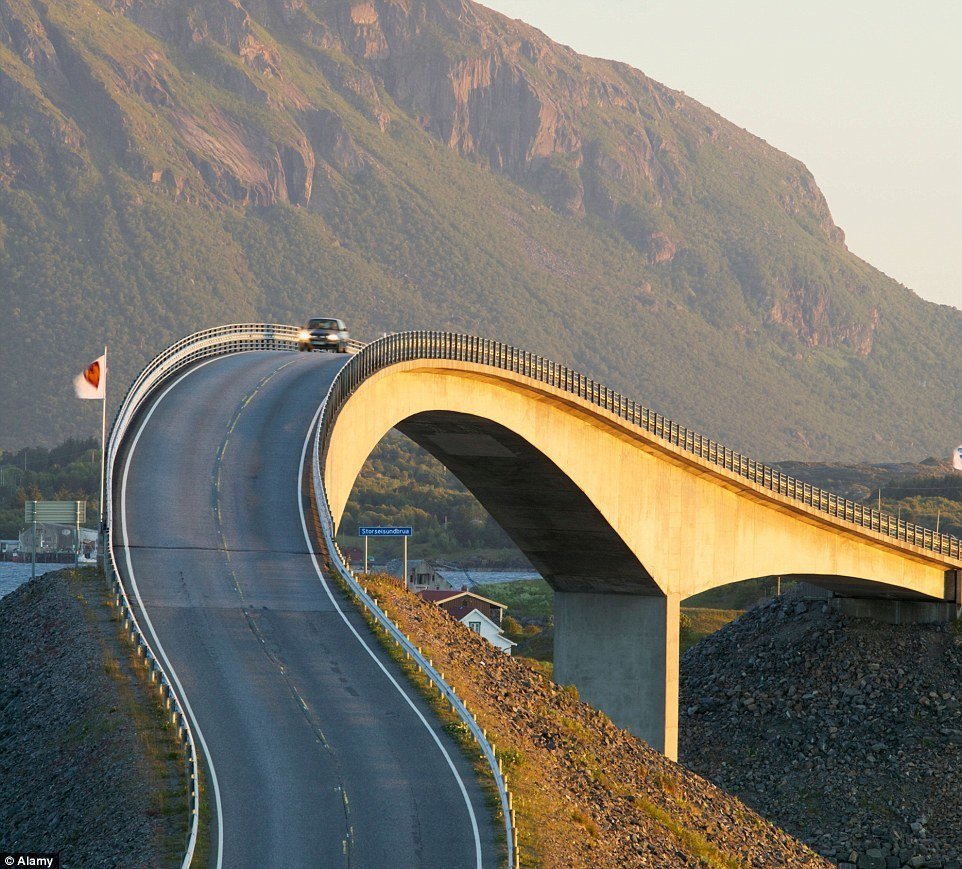

Vertical Curve

ADITI SHARMA
