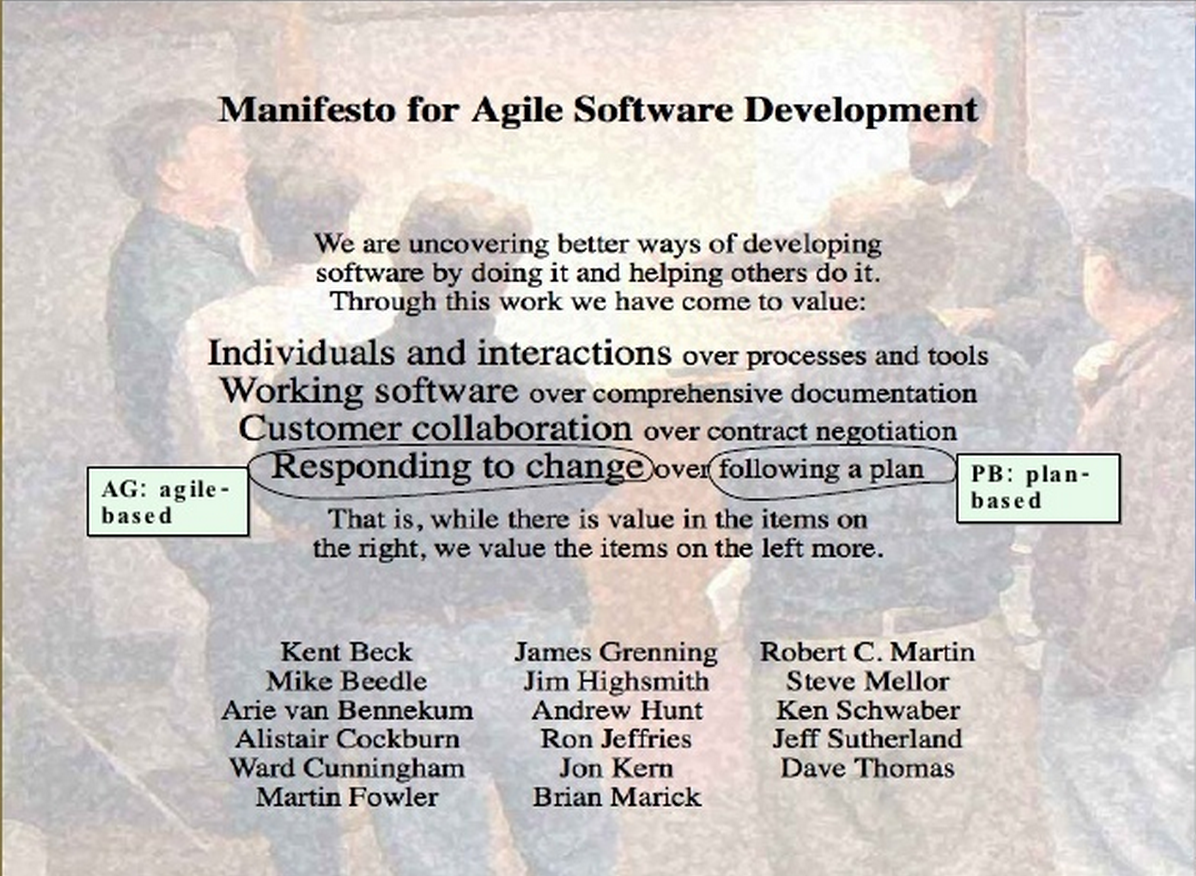

Agile Manifesto

(background)

Responding to change over following a plan

On this paper

Specifically

With very little machinery, can characterize:

• when PB (plan-based) is better/worse than AG (agile)
• If PB or AG or XYZ is appropriate for your particular project

The Model

Model

Alpha & Beta

Two kinds of “iterations”

Project iterations

• Every so often, pause to consider what to do next
• At each at pause, deliver Version1, version2, version3,..

Value iterations

• Every so often, the value of our requirements change.
• Assume that after $N
  There is a pause, and the value of each requirement is reassigned.
• $N = ( total cost of base reqs ) / num_iters

For three of  simulations (AG, AG2, hybrid)

One value iteration for each project iteration

For conventional plan-based prioritization

Only one project iteration But numerous value iterations

x=requirements discovery: rate of new requirements


Requirements += Poisson( x )



• Steps though 2 ≤ I ≤ 6 iterations of requirements review

• • B= base requirements at iteration one (max=25)

• • Early stopping probability of 1/(maxI^0.33) = 55%

• • Requirements unimplemented at each phase: 20%

• Requirements

• • Value R x : min_value(30) … max_value(500)

• • Cost R x : min_cost(1) … max_cost(100)

• • Assumed to be nonvolatile

End development time is unknown Cao,Ramesh, IEEE software 2008 Experiments with volatile costs not insightful No inter- requirement dependencies

y =requirements volatility: rate of requirements changing value



Value += max(0, value + N(0,  ))

Alpha = x

Betha = y

Performance Measures

Control parameters

• Median new requirements discovered per iteration: 0.001 ≤ x ≤ 20
• Requirements value volatility: 0.1% ≤ y ≤ 200%



Cumulative

• Of = Optimal frontier- “after the fact” of ordering of all requirements
  Note: uses more information that available at any particular iteration represents maximum possible value.
• Oi= Optimal initial: ordering the requirements using the initial values
• Dynamism = Of - Oi (low if initial ordering is best requirements prioritization)

- Extreme strategies (PB,AG) fail for this medium case.

- AG2 and HY perform best

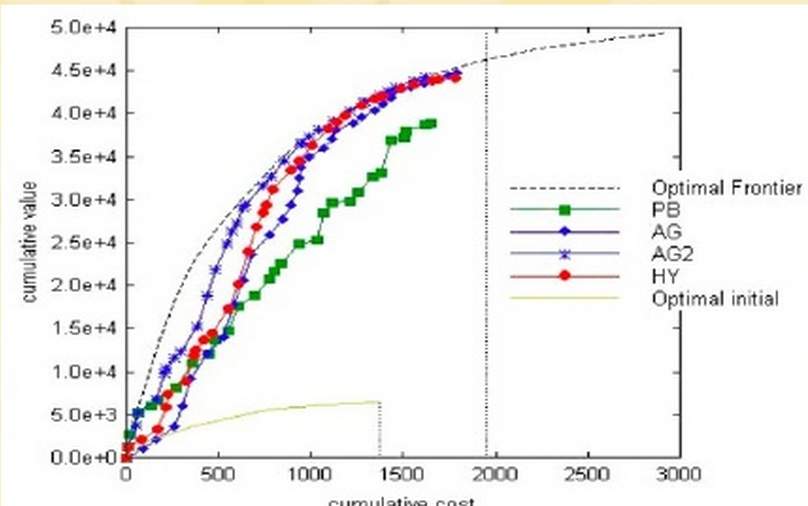

One trial results (1 of 3) medium dynamism

-Optimal initial = optimal frontier

- Expect: PB work best, AG worst

- Actual: HY/ PB best, both AGs worse

- And standard AG worst of all

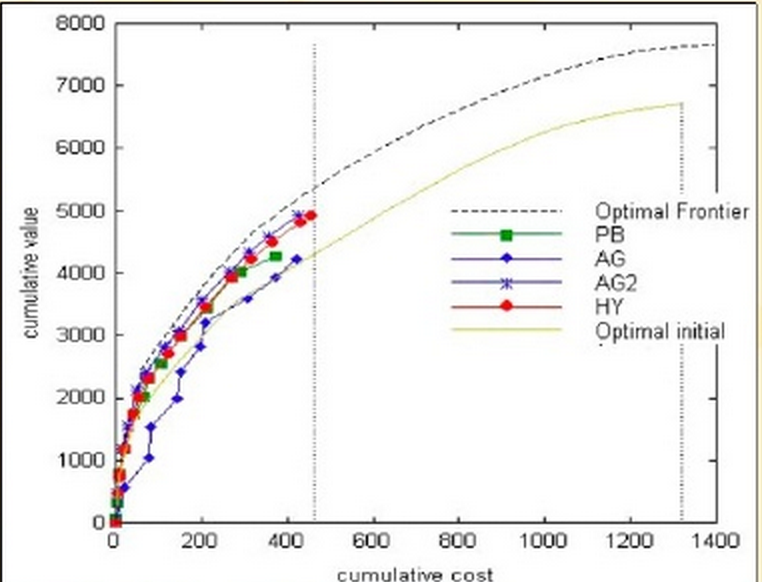

One trial results (2 of 3)

- Expect: PB work worst, AG best

- Actual: PB worst, standard AG needs some help

- AG2 or HY beats AG

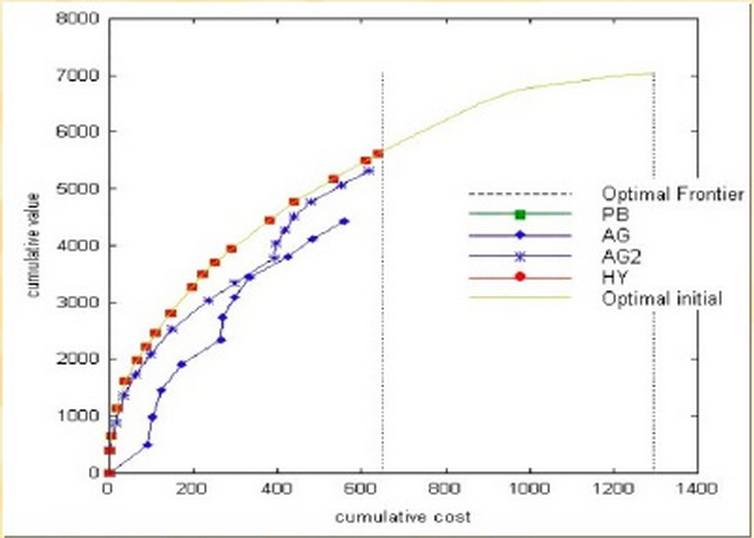

One trial results (3 of 3) high dynamism

- tb= total benefits

- tc = total costs

- Ben = benefit = tb - tc

- CB = tb/tc

- Int = integral= area under tb/tc curve

- FR = ratio of final to the optional frontier

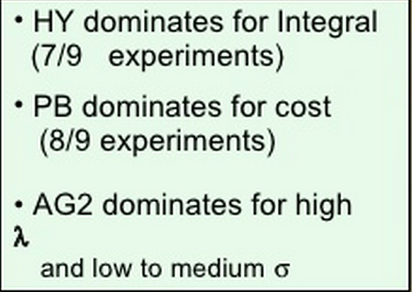

1000 trial results

Conclusion:

Agile beats PB?

That is the wrong question

Better question(s)

• What is the rate of new project requirements and value volatility?
• What does the simulator say is the best combination of strategies for your domain?

In these studies

• No strong case for either PB or AG
• (which may not hold for your next project)

No more trite answers

Tune methods to local environments

• Is anyone surprised?
  • Hybrid combinations do better than the obsessive application of diametrically opposed extremes.

• How much of our time is spent debating needlessly polarized viewpoints?
  • plan vs agile
  • procedural vs object
  • model checking vs testing
  • etc

• Of course large diverse teams will combine methods ,We should research those combinations

• More coalition, less opposition

Challenge
