API Testing with POSTMAN

HTTP Methods, Headers, Params

Learning Outcome

5

4

Analyze and validate API responses

3

2

1

Understand what an API is and how it works

Explain why API testing is important

Understand the basics of API testing

Identify and validate API requests

The Kitchen without Waiter

Some even start cooking their own dishes

Chef Confused which order to make first

Customer walks into kitchen

They check ingredients & tell chef their order directly

Kitchen turns chaotic

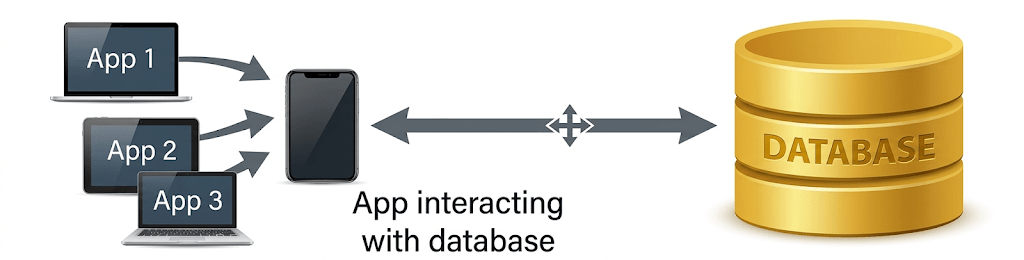

Just like the chaotic kitchen, problems occur when applications directly access the database

No validation or control

Tightly coupled systems

Security & data integrity risks

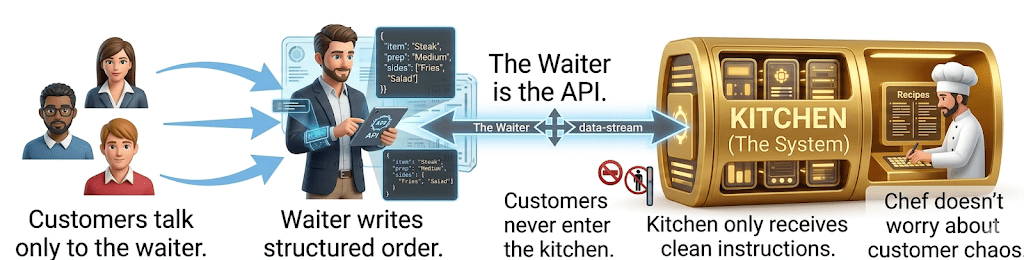

Now Imagine..

The waiter is the API.

The waiter is the API.

Validates order

Ensures correct format

Controls access

Protects the kitchen (database)

What is an API?

API stands for Application Programming Interface.

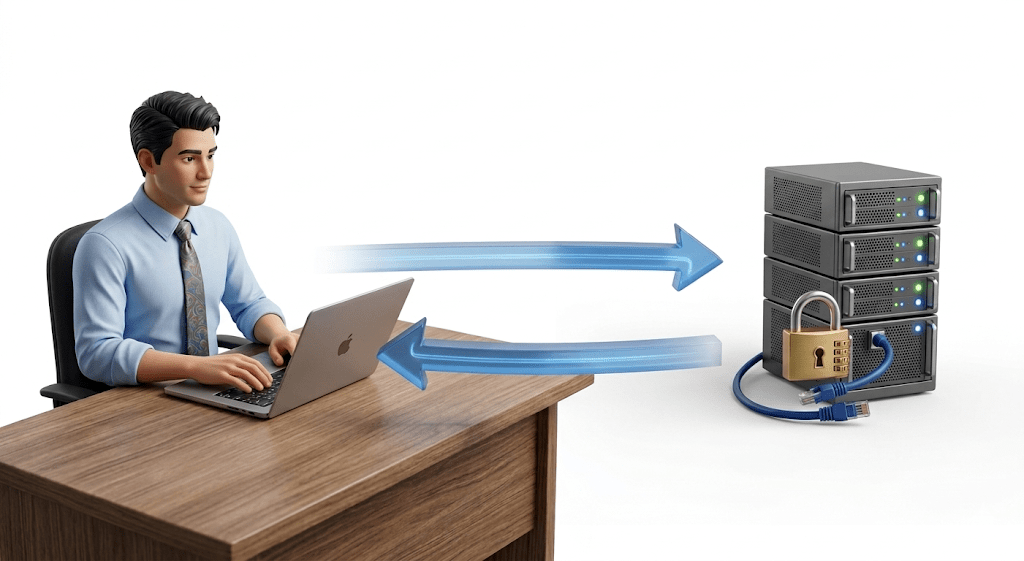

Allows communication between systems via request and response

Request

Response

Client

Server

It’s a contact between two systems

Types of APIs

Example:

Google Maps API,

Twitter API

Enables interaction over the web using HTTP. Provides

communication between applications via the internet

Web API

Example:

GitHub REST API



Lightweight and widely used. Uses HTTP methods (GET, POST,

PUT, DELETE). Works with JSON/XML data.

REST API

Types of APIs

Example:

Payment gateways,

Banking services

Protocol-based, highly secure and structured. Uses XML for

messaging. Supports ACID-compliant transactions.

SOAP API

Example:

Facebook Graph API

OpenWeather API



Available for external developers. Promotes third-party

integration.

OPEN API

(Public API)

Now, let’s explore REST APIs.

REST API

REST stands for Representational State Transfer.



It's a set of rules allowing systems to communicate over HTTP.

REST APIs are stateless and follow client-server architecture.

They're widely used in web and mobile applications

Let’s look at the tools used for API testing.

Client

Server

Request

Response

Postman

Postman is a popular API development and testing platform

Initially released as a Chrome extension (2012), now a full-featured standalone application.



Used by developers, testers, and DevOps teams to design, test.

document, and monitor APIs.



Simplifies the process of sending requests and analyzing responses

without writing complex code

Understanding the HTTP Protocol

Client sends request to server

Client

Server

Server returns status code, headers, and data

Server processes the request

Request

Response

Processing

Now, let’s understand the full API flow.

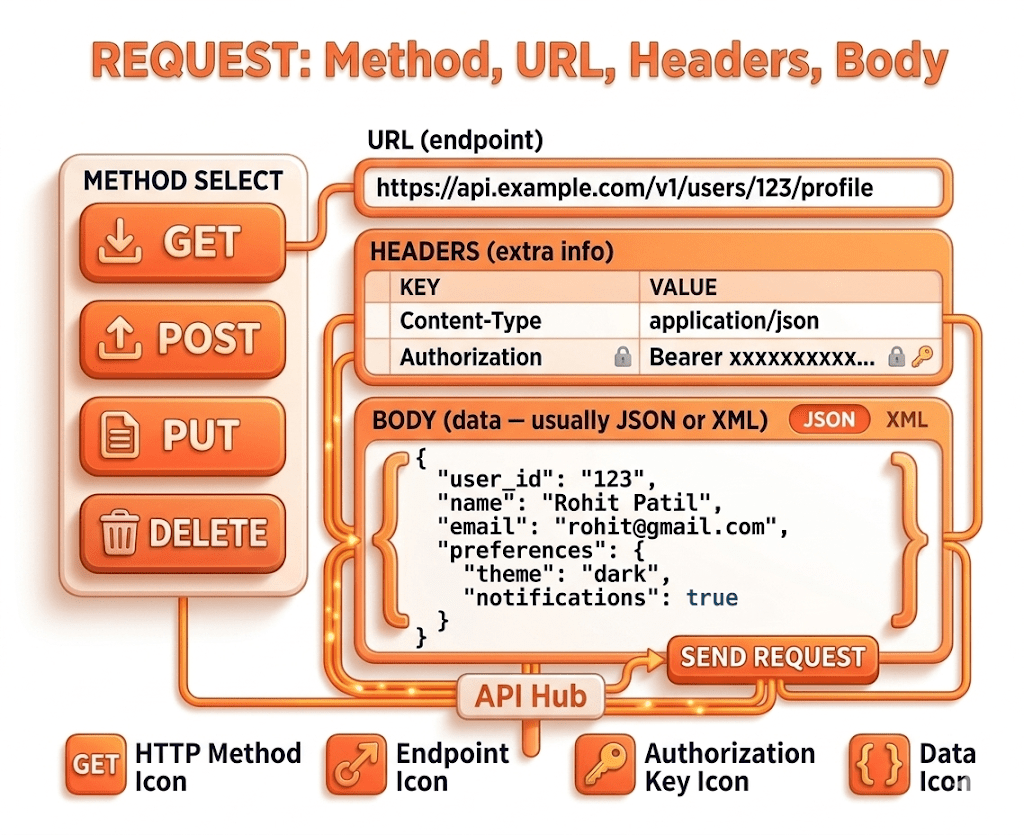

 Request

A Request is a message sent by the client to the server asking for something.



Example:

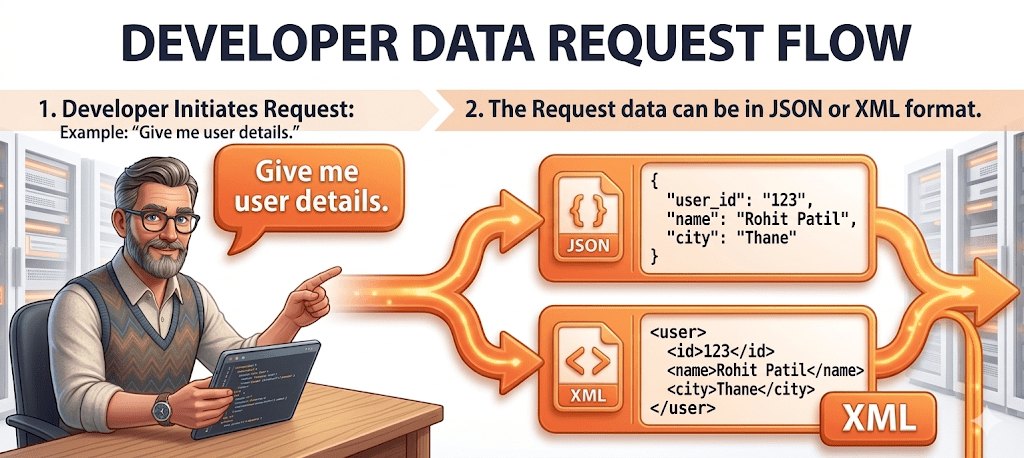

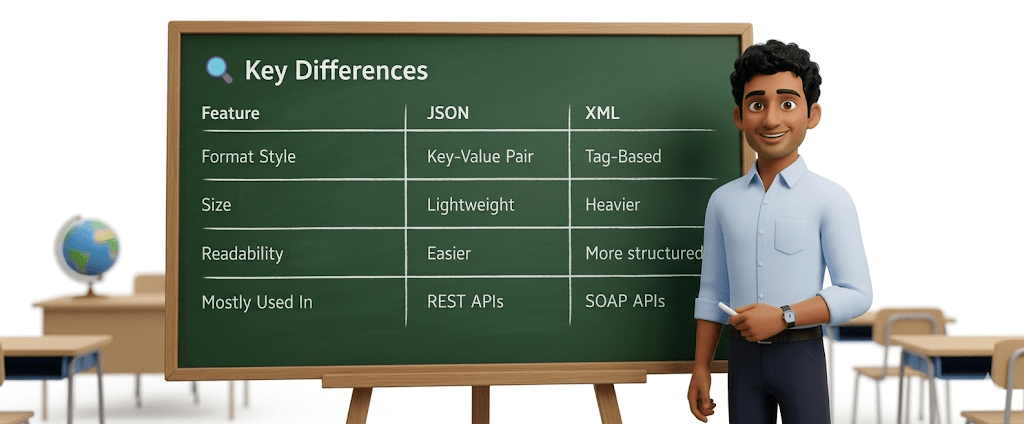

Why JSON and XML

When a client sends a request to a server, the server responds with data.
That data must be in a structured format so both systems can understand it.

JSON (JavaScript Object Notation)

🔹 Lightweight
🔹 Easy to read
🔹 Mostly used in modern REST APIs

Why JSON is popular

  • Less bulky

  • Faster to parse

  • Human-readable

  • Works very well with web and mobile apps

🔹 Tag-based structure

🔹 Older but still widely used
🔹 Common in SOAP APIs and enterprise systems

XML (Extensible Markup Language)

Characteristics:

  • Uses opening and closing tags

  • More verbose (larger size)

  • Strict structure rules

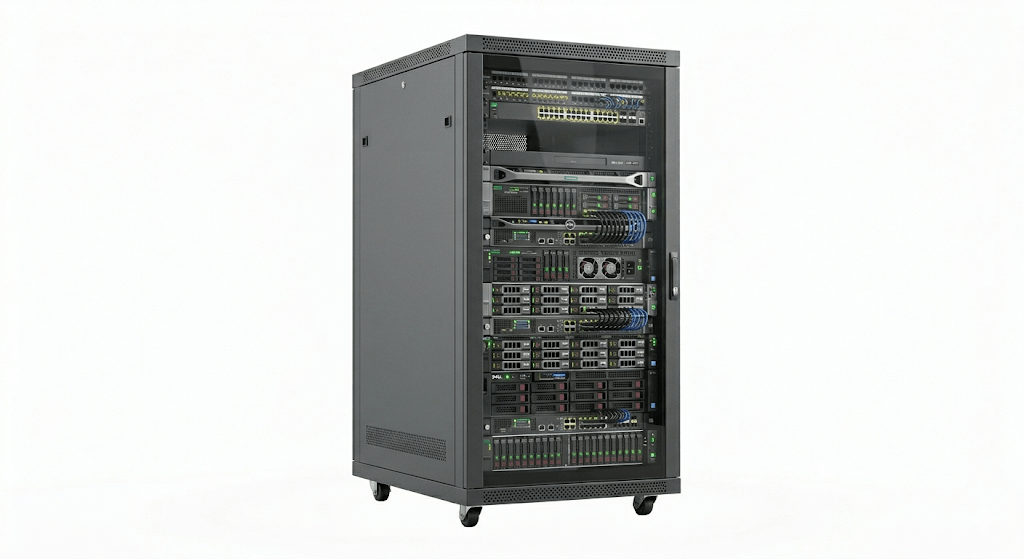

Server

A Server is a system that:

  • Receives the request

  • Processes the logic

  • Validates authentication

  • Accesses database if needed

  • Prepares response

  • Sends response back

Server listens → Processes → Responds

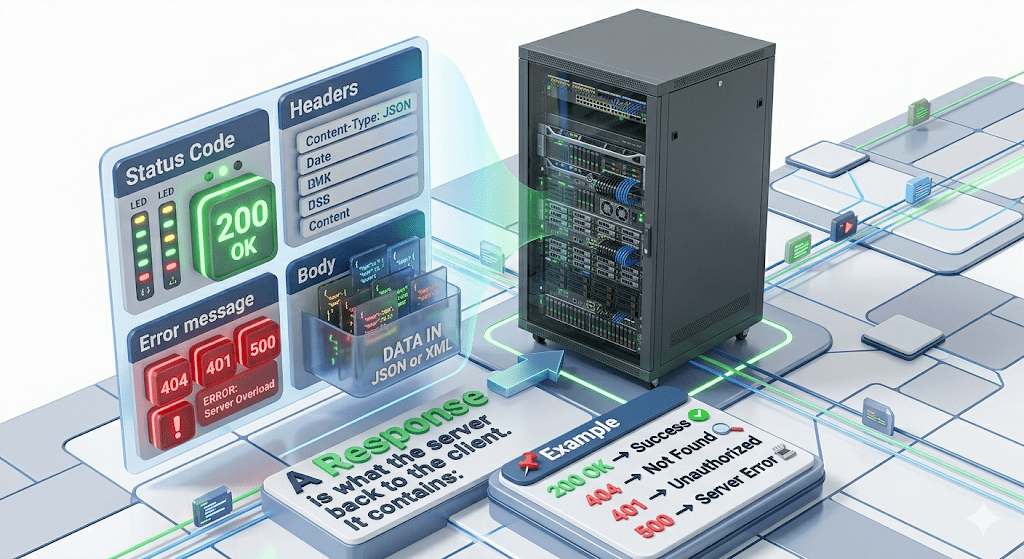

Response

A Response is what the server sends back to the client.

  • Status Code (200, 404, 500, etc.)

  • Headers

  • Body (Data in JSON or XML)

  • Error message (if something failed)

 It contains:

HTTP Methods



  • Used to retrieve data


  • Does NOT modify data


  • Data is visible in URL


  • Safe and idempotent

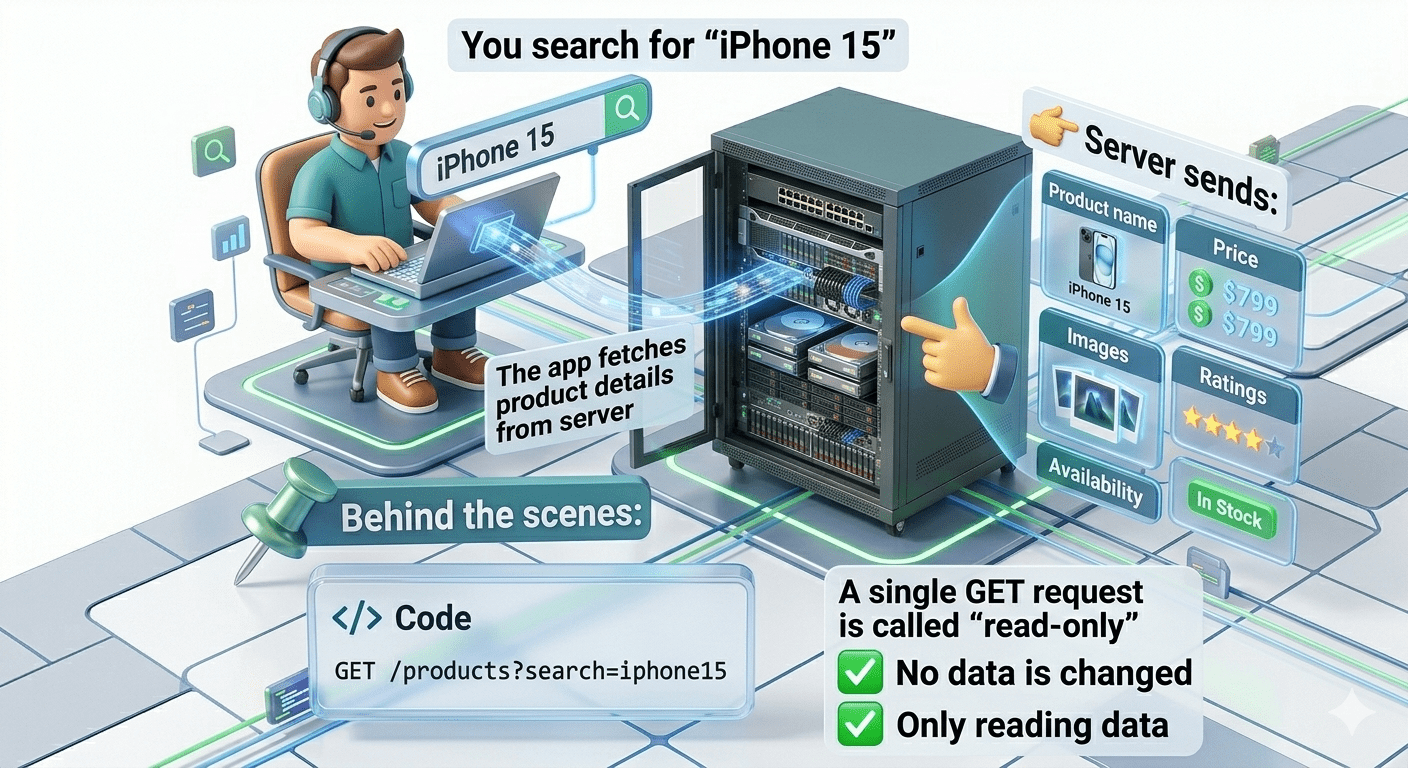

GET Method

HTTP Methods

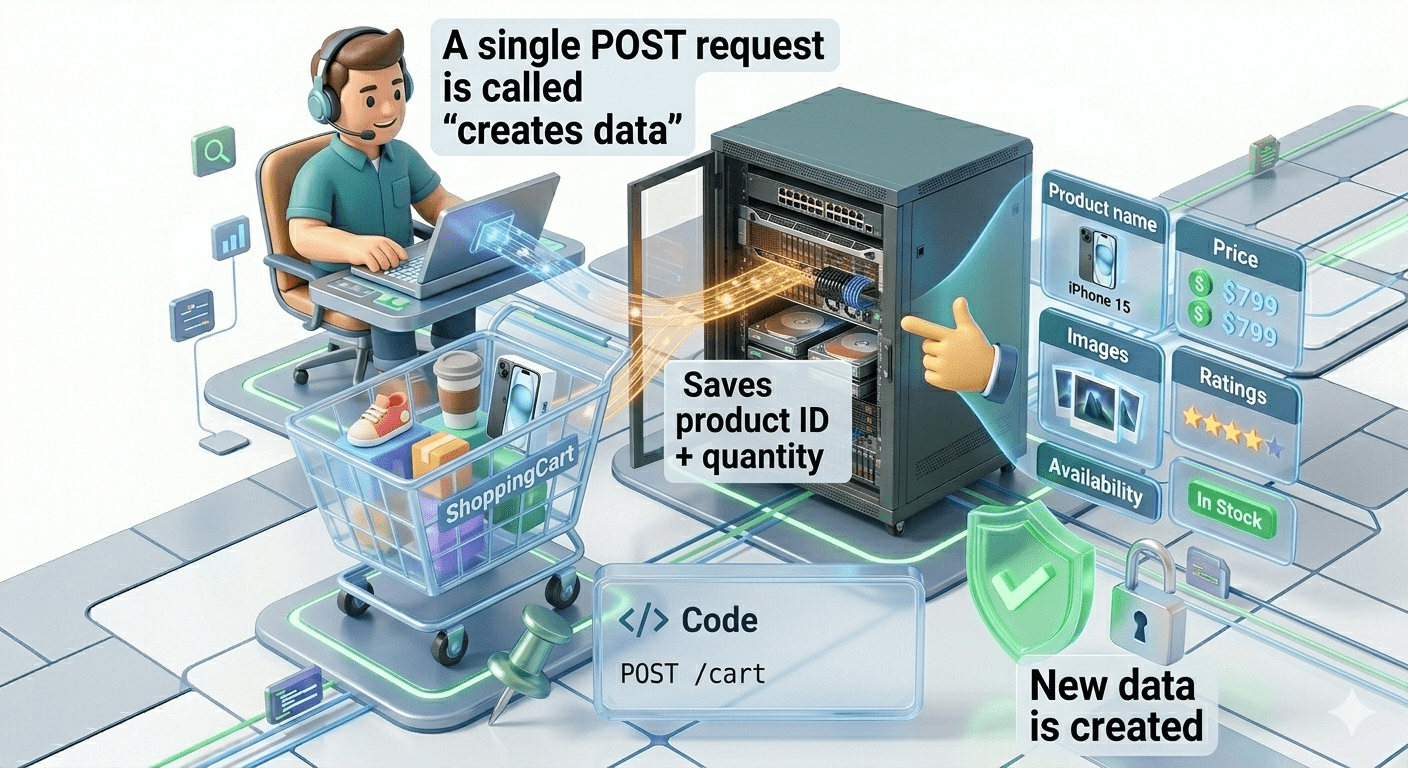

POST Method

  • Used to create new data


  • Data is sent in request body


  • Not idempotent

HTTP Methods

PUT Method

  • Used to update entire resource

  • Replaces old data completely

  • Idempotent

HTTP Methods

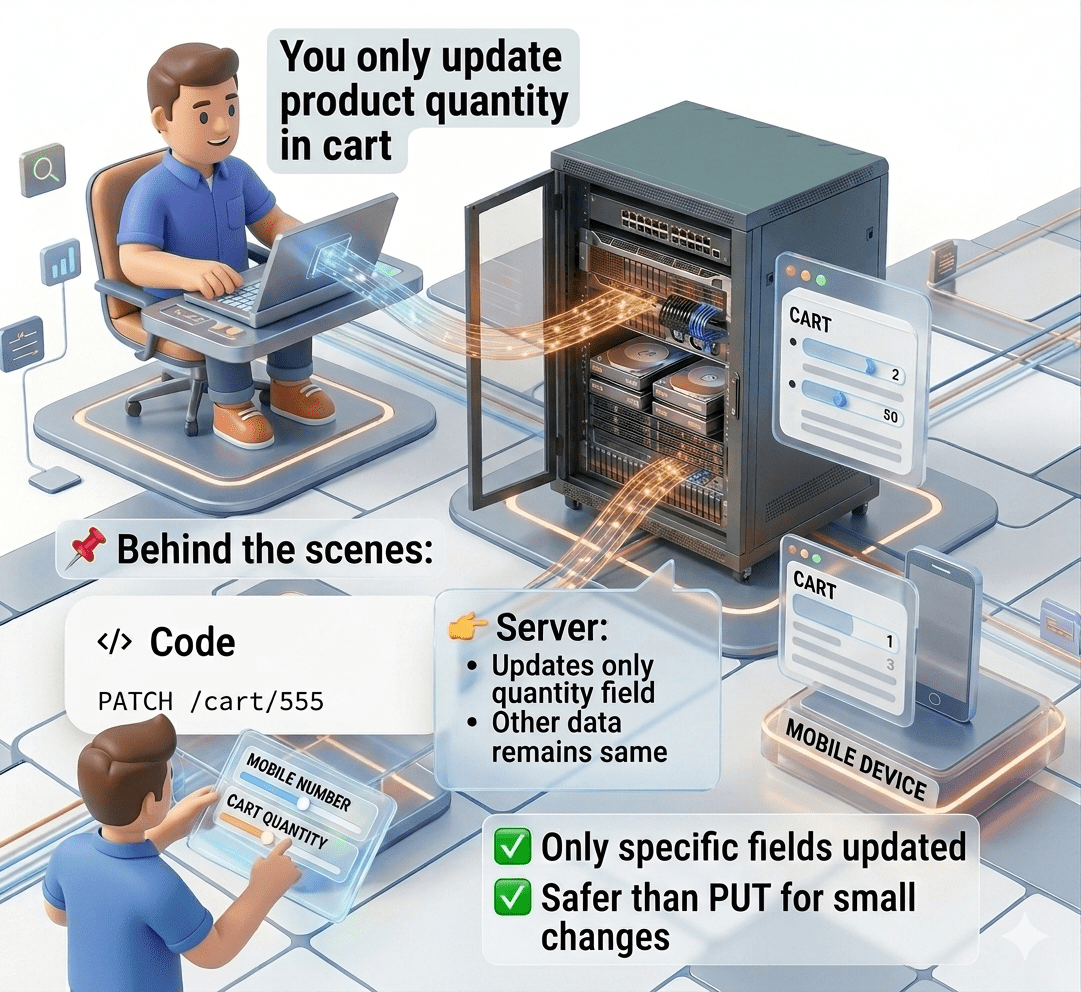

PATCH Method

  • Used to partially update data


  • Updates only specific fields


  • Idempotent (generally)

HTTP Methods

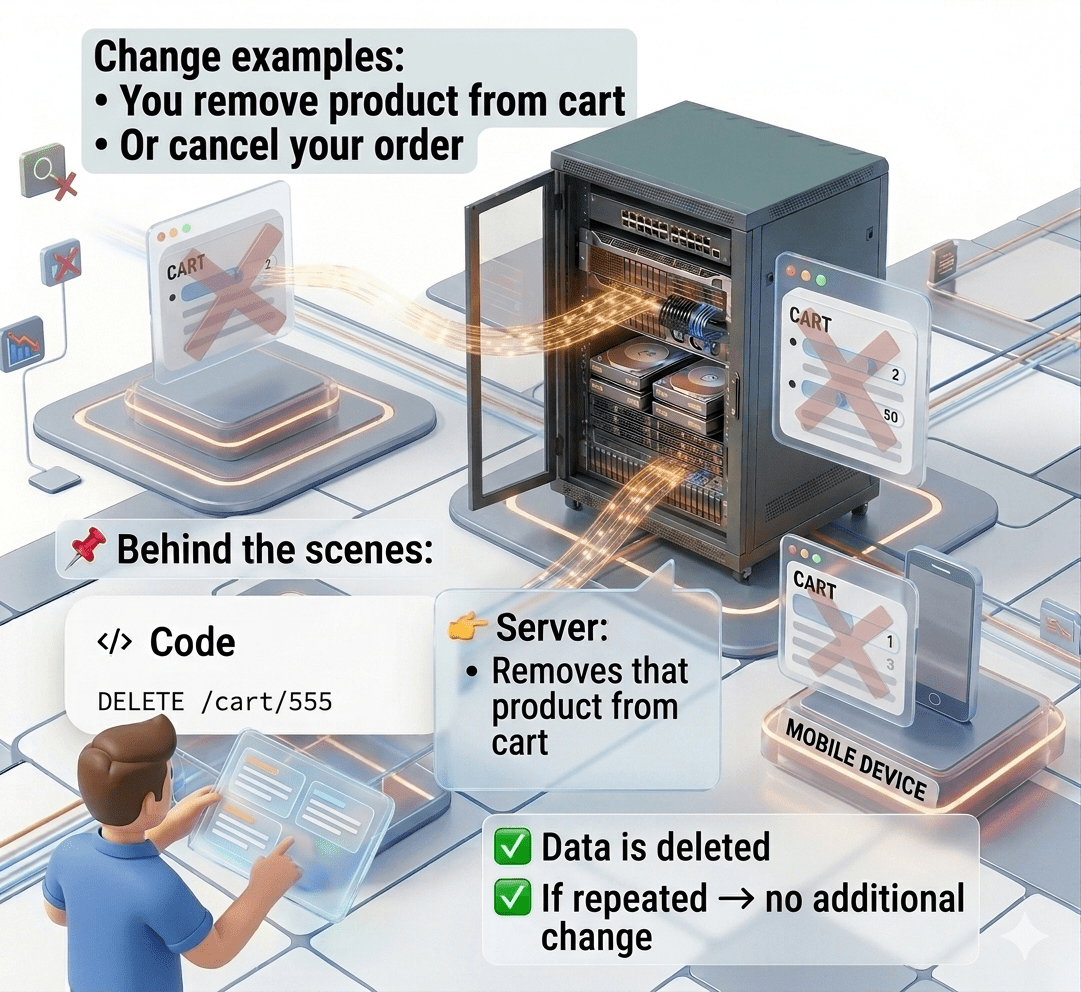

Delete Method

  • Used to remove data


  • Idempotent

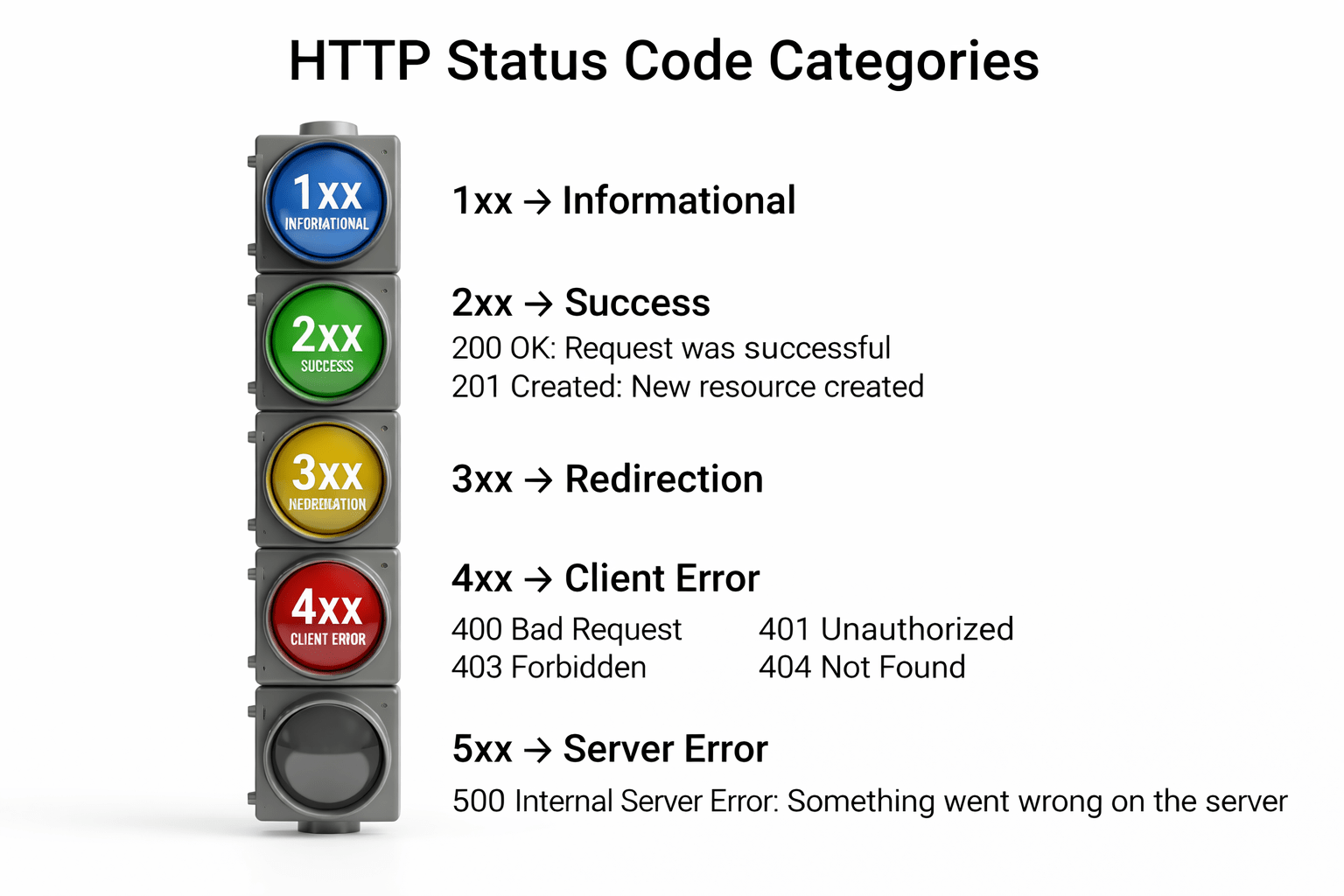

HTTP Status Code Categories
