Additional Component

Cart Management System (Backend + Frontend)



Learning Outcome

5

Design and display cart UI dynamically in React

4

Learn how to integrate React with backend APIs

3

Build APIs to add, update, and remove cart items

2

Learn how to design Cart and CartItem models

1

Understand how cart systems work in real-world applications

What is a Cart Model

User

   Items Save

Until Checkout

CART (Parent)

id (PK)

totalPrice

Holds all selected items

+ aggregated totalprice

Cart Item

Qty:1

$499

Cart Item

Cart Item

Qty:2

$749

Qty:1

$1200

@Entity
public class Cart {

   @Id
   @GeneratedValue
   private Long id;

   private double totalPrice;
}

CartItem Entity Architecture

CartItem represents an individual product inside the cart

Each item contains product-related information along with the quantity selected by the user.



linked to Cart using relationships like OneToMany,

Multiple CartItems belong to a single Cart

Stores essential product details + quantity

@Entity
public class CartItem {

   @Id
   @GeneratedValue
   private Long id;

   private String productName;
   private int quantity;
   private double price;
}

State Management vs Database Persistence

In frontend development, React uses state to manage cart data temporarily. This allows instant UI updates when a user adds or removes items.



const [cart, setCart] = useState([]);

❌ Data is lost after page refresh

React State (Temporary)

  • Stores cart data in frontend memory
  • Gives instant UI updates
  • Used for add/remove cart actions

✅ Data remains even after refresh

Database Persistence (Permanent)

  • Cart data stored in database using Spring Boot
  • Data remains safe across sessions
  • User can continue shopping later

API: Add Item to Cart

The Add API allows users to add new items to the cart. This is triggered when a user clicks “Add to Cart” in the UI.

T-Shirt

$499

Add To Cart

1. User Action (Frontend)

2.API Request

@PostMapping("/cart/add")
public CartItem addItem
(@RequestBody CartItem item) {
   return repo.save(item);
}
  • Receives item data
  • Processes request
  • Saves item using repo.save()

3. Backend (Spring Boot)

4. Database

This API receives item data from the frontend, processes it, and stores it in the database.It is one of the most frequently used operations in any e-commerce system

API: Update & Remove Item

  • Used to change item quantity
  • Receives updated item data
  • Updates existing cart item
  • Removes item completely from cart
  • Uses item ID for deletion
  • Helps users manage cart easily
@PutMapping("/cart/{id}")
public CartItem update

(@PathVariable Long id, @RequestBody CartItem item){
   return service.updateItem(id, item);
}

Update Item API

@PutMapping("/cart/{id}")
public CartItem update

(@PathVariable Long id, @RequestBody CartItem item){
   return service.updateItem(id, item);
}

Remove Item API

Sync Cart with Backend

Synchronization ensures that frontend UI always reflects the latest backend data.
Whenever the page loads or updates, React fetches the latest cart state from the backend.

1.Page Loads

2.useEffect Runs

3.Backend Response

4.UI Updated

useEffect(() => {
 axios.get("http://localhost:8080/cart")
   .then(res => setCart(res.data));
}, []);

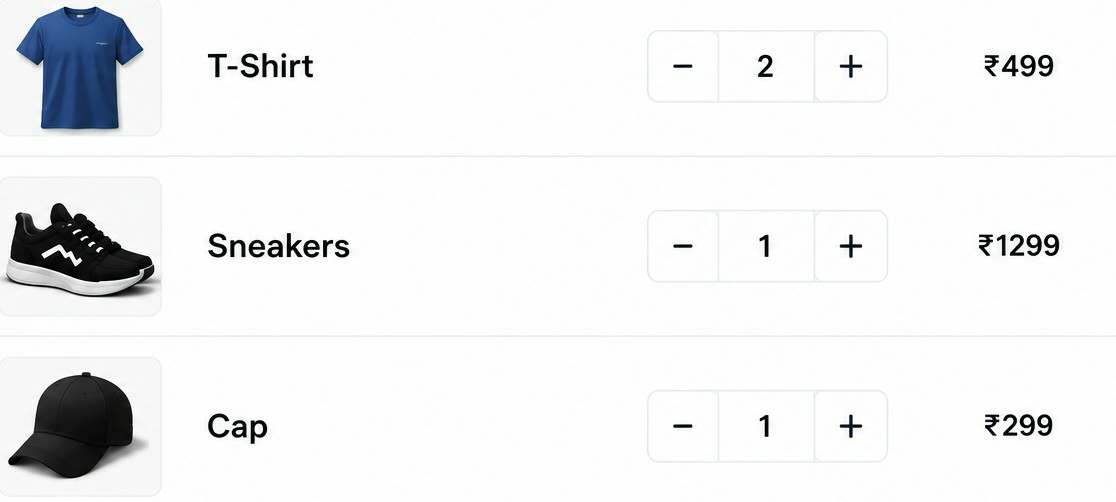

Designing Cart UI in React

The cart UI displays all selected items along with their details. It updates automatically whenever the cart state changes.



User Add/Updates Item

{cart.map(item => (
 <li key={item.id}>
   {item.productName} - {item.quantity}
 </li>
))}

End-to-End Flow

$49.99

Cart To Cart

1. User Action

2,React Frontend

/api/cart/add

3.Spring Boot Backend

Receives Request

4.Database

Data Stored in Database

5.Response

Sends Response

6.Updated UI

Receives Response

Summary

5

Frontend + Backend sync ensures smooth user experience

4

APIs support add, update & remove operations

3

Spring Boot stores cart data in database (backend)

2

React handles temporary cart state (frontend)

1

Cart management helps users add & manage items easily

Quiz

1.CartItem represents:

A. Entire cart

 B. Single item in cart

 C. Database connection

 D. UI component

Quiz-Answer

2.State in React is:

A. Permanent storage

 B. Temporary storage

 C. Database

D. API

Quiz-Answer

3.Cart API is used to:

A. Style UI

 B. Manage cart data

C. Compile code

D. Routing
