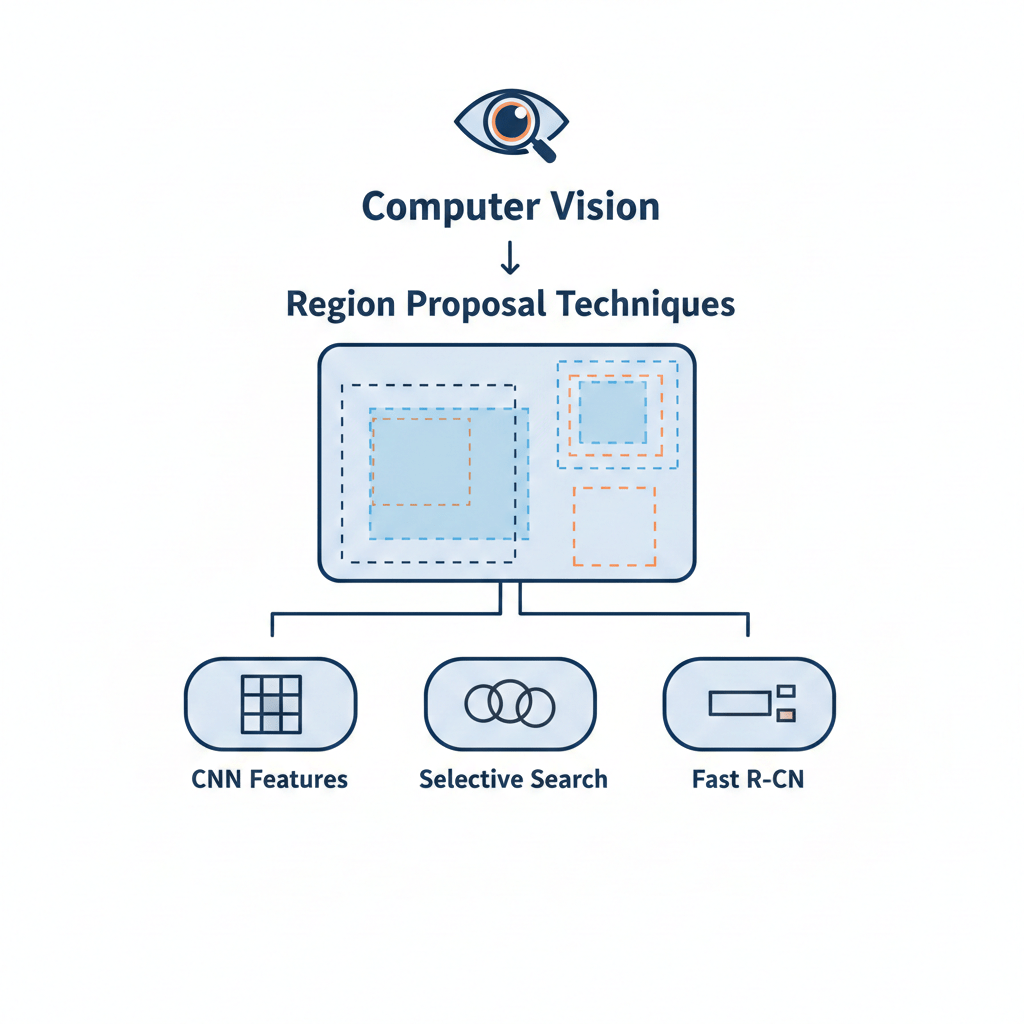

Computer Vision

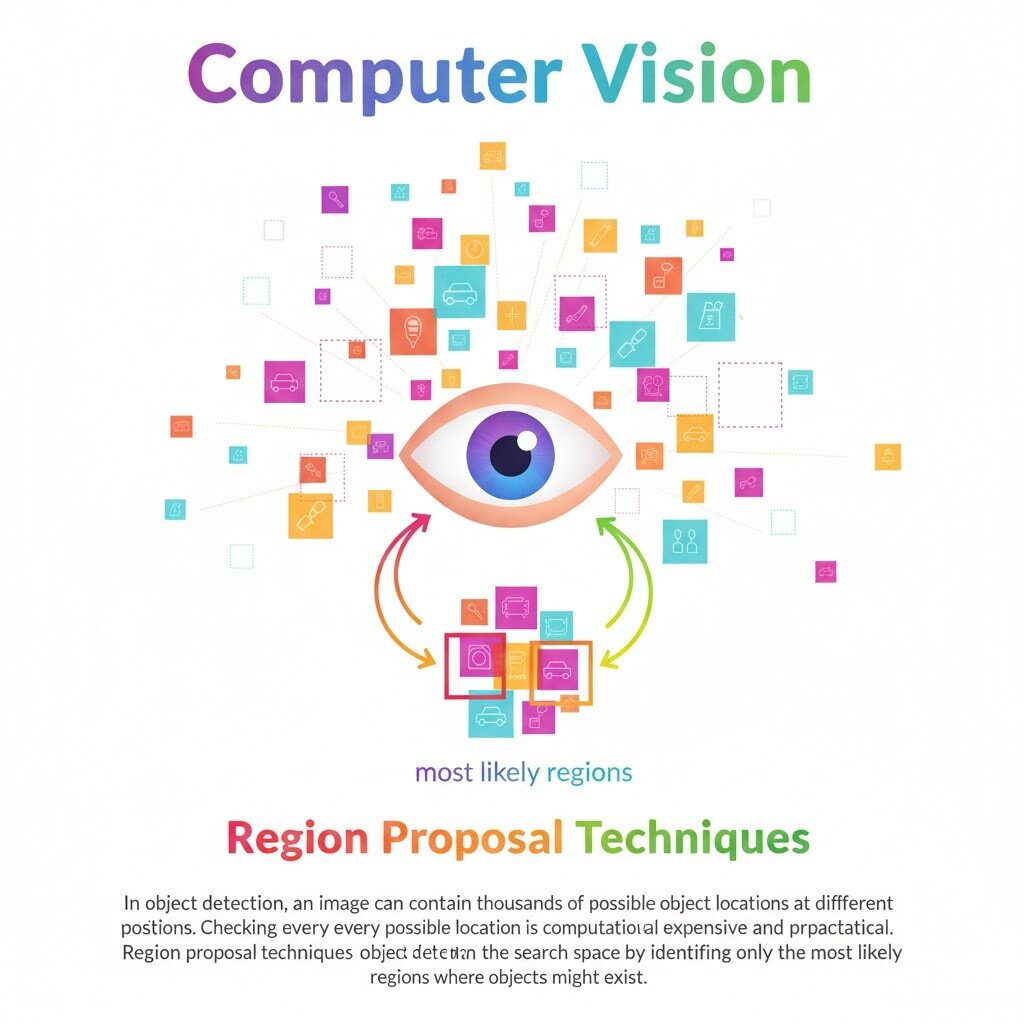

Region Proposal Techniques
Learning Outcome
5
Understand where region proposals fit in object detection pipelines
4
Differentiate between traditional and modern approaches
3
Identify major region proposal techniques
2
Understand why region proposals are required
1
Explain what region proposals are
Recall
Object detection answers what and where
Object detection answers what and where
Two-stage detectors (R-CNN family) exist
Two-stage detectors (R-CNN family) exist
One-stage detectors (YOLO, SSD) exist
One-stage detectors (YOLO, SSD) exist
Before detecting objects, the system must first decide where to look.

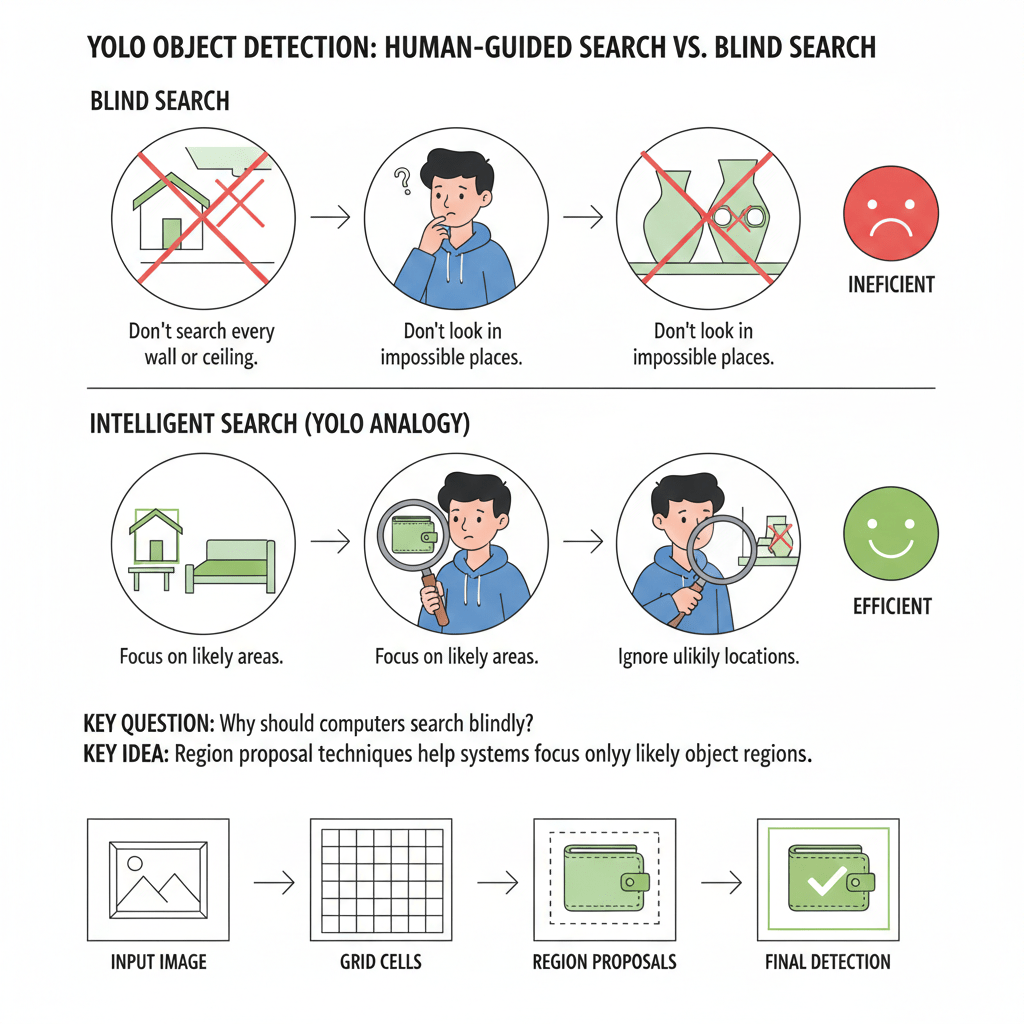

Analogy
Now comes to Intelligent Search
Imagine you are searching for a lost wallet at home.
You don’t look in Impossible places
Look in places where a wallet cannot be
Blind Search
Analogy
Intelligent Search
Same as like this Region proposal techniques helps system to focus only on likely object regions
Focus on tables, beds, and drawers
Ignore unlikely locations
Got the wallet
What Are Region Proposals?
Definition:-
Region proposal techniques identify likely object regions in an image, reducing the need to search all locations and scales by passing only selected regions for further processing.
Technical flow:-

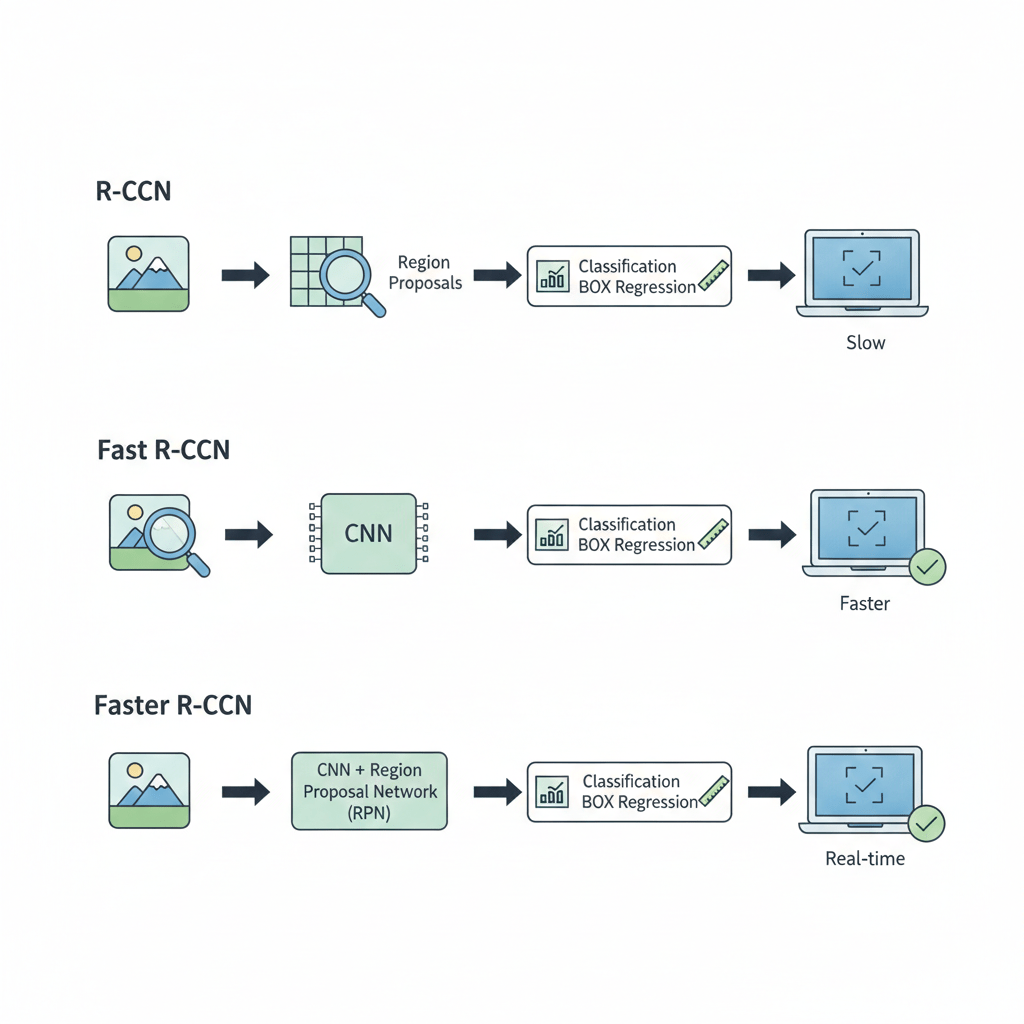

Where They Are Used ?
Region proposals are primarily used in:
R-CNN:
Fast R-CNN:
Faster R-CNN:
Why Region Proposals Are Needed
The Core Problem is:
- Images have objects of many sizes and shapes
- Exhaustive search is extremely slow
What Region Proposals Do?
Improve efficiency
Make detection feasible
Reduce the number of regions to check
Region proposals reduce computation without missing important objects.
Traditional Region Proposal Methods
Early Object Detection Approach
Before modern detectors:
1.Regions were generated using image properties
2.No learning was involved
3.Hand-crafted logic was used
These methods relied on:
Color similarity
Texture similarity
Shape and size consistency
Selective Search
Uses color, texture, size, and shape cues
Class-agnostic (no object labels involved)
Used in original R-CNN
Accurate but slow
Selective Search:
Key Characteristics:
- A classical region proposal technique
- Merges similar regions step by step
EdgeBoxes

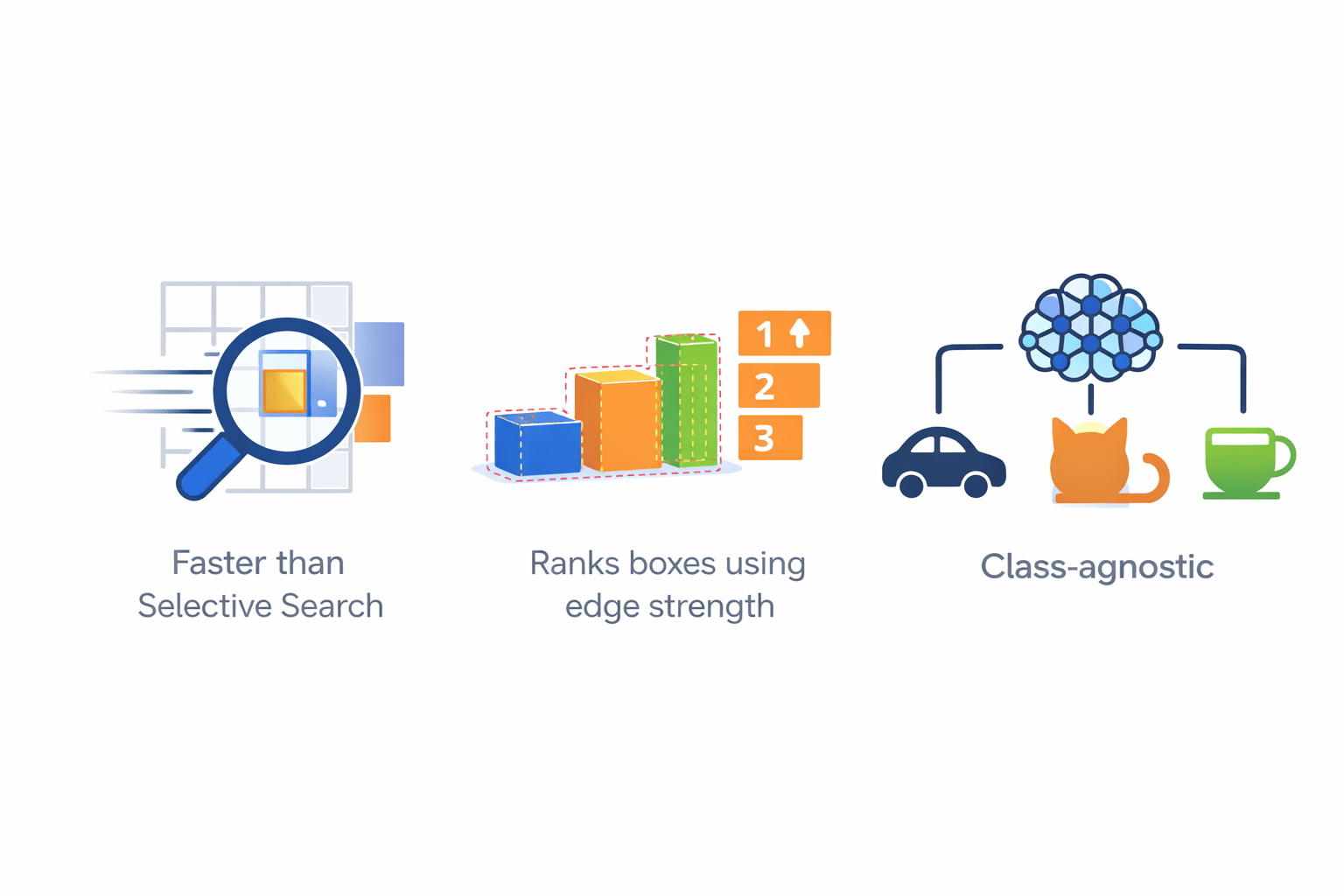

Key Characteristics :
Faster than Selective Search
Class-agnostic
Ranks boxes using edge strength

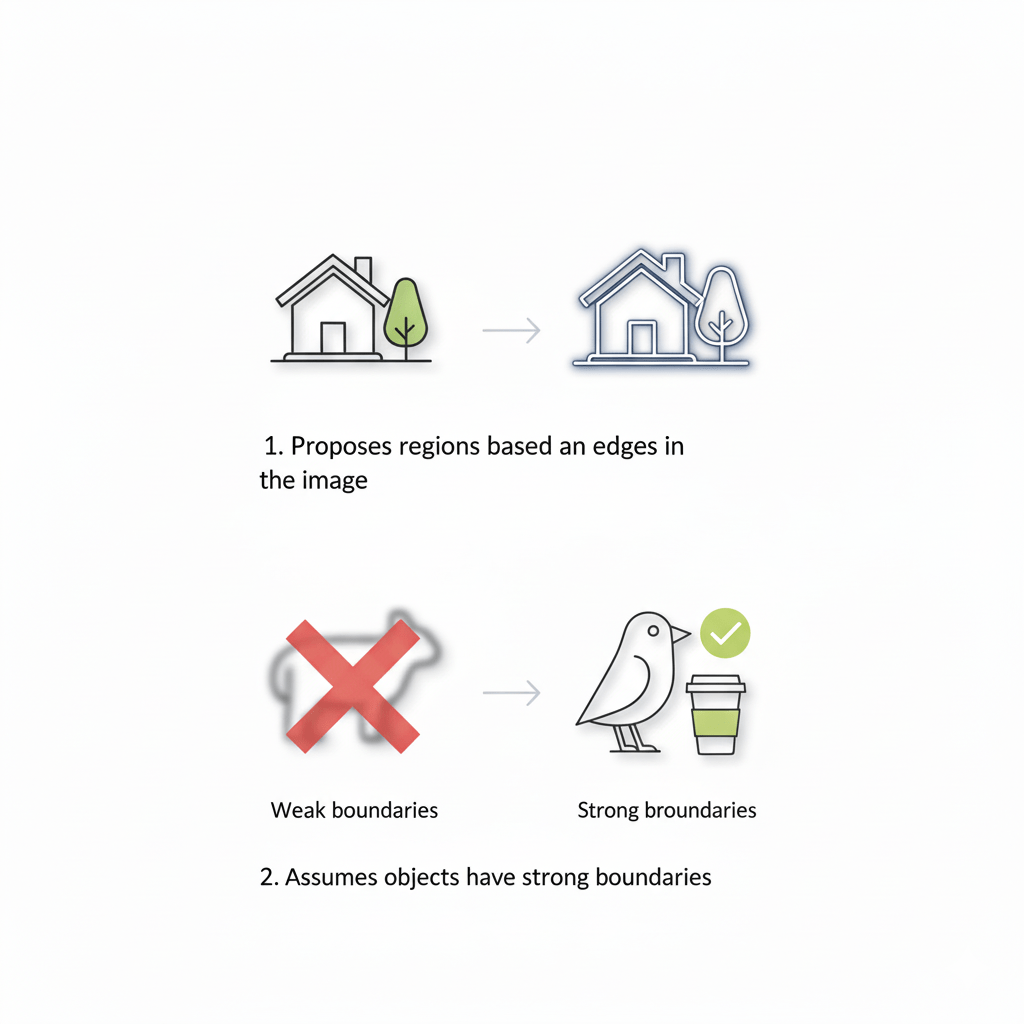

EdgeBoxes:
Proposes regions based on edges in the image
Assumes objects have strong boundaries
Region Proposal Network (RPN)
Region Proposal Network (RPN):
- Generates region proposals automatically
- Integrated directly into Faster R-CNN
Key Characteristics:
- Learns which regions are likely to contain objects
- Faster than traditional methods
- Produces objectness scores and bounding boxes

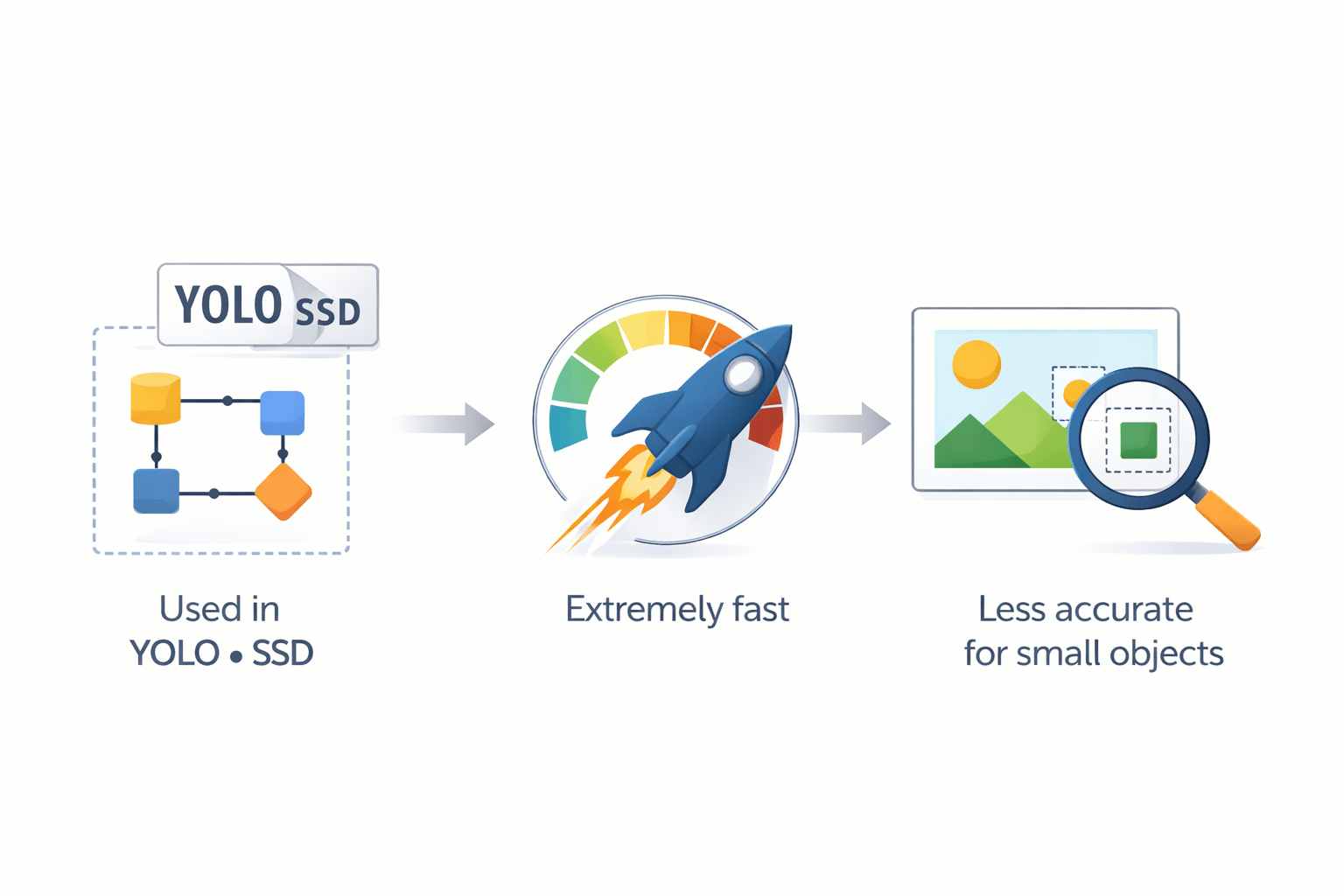

Dense Anchors (YOLO / SSD Context)
Dense Anchors:
- Predict bounding boxes at many locations
- Skip explicit region proposal step
Key
Characteristics
Used in YOLO and SSD
Less accurate for small objects

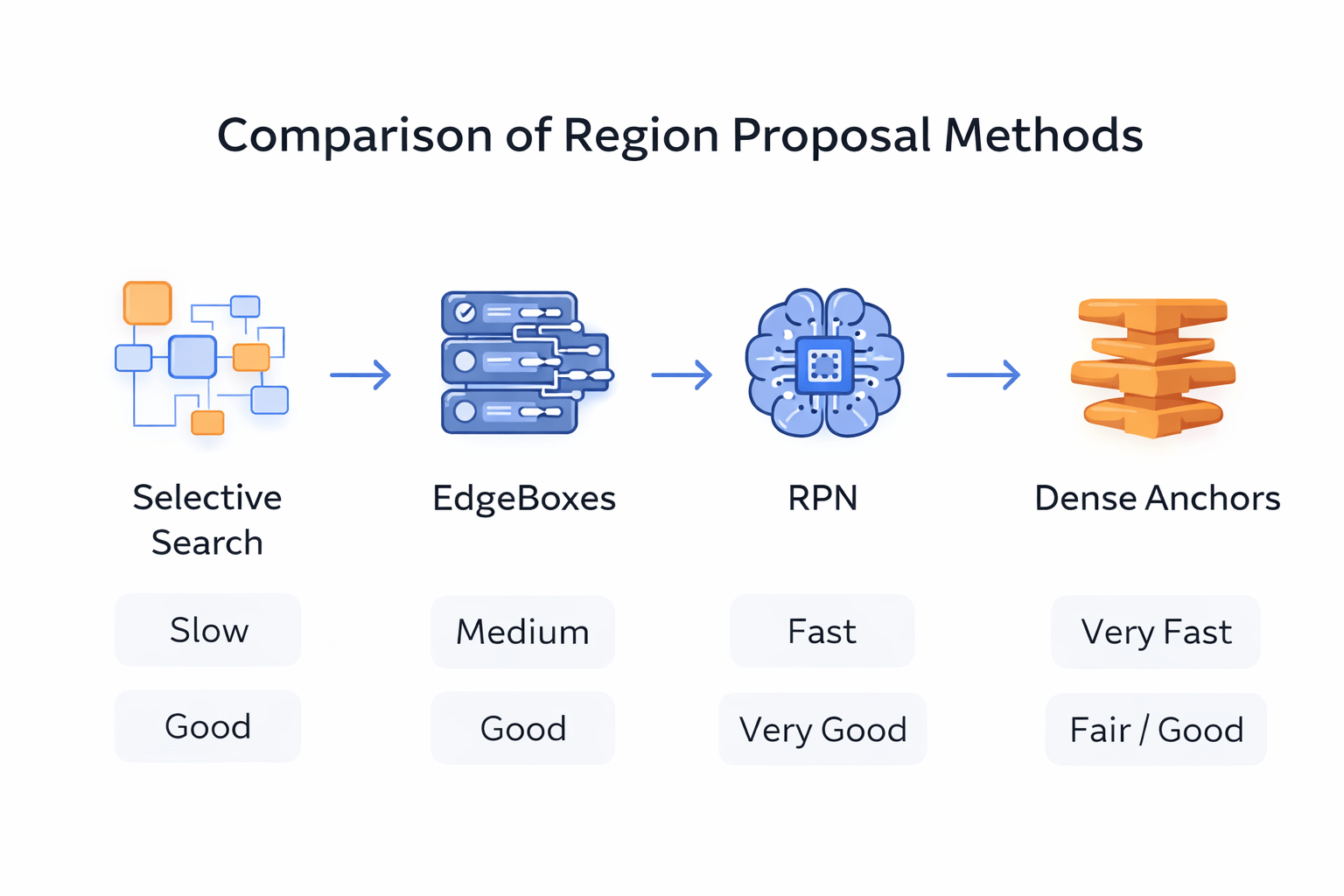

Comparison of Region Proposal Methods
| Method | Speed | Accuracy |
Integration |
|---|---|---|---|
| Selective Search |
Slow |
Good | External |
| EdgeBoxes |
Medium |
Good | External |
| RPN | Fast |
Very Good | Built-in |
| Dense Anchors | Very Fast |
Fair / Good | Built-in |
Where Region Proposals Fit in Detection Pipelines

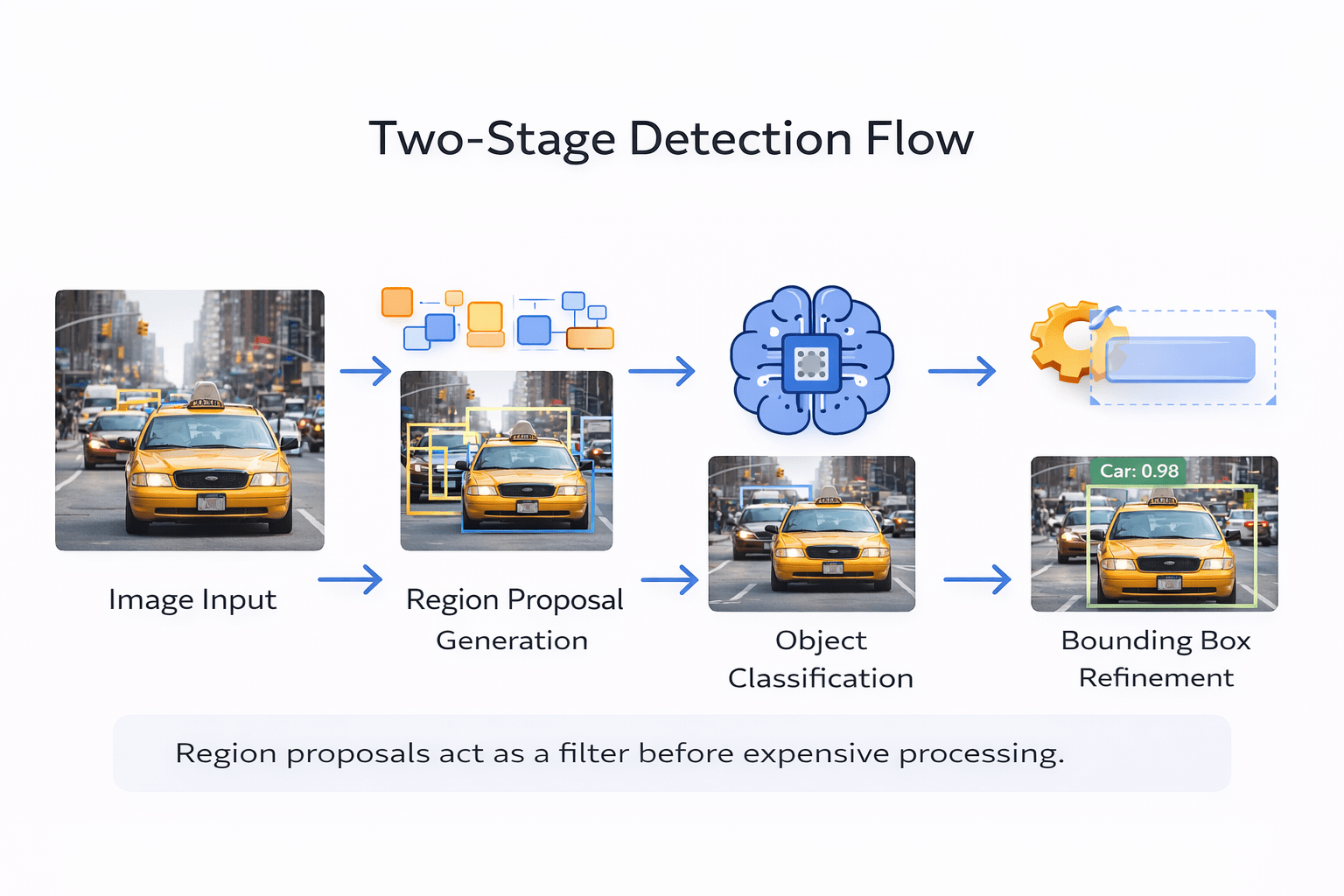

Two-Stage Detection Flow:
1.Image input
2.Region proposal generation
3.Object classification
4.Bounding box refinement

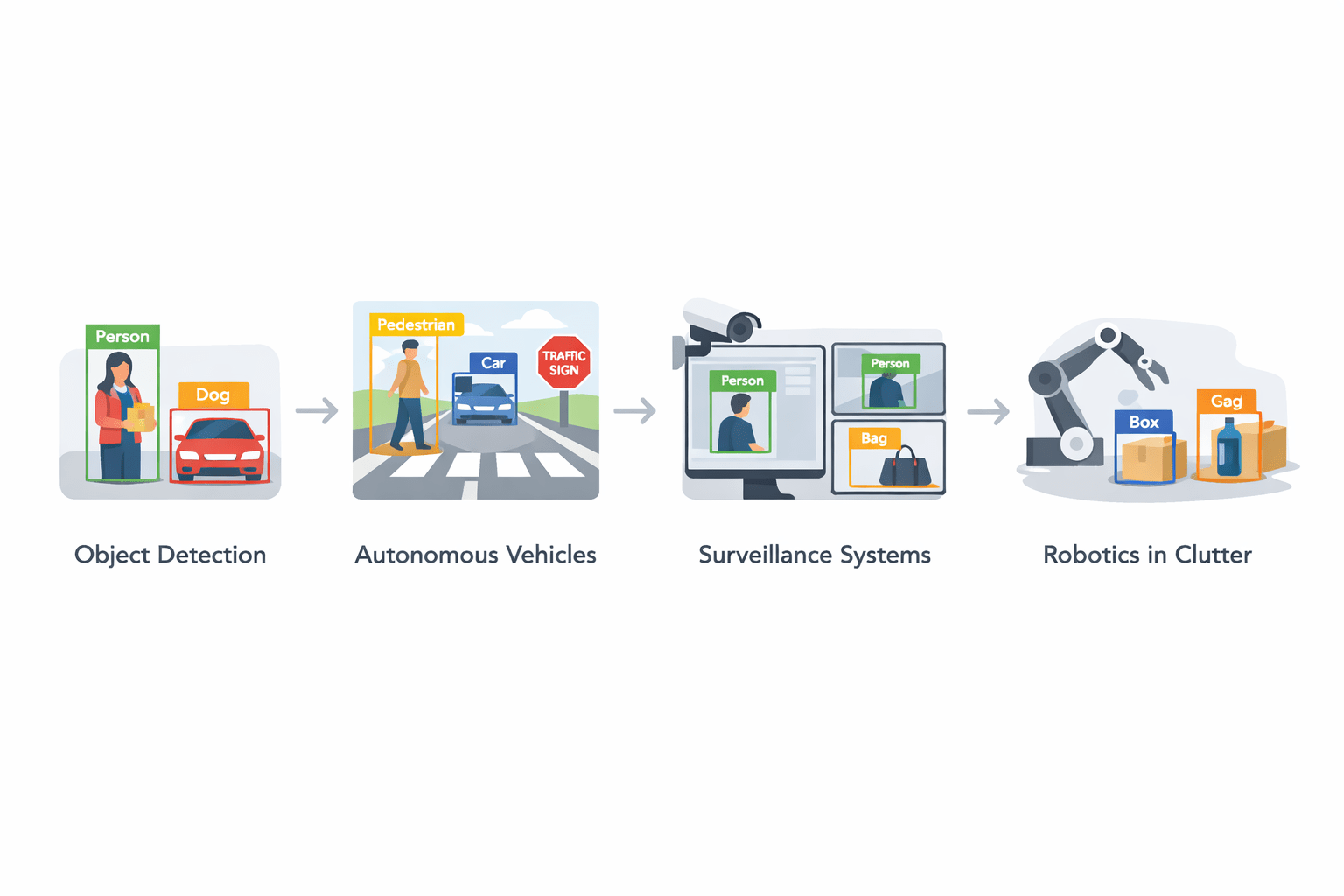

Applications of Region Proposals
Region proposal techniques are used in:
FAQs
- Do we still use Selective Search today?
Rarely in modern systems.
- Is RPN faster than traditional methods?
Yes, significantly.
- Are region proposals always correct?
No, they are only candidates.
- Do one-stage detectors use proposals?
No.
Summary
5
Essential for two-stage object detection
4
Modern systems use integrated proposal mechanisms
3
Early methods used hand-crafted logic
2
Reduce unnecessary computation
1
Region proposals identify where objects might be
Quiz
What is the main purpose of region proposals?
A. Improve image quality
B. Reduce search space
C. Classify objects
D. Increase resolution
Quiz
What is the main purpose of region proposals?
A. Improve image quality
B. Reduce search space
C. Classify objects
D. Increase resolution
