Tips and Tricks Learned from Tree V8

Tyler Graf

Tech Lead - Tree Web Gold

David Crowther

Senior Web Dev - Tree Web Gold

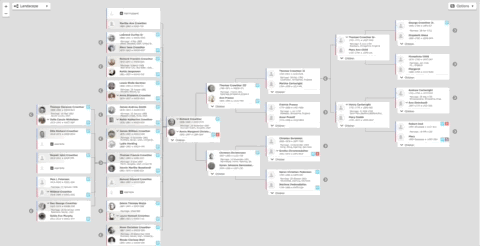

Speed Sensitive View

What It Is

Simple pedigree outline while panning

Why It's Cool

Uses RUM to implement feature (not just to measure)
Represents "How else could I use this?"
Reduces workload for the device

How It Works

RUM is used to determine 'slow'
3 SVG layers are maintained
Outline is kept in sync with main content
Outline is shown when panning on 'slow' device
Main content position is updated when panning ends

FS Cache

Client-side Cache

Goals

Cache heavily (Bandwidth $$$$)
Conditional GET
Encrypt cache (living people/relationships)
Offline?

localForage

Promise-based API
- IndexedDB
- Web SQL
- Local/Session storage
- Memory
Browser support
Name-spaced cache (2 layers)

const cache = FS.cache.instance({
  storeName: 'names',
  dbName: 'everything'
});

cache.setItem('MMMM-MMM','Tyler')
  .then(data => {
      // do something
  });

cache.getItem('MMMM-MMM')
  .then(name => {
      // do something
  });

Encryption

Web cryptography API
Hash generated for each user—used for symmetric encryption
Base64 encode everything

Conditional Get

Cold Cache

Node Proxy

tree-data

person.version = `i3j2li4m4ja`

200 w/ person obj

GET /proxy/tree-data/person/MMMM-MMM

GET /tree-data/person/MMMM-MMM

200 w/ person obj

Warm Cache

Node Proxy

tree-data

compare old hash with new hash

204 w/ no payload

GET /tree-data/person/MMMM-MMM

200 w/ person obj

(object hash)

header: x-version=i3j2li4m4ja

200 w/ new person obj

GET /proxy/tree-data/person/MMMM-MMM

Make It Resilient

Don't worry about .setItem returning
Handle cache read error

return cache.getItem(pid)
  .then(person=>{
    if(person){
      renderperson(person); //we use redux to dispatch here
      return service.getperson(pid, person.version);
    }

    return service.getperson(pid, null);
  })
  .then(person=>{
    // setItem returns a promise but it could fail (do we care?)
    cache.setItem(pid, person);

    renderperson(person);
  })
  .catch(err=>{
    if(err==='latest cached'){
      return;
    }
  });

Conditional Get Results

last 7 days

200: 56% ~1GB

AVG Payload: ~2KB

D3 Rendered Pedigree

SVG?

~~foreignObject~~
~~Absolutely Position Everything~~

<svg>
  <g>
    <foreignObject>
      <div>
        <fs-person name="Tyler Graf"></fs-person>
      </div>
    </foreignObject>
  </g>
</svg>

var svg = d3.select("svg"),
    g = svg.append("g");

g.append('foreignObject')
 .append('xhtml:div')
 .append('div')
 .html('<fs-person name="Tyler Graf"></fs-person>');

HTML

D3 renders HTML
- Even web components
2 pedigrees overlaying eachother
- HTML for nodes
- SVG for connecting lines

<section>
  <fs-person name="Tyler Graf"></fs-person>
</section>

var section = d3.select("section");

section.append('fs-person')
  .attr('name', 'Tyler Graf');

rollup.js

We only need 3 D3 modules
Custom up-to-date build

// rollup.config.js

import node from "rollup-plugin-node-resolve";

export default {
  entry: "d3-rollup.js",
  format: "iife",
  name: "d3",
  plugins: [node()]
};

// d3-rollup.js

export {
  zoom,
  zoomIdentity,
  zoomTransform,
} from "d3-zoom";

export {
  stratify,
  tree,
} from "d3-hierarchy";

export {
  event,
  select,
  selectAll,
} from "d3-selection";

//gulpfile.js

const rollup = require('rollup-stream');
const source = require('vinyl-source-stream');

var d3 = rollup('rollup.config.js')
  .pipe(source('d3.js'))
  .pipe(gulp.dest('components/d3/'));

// package.json
...
"d3-hierarchy": "^1.0.3",
"d3-selection": "^1.0.3",
"d3-zoom": "^1.1.1",
...

75KB => 17KB (gzipped)

Polymer

Making Changes

P1 -> hybrid -> P2
<template is='dom-bind'> ==> <dom-bind><template>

<template is="dom-bind">
</template>

      <dom-bind>
        <template is="dom-bind">
          <fs-demo id="demo" pid="{{pid}}"></fs-demo>
          <h2>Active fs-watch Demo</h2>
          <fs-watch pid="[[pid]]"></fs-watch>
        </template>
      </dom-bind>

Polymer 1.0

Polymer 1 (hybid)

Making Changes

P1 -> hybrid -> P2
<template is='dom-bind'> ==> <dom-bind><template>
<dom-if> is different between hybrid & P2

P1 -> hybrid -> P2
<template is='dom-bind'> ==> <dom-bind><template>

<dom-if>
  <template is="dom-if" if="[[someFunction(myParam)]]">
  </template>
</dom-if>

<dom-if if="[[someFunction(myParam)]]">
  <template>
  </template>
</dom-if>

Polymer 1 (hybrid???--remove the <dom-if>)

Polymer 2

Making Changes

P1 -> hybrid -> P2
<template is='dom-bind'> ==> <dom-bind><template>
<dom-if> is different between hybrid & P2
<custom-style> needs to surround <style> or mix-ins won't work

P1 -> hybrid -> P2
<template is='dom-bind'> ==> <dom-bind><template>
<dom-if> is different between hybrid & P2

    <custom-style>
      <style include="demo-pages-shared-styles">
        demo-snippet.dark {
          --demo-snippet-demo: {
            background-color: #333331;
          };
        }
      </style>
    </custom-style>

Polymer 2

Watch Out

Look for indirect error with computed properties
DOM observer functions (don't forget the observed property)

<fs-icon-eol id="expandArrow" class="expand-arrow"
icon="[[_getIcon('expand, colorScheme)]]"></fs-icon-eol>

Watch Out (more)

With P2, always call super.callback in any of the callbacks: super.ready() & super.connectedCallback()

ready() {
  super.ready();
}

Polymer 2

semver

^1.3.2

=== 1.4.0

~1.3.2

=== 1.3.x

Latest: 1.4.0

^0.0.3

=== 0.0.3

^0.1.3

=< 0.1.x

^1.0.0-beta

=== 1.0.0

Latest: 0.0.6

Latest: 0.3.0

Latest: 1.0.0

Pinned

Minor

Major

fs-demo

What It Does For Me

Allows components to run in isolation
Provides authentication
Provides an example PID list
Provides a language selector

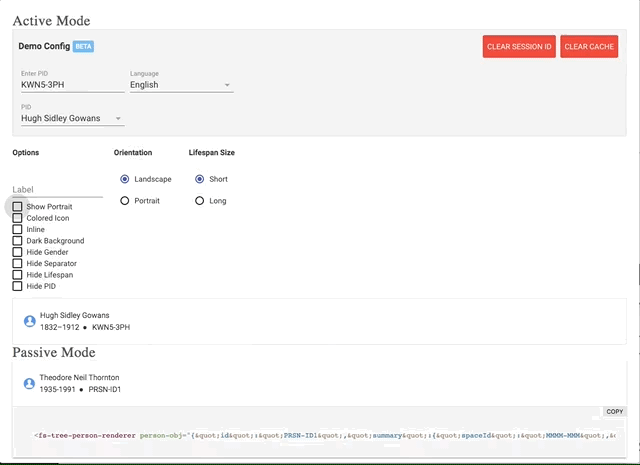

Run In Isolation

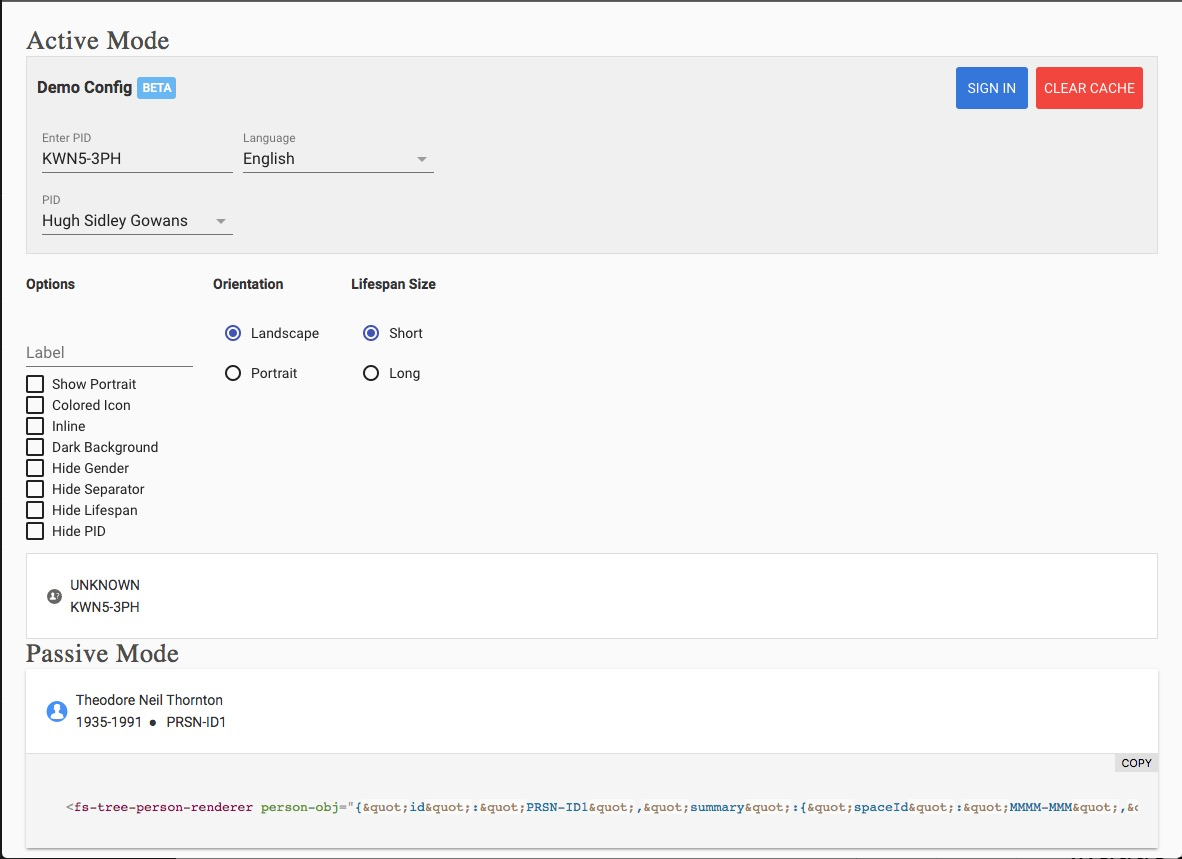

Authentication

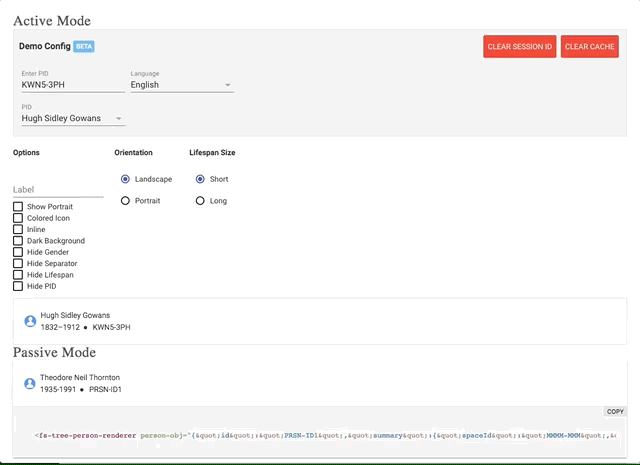

Example PID List

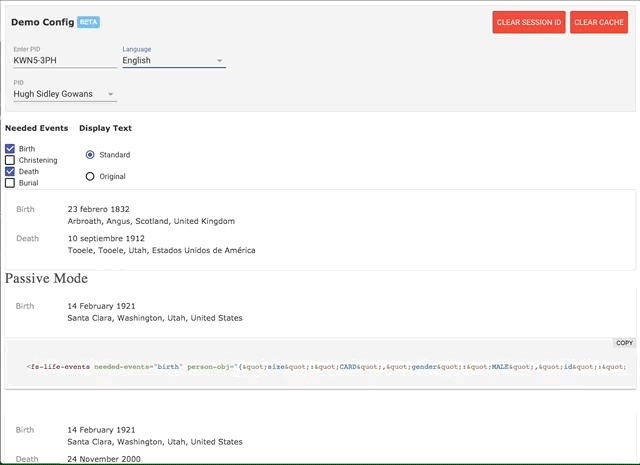

Language Selector

Memory Leak

What's a memory leak?

Remove DOM nodes
- event listener still attached
- a reference still exists to that dom node in javascript

Event Listener

class MyElement extends Polymer.Element {
  connectedCallback(){
    super.connectedCallback();

    document.addEventListener('thing-happened', function(){
      this.doStuff();
    }.bind(this);
  }
}

class MyElement extends Polymer.Element {
  connectedCallback(){
    super.connectedCallback();

    this._thingHappenedEH = this._handleThingHappened.bind(this);

    document.addEventListener('thing-happened', this._thingHappenedEH);
  }
  disconnectedCallback(){
    super.disconnectedCallback();

    document.removeEventListener('thing-happened', this._thingHappenedEH);
  }
  _handleThingHappened(evt){
    this.doStuff();
  }
}

class MyElement extends Polymer.Element {
  connectedCallback(){
    super.connectedCallback();

    document.addEventListener('thing-happened', this._handleThingHappened.bind(this));
  }
  disconnectedCallback(){
    super.disconnectedCallback();

    document.removeEventListener('thing-happened', this._handleThingHappened.bind(this));
  }
  _handleThingHappened(evt){
    this.doStuff();
  }
}

JS Reference to element

var _instances = [];

window.OakAJAXBehavior = {
  set ajaxBase(val) {
    _ajaxBase = val;
    _instances.forEach(function(instance) {
      if (instance && instance._setAjaxBase) {
        instance._setAjaxBase(_ajaxBase)
      }
    });
  },
  ready: function() {
    // Save off a ref to the consuming object so we can update
    // all of the components when needed
    _instances.push(this);
  }
};

var _instances = [];

window.OakAJAXBehavior = {
  set ajaxBase(val) {
    _ajaxBase = val;
    _instances.forEach(function(instance) {
      if (instance && instance._setAjaxBase) {
        instance._setAjaxBase(_ajaxBase)
      }
    });
  },
  ready: function() {
    // Save off a ref to the consuming object so we can update
    // all of the components when needed
    _instances.push(this);
  },
  /**
   * Clean up _instances.
   */
  detached: function() {
    _instances = _instances.filter(function(_instance) {
      return this !== _instance;
    }.bind(this));
  }
};

Expanding Pedigrees

demo

How to Identity the leak

https://developers.google.com/web/tools/chrome-devtools/memory-problems/
