React Native Maps

And Location Services

Welcome to JaxNode

Java USA Tour 2017

This Saturday at Availity

Node.js 8

  • Delayed by a Month
  • Upgrading to V8 5.9
  • New compiler and interpreter pipeline
  • Will use TurboFan/Ignition pipeline
  • Eventually replace FullCodeGen and CrankShaft
  • V8 6 expected in August
  • Node 8 expected end of May

"Pilots are never lost.

Sometimes they are
temporarily disoriented, but they are never lost."

Old Pilot Joke

Location Services

  • Core Location on iOS
  • Google Play Location API on Android
  • Cell Towers
  • Wi-Fi SSID Database
  • Global Positioning System (GPS)
  • iBeacon (in door positioning system)

GPS

  • Each Satellite has an Atomic clock
  • Need at least four satellites for exact position
  • GPS Satellites orbit over 12,000 miles above Earth
  • Position determined by Linear Algebra
  • Warm-up period can take a minute
  • Radio signal is actually extremely weak

Retrieving your location

  • iOS and Android have location services
  • Mobile browsers also have an API
  • Watch Battery when using GPS
// Get current position

if ("geolocation" in navigator) {
    navigator.geolocation.getCurrentPosition(pos => {
        console.log(`Lat: ${pos.coords.latitude} & Long: ${pos.coords.longitude}`)
    });
}
// Get updated position

const geoOptions {
  enableHighAccuracy: true,
  maximumAge        : 30000,
  timeout           : 27000
};

if ("geolocation" in navigator) {
    const wpid = navigator.geolocation.watchPosition(geoSuccess, geoError, geoOptions);
}

function geoSuccess(pos) {
    console.log(`Lat: ${pos.coords.latitude} & Long: ${pos.coords.longitude}`)
}

function geoError() {
    console.error('An error occurred');
}

Geofencing

  • Background API
  • Can use it to alert an User when they are near
  • Core location limits 20 per app
  • react-native-geo-fencing module for React Native

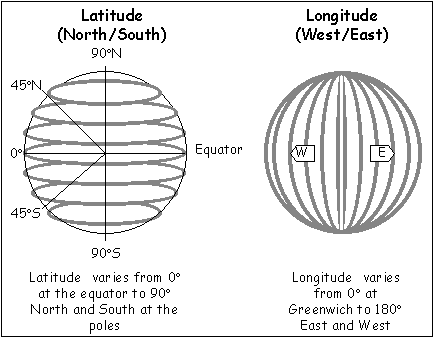

Coordinate System

  • Latitude and Longitude
  • Measured in degrees, minutes and seconds
  • 30˚ 14" 52', -81˚ 23" 21.2'
  • Map SDKs use decimal degrees
  • 30.247778, -81.389222
// distance function from GeoDataSource.com (C) All Rights Reserved 2015

function distance(lat1, lon1, lat2, lon2, unit) {
	const radlat1 = Math.PI * lat1/180;
	const radlat2 = Math.PI * lat2/180;
	const theta = lon1-lon2;
	const radtheta = Math.PI * theta/180;
	let dist = Math.sin(radlat1) * Math.sin(radlat2)
            + Math.cos(radlat1) * Math.cos(radlat2) * Math.cos(radtheta);
	dist = Math.acos(dist);
	dist = dist * 180/Math.PI;
	dist = dist * 60 * 1.1515;
	if (unit=="K") {
            dist = dist * 1.609344;
        }
	if (unit=="N") {
            dist = dist * 0.8684;
        }
	return dist;
}

Haversine Algorithm

Why Use Maps in a App

  • Nearly all Smartphones have location services
  • Most common use case is to show user physical location of a place and the distance
  • Display user in relation to another user
  • Show closest locations to user's current location

Apps that use Maps

  • Maps
  • Waze
  • AirBNB
  • FourSquare
  • Hotels.com
  • Ubér
  • Pokémon GO

Map SDKs

  • Apple Maps
  • Google Maps SDK
  • Can use Google SDK on both iOS and Android
  • Google requires an API Key
  • Both maps use Web Mercator Projection
  • The projection is how to display a curved surface on a flat screen

React Native Options

  • Used to be iOS MapView
  • Benefits of Open Source can other implementation
  • AirBNB developed alternative
  • Use AirBNB Maps, now default
  • yarn add react-native-maps
  • react-native link react-native-maps

React-Native components

  • MapView
  • MapView.Marker
  • MapView.Callout
  • Polygons, Polygon lines and circle
<MapView
    initialRegion={{
      latitude: 37.78825,
      longitude: -122.4324,
      latitudeDelta: 0.0922,
      longitudeDelta: 0.0421,
    }}
  />
constructor() {
  this.state.region = {
      latitude: 37.78825,
      longitude: -122.4324,
      latitudeDelta: 0.0922,
      longitudeDelta: 0.0421
  };
}

onRegionChange(region) {
  this.setState({ region });
}

render() {
  return (
    <MapView
      region={this.state.region}
      onRegionChange={this.onRegionChange}
    />
  );
}
<MapView
  region={this.state.region}
  onRegionChange={this.onRegionChange}
>
  {this.state.markers.map(marker => (
    <MapView.Marker
      coordinate={marker.latlng}
      title={marker.title}
      description={marker.description}
    />
  ))}
</MapView>

Map Events

  • onRegionChange
  • onRegionChangeComplete
  • onPress
  • onMarkerPress
  • onMarkerDrag
  • onMarkerSelect

DEMO

Questions?

Next Month

  • Functional JavaScript
  • Salesforce MobileSDK
  • WWDC

Resources

  • https://github.com/airbnb/react-native-maps
  • https://github.com/jaxnode-UG/JNMaps
  • https://slides.com/davidfekke/react-native-maps
