ASP.NET Core SignalR

What is SignalR?

ASP.NET Core SignalR is an open-source library that simplifies adding real-time web functionality to apps. Real-time web functionality enables server-side code to push content to clients instantly.

https://docs.microsoft.com/en-us/aspnet/core/signalr/introduction

Such as:

  • Notifications
  • Dashboards
  • Collaborative editing
  • Games
  • Slide presentation apps
  • Writing your own live chat service

Let's get started

git clone https://github.com/davidgruar/SignalRDemo.git
cd SignalRDemo/SignalRDemo.App/ClientApp
npm install @aspnet/signalr

Clone a skeleton ASP.NET Core/React app

Install SignalR client library

SignalR is already included in Microsoft.AspNetCore.App. No need to install anything server-side!

Wiring it up

namespace SignalRDemo.App.Hubs
{
    using Microsoft.AspNetCore.SignalR;

    public class ChatHub : Hub
    {
    }
}

Create an empty hub class

Wire up Startup.cs

public void ConfigureServices(IServiceCollection services)
{
    // ...

    services.AddSignalR();
}

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
    app.UseMvc(routes =>
    {
        routes.MapRoute(
            name: "default",
            template: "{controller}/{action=Index}/{id?}");
    });

    // Must go after UseMvc and before UseSpa
    app.UseSignalR(options =>
    {
        options.MapHub<ChatHub>("/chat");
    });
}

Let's chat!

import { HubConnectionBuilder } from "@aspnet/signalr";

export class LiveChat extends Component<{}, LiveChatState> {

    private connection = new HubConnectionBuilder().withUrl("/chat").build();

    public async componentDidMount() {
        try {
            await this.connection.start();
        } catch (e) {
            console.error(e);
        }
    }

    public componentWillUnmount() {
        this.connection.stop();
    }
}

Connect to the hub

private sendMessage = async (message: string) => {
    await this.connection.send("sendMessage", message);
    this.addMessage(message);
}

Send a message to the hub...



...receive it...

    public class ChatHub : Hub
    {
        public Task SendMessage(string message)
        {
            return this.Clients.Others.SendAsync("messageReceived", message);
        }
    }

...and receive a message in the client

public async componentDidMount() {
    //...

    this.connection.on("messageReceived", this.addMessage);
}

private addMessage = (message: string) => this.setState(state => ({
    messages: [...state.messages, message]
}));
this.Clients.All
this.Clients.AllExcept("some-connection-id")
this.Clients.Caller
this.Clients.Others
this.Clients.Group("chat-1")
this.Clients.GroupExcept("chat-1", "some-connection-id")
this.Clients.OthersInGroup("chat-1")

Choose your client

    public interface IChatClient
    {
        Task MessageReceived(string message);
    }

    public class ChatHub : Hub<IChatClient>
    {
        public Task SendMessage(string message)
        {
            return this.Clients.Others.MessageReceived(message);
        }
    }

Strongly typed hubs

Here's one I made earlier...

Try it yourself

  • Move a box in two browser windows simultaneously
  • Live chat with operators and users
  • Collaborative document editing
  • Quiz game
  • ...

Scaling

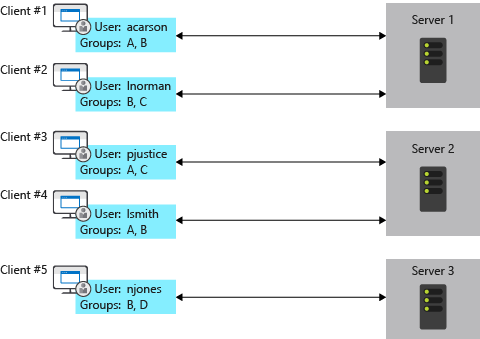

The problem

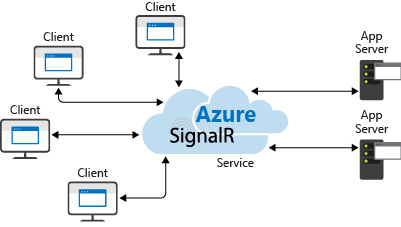

Solution: Azure SignalR Service

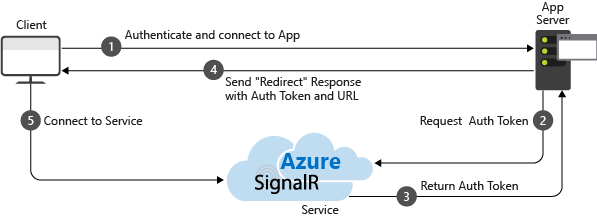

Azure SignalR Service

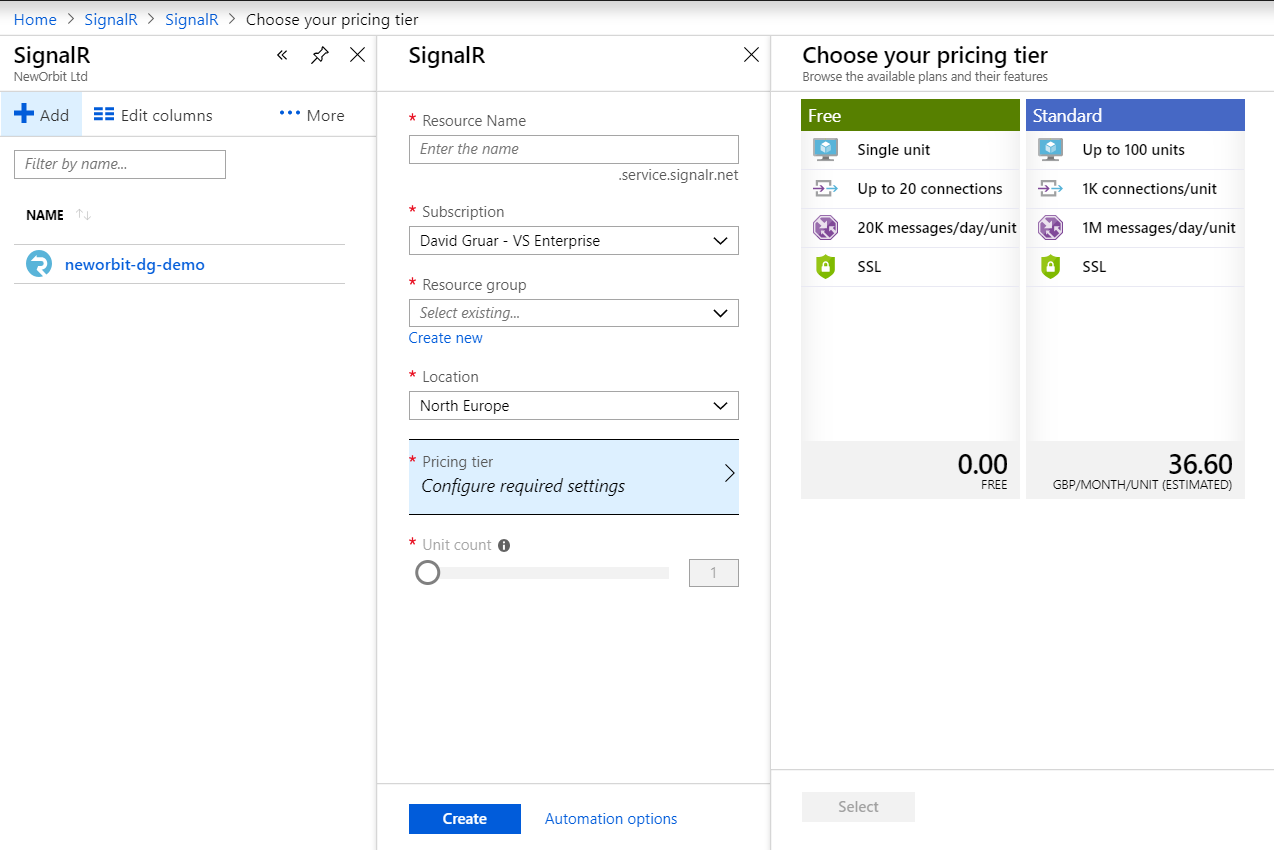

Create the resource

Install the package

dotnet add package Microsoft.Azure.SignalR

Add the connection string to config

{
  "Azure": {
    "SignalR": {
      "ConnectionString": "*****"
    }
  }
}

Modify Startup.cs

    services.AddSignalR().AddAzureSignalR();

    app.UseAzureSignalR(options =>
    {
        options.MapHub<ChatHub>("/chat");
    });
}

The end

SignalR

By David Gruar
