Tungsten & React

The Commons Ideas Behind Tungsten and React

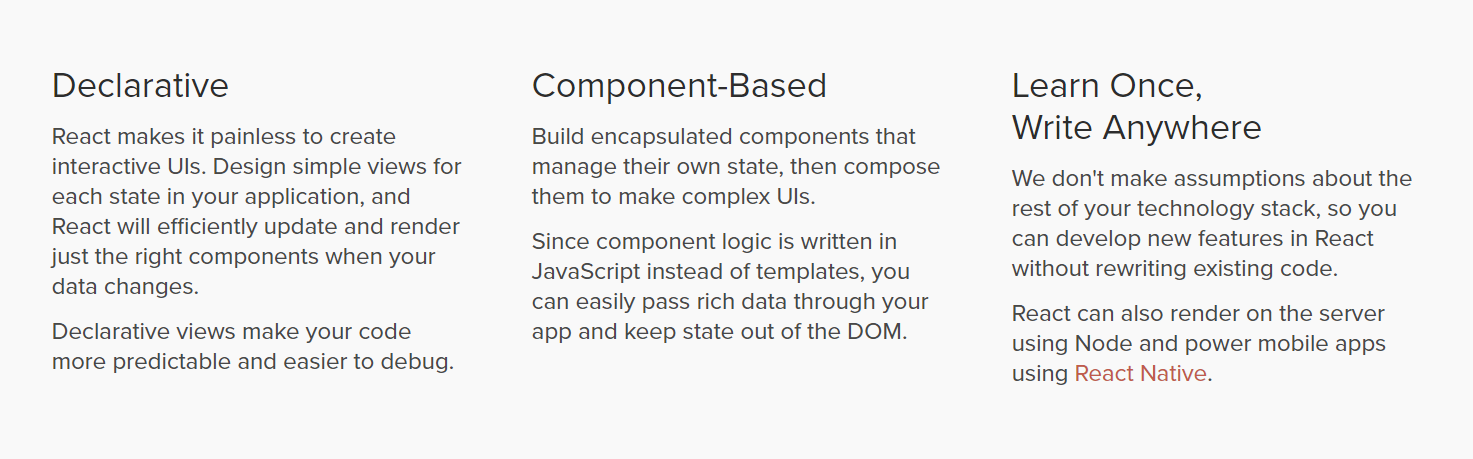

Why React?

Declarative vs Imperative

  • Imperative: describing how things work
  • Declarative: describing what things look like

Imperative example

Declarative example

In Essence

this.listenTo(this.todos, 'all', this.render);
addTodo: function() {
    if (this.newTodo) {
      const todoModel = new Todo({
        todo: this.newTodo
      });
      this.todos.add(todoModel);
    }
  }

In React

Component

setState()

render()

UI = f(state) or UI = f(model)

Declarative Programming Everywhere

Examples

  • Mustache Data
  • Request Dao
render: function() {
    const output = Mustache.render(
      mustacheTemplate,
      {todos: this.appModel.get('todos').toJSON(), newTodo: this.appModel.get('newTodo')}
    );
    this.$el.html(output);
    return this;
}
<div>
  <div class="todo_app">
    <h1>Todo List</h1>
    <ul>
      <li><span>grocery shopping</span><input type="checkbox"></li>
      <li><span>pay electricity bill</span><input type="checkbox"></li>
    </ul>
    <input type="text" class="js-new-todo">
    <button class="js-add-button">Add Todo</button>
  </div>
</div>
<div>
</div>
<div>
  <div class="todo_app">
    <h1>Todo List</h1>
    <ul>
      <li><span>grocery shopping</span><input type="checkbox"></li>
      <li><span>pay electricity bill</span><input type="checkbox"></li>
      <li><span>pay phone bill</span><input type="checkbox"></li>
    </ul>
    <input type="text" class="js-new-todo">
    <button class="js-add-button">Add Todo</button>
  </div>
</div>
<div>
  <div class="todo_app">
    <h1>Todo List</h1>
    <ul>
      <li><span>grocery shopping</span><input type="checkbox"></li>
      <li><span>pay electricity bill</span><input type="checkbox"></li>
    </ul>
    <input type="text" class="js-new-todo">
    <button class="js-add-button">Add Todo</button>
  </div>
</div>
<div>
  <div class="todo_app">
    <h1>Todo List</h1>
    <ul>
      <li><span>grocery shopping</span><input type="checkbox"></li>
      <li><span>pay electricity bill</span><input type="checkbox"></li>
      <li><span>pay phone bill</span><input type="checkbox"></li>
    </ul>
    <input type="text" class="js-new-todo">
    <button class="js-add-button">Add Todo</button>
  </div>
</div>

VDOM

What's VDOM?

Plain Javascript objects that represents real DOM. Because it's just javascript objects, it's cheap to maintain them in memory.

{ type: ‘ul’, props: { ‘class’: ‘list’ }, children: [
  { type: ‘li’, props: {}, children: [‘item 1’] },
  { type: ‘li’, props: {}, children: [‘item 2’] }
] }
<ul className=”list”>
  <li>item 1</li>
  <li>item 2</li>
</ul>

Create real DOM from VDOM

function createElement(node) {
  if (typeof node === 'string') {
    return document.createTextNode(node);
  }
  const $el = document.createElement(node.type);
  node.children.forEach(childNode => {
  	$el.appendChild(createElement(childNode));
  });
  return $el
};

The Diffing Algorithm

updateElement($parent, newNode, oldNode, index = 0) {...}

The real DOM node where virtual is rendered into

The new virtual DOM node

The old virtual DOM node

The location where virtual DOM node in $parent

The Diffing Algorithm

updateElement($parent, newNode, oldNode, index = 0) {...}

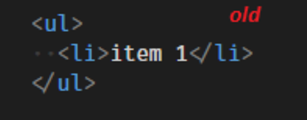

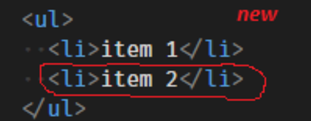

1. Only new node at index i - apendChild(...)

2. Only old node at index i- removeChild(...)

The Diffing Algorithm

updateElement($parent, newNode, oldNode, index = 0) {...}

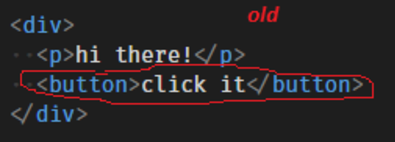

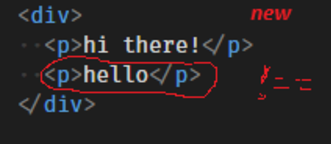

3. Different nodes at index i - replaceChild(...)

function changed(node1, node2) {
  return typeof node1 !== typeof node2 ||
         typeof node1 === 'string' && node1 !== node2 ||
         node1.type !== node2.type
}

The Diffing Algorithm

updateElement($parent, newNode, oldNode, index = 0) {...}

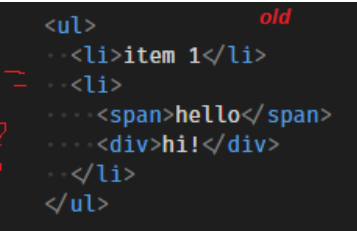

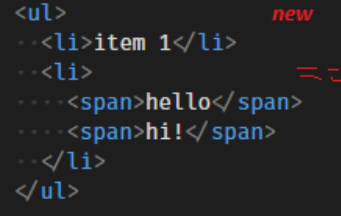

  • Can't tell - call updateElement(...) recursively

Where Virtual DOM is used?

Tungsten

React

render()

JSX

render () {
  return (
    <ul>
      <li>pay bill</li>
      <li>buy milk</li>
    </ul>
  );
}
render () {
  return React.createElement(
      "ul",
      null,
      React.createElement(
            "li",
            null,
            "pay bill"
      ),
      React.createElement(
            "li",
            null,
            "buy milk"
      )
  );
}

Virtual DOM is fast, so real DOM is slow?

Virtual DOM is much faster than unefficient real DOM manipulation.

Things In Common

  • Declarative programming
  • Use of irtual DOM

The Differences

Tungstenjs

Model/Collection

View

Template

  • stores and manages data (attributes)
  • talk to the backend for data persistence
  • observes models and updates DOM accordingly
  • dispatch DOM events
  • defines  how the UI look like

Tungstenjs

Model/Collection

View

Template

Model/Collection

View

Template

Child Level

Root Level

...

relations: {
...
}
childViews: {
...
}
{{ > ... }}

React

Child Level

Root Level

...

ParentComponent

ChildComponent

render () {
  return (
    ...
    <ChildComponent>
    ...
  );
}

Mustache as Templates vs No Templates

Example

Whenever conditions become too complex, it might be a good time to extract a component.

A good rule of thumb is that if a part of your UI is used several times (Button, Panel, Avatar), or is complex enough on its own (App, FeedStory, Comment), it is a good candidate to be a reusable component.

Thank you!
