Amsterdam | April 2-3, 2019
Building a network of APIs
for a future-proof integrated architecture
Desy Kristianti @dessskris
@dessskris
Photo by Jordan Sanchez on Unsplash
Where did the cushion go?!
@dessskris
Photo by Cabinair Services

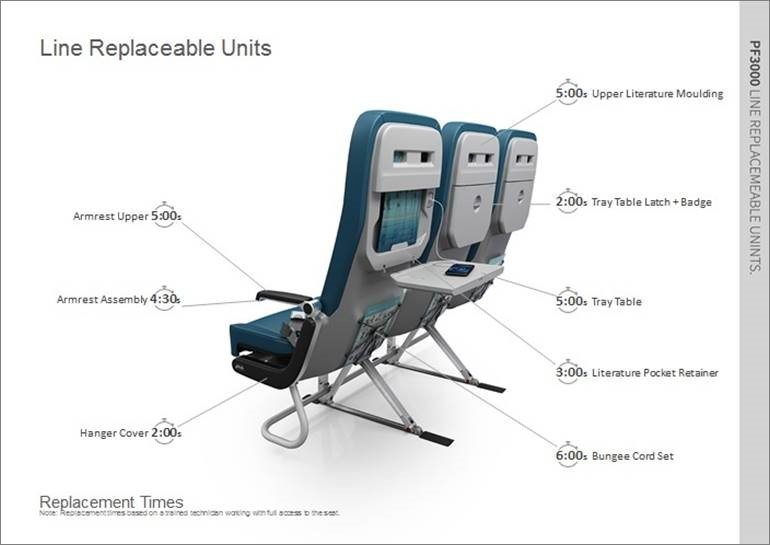

Airplane Seats "Micro" Parts
@dessskris
Photo by Pitch Aircraft Seating
About me
Desy Kristianti
Tech Consultant at Deloitte UK
Enterprise Integration Specialist
MuleSoft Certified Developer & API Designer
Dell Boomi Certified Developer
@dessskris
Agenda
- Microservices & Network of APIs
- Is this for you?
- Approaches for Design, Build and Test
@dessskris
Demistifying the jargon
Microservices
@dessskris
API
Connecting applications
Application Programming Interface
Representational State Transfer (REST)
Loosely coupled services
Integration
Why future-proof your architecture?
Photo by Randy Fath on Unsplash
@dessskris
It's not about size anymore...
Photo by Cara Fuller on Unsplash
@dessskris
Microservices architecture
Photo by Hong Lin on Unsplash
@dessskris
What's so good about
microservices architecture?
Fast to scale
@dessskris
Easy to plug
and un-plug
Loosely coupled, reusable services
Network of APIs
Photo by Dell Boomi
@dessskris
Case Study: Unibever
@dessskris
Order
Management System
Customer
Management System
Invoice
Management System
Case Study: Unibever
@dessskris
Order
Management System
Customer
Management System
Invoice
Management System
Process:
Upon receiving a new Order in NetSuite,
update the Customer details in Salesforce,
and create a new Invoice in SAP.
Traditionally...
@dessskris
Order
Management System
Customer
Management System
Invoice
Management System
In reality...
@dessskris
But what if...
@dessskris

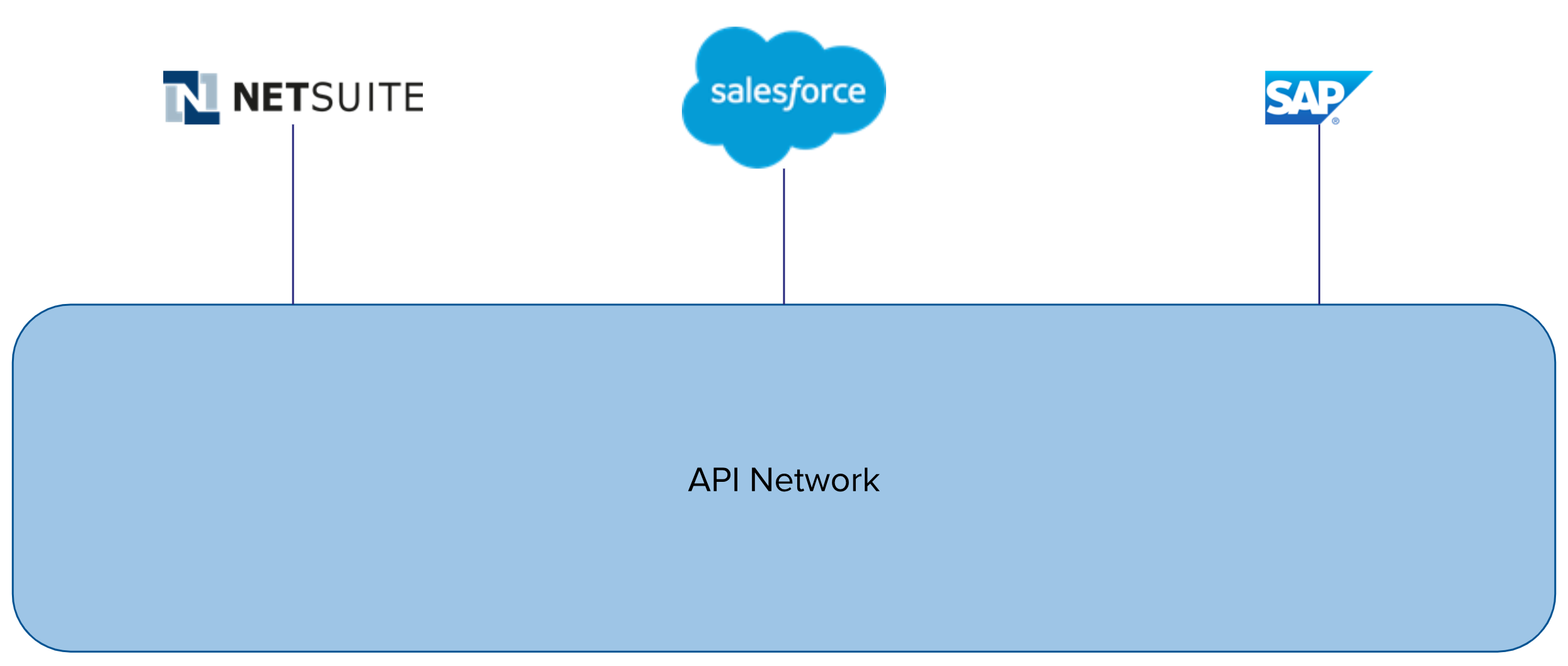

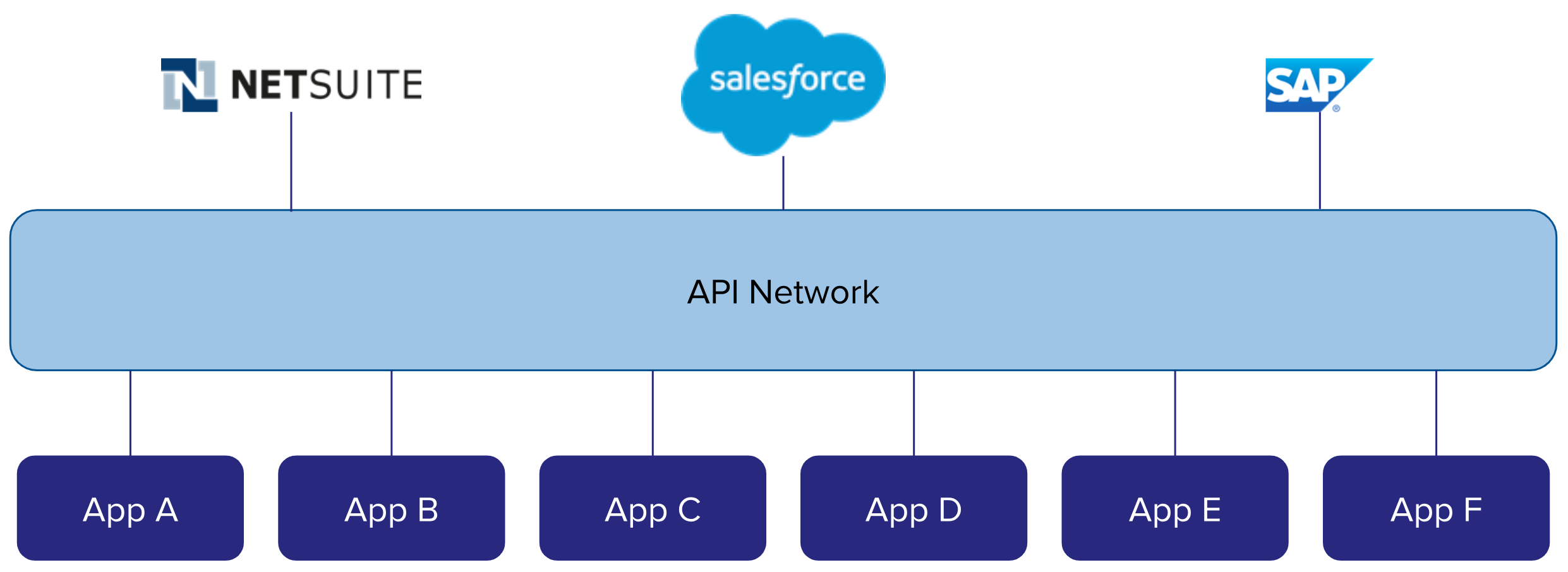

API-enabled network
@dessskris
An API for each application
@dessskris
Supported by other APIs
@dessskris
With many more applications...
@dessskris

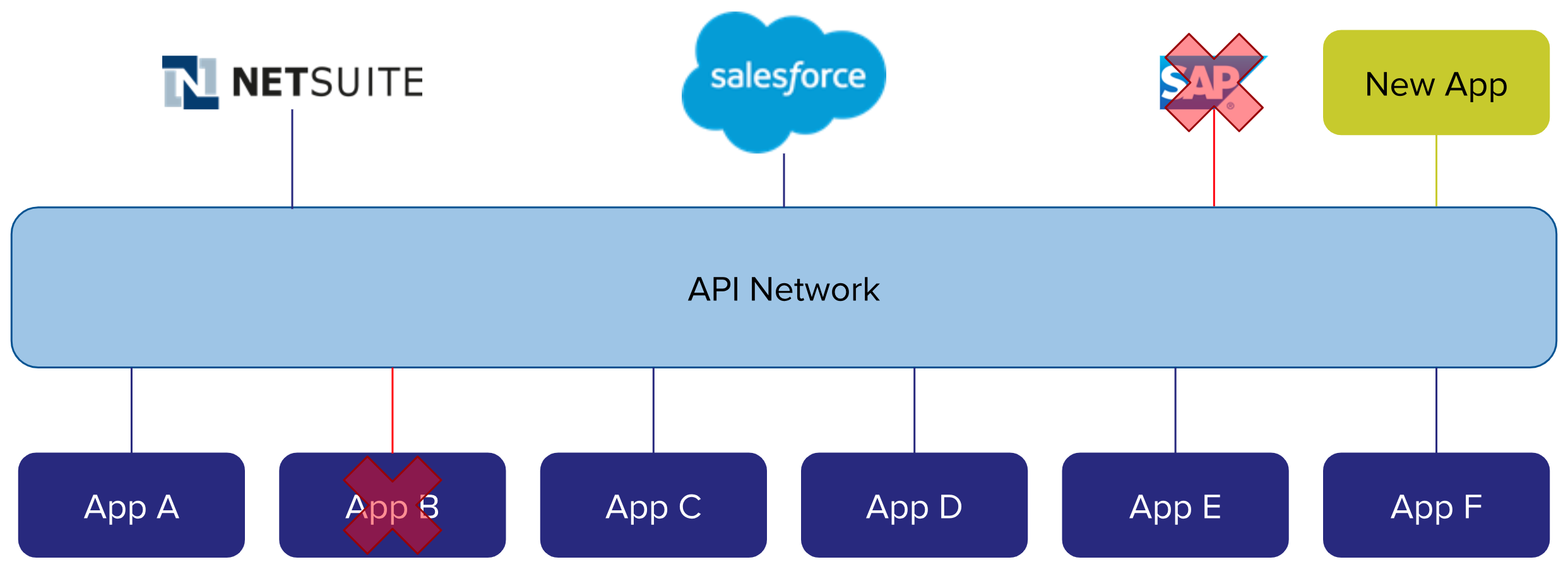

Easily plug and un-plug...
@dessskris
Is this for me?
@dessskris
Advantages
Quickly change
when adopting new or replacing old systems
@dessskris
Reusable components
with caching enabled
Easily integrate
a large number
of different applications
Less developer time and effort, saving money
Disadvantages
@dessskris
Overhead in API management
Extra effort in the short term
Twice the amount of data transformation required
Are you ready to be the fastest?
Photo by Jean Wimmerlin on Unsplash
@dessskris
Show me how to
build a network of APIs!
@dessskris
API Design Approach
@dessskris

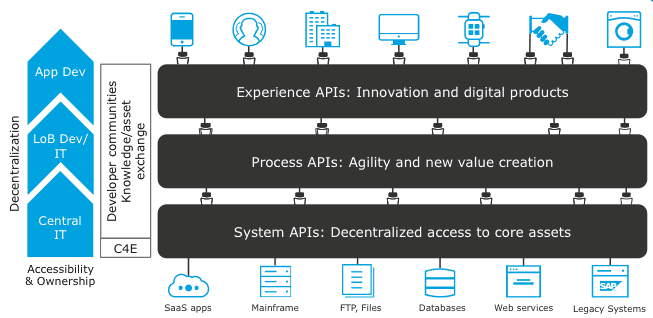

Three-layered API architecture
@dessskris
Source: MuleSoft Blog

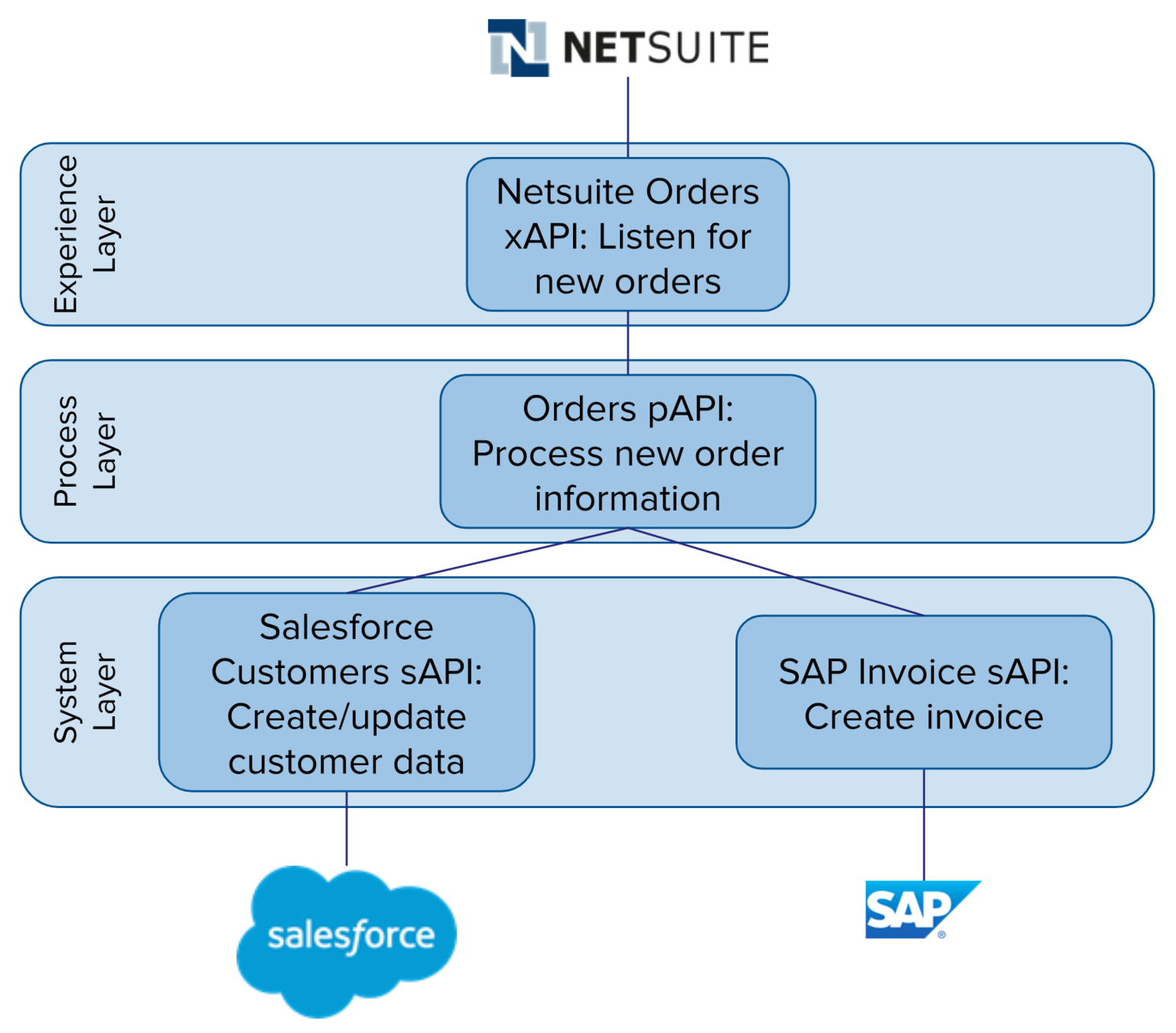

Case Study: Unibever
@dessskris
API Design Documentation
@dessskris
Photo by Aaron Burden on Unsplash
e.g. RAML, YAML, Swagger
Designing your endpoints
@dessskris
| Endpoint | GET | HEAD | POST | PUT | PATCH | DELETE | OPTIONS |
|---|---|---|---|---|---|---|---|
| https://host:port/api/v1/customers | ✓ | ✓ | ✓ | ✓ | |||
| https://host:port/api/v1/customers/{customerId} | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| https://host:port/api/v1/health | ✓ | ||||||
| https://host:port/api/v1/errors | ✓ |
i.e. methods, resources, versioning
API Build
Approach
@dessskris
Building your API implementation
@dessskris
API Template with health check & error handling
Error Handling pAPI
Caching
where relevant
Client ID & Client Secret
Spike control, rate limiting, throttling, IP whitelist/blacklist
Integration Platform as a Service (iPaaS) Tools that can help
@dessskris

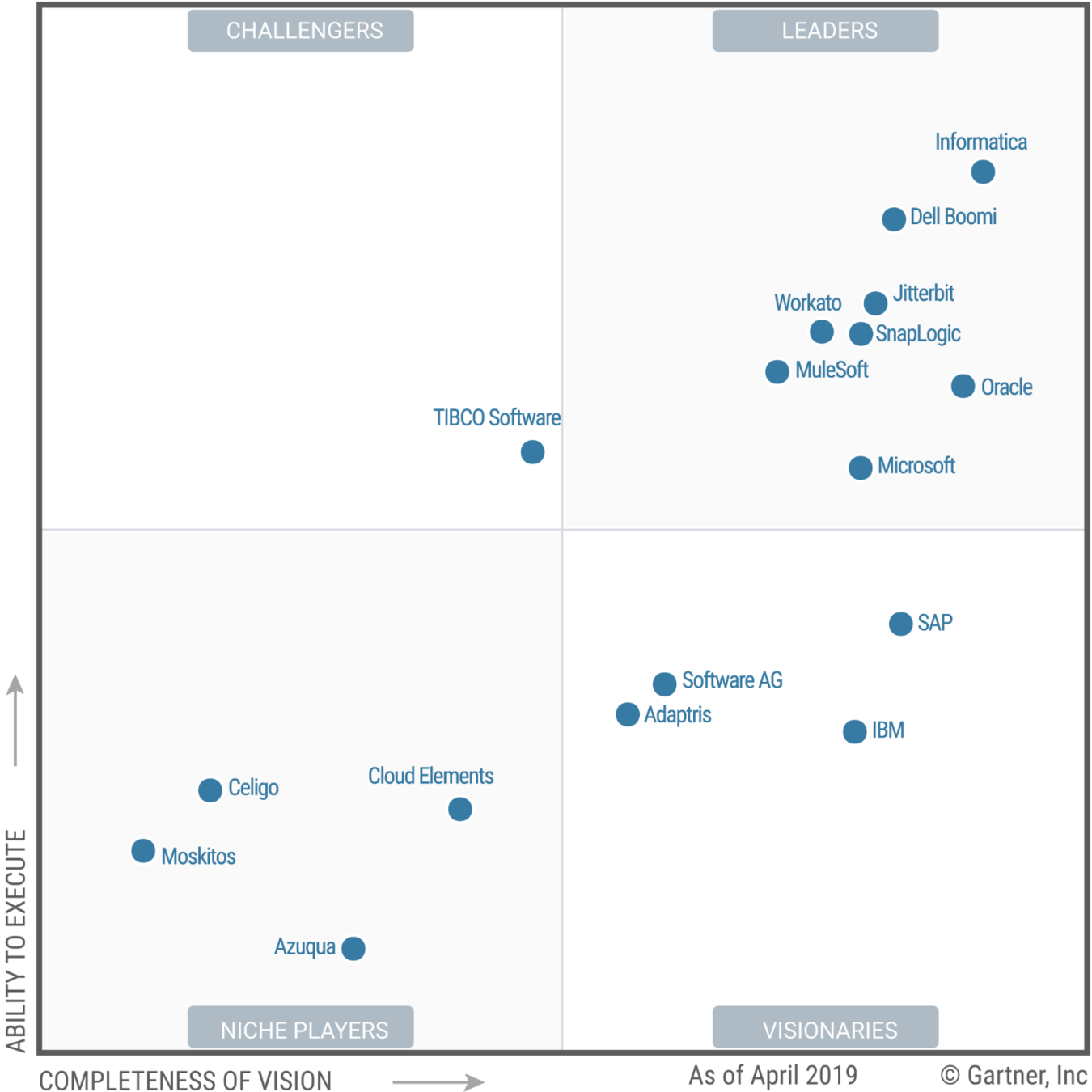

Gartner Magic Quadrant for iPaaS
Gartner Magic Quadrant for API Management
Micro-Version Control?
@dessskris
Mono-repository
Modular repositories
Individual API repositories

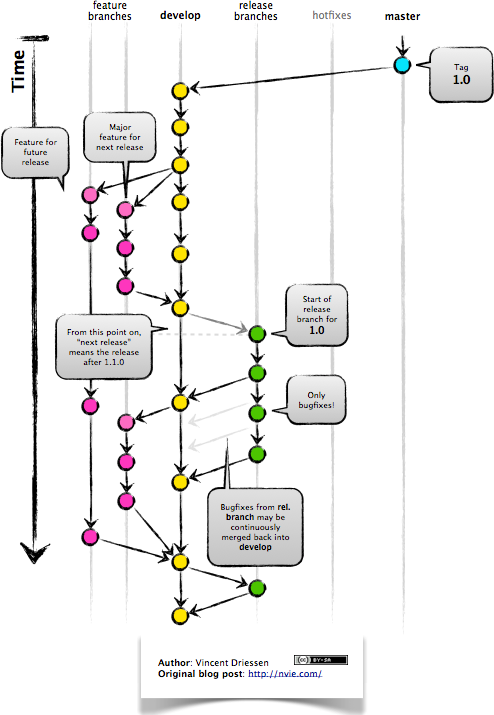

Branching strategy
@dessskris
Source: GitFlow by Vincent Driessen
https://datasift.github.io/gitflow/IntroducingGitFlow.html
CI/CD considerations
- Each API is independently deployable
- Tag every commit with your user story ID
- Pick up approved and merged commits
- Deploy and run automated tests
@dessskris
Photo by Synopsys
API Test
Approach
@dessskris
Testing considerations
- Write unit tests based on API design docs
- Test the smallest services, and mock its output
- Validate against schema, but also test for expected responses
@dessskris
Conclusion
- Build a network of APIs in order to scale fast
- Three-layer architecture: Experience, Process and System APIs
- API design document is your bible for build & test
@dessskris
Photo by Cara Fuller on Unsplash
Desy Kristianti
https://slides.com/dessskris/network-of-apis
dessskris@gmail.com
Desy Kristianti
@dessskris
Thank you!
Building a network of APIs for a future-proof integrated architecture
By Desy Kristianti
Building a network of APIs for a future-proof integrated architecture
Most organisations today have many applications in their architecture. For business processes to work efficiently, these systems need to communicate. But is it enough just to write code that integrates them? Come along to learn how to integrate your IT architecture by building a network of APIs. This approach relies on the principles of microservice architecture where business processes are broken down into small services, ensuring reusability and loose-coupling of components. Leverage your IT system into a robust platform that enables your organisation to change faster than your competitors.
