Intro to Docker
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/3028170/afluenta_horizontal_blanco_color_new.png)
What is Docker?
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
What is Docker?
Docker is a containerization platform that packages your application and all its dependencies together in the form of Containers to ensure that your application works seamlessly in any environment.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106003/docker-624x557.png)
Containers?
Containers are far from new; Google has been using their own container technology for years. Others Linux container technologies include Solaris Zones, BSD jails, and LXC, which have been around for many years.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106010/Linux_Containers_logo.png)
https://linuxcontainers.org/
https://wiki.freebsd.org/Jails

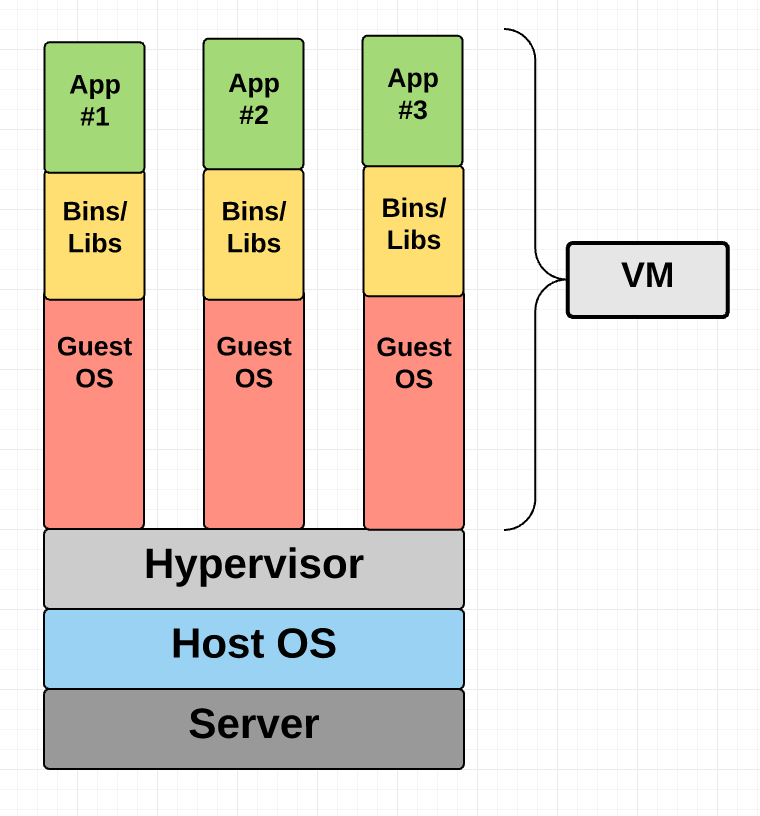

VM vs Containers
Virtual machines have a full OS with its own memory management installed with the associated overhead of virtual device drivers.
Every guest OS runs as an individual entity from the host system.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106023/1_RKPXdVaqHRzmQ5RPBH_d-g.png)
VM vs Containers
On the other hand Docker containers are executed with the Docker engine rather than the hypervisor.
Containers are therefore smaller than Virtual Machines and enable faster start up.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106024/1_V5N9gJdnToIrgAgVJTtl_w.png)
What is Docker... again?
Open Source engine which:
- Allow us to create and share images (Docker-Hub)
- Provides an standard format for containers (layers, tarballs)
- Provides an standard reproducible way to easily build trusted images (Dockerfile)
- Provides an standard format to orchestrate multiple containers (Swarm, Compose)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106118/docker-logo-novet.jpg)
Docker FTW
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106047/docker.png)
Build once - run anywhere
- A fully provisioned runtime environment for your services
- No more missing dependencies, packages version mismatch, permission issues and so on...
- Opens the door to an easier automation and continuous integration
- Reduces/eliminates concerns about compatibility on different platforms
- Easier to test monitor system upgrades (isolated incremental upgrades)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106057/Screen_Shot_2018-07-12_at_05.png)
Build once - run anywhere
- Make deployments/scale-up/scale-out more efficient, consistent, and repeatable
- Eliminate inconsistencies between development, test, and production environments
- Significantly improves the speed and reliability of continuous deployment and integration
- Performance: Almost no overhead!, processes run straight on the host CPU (although isolated): performance = native performance!
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106060/Screen_Shot_2018-07-12_at_05.png)

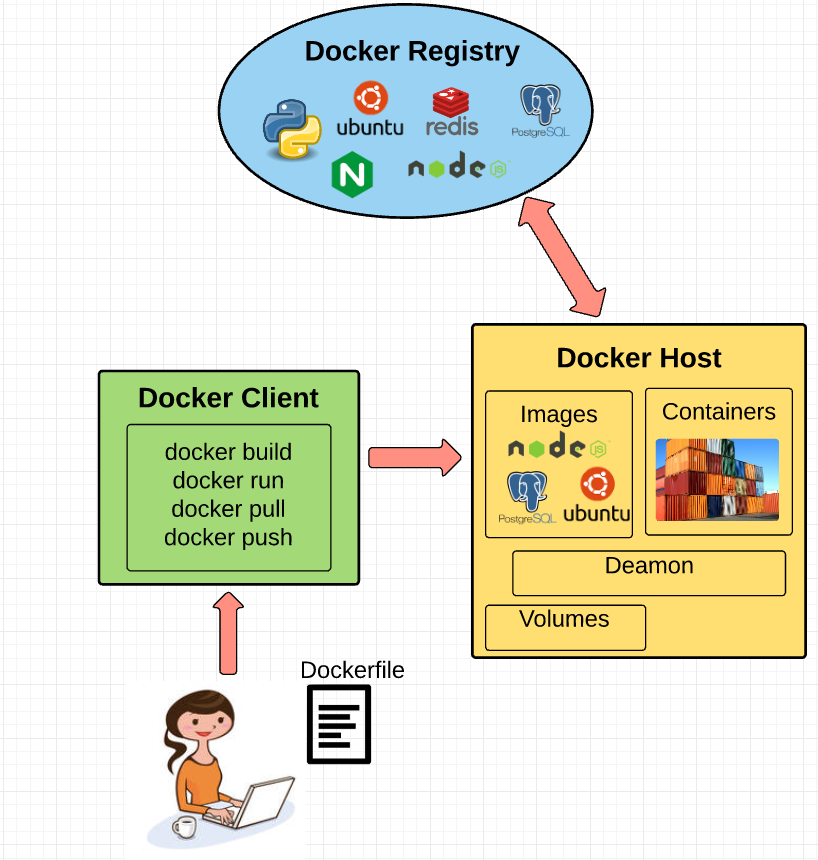

Docker Components
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106103/linux-vs-docker-comparison-architecture-docker-components.png)
Components
- Docker Engine: It’s a lightweight runtime and tooling that manages containers, images, builds, and more.
- The Docker Client is what you, as the end-user of Docker, communicate with (ex, cli tool, docker gui)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
Components
- Dockerfile: A Dockerfile is where you write the instructions to build a Docker image.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
FROM ubuntu:latest
RUN apt-get update
RUN apt-get install -y python python-pip wget
RUN pip install Flask
ADD hello.py /home/hello.py
WORKDIR /home
Components
- docker-compose.yml: docker-compose is a tool for defining and running multi-container Docker applications. Used to configure your application's services. Then, using a single command, you create and start all the services from your configuration.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
Components
- Docker-compose:
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
version: "2"
services:
web:
build: web
command: python app.py
ports:
- "5000:5000"
volumes:
- ./web:/code
links:
- redis
environment:
- DATADOG_HOST=datadog
redis:
image: redis
Components
- Docker Image: Images are read-only templates that you build from a set of instructions written in your Dockerfile.
You can see already built images on Docker-hub for a multitude of services and components.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
Components
- Docker containers: A Docker container wraps an application’s software into a box with everything the application needs to run. That includes the operating system, application code, runtime, system tools, system libraries, and etc. Docker containers are built off Docker images.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
Components
- Docker Registry: Docker registry is a service that stores docker images. It may be private or public such as Docker-hub, Quay,
Google Container Registry,
AWS Container Registry.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106074/1_K7p9dzD9zHuKEMgAcbSLPQ.png)
Demo Time!
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
Demo
Running a docker image straight from Docker-hub
$ docker run -it alpine sh
Unable to find image 'alpine:latest' locally
latest: Pulling from library/alpine
8e3ba11ec2a2: Pull complete
Digest: sha256:7043076348bf5040220df6ad703798fd8593a0918d06d3ce30c6c93be117e430
Status: Downloaded newer image for alpine:latest
/ # ps
PID USER TIME COMMAND
1 root 0:00 sh
9 root 0:00 ps
/ #
$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
fc4acdddee52 alpine "sh" About a minute ago Up About a minute confident_noether
Demo
Building an image
$ docker build -t desyncr/node-docker-demo .
Sending build context to Docker daemon 5.12kB
Step 1/7 : FROM node:8
...
Digest: sha256:8be12ed3d805ec6e9847d9f09824d8ba80c43986efea5a3e02903748faa19115
Status: Downloaded newer image for node:8
...
Step 7/7 : CMD [ "npm", "start" ]
---> Running in b3f8f3da6893
Removing intermediate container b3f8f3da6893
---> c4ec364ea9ae
Successfully built c4ec364ea9ae
Successfully tagged desyncr/node-docker-demo:latest
$ docker images
$ docker run -p 8080:8080 -d desyncr/node-docker-demo
$ curl -i localhost:8080
Demo
Pushing an image to docker hub
$ docker login -u desyncr
Password:
Login Succeeded
$ docker push desyncr/node-docker-demo
The push refers to repository [docker.io/desyncr/node-docker-demo]
f8e0658646fe: Pushed
...
1618a71a1198: Mounted from library/node
latest: digest: sha256:876b4d8e257360318e2468ed9fa3630cbff7a2e98b1054b0f1c9e3b16ccb92f1 size: 2839
$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
desyncr/node-docker-demo latest c4ec364ea9ae 3 minutes ago 676MB
Demo
Using docker compose (1)
version: "2"
services:
web:
build: .
ports:
- "8080:8080"
volumes:
- ./:/code
links:
- redis
redis:
image: redis
Demo
Using docker compose (2)
$ docker-compose up Creating network "node-docker-demo_default" with the default driver
Pulling redis (redis:)...
latest: Pulling from library/redis
...
Creating node-docker-demo_redis_1 ... done
Creating node-docker-demo_web_1 ... done
Attaching to node-docker-demo_redis_1, node-docker-demo_web_1
redis_1 | 1:C 12 Jul 10:12:20.972 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
...
redis_1 | 1:M 12 Jul 10:12:20.973 * Ready to accept connections
web_1 |
web_1 | > docker_web_app@1.0.0 start /usr/src/app
web_1 | > node server.js
web_1 |
web_1 | Running on http://0.0.0.0:8080
Killing node-docker-demo_web_1 ... done
Killing node-docker-demo_redis_1 ... done
Afluenta-Docker
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
Components
- Environments
- Images
- Docker-compose
- Makefile
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106118/docker-logo-novet.jpg)
Components
- Environments
env
├── local.ar
├── local.mx
├── local.pe
├── pkg.ar
│ ├── beta
│ └── prod
├── pkg.mx
└── pkg.pe
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106118/docker-logo-novet.jpg)
$ cat env/pkg.ar/beta
# ECS/ECR configs
ENV=beta
GEO=ar
PKG=pkg.${GEO}
HOSTNAME=beta-aws.afluenta.com
PHP_CONFIG=php.ini-aws-beta-ecs
FPM_CONFIG=php-fpm.conf-aws-beta-ecs
NGINX_CONFIG=nginx.config-beta-ecs
VARNISH_CONFIG=afluenta.dev.vcl
PLATFORM=aws-prod
PLATFORM_BO=aws-backoffice
REGISTRY=<redacted>.dkr.ecr.us-east-1.amazonaws.com
WEB_ROOT=/afluenta-platform/afluenta_web/web
LOG_PATH_SUFFIX=${HOSTNAME}
# EFS configs
EFS_URI=fs-<redacted>.efs.us-east-1.amazonaws.com
EFS_MOUNT_POINT=/afluenta-platform
EFS_OPTIONS=nfsvers=4.1,rsize=1048576,wsize=1048576,hard,timeo=600,retrans=2
# Platform configs
MEMCACHED_CONTENTS_1_HOST=v-mc-01-beta.amzn.i.afluenta.com
MEMCACHED_CONTENTS_1_PORT=11311
MEMCACHED_CONTENTS_2_HOST=v-mc-01-beta.amzn.i.afluenta.com
MEMCACHED_CONTENTS_1_PORT=11211
MEMCACHED_SESSION_HOST=v-mc-01-beta.amzn.i.afluenta.com
GEARMAN_HOST=v-mc-01-beta.amzn.i.afluenta.com
DB_HOST=v-db-01-beta.amzn.i.afluenta.com
DB_USER=afluenta
DB_PASS=<redacted>
DB_NAME=afluenta
SERVER_USER=www-data
SERVER_GROUP=www-data
CONFIG_SERVER_USER=www-data
CONFIG_SERVER_GROUP=www-data
# aws logs
AWSLOGS_GROUP=afluenta-ecs
AWSLOGS_REGION=us-east-1
AWSLOGS_PREFIX=${ENV}-${GEO}
# VPC
VPC_ID=vpc-<redacted>
SUBNET_IDS=subnet-6666666
SECURITY_GROUP=sg-6666666666,sg-6666666666
CLUSTER_KEYPAIR=afluenta-ecs-beta
# Cluster
CLUSTER_SIZE=1
CLUSTER_LAUNCH_TYPE=EC2
CLUSTER_REGION=us-east-1
CLUSTER_INSTANCE_TYPE=c5.xlarge
CLUSTER_CONFIG=afl-ecs-cluster-config-beta
CLUSTER_NAME=afl-ecs-web-cluster-beta
CLUSTER_PROFILE=afluenta-ecs-profile-beta
DB_PASS=<redacted>
DB_NAME=afluenta
SERVER_USER=www-data
SERVER_GROUP=www-data
CONFIG_SERVER_USER=www-data
CONFIG_SERVER_GROUP=www-data
# aws logs
AWSLOGS_GROUP=afluenta-ecs
AWSLOGS_REGION=us-east-1
AWSLOGS_PREFIX=${ENV}-${GEO}
# VPC
VPC_ID=vpc-<redacted>
SUBNET_IDS=subnet-<redacted>
SECURITY_GROUP=sg-<redacted>,sg-<redacted>
CLUSTER_KEYPAIR=afluenta-ecs-beta
# Cluster
CLUSTER_SIZE=1
CLUSTER_LAUNCH_TYPE=EC2
CLUSTER_REGION=us-east-1
CLUSTER_INSTANCE_TYPE=c5.xlarge
CLUSTER_CONFIG=afl-ecs-cluster-config-beta
CLUSTER_NAME=afl-ecs-web-cluster-beta
CLUSTER_PROFILE=afluenta-ecs-profile-beta
Components
- Images
images
├── efs
├── nginx
├── php
├── platform
├── varnish
└── web
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106118/docker-logo-novet.jpg)
Components
- Docker-compose
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106118/docker-logo-novet.jpg)
# vim: ts=4 sw=4 et filetype=yaml
version: "3.1"
services:
memcached:
image: memcached:alpine
container_name: afl-memcached
ports:
- "11211:11211"
gearmand:
image: artefactual/gearmand
container_name: afl-gearmand
php:
image: ${REGISTRY}/afluenta-php-dev:0.0.2
container_name: afl-php
working_dir: /afluenta-platform/afluenta_web/web
hostname: ${HOSTNAME}
ports:
- "8080:8080"
environment:
PHP_CONFIG: php.ini
FPM_CONFIG: fpm.conf
MEMCACHED_CONTENTS_1_HOST: ${MEMCACHED_CONTENTS_1_HOST}
MEMCACHED_CONTENTS_2_HOST: ${MEMCACHED_CONTENTS_2_HOST}
MEMCACHED_SESSION_HOST: ${MEMCACHED_SESSION_HOST}
GEARMAN_HOST: ${GEARMAN_HOST}
DB_HOST: ${DB_HOST}
DB_USER: ${DB_USER}
DB_PASS: ${DB_PASS}
DB_NAME: ${DB_NAME}
SERVER_USER: ${SERVER_USER}
SERVER_GROUP: ${SERVER_GROUP}
CONFIG_SERVER_USER: ${CONFIG_SERVER_USER}
CONFIG_SERVER_GROUP: ${CONFIG_SERVER_GROUP}
HOSTNAME: ${HOSTNAME}
LOG_PATH_SUFFIX: ${LOG_PATH_SUFFIX}
volumes:
- afl-fpm-osx-sync:/afluenta-platform:nocopy
- ./images/php/conf.d/php.ini:/etc/defaults/php/php.ini
#- ./images/php/conf.d/php.ini:/usr/local/etc/php/php.ini
- ./images/php/conf.d/lite_php_browscap.ini:/etc/defaults/php/browscap.ini
- ./images/php/conf.d/php-fpm.conf:/etc/defaults/php/fpm.conf
webserver:
image: ${REGISTRY}/afluenta-nginx:0.0.6
container_name: afl-webserver
working_dir: /afluenta-platform
depends_on:
- php
links:
- php
environment:
NGINX_CONFIG: default.conf
volumes:
- afl-fpm-osx-sync:/afluenta-platform:nocopy
- ./images/nginx/conf.d/default.conf:/etc/defaults/nginx/default.conf
ports:
- "80:8080"
volumes:
afl-fpm-osx-sync:
external: true
DB_PASS: ${DB_PASS}
DB_NAME: ${DB_NAME}
SERVER_USER: ${SERVER_USER}
SERVER_GROUP: ${SERVER_GROUP}
CONFIG_SERVER_USER: ${CONFIG_SERVER_USER}
CONFIG_SERVER_GROUP: ${CONFIG_SERVER_GROUP}
HOSTNAME: ${HOSTNAME}
LOG_PATH_SUFFIX: ${LOG_PATH_SUFFIX}
volumes:
- afl-fpm-osx-sync:/afluenta-platform:nocopy
- ./images/php/conf.d/php.ini:/etc/defaults/php/php.ini
- ./images/php/conf.d/lite_php_browscap.ini:/etc/defaults/php/browscap.ini
- ./images/php/conf.d/php-fpm.conf:/etc/defaults/php/fpm.conf
webserver:
image: ${REGISTRY}/afluenta-nginx:0.0.6
container_name: afl-webserver
working_dir: /afluenta-platform
depends_on:
- php
links:
- php
environment:
NGINX_CONFIG: default.conf
volumes:
- afl-fpm-osx-sync:/afluenta-platform:nocopy
- ./images/nginx/conf.d/default.conf:/etc/defaults/nginx/default.conf
ports:
- "80:8080"
volumes:
afl-fpm-osx-sync:
external: true
Components
- Makefile
~/afluenta-docker $ make
up Run docker-compose
teardown Stop running containers
restart Teardown and up
ps Containers status
pull Update container images
logs Show logs from container (use logs CONTAINER=php|webserver)
~/afluenta-platform $ make
help This help message
build Run build (run_build.php -f) (make build BUILD_ARGS='-f')
grunt Run grunt
grunt-public Run grunt-public
sync Sync actions (sync_actions.php)
cc Clear cache (symfony cc)
sw Switch geo (Use as make sw GEO=ar|mx|pe DB=nodb|full)
workers Start gearman workers
logs Tail logs from queries and phperror.log
exec Executes a given command in afl-php (make exec CMD=...)
sh Connect to a sh shell on afl-php in interactive mode
tests Run test_sms.php
Fin
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
Questions?
![](https://s3.amazonaws.com/media-p.slid.es/uploads/576387/images/5106043/docker-logo-small.png)
Sources, references, docs, so on so forth...
- Great intro to docker: https://medium.freecodecamp.org/a-beginner-friendly-introduction-to-containers-vms-and-docker-79a9e3e119b
- Another presentation on Docker: https://es.slideshare.net/jpetazzo/introduction-docker-linux-containers-lxc
- Docker vs VM: https://devops.com/docker-vs-vms/
Intro to Docker
By Darío Cavuotti
Intro to Docker
- 113
