AWESOMIFY DEV

Increasing Velocity with

Vagrant and Docker

Agenda

1. Cultural Movement
2. Dev to Production
3. Dev Tooling
   • ​​vagrant
   • docker
4. Prod Tooling (Docker)
5. Demo

DevOps

Say What?

DevOps

The New Buzz Word

Some seem to be putting DevOps into the same category as cloud, big data, and those other ambiguous terms that have no precise meaning, so can be spun however you want to help you sell stuff.

 – Dale Vile, Feb 2016

DevOps

What does it really mean?

DevOps is the practice of operations and development engineers participating together in the entire service lifecycle, from design through the development process to production support.

  – The Agile Admin Blog

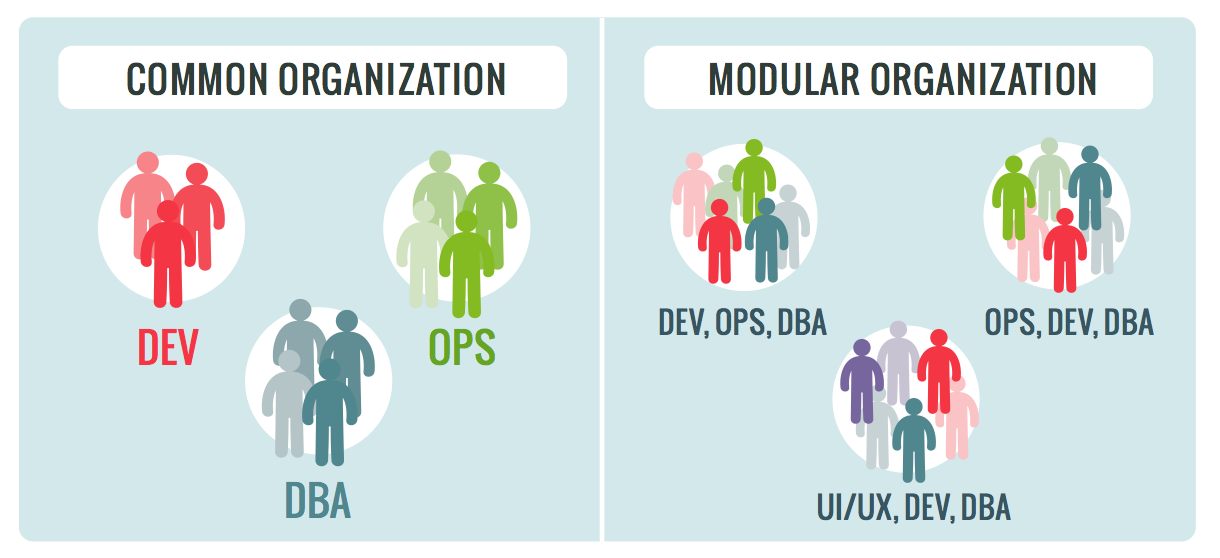

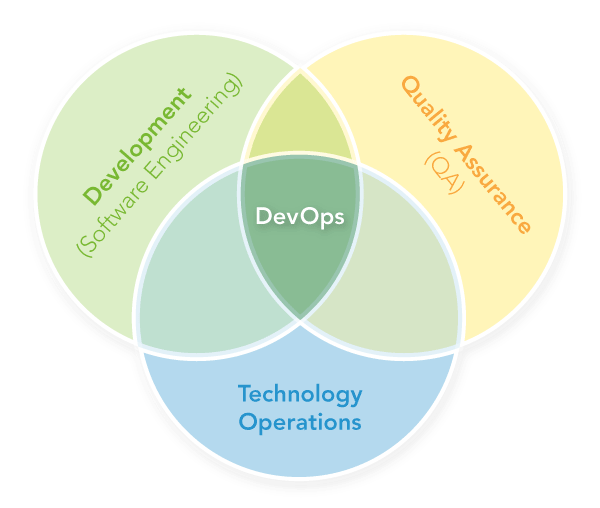

DevOps

Breaking Down Silos

By having people from those silos all working together, it built a lot of empathy.  And we were finally able to get moving.

  – Rob Cummings, Director of Technical Operations at Nordstrom

DEV

QA

OPS

PM

Devops

Philosphy vs. Organization

"DevOps is a culture shift or a movement...." Instead, [companies] think that DevOps is a job or a role, so they create a new silo called DevOps

       – Five Signs That Your DevOps Initiative is Failing by Mike Cavis

DevOps

What does DevOps do?

Activities: Code, Build, Test, Package, Release, Configure, Monitor

Methods: C.A.L.M.S. (Culture, Automation, Lean, Measurement, Sharing)

Testing Code

development to production

Testing Code

On Production

How close does is your laptop to production?

• Linux vs. OS X
• Built from Scratch?
• Consistency?
• Provisioning?

Testing Code

Chaos Reigns

How do services respond?

• Resilience
• Business Continuity
• Integration Points
• Respond to Failures
• Communicate Failures
• Data Integrity

Testing Code

Response

• ownership (everyone)
• participation
• debugging, testing

Testing Code

Fixing or Preventing

• troubleshooting
• monitoring
• reporting
• on call, escalation

Vagrant

virtual systems

Vagrant

Automates virtual machines

• port mapping
• file sync
• ssh keys
• control vm
• provision  vm
• imaging
• access (ssh, winrm, rdp)

Vagrant

Provisioning
Apply configuration on your virtual machine(s)

• Shell Scripts
• Docker
• Ansible
• Others...

Vagrant

Virtualization Providers

• Virtualbox (default)
• AWS
• Docker
• others...

Vagrant

Throw Away virtual systems

Disposable Virtual Systems (Linux)

Development system (Mac OS X)

vs

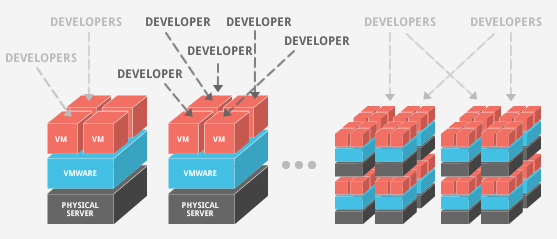

Vagrant

Shared Dev

Environments

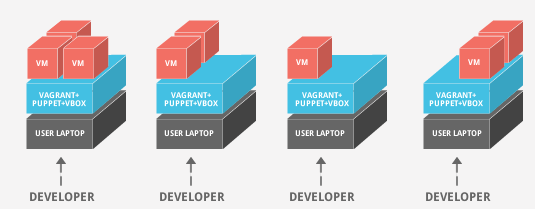

Segregated Dev

Environments

vs

Vagrant

Example

# Create Scripts
vi Vagrantfile

# Bootstrap
vagrant up

# Interaction / Start Service
vagrant ssh

# Stop Web Service
vagrant halt

# Test
curl -i localhost:8080

Vagrant.configure("2") do |config|
  config.vm.box = "ubuntu/trusty64"
  config.vm.provision :shell, path: "install_app.sh"
  config.vm.network :forwarded_port, guest: 80, host: 8080
end

Overview

Vagrantfile

Docker

images and containers

Docker

Virtual Machines vs. Containers

KVM

HVM

LXC

• segregation
  • system
  • application
• resources
  • file, mem, cpu
  • net, user, mount

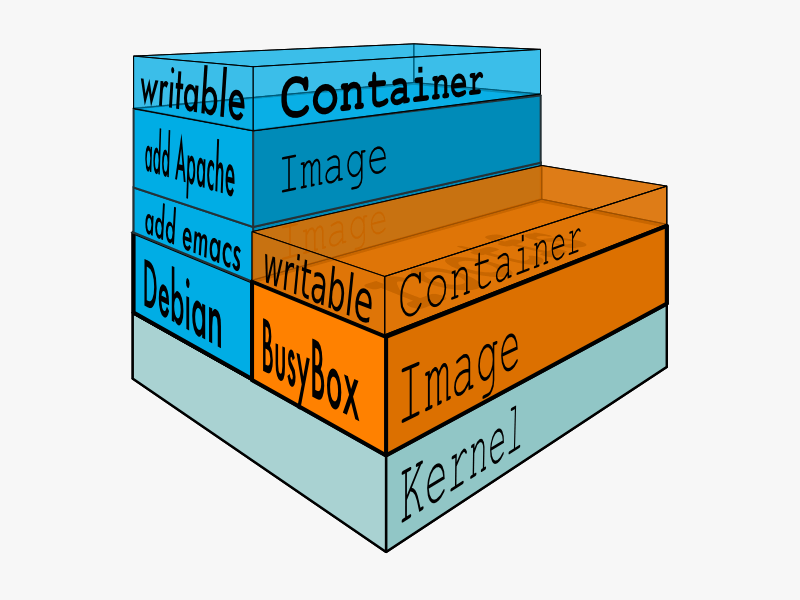

Docker

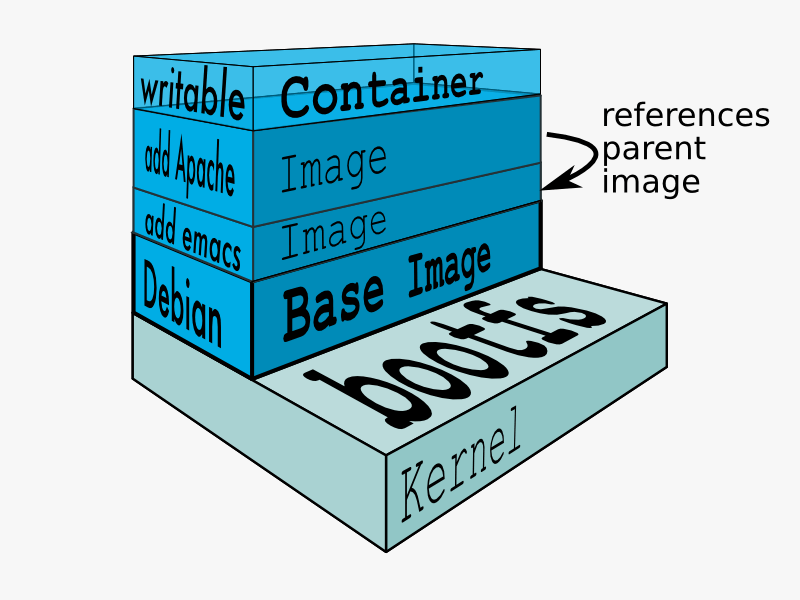

Containers vs. Docker

Docker adds layered imaging and automation to containers

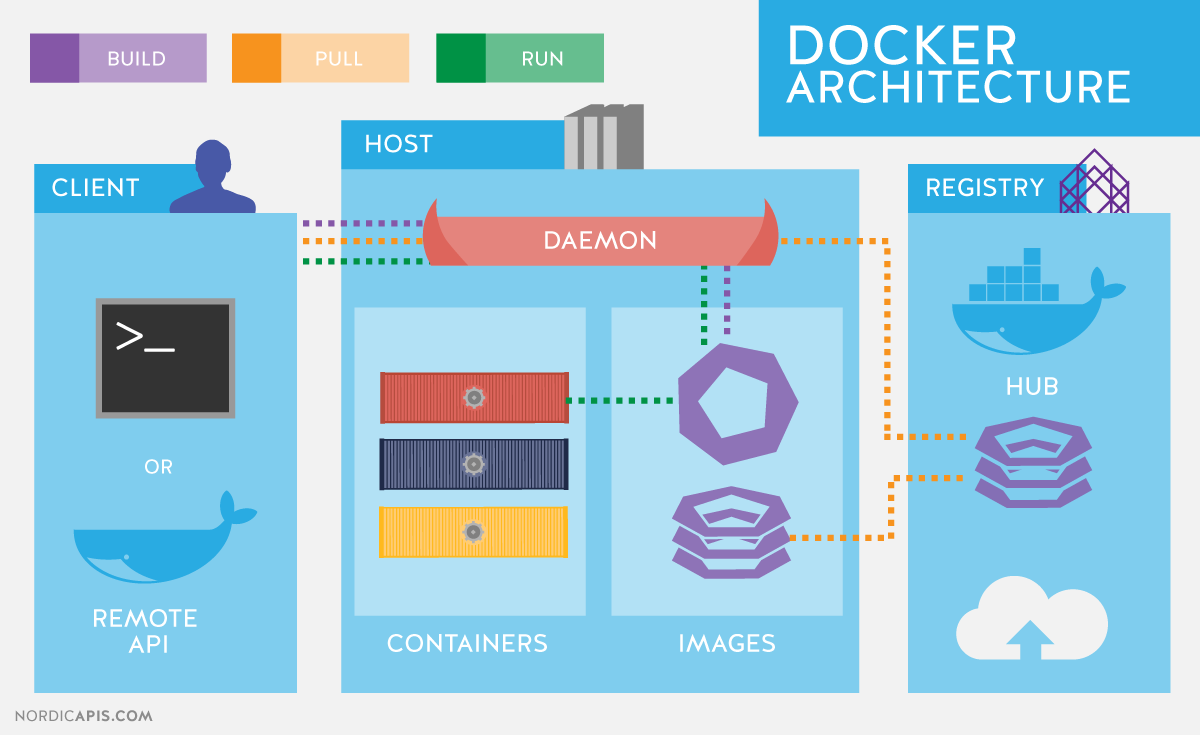

Docker

• docker client
• docker host
• docker registry

Automation

Docker

Provides host environment

• Virtualbox
• AWS
• Xhyve
• Generic

Docker Machine

# Bootstrap (VM)
docker-machine create
eval "$(docker-machine env default)"

Docker

build images, pull images, run container, push images

Workflow

Docker

Orchestration of Docker Machine

Docker Compose (Fig)

web:
  build: ./app
  volumes:
    - "./app:/src/app"
  ports:
    - "80:3000"
  links:
   - redis
   - db
  environment:
    - PGHOST=db
    - PGDATABASE=postgres
    - PGUSER=postgres
redis:
    image: redis:latest
    ports:
        - "6379:6379"
db:
  image: postgres

Docker

Example

# Create Scripts
vi Dockerfile


# Bootstrap (Container)
docker build -t mywebapp .
docker run -d -p 8080:8080 mywebapp

# Interaction
docker exec -it mywebapp bash

# Test Web Service
curl -i ${SERVER}:8080

# Stop Web Service
docker ps
docker kill ${CONTAINER_HASH}

Docker Engine

Docker

Example

# Create Scripts
vi Dockerfile
vi docker-compose.yml

# Bootstrap (Container)
docker-compose up -d


# Interaction
docker exec -it mywebapp bash

# Test Web Service
curl -i ${SERVER}:8080

# Stop Container
docker-compose stop

Docker Compose

Docker

Example

# Create Scripts
vi Dockerfile


# Bootstrap (Container)
docker build -t mywebapp .
docker run -d -p 8080:8080 mywebapp

# Interaction
docker exec -it mywebapp bash

# Test Web Service
curl -i ${SERVER}:8080

# Stop Web Service
docker ps
docker kill ${CONTAINER_HASH}

# Create Scripts
vi Dockerfile
vi docker-compose.yml

# Bootstrap (Container)
docker-compose up -d


# Interaction
docker exec -it mywebapp bash

# Test Web Service
curl -i ${SERVER}:8080

# Stop Container
docker-compose stop

Docker Engine

Docker Compose

Docker

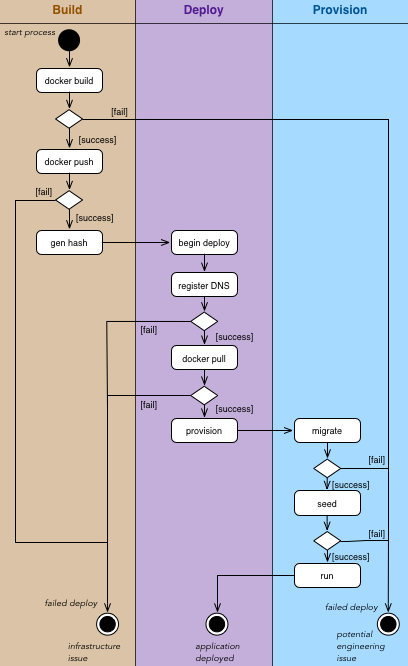

On Production

Production

1. base (ec2)
2. pull code (git)
3. build image (docker)
4. push image (docker)
5. pull image (docker)
6. provision container (ansible)
7. orchestrate (ansible)
8. deploy

Workflow Example

Production

Pets

• have a name
• special attention
• hand crafted

Cattle

• have number
• managed as a group
• automated

vs

Production

Snowflake

• managing configurations
• configuration (snow) drift
• snowflakes are brittle
• each snowflake is unique

Configured

At

Deployment

Production

Tools for Snowflake

Production

Pheonix

• immutable
• disposable
• replaceable
• identical

Configured

At

Build Time

Production

Tools for Pheonix

Hello World

Awesome Demo

HelloWorld Demo

Dockerfile

FROM node:argon

# Create app directory
ENV APP_HOME /usr/src/app
RUN mkdir -p $APP_HOME
WORKDIR $APP_HOME

# Install app dependencies
COPY package.json $APP_HOME/package.json
RUN npm install

# Bundle app source
COPY . $APP_HOME

EXPOSE 8080
CMD [ "npm", "start" ]

HelloWorld Demo

docker-compose.yml

version: '2'
services:
  web:
    build: .
    ports:
     - "8080:8080"

HelloWorld Demo

Start VM

# Configure Environment
docker-machine create

# Configure Environment
eval "$(docker-machine env default)"

HelloWorld Demo

Start Container & Test

# Boostrap Container
docker-compose up -d

# Get VM's IP Address
WEBSERVER=$(docker-machine ip "${DOCKER_MACHINE_NAME}") # set to docker ip
WEBSERVER=${WEBSERVER:-localhost}  # default to localhost if not set

# Run Test
curl -i "${WEBSERVER}":8080

The End

References

• What Is DevOps? http://theagileadmin.com/what-is-devops/
• David Vile. If you think DevOps is BS, you may be a victim of bandwagon marketing.  http://www.freeformdynamics.com/fullarticle.asp?aid=1877
• History of DevOps: http://itrevolution.com/the-history-of-devops/
• Pets vs Cattle Infrstructure
  • https://blog.engineyard.com/2014/pets-vs-cattle​
  • http://www.it20.info/2012/12/vcloud-openstack-pets-and-cattle/
  • http://www.slideshare.net/gmccance/cern-data-centre-evolution
  • http://blogs.wsj.com/digits/2014/03/28/pets-vs-cattle-the-rising-value-of-cloud-computing-skills/

References

• Snowflake Server Pattern
  • ​http://martinfowler.com/bliki/SnowflakeServer.html
• Pheonix Server Pattern (Immutable Production)
  • http://martinfowler.com/bliki/PhoenixServer.html
  • http://martinfowler.com/bliki/ImmutableServer.html
  • https://www.thoughtworks.com/insights/blog/rethinking-building-cloud-part-4-immutable-servers
  • http://techblog.netflix.com/2013/03/ami-creation-with-aminator.html
  • http://theagileadmin.com/2015/11/24/immutable-delivery/
  • http://electric-cloud.com/blog/2015/03/immutable-servers-ftw/

Deleted Scenes

Devops

C – Culture
A – Automation
L – Lean
M – Measurement
S – Sharing

DevOps

What does DevOps do?

• Code – Code Development and Review, continuous integration tools
• Build – Version control tools, code merging, Build status
• Test – Test and results determine performance
• Package – Artifact repository, Application pre-deployment staging
• Release – Change management, Release approvals, release automation
• Configure – Infrastructure configuration and management, Infrastructure as Code tools
• Monitor – Applications performance monitoring, End user experience

HelloWorld Demo

server.js

'use strict';

const express = require('express');

// Constants
const PORT = 8080;

// Application
const app = express();

var ip = 0

// Multiple Route Scenario
app.get('/', function (req, res) {
  res.send('Hello world!\n');
});

app.listen(PORT);

var ip = require("ip");
console.log('Running on http://' + ip.address() + ':' + PORT);

HelloWorld Demo

package.json

{
  "name": "express_hello_world",
  "version": "1.0.0",
  "description": "Express Hello World",
  "author": "Joaquin Menchaca <jmenchaca@gobalto.com>",
  "main": "server.js",
  "scripts": {
    "start": "node server.js"
  },
  "dependencies": {
    "express": "^4.13.3",
    "ip": "^1.1.2"
  }
}

HelloWorld Demo

Vagrantfile

PRIVATE_IP="10.10.10.4"

Vagrant.configure(2) do |config|
  # base system is Ubuntu
  config.vm.box = "ubuntu/trusty64"

  # private IP for Docker Machine
  config.vm.network "private_network", ip: PRIVATE_IP

  # Install Docker short-cut
  config.vm.provision "shell", path: "install_docker.sh"
end

HelloWorld Demo

Start VM

# Start Virtual Machine
vagrant up

# Docker Machine uses Vagrant
PRIVATE_IP="10.10.10.4"
PRIVATE_KEY=".vagrant/machines/default/virtualbox/private_key"

docker-machine create --driver generic  \
 --generic-ssh-user vagrant \
 --generic-ssh-key "${PWD}/${PRIVATE_KEY}"  \
 --generic-ip-address "${PRIVATE_IP}" \
 hello_vm

# Configure Environment
eval "$(docker-machine env hello_vm)"
