Overload and backpressure
Genstage in theory
Thomas Depierre
@DianaO
Diana Olympos
Twitter :
Github :
- B2B
- Intelligence, Events, Advice
- Unlock the future
- Big Company ™
- FTSE 250
- Founded 1947
- New organisation : Ascential Makers
- Elixir for everything in the backend
Audience time
- Who use a task queue ?
- Who has had catastrophic failures due to overload ?
- Who use a pipeline of work job (web crawling maybe?) that use multiple queues ?
Losing half of my audience
Little's law
Number of tasks in the system
Arrival rate
Average time spent in the system

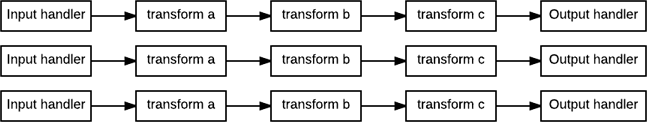

The problem with task-queues
-
A queue is a buffer
-
It distributes load and/or smooth load
-
Queues tend to be used to introduce asynchronicity to a synchronous system...
-
But that generate a problem : how do you handle pathological load ?
Queues do not handle overload
-
Backpressure
-
Load-shedding
I am not going to talk about load-shedding, but it is an interesting area

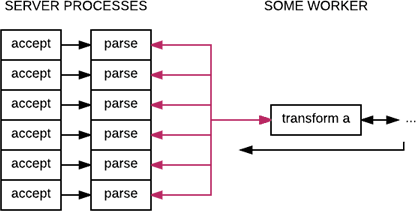

Backpressure
- Easy way : use a pool, scale horizontally
- Sadly this is a really rare situation.
- But can be a good optimization, see database connections

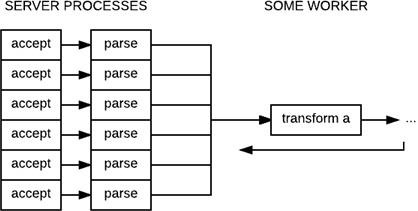

Backpressure
- Just use calls ™
- Make it synchronous at your slowest point.
- Done

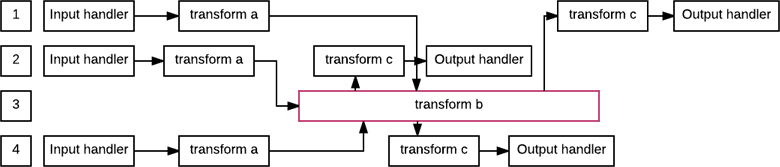

Wait what if...
Decoupling kills...
- Throttle
- Unsafe approach : it is ok, nothing bad will happen, pathological load is rare.
Pull-based control flow
- Workers generate load when they can
- That is how GenStage works
- Move the problem to the producers
- With enough batch size, close to a bounded queue...
Thanks Fred
Basic high level view
Producer
Consumer
Consumer
Consumer
How it works ?
Consumer side
handle_events(events, from, state)
Producer side
handle_demand(demand, state)
Data flow
GenStage.async_subscribe(stage, opts)
GenStage.sync_subscribe(stage, opts, timeout \\ 5000)
What if i have multiple steps?
Producer
Consumer
Consumer
Consumer
What if i have multiple steps?
Producer
ConsumerProducer
Consumer
Consumer
ConsumerProducer
ConsumerProducer
Only make sense if you need different workload behaviour...
What if i want one process per event ?
Producer
ConsumerSupervisor
Consumer
Consumer
Buffering producer side
- Up to you !
- There is an example in the GenStage doc for demand buffering.
- Buffering event producing depends of what your events are
Optimisations
- Couple of possibilities
- Need experimentation with your workload and runtime.
- Who you subscribe to ?
- :min_demand
- :max_demand
Stay for more on that subject with Evadne.
Thank You
Questions ?
