We Deal With

Institute for Nature and Forest Research (INBO)

•Policy support

•Nature management

•International reporting

•(Natura2000 Monitoring)

•Biological valuation Map

•MERS

•(EV)INBO

•EU projects

•Flemish Projects

•Belgian Projects

•Open data institute (2015)

We deal with

Human observations

Going back 20 years and more

Chinese mittencrab invasion in Flanders

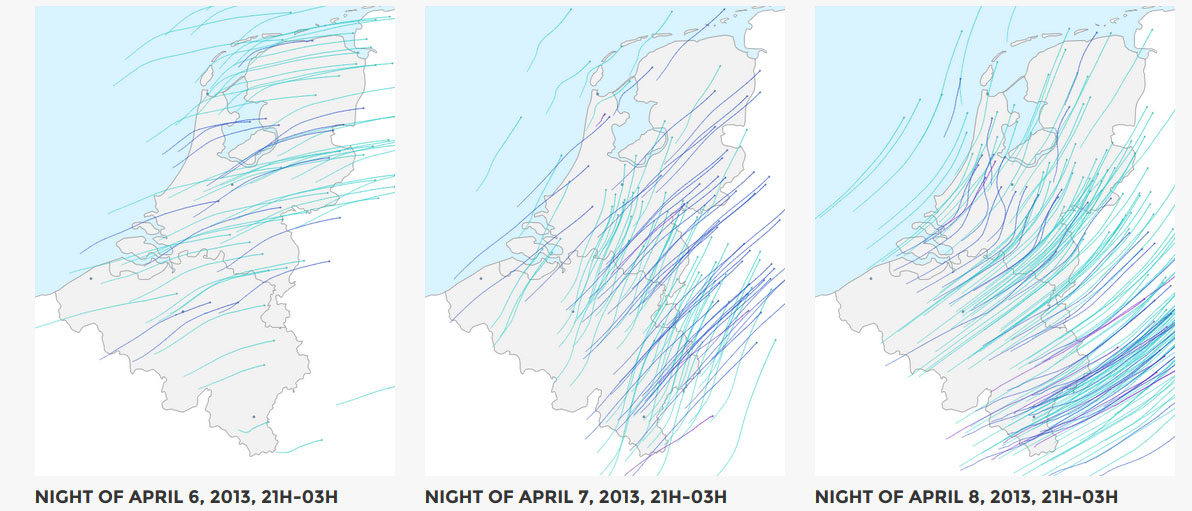

Machine observations

Mainly via lifewatch.inbo.be

A lot of DATA

What is "Biodiversity Informatics"

—

• —The Computerized management of any aspects of Biodiversity
• —To handle the huge amount of data and information generated by the study of Biodiversity
• —Create global access to information on biological species and their role in nature

—Not to confuse with “Bioinformatics”
◦interdisciplinary field that develops and improves on methods for storing, retrieving, organizing and analyzing biological data. (sequence analysis, genome annotation, protein expression analysis…

Why “Biodiversity Informatics”

• Improved management; discovery & access
• New ways to
  •  view and analyse existing data
  • create models
• Work with huge loads of data (Big Data)
• Integration data from different sources
  • CoL + GBIF + EoL…
• Compare data from different sources
  • Occurrence data + taxonomical data + …

—

To provide answers on large biodiversity questions

What questions does it “potentially” solve

—Global Change Biology

• Changes in species and population distribution and diversity over time
• How intrinsic factors and extrinsic factors interact to determine species responses

Biota: wide picture of diversification and interactions

Future communities

• Predict combinations of species not previously experienced
• Alien species interactions

•Integrating phenotype and genotype

•Synthetic conservation planning

• Take advantage of up-to-date modern taxonomic information to define units of biodiversity

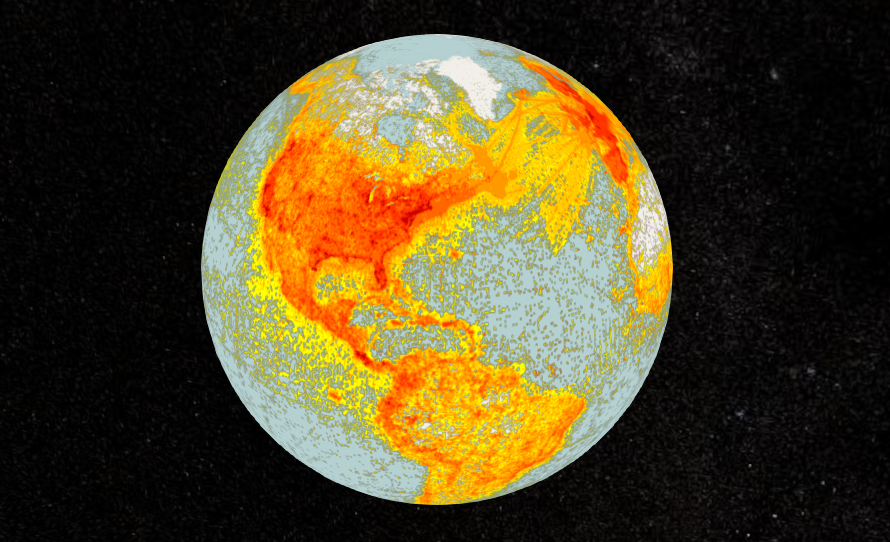

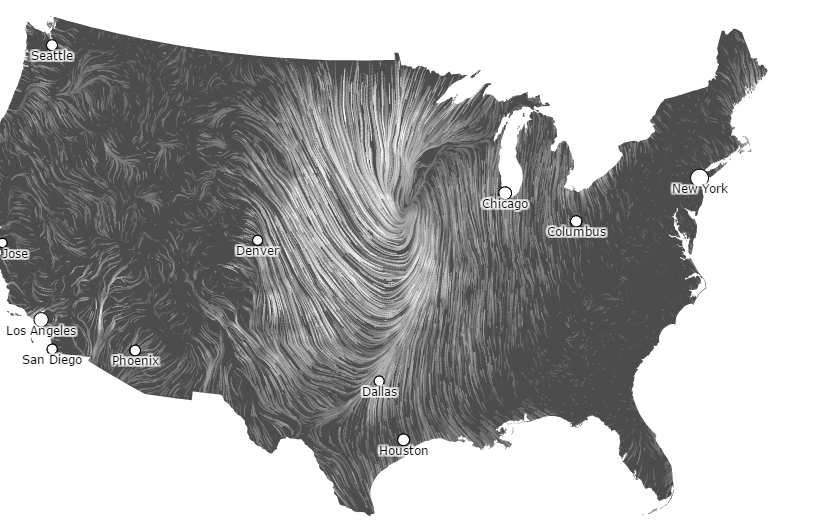

Model the world

Global biodiversity informatics outlook

The Global Biodiversity Informatics Outlook (GBIO) offers a framework for reaching a much deeper understanding of the world’s biodiversity, and through that understanding the means to conserve it better and to use it more sustainably.

http://www.biodiversityinformatics.org/about/

Some major Global Biodiversity Informatics projects

4 Broad Activity categories



• Data extraction and capture
• Data compilation and serving
• Data display and visualization
• Data analysis (workflows)

Another view on Connecting biodiversity projects

the way to linked open data

Some Important Biodiversity Informatics related INITIATIVES

Georeferenced data

Distributions

Taxonomic backbone

Species information

Occurrences

Classifications

Type information

Location

Webservices

Pictures

Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

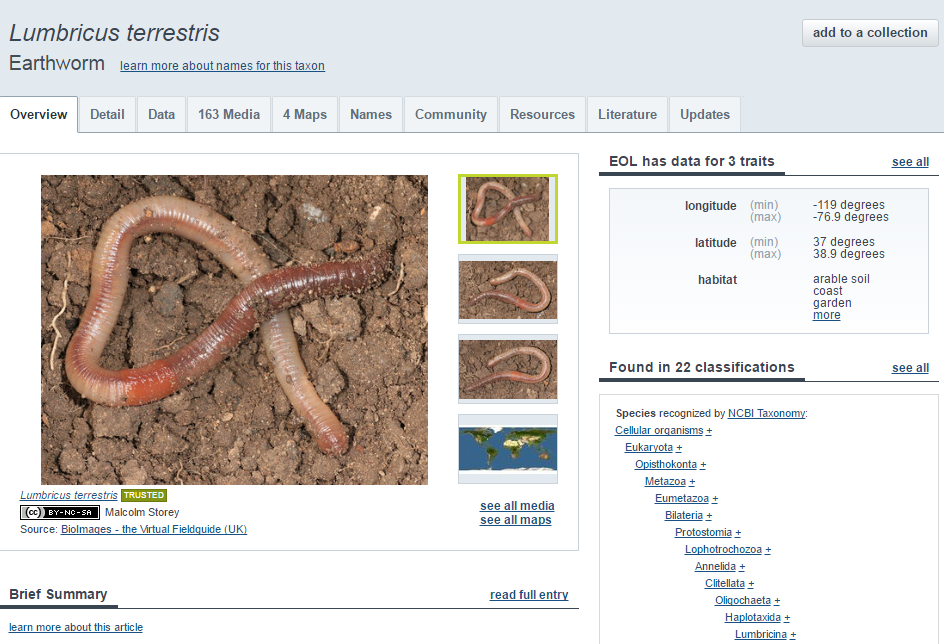

Overview

Detail

Data

Media

Maps

Community

Resources

Literature

Updates

Webservices

Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

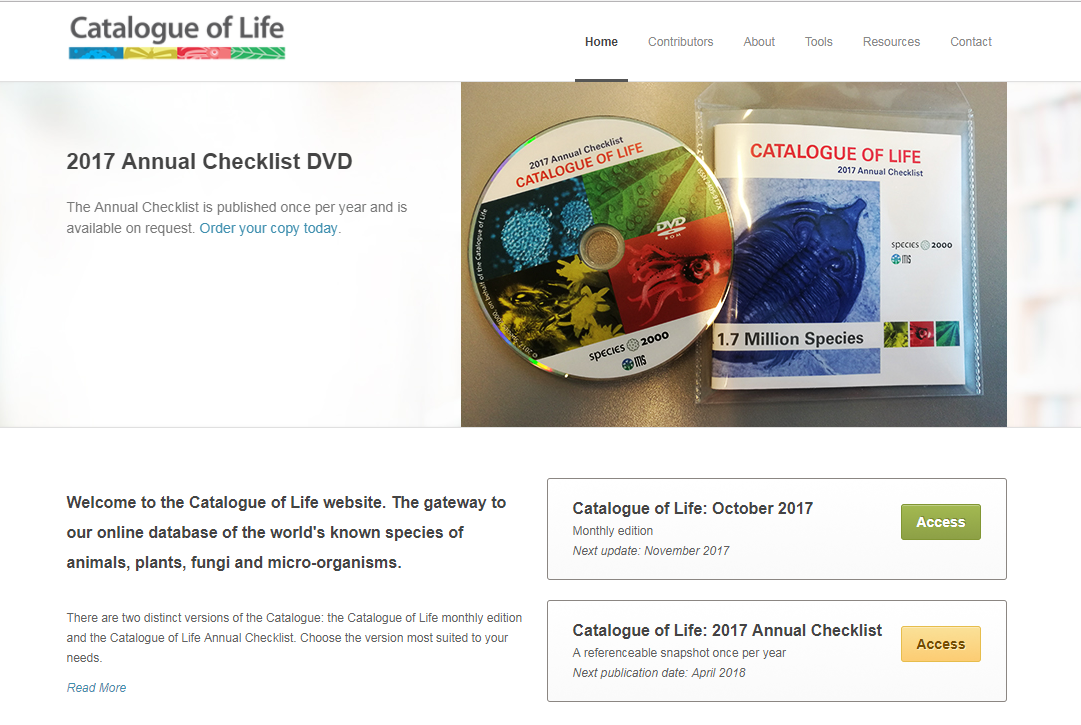

The gateway to our online database of the world's known species of animals, plants, fungi and micro-organisms.

Species Checklist

Taxonomic Hierarchy

Names Information

Relationships

Distribution

Webservices

Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

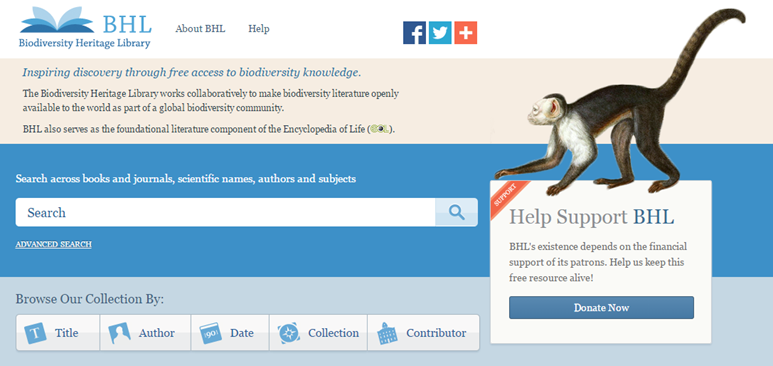

 biodiversity literature

Books

Journals

Authors

Subjects

Scientific names

Webservices

Some Important Biodiversity Informatics related INITIATIVES

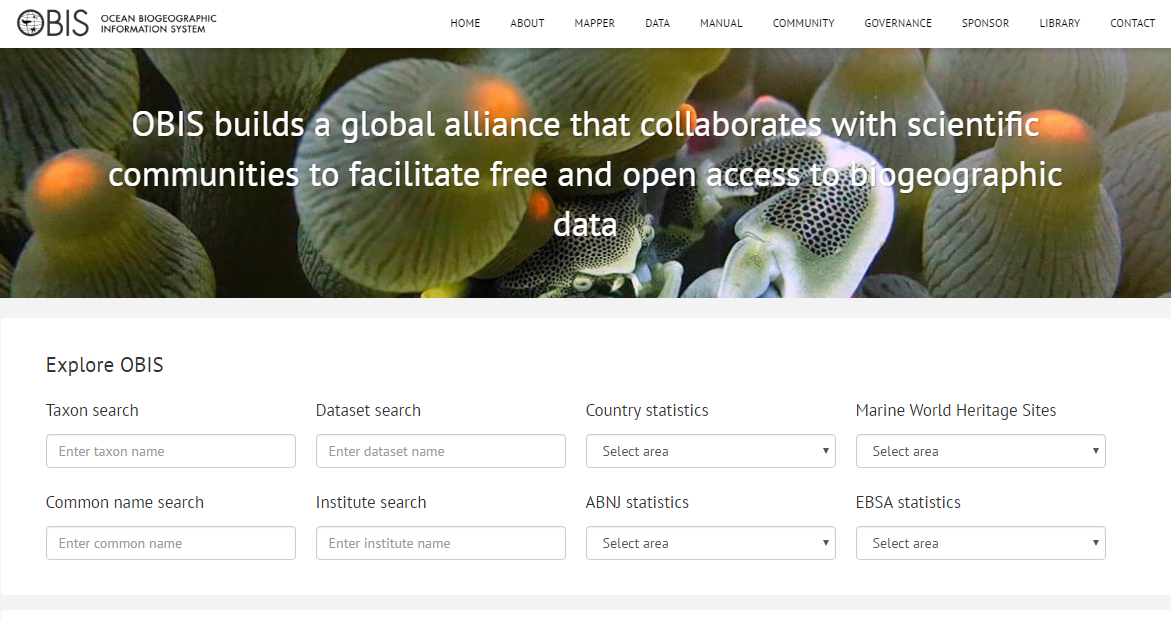

Some Important Biodiversity Informatics related INITIATIVES

Overview

Common Names

Taxonomy

Distribution

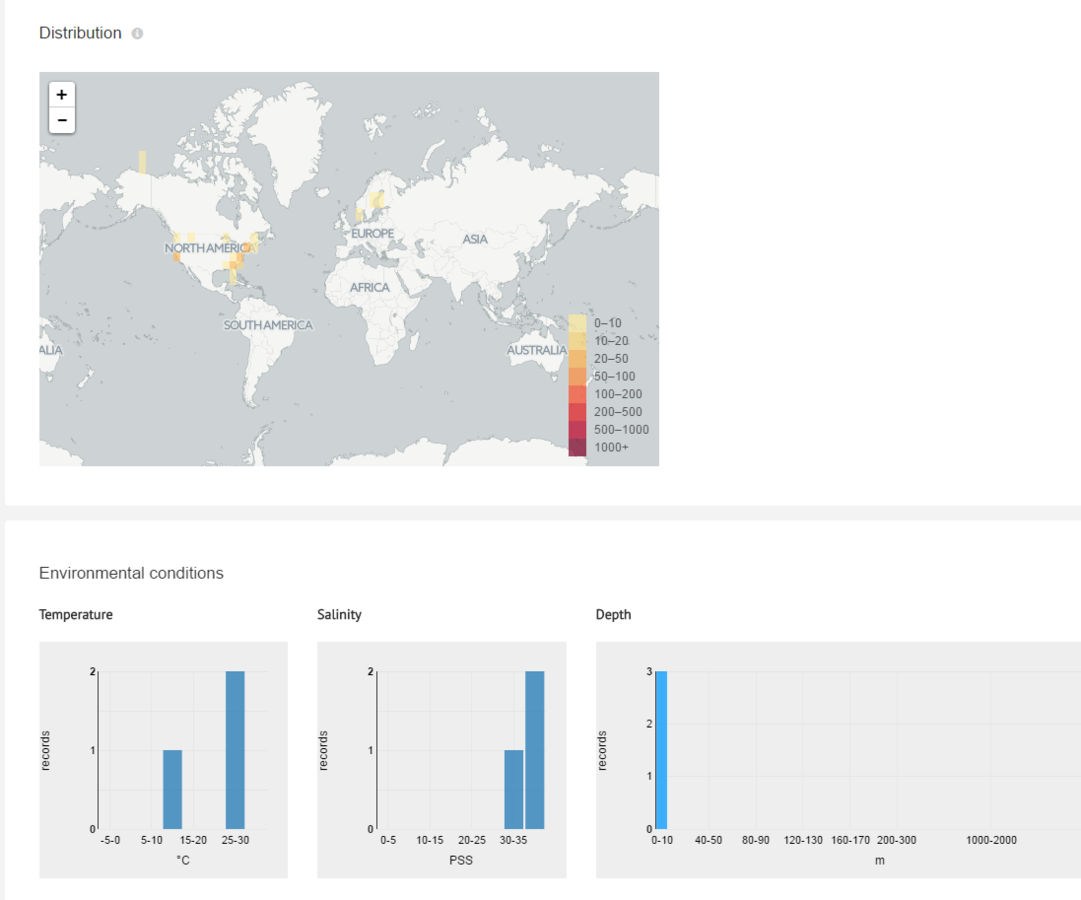

Conditions (T°, [NaCl], Depth)

Occurrences

Data

DataSets

Webservices

Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

Metadatabase

Data Portal

Atlas

Traits database

Tools

Resources

Policies

Networks

Blog

Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

Collections

Training & Workshops

Taxonomy

Datasets

Webservices









Some Important Biodiversity Informatics related INITIATIVES

Some Important Biodiversity Informatics related INITIATIVES

Funded by Belspo

Focus on Antarctica

Data Portal & Services

• Taxonomy
• Metadata
• Environmental

RAMS



Some Important Biodiversity Informatics related INITIATIVES

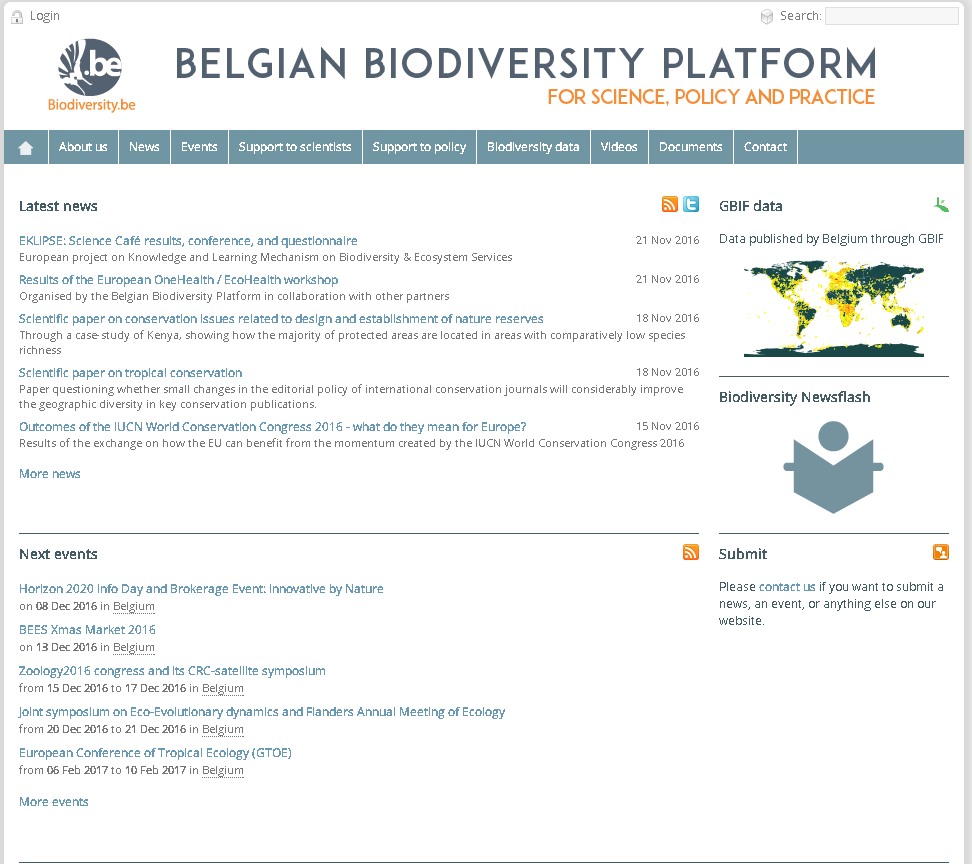

Funded by Belspo

Focus on Belgium

Data Portal & Services

• Taxonomy
• Metadata

GBIF based



Some Important Biodiversity Informatics related INITIATIVES

ETC...

Some Important Biodiversity Informatics related PROJECTS

Lifewatch

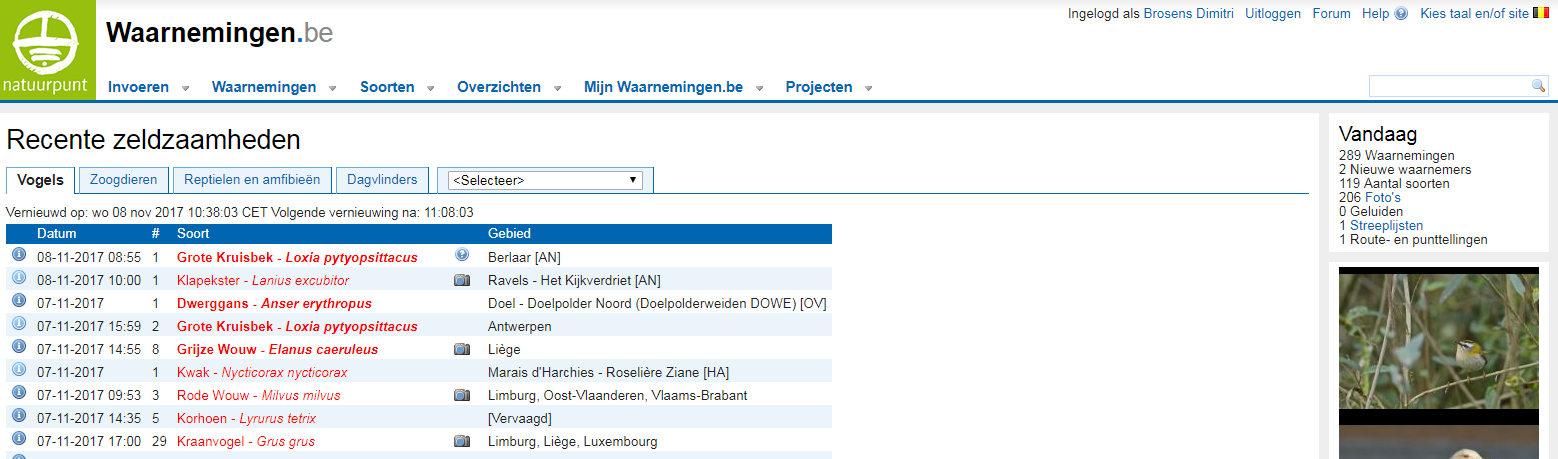

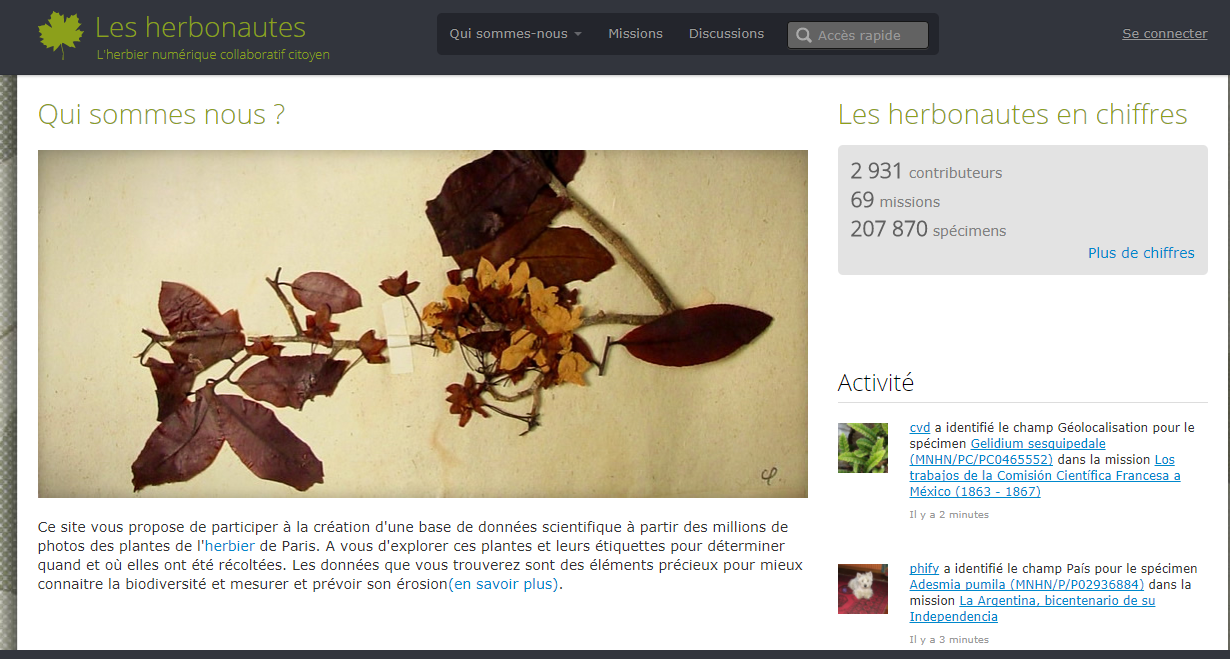

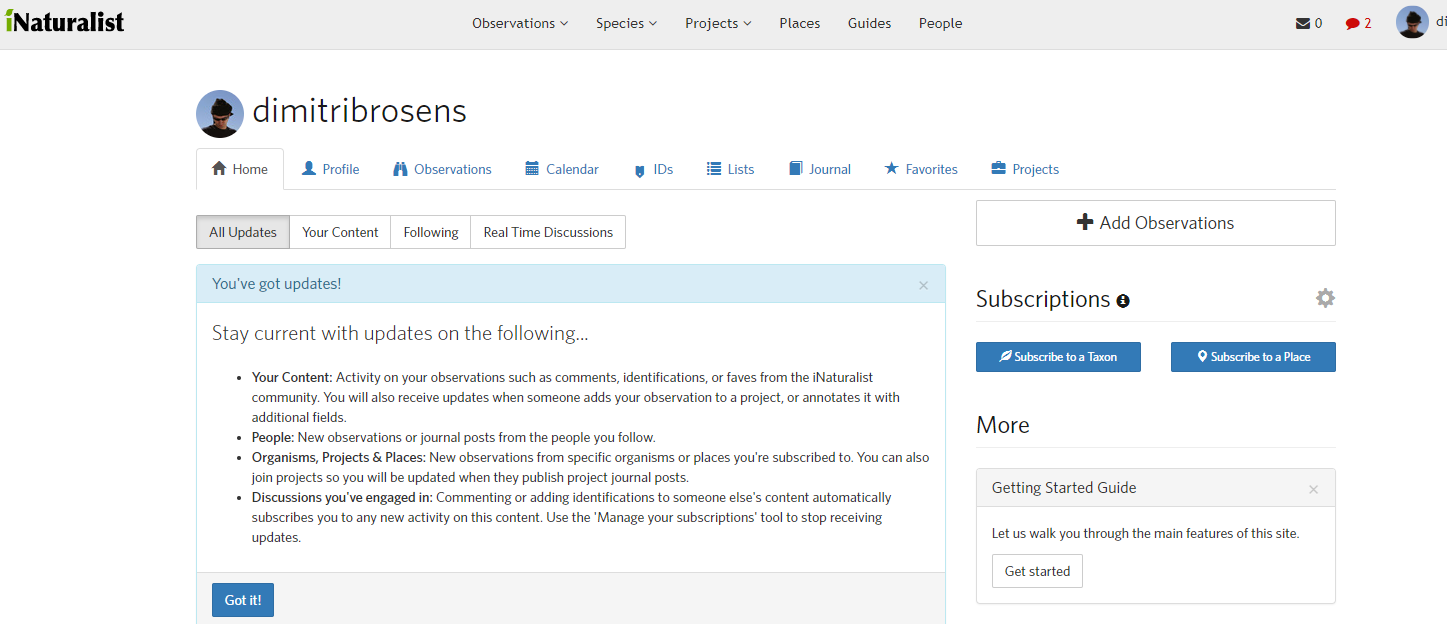

Citizen Science & Observations

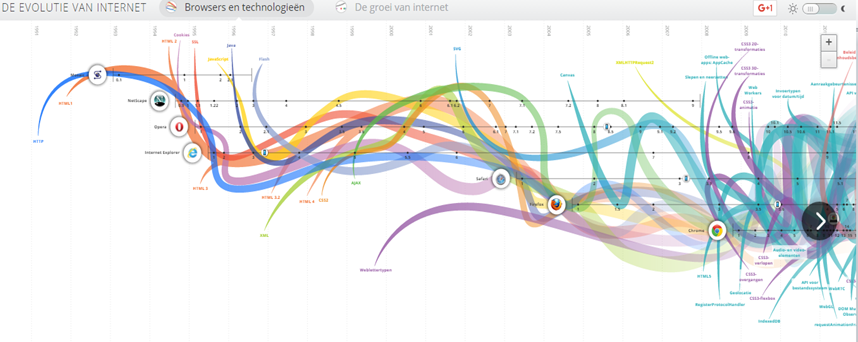

Biodiversity Informatics and the evolution of the Internet

Evolution of The Web

1. WEB (1.0): Static web pages, informative
2. WEB (2.0): User generated content, usable, interoperability, communities (No technical update)
3. WEB (3.0): The semantic web, interactive and participative, connecting data, web through standards, shared & linked data...

IN Biodiversity

2000-2005

2006-2012

2012-2014

2014-2016

The semantic web (3.0)

• —The semantic web, a framework where data can be shared and reused
• —Need for open data*!
• —Machine-to-machine interacting (webservices)



• —Certain data should be freely available for anyone to use   -> Open Data
  • No restrictions in copyright, patents or other mechanisms (CC0)

*By data we mean specimen, observation or checklist datasets published as a Darwin Core Archive and any derivatives. This does not include code, pictures, poems and  movies…

Web services: how computers talk…

• —A Web service is a method of communication between two electronic devices over World Wide Web
• —A Web service is a software function provided at a network address over the web or the cloud; it is a service that is "always on" as in the concept of utility computing (http://en.wikipedia.org/wiki/Web_service)
• —It has an interface described in a machine-processable format
  • Different protocols
  • –REST, SOAP –http://webservice.catalogueoflife.org/
• —API (Application Programming Interface);  a set of Hypertext Transfer Protocol (HTTP) request messages
  • http://api.gbif.org/v1/occurrence/search?scientificName=Pica
  • http://eol.org/api/docs/hierarchy_entries
  • http://www.catalogueoflife.org/col/webservice?name=Tara+spinosa

https://www.biodiversitycatalogue.org

The Internet and his tools to

TO Create Open SCIENCE

Open Data

http://opendefinition.org/od/2.1/en/

“Open means anyone can freely access, use, modify, and share for any purpose(subject, at most, to requirements that preserve provenance and openness).”

Acceptable:

1. The license may require distributions of the work to include attribution of contributors, rights holders, sponsors, and creators as long as any such prescriptions are not onerous.
2. The license may require that modified versions of a licensed work carry a different name or version number from the original work or otherwise indicate what changes have been made.
3. The license may require distributions of the work to remain under the same license or a similar license.
4. ...

Why Should we Publish Under OPEN CC0

There is very little copyright in occurrence & checklist data

• You cannot copyright facts
• Different rules in different countries

Other licenses are too restrictive or do not apply to factual data -> no use in using them



With restricted data you can't do anything.!!



The Blue list: elements of taxonomic information that are not subject to copyright.

—A hierarchical organization (= classification)
—A life-form ordering of taxa.
—Scientific names of genera or other uninomial taxa, species epithets of species names, binomial combinations as species names, or names of infraspecific taxa.
—Information about the etymology of the name; statements as to the correct, alternate or erroneous spellings.
—Rank, composition and/or apomorphy of taxon.
—Lists of synonyms and/or chresonyms or concepts, including analyses and/or reasoning as to the status or validity of each.
—Citations of publications that include taxonomic and nomenclatural acts, including typifications.
—Reference to the type species of a genus or to other type taxa.
—References to type material, including current or previous location of type material, collection name or abbreviation thereof, specimen codes, and status of type.

—

The Blue list: elements of taxonomic information that are not subject to copyright.

—Data about materials examined.
—References to image(s) or other media with information about the taxon.
—Information on overall distribution and ecology, perhaps with a map.
—Known uses, common names, and conservation status (including Red List status recommendation).
—Description and / or circumscription of the taxon (features or traits together with the applicable values), diagnostic characters of taxon, possibly with the means (such as a key) by which the taxon can be distinguished from relatives.
—General information including but not limited to: taxonomic history, morphology and anatomy, reproductive biology, ecology and habitat, biogeography, conservation status, systematic position and phylogenetic relationships of and within the taxon, and references to relevant literature.
—

•All rights reserved -> Data unusable

                    (So why bother publishing)

•Open Data Commons Public Domain Dedication and License (PDDL)

•Creative Commons Attribution-NoDerivs (CC BY-ND)

•Creative Commons Attribution-NonCommercial (CC BY-NC)

•Creative Commons Attribution-ShareAlike (CC BY-SA) or Open Data Commons Open Database License (ODbL)

•Creative Commons Attribution (CC BY) or Open Data Commons Attribution License (ODC-By)

Other Licenses

OPEN SOURCE & Code

Generally, open source refers to a computer program in which the source code is available to the general public for use and/or modification from its original design. Open-source code is meant to be a collaborative effort, where programmers improve upon the source code and share the changes within the community.

https://en.wikipedia.org/wiki/Open_source

Open research is research conducted in the spirit of free and open source software. Much like open source schemes that are built around a source code that is made public, the central theme of open research is to make clear accounts of the methodology freely available via the internet, along with any data or results extracted or derived from them.

OPEN PEER REVIEW

Open peer review (also called "public peer review", "transparent peer review") denotes several, closely related forms of scholarly peer review: Open-identity or attributed peer review (as opposed to anonymous peer review) Open-disclosure or public peer review, where the peer review contents are publicly available.

OPEN ACCESS

Open access (OA) refers to online research outputs that are free of all restrictions on access (e.g. access tolls) and free of many restrictions on use (e.g. certain copyright and license restrictions).[1] Open access can be applied to all forms of published research output, including peer-reviewed and non peer-reviewed academic journal articles, conference papers, theses,[2] book chapters,[1] and monographs.[3]

By Petr Knoth and Nancy Pontika - Own work, CC BY 3.0, https://en.wikipedia.org/w/index.php?curid=50529549

BUT.....

•Biologists (not only) are usually very reluctant towards open data.

•Biologists are reluctant towards the use of data & code generated by others.



à Not a problem? What is not known, cannot be loved!

Biologists & Data Publication

The Solution is in the combination

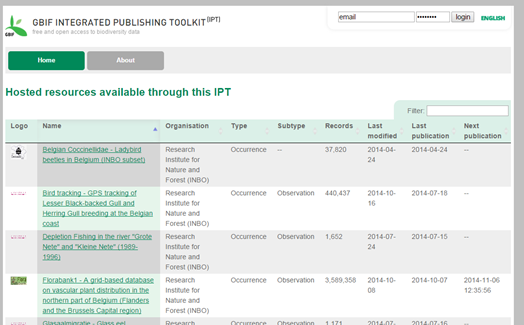

• In the Research Institute for Nature and Forest we publish occurrence data:
  • Open (CC0 waiver)
  • Norms for data use
• GBIF is evolving towards 3 licenses only:
  • CC0, under which data are made available for any use without restriction or particular requirements on the part of users
  • CC-BY, under which data are made available for any use provided that attribution is appropriately given for the sources of data used
  • CC-BY-NC, under which data are made available for any use provided that attribution is appropriately given and provided the use is not for commercial purposes

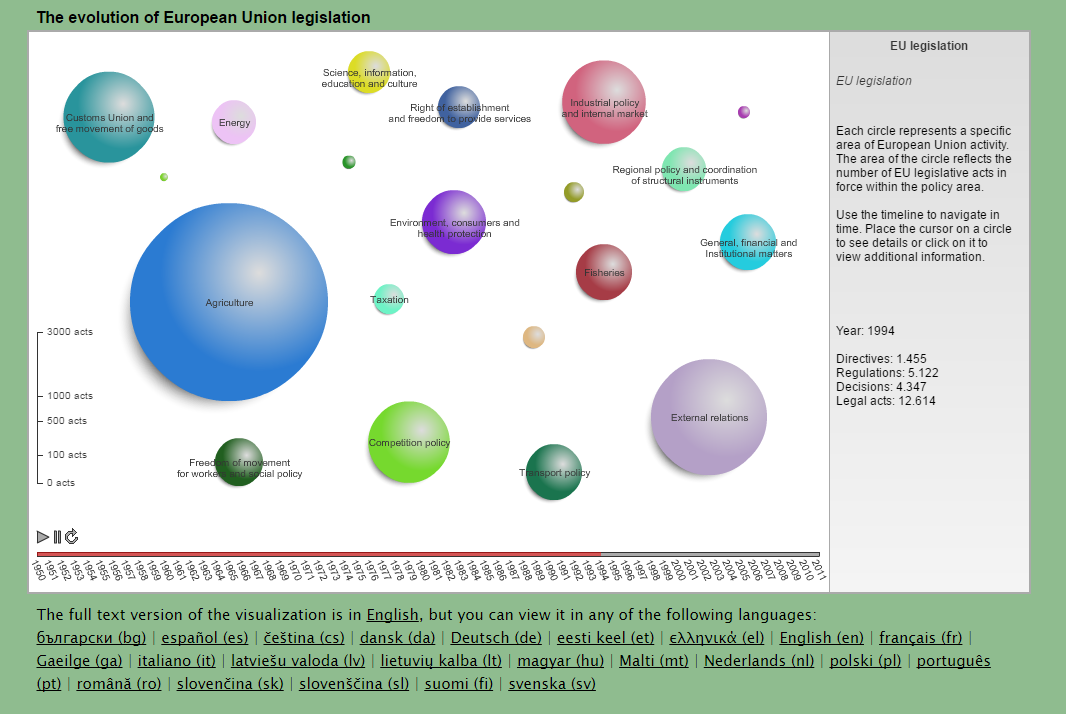

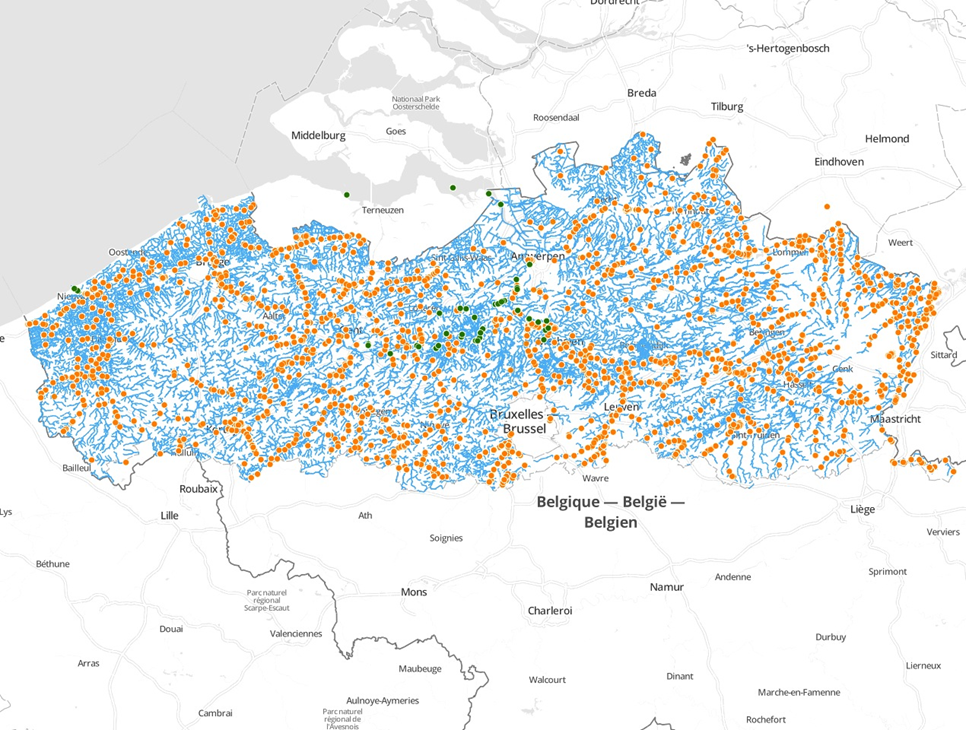

OPEN Data: Some examples

OPEN Data: Some examples

OPEN Data: Some examples

dealing with data

Some Definitions

• —Raw data

  • Data collected from a source

  • Human observation, a collection, electronic generated data

• —Primary species occurrence data

  • When; what; where

• —Accuracy & precision

  • High accuracy: occurrence within the bounding box

  • Low accuracy: not sure if the occurrence was within the bounding box

  • High precision: very precise coordinate

    • –(lat: 51,23564 ;long: 3,25644)

  • Low precision: less precise coordinate

    • –(lat: 51,2; long 3,2)

• —Data quality

  • “Fitness for use” or “potential use”

• —Data model

  • Visual projection of all the entities, relations and restrictions in a database

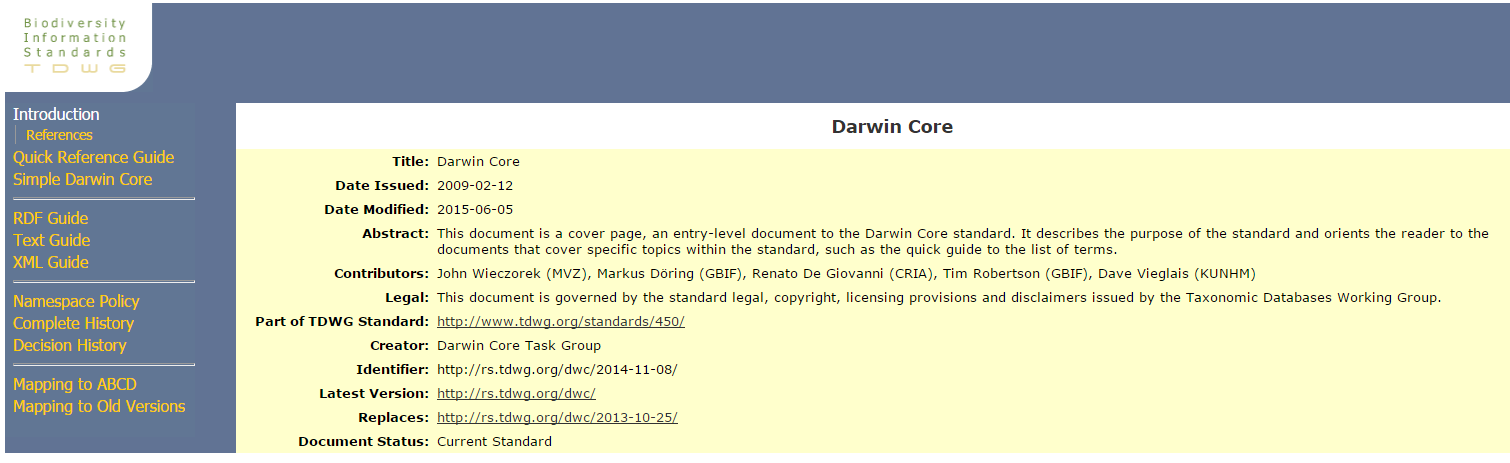

• —Data standard

  • Convention used in the context of “Data”

dealing with data

The Data Life Cycle

dealing with data

Data Management

• —Follow the Data Policy

  • Long term goals; guiding principles for management & publication & metadata

• —Identify Clear roles

  • Data collector; metadata generator; data analyzer; database administrator; administrative support staff; archiving; ICT staff

• —Plan and document your database

  • —Complete Metadata
  • Define procedures for updates
    • Hardware; software; formats; storage & data

• —Standardize and Store data Criteria for data access

  • —Publish data

              -> Create a Data Management Plan



dealing with data

DataBase design & specs

RESEARCH QUESTION?

• Worksheet
• Existing Database
• Extend a Database
• Develop a Database



No datamodel

Existing datamodel

Change a datamodel

New datamodel

•Think before you begin
•Keep it simple
•Use standards if possible
•Ask advice or become a biogeek

dealing with data

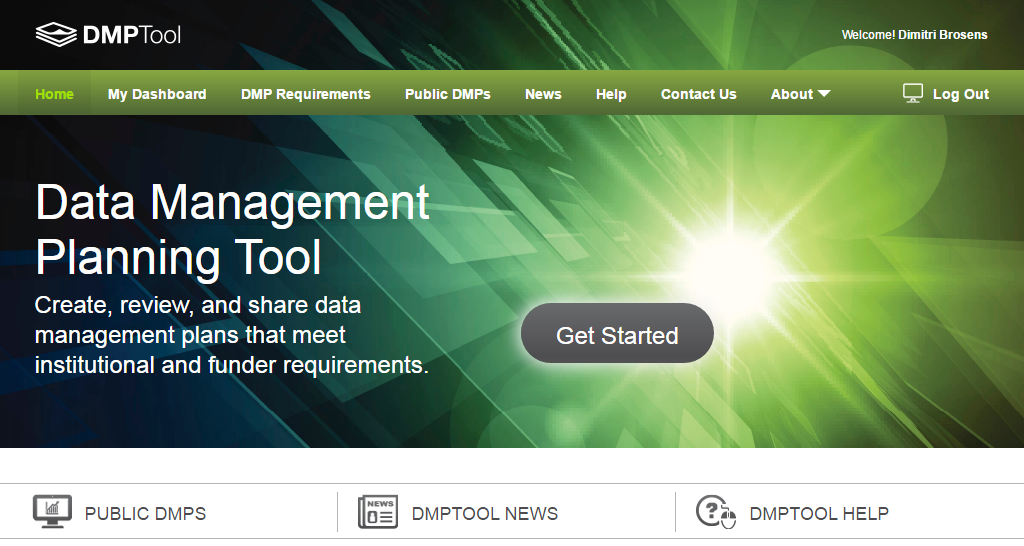

Data Management Plan

dealing with data

Tips & Tricks

Dealing with data

Data Capture and recording

• The “collector” has fundamental responsibility
  • Record all needed parameters, clear and accurate
  • Record readable and unambiguous
  • Complete all required fields
  • Note clear field notes

Data Import

• The “curator” has fundamental responsibility
  • data is correctly imported  into the database
  • the correct quality control procedures are implemented and exercised
  • all the documentation is created
  • metadata is recorded
  • validation checks are routinely carried out on the data
  • carried out validation checks are well documented
  • the data is stored in a suitable manner
  • earlier versions are systematically stored and archived to allow comparisons and return to the “uncleaned original” data
  • data integrity is maintained
  • data can be exported in a correct manner.

DATA Quality, Capture and Import

dealing with data

Data Quality

DATA VALIDATION AND CLEANING

• Improve the overall quality of the dataset
• Improve the fitness for use
• Determine if data are
  • Inaccurate, incomplete or unreasonable
• Flag inaccurate data
• Create automatic validation
• Fix errors

dealing with data

Data Quality

DATA Visualisation

TOOLS:

• GIS or Webgis tools
  • CartoDB, QGIS....

dealing with data

MetaData

• Data about data
  • Structural metadata
    • The story of the database
  • Descriptive metadata
    • The story of the data
      • When, what, who, where, how…
• Metadata standards
  • Dublin core (books)
  • Inspire (EU) (geographical dataset; maps)
  • EML (ecological metadata language)
• Metadata in GBIF
  • GBIF metadata profile



dealing with data

Data Paper

http://zookeys.pensoft.net/articles.php?id=4575

International

• Bring technologic, economic and societal benefits
• Harmonize technical specifications of products and services
• www.iso.org

Biodiversity

• Deals with biodiversity standards and standardization
• –develop, adopt and promote standards and guidelines for the recording and exchange of data about organisms
• act as a forum for discussion
• www.tdwg.org

Standards and Standardization

Standards and Standardization

The Darwin Core Standard

• Is a bag of terms
• Inspired on DublinCore
• Facilitates the exchange of information about organisms
• CORE: Collections | Observations | sampleBased | Checklists
• Stable standard for sharing information on biological diversity
• Very simple flat .txt files



Standards and Standardization

The Darwin Core Standard + extensions

• Simple structure, extensions possible
  • vernacularNames
  • measurementsOrFacts
  • speciesDistribution
  • references
  • one to many relations!

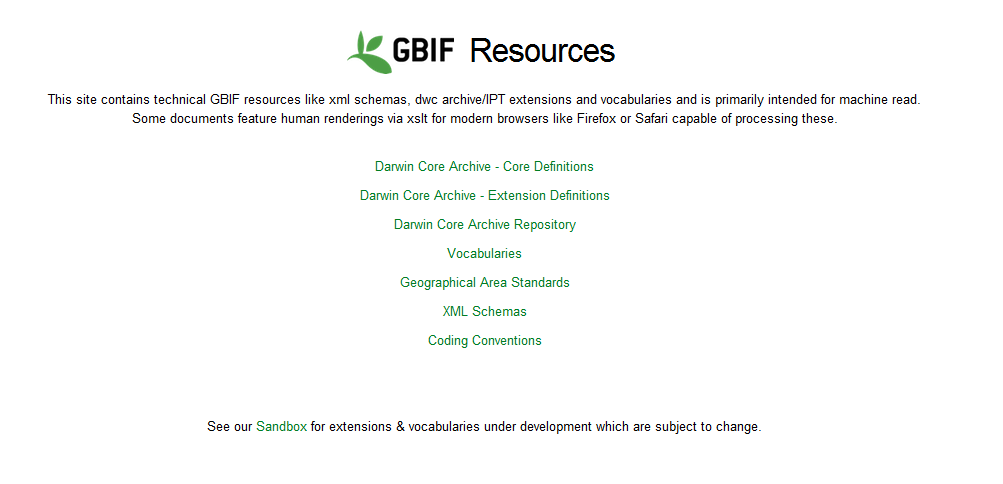

http://rs.gbif.org/

Standards and Standardization

The Darwin Core Standard + extensions

http://rs.gbif.org/

Standards and Standardization

The Darwin Core Standard + extensions

http://rs.gbif.org/

Standards and Standardization

The Darwin Core Standard + extensions

http://rs.gbif.org/

Standards and Standardization

The Darwin Core Standard

Sample Based Data

http://rs.gbif.org/

Recap

http://rs.gbif.org/

• In web (3.0) websites can communicate
• Many (tools, websites, data portals..) related to biodiversity do make use of this
• To make this work, we need data to be available
• Data needs to be managed properly (Might need a DMP)
• Data needs to be standardized
• Data needs metadata
• We need qualitative data
• Data needs to be published in an open format
• We need to make use of standards to make data talk
• A dataset is a 'heap' of information in one package

Standards and Standardization

The ABCD Standard



http://rs.gbif.org/

• —Access to Biological Collections Databases
  • Exchange of data between collection databases worldwide
  • Same goal as the Darwin Core
  • –Less rigid
  • –1200 concept fields
  • –Very big bag of concepts
• ABCDEFG
  • –Access to Biological Collections Databases Extended For Geosciences
• ABCDDNA
  • –Access to Biological Collections Databases for genetic material
  • Xml document with ABCD schema
• —For GBIF, the Darwin Core is mostly promoted

Standards and Standardization

Darwin Core Archives

Data-Exchange-Format

http://rs.gbif.org/

Standards and Standardization

Publication TOOL: Integrated Publishing Toolkit

http://rs.gbif.org/

Standards and Standardization

Publication TOOL: BioCase

http://rs.gbif.org/

What can 'Biodiversity' Informatics do for you

http://rs.gbif.org/

All the "Biodiversity Informatics" tools, standards, portals, webservices, checklists, communities, programs, code, visualisation, GIS tools, databases, data

are there to help you to

improve, present, discover, explore, analyse and disseminate your research

Check and improve your data

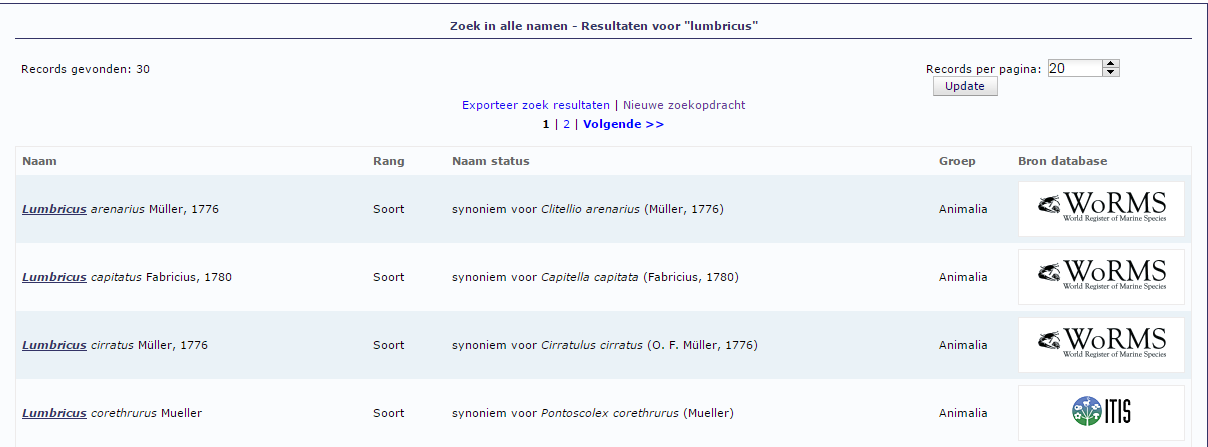

On line taxonomic Checklists

• Catalogue of Life
• Global Names Initiative
• Pesi
• Fauna Europaea
• Worms
• Fishbase
• Fada
• GBIF Names Service

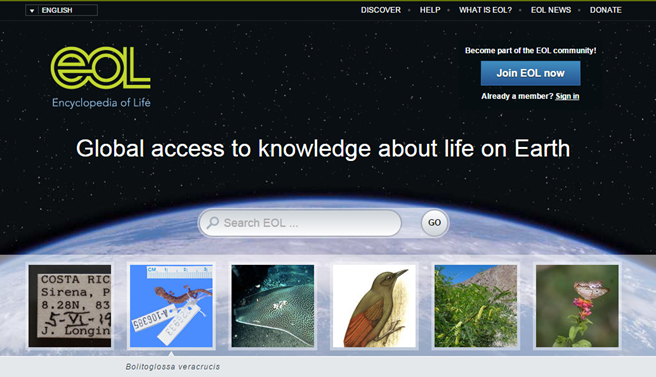

• Encyclopedia of Life

Check and improve your data

GBIF taxonomic Backbone

Pyton Tools Example

Match a set of species names with the GBIF taxonomic backbone



1. This small utility provides the functionality to add the species information from the GBIF backbone to any data table (CSV-style or a Pandas dataframe) by requesting this information via the GBIF API.

2. The functionality can be loaded within Python itself by importin the function extract_species_information or by running the script from the command line.

Check and improve your data

GBIF taxonomic Backbone

Jupyter Notebook Example

Check and improve your data

GBIF taxonomic Backbone

Exploratory Example

Check and improve your data

GBIF taxonomic Backbone

Open Refine

Check and visualize your data

Carto.com

https://dimitri.carto.com/dashboard/

doi:10.15468/dl.jhhdsv

On line literature resources

Biodiversity heritage library

–The Biodiversity Heritage Library works collaboratively to make biodiversity literature openly
available to the world as part of a global biodiversity community.

J-Store

–Light up your mind

–access to more than 1,500 archival journals on JSTOR

–scholarly journals, primary sources, and now books

GBIF

The Global Biodiversity Information FAcility

—The Global Biodiversity Information Facility (GBIF) is an international open data infrastructure, funded by governments.

–The Belgian biodiversity Platform is the Belgian node for GBIF

–www.biodiversity.be

–http://data.biodiversity.be

–http://projects.biodiversity.be/ifbl

–www.formicidae-atlas.be



—It allows anyone, anywhere to access data about all types of life on Earth, shared across national boundaries via the Internet.



—By encouraging and helping institutions to publish data according to common standards, GBIF enables research not possible before, and informs better decisions to conserve and sustainably use the biological resources of the planet.



—GBIF operates through a network of nodes, coordinating the biodiversity information facilities of Participant countries and organizations, collaborating with each other and the Secretariat to share skills, experiences and technical capacity.

—

GBIF

The Global Biodiversity Information FAcility

—Some facts about GBIF



It provides a single point of access (through this portal and its web services) to more than 600 million records, shared freely by hundreds of institutions worldwide, making it the biggest biodiversity database on the Internet.

◦

The data accessible through GBIF relate to evidence about more than one million species, collected over three centuries of natural history exploration and including current observations from citizen scientists, researchers and automated monitoring programmes

◦

More than 4000 peer-reviewed research publications have cited GBIF as a source of data, in studies spanning the impacts of climate change, the spread of pests and diseases, priority areas for conservation and food security. About 20 such papers are published each month.

Many GBIF Participant countries have set up national portals using tools, codes and data freely available through GBIF to better inform their citizens and policy makers about their own biodiversity.

GBIF

The Global Biodiversity Information FAcility

Biodiversity Informatics in practice

The Global Biodiversity Information FAcility

Using the GBIF portal



Go to www.gbif.org

Go to “Get Data” and choose:

–Explore occurrences

Number of  Animalia records (scientificName)

Number of Animalia  Specimens  in GBIF (basisOfRecord)

How many  Pieris japonica occurrences in GBIF (a butterfly)

◦

–Explore species

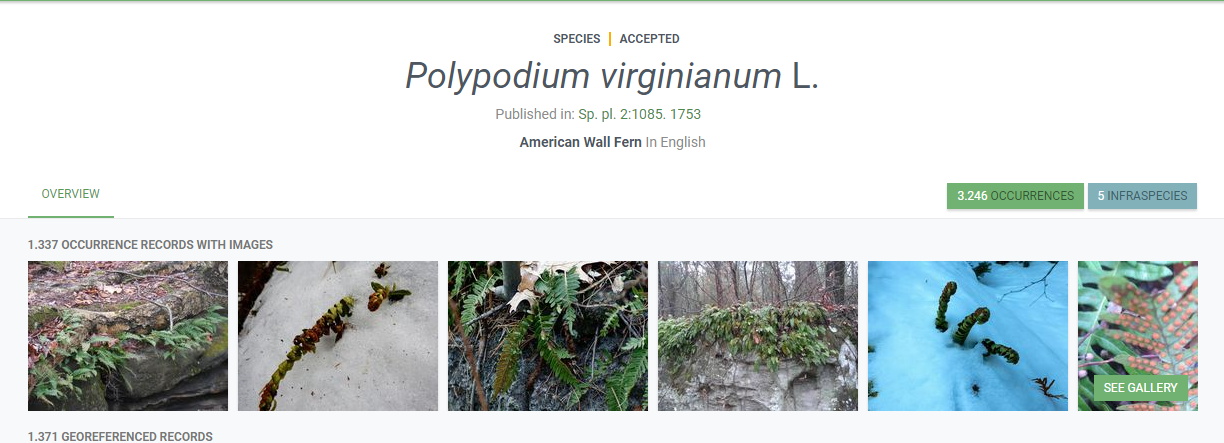

Look for Polypodium virginianum

How many infraspecies you can find on GBIF

Give one synonym

Vernacular name in “English, Swedish and German”

Where can you find the Holotype? (Occurrences TypeStatus)

Explore the Portal

–Explore datasets

• Find Florabank1
• What is the CC license?
• Follow the DOI for the datapaper…

–Explore by country

• Go to Belgium
• How many datasets are published by Belgium
• How many datasets contain data about Belgium
• How many specimens are digitally available  about Belgium (in Belgium)



Explore About GBIF Belgium on the Homepage, can you find the same page for Holland (tip: NL)

Check the BE country Report

—Look for this dataset

–“Loopkevers aan de grensmaas-Carabid beetles near the river Meuse”

–View “occurrences”

◦How many occurrences did you find?

–Add a filter for ScientificName

◦Carabidae

◦Try some other filters

◦How many occurrences did you find?

–

–Download the dataset from GBIF or Download the data from INBO IPT (external Data)

–Unzip the dataset

–Or download the data from GBIF (Simple CSV file)


—Google “Loopkevers aan de grensmaas-Carabid beetles near the river Meuse”

—Check the “RTF” file for metadata;

—Can you find any other access points for this dataset?

—http://Data.inbo.be/ipt

—Find the same data beginning from

—Explore occurrences

—(use the filters)
