From Thing to Internet

Up and Running with Elixir, Nerves, and Serverless.

@lindemda

DanLindeman

Software Engineer @ Very

Who I think You are

Journey

Thing...
- Anything we want
Interface to...
- A computer
Program...
- Firmware
- Application
Publish...
- Information

Characters

Things
- RFID sticker
- RC522 (RFID Reader)
- Raspberry Pi
- Elixir/Nerves
Internet
- AWS IoT
- Serverless

Motivation

Scary
Dusty Pi
IoTiddlywinks

"This is so much harder than it needs to be."

Ahoy!

Thing

RFID + Raspberry pi

RFID

Radio Frequency Identification
Everywhere
- Library Checkout
- Amiibo (NFC)
- Access Keycards
- Fyre Festival

RFID "Things"

Power
Data
Size

Buy Things

https://pimylifeup.com/raspberry-pi-rfid-rc522/

SPI

RPI3 is the "Master"
RFID Reader is the "Slave"
We know the packet size
Don't need async

In short

https://pimylifeup.com/raspberry-pi-rfid-rc522/

Reality

hard Way

Read specs
- Standards
- Datasheets
- Registers

Fun Way

Google a lot
Slack messages
Meet cool people

https://github.com/mroach/rc522_elixir

https://github.com/mroach/musicbox/tree/master/rfid/lib/rfid

Adventure awaits

Elixir

and nerves

Elixir

Erlang VM
Friendly syntax
Functional

defmodule Greetings do
  def hello do
    IO.puts "Hello World"
  end

  def hello(name) do
    IO.puts "Hello #{name}"
  end
end


iex(1)> Greetings.hello()
Hello world
:ok

iex(2)> Greetings.hello("Dan")
Hello Dan

Nerves

Over the Air Updates "OTA"
Low-level Interfaces
- ex: SPI
Erlang VM
- "Let it crash"

Raspbian

Yocto, "Roll your own"
Enable & Reboot
- ex: SPI
Any Language
- Maybe you made a good choice here?

INit

      {:tortoise, "~> 0.9"}, # MQTT
      {:x509, "~> 0.5.4"}, # Certificates
      {:rc522, "~> 0.1.0", github: "mroach/rc522_elixir"}, # RFID

>>> mix nerves.new hello_nerves

>>> cd hello_nerves
>>> export MIX_TARGET=rpi3
>>> mix deps.get

Then add...

Entry Point

MyIoT.Application do
  use Application
  def start(_type, _args) do
    children = []
    opts = [strategy: :one_for_one]
    Supervisor.start_link(children, opts)
  end
end

Processes

https://elixir-lang.org/getting-started/processes.html

In Elixir, all code runs inside processes. Processes are isolated from each other, run concurrent to one another and communicate via message passing.

Mailbox

When a message is sent to a process, the message is stored in the process mailbox.

Processes can send messages to any process including themselves.


iex> send self(), {:hello, "world"}
{:hello, "world"}
iex> receive do
...>   {:hello, msg} -> msg
...>   {:world, msg} -> "won't match"
...> end
"world"

"Looping"

Genserver
Continue "Hook"
Info
- Check mailbox
- Do work

defmodule Mygadget.Worker do
  use GenServer
  require Logger

  ## Client API

  def start_link([]) do
    GenServer.start_link(__MODULE__, [])
  end

  ## Server Callbacks

  def init([]) do
    {:ok, %{}, {:continue, "Initialized!"}}
  end

  def handle_continue(_, state) do
    do_work()
    {:noreply, state}
  end

  def handle_info(:check, state) do
    do_work()
    {:noreply, state}
  end

  def do_work() do
    Logger.info("Doing work!")
    Process.send_after(self(), :check, 10_000)
  end

end

Application

#MyIot.Application do
  #use Application
  #def start(_type, _args) do
    children = [
      {ThingToInternet.App, [%{handler: ThingToInternet.Handler}]},
    ]

    opts = [strategy: :one_for_one, name: ThingToInternet.Supervisor]
    Supervisor.start_link(children, opts)
  #end
#end

  def init(opts) do
    device = opts[:device] || default_spi_bus()
    handler = opts[:handler]

    Logger.debug("Connecting to RC522 device on #{device}")
    {:ok, spi} = SPI.open(device)
    RC522.initialize(spi)

    hwver = RC522.hardware_version(spi)
    Logger.info("Connected to #{hwver.chip_type} reader version #{hwver.version}")

    schedule_card_check()

    {:ok, %State{spi: spi, handler: handler}}
  end

  defp schedule_card_check(delay \\ @card_check_every_ms) do
    Process.send_after(self(), :card_check, delay)
  end

"Hook"

RC522

{:rc522, "~> 0.1.0", github: "mroach/rc522_elixir"},


  @impl true
  def handle_info(:card_check, %State{spi: spi} = state) do
    {:ok, data} = RC522.read_tag_id(spi)

    state =
      case process_tag_id(data) do
        {:ok, tag_id} ->
          maybe_notify(tag_id, state)
          Map.put(state, :last_scan, Scan.new(tag_id))

        {:error, _} ->
          state
      end

    schedule_card_check()

    {:noreply, state}
  end

do_work

  defp schedule_card_check(delay \\ @card_check_every_ms) do
    Process.send_after(self(), :card_check, delay)
  end

Loop

Maybe_Notify?

  defp maybe_notify(tag_id, %State{handler: handler, last_scan: last_scan}) do
    # only notify if the card ID changed or the repeat delay elapsed
    case notify?(tag_id, last_scan) do
      true ->
        apply(handler, :tag_scanned, [tag_id])
        :ok

      _ ->
        :noop
    end
  end

MQTT

Broker
Publish
Subscribe

A lightweight messaging protocol for small sensors and mobile devices, optimized for high-latency or unreliable networks

      {:tortoise, "~> 0.9"},

Tortoise

#MyIot.Application do
  #use Application
  #def start(_type, _args) do
    {:ok, _} = Tortoise.Supervisor.start_child(
      client_id: "rfid-scanner",
      handler: {Tortoise.Handler.Logger, []},
      server: {
        Tortoise.Transport.SSL,
        host: "somecrazyletters-ats.iot.us-east-1.amazonaws.com",
        port: 8883,
        cacerts: [aws_cert()],
        key: {:RSAPrivateKey, device_key()},
        cert: device_cert(),
        verify: :verify_none
      },
      subscriptions: [
          {"/dev/ThingToInternet/rfid-scanner/events", 0}
      ]
    )
    #children = [
    #  {ThingToInternet.App, [%{handler: ThingToInternet.Handler}]},
    #]

    #opts = [strategy: :one_for_one, name: ThingToInternet.Supervisor]
    #Supervisor.start_link(children, opts)
  #end
#end

Recall

Internet!

  defp maybe_notify(tag_id, %State{handler: handler, last_scan: last_scan}) do
    # only notify if the card ID changed or the repeat delay elapsed
    case notify?(tag_id, last_scan) do
      true ->
        apply(handler, :tag_scanned, [tag_id])
        :ok

      _ ->
        :noop
    end
  end

defmodule ThingToInternet.Handler do
  require Logger

  def tag_scanned(tag_id) when is_number(tag_id), do: tag_id |> to_string |> tag_scanned

  def tag_scanned(tag_id) when is_binary(tag_id) do
    Logger.info("Scanned RFID tag #{tag_id}")
    Tortoise.publish("rfid-scanner",
                     "/dev/ThingToInternet/rfid-scanner/events",
                     "Hello from RFID tag #{tag_id}!",
                     qos: 0)
  end
end

To the Cloud!

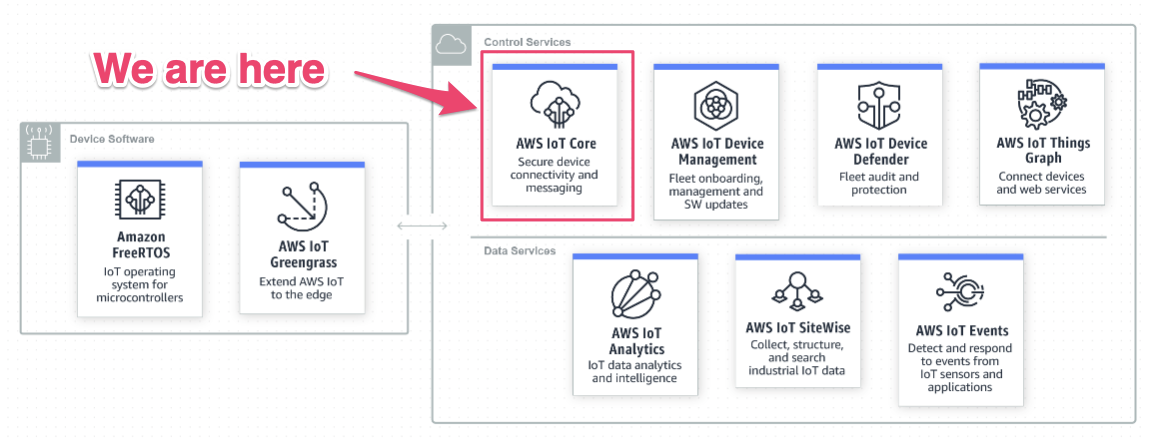

AWS IOT

Glutton for Pain

AWS iot

Certificates
- Root
- Device

Things
- Types
- Provisioning

MQTT Broker
- Pub/Sub
- Topics

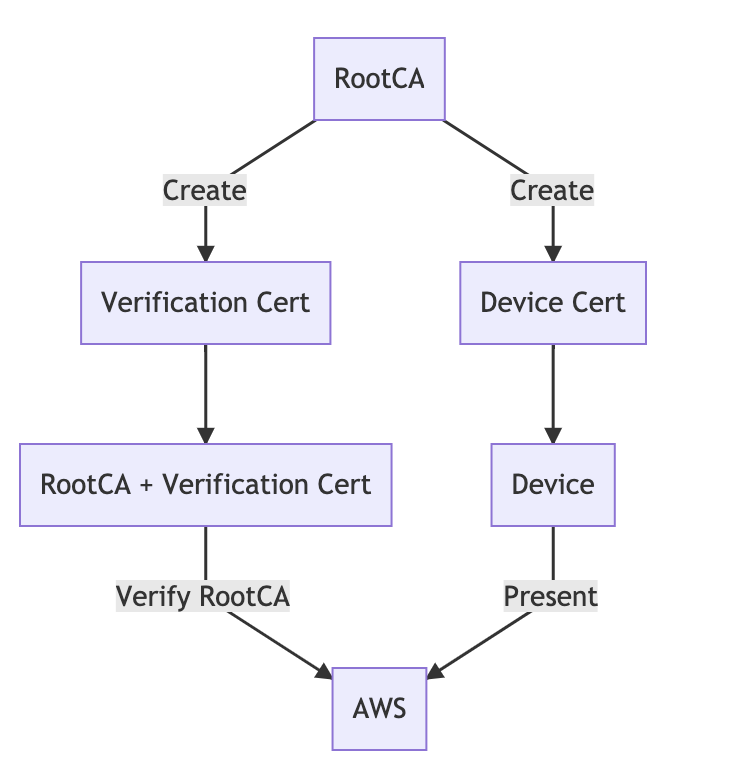

Certs

Connect to broker
Provide Security
- Headaches

      {:x509, "~> 0.5.4"},

Things

ThingType

aws iot create-thing-type --thing-type-name ThingToInternet

Things

JITP role

Resources:
  JITPRole:
    Type: "AWS::IAM::Role"
    Properties:
      AssumeRolePolicyDocument: |
        {
          "Version": "2012-10-17",
          "Statement": [
            {
              "Sid": "",
              "Effect": "Allow",
              "Principal": {
                "Service": "iot.amazonaws.com"
              },
              "Action": "sts:AssumeRole"
            }
          ]
        }
      ManagedPolicyArns:
        - "arn:aws:iam::aws:policy/service-role/AWSIoTThingsRegistration"
        - "arn:aws:iam::aws:policy/service-role/AWSIoTLogging"
        - "arn:aws:iam::aws:policy/service-role/AWSIoTRuleActions"

Things

Provisioning config
Yuck

{
    "roleArn": JITP role,
    "templateBody": insane escaped JSON nightmare madness. Probably Dragons.
}

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["iot:Connect"],
      "Resource": [
        "arn:aws:iot:*:*:client/${ThingName}"
      ]
    },
    {
      "Effect": "Allow",
      "Action": ["iot:Subscribe"],
      "Resource": [
        "arn:aws:iot:*:*:topicfilter/*/${ThingTypeName}/${ThingName}/events"
      ]
    },
    {
      "Effect": "Allow",
      "Action": ["iot:Receive"],
      "Resource": [
        "arn:aws:iot:*:*:topic/*/${ThingTypeName}/${ThingName}/events"
      ]
    },
    {
      "Effect": "Allow",
      "Action": ["iot:Publish"],
      "Resource": [
        "arn:aws:iot:*:*:topic/*/${ThingTypeName}/${ThingName}/events"
      ]
    }
  ]
}

This...

{
    "roleArn": JITP-role-arn
}

{
  "Parameters": {
    "AWS::IoT::Certificate::Country": { "Type": "String" },
    "AWS::IoT::Certificate::Id": { "Type": "String" },
    "AWS::IoT::Certificate::CommonName": { "Type": "String" }
  },
  "Resources": {
    "thing": {
      "Type": "AWS::IoT::Thing",
      "Properties": {
        "ThingName": { "Ref": "AWS::IoT::Certificate::CommonName" },
        "ThingTypeName": "ThingToInternet",
        "AttributePayload": {
          "version": "v1",
          "country": { "Ref": "AWS::IoT::Certificate::Country" }
        }
      }
    },
    "certificate": {
      "Type": "AWS::IoT::Certificate",
      "Properties": {
        "CertificateId": { "Ref": "AWS::IoT::Certificate::Id" },
        "Status": "ACTIVE"
      }
    },
    "policy": {
      "Type": "AWS::IoT::Policy",
      "Properties": {}
    }
  }
}

...plus These

aws iot register-ca-certificate \
 --ca-certificate file://rootCA.pem \
 --verification-certificate file://verificationCert.pem \
 --set-as-active \
 --allow-auto-registration \
 --registration-config file://provisioning_config.json

aws iot update-ca-certificate \
 --certificate-id relevant_ca_cert_id \
 --registration-config file://provisioning_config.json \
 --region us-east-1

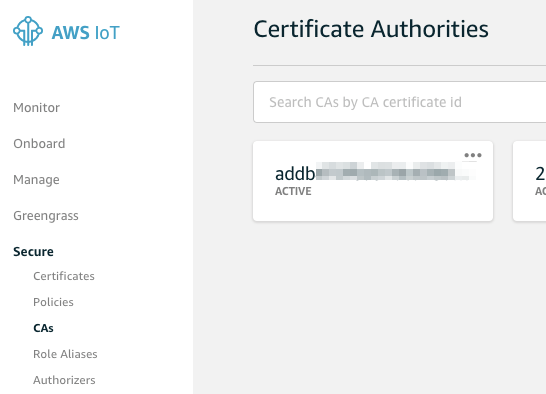

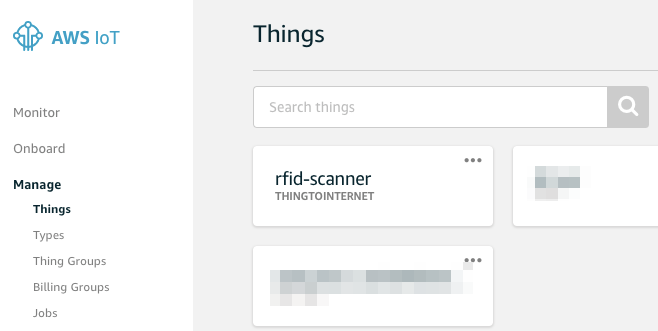

Finally!

Generated

Registered

Auto Registered

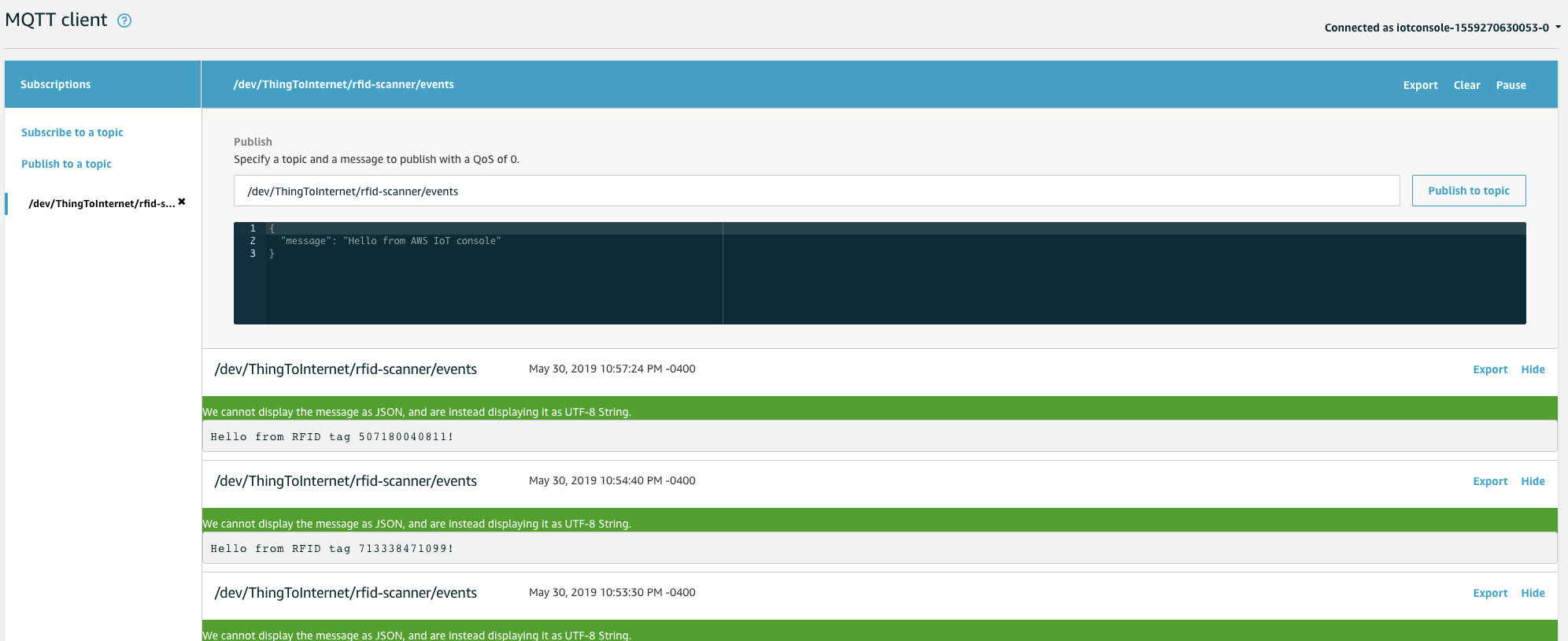

Made it

Pro Tip

aws iot set-v2-logging-options \
  --role-arn arn:aws:iam::<your-aws-account-num>:role/<IoTLoggingRole> \
  --default-log-level DEBUG

Serverless

Not enough buzz

Internet

Serverless

service: thing-to-internet-listener
provider:
  name: aws
  runtime: python3.7
  iamRoleStatements:
    - Effect: "Allow"
      Action:
        - "iot:Subscribe"
      Resource: "arn:aws:iot:*:*:topicfilter/dev/ThingToInternet/rfid-scanner/events"
    - Effect: "Allow"
      Action:
        - "iot:Receive"
      Resource: "arn:aws:iot:*:*:topic/dev/ThingToInternet/rfid-scanner/events"

functions:
  listener:
    handler: handler.listener
    events:
      - iot: # https://forums.aws.amazon.com/thread.jspa?messageID=795332
          sql: "SELECT clientId() as client_id,
                       topic() as topic,
                       encode(* , 'base64') as info
                FROM '/dev/ThingToInternet/rfid-scanner/events'"
          sqlVersion: "2016-03-23"

Lambda

Extract the message
Cloud's the limit

import json
from base64 import b64decode

def listener(event, context):
    topic = event.get("topic", "no_topic")
    info = event.get("info", "no_info")
    payload = b64decode(info).decode("utf-8")
    print(topic, payload)
    # Whatever we want!

 ~/Programs/thing-to-internet-listener:
] sls logs -f listener -t
START ...

/dev/ThingToInternet/rfid-scanner/events Hello from RFID tag 713338471099!

END ...
REPORT ...

START ...

/dev/ThingToInternet/rfid-scanner/events Hello from RFID tag 507180040811!

END ...
REPORT ...

Wrapping Up

We've Done a ton

Putting a Thing on the Internet.

Journey

Thing...
- RFID Tag
- RFID Reader
Interface to...
- A raspberry Pi
Programmed in...
- Elixir
  - using Nerves
Publish...
- MQTT Messages
  - Listen with Lambda

Special Thanks

Daniel Spofford
Daniel Searles
Michael Roach
You

From Thing to Internet

By dlindema

From Thing to Internet

@lindemda

DanLindeman

Who I think You are

Journey

Characters

Motivation

Ahoy!

Thing

RFID + Raspberry pi

RFID

RFID "Things"

Buy Things

SPI

In short

Reality

hard Way

Fun Way

Adventure awaits

Elixir

and nerves

Elixir

Nerves

Raspbian

INit

Entry Point

Processes

Mailbox

"Looping"

Application

RC522

Maybe_Notify?

MQTT

Tortoise

To the Cloud!

AWS IOT

Glutton for Pain

AWS iot

Certs

Things

Things

Things

Finally!

Generated

Registered

Auto Registered

Made it

Pro Tip

Serverless

Not enough buzz

Internet

Serverless

Lambda

Wrapping Up

We've Done a ton

Putting a Thing on the Internet.

Journey

Special Thanks

From Thing to Internet

More from dlindema
