Data Visualization for JS

David Martinez

dmartinez@esri.com

Text

Text

Data Visualization

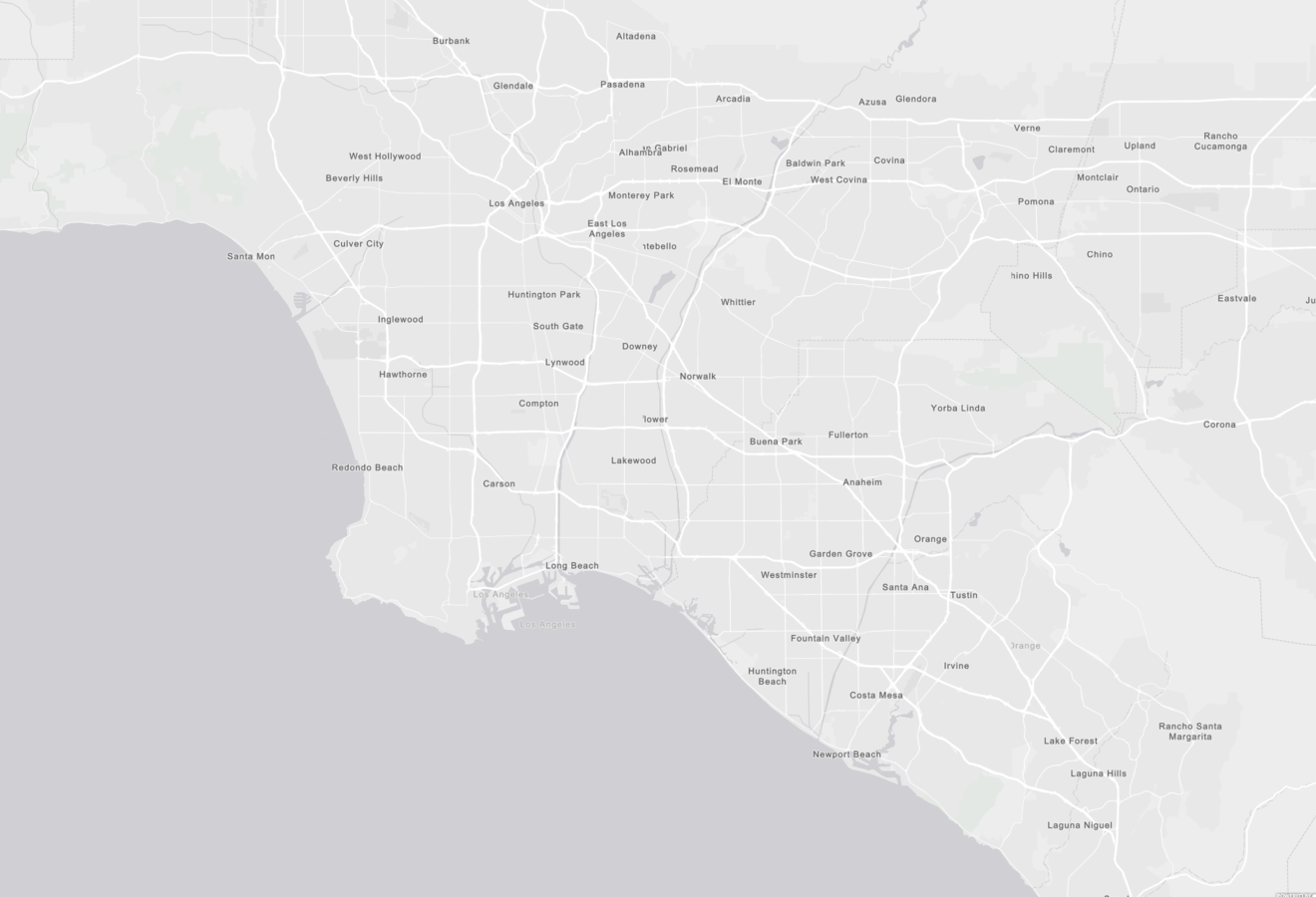

Vector Layer

High Resolution

Easier to Update

Customize

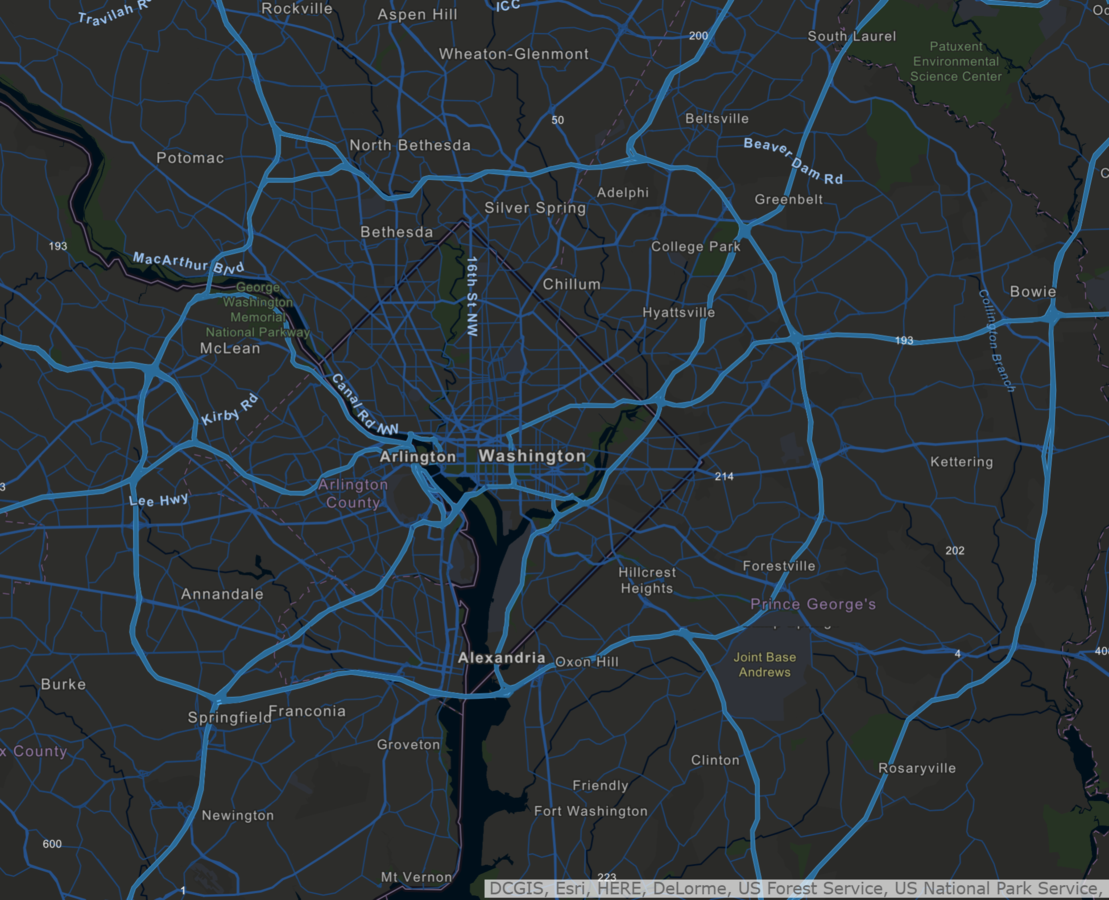

New Basemaps

World Streets

World Navigation

Dark Gray Canvas

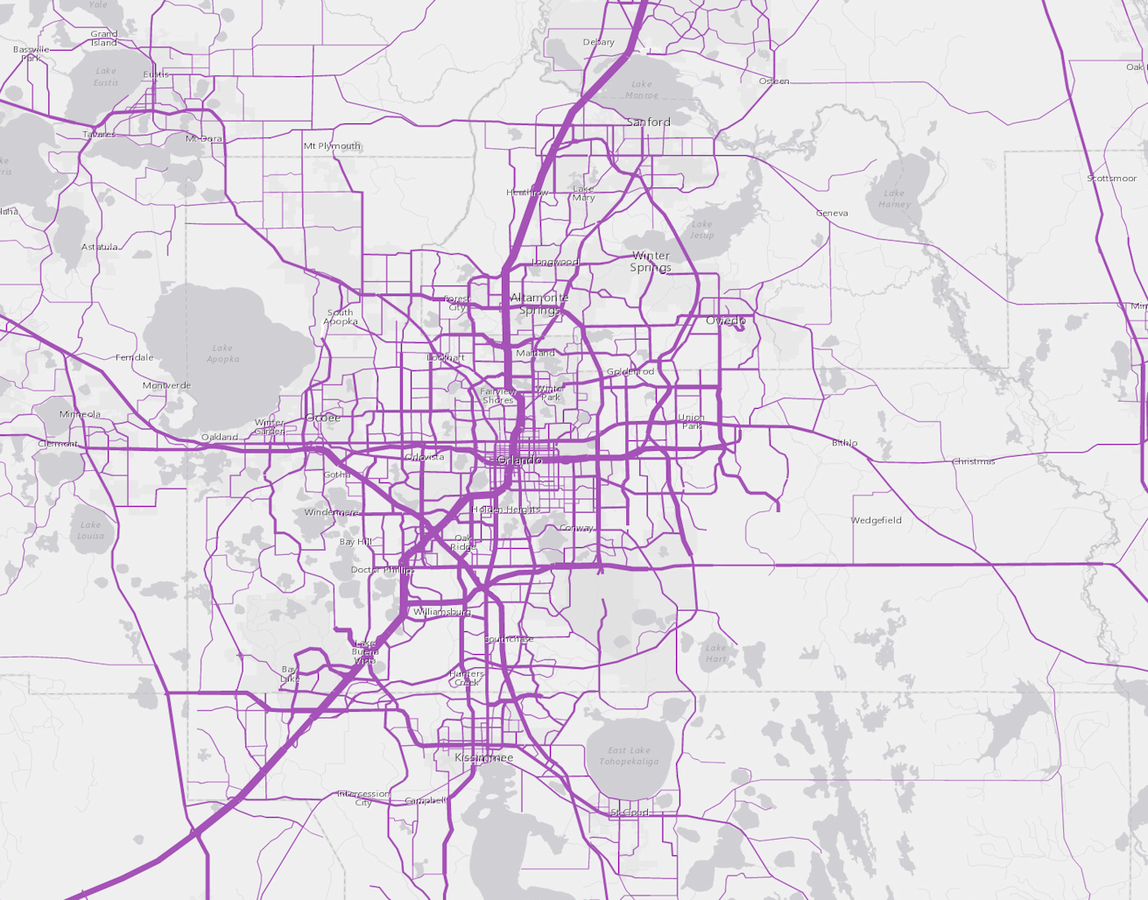

Your Own

Style it

{
      "type": "background",
      "paint": {
        "background-color": "#a6deff"
      },

},
{
      "layout": {
      },
      "type": "fill",
      "source": "esri",
      "id": "Land",
      "minzoom": 0,
      "source-layer": "Land",
      "paint": {
        "fill-color": "#dfffd9"
      }
    }

Edit JSON

Server-Side

Requires ArcGIS Server 10.1 or above

Supports Dynamic Layers: true

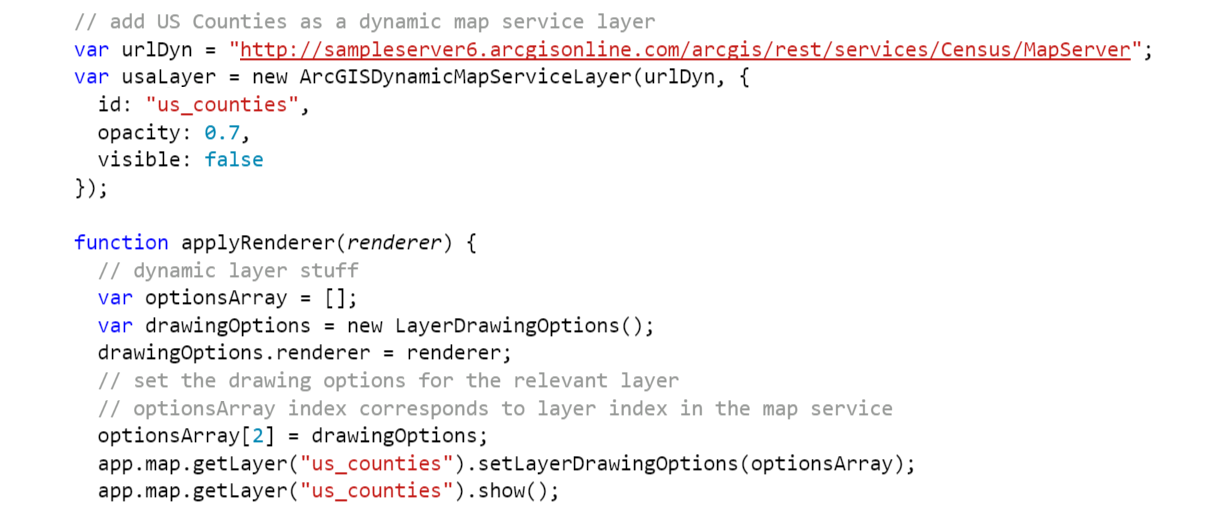

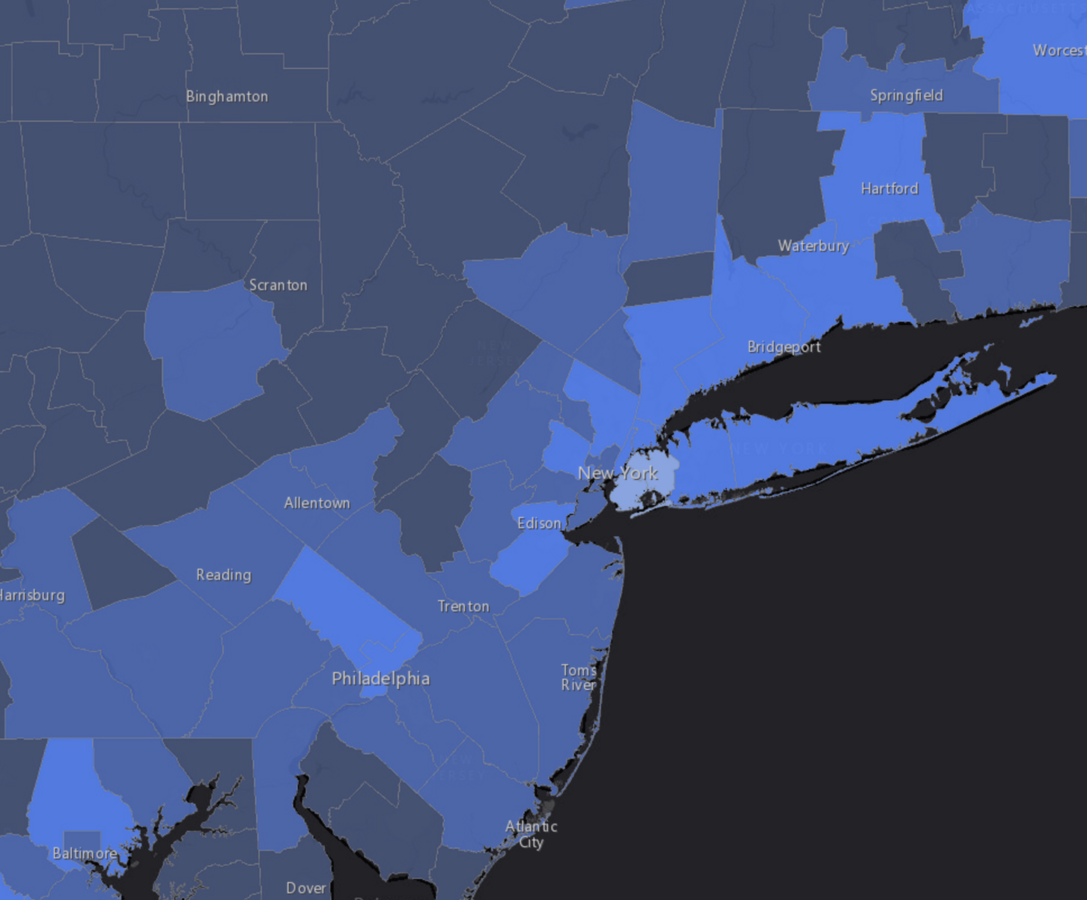

Dynamic Map

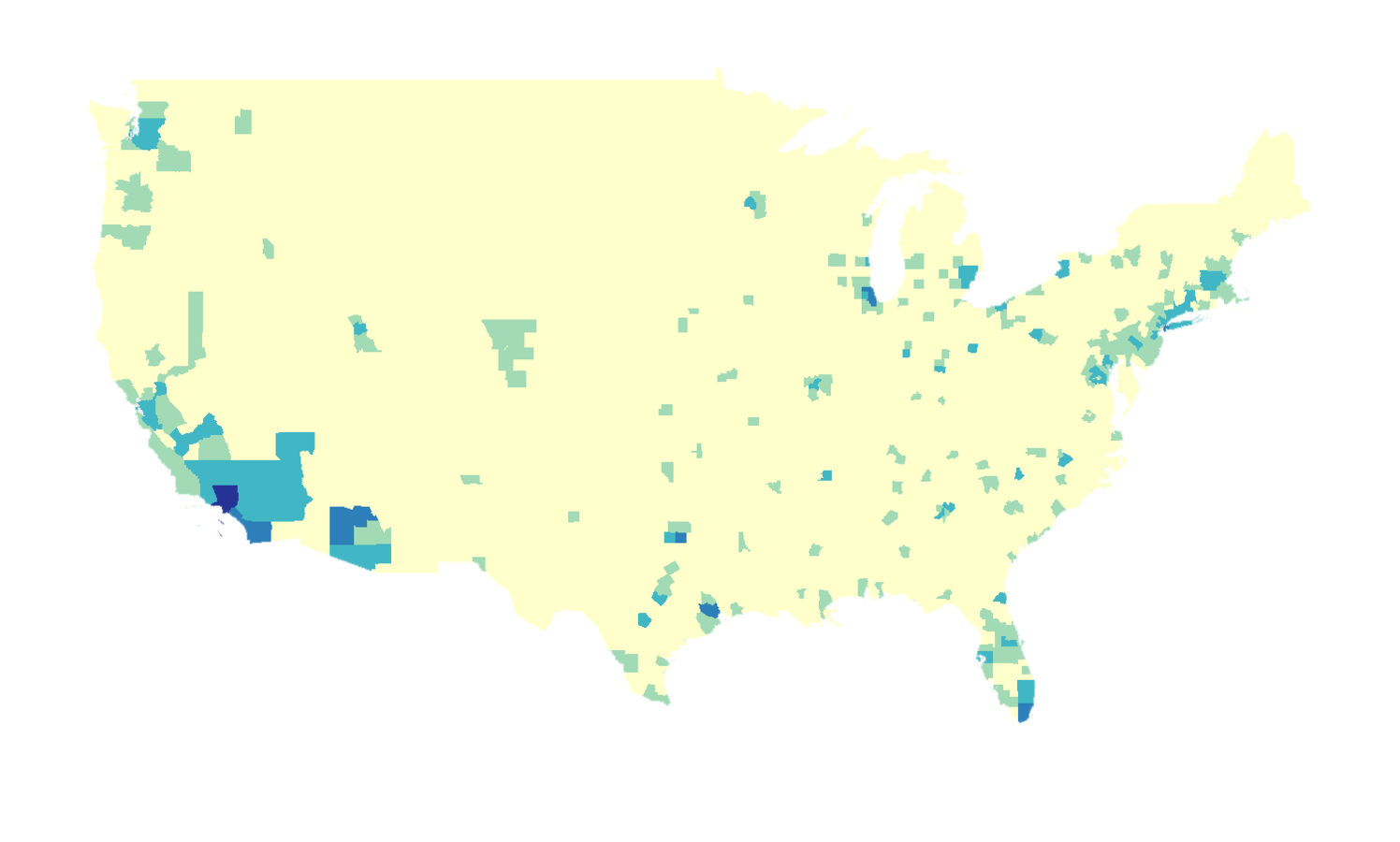

Query String

[{"id":2,"name":"DetailedCounties","source":{"type":"mapLayer","mapLayerId":2},
"drawingInfo":{"renderer":{"type":"classBreaks","field":"POP2007","minValue":99,
"classBreakInfos":[{"classMaxValue":219570,"label":“-99 -219570”,
"description":"","symbol":{"color":[237,248,251,255],
”type”:”esriSFS”,"style":"esriSFSSolid"}}],
 "classificationMethod":"esriClassifyNaturalBreaks"}},"minScale":0,"maxScale":0}]

Client-Side

Feature Layer

Feature Layer Capabilities

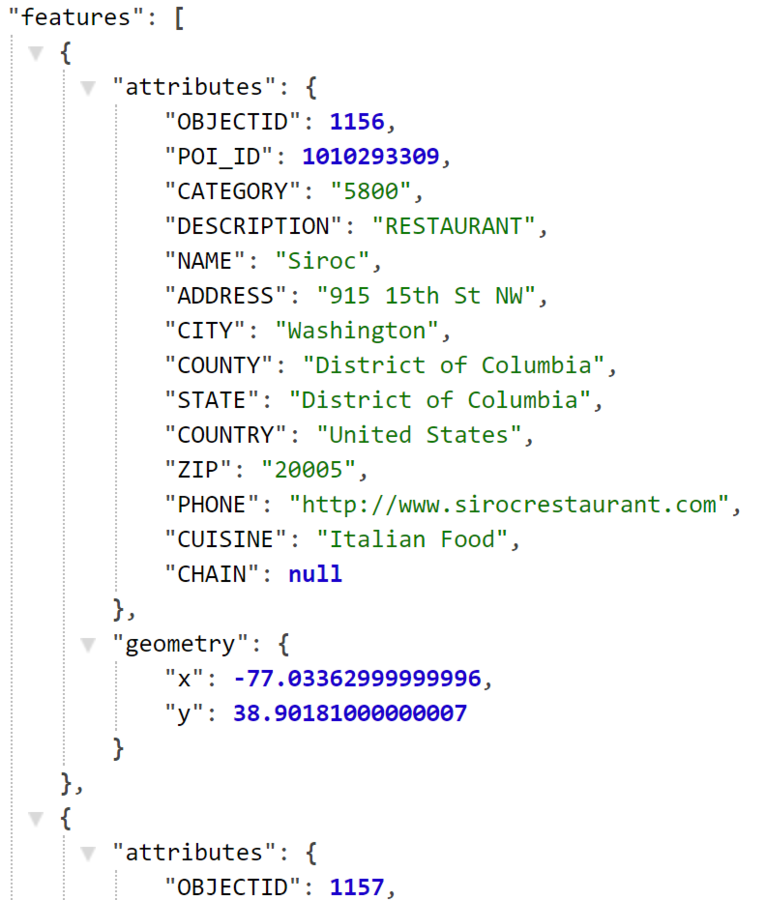

Vector Data

Popups

Interactive

Editing

Query

Renderers

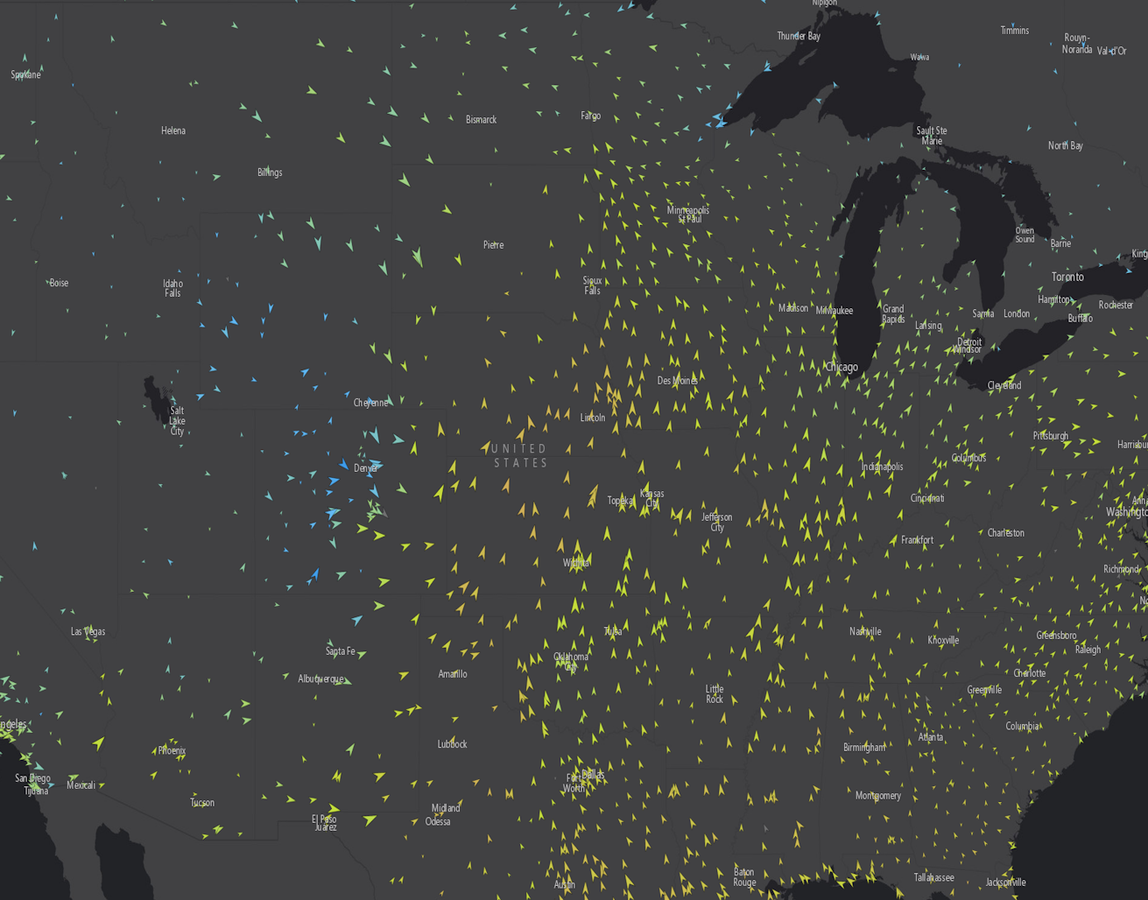

Render Techniques

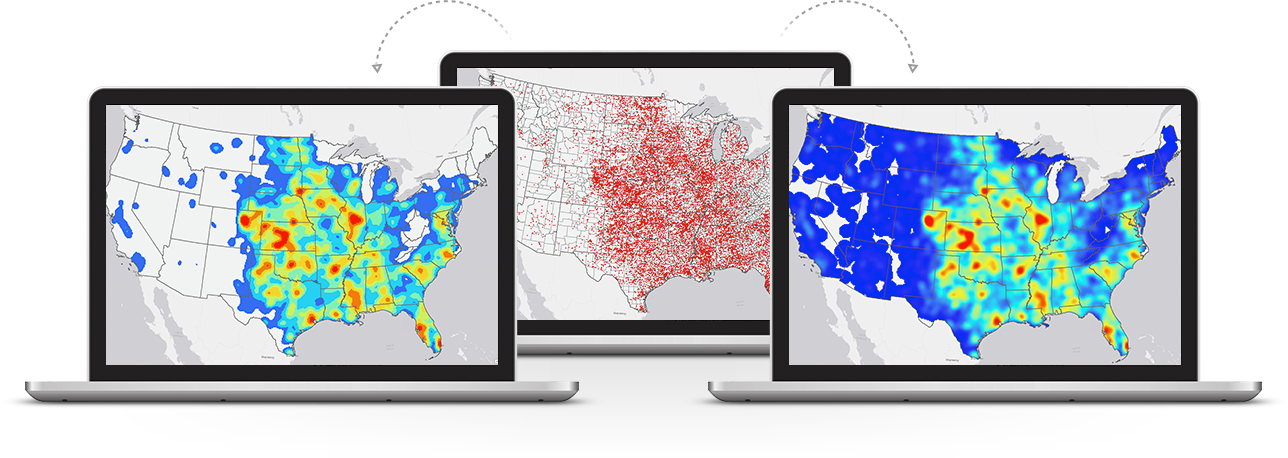

Heat Map

Class Break

Dot Density

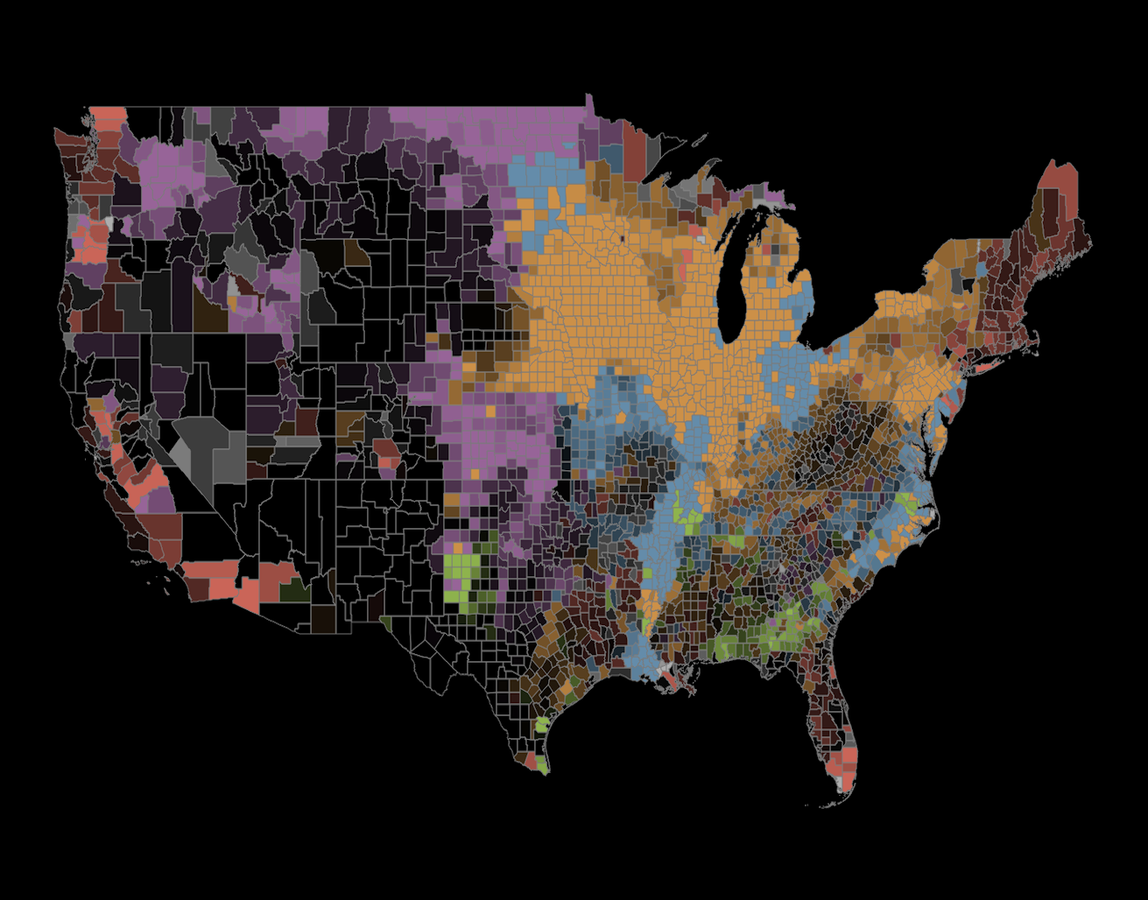

Blend Renderer

Smart Mapping

var renderer = new ClassBreaksRenderer(symbol, "P0010001");
 renderer.addBreak(33, 1052, new SimpleFillSymbol().setColor(new Color([255, 255, 128, 0.5])));
 renderer.addBreak(1052, 2072, new SimpleFillSymbol().setColor(new Color([56, 224, 9, 0.5])));
 renderer.addBreak(2072, 3092, new SimpleFillSymbol().setColor(new Color([26, 147, 171, 0.5])));
 renderer.addBreak(3092, Infinity, new SimpleFillSymbol().setColor(new Color([12, 16, 120, 0.5])));

Class Break Renderer

 var blendRendererOptions = {
        blendMode: "darken",
        symbol: new SimpleFillSymbol().setOutline(new SimpleLineSymbol().setWidth(0)),
        fields: [
          {
            field: "B03002EST5",
            color: new Color([245, 126, 32])
          }, {
            field: "B03002EST12",
            color: new Color([0, 169, 230])
          }, {
            field: "B03002EST4",
            color: new Color([56, 168, 0])
          }, {
            field: "B03002EST6",
            color: new Color([255, 0, 197])
          }

renderer = new BlendRenderer(blendRendererOptions);

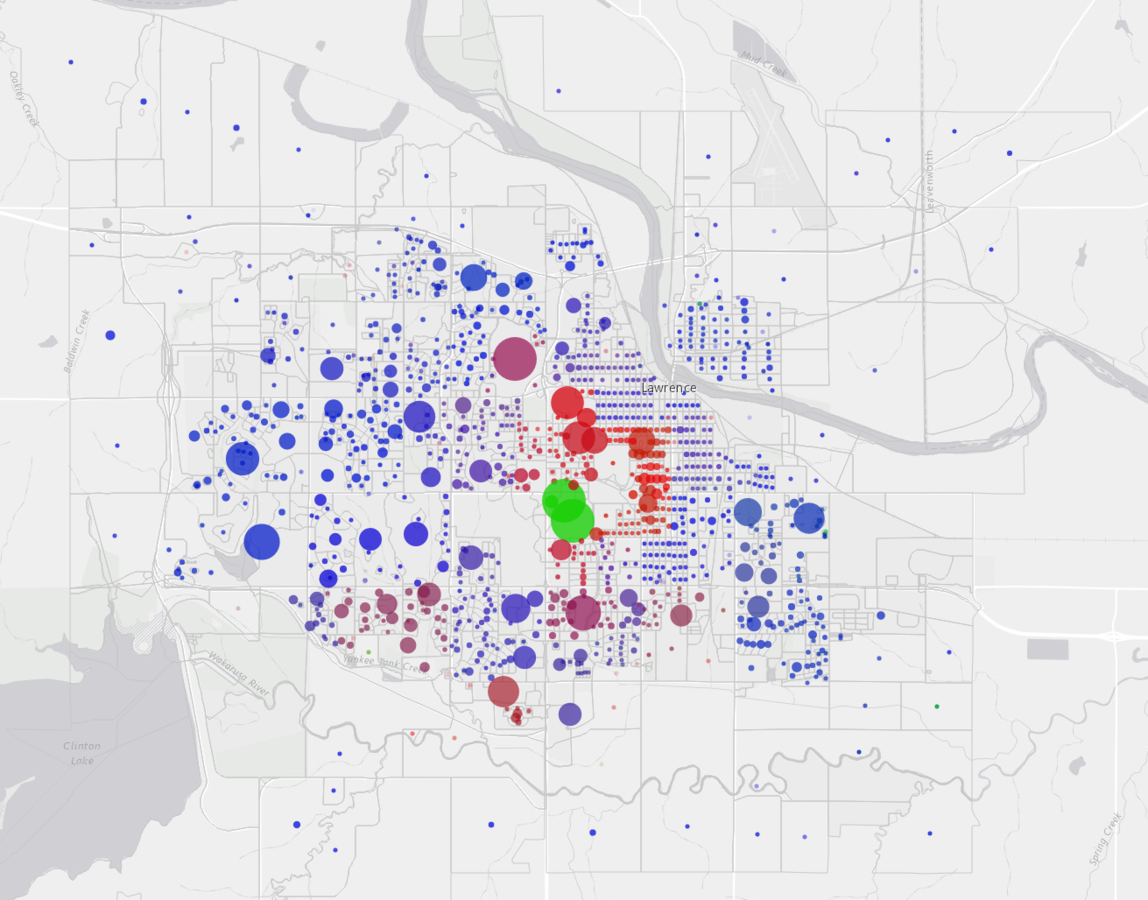

Blend Renderer

 smartMapping.createColorRenderer({
            layer: neighborhoodsLayer,
            field: "P0010001",
            basemap: currentBasemap,
            theme: "high-to-low",
            showOthers: false
          }).then(function (colorRenderer) {
            neighborhoodsLayer.setRenderer(colorRenderer.renderer);
            neighborhoodsLayer.redraw();
            legend.refresh();
          });
        };
        neighborhoodsLayer.on("load", function() {
          SetRenderer();

Smart Mapping Renderer

What about Non-Map Visualizations?

Non-Map Visualization

InfoGraphics

Popups

Tables

Frameworks

D3

Cedar
