Git 基礎工作坊

https://slides.com/dmoon/git/live

DMoon

dmoon.t@gmail.com

Facebook

GitHub

Blog

Version Control？

檔案版本的管理方法

備份

想像成遊戲的記錄存檔

Why should I use version control ?

那些coding的痛苦回憶

總有把程式改壞的時候...

趕快瘋狂 Ctrl + Z

hmm　原本應該是這樣子的.......嗎？

或是更聰明的你

瘋狂 Ctrl + Shift + S

It works

圖片出處

圖片出處

Git

分散式版本控制系統

Git 不是 GitHub !!!

Git

• Since  2005

• Linus Torvalds

• 免費

• 開源

分散式架構

遠端、本地都能操作

Git 能做什麼？

• 對一個資料夾下的所有檔案做備份管理
• 將檔案的Snapshot(快照)保存到歷史紀錄
• 為每次檔案更動留下說明
• 將檔案復原到某個歷史紀錄
• 顯示不同記錄版本的檔案差異
• 與他人協同合作
• 找戰犯

還記得遊戲的紀錄點嗎？

git 裡叫做 commit

未保存的變更

已保存的記錄 (commit)

Timeline

環境準備

• 安裝 Git
• 安裝 SourceTree
• 註冊 GitHub

備份三步驟

• 編輯檔案
• 選擇此次版本要存的檔案
• Commit 儲存版本

SourceTree

Init Repository

1. File > New / Clone > Create Local Repository
2. Enter Destination Path & Project Name
3. Type Git
4. Create

練習

Create a Git Local Repository

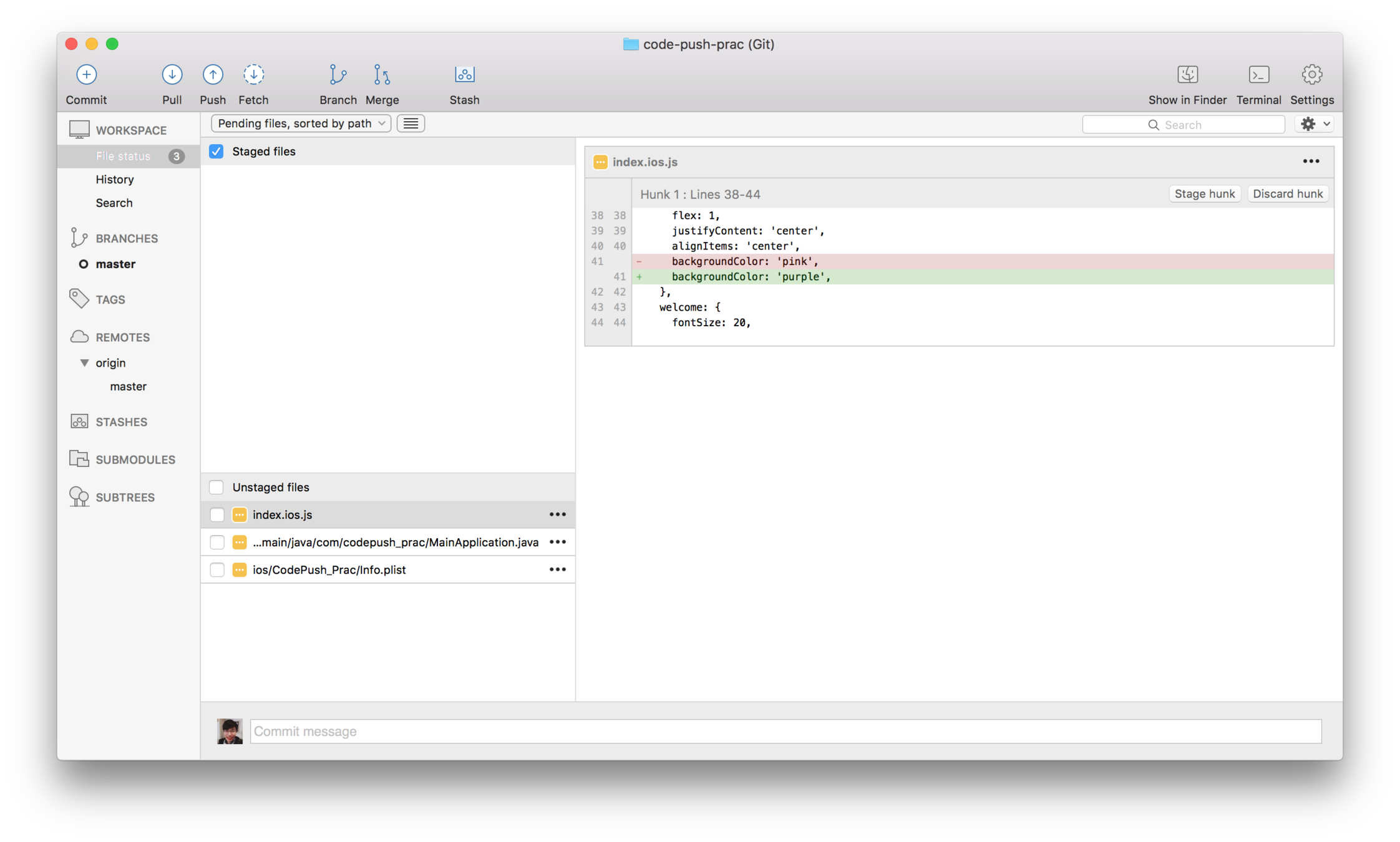

File Status

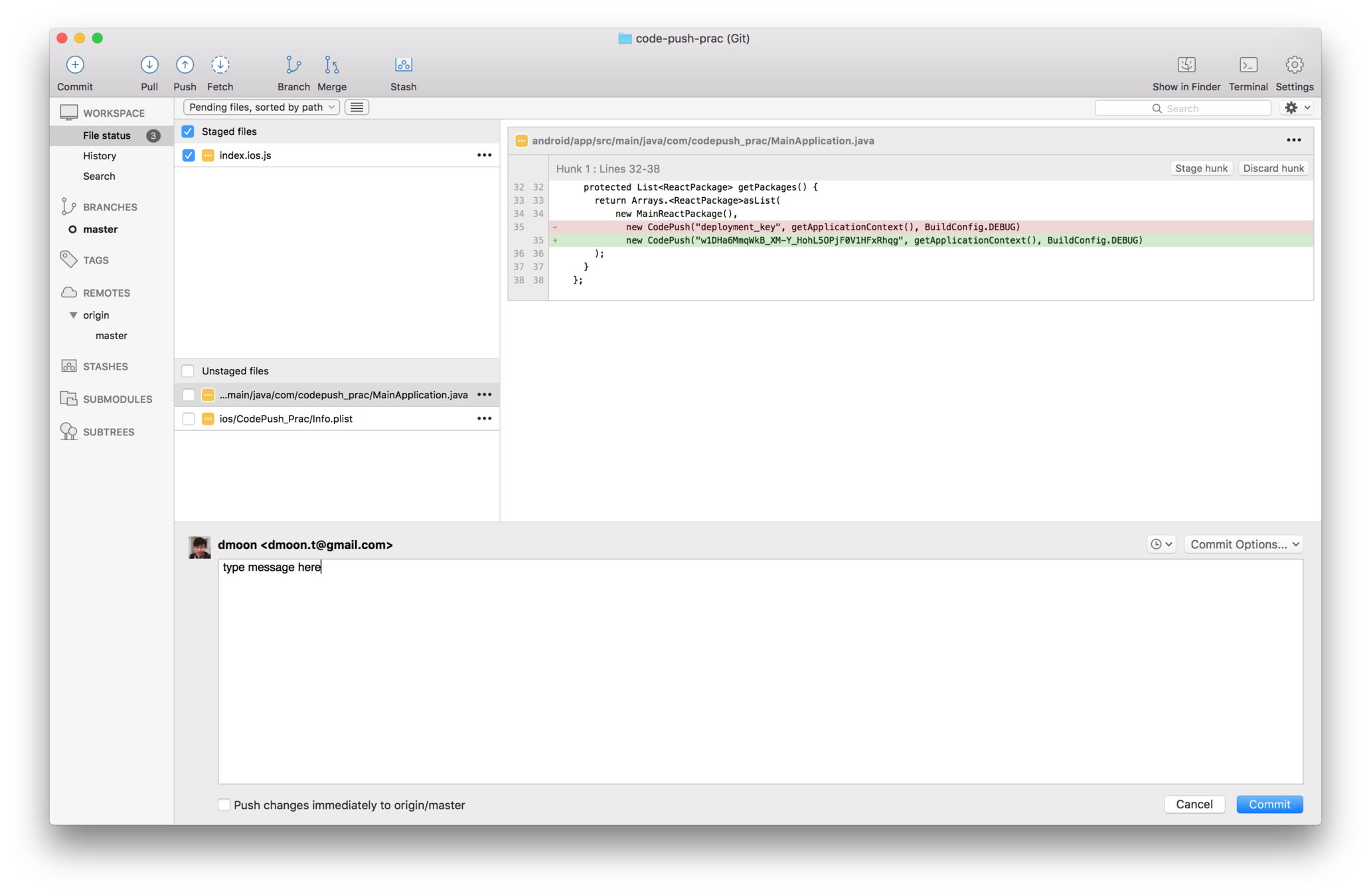

Commit

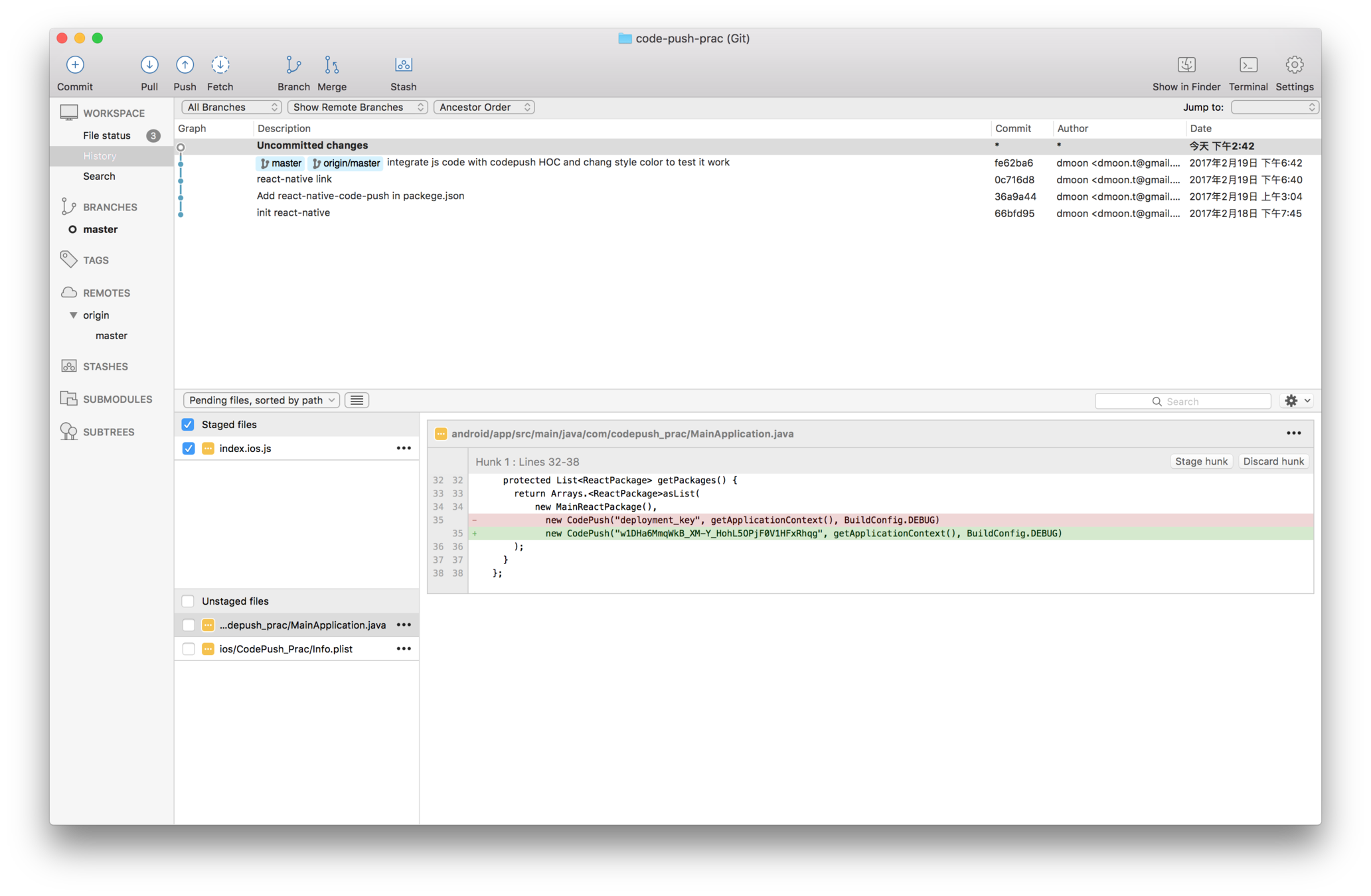

History

練習：第一個 Commit

CLI

# set your default info
$ git config --global user.email "name@mail.com"
$ git config --global user.name "userName"

# set info of current git project
$ git config user.name "userName"

# list config
$ git config -l

Tell Git who you are

要學的指令有點多...

重要的是記得有哪些功能！

忘了這邊查 -> Git 命令快速參考

Create a new local repository

# init git in your project directory
$ git init

檔案分類

• ignored

• tracked

• unTracked

ignore

忽略不需要追蹤/記錄的檔案

建立 .gitignore 檔案

.gitignore sample

# 輸入你想忽略的檔案路徑名稱

# ignore ./test.html
test.html


# ignore whole ignore_dir directory
ignore_dir/

# ignore all css file
*.css

Branch

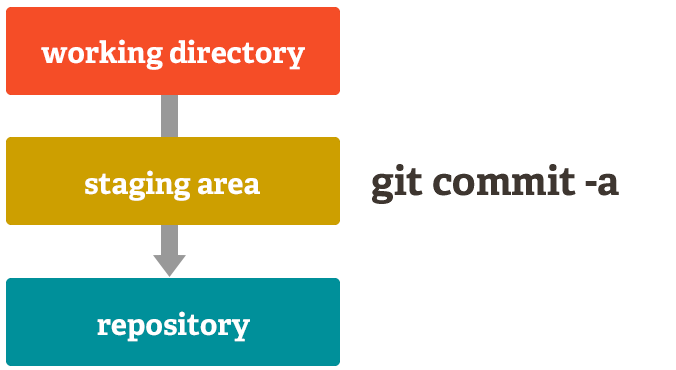

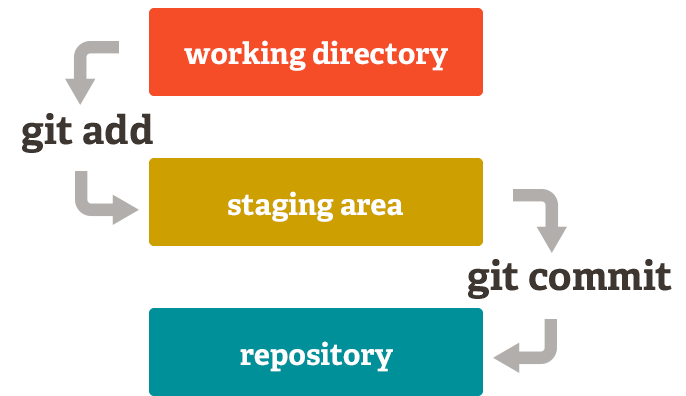

Saving changes

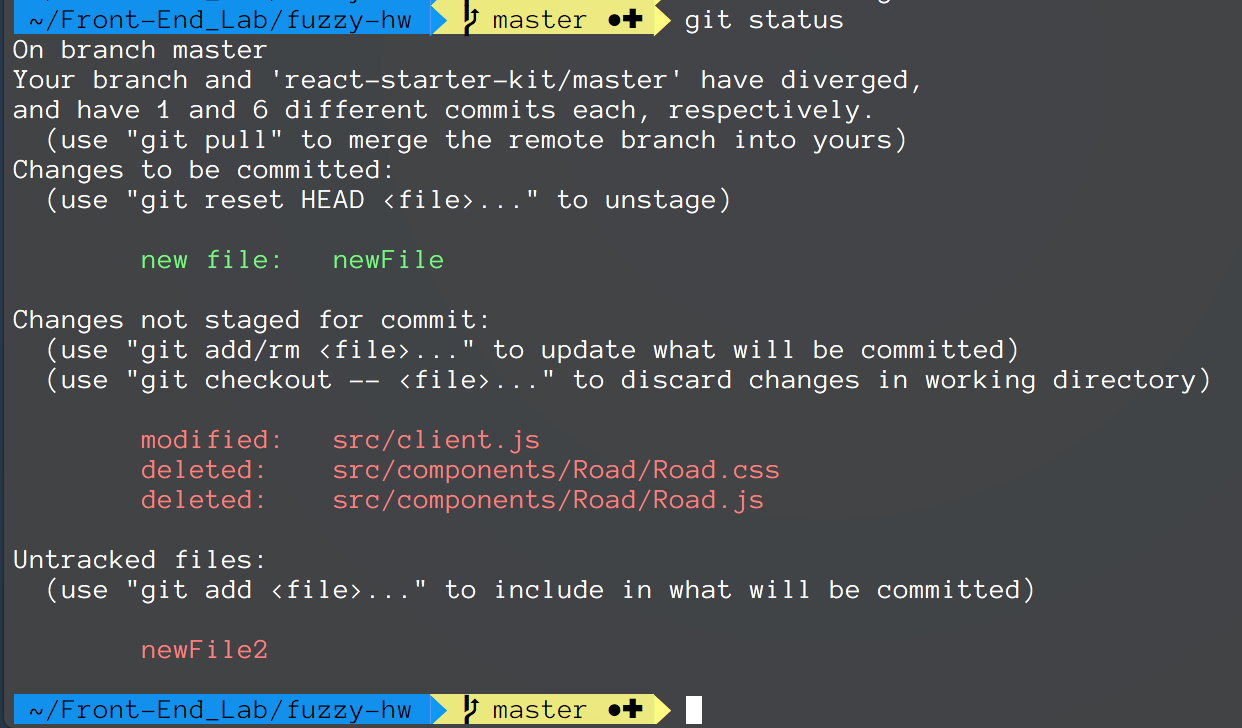

Status

Add

# add file
$ git add fileName

# add all files
$ git add .

# check added files
$ git status

1. untracked -> tracked

2. add file to Staging Area

remove added file

# untrack & delete tracked file
$ git rm fileName

# only untrack tracked file
$ git rm --cached fileName

commit

# check current status
$ git status

# commit added files
$ git commit

# commit with message
$ git commit -m "Write some message here"

提交一個新的版本

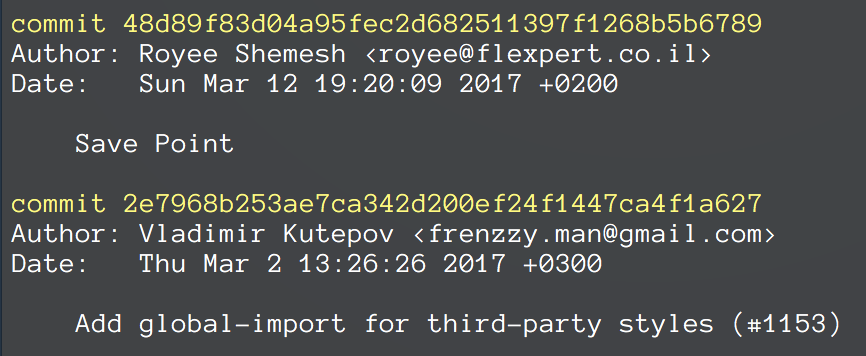

Log

# show git commit histories
$ git log

Commit all tracked files

修改最後一個提交訊息

$ git commit --amend

Ref： HEAD

永遠指向目前分支最新Commit

Diff

# diffs between tracked but unStaged files and HEAD
$ git diff

# diffs between staged files and HEAD
$ git diff --cached

# src and dest can be commitID or branch
$ git diff <src> <dest>

Stash

# 暫存當前工作目錄
$ git stash

# show stash list
$ git stash list

# 還原暫存工作目錄
$ git stash pop

# delete last stash
$ git stash drop

# clear all stash
$ git stash clear

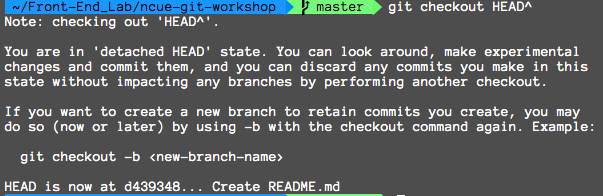

checkout

# switch branch
$ git checkout branchName

# checkout old version commit
$ git checkout <commitID>

切換 HEAD

Undoing Changes

Reset

# reset file to last commit
$ git reset HEAD fileName

# reset all files to last commit
$ git reset HEAD

# reset with option
$ git reset --option HEAD

Reset Option

O：do  reset

X：not reset

Branches

為何要新增 branch?

# list all branches
$ git branch

# create a new branch
$ git branch <branchName>

# switch to another branch
$ git checkout <branchName>

# create a new branch and switch to it
$ git checkout -b <branchName>

# delete the branch
$ git branch -d <branchName>

Branch

Brach 不用錢

開幾個練習看看吧

Merge

Merge

合併分支

# merge a <branchName> into your active branch
$ git merge <branchName>

Conflict

Collaborating

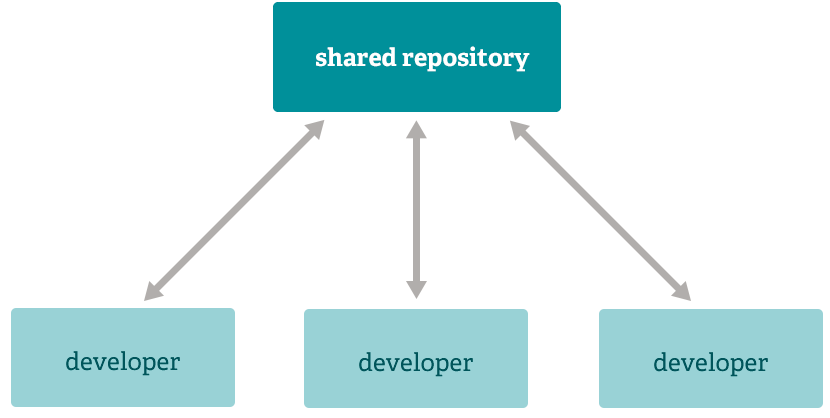

Central Repo

軟體原始碼代管服務

• GitHub

• Bitbucket

• GitLab

GitHub

全球最大同性交友平台上線啦

Clone project from Repo

# clone a repo
$ git clone <srcRepoPath> <destDirName>

Remote Repository

# connect local repository to a remote repository
$ git remote add <remoteRepoName> <remoteRepoPath>

# list all connected remote repository
$ git remote -v

Syncing

Remote Branch

A's local Branch

B's local Branch

Push

# send changes to the remote branch
# of your remote repository
$ git push <remoteRepoName> <remoteBranchName>

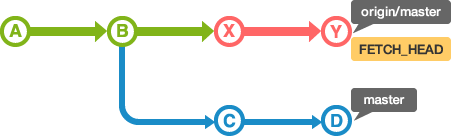

fetch

# fetch the latest history from the server
$ git fetch

# remoteRepoName default origin
# remoteBranchName default master
$ fetch result is in FETCH_HEAD
$ git fetch <remoteRepoName> <remoteBranchName>

Pull

fetch + merge

# fetch and merge remoteBranch to current branch
$ git pull <remoteRepo> <remoteBranch>

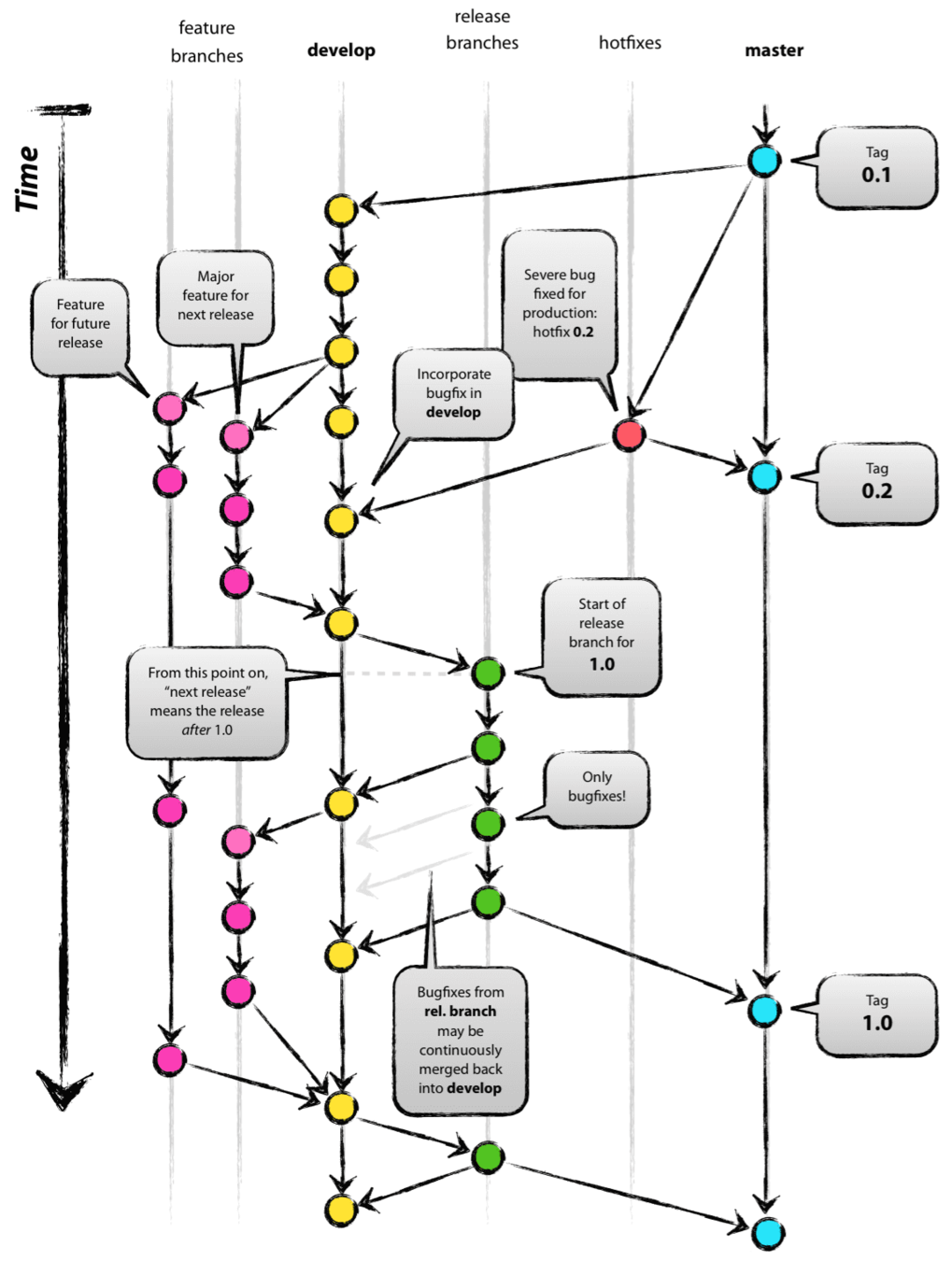

Git Flow

Best Practice

Blame

# show file history
$ git blame <fileName>

深入介紹 GitHub

Free for Public Project

Student Developer Pack

Github

1. Sign up

2. Generating a new SSH key
   (中文版)

3. Add new ssh key

Pull Request

1. push your branch to remote

2. create a pull request

3. wait for admin to merge

合併請求

Fork

你可能沒有編輯他人 Repo 的權限

這時可以Fork一份自己權限的 Repo

修改後新增 Pull Request 向原本專案提出合併申請

Integration with Editor / IDE

Visual Studio Code
