Be a Hero

Drupal Performance

David Flores @dmouse

Conoce al nerd

David Flores
@dmouse
david@consultoriadigital.mx
Linux, Drupal, Movíles, Periodismo, BackEnd, Web, Javascript, FrontEnd, Seguridad, HTML5, Python, evangelist, @LinuxPuebla, ...sometimes #Nerd Speaker

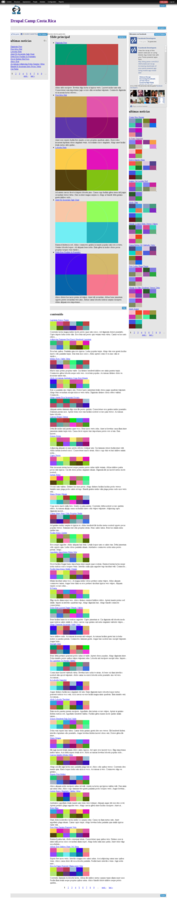

¡Mi sitio ya es popular!


Lo básico

CSS/JS Compression
Disable theme registry
Disable database loggin and tracker
Block cache
Apache mod_expires
"Boost Module"
(El varnish de los pobres)


No estaba hecho para volar...



Refactorización

Módulos innecesarios

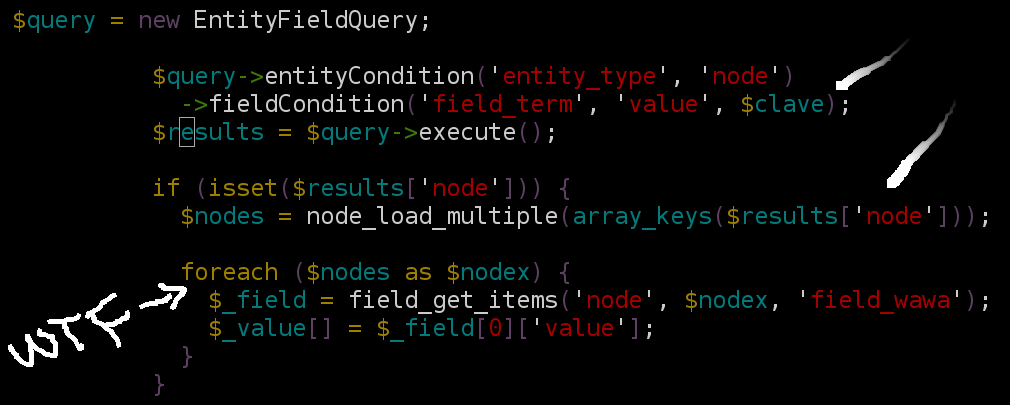

Revisar consultas

(views y modulos propios)

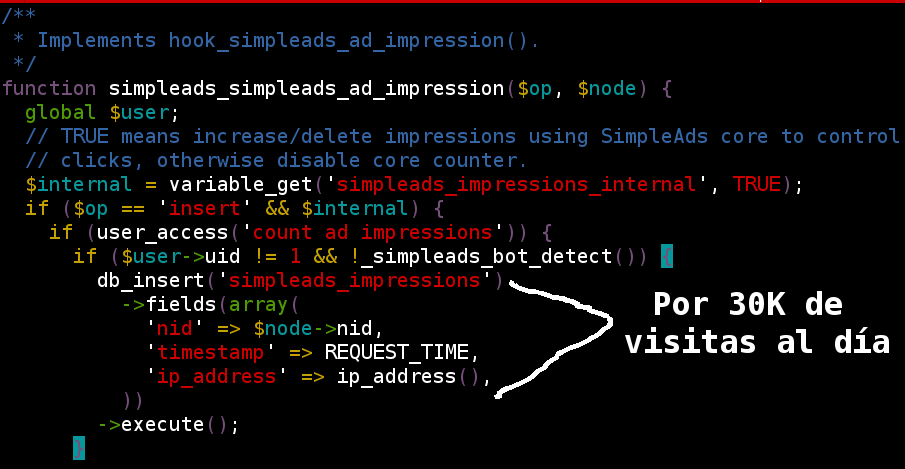

Módulos con operaciones poco optimas



Buscamos programadores

(Que tengan buenos reflejos)

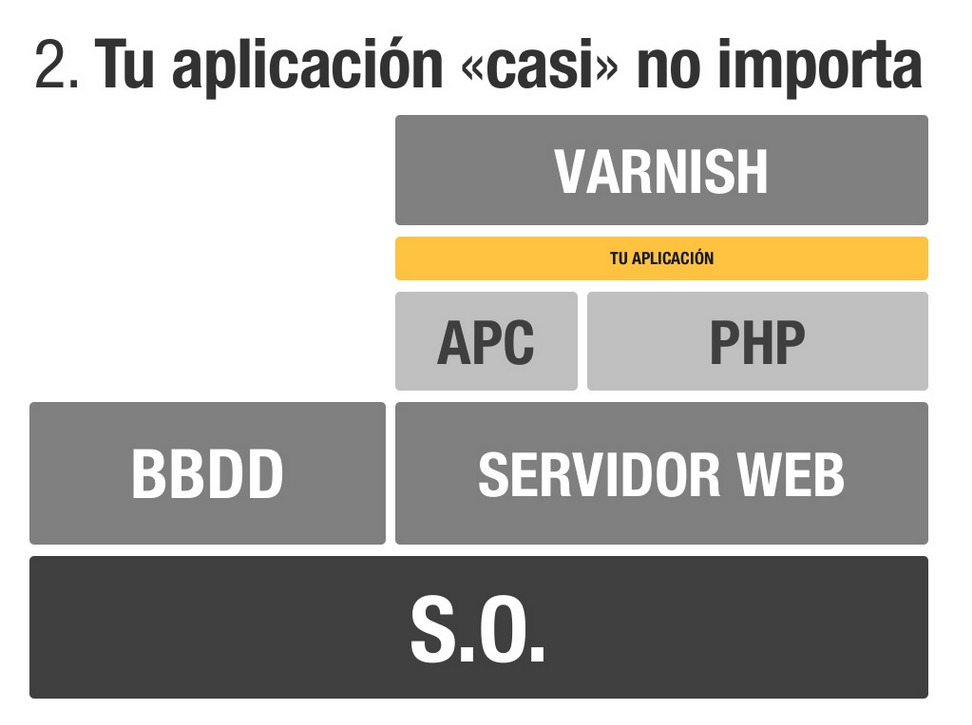

 http://desymfony.com/ponencia/2013/silex-limite




Escalabilidad

Demo






dmouse [at] Ryuk ~ > ab -n 100 -c 5 "http://dev/camp/node"
Server Software:        Apache/2.2.15
Concurrency Level:      5
Time taken for tests:   9.466 seconds

Requests per second:    10.56 [#/sec] (mean)
Time per request:       473.307 [ms] (mean)
Time per request:       94.661 [ms] (mean, across all concurrent requests)
Transfer rate:          734.09 [Kbytes/sec] received

Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    0   0.0      0       0
Processing:   179  470 252.6    415    1701
Waiting:      169  456 249.8    403    1686
Total:        179  470 252.6    416    1702

Percentage of the requests served within a certain time (ms)
  50%    416
  66%    438
  75%    459
  80%    468
  90%    495
  95%   1372
  98%   1690
  99%   1702
 100%   1702 (longest request)

Sin cache

Con cache

dmouse [at] Ryuk ~ > ab -n 100 -c 5 "http://dev/camp/node"
Server Software:        Apache/2.2.15
Concurrency Level:      5
Time taken for tests:   2.802 seconds
Complete requests:      100
Failed requests:        0
Write errors:           0
Total transferred:      7031905 bytes
HTML transferred:       6985200 bytes
Requests per second:    35.68 [#/sec] (mean)
Time per request:       140.125 [ms] (mean)
Time per request:       28.025 [ms] (mean, across all concurrent requests)
Transfer rate:          2450.35 [Kbytes/sec] received

Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    0   0.1      0       1
Processing:     5  140 449.1     12    2445
Waiting:        4  138 447.3     11    2435
Total:          5  140 449.1     13    2445

Percentage of the requests served within a certain time (ms)
  50%     13
  66%     14
  75%     15
  80%     16
  90%    299
  95%   1528
  98%   2278
  99%   2445
 100%   2445 (longest request)

Comparamos


Sin cache
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    0   0.1      0       1
Processing:     5  140 449.1     12    2445
Waiting:        4  138 447.3     11    2435
Total:          5  140 449.1     13    2445
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    0   0.0      0       0
Processing:   179  470 252.6    415    1701
Waiting:      169  456 249.8    403    1686
Total:        179  470 252.6    416    1702




Con cache

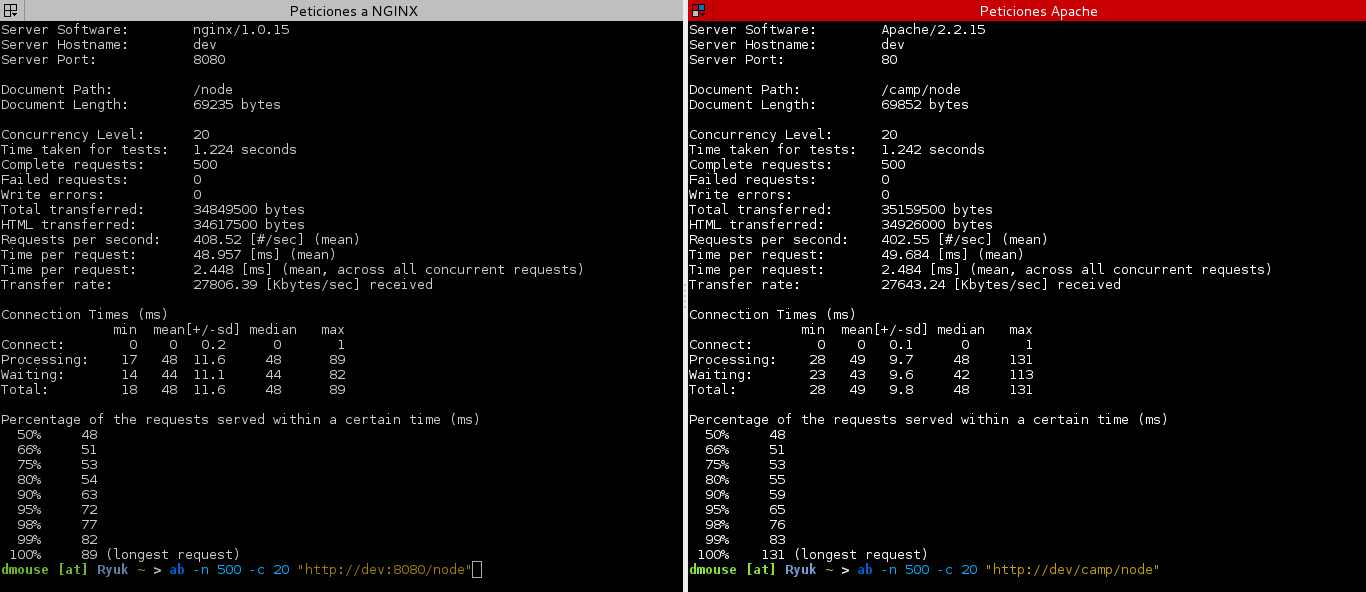

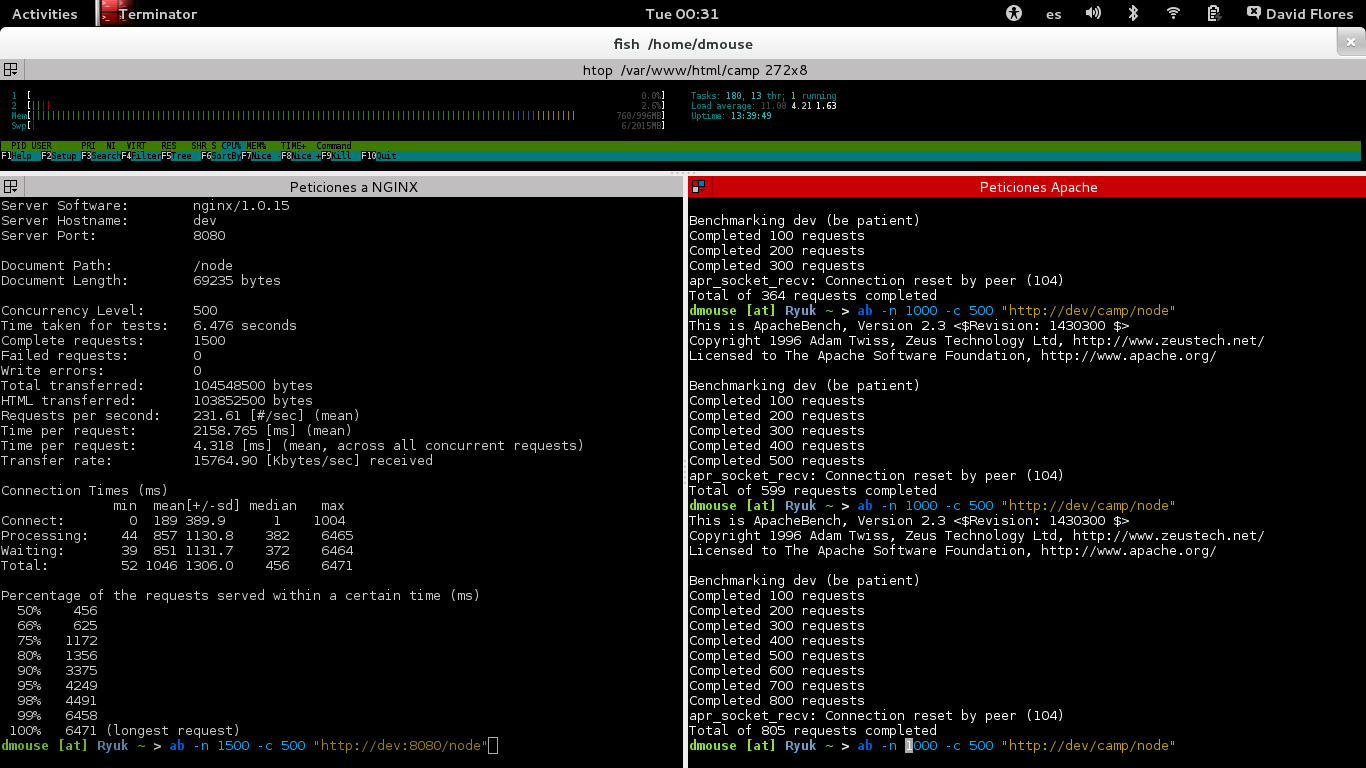

Web Server

Apache/Nginx



Concurrencia




Comparación

Nginx





Apache
ab -n 1000 -c 300 "http://dev/camp/node"
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0  427 1022.2      1    7017
Processing:   325 1660 2188.9    475   13931
Waiting:      323 1645 2176.6    467   13930
Total:        325 2087 2507.1    620   14934
 Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0   20 136.7      0    1003
Processing:    84  805 427.7    788    3442
Waiting:       83  771 426.8    744    3442
Total:         87  826 450.2    791    3445

ab -n 1500 -c 500 "http://dev:8080/node"

Configuración


https://gist.github.com/dmouse/5479498

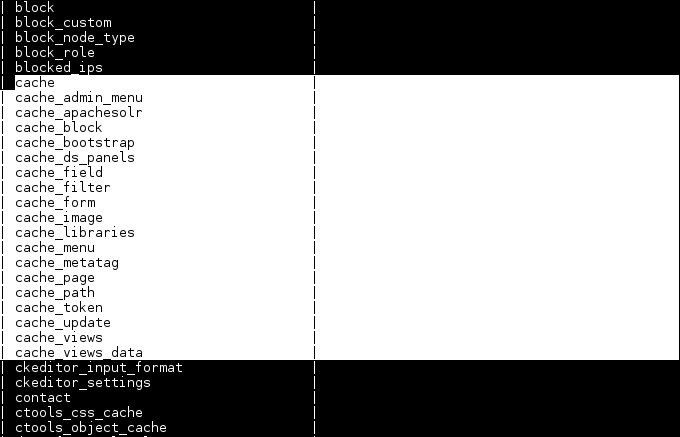

Drupal cache


cache_field

 mysql> describe cache_field ;
+------------+--------------+------+-----+---------+-------+
| Field      | Type         | Null | Key | Default | Extra |
+------------+--------------+------+-----+---------+-------+
| cid        | varchar(255) | NO   | PRI |         |       |
| data       | longblob     | YES  |     | NULL    |       |
| expire     | int(11)      | NO   | MUL | 0       |       |
| created    | int(11)      | NO   |     | 0       |       |
| serialized | smallint(6)  | NO   |     | 0       |       |
+------------+--------------+------+-----+---------+-------+
5 rows in set (0.02 sec)
 select cid,expire,created,serialized from cache_field limit 1;
+------------------+--------+------------+------------+
| cid              | expire | created    | serialized |
+------------------+--------+------------+------------+
| field:node:10012 |      0 | 1372664587 |          1 |
+------------------+--------+------------+------------+
1 row in set (0.00 sec)
mysql> select data from cache_field limit 1;
a:6:{s:16:"field_categor_as";a:1:{s:3:"und";a:1:{i:0;a:1:{s:3:"tid";s:2:"24";}}}s:12:"field_imagen";a:1:{s:3:"und";a:1: {....} {s:5:"value";s:1526:"<p>&nbsp;</p>
<p>Jos&eacute;&nbsp; Andr&eacute;s


https://drupal.org/project/redis


Predis

 $redis = new Predis\Client(array(
    array('host' => '10.0.0.1', 'port' => 6379),
    array('host' => '10.0.0.2', 'port' => 6379)
));

$replies = $redis->pipeline(function ($pipe) {
    for ($i = 0; $i < 1000; $i++) {
        $pipe->set("key:$i", str_pad($i, 4, '0', 0));
        $pipe->get("key:$i");
    }
});

https://github.com/nrk/predis

Redis Benchmark

root in ~ > redis-benchmark -r 1000000 -n 2000000 -t get,set,lpush,lpop -P 16 -q
SET: 214661.36 requests per second
GET: 288558.62 requests per second
LPUSH: 344056.41 requests per second
LPOP: 392233.78 requests per second



Comparación


Con Redis
 # ab -n 3000 -c 1000 "http://dev:8080/node" Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0   63 236.6      0    1005
Processing:    16  930 1511.7    159    7352
Waiting:       16  923 1509.9    159    7351
Total:         16  993 1522.7    183    7361
 # ab -n 3000 -c 1000 "http://dev:8080/node" Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    3   5.8      0      16
Processing:    14 10267 22723.6     23   91020
Waiting:        0 10247 22705.5     23   91020
Total:         14 10270 22728.4     23   91036

Sin Redis

Configuración





Varnish


Al Inifinito y más allá

 Server Software:        nginx/1.0.15
Server Hostname:        dev
Server Port:            6081

Document Path:          /node
Document Length:        69235 bytes

Concurrency Level:      3000
Time taken for tests:   29.107 seconds
Complete requests:      60000
Failed requests:        56797
   (Connect: 0, Receive: 0, Length: 56797, Exceptions: 0)
Write errors:           0
Non-2xx responses:      56796
Total transferred:      274924893 bytes
HTML transferred:       259529045 bytes
Requests per second:    2061.38 [#/sec] (mean)
Time per request:       1455.337 [ms] (mean)
Time per request:       0.485 [ms] (mean, across all concurrent requests)
Transfer rate:          9224.03 [Kbytes/sec] received

Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0   64 298.0      0    7012
Processing:    32 1052 367.5   1008   27538
Waiting:       32 1051 350.6   1007   20483
Total:         32 1116 468.2   1029   27565

Percentage of the requests served within a certain time (ms)
  50%   1029
  66%   1101
  75%   1135
  80%   1145
  90%   1358
  95%   1961
  98%   2245
  99%   3875
 100%  27565 (longest request)
root@Ryuk ~# ab -n 60000 -c 3000 "http://dev:6081/node"

~ $ ab -n 60000 -c 3000 "http://dev:6081/node"



Configuración

https://gist.github.com/dmouse/6049440

Configuraciones


¿Preguntas?

https://www.youtube.com/watch?v=Q1AZfqghL30
