Productionising WL




Donal Spring

donalspr@uk.ibm.com

Agenda

    • App Authenticity
    • Adapter Versioning
    • Adapter Proxies
    • Worklight Developer Settings
    • Clustered Environments
    • Code Minification
    • AppCenter (Multiple or Single?)
    • Getting "App Store" ready

app Authenticity


What is it?


Why is it important?


How do I do it?


authenticationConfig.xml  :
     <customSecurityTest name="AppAuth">
         <test realm="wl_remoteDisableRealm" />
         <test realm="wl_authenticityRealm" isInternalUserID="true"/>
         <test realm="wl_deviceNoProvisioningRealm" isInternalDeviceID="true" />
     </customSecurityTest>

application-descriptor.xml :

    <iphone bundleId="com.ibm.myapp" version="1.0" securityTest="AppAuth">
         <security> Additional settings here </security>
    </iphone>

    <android version="1.0" securityTest="AppAuth">
        <security>
            <publicSigningKey>Key extracted from keystore </publicSigningKey>
        </security>
    </android>

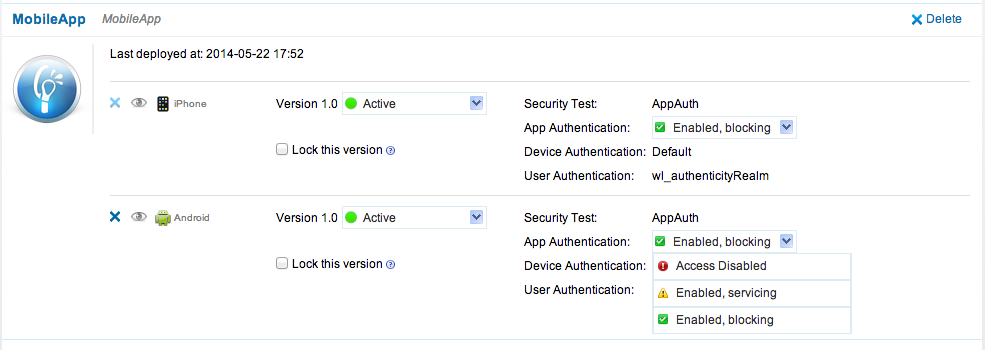

Access Disabled - Worklight server does not test the Authenticity of the app

Enabled, servicing - Worklight server tests the Authenticity of the app; if it fails it services the device anyway

Enabled, blocking -  Worklight server tests the Authenticity of the app; if it fails it blocks the device

Gotcha's


This feature is not available on the Developer Edition


Unit Tests?

Differences to Adapter Auth?

Adapter Versioning


What is it?


Why  is it important?


How do we implement it?


options {}


In the client code :
var options = { version: { major: 1, minor: 0, patch: 0 } }

WL.Client.invokeProcedure({
adapter : "RSSFeed",
procedure : "getData",
parameters : [options, "myTopic"]
});


In the adapter code :

 function getData (options, param) {
      if (options.version === 1){          // do stuff for version one of the adapter          input = {              method = "get",             path = param,             returnedContentType = "json"          }          return WL.Server.invokeHttp(input);      } else if (options.version === 2){          // adapter v2 mechanics          // could also be used to call a new adapter:          invocationData = { adapter : "RSSFeedV2",                             procedure : getData,                             parameters : [options, param]}          return WL.Server.invokeProcedure(invocationData);      };};

Gotcha's



If not done before v1 - cannot easily be added retrospectively



Adapter Proxies



What is it?


Why do we need it?


How do I implement it?

Example adapter code



<connectivity>
    <connectionPolicy xsi:type="http:HTTPConnectionPolicyType">
        <protocol>http</protocol>
			<domain>mydomain.com</domain>
			<port>1080</port>
			<!--PROXY_SETTINGS-->
	<proxy>
	    <protocol>http</protocol>	    <domain>myproxydomain</domain>	    <port>8080</port>
	</proxy>
     </connectionPolicy>
     <loadConstraints maxConcurrentConnectionsPerNode="10" />
</connectivity>

Can also add security to proxy

WORKLIGHT.PROPERTIES


<connectivity>
    <connectionPolicy xsi:type="http:HTTPConnectionPolicyType">
        <protocol>http</protocol>
			<domain>mydomain.com</domain>
			<port>1080</port>
			<!--PROXY_SETTINGS-->
	<proxy>
	    <protocol>${adapter.name.proxy.protocol}</protocol>	    <domain>${adapter.name.proxy.domain}</domain>	    <port>${adapter.name.proxy.port}</port>	</proxy>
     </connectionPolicy>
     <loadConstraints maxConcurrentConnectionsPerNode="10" />
</connectivity>

Manage These values

*without rebuilding WAR & Adapters
worklight.properties.$ENVIRONMENT
adapter.proxy.protocol=http
adapter.proxy.domain=192.168.12.10
adapter.proxy.port=8080
In deploy-to-environment-ant.xml add <!--JNDI_PROPERTIES-->
 Replace the string with worklight.properties values & install the war

Now in server.xml
<jndiEntry jndiName="worklight/adapter.proxy.protocol" value='"http"'/>
<jndiEntry jndiName="worklight/adapter.proxy.domain" value='"192.188.12.10"'/><jndiEntry jndiName="worklight/adapter.proxy.port" value='"8080"'/>

Gotcha's



Once adapters are built with proxies they cannot be turned off

Adapter settings by ENVIRONMENT

In the adapter code:
var _domain = WL.Server.configuration["adapter.name.domain"];
var _UrlRoot = WL.Server.configuration["adapter.name.urlRoot"];

// transaction API need key and secret
var _transactionKey = WL.Server.configuration["adapter.name.transactionKey"];
var _sharedSecret = WL.Server.configuration["adapter.name.sharedSecret"];
In worklight.properties.$ENVIRONMENT
adapter.name.domain=mydomain.com
adapter.name.urlRoot=/context/url

adapter.name.transactionKey=koasdnfsdpopBLAH-BLAH-ornep1048e-0wfiadsk
adapter.name.sharedSecret=SHHHH!mySecretKey

different  settings -> different environment
same adapter code!

Developer Settings



What is it?


Why do we need it?


How do i disable it?

in the application-descriptor.xml :


     <iphone bundleId="com.ibm.myapp" version="1.0" securityTest="AppAuth">
	<worklightSettings include="true"/>
        <security>
            <encryptWebResources enabled="false"/>
        </security>
    </iphone>


GOtcha's


if using alternative tooling (xctool) SETTINGS.bundle

Clustered Environment



What is it?


Why do we need it?


How do we implement it?

topology


Shared database
sticky session

Gotchas



Worklight is stateful -> It caches session state within the server memory


Code minification

       Tools :
  • Closure
  • Shrinksafe

^ DOJO tools


Angular JS comes already minified


LESS for CSS

Logging

In your server.xml :
 <include optional="true" location="server.CI.xml"/>

In your SCM :
<server>
   <logging traceSpecification=
         "com.worklight.adapters=FINEST:com.worklight.integration=FINEST"
          traceFileName="stdout" maxFileSize="20"  maxFiles="2"
           traceFormat="BASIC" />
</server>
 (In your build process)
cp / scp depending on what you need / where you are

IbM App Center



What is it?


Why do we need it?


How do we use it?

Single or multiple?


      • App Center location burned in
      • More than one App Center
      • Enabling Test teams
      • Reviews / feedback on the app
      • Bundle Ids (multiple / single)
      • Drop down interface
      • Mark as Installer & Hidden URL

How do i get App Center?
Show app center demo


APPle


App Center does not come pre built or signed

iOS 7.1 issue  /  SSL






PREPARING FOR APPSTORE



What is it?


Why do we do it?


How do we do it?

Android



Its easy for android


Pay the fee, sign the app &  you're away


Can use Play Store Beta & Alpha testing facilities

50mb file size

Apple


It's complicated....!

      • Signing the App (Key Chain)

      • Provisioning the App

      • Enterprise licence Vs Developer licence

      • App Store ready & IBM App Center




Productionising Worklight

By Donal Spring
