What is RxJS?

A toolbox for creating and handling reactive data streams

Image source: https://flic.kr/p/c4QJzC

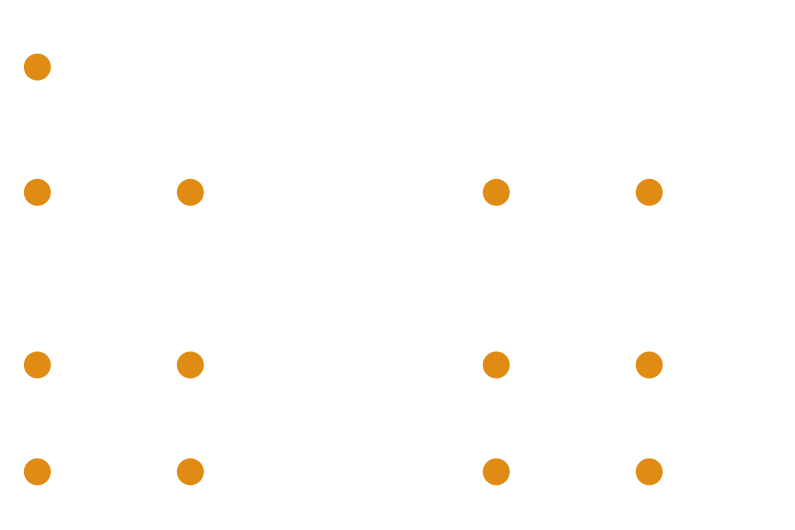

What are

data streams?

Image source: http://popkey.co/m/aWG7m-matrix

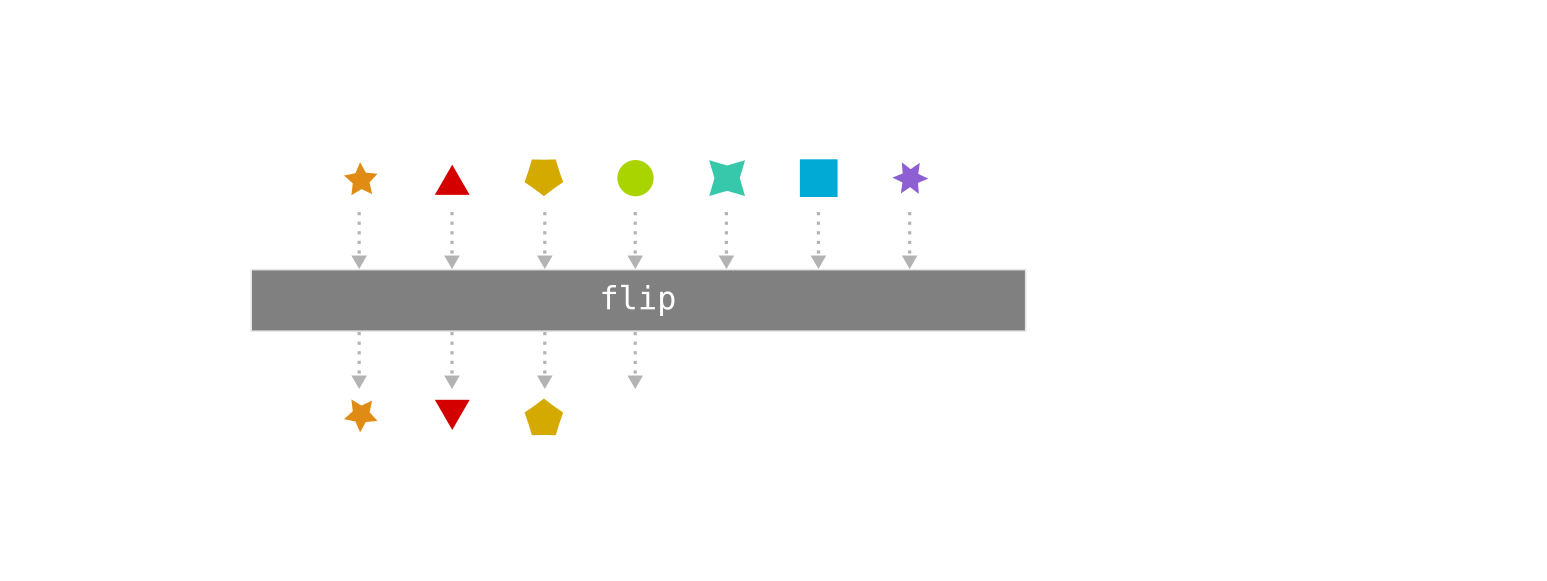

Marble diagrams

a visual representation of data streams & transformations

Image source: https://flic.kr/p/k97UbB

API

How to write RxJS code

Observable

• Accepts an observer: an object with `onNext`, `onError` and `onComplete` methods on it
• Can be `subscribe`d to
• Is lazy: does nothing until subscribed to (cold)
• Returns a unsubscribable function on subscription which stops subscription on `unsubscribe()` call
• Values are not shared between subscribers (cold)
• Has a lot of operators defined to manipulate data streams

Image source: https://flic.kr/p/esT1Qa

Observable

import { Observable } from 'rx';

// Contract: Observer needs to implement the following methods
// `onNext`, `onCompleted` and `onError`.
const source = Observable.create((observer) => {
  // Yield a single value and complete
  observer.next(42);
  observer.complete();

  // Any cleanup logic might go here.
  return () => {
    console.log('unsubscribed');
  }
});

const subscription = source.subscribe(
  (x) => { console.log('next: %s', x); },
  (e) => { console.log('error: %s', e); },
  ()  => { console.log('complete'); });

// => next: 42
// => complete

subscription.unsubscribe(); // => unsubscribed

Image source: https://flic.kr/p/esT1Qa

Observer

• Can be subscribed to Observables
• Receives emissions & notification from the Observables

import { Subscriber } from 'rxjs/Subscriber';

const subscriber = Subscriber.create(
  function next(x) {
    console.log('Next: %s', x);
  },
  function error(err) {
    console.log('Error: %s', err);
  },
  function complete() {
    console.log('Completed');
  }
);
// Usage
Observable
  .interval(1000)
  .take(3)
  .subscribe(subscriber);

Image source: https://flic.kr/p/esT1Qa

Subject

• Inherits from both, Observable and Observer
• Can be used as a proxy in between Observable(s) and Observer(s) to multiplex data streams

import { Observable, Subject } from 'rx';

// Emit a value every second.
const source = Observable.interval(1000);

const subject = new Subject();

const subSource = source.subscribe(subject);

const subSubject1 = subject.subscribe(
    (x) => { console.log('Value published to observer #1: ' + x); },
    (e) => { console.log('onError: ' + e.message); },
    ()  => { console.log('onCompleted'); });

const subSubject2 = subject.subscribe(
    (x) => { console.log('Value published to observer #2: ' + x); },
    (e) => { console.log('onError: ' + e.message); },
    ()  => { console.log('onCompleted'); });

setTimeout(function () {
    // Clean up
    subject.onCompleted();
    subSubject1.dispose();
    subSubject2.dispose();
}, 5000);

// Value published to observer #1: 0
// Value published to observer #2: 0
// Value published to observer #1: 1
// Value published to observer #2: 1
// Value published to observer #1: 2
// Value published to observer #2: 2
// Value published to observer #1: 3
// Value published to observer #2: 3
// onCompleted
// onCompleted

Image source: https://flic.kr/p/esT1Qa

Subject

• ReplaySubject
  Stores all values that it has published and replays them on each new subscription
• BehaviourSubject
  Same as `ReplaySubject`, but only repeats the last value
• AsyncSubject
  Stores last value and replays it only after the source has completed.

Image source: https://flic.kr/p/esT1Qa

Scheduler

• Controls when subscriptions start and when notifications are sent to Observers
• Will not go into details, but:
  • Can be used to simplify testing of async code
  • RxJS provides a `TestScheduler` that allows to create, publish and subscribe to sequences in emulated time, e.g. transform a 5 day task into a 2 min task, while maintaining the correct time scale
  • Further read

Image source: https://flic.kr/p/biWKFi

Hot vs. cold Observables

• DVD (cold): Observers watch independently
• Live performance (hot): Observers watch together, if you're late, you'll miss parts of the show
• Live performance recorded (hot): Even if you're late you can go back in time and re-watch what you've missed
• Live performance with lazy artists (hot): Artists won't play until somebody is there to watch

Analogy: (Live) Band performance

Image source: https://flic.kr/p/q6jVxA

Hot vs. cold Observables

• Cold = Observables are lazy
  • Observables start running on subscription (default)
• Hot = Observables are non-lazy
  • Emit even without Observers
    `publish()`, e.g. mouse events
  • Provide previous data to late Observers
    e.g. `ReplaySubject`
  • Don't emit values without Observers
    `share()` or `publish().refCount()`

Image source: https://flic.kr/p/q6jVxA

Let's get
our hands dirty

Image source: https://flic.kr/p/4YphW4

Create Observables from

• Any list-like objects
• Intervals
• Promises
• Events
• ... many more

Any list-like objects

import { Observable } from 'rx';

const source = Observable.of('RxJs', 'is', 'awesome');
const subscription = source.subscribe(
  (x) => console.log(x),
  (e) => console.error(e),
  ()  => console.log('completed')
);

// RxJs
// is
// awesome
// completed

Intervals

import { Observable } from 'rx';

const source = Observable.interval(1000)
    .timestamp() // add current timestamp
    .take(3); // take only the first three items of the Observable

const subscription = source.subscribe(
    (x) => console.log(x),
    (e) => console.error(e),
    ()  => console.log('completed')
);

// Object {value: 0, timestamp: 1463409084511}
// Object {value: 1, timestamp: 1463409085512}
// Object {value: 2, timestamp: 1463409086513}
// completed

Promises

import { Observable } from 'rx';

const promiseFn = () => {
  return new Promise((resolve, reject) => {
    console.log('Promise started');
    setTimeout(() => {
      console.log('Promise resolved');
      resolve(42);
    }, 1000);
    console.log('Promise in flight');
  });
};

const source = Observable.fromPromise(promiseFn);
const subscription = source.subscribe(
  (x) => console.log(x),
  (e) => console.error(e),
  ()  => console.log('completed')
);
// Promise started
// Promise in flight
// Promise resolved
// 42
// completed

Events

import { Observable } from 'rx';

const source = Observable.fromEvent(document, 'mousemove')
  .map(event => `Cursor at: ${event.clientX}, ${event.clientY}`)
  .first(5);

const subscription = source.subscribe(
  (x) => console.log(x),
  (e) => console.error(e),
  ()  => console.log('completed')
);

// Cursor at: 20, 170
// Cursor at: 53, 156
// Cursor at: 82, 146
// Cursor at: 111, 135
// Cursor at: 125, 131
// completed

Modify data streams with

• map
• merge
• mergeMap
• switchMap
• startWith
• merge
• combineLatest

• concat
• pluck
• bufferCount
• bufferTime
• debounce
• distinctUntilChanged
• ... many more

Example #1

Task:

• Asynchronous search via AJAX
• Don't search on each keypress
• Don't search twice if result is same
• Cache results

Debounced search with cached results

Example #2

Task:

• Asynchronous call to some node like method
• If call does not succeed try N more times
  (Bonus: with increasing time interval)

Async call with N retries

Example #3

Task:

• On mousedown activate drag-mode for element
• On mousemove move element to current mouse cursor position
• On mouseup deactivate drag-mode again

Drag & Drop

Drag & Drop

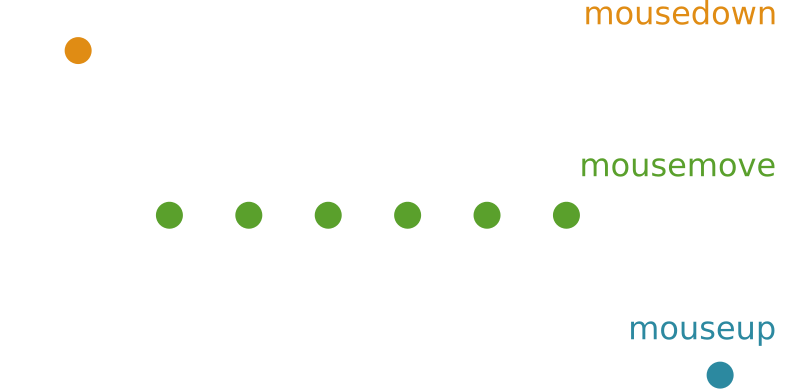

Independent Observables

Drag & Drop

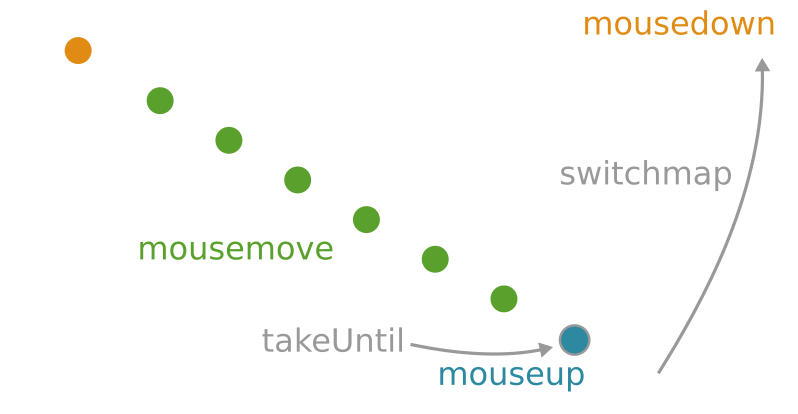

How to compose Observables?

Drag & Drop

Composed Observable

Demo #4

Task:

• Use Observables to escape callback hell

Escape callback hell
