Styling and Layout with CSS

Text

The Web

HTML Meaning and Content
CSS Presentation & Style
Javascript Scripting, manipulate everything about the page
HTTP Transport, client-server behavior

CSS

  • Style sheet language
  • Associates style rules with HTML elements
  • Reusable
  • Styles "cascade", or have known order of precedence
  • 2 Parts: selection of elements to apply style property values
    (MDN Web Docs)

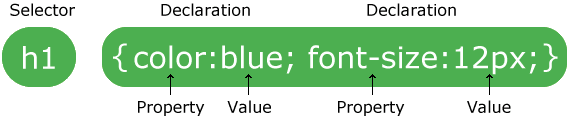

Syntax

  • Each rule has one or more selectors and a declaration block
  • Declaration block contains a set of properties with their values
body {
    font-family: Arial, Verdana, sans-serif;
    font-size: 12px;
    color: #6605AA;
}

Selectors

Select which HTML elements the rule(s) apply to

/* Select all elements */
* { }

/* Select specific elements, here all <h1>, <h2> and <h3>
(using grouping syntax) */
h1, h2, h3 { }

/* Select all elements where class attribute has value "questions" */
.questions { }

/* Select all <p> elements where class attribute has value "questions" */
p.questions { }

/* Select all elements where id attribute has value "topstory" */
#topstory { }

And lots more

See CSS docs, Section 5.1

/* Matches any F element that is a descendant of an E element */
E F { }
h1 { color: red }
em { color: red }
h1 em { color: blue }

/* Matches any F element that is a child of an element E */
E > F { }
body > P { line-height: 1.3 }/* Matches any F element immediately preceded by a sibling element E */
E + F { }
h1 + h2 { margin-top: -5mm }/* Matches element E when E is the first child of its parent (pseudo-class) */
E:first-child { }p:first-child em { font-weight : bold }/* Matches element E if E is the source anchor of a hyperlink
of which the target is not yet visited or already visited (pseudo-class)*/
E:link { }
a:link { color: blue}
E:visited { }
a:visited{ color: green}



/* Matches E during certain user actions (pseudo-class)*/
E:active { }
E:hover { }
E:focus { }

/* Matches any E element with the "foo" attribute set (to any value) */
E[foo] { }

/* Selectors can be combined: */

div p *[href] { }
div ol>li p { }
a:active  { color: lime }   /* active links    */
a:hover   { color: yellow } /* user hovers     */

a:focus { background: Azure}
h1[title] { color: Azure; }

Precedence (Cascading)

When two or more selectors match an element:

  • If identical, the latter one applies, otherwise
  • The more specific one takes precedence (specificity)
  • A rule labeled "!important" indicates it should take precedence
Inherited styles Lowest specificity of all selectors - since an inherited style targets the element's parent, and not the HTML element itself.
* Lowest specificity of all directly targeted selectors
element Higher specificity than universal selector and inherited styles.
attribute Higher specificity than element selector
class Higher specificity than attribute, element and universal selectors.
ID Higher specificity than class selector.
Combined selectors Gets the specificity of the selectors combined.
CSS properties set directly
on element, inside style attribute.		 Stronger specificity than ID selector.

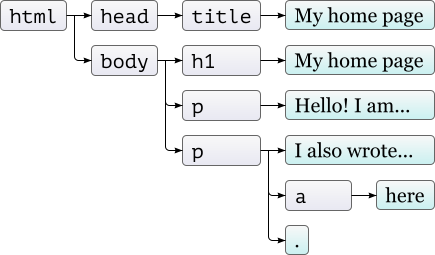

Inheritance

  • Elements inherit some properties from their parent in the DOM tree
  • e.g. font-family, font-size , font-weight, color are inherited
  • You can force inheritance of a parent's property with the "inherit" value
<!doctype html>
<html>
  <head>
    <title>My home page</title>
  </head>
  <body>
    <h1>My home page</h1>
    <p>Hello, I am Marijn and this is my home page.</p>
    <p>I also wrote a book! Read it
      <a href="http://eloquentjavascript.net">here</a>.</p>
  </body>
</html>

Properties

Just about anything you can think of. Properties for:

  • Colors
  • Fonts, font weight
  • Borders
  • Animations: hover, fade,
  • Spacing, position, margins, alignment
  • Layout of elements and flow

Full list

Where to put it?

  • In the element
  • In the head of the document
  • In a separate file, "imported" via a link element

In the element

<p style="font-family:tahoma"> Lorem ipsum dolor sit amet consectetur adipisicing
<span style="vertical-align:sub;border-style:dotted;border:3px dotted rgb(255, 0, 212);border-radius:20px;font-size:120%;font-family:Impact, sans-serif">elit.</span>
</p>

In the head of the document

<head>
    <style type="text/css">
        body {
          background-color: silver;
          color: white; }
    </style>
</head>

In a separate file

/* File: css/styles.css */
body {
  background-color: silver;
  color: white;
}

ul li {
    line-height: 1.5;
    background-image: url(star.svg);
}
<!--index.html-->
<head>
    <link rel="stylesheet" href="css/styles.css">
</head>

Examples

From HTML & CSS book

Code examples

CSS

By drmorgan

CSS

Introduction to CSS for 366
