Anomaly Detection meets
Deep Learning

Berkeley Statistics and Machine Learning Forum

Find the slides at

On the menu today

  • Auto-Encoders
  • GANs
  • Likelihood-Based models

Disclaimer: This is NOT an exhaustive review, there are many hundreds of anomaly detection papers out there


Also, remember our session last year led by Ben Nachman

The AutoEncoder Approach

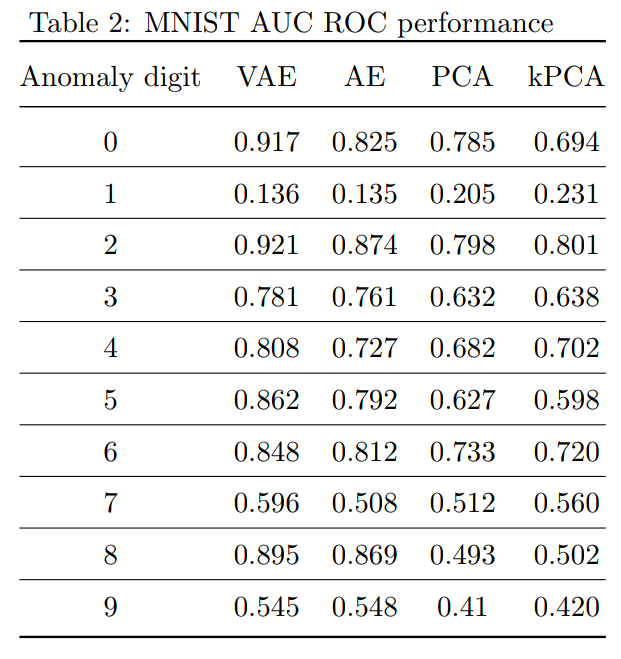

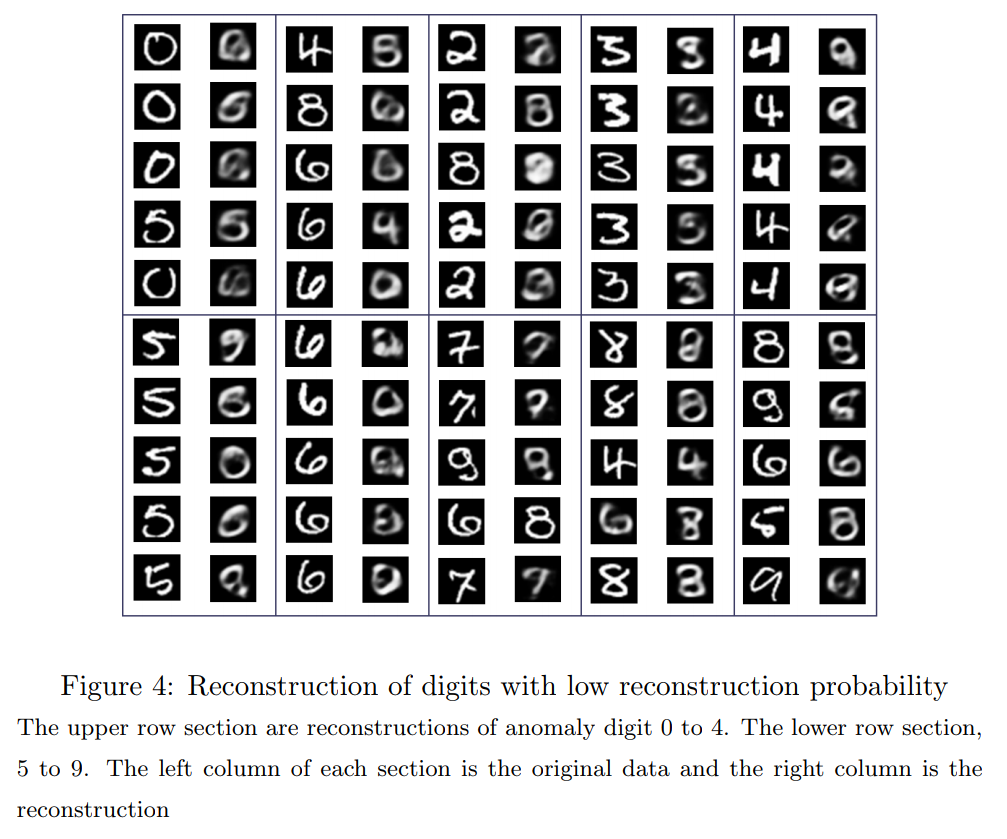

Variational Autoencoder based Anomaly Detection

An & Cho 2015

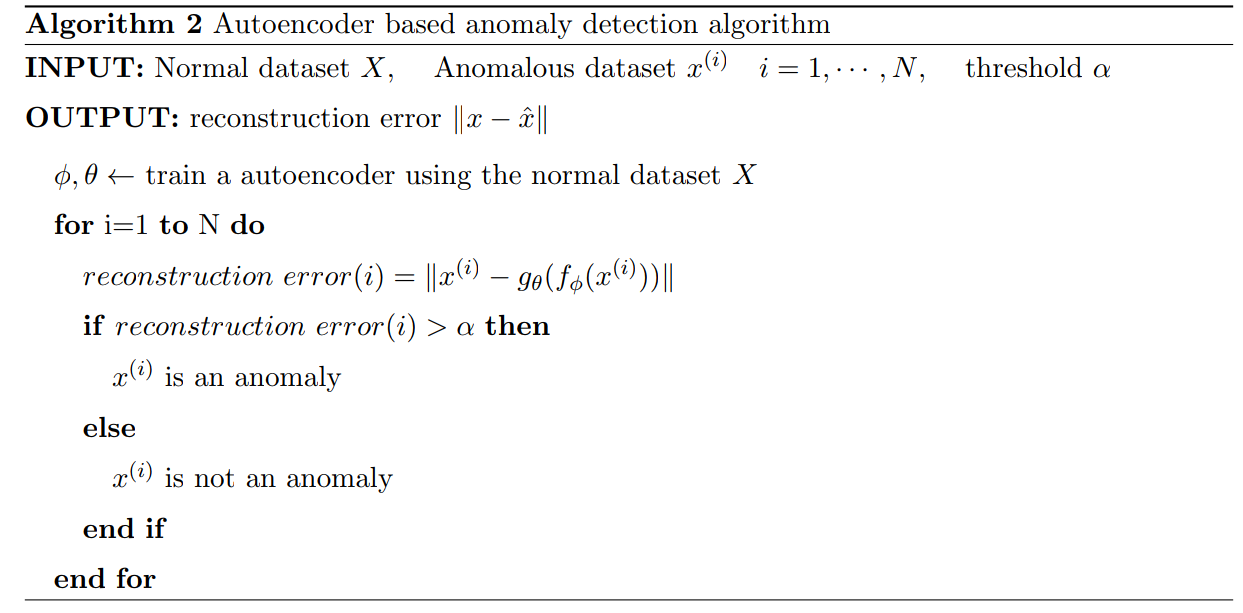

The simple  autoencoder approach

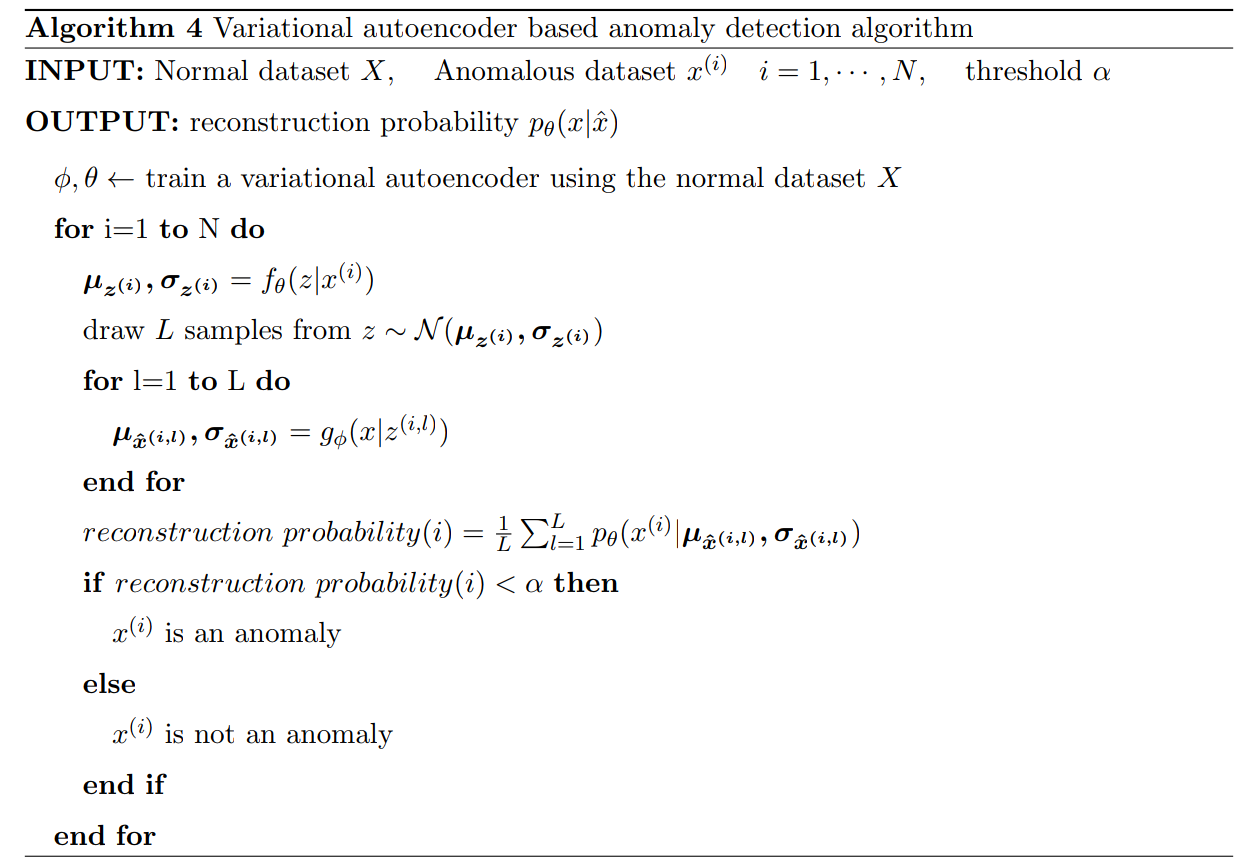

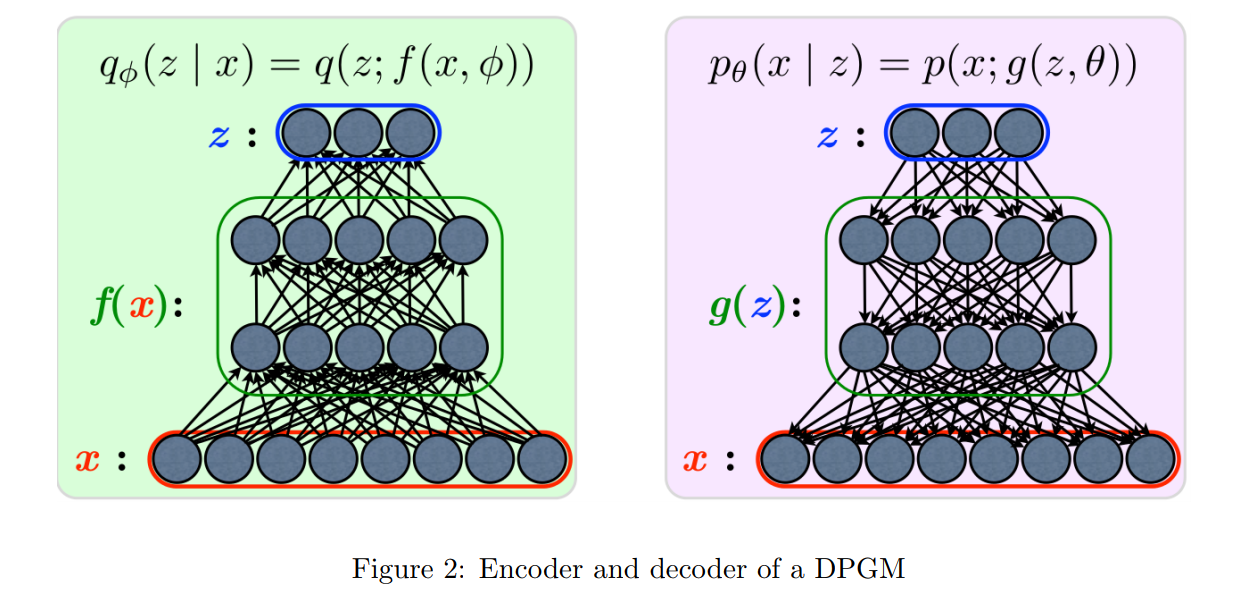

The Variational AutoEncoder

Because a number of samples are drawn from the latent variable distribution, this allows the reconstruction probability to take into account the variability of the latent variable space, which is one of the main distinctions between the proposed method and the autoencoder based anomaly detection.

Difference from an autoencoder based anomaly detection

  • Latent variables are stochastic variables, capturing not only means but also variance of the model
  • Reconstructions are stochastic variables, capturing variance of the signal
  • Reconstructions are probability measures, can incorporate heterogenous data


Applications in Particle Physics

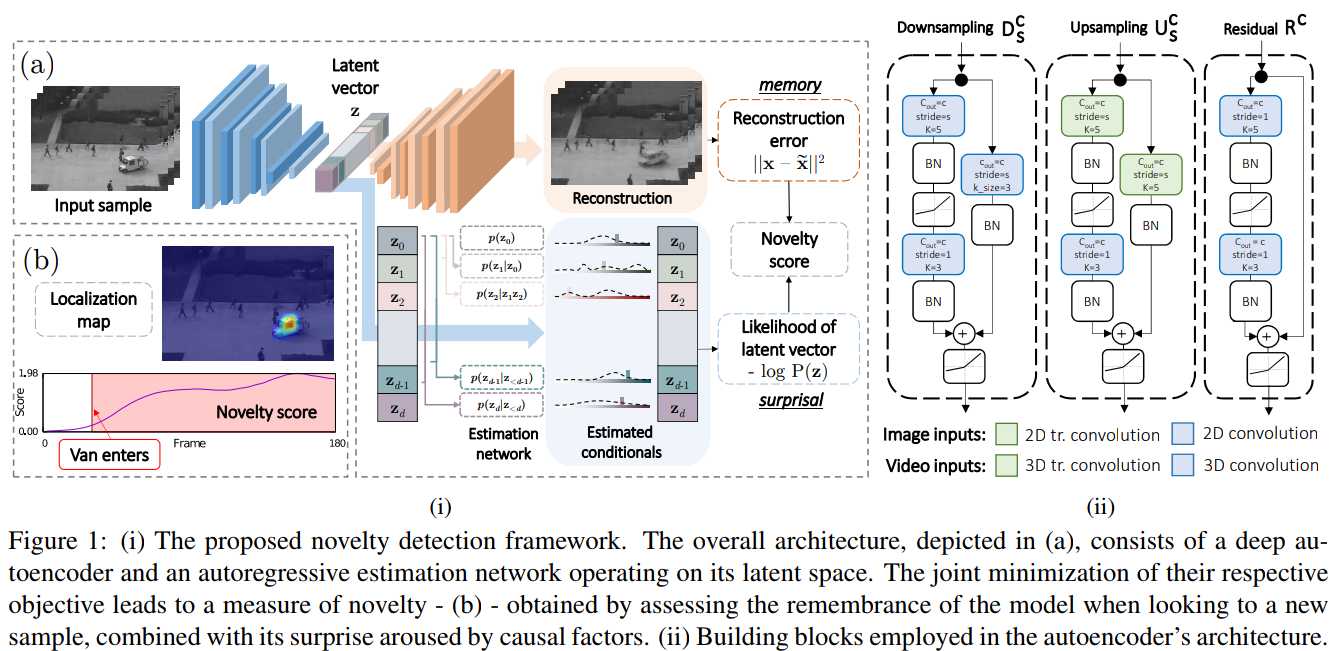

Another interesting paper using autoencoders with a latent space model

Latent Space Autoregression for Novelty Detection, Abati et al. 2019

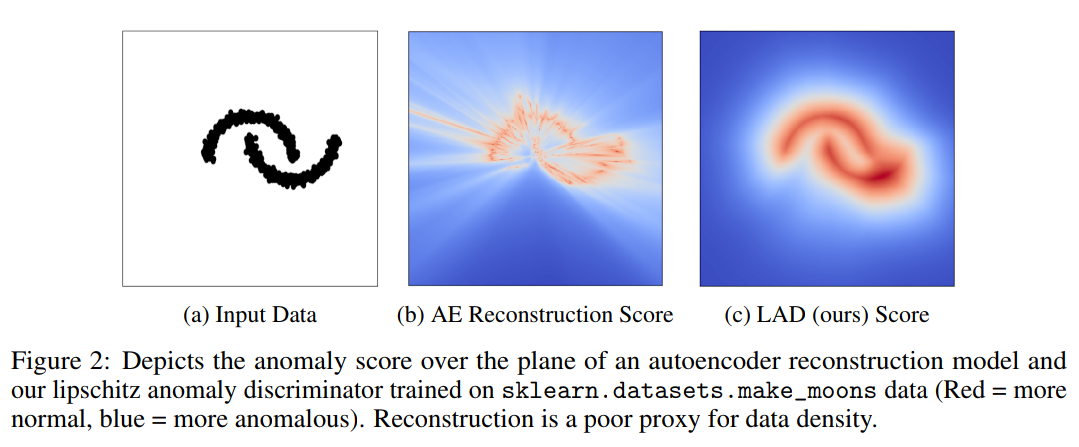

Are autoencoders so great?

Anomaly Detection,
the GAN way

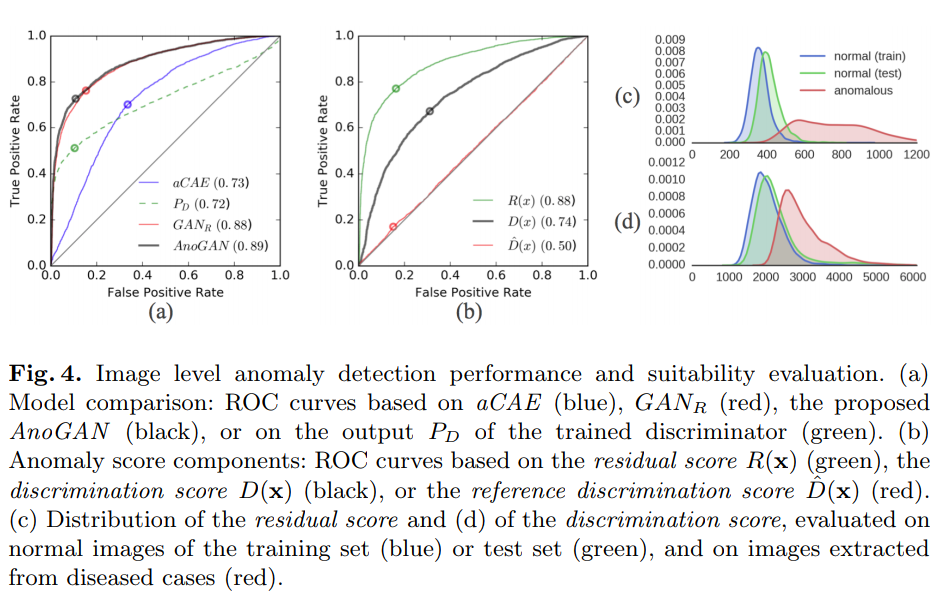

Unsupervised Anomaly Detection with
Generative Adversarial Networks to Guide Marker Discovery

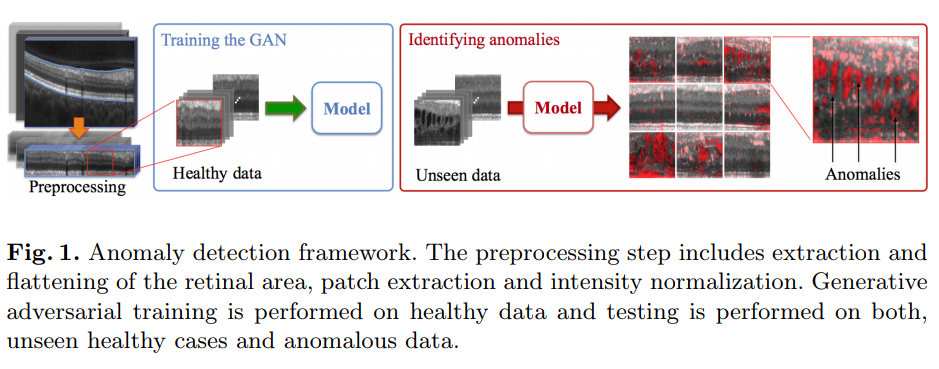

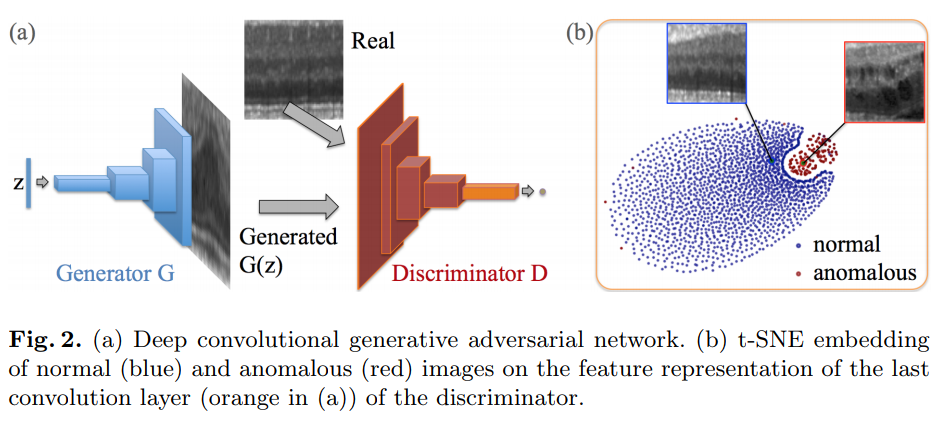

The idea

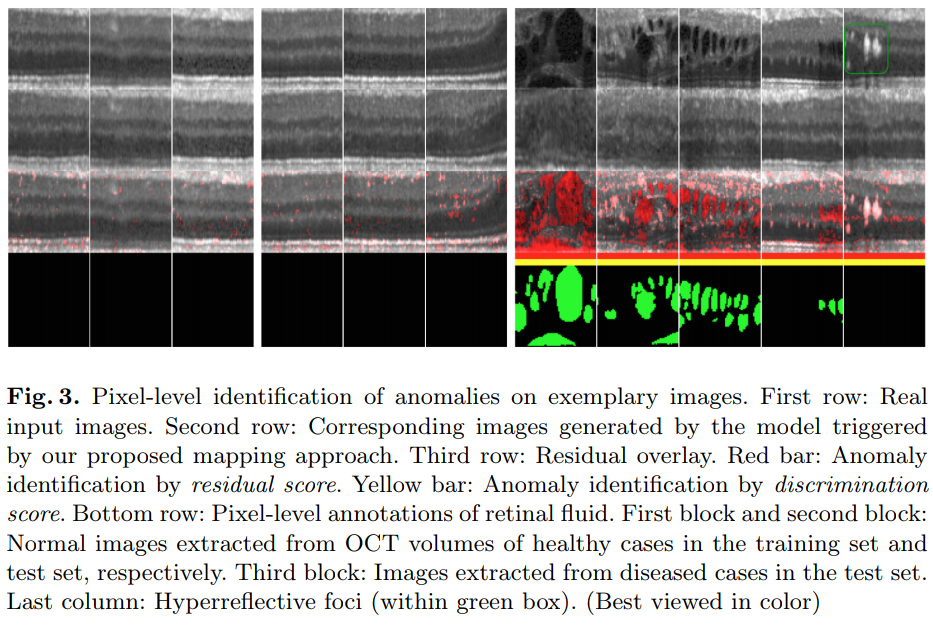

Building an anomaly score

  • Mapping new images to latent space by minimizing the residual loss:

  • And a discrimination loss:

  • For each image x, z is optimized to minimize:



This loss after optimization will be the anomaly score


Application on astronomical images

Work led by the amazing Kate Storey-Fisher (NYU) @kstoreyf

Real HSC images

GAN generated images

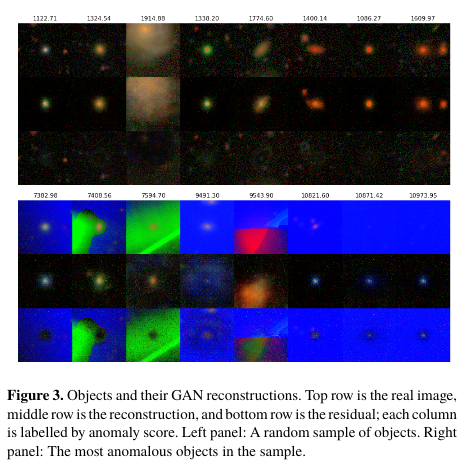

Low and high anomaly scores

Anomaly Detection with Likelihood models


Nalisnick et al. 2019

I recommend checking out this great set of slides:
