0 to 60 fps

Elad Bezalel

Senior FE @ Lemonade

Web Technologies & Angular GDE

Why bother?

Pre-rendered animations

Animation types

GIFs

  • Just drop in page
  • Loopable

Pros

Cons

  • No playback control
  • 256 bits

Good for

  • Spinners

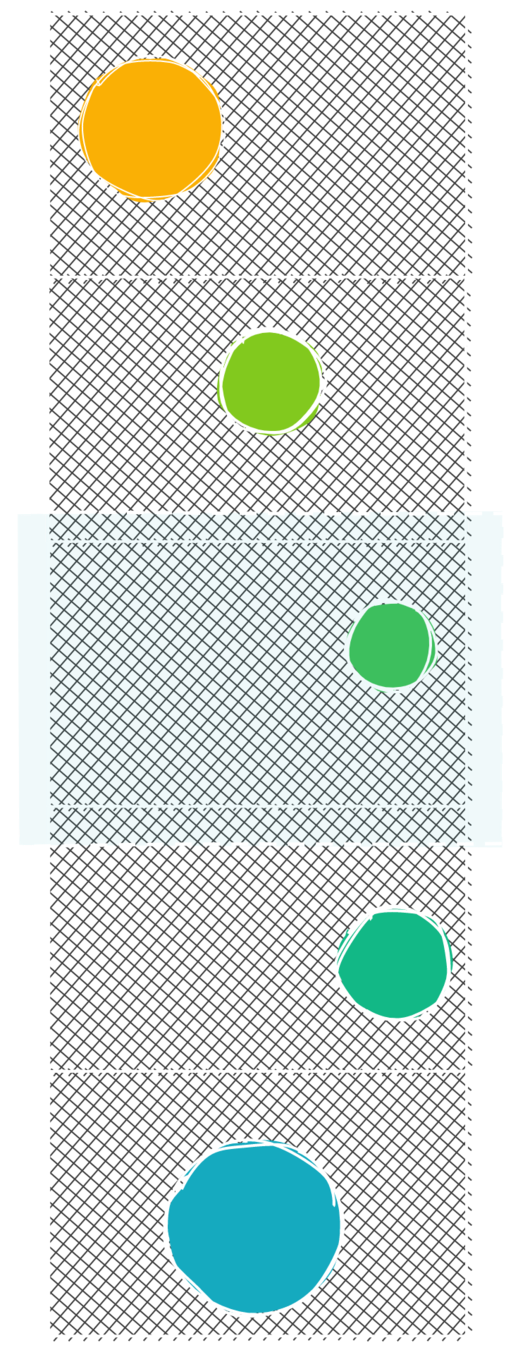

Image sequence

frames

current frame

  • It’s just an image (lossless if you use PNGs)
  • Playback control
  • Animators get exactly what they want

Pros

Cons

  • Heavy
  • Needs custom made code/lib to run the animation

Good for

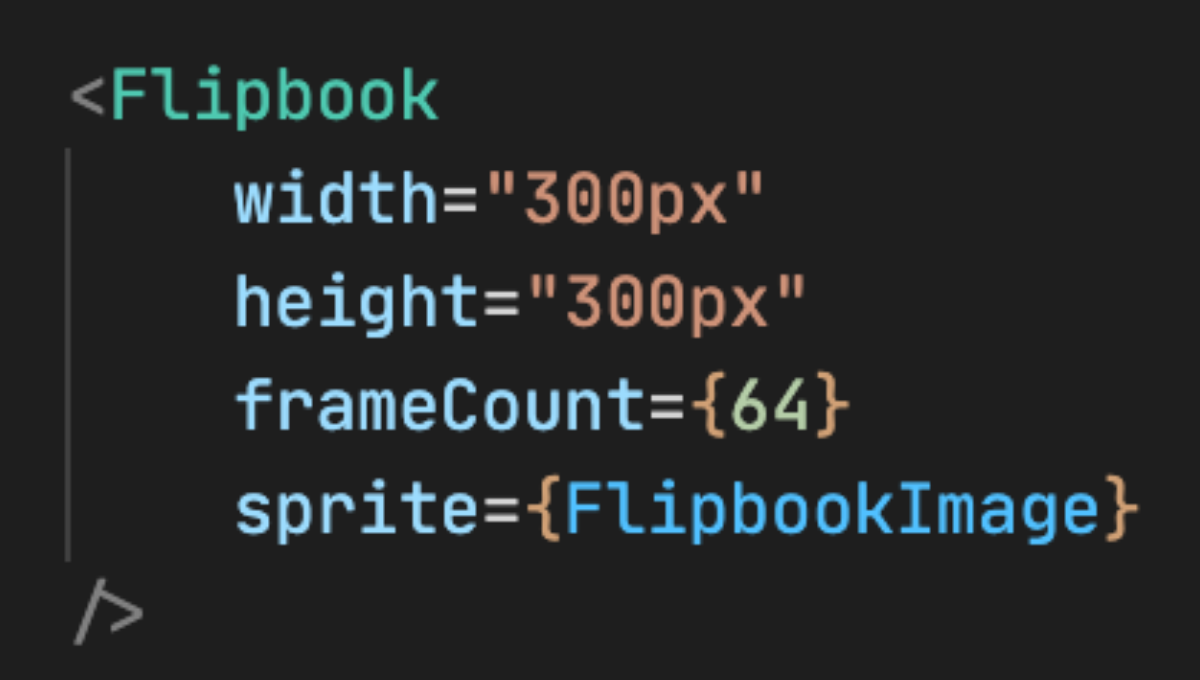

  • Flipbooks
  • Precise animations

19200 x 300

😭

Videos 📹

  • Compressed
  • Playback control
  • No need to involve a developer

Pros

Cons

  • Heavy
  • Changes often require long re-rendering

Good for

  • Background stuff

Lottie

After Effects -> JSON -> Vector animation (SVG)

  • Precise - as the animator created in AF
  • Playback control
  • Lightweight
  • Plug & Play

Pros

Cons

  • Web performance may be slow

Good for

  • Complex vector animations

Generative

Animation types

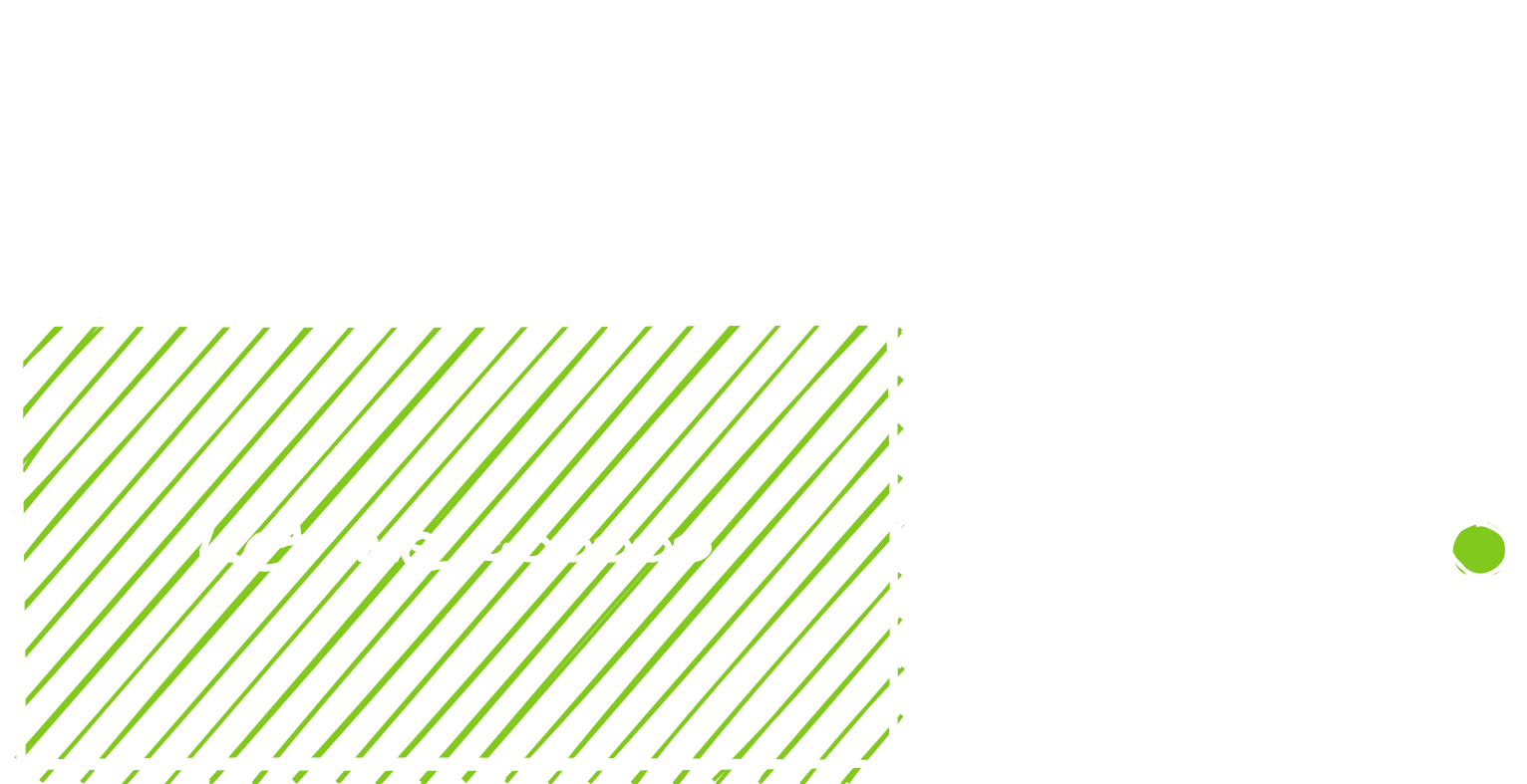

Physics based

  • Feels more natural

  • Lots of libraries

Pros

Cons

  • Designers are not physicists

Good for

  • Moving stuff around

Procedural

  • It’s super cool

  • Mimics natural randomness. No design needed

Pros

Cons

  • Really challenging to do

Good for

  • Games & generative art

User Driven

Animation types

  • Reacts to user interaction

  • Smoothens UX

Pros

Cons

  • Hard to fine-tune to designers wish

Good for

  • User interfaces

Properties of animation

  • Start/intermediate/end states - (from - to)
  • Duration - (1500ms)
  • Delay - (500ms)
  • Framerate - (60fps)

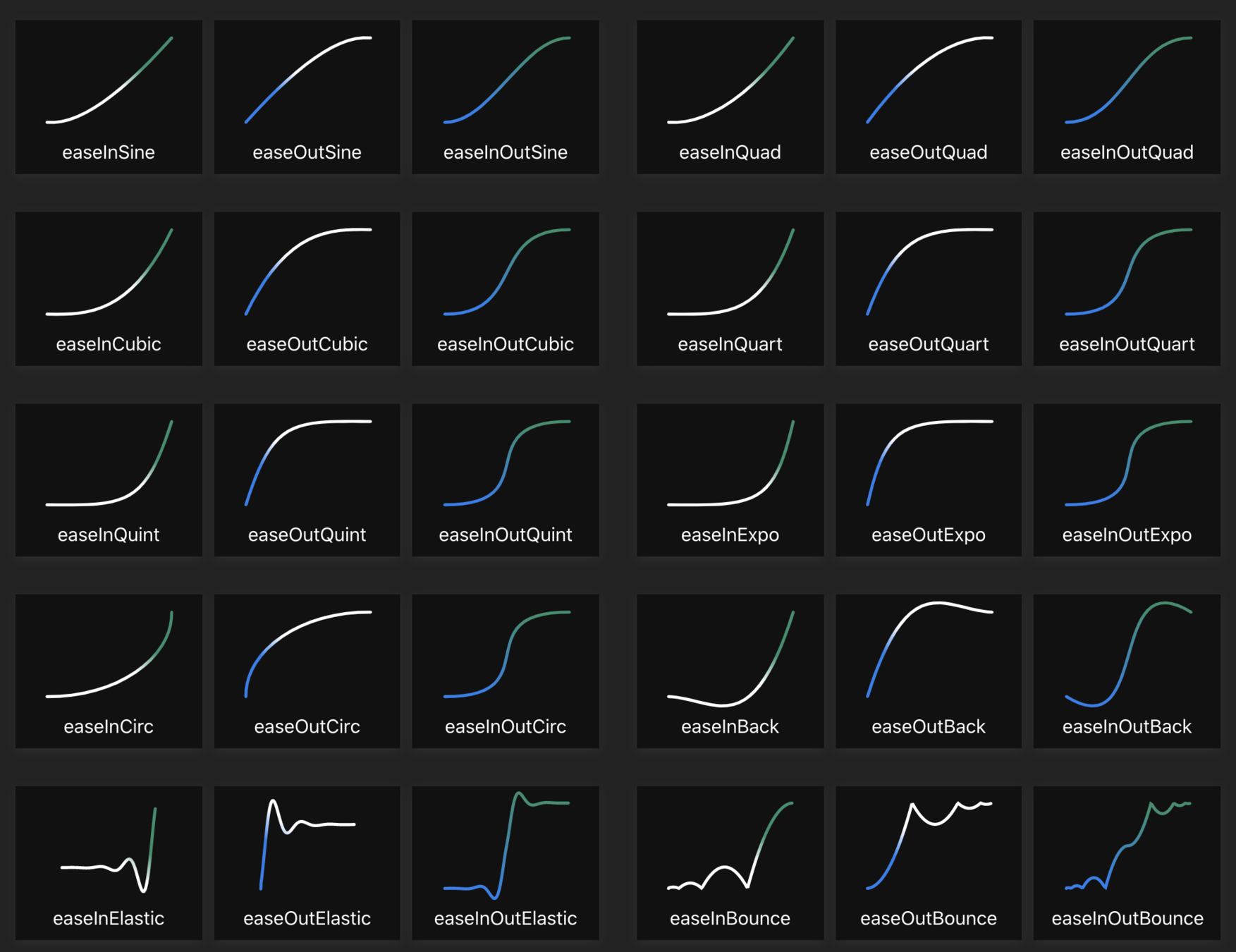

  • Easing / timing function - (linear, easeOutQuad, …)
  • Playback direction - (forward, reversed)
  • Loops - (1, 2, …, infinite)
  • Playback state - (paused/running)

CSS Animations

Easiest & Fastest

CSS Transitions

Animating the visual change between element style states

button {
  background: blue;
  color: white;
  padding: 50px;
  font-size: 50px;
}

button:active {
  background: green;
  transition: background 300ms ease-in;
}
button {
  background:blue;
  color:white;
  padding:50px;
  font-size:50px;

  /* animation css here */
  transition:300ms ease-in;
}

button:active {
  background:green;
}

button:hover {
  background:orange;
}

CSS Keyframes

Reuse a visual change no matter the state

@keyframes rotate {
  from { transform: rotate(0deg); }
  to { transform: rotate(360deg); }
}

.loading-indicator:before {
  animation:800ms rotate infinite ease;
}
@keyframes rotate {
  from { transform: rotate(0deg); }
  to { transform: rotate(360deg); }
}

.loading-indicator:before {
  animation:800ms rotate infinite ease;
}

CSS Animations

Pros

  1. Benefits Cascading
  2. Consistent API
  3. Good for simple animations
.gallery-entry .picture {
  transition:300ms ease-out;
}

.gallery-entry:hover .picture {
  transform:scale(1.2);
}

.gallery-entry.active .picture {
  transform:scale(1.3);
}

#gallery {
  transition:500ms all;
}

@media only screen and (max-width: 600px) {
  #gallery {
    height:calc(200vh - 100px);
    grid-template: repeat(2, 50fr);
  }
}

CSS Animations

Cons

  1. Very difficult to sequence
  2. difficult to intercept and manipulate
  3. No dynamic values*
  4. Runs on the CPU**

Javascript Animations

Tricky and complex

Why Javascript?

  1. More control than CSS Animations
  2. More intuitive than CSS Animations
  3. Build Complex Choreographies

GreenSock

GSAP

  1. More control than CSS Animations
  2. More intuitive than CSS Animations
  3. Animate Anything
  4. Faster than CSS3 animations and transitions
  5. Build Complex Choreographies
  6. Works with SVG
  7. Solve browser compatibility issues
  8. 20x faster than jQuery
  9. 7 million sites use GSAP

Pros

GSAP Example

export function zoomElement(element, onComplete) {
  const { content, picture, title } = getElements(element);

  return new TimelineLite()
    .set(content, { ... })
    .set(picture, { ... })
    .set(title,   { ... })
    .add('start')
    .to(content, 0.5, { ... }, 'start')
    .to(picture, 0.3, { ... },'start')
    .to(title,   0.3, { ... }, 'start')
    .eventCallback('onComplete', onComplete );
}

Declarative Timelines

GSAP

  1. Not as popular as CSS3
  2. Costs money
  3. Less learning resources

Cons

React Animations

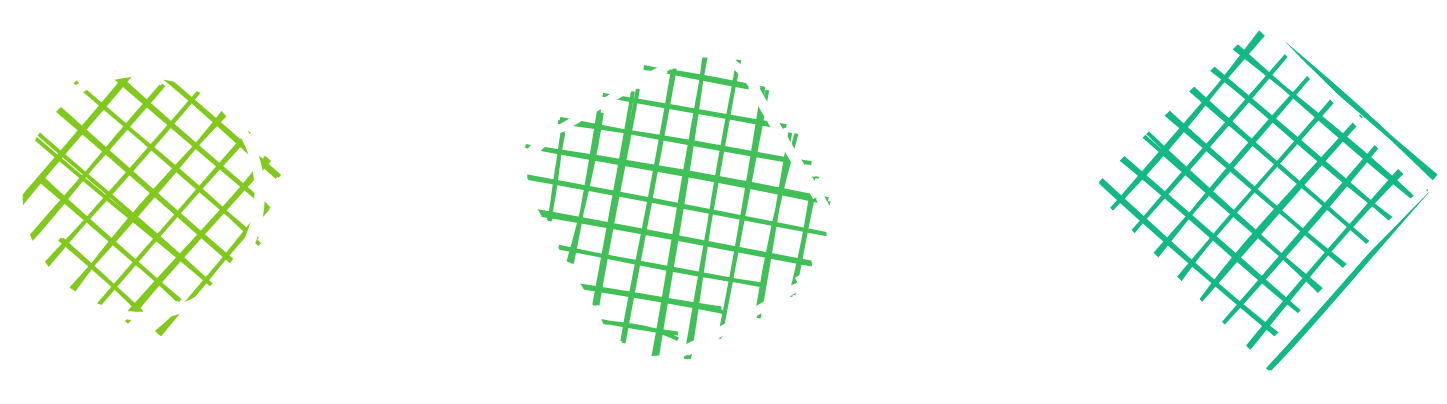

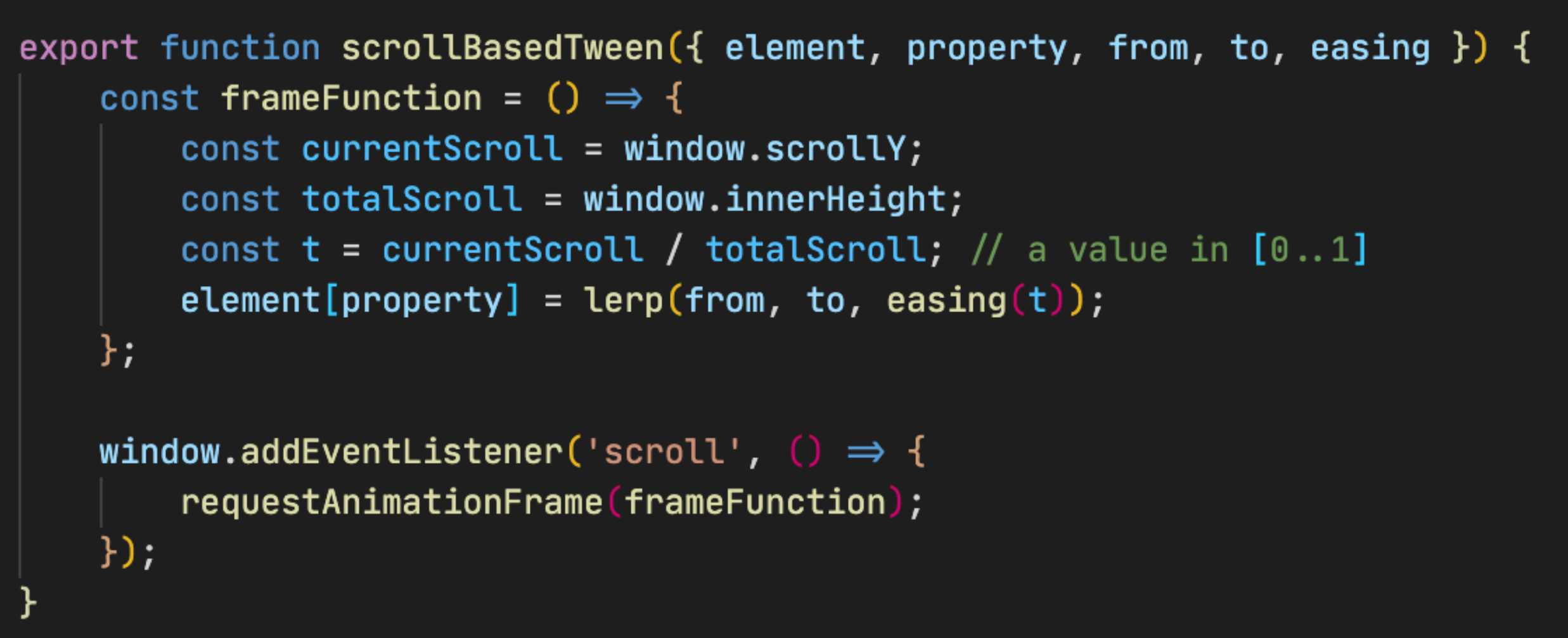

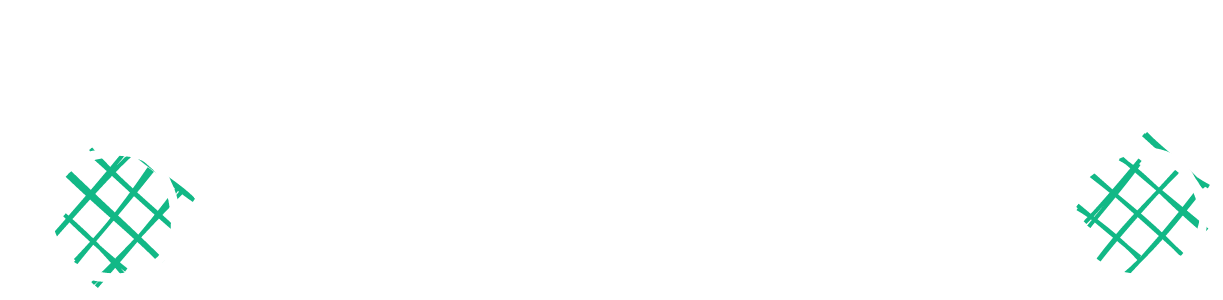

Tweening

Tweening

Tweening

Tweening

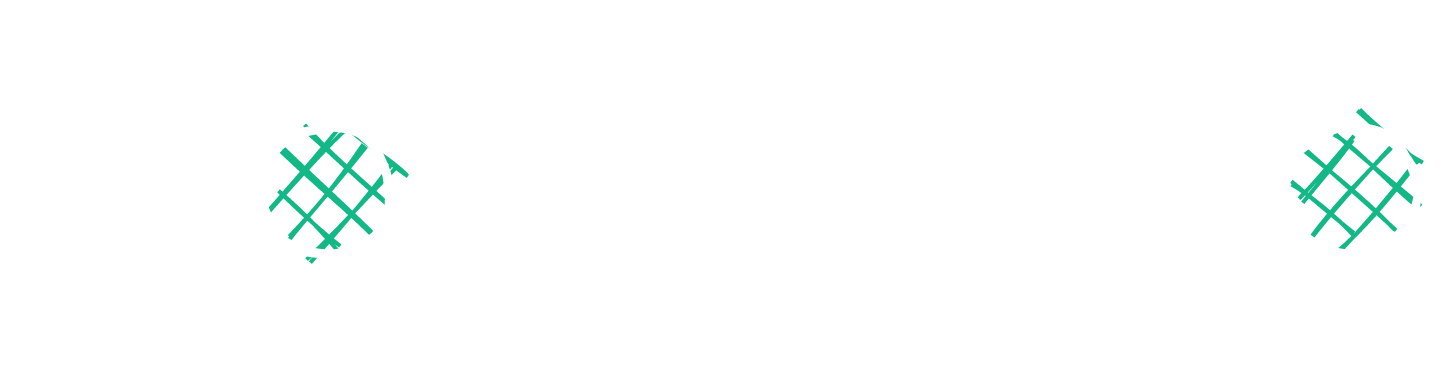

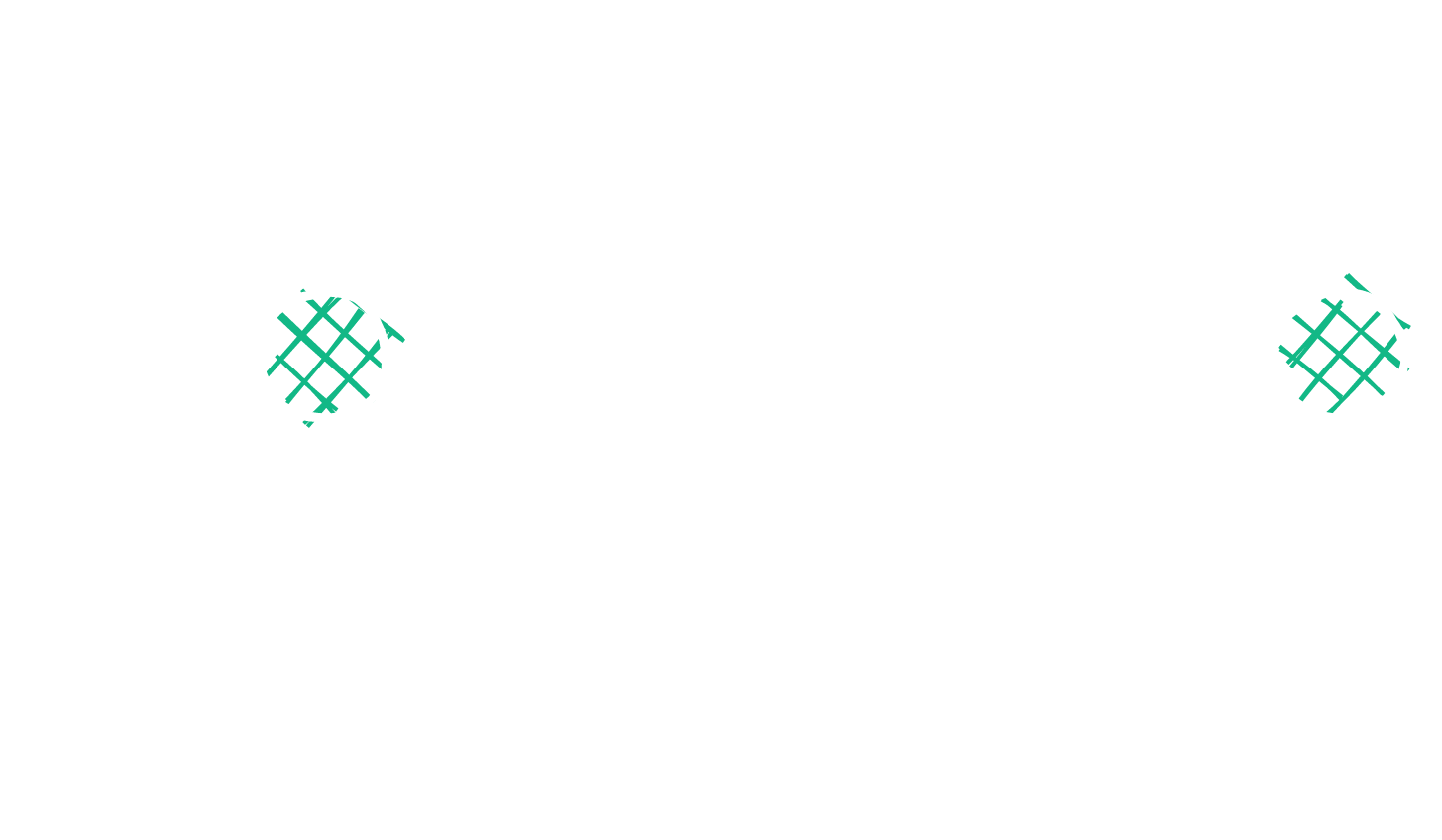

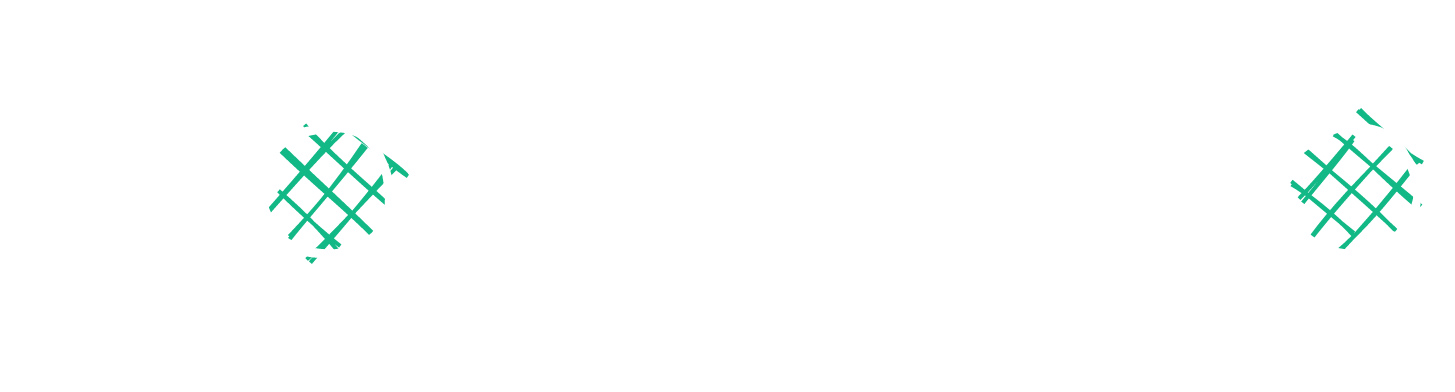

tween = {
    startValue: 0,
    endValue: 10,
    duration: 3000
}

Tweening

Properties of animation

  • Start/intermediate/end states - (from - to)
  • Duration - (1500ms)
  • Delay - (500ms)
  • Framerate - (60fps)

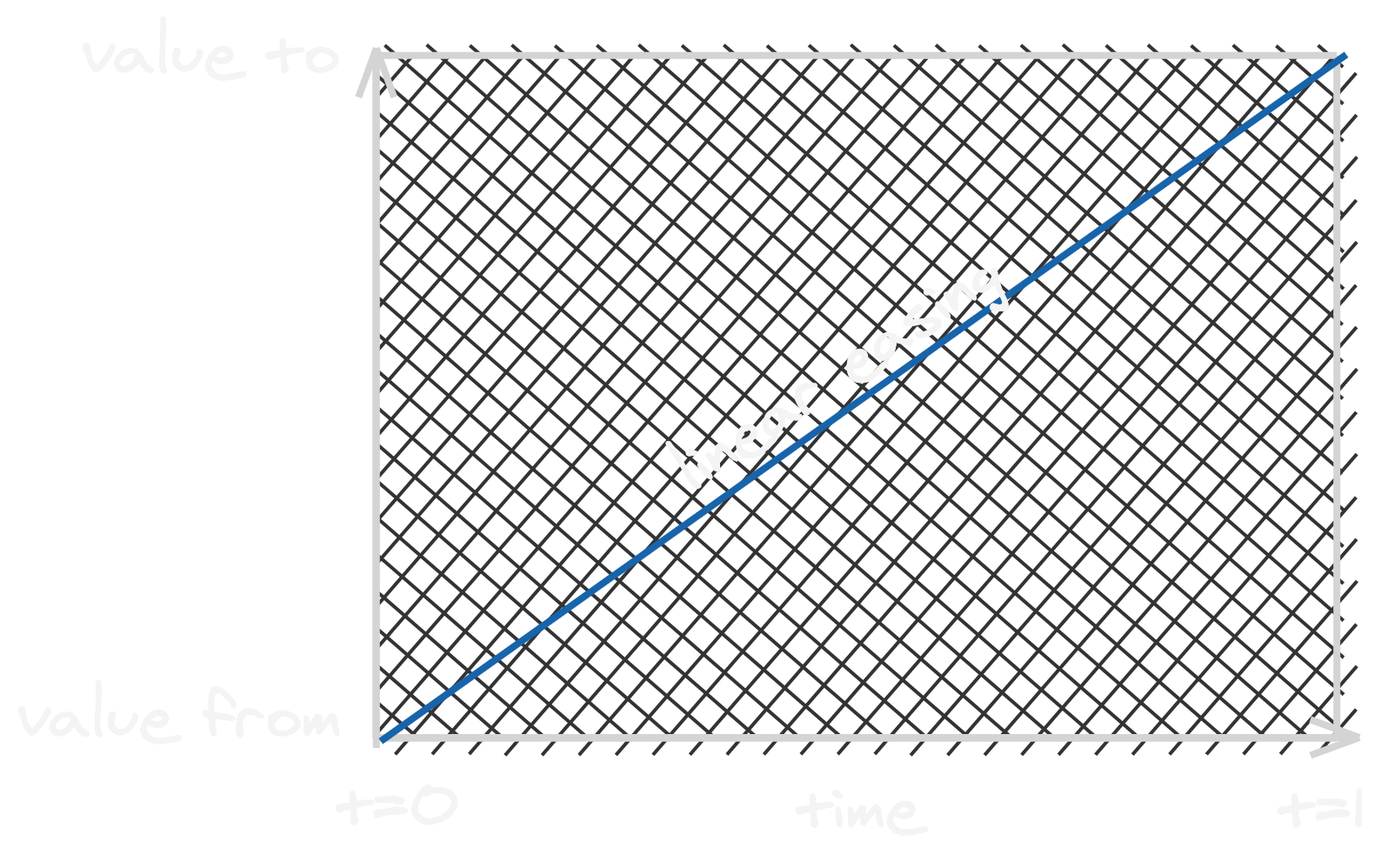

  • Easing / timing function - (linear, easeOutQuad, …)
  • Playback direction - (forward, reversed)
  • Loops - (1, 2, …, infinite)
  • Playback state - (paused/running)

xPosition = {
    startValue: 100,
    endValue: 300,
    duration: 1000
}

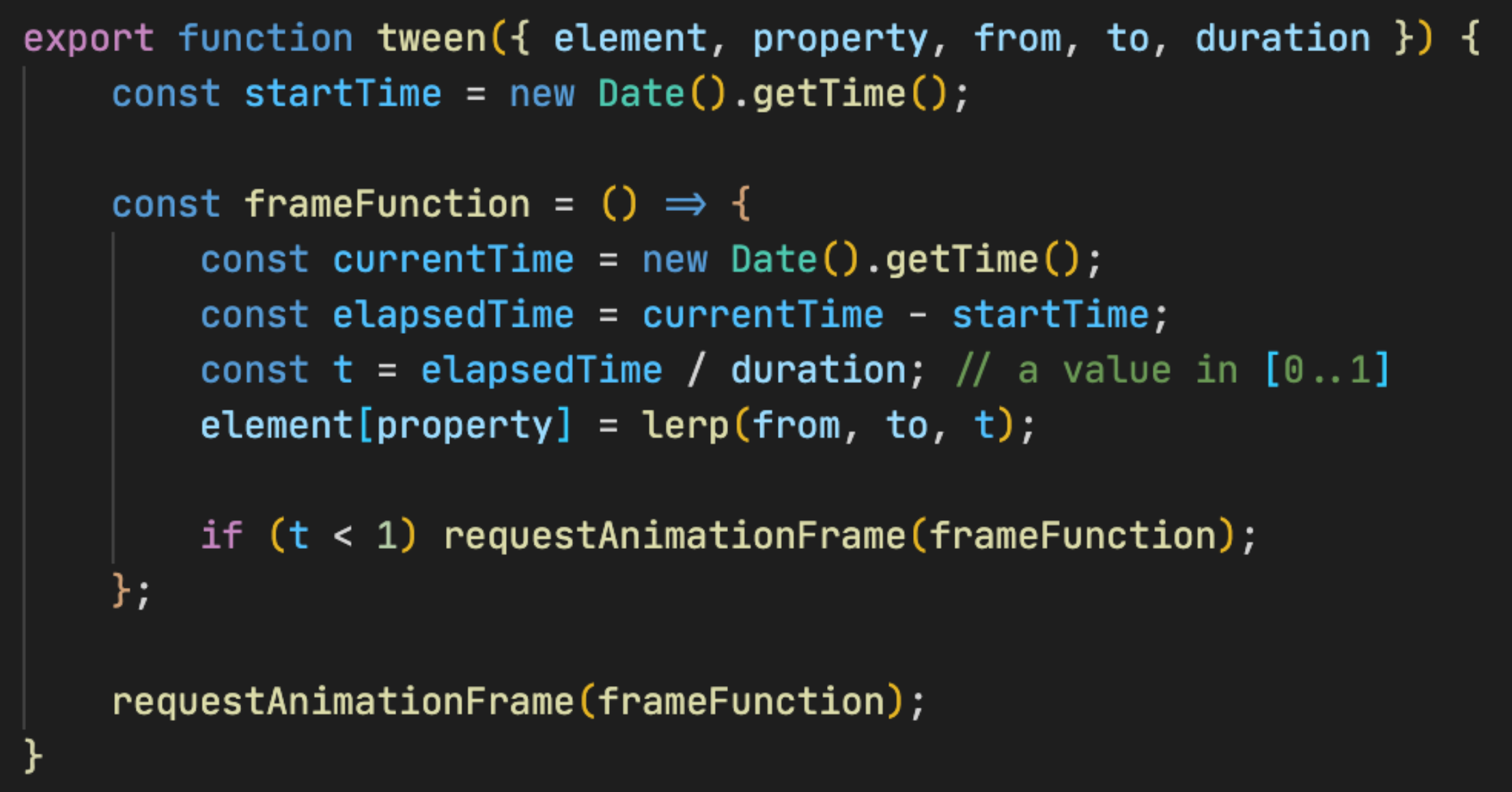

Tweening

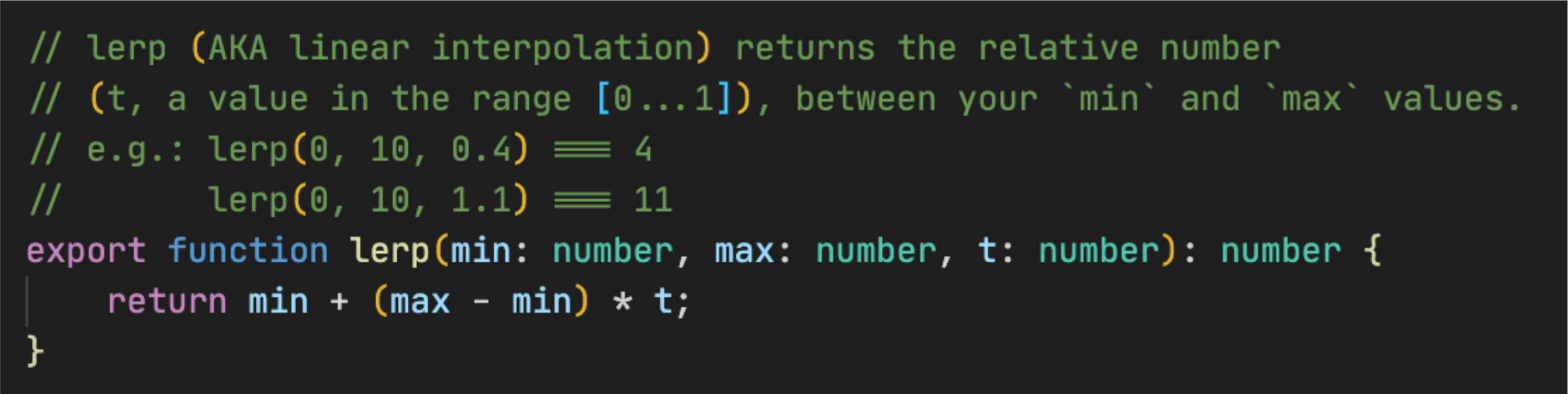

Tweening

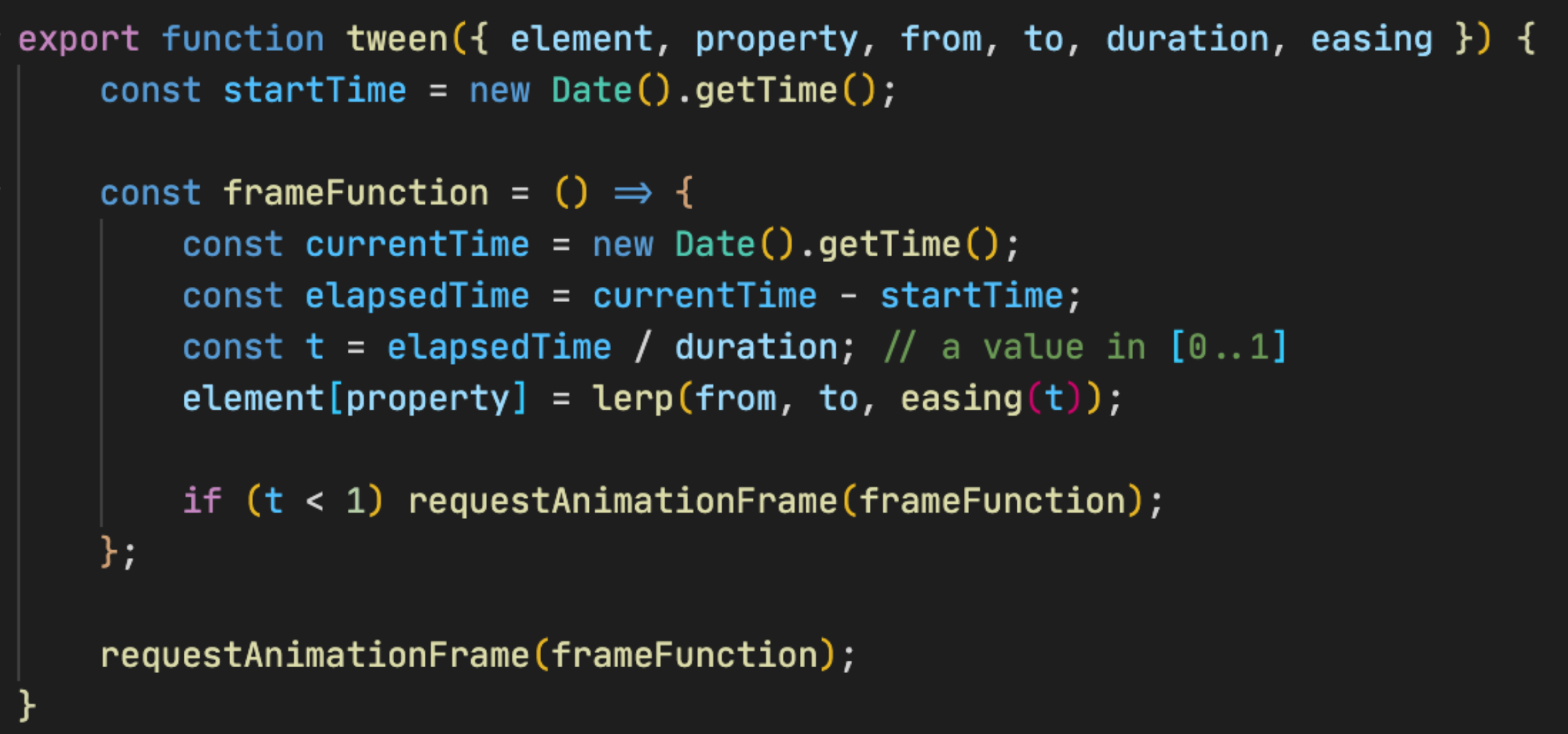

Tweening

Special thanks

Demi Ben-Ari

Shay Davidson

@Elad_Bezalel

Thanks!
