Dynamic Views & Forms

Concepts overview for R&D

configuration

• view-model
• layout

clinical

• model
• meta-data

Evn

lookups

i18n

user data

etc.

Save

Cancel

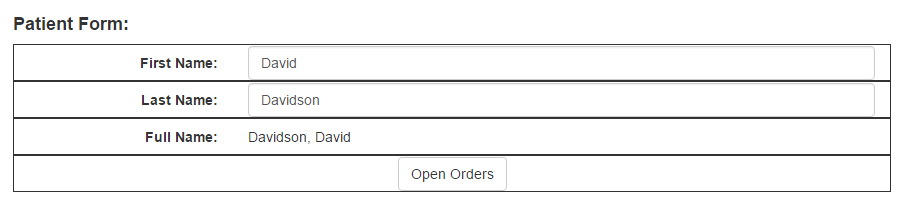

view-model

• describes the form's functionality
• binding (linking data and ui)
• behavior (inter-fields relations, show hide, validations e.g.)
• does not define view properties

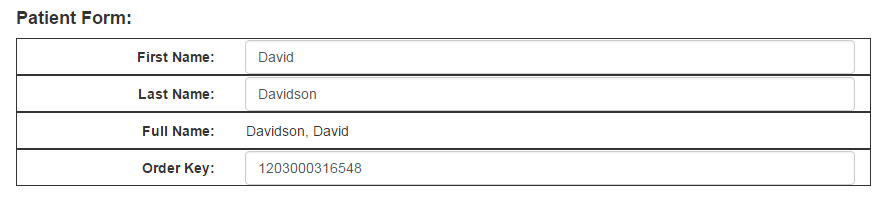

// view-model

{
    lable: 'Patient Form',
    fields: {
        firstNameField: {
            lable: 'First Name',
            path: 'firstName'
        },
        lastNameField: {
            lable: 'Last Name',
            path: 'lastName'
        },
        fullNameField: {
            lable: 'Full Name',
            path: 'fullName'
        },
        orderKeyField: {
            lable: 'Order Key',
            path: 'visit.0.orders.0.orderKey'
        }
    }
}

modularity

 View Model is structured using:

• model properties (e.g. firstName)
• calculated properties (e.g. isOrderCritical())
• Sub View Models
  • Pregnancy Details View Model
  • may be applied to their relevant input
• Custom components
  • Pre-developed components to handle complex structures and behavior

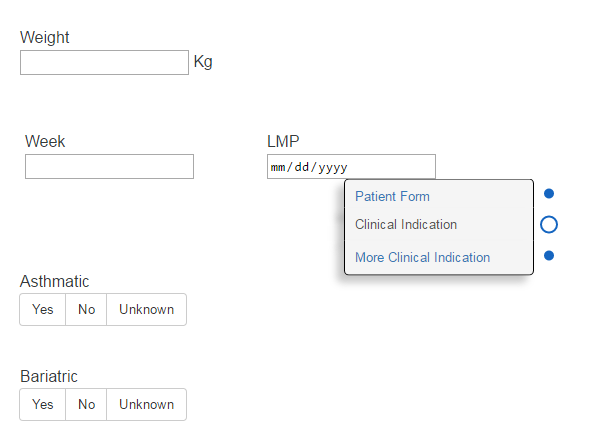

layout

A layout add visual description to the

view model:

• Orientation: Vertical/Horizontal
• Navigation: Tabs etc.

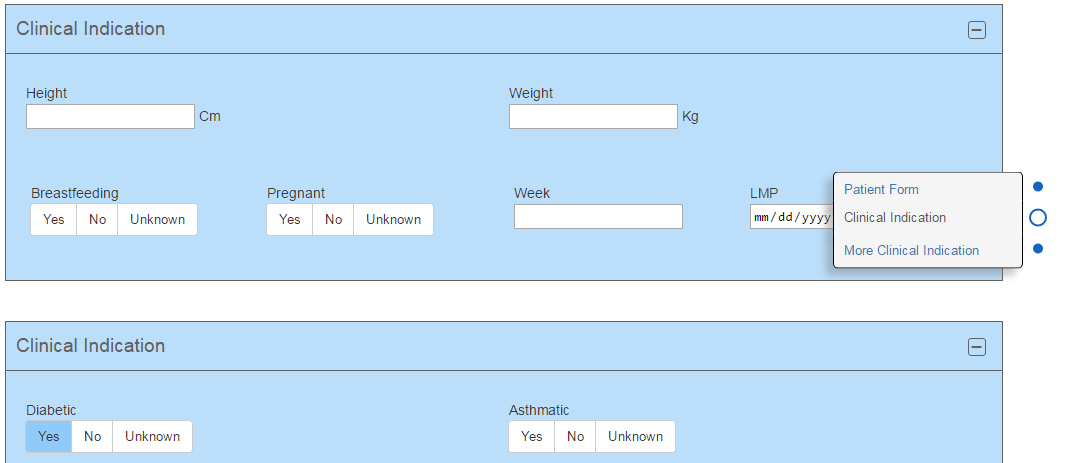

• Collapsible boxes

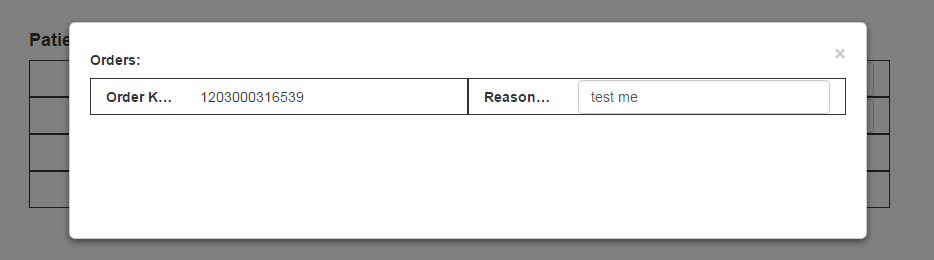

• Pop Up (activated by buttons)
• Styling properties such as colors
• Has the same structure as the view model

• in the future, multiple layouts may be available for a given view model

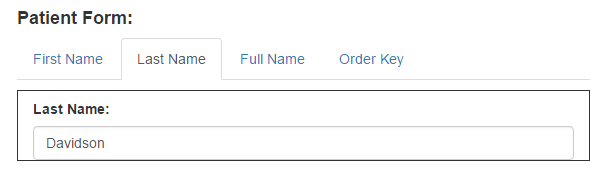

// layout

{
    align: Alignment.Tabs,
    // optional- Alignment.Vertical,
    //           Alignment.Horizontal
    children: [
        {
            fieldName:
                'firstNameField'
        },
        {
            fieldName:
                'lastNameField'
        },
        {
            fieldName:
                'fullNameField'
        },
        {
            fieldName:
                'orderKeyField'
        }
    ]
}

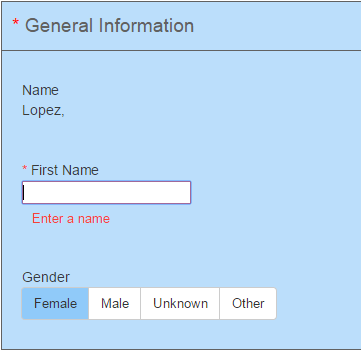

Validations

• field level
• defined in the view model
• visual indication bubble up to the relevant level
• validation for example:
  • is number
  • required

Defaults

• implemented using the view model and/or the model
• require analysis for different scenarios (edit/new for the same field and possibly using the same form e.g.)

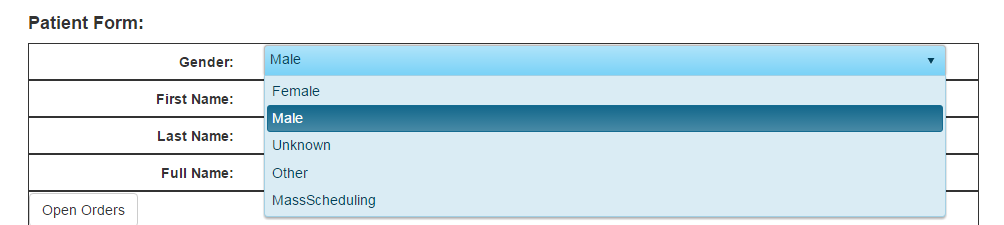

lookups

// model

{
    ...
    genderKey: 2.0,
    FKLookupRows: {
        genderKey: {
            genderKey: 2.0,
            description: "Male"
        }
    }
}

// metadata

{
    ...
    genderKey: {
        type: 'lookup',
        lookupName: 'GENDER',
        lookupKey: 'genderKey',
        lookupDescription: 'description'
    }
}

// view-model

{
    gender: {
        lable: 'Gender',
        path: 'genderKey'
    },
    ...
}
