Elasticsearch
Un camino de ida :)
@elhipernauta
slides.com/elhipernauta/elasticsearch/live
Stop future proofing software
or start doing it the right way
George Hosu
La contracultura minimalista
RubyConf Uruguay
Michel Martens
Command-line Tools can be 235x Faster than your Hadoop Cluster
Adam Drake
Full BASH?
BASH EN TODOS LADOS
Windows Subsystem for Linux
Microsoft
$ echo '{"count": 598438811}' | jq .count
598438811
jQ
$ ls /usr/bin/csv*
csvclean csvcut csvformat csvgrep csvjoin csvjson
csvlook csvpy csvsort csvsql csvstack csvstat
CSVKIT
- Aterrizajes y despegues registrados por EANA
- Cantidad de operaciones de viajes por mes, detalle de línea y tipo de pasaje
DATASETS
datos.gob.ar
CÓMO LE HABLAMOS A ELASTICSEARCH?
REST
Representational State Transfer
curl -X POST \
-H "Content-Type: application/json" \
-d '{"message": "Hello"}' \
http://localhost/speak
< HTTP/1.1 200
< Content-Type: application/json; charset=UTF-8
{
"id": 9494818210
}
Método
Tipo de Mensaje
Mensaje
Recurso
Estado
Tipo de Respuesta
Respuesta
2xx:
3XX:
4XX:
5XX:
👍
👉
AWS && 90%
ELASTICSEARCH

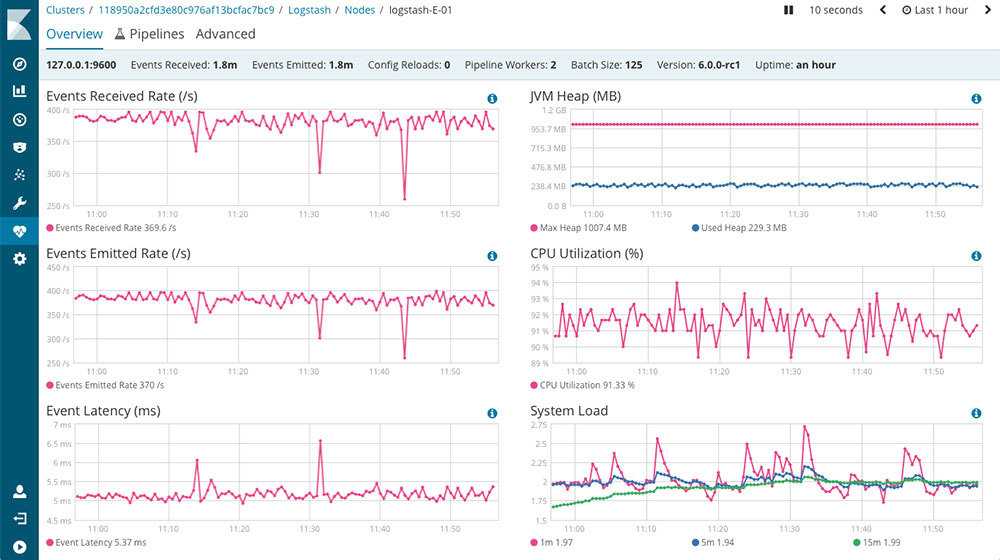

LOGSTASH

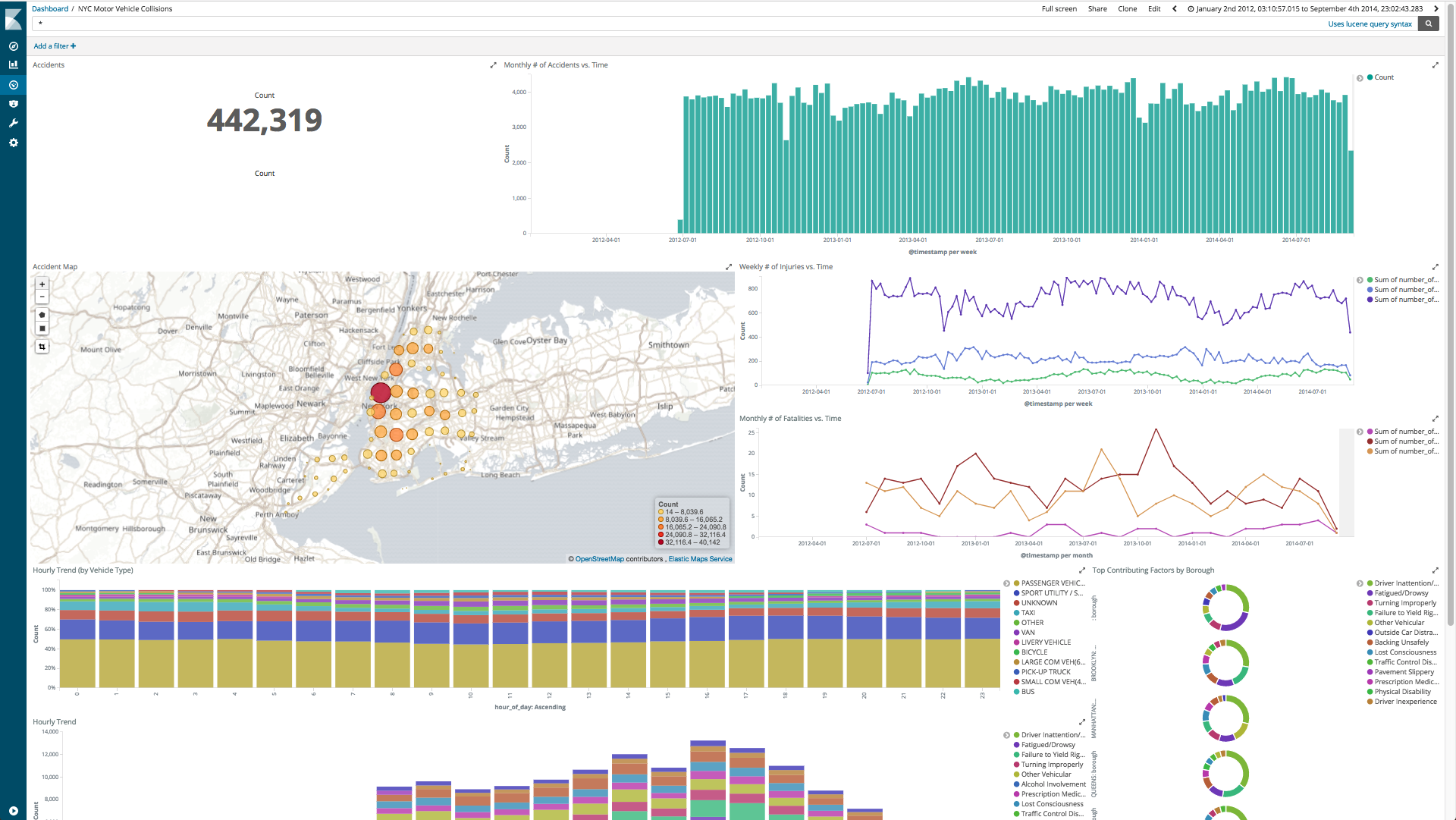

KIBANA
ELASTICSEARCH
LOGSTASH
KIBANA
INSTALL SENCILLO
sudo docker run \
-p 9200:9200 \
-p 9300:9300 \
-v /home/mariano/elasticsearch_data:/usr/share/elasticsearch/data
-e "discovery.type=single-node" \
docker.elastic.co/elasticsearch/elasticsearch:6.4.2
CON DOCKER
REST
Cluster
Cluster folder
curl -X GET 'http://localhost:9200'
HOLA MUNDO!
{
"name" : "fvOoagB",
"cluster_name" : "docker-cluster",
"cluster_uuid" : "3yQipWUIS_uI1Xcch5sr5Q",
"version" : {
"number" : "6.4.2",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "04711c2",
"build_date" : "2018-09-26T13:34:09.098244Z",
"build_snapshot" : false,
"lucene_version" : "7.4.0",
"minimum_wire_compatibility_version" : "5.6.0",
"minimum_index_compatibility_version" : "5.0.0"
},
"tagline" : "You Know, for Search"
}
Puerto
Método
curl -X GET 'http://localhost:9200/_cluster/health?pretty'
CLUSTER HEALTH
{
"cluster_name" : "docker-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 1,
"number_of_data_nodes" : 1,
"active_primary_shards" : 0,
"active_shards" : 0,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
$ jq
Estado del cluster
GREEN
YELLOW
RED
curl -H 'Content-type: application/json' \
-X PUT \
'http://localhost:9200/locations' \
-d '{
"settings": {
"number_of_shards": 1,
"number_of_replicas": 0
}
}'
CREAR ÍNDICE
{
"acknowledged": true,
"shards_acknowledged": true,
"index": "locations"
}
Índice
NUESTRO CLUSTER
NODO 1
S
1
curl -X DELETE 'http://localhost:9200/locations'
BORRAR ÍNDICE
{
"acknowledged": true
}
curl -H 'Content-type: application/json' \
-X PUT \
'http://localhost:9200/locations' \
-d '{
"settings": {
"number_of_shards": 1,
"number_of_replicas": 2
}
}'
MÁS NODOS
{
"acknowledged": true,
"shards_acknowledged": true,
"index": "locations"
}
MÁS NODOS
NODO 1
S
1
R
2
R
1
curl -X GET 'http://localhost:9200/_cluster/health' | jq .status
MÁS NODOS
"yellow"
MÁS NODOS
NODO 1
NODO 2
NODO 3
S
1
R
2
R
1
curl -H 'Content-type: application/json' \
-X PUT \
'http://localhost:9200/locations' \
-d '{
"settings": {
"number_of_shards": 5,
"number_of_replicas": 1
}
}'
MÁS NODOS
AÚN MÁS NODOS
NODO 1
NODO 2
NODO 3
NODO 4
NODO 5
S
1
R
3
S
2
S
4
S
5
S
3
R
5
R
1
R
2
R
4
CUÁNTOS NODOS, SHARDS Y REPLICAS?
N = (1 + S) * R
R = N / (1 + S)
R = 6 / (1 + 2) = 3
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/locations/_doc' \
-d '{
"url": "http://shoutbar.com.ar",
"name": "SHOUT Brasas & Drinks",
"location": {
"lat": -34.596685,
"lon": -58.376889
}
}'
INDEXAR DOCUMENTO
{
"_index": "locations",
"_type": "_doc",
"_id": "o2Ob42YBEDmcWCdW2oVY",
"_version": 1,
...
}
Tipo
ID
Documento
curl -X GET 'http://localhost:9200/locations/_doc/o2Ob42YBEDmcWCdW2oVY'
OBTENER DOCUMENTO
{
"_index" : "locations",
"_type" : "_doc",
"_id" : "o2Ob42YBEDmcWCdW2oVY",
"_version" : 1,
"found" : true,
"_source" : {
"url" : "http://shoutbar.com.ar",
"name" : "SHOUT Brasas & Drinks",
"location" : {
"lat" : -34.596685,
"lon" : -58.376889
}
}
}
Versión
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/locations/_doc/o2Ob42YBEDmcWCdW2oVY/_update' \
-d '{
"doc": {
"name": "SHOUT Brasas and Drinks"
}
}'
ACTUALIZAR DOCUMENTO
{
"_index": "locations",
"_type": "_doc",
"_id": "o2Ob42YBEDmcWCdW2oVY",
"_version": 2
...
}
ID
Tipo
Índice
Documento Parcial
Nueva versión
curl -X DELETE 'http://localhost:9200/locations/_doc/o2Ob42YBEDmcWCdW2oVY'
ELIMINAR DOCUMENTO
{
"_index": "locations",
"_type": "_doc",
"_id": "o2Ob42YBEDmcWCdW2oVY",
"_version": 3,
...
}
Nueva versión
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/locations/_doc/1' \
-d '{
"url": "http://shoutbar.com.ar",
"name": "SHOUT Brasas & Drinks",
"location": {
"lat": -34.596685,
"lon": -58.376889
}
}'
INDEXAR CON ID
{
"_index": "locations",
"_type": "_doc",
"_id": "1",
"_version": 1,
...
}
curl -X GET 'http://localhost:9200/locations' | jq .locations.mappings._doc.properties
MAPPINGS
{
"location": {
"properties": {
"lat": { "type": "float" },
"lon": { "type": "float" }
}
},
"name": {
"type": "text",
...
},
"url": {
"type": "text",
...
}
}
No es geo_point :(
- keyword
- text
- boolean
- date (con formato)
- geo_point
- geo_shape
- double
- long
- object
- nested (array de objects indexados)
- arrays
MAPPINGS
MAPPINGS
curl -H 'Content-type: application/json' \
-X PUT \
'http://localhost:9200/locations_v2' \
-d '{
"settings": {
"number_of_shards": 1,
"number_of_replicas": 0
},
"mappings": {
"_doc": {
"properties": {
"url": {"type": "keyword"},
"name": {"type": "text"},
"location": {"type": "geo_point"}
}
}
}
}'
MAPPINGS
curl -H 'Content-type: application/json' \
-X PUT 'http://localhost:9200/locations_v2/_mapping/_doc' \
-d '{
"properties": {
"url": {"type": "keyword"},
"name": {"type": "text"},
"location": {"type": "geo_point"}
}
}'
REINDEXAR
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/_reindex' \
-d '{
"source": {
"index": "locations"
},
"dest": {
"index": "locations_v2"
}
}'
github.com/taskrabbit/elasticsearch-dump
curl -X GET 'http://localhost:9200/locations_v2/_search' | jq .hits.hits
REINDEXAR
[
{
"_index": "locations_v2",
"_type": "_doc",
"_id": "1",
"_score": 1,
"_source": {
"url": "http://shoutbar.com.ar",
"name": "SHOUT Brasas & Drinks",
"location": {
"lat": -34.596685,
"lon": -58.376889
}
}
}
]
REINDEXAR
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/_reindex' \
-d '{
"source": {
"index": "locations"
},
"dest": {
"index": "locations_v2"
},
"script": {
"source": "ctx._version++; ctx._source.remove(\"locationn\");",
"lang": "painless"
}
}'
Corrigiendo typo
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/_aliases' \
-d '{
"actions": [
{
"add": {
"index": "locations_v2",
"alias": "locations"
}
}
]
}'
ALIASES
curl -H 'Content-Type: application/x-ndjson' \
-X POST 'http://localhost:9200/_bulk?refresh=false' \
--data-binary '{ "index": {"_index": "locations", "_type": "_doc", "_id": "1"} }
{ "name": "SHOUT Brasas & Drinks", ... }
{ "index": {"_index": "locations", "_type": "_doc", "_id": "2"} }
{ "name": "Adorado Bar", ... }
'
BULK INDEX
Un documento por línea
\n necesario al final
no hay coma
refresh
operación bulk
curl -H 'Content-Type: application/x-ndjson' \
-X POST 'http://localhost:9200/_bulk?refresh=false' \
--data-binary '{ "update": {"_index": "locations", "_type": "_doc", "_id": "1"} }
{ "doc": { "name": "SHOUT Brasas & Drinks", ... } }
{ "update": {"_index": "locations", "_type": "_doc", "_id": "2"} }
{ "doc": { "name": "Adorado Bar", ... }, "doc_as_upsert": true }
'
BULK UPDATE Y UPSERT
upsert
operación bulk
update
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/locations/_doc/_mget' \
-d '{
"ids": [1, 2]
}' | jq '.docs|.[]._source'
OBTENER DOCUMENTOS
{
"name": "SHOUT Brasas & Drinks",
"id": 1
}
{
"name": "Adorado Bar",
"id": 2
}
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/locations/_update_by_query?refresh=false' -d '{
"query": {
"terms": { "id": [1, 2] }
},
"script": {
"source": "ctx._source.name = ctx._source.name + \" (HOT)\"",
"lang": "painless"
}
}'
UPDATE BY QUERY
Update script
Condición
curl -H 'Content-type: application/json' \
-X POST 'http://localhost:9200/locations/_delete_by_query?refresh=false' -d '{
"query": {
"terms": { "id": [1, 2] }
}
}'
DELETE BY QUERY
Condición
REFRESH
- Aplicable a bulk, index, update, update_by_query, delete
- false: no refrescar (default index.refresh_interval == 1s)
- wait_for: similar a false, pero esperar hasta que se refresque solo
- true: refrescar (solo shards y replicas afectados)
PREPARAR
TRANSFORMAR
INDEXAR
PREPARAR
TRANSFORMAR
INDEXAR
PREPARAR
head -n+2 data/twitter/tweets.csv
"tweet_id","in_reply_to_status_id","in_reply_to_user_id","timestamp","source","text","retweeted_status_id","retweeted_status_user_id","retweeted_status_timestamp","expanded_urls"
"1057003303857463296","1052589952368807942","14237093","2018-10-29 20:16:40 +0000","<a href=""http://twitter.com/download/iphone"" rel=""nofollow"">Twitter for iPhone</a>","BREAKING: Cambiamos la fecha para el Miércoles 7 de Noviembre - 3 PM en @workana
En mi afán de poner fecha me olvidé de chequear si el resto del mundo podía https://t.co/9vD2Ni868X","","","","https://twitter.com/elhipernauta/status/1057003303857463296/photo/1"
"1056973230307721216","1056972332114345985","293566535","2018-10-29 18:17:10 +0000","<a href=""http://twitter.com/download/iphone"" rel=""nofollow"">Twitter for iPhone</a>","@NatiRamoneOk Lo voy a leer. Es un tipo bastante centrado","","","",""
\n sin escapear
PREPARAR
$ echo "id,text,created" > data/tweets_prepared.csv
$ csvjson data/twitter/tweets.csv | \
sed 's/\\n\\n/ /g' | \
jq -r '.[]|"\(.tweet_id),\(.text|@json),\(.timestamp|@json)"' | \
sed 's/\\"/""/g' | \
sed "s/'/ /g" >> data/tweets_prepared.csv
$ head -n+3 data/tweets_prepared.csv
id,text,created
1057003303857463300,"BREAKING: Cambiamos la fecha para el Miércoles 7 de Noviembre - 3 PM en @workana En mi afán de poner fecha me olvidé de chequear si el resto del mundo podía https://t.co/9vD2Ni868X","2018-10-29 20:16:40 +0000"
1056973230307721200,"@NatiRamoneOk Lo voy a leer. Es un tipo bastante centrado","2018-10-29 18:17:10 +0000"
PREPARAR
TRANSFORMAR
INDEXAR
TRANSFORMAR
- Detectar idioma
- Analizar sentimiento
DETECTAR IDIOMA
csvjson data/tweets_prepared.csv | \
jq --raw-output '.[].text|@sh' | \
awk -F"\n" '{
if (NR % 25 == 0) { printf "%s\n", $1; }
else { printf "%s ", $1; }
} END { printf "\n"; }' | \
xargs -n1 -d "\n" -I '%' sh -c \
'aws comprehend batch-detect-dominant-language --text-list %' | \
jq --raw-output '.ResultList|.[]|.Languages[0].LanguageCode' \
> data/tweets_languages.csv
DETECTAR IDIOMA
$ (echo "language" && cat data/tweets_languages.csv) | \
paste --delimiter ',' data/tweets_prepared.csv - \
> data/tweets_languages_prepared.csv
$ head -n+3 data/tweets_languages_prepared.csv
id,text,created,language
1057003303857463300,"BREAKING: Cambiamos la fecha...","2018-10-29 20:16:40 +0000",es
1056973230307721200,"@NatiRamoneOk Lo voy a leer...","2018-10-29 18:17:10 +0000",es
STDIN
ANALIZAR SENTIMIENTO
$ csvgrep --columns language --match 'es' data/tweets_languages_prepared.csv \
> data/tweets_es_prepared.csv
$ csvjson data/tweets_es_prepared.csv | \
jq --raw-output '.[].text|@sh' | \
awk -F"\n" '{
if (NR % 25 == 0) { printf "%s\n", $1; }
else { printf "%s ", $1; }
} END { printf "\n"; }' | \
xargs -n1 -d "\n" -I '%' sh -c \
'aws comprehend batch-detect-sentiment --language-code es --text-list %' | \
jq --raw-output '.ResultList|.[]|.Sentiment' \
> data/tweets_es_sentiments.csv
Sólo español
ANALIZAR SENTIMIENTO
$ (echo "sentiment" && cat data/tweets_es_sentiments.csv) | \
paste --delimiter ',' data/tweets_es_prepared.csv - \
> data/tweets_es_sentiments_prepared.csv
$ (cat data/tweets_es_sentiments_prepared.csv && \
tail -n+2 data/tweets_en_sentiments_prepared.csv) \
> data/tweets_sentiments_prepared.csv
$ head -n+3 data/tweets_sentiments_prepared.csv
id,text,created,language,sentiment
1057003303857463300,"BREAKING: Cambiamos...","2018-10-29 20:16:40 +0000",es,NEUTRAL
1056973230307721200,"@NatiRamoneOk Lo voy...","2018-10-29 18:17:10 +0000",es,NEUTRAL
PREPARAR
TRANSFORMAR
INDEXAR
CREAR ÍNDICE
curl -H 'Content-type: application/json' \
-X PUT \
'http://localhost:9200/tweets' \
-d '{
"settings": {
"number_of_shards": 1,
"number_of_replicas": 0
},
"mappings": {
"_doc": {
"properties": {
"id": {"type": "long"},
"text": {"type": "text"},
"language": {"type": "keyword"},
"sentiment": {"type": "keyword"},
"created": {
"type": "date",
"format": "yyyy-MM-dd HH:mm:ss Z||yyyy-MM-dd"
}
}
}
}
}'
múltiples formatos
BULK INDEX
csvjson data/tweets_sentiments_prepared.csv | \
jq --compact-output .[] | \
awk -F"\n" '{
id = substr($1, index($1, ":") + 1, index($1, ",") - 1 - length("{\"id\":"));
printf("{\"index\":{\"_index\":\"tweets\", \"_type\":\"_doc\", \"_id\":%s}}\n", id);
printf("%s\n", $1);
}' > data/tweets_sentiments.json
head -n+4 data/tweets_sentiments.json
{"index":{"_index":"tweets", "_type":"_doc", "_id":1057003303857463300}}
{"id":1057003303857463300,"text":"BREAKING: Cambiamos la fecha para el Miércoles 7 de Noviembre - 3 PM en @workana En mi afán de poner fecha me olvidé de chequear si el resto del mundo podía https://t.co/9vD2Ni868X","created":"2018-10-29 20:16:40 +0000","language":"es","sentiment":"NEUTRAL"}
{"index":{"_index":"tweets", "_type":"_doc", "_id":1056973230307721200}}
{"id":1056973230307721200,"text":"@NatiRamoneOk Lo voy a leer. Es un tipo bastante centrado","created":"2018-10-29 18:17:10 +0000","language":"es","sentiment":"NEUTRAL"}
curl -H 'Content-Type: application/x-ndjson' \
-X POST 'http://localhost:9200/_bulk?refresh=false' \
--data-binary '@data/tweets_sentiments.json'
archivo generado
curl -X GET 'http://localhost:9200/tweets/_search'
BUSCAR DOCUMENTOS
"hits": {
"total": 20366,
"max_score": 1,
"hits": [
{
"_index": "tweets",
"_type": "_doc",
"_id": "1057003303857463300",
"_score": 1,
"_source": {
"id": 1057003303857463300,
"text": "BREAKING: Cambiamos la fecha para el Miércoles 7 de Noviembre - 3 PM en @workana En mi afán de poner fecha me olvidé de chequear si el resto del mundo podía https://t.co/9vD2Ni868X",
"created": "2018-10-29 20:16:40 +0000",
"language": "es",
"sentiment": "NEUTRAL"
}
},
...
total
curl -X GET 'http://localhost:9200/tweets/_count' | jq .count
BUSCAR DOCUMENTOS
20366
curl -X GET 'http://localhost:9200/tweets/_search' | \
jq '.hits.hits|.[]._source.id' | \
wc -l
10
curl -X GET 'http://localhost:9200/tweets/_search' | jq '.hits.hits|.[]._source.id'
BUSCAR DOCUMENTOS
1057003303857463300
1056973230307721200
....
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' -d '{
"from": 10,
"size": 10
}' | jq '.hits.hits|.[]._source.id'
1056724419740078100
1056723710831484900
...
límite: 10000
SCROLL
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search?scroll=1m' -d '{
"size": 100
}'
"_scroll_id": "DXF1ZXJ5QW5kRmV0Y2gBAAAAAAAAABwWZnZPb2FnQjVSOHF0TGN1VXA2eDJfZw==",
...
"hits": {
"hits": [
{
"_index": "tweets",
"_type": "_doc",
"_id": "1057003303857463300",
"_score": 1,
"_source": {
"id": 1057003303857463300,
"text": "BREAKING: Cambiamos la fecha para el Miércoles 7 de Noviembre - 3 PM en @workana En mi afán de poner fecha me olvidé de chequear si el resto del mundo podía https://t.co/9vD2Ni868X",
"created": "2018-10-29 20:16:40 +0000",
"language": "es",
"sentiment": "NEUTRAL"
}
},
...
scroll ID
TTL
cuántos por "página"
SCROLL
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/_search/scroll' -d '{
"scroll": "1m",
"scroll_id": "DXF1ZXJ5QW5kRmV0Y2gBAAAAAAAAAB4WZnZPb2FnQjVSOHF0TGN1VXA2eDJfZw=="
}'
"_scroll_id": "DXF1ZXJ5QW5kRmV0Y2gBAAAAAAAAAB4WZnZPb2FnQjVSOHF0TGN1VXA2eDJfZw==",
...
"hits": {
"hits": [
{
"_index": "tweets",
"_type": "_doc",
"_id": "1045474799005380600",
"_score": 1,
"_source": {
"id": 1045474799005380600,
"text": "@seppo0011 @malerey_ La de \"if you build it..\"? Apoyo la moción",
"created": "2018-09-28 00:46:30 +0000",
"language": "es",
"sentiment": "NEUTRAL"
}
},
...
¡Puede cambiar!
QUERIES
Y
FILTROS
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {
"bool": {
"must": {
"match_all": {}
},
"filter": {
"term": {"sentiment": "POSITIVE"}
}
}
}
}'
TERM
Query
Filtro
TERM
"hits": {
"total": 2158,
"hits": [
{
"_index": "tweets",
"_type": "_doc",
"_id": "1056696926408790000",
"_score": 1,
"_source": {
"id": 1056696926408790000,
"text": "Obviando el éxito re merecido de Red Dead Redemption 2, no hay que dejar de jugar The Last of Us II. Se ve muy bien, y como en el otro, es también notoria la mejora en los gestos faciales https://t.co/yHzEqNXFtY",
"created": "2018-10-28 23:59:14 +0000",
"language": "es",
"sentiment": "POSITIVE"
}
},
...
Relevancia constante
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{"query": {
"match": {"text": "php"}
}}'
MATCH
"hits": {
"total": 278,
"hits": [
{
"_index": "tweets",
"_type": "_doc",
"_id": "847839704330403800",
"_score": 6.539947,
"_source": {
"id": 847839704330403800,
"text": "RT @hhamon: PHP internal cache efficiency comparison between PHP 5.6 and PHP 7.1 #symfony_live https://t.co/heeIWit0PN",
"created": "2017-03-31 15:55:12 +0000",
"language": "en",
"sentiment": "NEUTRAL"
}
},
...
Sin case
Relevancia
ANALYZERS
"Tired of people that use PHP short tags"
tired
of
people
that
use
php
short
tags
"tired of people that use php short tags"
lowercase filter
standard tokenizer
INVERTED INDEX
tired
of
people
that
use
php
short
tags
tweet 1
tweet 2
tweet 3
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {
"bool": {
"must": [
{"match": {"text": "php"}},
{"match": {"text": "python"}}
],
"filter": {
"term": {"sentiment": "NEGATIVE"}
}
}
}
}' | jq .hits.hits[0]._source
COMBINANDO QUERIES
{
"id": 125223429413670910,
"text": "Switching between C++, Node.js, Python, PHP, and Bash on a daily basis generates interesting syntax errors",
"created": "2011-10-15 14:56:06 +0000",
"language": "en",
"sentiment": "NEGATIVE"
}
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {
"bool": {
"must": [
{"match": {"text": "gato"}},
{"match": {"text": "lindo"}}
],
"filter": {
"bool": {
"must": [
{"term": {"language": "es"}},
{"range": {"created": {
"lte": "2018-12-31"
}}}
]
}
}
}
}
}' | jq .hits.hits
QUERIES Y FILTROS
SQL
A AND B
A OR B
A AND (B OR C)
ELASTICSEARCH
"bool": { "must": [ A, B ]}
"bool": { "should": [ A, B ]}
"bool": { "must": [
A,
"bool": { "should": [ B, C ] }
]}
TWEETS QUE MENCIONAN PHP, POSITIVOS PRIMERO
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{"query": {
"bool": {"must": [
{"match": {"text": "php"}},
{"boosting": {
"positive": {
"term": {"sentiment": "POSITIVE"}
},
"negative": {
"term": {"sentiment": "NEGATIVE"}
},
"negative_boost": 0.5
}}
]}
}}' | jq .hits.hits
BOOSTING
Múltiplo para relevancia
TWEETS QUE MENCIONAN A BOCA, CON HIGHLIGHT
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {
"bool": {
"must": {
"match": {"text": "boca"}
},
"filter": {
"range": {"created": {
"lte": "2011-12-31"
}}
}
}
},
"highlight": {
"fields": {
"text": {
"pre_tags" : ["<em>"],
"post_tags" : ["</em>"]
}
}
}
}' | jq .hits.hits
HIGHLIGHT
Tags customizados
HIGHLIGHT
[
{
"_index": "tweets",
"_type": "_doc",
"_id": "86989802628591620",
"_score": 8.590066,
"_source": {
"id": 86989802628591620,
"text": "Se acuerdan del debate sobre quien es mejor, River o Boca? Bueno, Boca GANO",
"created": "2011-07-02 02:49:19 +0000",
"language": "es",
"sentiment": "NEUTRAL"
},
"highlight": {
"text": [
"Se acuerdan del debate sobre quien es mejor, River o <em>Boca</em>? Bueno, <em>Boca</em> GANO"
]
}
},
...
QUERIES
- Lógicos: bool, must, must_not, should, should_not
- En texto: match, match_phrase, query_string
- En keywords: term, terms, prefix, regexp
- Numéricos y fechas: range, gte, lte
- Genéricos: exists
- GEO: geo_distance, geo_polygon
AGGREGATIONS
Cuántos tweets según sentimiento?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"size": 0,
"aggs": {
"sentiments": {
"terms": {
"field": "sentiment",
"missing": "UNKNOWN",
"order" : { "_count" : "desc" }
}
}
}
}' | jq .
TERMS
No necesito documentos
Los que no tengan sentiment
Custom key
TERMS
"aggregations": {
"sentiments": {
"sum_other_doc_count": 0,
"doc_count_error_upper_bound": 0,
"buckets": [
{
"key": "NEUTRAL",
"doc_count": 16451
},
{
"key": "POSITIVE",
"doc_count": 2158
},
{
"key": "NEGATIVE",
"doc_count": 1698
},
{
"key": "MIXED",
"doc_count": 59
}
]
}
}
Puede no ser exacto
Valores no agrupados
Cuántos tweets según FILTROS?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"size": 0,
"aggs": {
"twitter_tags": {
"filters": {
"other_bucket_key": "other",
"filters": {
"php": {"match": {"text": "php"} },
"js": {"match": {"text": "javascript"} },
"python": {"match": {"text": "python"} }
}
}
}
}
}' | jq .
FILTERS
Los que no son agrupados
FILTERS
"aggregations": {
"twitter_tags": {
"buckets": {
"javascript": {
"doc_count": 10
},
"php": {
"doc_count": 278
},
"python": {
"doc_count": 25
},
"other": {
"doc_count": 20059
}
}
}
}
Cuántos tweets según FILTROS Y SENTIMIENTO?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"term": {"sentiment": "NEGATIVE"}}
}},
"size": 0,
"aggs": {
"twitter_tags": {
"filters": {
"other_bucket_key": "other",
"filters": {
"php": {"match": {"text": "php"} },
"js": {"match": {"text": "javascript"} },
"python": {"match": {"text": "python"} }
}
}
}
}
}' | jq .
FILTERS
Query y filtro pre-aggregation
FILTERS
"aggregations": {
"twitter_tags": {
"buckets": {
"js": {
"doc_count": 0
},
"php": {
"doc_count": 14
},
"python": {
"doc_count": 1
},
"other": {
"doc_count": 1684
}
}
}
}
Cuántos tweets POR MES EN EL 2018?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"range": {"created": {"gte": "2018-01-01"}}}
}},
"size": 0,
"aggs": {
"tweets_timeline": {
"date_histogram": {
"field": "created",
"interval": "1M",
"format": "YYYY-MM"
}
}
}
}' | jq .aggregations.tweets_timeline.buckets
DATE HISTOGRAM
DATE HISTOGRAM
[
{
"key_as_string": "2018-01",
"key": 1514764800000,
"doc_count": 250
},
{
"key_as_string": "2018-02",
"key": 1517443200000,
"doc_count": 174
},
...
{
"key_as_string": "2018-10",
"key": 1538352000000,
"doc_count": 228
}
]
CUÁNTAS PROPIEDADES SEGÚN RANGO DE PRECIO?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/properties/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"term": {"address_state": "CA"}}
}},
"size": 0,
"aggs": {
"price_points": {
"range": {
"field": "price_list",
"ranges": [
{ "to" : 100000 },
{ "from" : 100000, "to" : 250000 },
{ "from" : 250000, "to" : 500000 },
{ "from" : 500000, "to" : 1000000 },
{ "from" : 100000, "to" : 2000000 },
{ "from" : 2000000 }
]
}
}
}
}' | jq .aggregations.price_points
RANGE
RANGE
[
{
"key": "*-100000.0",
"to": 100000,
"doc_count": 52452
},
{
"key": "100000.0-250000.0",
"from": 100000,
"to": 250000,
"doc_count": 27313
},
{
"key": "100000.0-2000000.0",
"from": 100000,
"to": 2000000,
"doc_count": 179142
},
...
{
"key": "2000000.0-*",
"from": 2000000,
"doc_count": 10423
}
]
CUÁL ES EL PRECIO PROMEDIO POR ZIP CODE?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/properties/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"bool": {"must": [
{"term": {"address_state": "CA"}},
{"terms": {"address_zip": ["90210", "90402"]}},
{"term": {"category": "Purchase"}},
{"term": {"type": "Residential"}}
]}}
}},
"size": 0,
"aggs": {
"90210": {
"filter" : { "term": { "address_zip": "90210" } },
"aggs": {
"price_average": {"avg": { "field": "price_list" }}
}
},
"90402": {
"filter" : { "term": { "address_zip": "90402" } },
"aggs": {
"price_average": {"avg": { "field": "price_list" }}
}
}
}
}' | jq .aggregations
aggs dentro de aggs
FILTER Y AVG
{
"90210": {
"doc_count": 269,
"price_average": {
"value": 9082192.126394052
}
},
"90402": {
"doc_count": 79,
"price_average": {
"value": 5000025.316455696
}
}
}
DISTRIBUCIÓN DE PRECIOS POR ZIP CODE?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/properties/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"bool": {"must": [
{"term": {"address_state": "CA"}},
{"terms": {"address_zip": ["90210", "90402"]}},
{"term": {"category": "Purchase"}},
{"term": {"type": "Residential"}}
]}}
}},
"size": 0,
"aggs": {
"90210": {
"filter" : { "term": { "address_zip": "90210" } },
"aggs": {
"prices": {"percentiles": { "field": "price_list" }}
}
},
"90402": {
"filter" : { "term": { "address_zip": "90402" } },
"aggs": {
"prices": {"percentiles": { "field": "price_list" }}
}
}
}
}' | jq .aggregations
{
"90210": {
"doc_count": 269,
"prices": {
"values": {
"1.0": 712600,
"5.0": 1099000,
"25.0": 2495000,
"50.0": 4740000,
"75.0": 8795000,
"95.0": 29999000,
"99.0": 73196599.99999994
}
}
},
"90402": {
"doc_count": 79,
"prices": {
"values": {
"1.0": 794600,
"5.0": 882400,
"25.0": 2150000,
"50.0": 4175000,
"75.0": 6560000,
"95.0": 12749999.999999985,
"99.0": 18786000
}
}
}
}
Valor mayor al 95% del universo
PALABRAS SIGNIFICATIVAS EN TWEETS NEGATIVOS?
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/tweets/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"bool": {"must": [
{"term": {"sentiment": "NEGATIVE"}},
{"term": {"language": "es"}}
]}}
}},
"size": 0,
"aggs": {
"negative_tags": {
"significant_text": {
"field": "text",
"filter_duplicate_text": true,
"background_filter": {
"term": {"language": "es"}
}
}
}
}
}' | jq .
SIGNIFICANT TEXT
Universos comparables
SIGNIFICANT TEXT
[
{
"key": "mal",
"doc_count": 62,
"score": 0.20322455531475084,
"bg_count": 117
},
{
"key": "asco",
"doc_count": 29,
"score": 0.15191889182958104,
"bg_count": 37
},
{
"key": "triste",
"doc_count": 29,
"score": 0.14729905568076074,
"bg_count": 38
}
...
]
AGGREGATIONS
- Rangos: cardinality, sum
- Estadísticos: stats, extended_stats
- GEO: geo_bounds
- Texto: significant_terms
SUGGESTERS
CIUDADES SUGERIDAS EN BASE A INPUT DEL USER
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/properties/property/_search' \
-d '{
"query": {"bool": {
"must": {"match_all": {}},
"filter": {"term": {"address_state": "CA"}}
}},
"size": 0,
"suggest": {
"cities": {
"text": "Bevrly Hills",
"term": {
"field": "address_city"
}
}
}
}' | jq .suggest.cities
TERM
Data subset
Texto con typo
Field con candidatos
TERM
[
{
"text": "Bevrly Hills",
"offset": 0,
"length": 12,
"options": [
{
"text": "Beverly Hills",
"score": 0.9166667,
"freq": 2298
}
]
}
]
DIRECCIONES QUE EMPIEZAN CON UN PREFIJO
curl -H 'Content-type: application/json' \
-X GET 'http://localhost:9200/addresses/_doc/_search' \
-d '{
"size": 0,
"suggest": {
"addresses": {
"prefix": "35016 W",
"completion": {
"field": "address_complete_address",
"skip_duplicates": true,
"contexts": {
"address_state": "CA"
}
}
}
}
}' | jq '.suggest.addresses|.[].options'
COMPLETION
Filtro en memoria

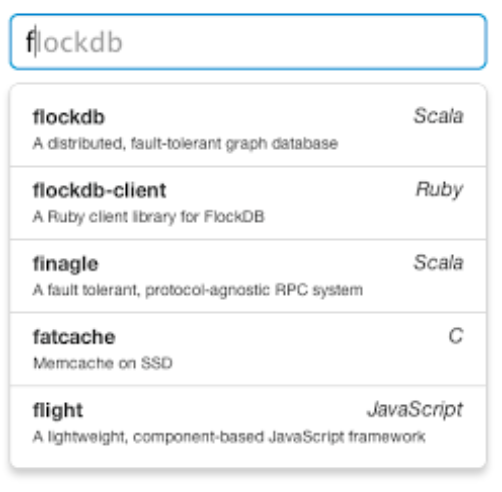

Autocomplete input
Campo tipo completion
COMPLETION
[
{
"text": "35016 WIEMILLER RD, TOLLHOUSE, CA, 93667",
...
"_source": {
"address_street": "WIEMILLER",
...
"address_complete_address": [
{
"input": "35016 WIEMILLER RD, TOLLHOUSE, CA, 93667",
"weight": 100
},
{
"input": "WIEMILLER RD, TOLLHOUSE, CA, 93667"
}
],
},
"contexts": {
"address_state": [
"CA"
]
}
},
...
Prefijo sólo LTR
curl -H 'Content-type: application/json' \
-X PUT 'http://localhost:9200/addresses' \
-d '{"mappings": {"_doc": {
"properties": {
"id": {"type": "long"},
"address_location" : { "type" : "geo_point" },
"address_state" : { "type" : "keyword" },
"address_complete_address" : {
"type" : "completion",
"contexts" : [
{
"name" : "address_state",
"type" : "CATEGORY",
"path" : "address_state"
},
{
"name" : "address_location",
"type" : "GEO",
"precision" : 6,
"path" : "address_location"
}
]
},
...
COMPLETION
Contextos
MUCHO MÁS QUE UN BUSCADOR
- Multi search
- Parallel queries
- Ingest API
- XPACK SQL
- Machine Learning
Elasticsearch
Un camino de ida :)
@elhipernauta
Elasticsearch
By MARIAN
Elasticsearch
Un camino de ida
- 439
