Emma Wedekind
UX Engineer @ LogMeIn
Building Design Systems With React
@emmawedekind
Hello World
class Emma extends Component {
state = {
name: 'Emma Wedekind',
location:'Karlsruhe, Germany',
job:'UX Engineer @ LogMeIn',
hobbies: [
'Coding Coach Founder',
'JS Party Panelist',
'Egghead.io Instructor'
]
}
}
Breathing is hard
Picture your dream home
But this is a talk about React... why do we care about architecture?
🤔
We don't
We all think about the world in different ways...
which leads to inconsistent user interfaces.
Design Systems
Design Systems
Provide the building blocks from which we construct our applications.
Users should not have to wonder whether different words, situations, or actions mean the same thing.
Jakob Nielsen's Heuristics
DESIGN SYSTEMS
Give designers & engineers the ability to build consistent user interfaces without wasting a ton of time and energy.
Okay... but you still haven't told us what a Design System is.
🙄
DESIGN LANGUAGE
A set of standards which guide the creation of a suite of products underneath a brand.
COMPONENT LIBRARY
A repository of standalone, coded components which turn the design language into the building blocks of an application.
STYLE GUIDE
The documentation for the design language and the component library.
Component Libraries
WHAT MAKES A COMPONENT LIBRARY GREAT?
Accessibile
Easy to install & use
Uses modern, but adopted technologies
Responsiveness
Customization
Flexibility
DETERMINE
DESIGN
DOCUMENT
DEVELOP
DEPLOY
5-D PRIORITIZATION METHOD
UI AUDIT
Take an inventory of all components, in all products, in all states.
CHOOSE YOUR STACK
You must meet developers where they're at.
Don't start by building for scale.
Let's build a button
PROPERTIES
TYPE
SIZE
ICON
THEME
LABEL
CLICK HANDLER
export const ButtonTypes = Object.freeze({
PRIMARY: "primary",
SECONDARY: "secondary",
TERTIARY: "tertiary"
});
export const ButtonSizes = Object.freeze({
SMALL: "small",
MEDIUM: "medium",
LARGE: "large"
});
export const ButtonThemes = Object.freeze({
LIGHT: "light",
DARK: "dark"
});
buttonTypes.js
// Button.jsx
import React, { Component } from 'react';
import PropTypes from 'prop-types';
import { ButtonTypes, ButtonSizes, ButtonThemes } from './buttonTypes';
import './button.css'
export default class Button extends Component {
...
render() {
const { disabled, onClickHandler, label } = this.props;
return (
<button
className={this.getButtonClasses()}
onClick={event => onClickHandler(event)}
disabled={disabled}
>
{label}
</button>
);
}
}// Button.jsx
import React, { Component } from 'react';
import PropTypes from 'prop-types';
import { ButtonTypes, ButtonSizes, ButtonThemes } from './buttonTypes';
import './button.css'
export default class Button extends Component {
getButtonClasses() {
const { icon, size, theme, type } = this.props;
const buttonClasses = [
'button',
`button--${size}`,
`button--${theme}`,
`button--${type}`
];
return buttonClasses.join(' ');
}
render() {
...
);
}
}// Icons.jsx
import React, { Component } from "react";
import PropTypes from "prop-types";
import { IconTypes } from "./iconTypes";
const SaveIcon = () => {
return (
<svg
xmlns="http://www.w3.org/2000/svg"
width="24"
height="24"
viewBox="0 0 24 24"
className='button__icon'
>
<title>Save</title>
...
</svg>
);
};
export default class Icon extends Component {
render() {
...
}
}
// Icons.jsx
import React, { Component } from "react";
import PropTypes from "prop-types";
import { IconTypes } from "./iconTypes";
const SaveIcon = () => {
...
};
export default class Icon extends Component {
render() {
const { icon } = this.props;
switch (icon) {
case IconTypes.SAVE:
return <SaveIcon />;
default:
return null;
}
}
}
Icon.propTypes = {
icon: PropTypes.oneOf(Object.values(IconTypes))
};
Icon.defaultProps = {
icon: IconTypes.NONE
};// Button.jsx
...
import { IconTypes } from "./iconTypes";
import Icon from "./Icons";
export default class Button extends Component {
getButtonClasses() {
const { icon, size, theme, type } = this.props;
const buttonClasses = [
"button",
`button--${size}`,
`button--${theme}`,
`button--${type}`
];
icon && icon !== IconTypes.NONE && buttonClasses.push("button--icon");
return buttonClasses.join(" ");
}
...
}// Button.jsx
...
export default class Button extends Component {
getButtonClasses() {
const { icon, size, theme, type } = this.props;
...
}
render() {
const { disabled, onClickHandler, label, icon } = this.props;
return (
<button
className={this.getButtonClasses()}
onClick={event => onClickHandler(event.target)}
disabled={disabled}
>
{icon && <Icon icon={icon} />}
{label}
</button>
);
}
}// Button.jsx
...
Button.propTypes = {
type: PropTypes.oneOf(Object.values(ButtonTypes)),
disabled: PropTypes.bool,
onClickHandler: PropTypes.func.isRequired,
label: PropTypes.string.isRequired,
size: PropTypes.oneOf(Object.values(ButtonSizes)),
theme: PropTypes.oneOf(Object.values(ButtonThemes)),
icon: PropTypes.oneOf(Object.values(IconTypes))
};
Button.defaultProps = {
type: ButtonTypes.PRIMARY,
onClickHandler: () => console.log("No click handler specified"),
label: "",
disabled: false,
size: ButtonSizes.MEDIUM,
theme: ButtonThemes.LIGHT,
icon: IconTypes.NONE
};<Button
size={ButtonSizes.MEDIUM}
label="Button"
onClickHandler={() => alert("you clicked!")}
type={ButtonTypes.PRIMARY}
/>
<Button
size={ButtonSizes.SMALL}
label="Button"
onClickHandler={() => alert("you clicked!")}
type={ButtonTypes.PRIMARY}
/>
<Button
size={ButtonSizes.LARGE}
label="Button"
theme={ButtonThemes.DARK}
onClickHandler={() => alert("you clicked!")}
type={ButtonTypes.PRIMARY}

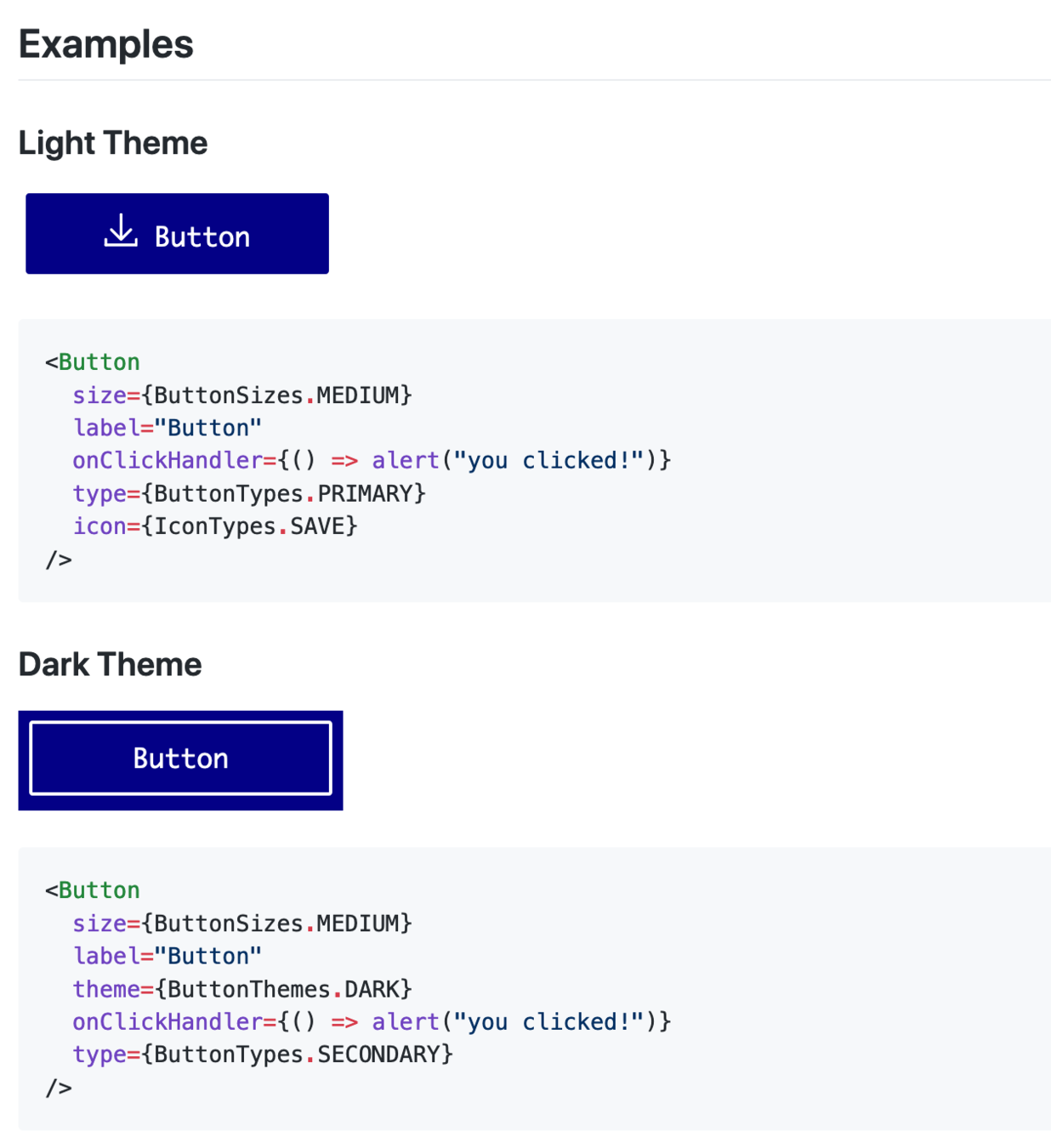

/>Documentation
GOOD
DOCUMENTATION

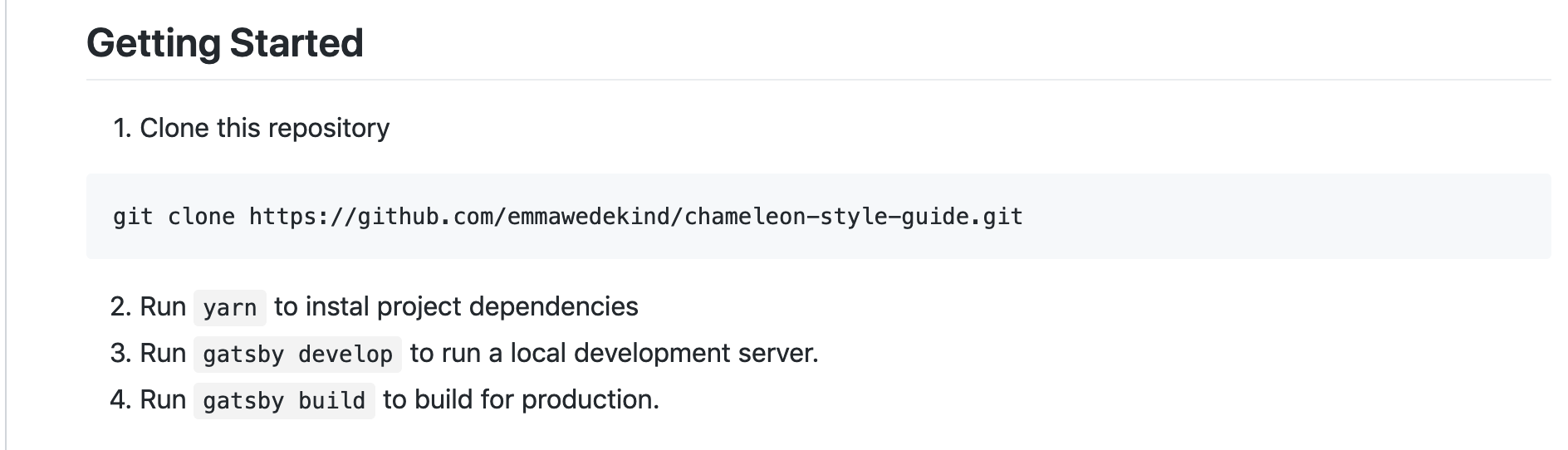

Installation & setup instructions
GOOD
DOCUMENTATION
Installation & setup instructions

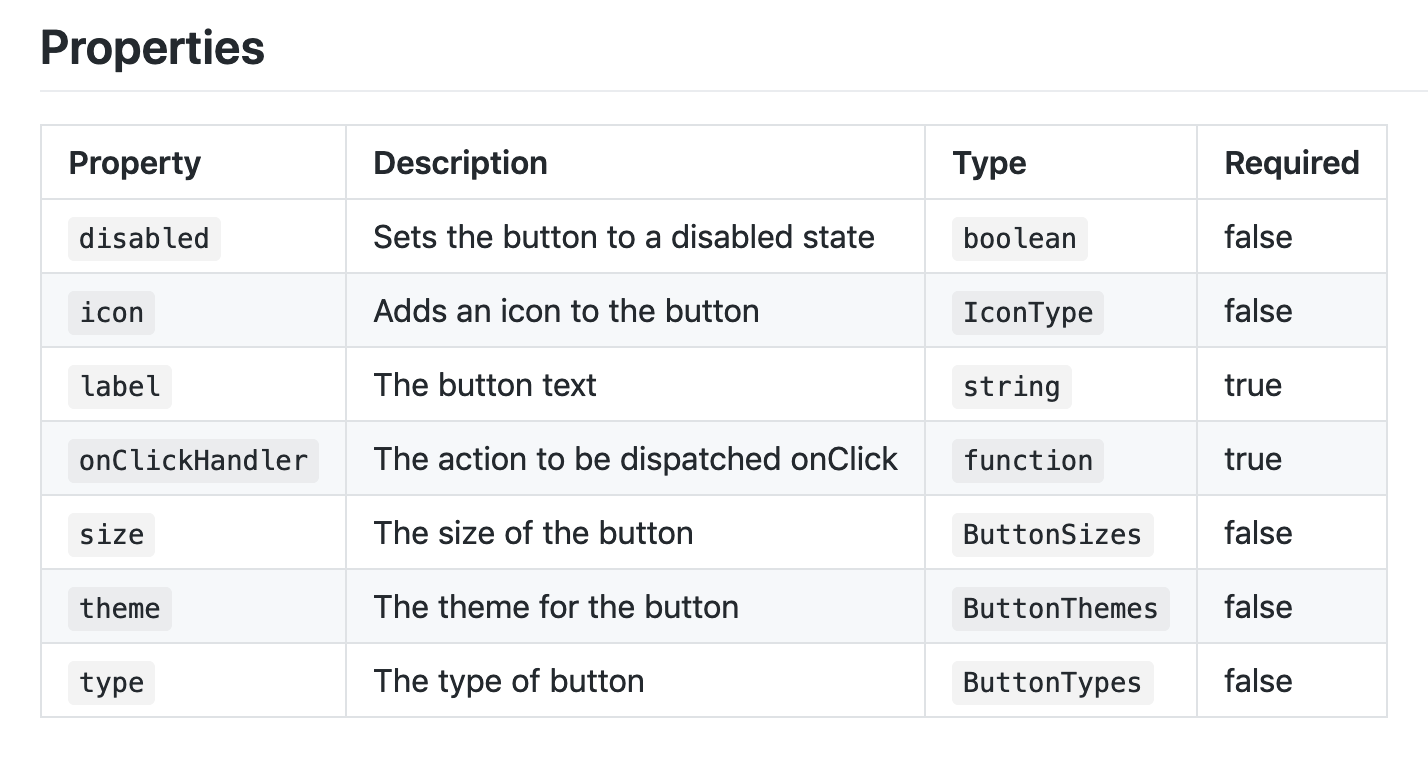

Property schema
GOOD
DOCUMENTATION
Installation & setup instructions
Property schema

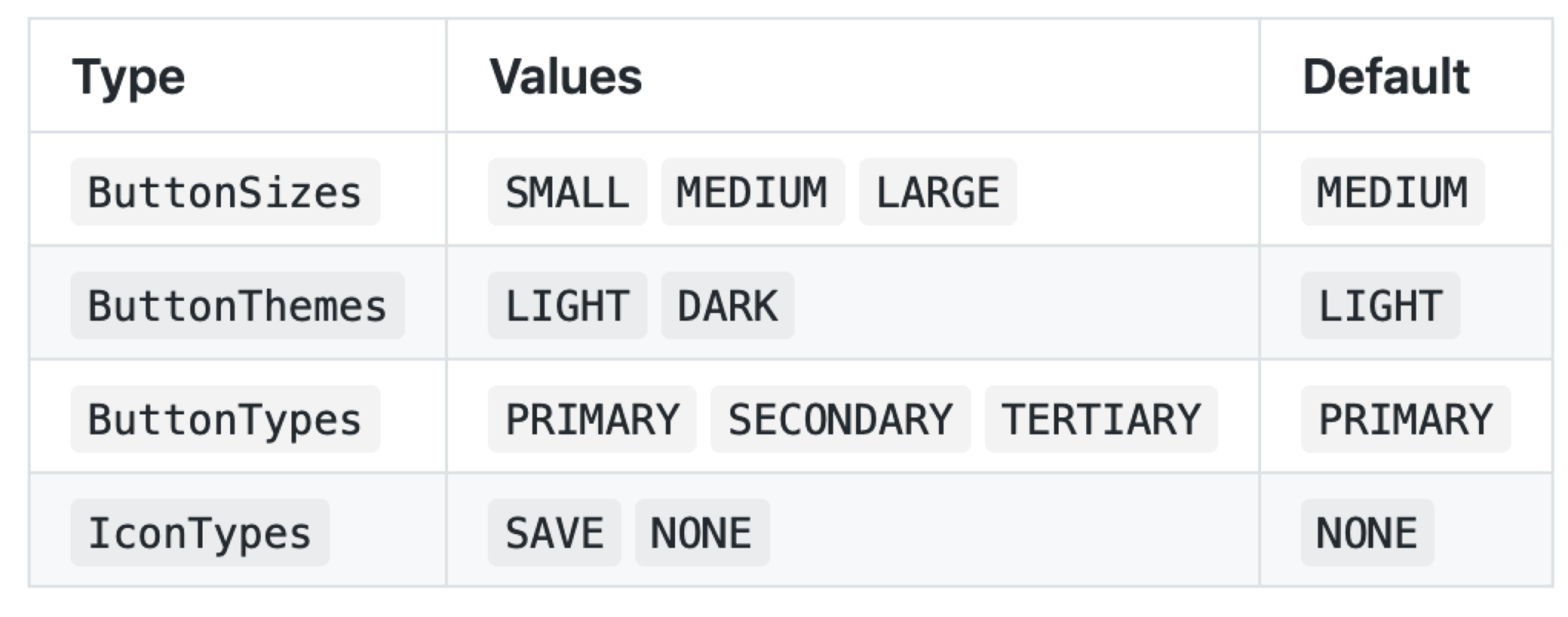

Type definition
GOOD
DOCUMENTATION
Installation & setup instructions
Property schema
Type definition

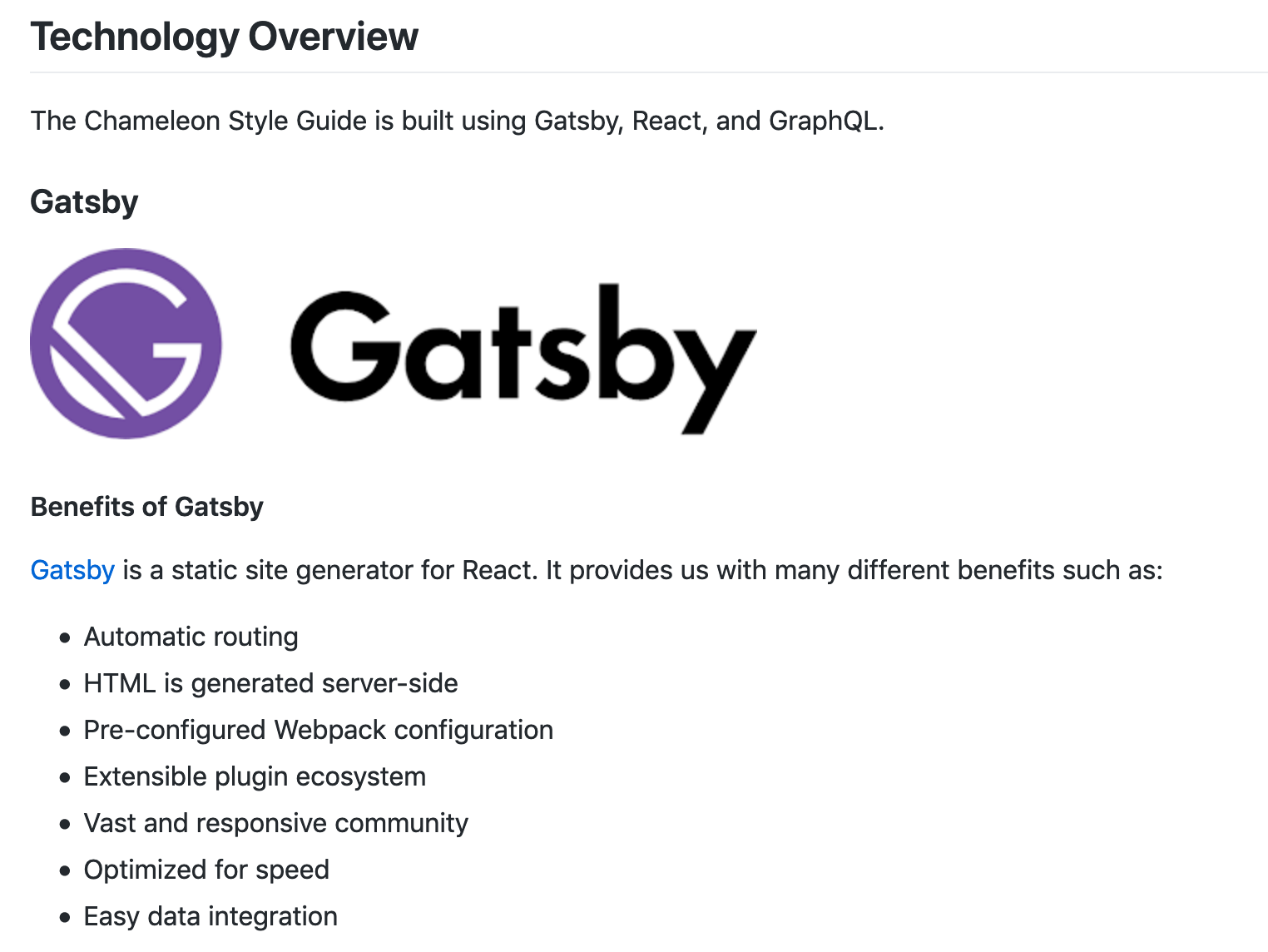

Technology choices & rationale
GOOD
DOCUMENTATION
Installation & setup instructions
Property schema
Type definition
Technology choices & rationale
Examples with code snippets
Takeaways
NATHAN CURTIS
"A design system isn't a project; it's a product serving products."
NATHAN CURTIS
"The system's promise isn't a delivered library...
its promise is to enable consistent experience spread across products."
So even though we all think about the world in different ways...
Design systems allow us to create consistent and accessible interfaces, cross-product.
Thank you
@emmawedekind
Grab my code =>
Building Design Systems With React
By Emma Wedekind
