Elastic Search

Why do we need it?

Index columns in RDBMS

• Works well for exact match and starts with queries

​

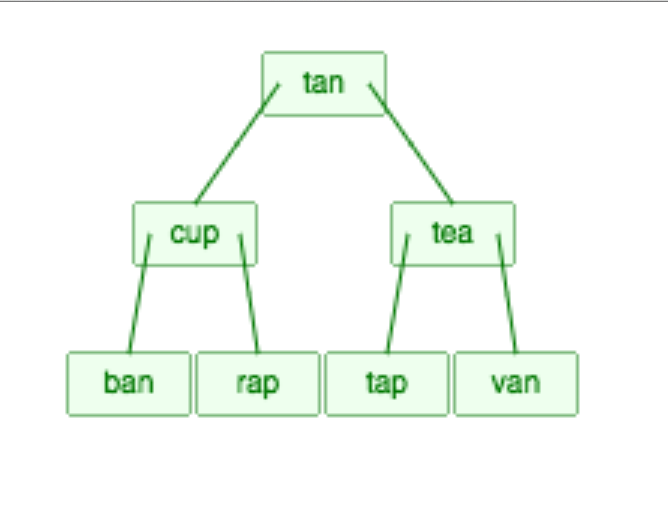

• Usually implemented using BTree
• Visualisation Demo

SELECT *
FROM user
WHERE name = 'John Doe'
AND user_id = 21
AND birth_date > '2007-08-02'

• Search web pages with content on "blue sky"
•  Search for "7th Sector, HSR layout, Bangalore" in a unstructured address registry

How about ?

Apache Lucene

a high-performance, full-featured text search engine

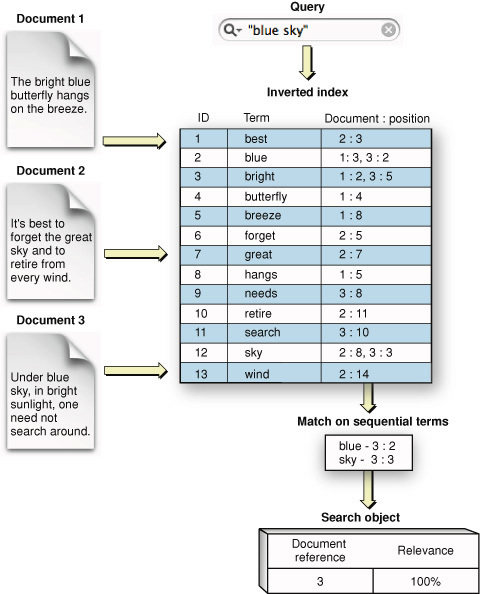

Inverted Index

• Break a document into tokens

• Index sorted set of tokens

• Map tokens to document and position of token within the document

What if we need

• A search for UK to match United Kingdom.
• A search for jump to match jumped, jumps and perhaps even leap.
• A search for johnny walker should match Johnnie Walker
• A search for fox news hunting should return stories about hunting on Fox News, while fox hunting news should return news stories about fox hunting.

Analysis

• ​Pre tokenisation filter :  Convert "&" to and, Strip html characters etc
• Tokenisation
• Post tokenisation filter
  • ​Stemming:  Convert "bikes" => "bike"
  • Text Normalisation: Stripping accents etc
  • Stop Words Filtering:  Remove words like "the", "and" and "a"
  • Synonym Expansion: Convert "UK" => "United Kingdom"

Scoring / Ranking Results

• ​Term Frequency: If a term appears more number of times in document, it is ranked better
• Inverse Document Frequency(IDF):  If a term appears in fewer documents, documents containing these terms ranked better
• Boost: This is a parameter provided in the query
• Other factors...

Features

• ​Fuzzy search : Handle typos
• Phrase queries / proximity queries
• Highlight Searches
• Facet / Aggregations : Drill down results further (eg: e-commerce sites)
• Fielded search (Blog title, author, tags)
• Datatypes - Text, Numbers, Dates
• Dynamic Range : Geo location and distance filters
• More..

What does elastic search do?

• Distributed search: Near realtime results on large dataset
• Document Oriented Data Store : JSON documents
• RESTful API, Query DSL
• High Availability : Replication, Automatic Fail Over
• More..

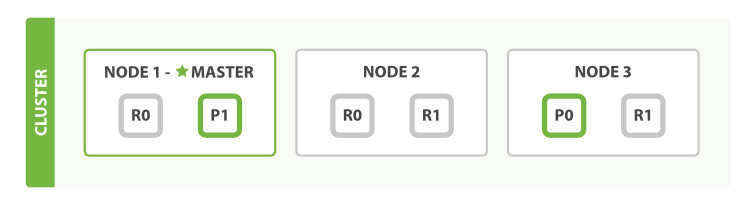

• Cluster
  • Nodes
    • Shards : Primary(P) or Replica(R)
• Each shard is a lucene index

Elastic Search Architecture

API Demo

The End
