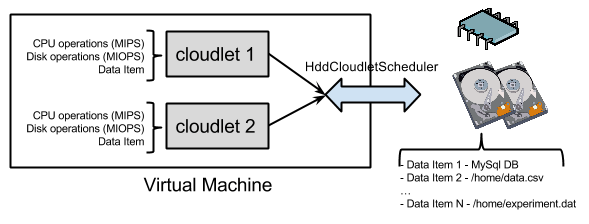

public class Cloudlet {
    public enum CloudletStatus {
        /** The Cloudlet has been created and added to the CloudletList object. */
        CREATED,

        /** The Cloudlet has been assigned to a CloudResource object to be executed as planned. */
        READY,

        /** The Cloudlet has moved to a Cloud node. */
        QUEUED,

        /** The Cloudlet is in execution in a Cloud node. */
        INEXEC,

        /** The Cloudlet has been executed successfully. */
        SUCCESS,

        /** The Cloudlet has failed. */
        FAILED,

        /** The Cloudlet has been canceled. */
        CANCELED,

        /** The Cloudlet has been paused. It can be resumed by changing the status into RESUMED. */
        PAUSED,

        /** The Cloudlet has been resumed from PAUSED state. */
        RESUMED,

        /** The cloudlet has failed due to a resource failure.*/
        FAILED_RESOURCE_UNAVAILABLE;
        public static final CloudletStatus[] values = values();
        // @NOTE: Convert an int to enum with CloudletStatus.values[i] (mind the array bounds)
    }

    /**
     * The execution status of this Cloudlet.
     */
    private CloudletStatus status;

    /**
     * The cloudlet ID.
     */
    private final int cloudletId;

    /**
     * The User or Broker ID. It is advisable that broker set this ID with its
     * own ID, so that CloudResource returns to it after the execution.
     */
    private int userId;

    /** The Cloudlet UID */
    private String uid;

    /**
     * The execution length of this Cloudlet (Unit: in Million Instructions
     * (MI)). According to this length and the power of the processor (in
     * Million Instruction Per Second - MIPS) where the cloudlet will be run,
     * the cloudlet will take a given time to finish processing. For instance,
     * for a cloudlet of 10000 MI running on a processor of 2000 MIPS, the
     * cloudlet will spend 5 seconds using the processor in order to be
     * completed (that may be uninterrupted or not, depending on the scheduling
     * policy).
     *
     * @see #setNumberOfPes(int)
     */
    private long cloudletLength;

    /**
     * The input file size of this Cloudlet before execution (unit: in byte).
     * This size has to be considered the program + input data sizes.
     */
    private final long cloudletFileSize;

    /**
     * The output file size of this Cloudlet after execution (unit: in byte).
     * <p>
     * //TODO See
     * <a href="https://groups.google.com/forum/#!topic/cloudsim/MyZ7OnrXuuI">this
     * discussion</a>
     */
    private final long cloudletOutputSize;

    /**
     * The number of Processing Elements (Pe) required to execute this cloudlet
     * (job).
     *
     * @see #setNumberOfPes(int)
     */
    private int numberOfPes;

    /**
     * The execution start time of this Cloudlet. With new functionalities, such
     * as CANCEL, PAUSED and RESUMED, this attribute only stores the latest
     * execution time. Previous execution time are ignored.
     */
    private double execStartTime;

    /**
     * The time where this Cloudlet completes.
     */
    private double execFinishTime;

    /** The total time to complete this Cloudlet. */
    private double totalCompletionTime;
    /**
     * The ID of a reservation made for this cloudlet.
     * <p>
     * //TODO This attribute doesn't appear to be used
     */
    private int reservationId = -1;

    /**
     * Indicates if transaction history records for this Cloudlet is to be
     * outputted.
     */
    private final boolean record;

    /**
     * Stores the operating system line separator.
     */
    private String newline;

    /**
     * The cloudlet transaction history.
     */
    private StringBuffer history;

    /**
     * The list of every resource where the cloudlet has been executed. In case
     * it starts and finishes executing in a single cloud resource, without
     * being migrated, this list will have only one item.
     */
    private final List<Resource> resList;

    /**
     * The index of the last resource where the cloudlet was executed. If the
     * cloudlet is migrated during its execution, this index is updated. The
     * value -1 indicates the cloudlet has not been executed
     * yet.
     */
    private int index;

    /**
     * The classType or priority of this Cloudlet for scheduling on a resource.
     */
    private int classType;

    /**
     * The Type of Service (ToS) of IPv4 for sending Cloudlet over the network.
     */
    private int netToS;

    /**
     * The format of decimal numbers.
     */
    private DecimalFormat num;

    /**
     * The id of the guest entity that is planned to execute the cloudlet.
     */
    protected int guestId;

    /**
     * The id of the container is planned to execute the cloudlet.
     * It may be -1, if containers are not in use
     */
    // TODO: Remo Andreoli: to be deprecated in favor of guestId
    protected int containerId = -1;

    /**
     * The cost of each byte of bandwidth (bw) consumed.
     */
    protected double costPerBw;

    /**
     * The total bandwidth (bw) cost for transferring the cloudlet by the
     * network, according to the {@link #cloudletFileSize}.
     */
    protected double accumulatedBwCost;

    // Utilization
    /**
     * The utilization model that defines how the cloudlet will use the VM's
     * CPU.
     */
    private UtilizationModel utilizationModelCpu;

    /**
     * The utilization model that defines how the cloudlet will use the VM's
     * RAM.
     */
    private UtilizationModel utilizationModelRam;

    /**
     * The utilization model that defines how the cloudlet will use the VM's
     * bandwidth (bw).
     */
    private UtilizationModel utilizationModelBw;

    // Data cloudlet
    /**
     * The required files to be used by the cloudlet (if any). The time to
     * transfer these files by the network is considered when placing the
     * cloudlet inside a given VM
     */
    private List<String> requiredFiles = null;

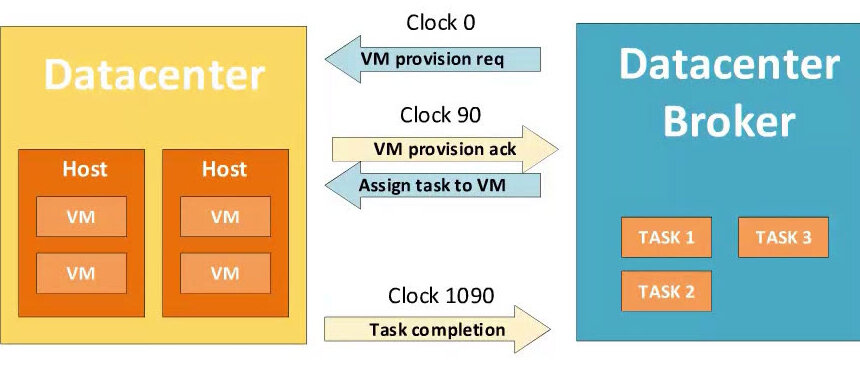

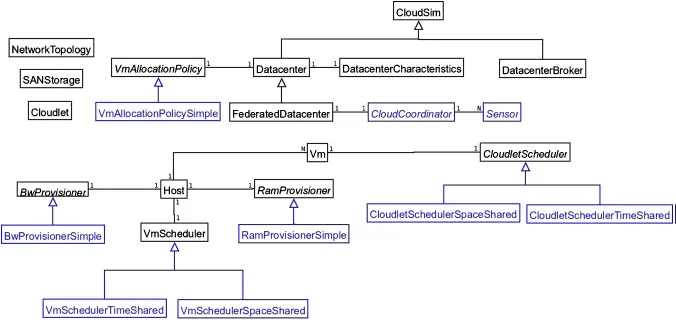

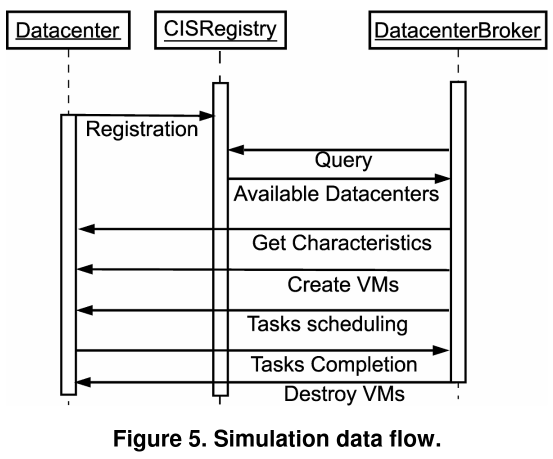

public class Datacenter extends SimEntity {

	/** The characteristics. */
	private DatacenterCharacteristics characteristics;

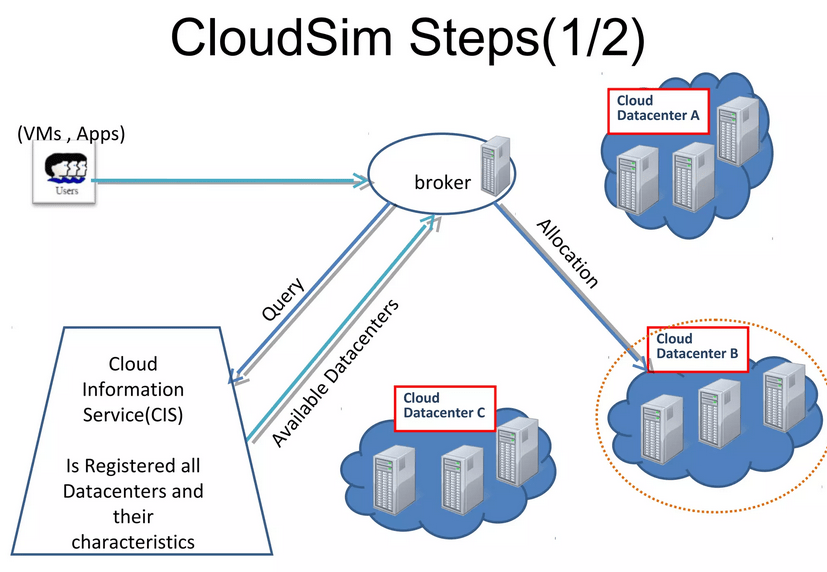

	/** The regional Cloud Information Service (CIS) name.
         * @see org.cloudbus.cloudsim.core.CloudInformationService
         */
	private String regionalCisName;

	/** The vm provisioner. */
	private VmAllocationPolicy vmAllocationPolicy;

	/** The last time some cloudlet was processed in the datacenter. */
	private double lastProcessTime;

	/** The storage list. */
	private List<Storage> storageList;

	/** The vm list. */
	private List<? extends GuestEntity> vmList;

	/** The scheduling delay to process each datacenter received event. */
	private double schedulingInterval;
}

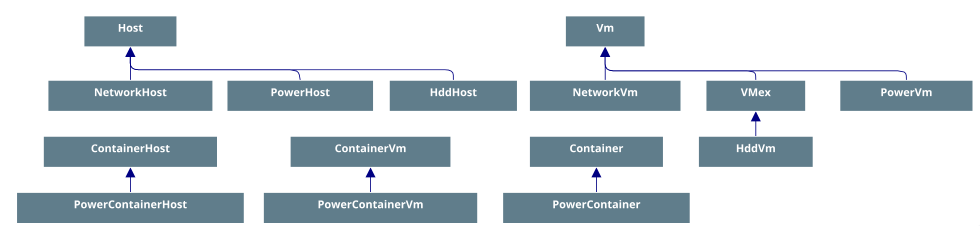

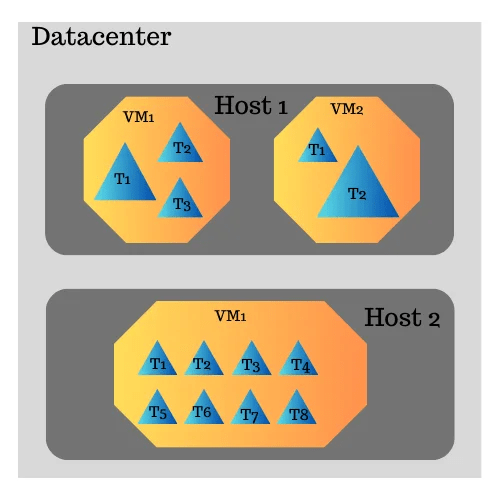

public class Host implements HostEntity {

	/** The id of the host. */
	private int id;

	/** The storage capacity. */
	private long storage;

	/** The ram provisioner. */
	private RamProvisioner ramProvisioner;

	/** The bw provisioner. */
	private BwProvisioner bwProvisioner;

	/** The allocation policy for scheduling VM execution. */
	private VmScheduler vmScheduler;

	/** The list of VMs assigned to the host. */
	private final List<? extends GuestEntity> guestList = new ArrayList<>();

	/** The Processing Elements (PEs) of the host, that
         * represent the CPU cores of it, and thus, its processing capacity. */
	private List<? extends Pe> peList;

	/** Tells whether this host is working properly or has failed. */
	private boolean failed;

	/** The VMs migrating in. */
	private final List<? extends GuestEntity> guestsMigratingIn = new ArrayList<>();

	/** The datacenter where the host is placed. */
	private Datacenter datacenter;
}

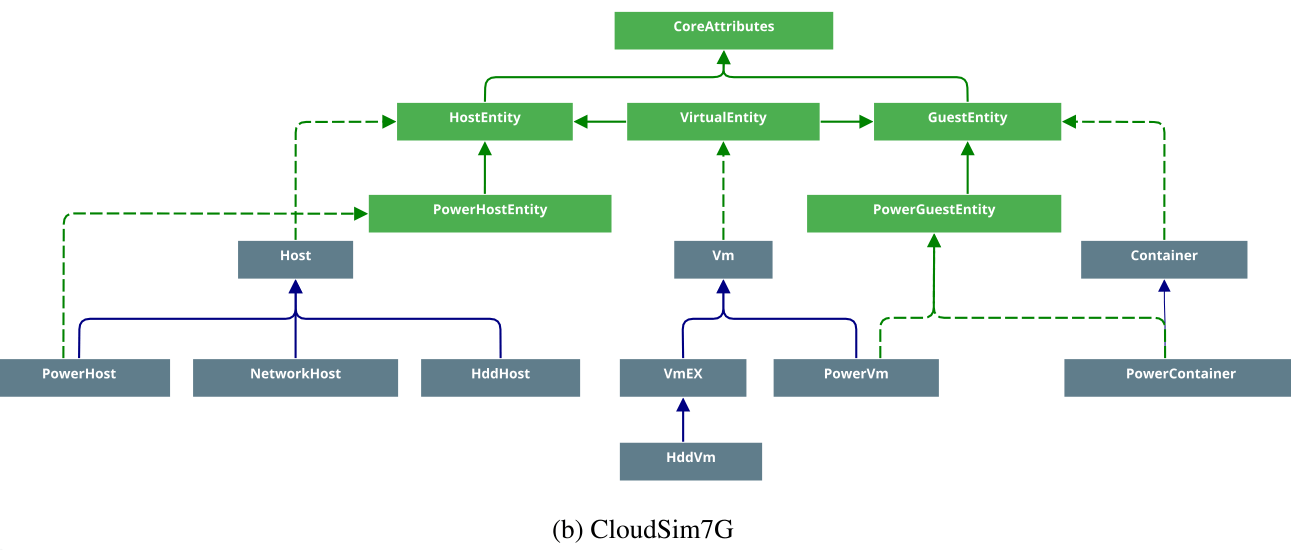

public class Vm implements VirtualEntity {

	/** The VM unique id. */
	private final int id;

	/** The user id. */
	private int userId;

	/** A Unique Identifier (UID) for the VM, that is compounded by the user id and VM id. */
	private String uid;

	/** The size the VM image size (the amount of storage it will use, at least initially). */
	private long size;

	/** The MIPS capacity of each VM's PE. */
	private double mips;

	/** The number of PEs required by the VM. */
	private int numberOfPes;

	/** The required ram. */
	private int ram;

	/** The required bw. */
	private long bw;

	/** The Virtual Machine Monitor (VMM) that manages the VM. */
	private String vmm;

	/** The Cloudlet scheduler the VM uses to schedule cloudlets execution. */
	private CloudletScheduler cloudletScheduler;

	/** The Guest scheduler the Vm uses to schedule nested guest entities, such as containers. */
	private VmScheduler guestScheduler;

	/** The PM that hosts the VM. */
	private HostEntity host;

	/** Indicates if the VM is in migration process. */
	private boolean inMigration;

	/** Indicates if the VM is in Pause State (e.g. Stop & copy phase) */
	private boolean inPause;

	/** Indicates if the VM is waiting for nested guest entities to come. */
	private boolean inWaiting;

	/** The current allocated storage size. */
	private long currentAllocatedSize;

	/** The current allocated ram. */
	private int currentAllocatedRam;

	/** The current allocated bw. */
	private long currentAllocatedBw;

	/** The current allocated mips for each VM's PE.
	 * TODO: Maybe replace with a call to getCloudletScheduler().getCurrentMipsShare()
	 */
	private List<Double> currentAllocatedMips;

	/** Indicates if the VM is being instantiated. */
	private boolean beingInstantiated;

	/** The ram provisioner for (nested) guest entities. */
	private RamProvisioner guestRamProvisioner;

	/** The bw provisioner for (nested) guest entities. */
	private BwProvisioner guestBwProvisioner;

	/** The pe list for nested guest entities. */
	private List<? extends Pe> peList;

	/** The nested guest list. */
	private final List<? extends GuestEntity> guestList = new ArrayList<>();

	/** The nested guests migrating in. */
	private final List<? extends GuestEntity> guestsMigratingIn = new ArrayList<>();

	/** Tells whether this VM is working properly (as a host for nested guests) or has failed. */
	private boolean failed;

	/** The mips allocation history.
	 * TODO Instead of using a list, this attribute would be
	 * a map, where the key can be the history time
	 * and the value the history itself.
	 * By this way, if one wants to get the history for a given
	 * time, he/she doesn't have to iterate over the entire list
	 * to find the desired entry.
	 */
	private final List<VmStateHistoryEntry> stateHistory = new ArrayList<>();
