Jaspersoft's Data Adapters





ernesto ongaro
july 2013



Session Overview


  • Why Data Adapters?
  • How to configure & use a Data Adapter
  • Using in JasperReports Server
  • Resources + Q&A





Why Data Adapters?

What is a data adapter?

  • A way to define a source for  JasperReports  using a configuration  file
  • Different from a traditional datasource which is typically invoked like this:

public void myConnection(){

        String HOST = "jdbc:mysql://localhost:3306/db";
        String USER = "user";
        String PASS = "pass";

        conn = DriverManager.getConnection(HOST, USER, PASS);

JasperFillManager.fillReportToFile("report.jasper", parameters, myConnection());

  • Data Adapters typically use an empty data source, instead defined in a file:

     JasperFillManager.fillReportToFile("report.jasper", null, new JREmptyDataSource(5));

Why use them?

  • Traditionally iReport has supported alternative datasource from JDBC like XML, CSV, XLS, JSON
  • JasperReports Server traditionally doesn't support them out of the box (as of JRS 5.1)
  • With DataAdapters we can support them in the server!

  • Another DataAdapter feature: we can support multiple data sources in one report, example:
    • Parent report and sub-report with two sources
    • Sub-datasets with different sources







How do they work?

Supported Data Adapters:

  • BeanDataAdapter
  • ClasspathAwareDataAdapter
  • CsvDataAdapter
  • DataSourceDataAdapter
  • DataSourceProviderDataAdapter
  • EjbqlDataAdapter
  • EmptyDataAdapter
  • HibernateDataAdapter
  • JdbcDataAdapter
  • JndiDataAdapter
  • JsonDataAdapter
  • MondrianDataAdapter, XmlaDataAdapter
  • QueryExecuterDataAdapter
  • SpringHibernateDataAdapter
  • XlsDataAdapter, XlsxDataAdapter
  • XmlDataAdapter, RemoteXmlDataAdapter

Data Source Adapter File Example:

<?xml version="1.0" encoding="UTF-8"?>
<csvDataAdapter class="net.sf.jasperreports.data.csv.CsvDataAdapterImpl">
        <name>csv</name>
        <fileName>/data/CsvDataSource.csv</fileName>
        <recordDelimiter>&#13;&#10;</recordDelimiter>
        <useFirstRowAsHeader>false</useFirstRowAsHeader>
        <queryExecuterMode>true</queryExecuterMode>
        <datePattern>yyyy-MM-dd HH:mm:ss</datePattern>
        <columnNames>address</columnNames>
        <columnNames>latitude</columnNames>
        <columnNames>longitude</columnNames>
        <columnNames>size</columnNames>
        <columnNames>color</columnNames>
        <columnNames>url</columnNames>
        <columnNames>icon</columnNames>
        <columnNames>iconurl</columnNames>
        <columnNames>iconwidth</columnNames>
        <columnNames>iconheight</columnNames>
</csvDataAdapter>
Note: fileName can be in file system or repo:

Referencing Data Adapters from JRXML:

As "main report" dataset:
 <jasperReport
                xmlns="http://jasperreports.sourceforge.net/jasperreports"
                xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
                xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd"
                name="CustomersReport" pageWidth="595" pageHeight="842" columnWidth="515" leftMargin="40" rightMargin="40" topMargin="50" bottomMargin="50">
        <property name="net.sf.jasperreports.data.adapter" value="/data/myAdapter.xml"/>

As "sub-dataset":

  <subDataset name="MarkersDataset">
      <property name="net.sf.jasperreports.data.adapter" value="/data/myAdapter.xml"/>


Note: files can be referenced in file system (example) or in repo: syntax





Using in JasperReports Server

Why different?



Remember these aren't standard datasources...the report will not have a "data source" attached


Steps from Jaspersoft Studio:

  1. Create a new data adapter
  2. Publish to server (hint drag and drop!)
  3. Set net.sf.jasperreports.data.adapter repo:/path of adapter

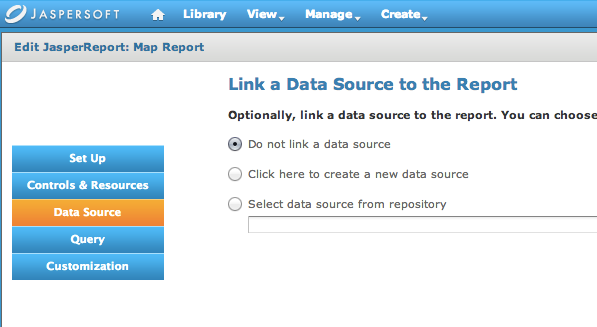

  4. Publish report (set to "No Datasource")


                                                          (DEMO)

Note: File datasource have to be published with (xml) extension - csv, xls, etc not supported

Note2: You might need to add some jars from JSS for all data adapters to work

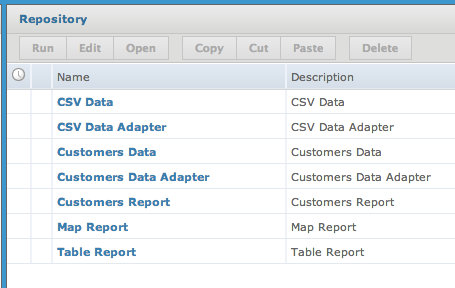

Examples in Server:


Examples ship in /reports/Interactive:

Limitations:

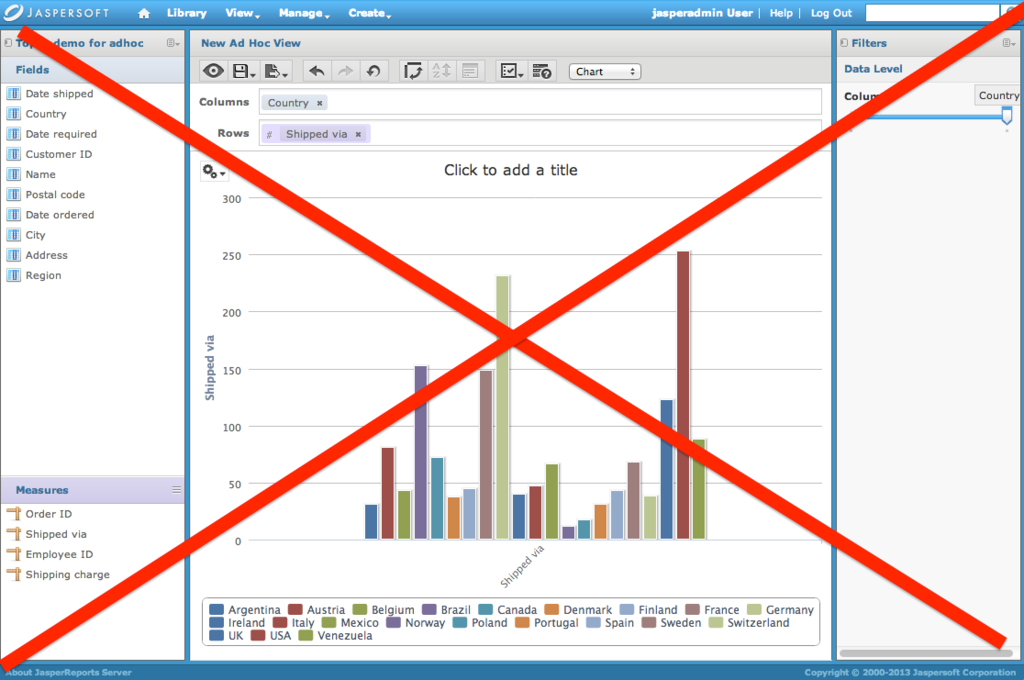

  • Can not use in Ad-hoc topics (as of 5.1)
    • This is planned soon!
  • No UI for upload/management on server

Resources:



Questions?



Thank you!!!!
