Title Text

University of Delaware

Department of Physics and Astronomy

Biden School of Public Policy and Administration

Data  Science Institute

Rubin Observatory Construction Project - Deputy Project Scientist

Rubin Transients and Variable Stars Science Collaboration

federica bianco - Associate Professor

(she/her)

bit.ly/cornellfbb

slides available at

bit.ly/cornellfbb

This is a living land acknowledgement developed in consultation with tribal leadership of Poutaxet, what is now known as the “Delaware Bay,” including: the Lenape Indian Tribe of Delaware, the Nanticoke Indian Tribe, and the Nanticoke Lenni-Lenape Tribal Nation in 2021. We thank these leaders for their generosity.

The University of Delaware occupies lands vital to the web of life for Lenni Lenape and Nanticoke, who share their ancestry, history, and future in this region. UD has financially benefited from this regional occupation as well as from Indigenous territories that were expropriated through the United States land grant system. European colonizers and later the United States forced Nanticoke and Lenni Lenape westward and northward, where they formed nations in present-day Oklahoma, Wisconsin, and Ontario, Canada. Others never left their homelands or returned from exile when they could. We express our appreciation for ongoing Indigenous stewardship of the ecologies and traditions of this region. While the harms to Indigenous people and their homelands are beyond repair, we commit to building right relationships going forward by collaborating with tribal leadership on actionable institutional steps.

Time domain astrophysics at a glance

Bulding a legacy: the Vera C. Rubin Observatory and LSST

FASTLa: AI applications to astrophysics and across disciplines

Vera C. Rubin Observatory:

LSST Science Drivers

Probing Dark Energy and Dark Matter

image credit ESO-Gaia

LSST Science Drivers

Mapping the Milky Way and Local Volume

via resolved stellar population

An unprecedented inventory of the Solar System from threatening NEO to the distant Oort Cloud

LSST Science Drivers

LSST Science Drivers

Exploring the Transients and Variable Universe

10M alerts every night shared with the world

60 seconds after observation

To accomplish this, we need:

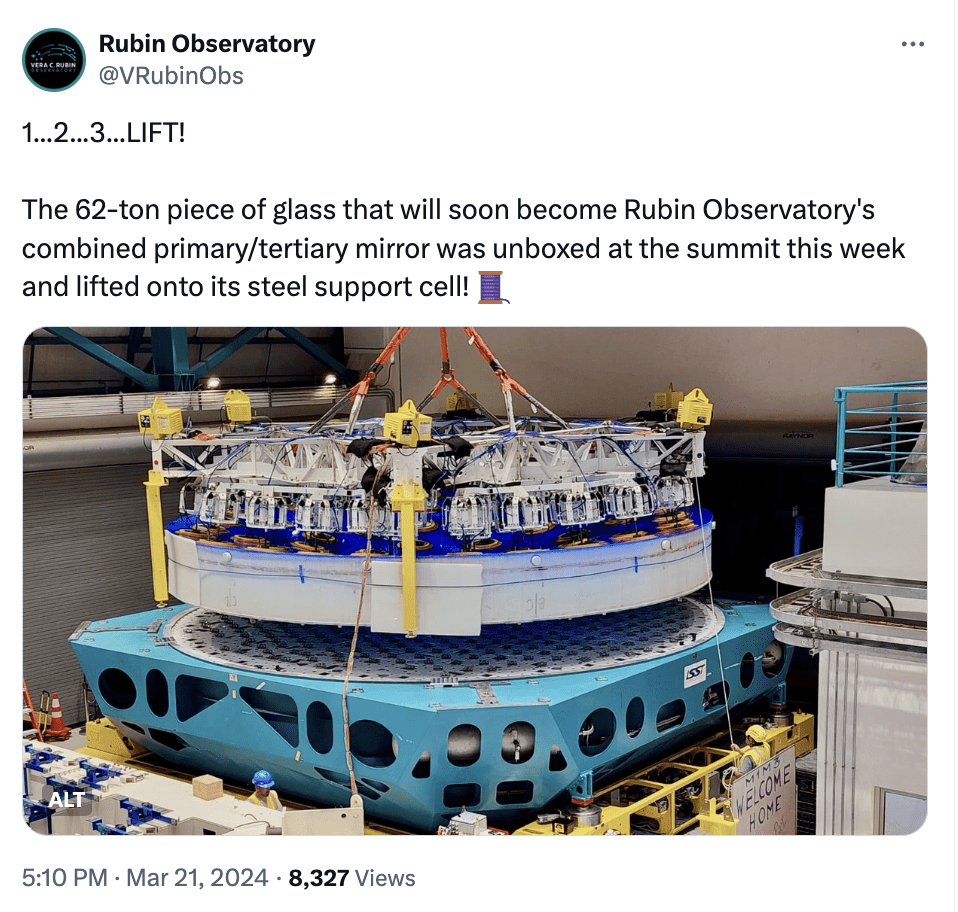

1) a large telescope mirror to be sensitive - 8m (6.7m)

2) a large field-of-view for sky-scanning speed - 10 deg2

3) high spatial resolution, high quality images - 0.2''/pixels

4) process images in realtime and offline to produce live alerts and catalogs of all 37B objects

Objective: provide a science-ready dataset to transform the 4 key science area

2026

From Francisco Förster+ 2020

sensitivity

10

8

9

7

6

2M 3,200 Gigapixel images in 10 years -about 60 PB of data

(3.2 Gpx)

LSST:UK CCD work package lead 2015-2023

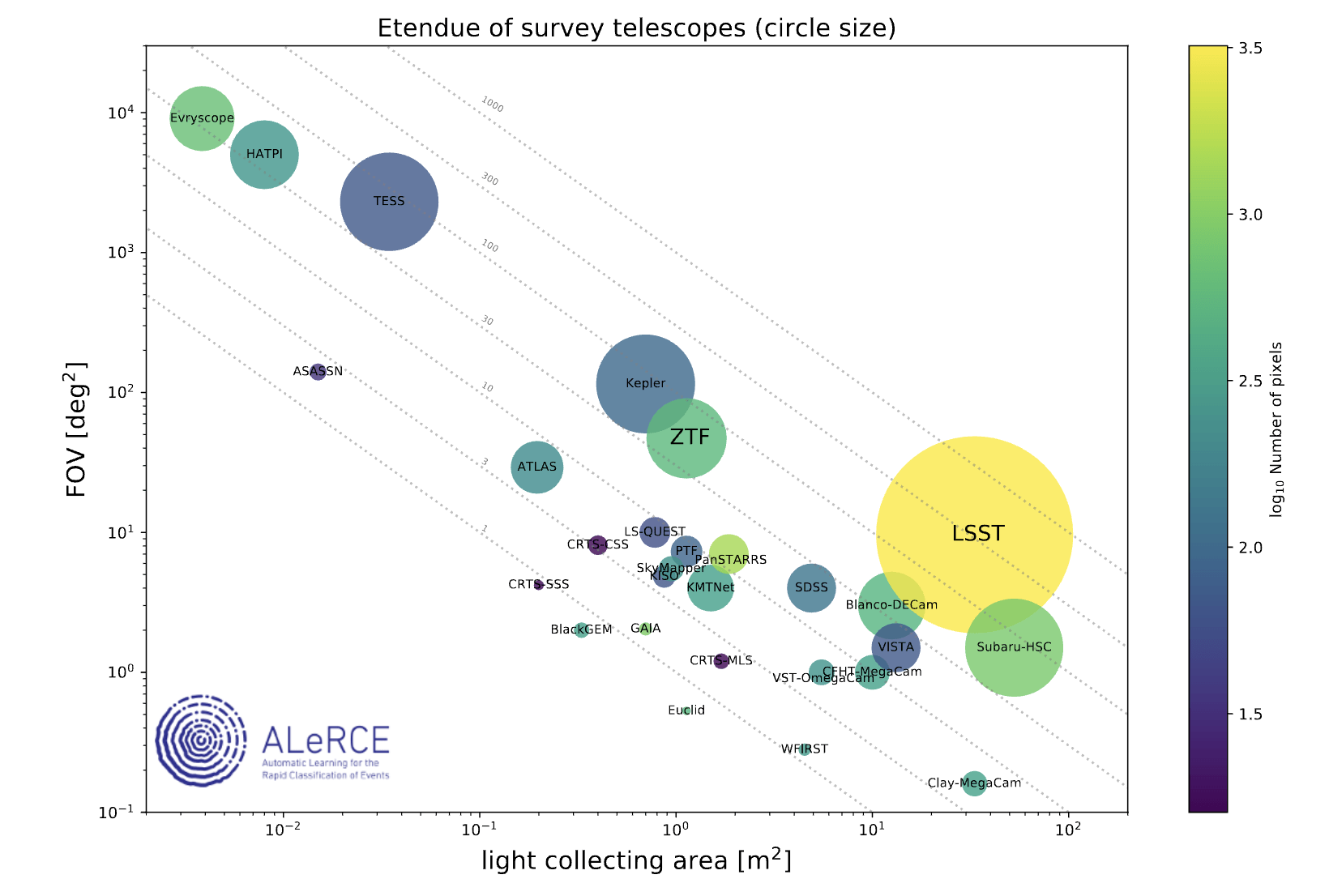

Large FoV - High Resolution - High Sensitivity

Rubin Field of View: 10deg square

LIGO/VIRGO GW area of localization ~100deg square

 Ursa Minor: 255.86 square degrees

S190425z 18% of the sky localization

At this level of precision,everything is variable, everything is blended, everything is moving.

SDSS

LSST-like HSC composite

' requirement: ls.st/srd

*simulation pstn-054.lsst.io

SDSS 2x4 arcmin sq griz

MYSUC (Gawiser 2014) 1 mag shallower than LSST coadds

At this level of precision,everything is variable, everything is blended, everything is moving.

' requirement: ls.st/srd

*simulation pstn-054.lsst.io

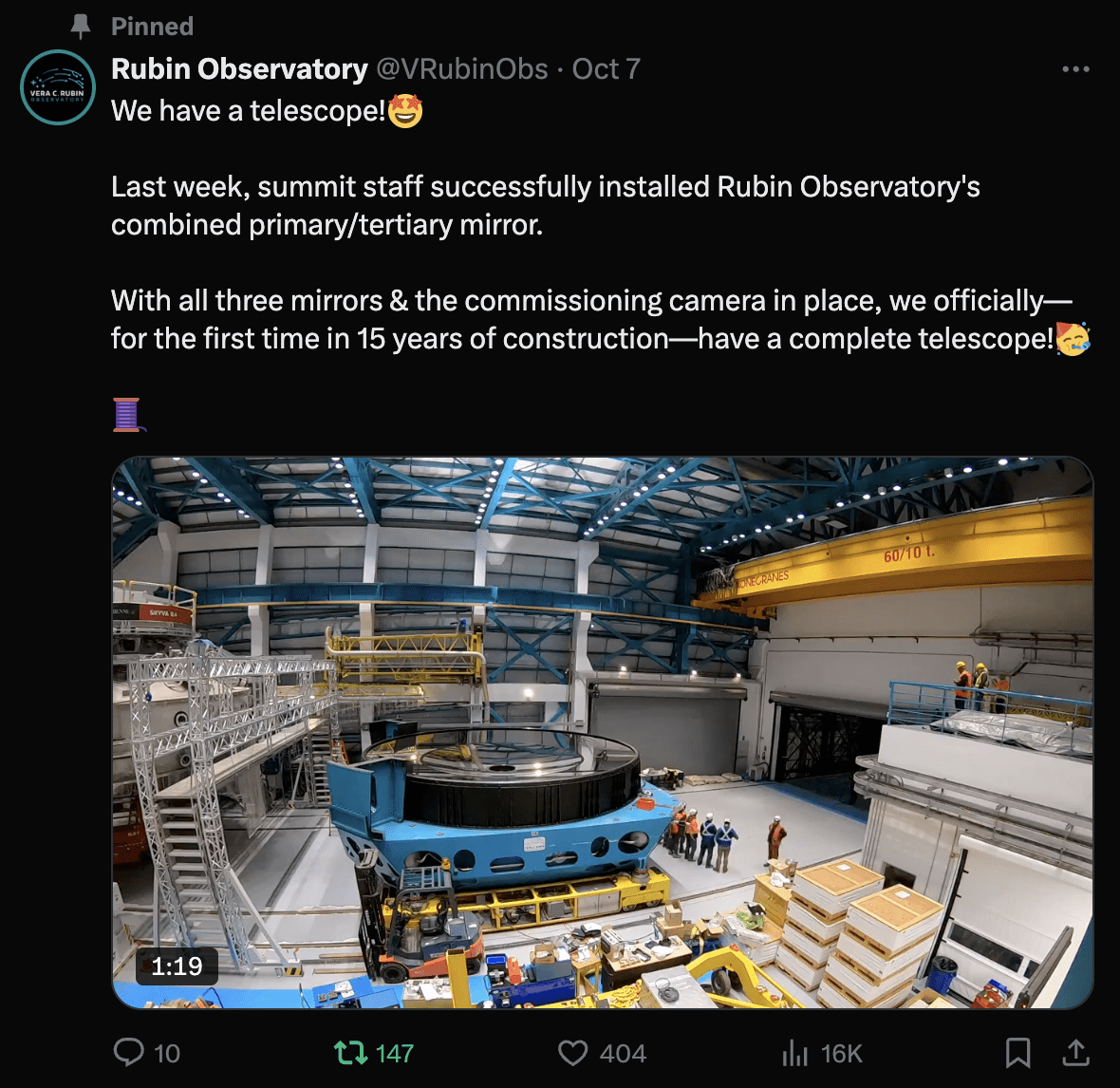

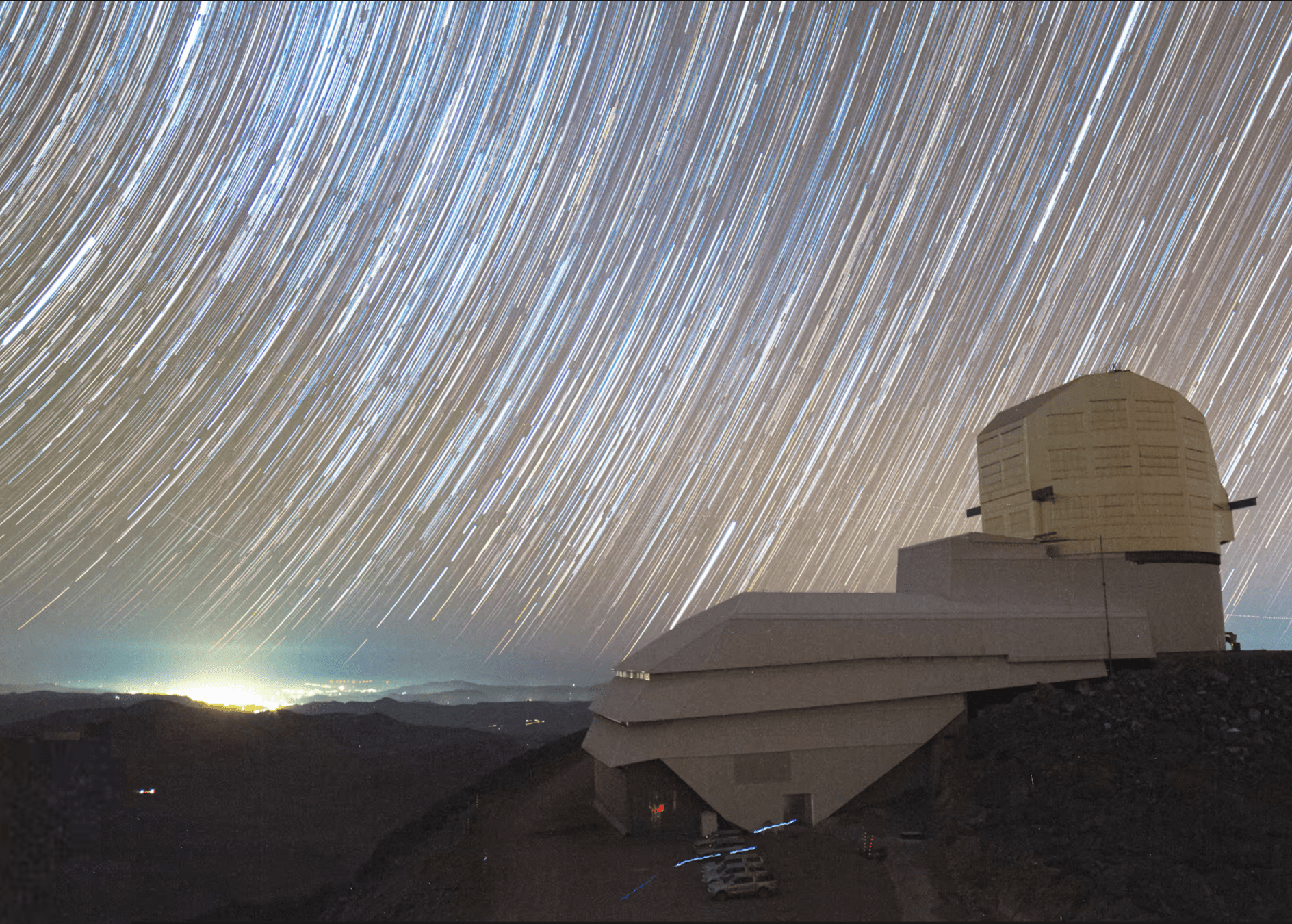

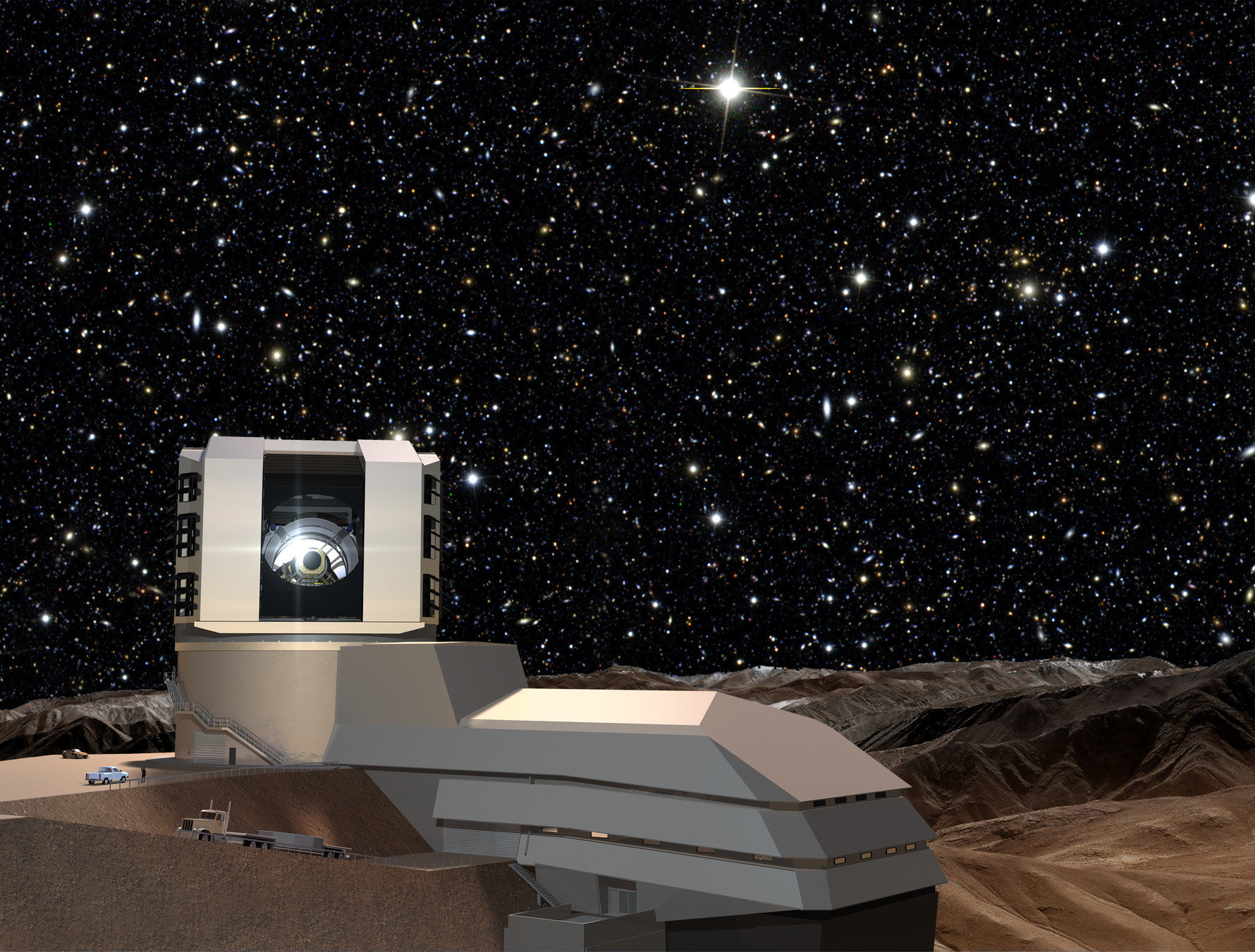

Rubin Observatory

Site: Cerro Pachon, Chile

Funding: US NSF + DOE

Status: final phases of construction - completion expected 2025

September 2016

Fabruary 2020

May 2022

November 2022

May 2022

The DOE LSST Camera - 3.2 Gigapixel

May 2022 - Telescope Mount Assembly

18

First data release ~3y from now

ls.st/dates

The immutable skies

+

minute SN

+

minute SN

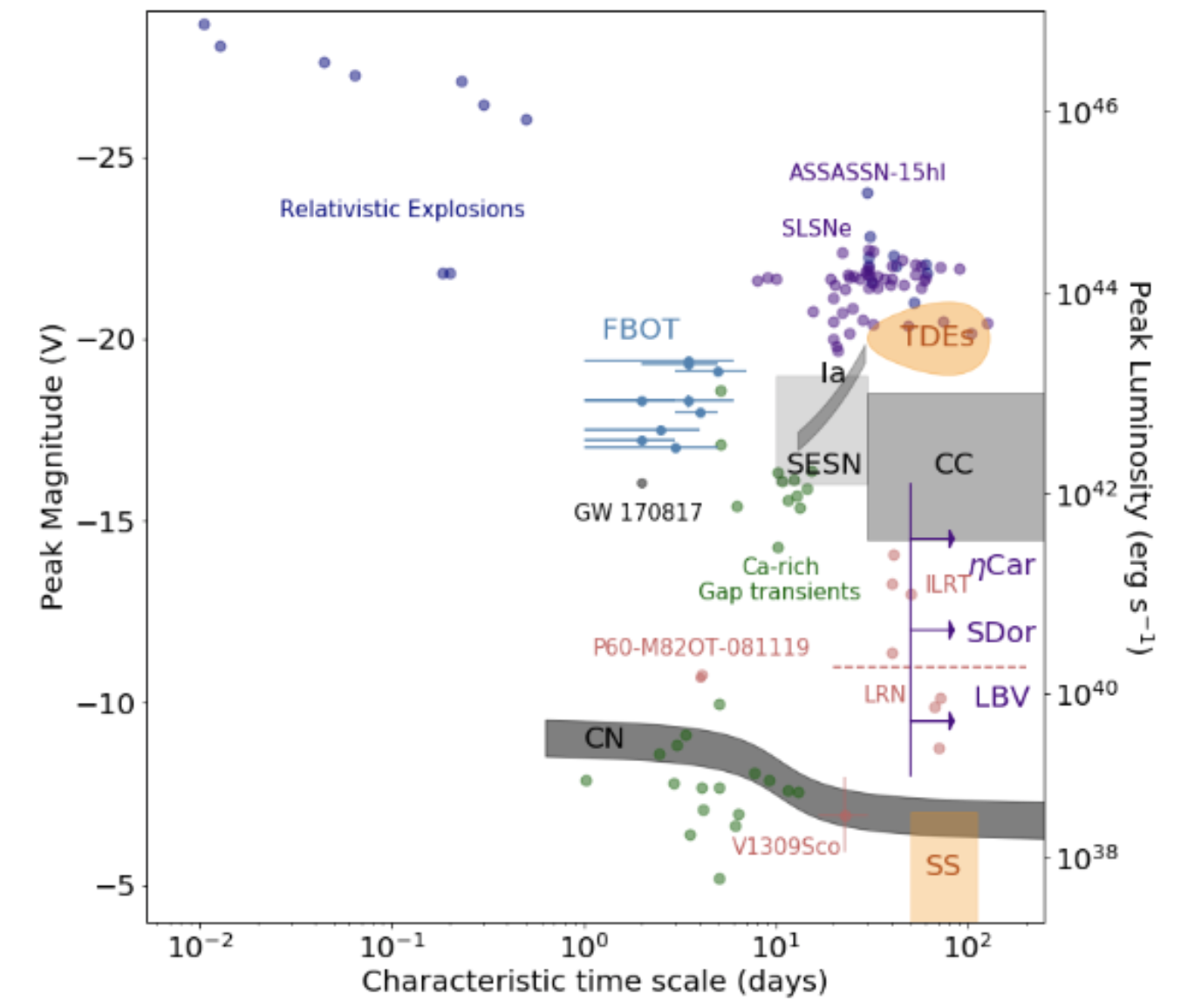

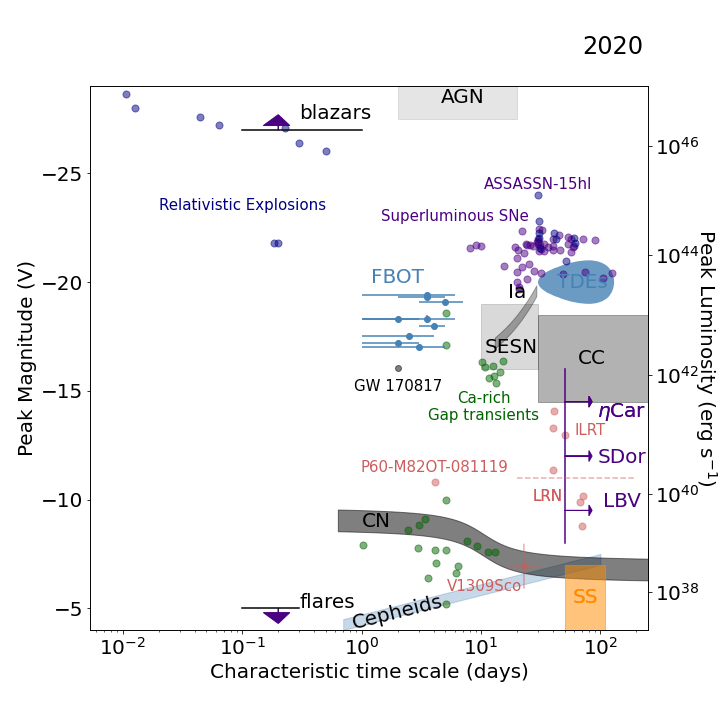

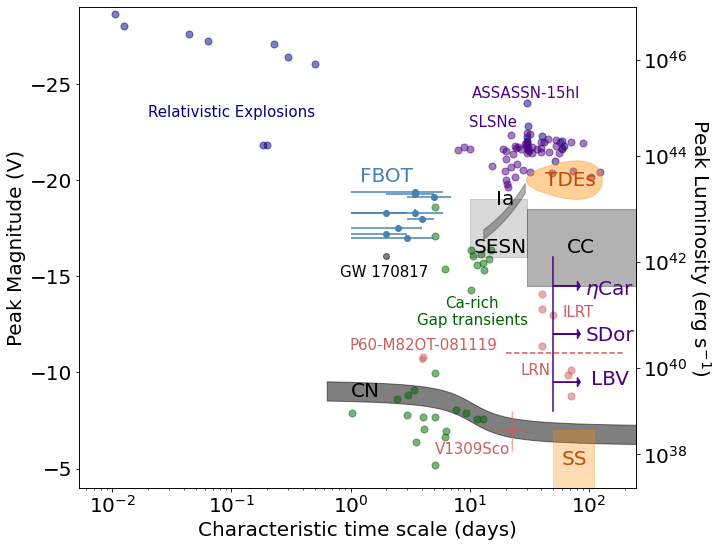

What time scales can LSST probe?

' requirement: ls.st/srd

*simulation pstn-054.lsst.io

minute SN

?

Will we discover new physics?

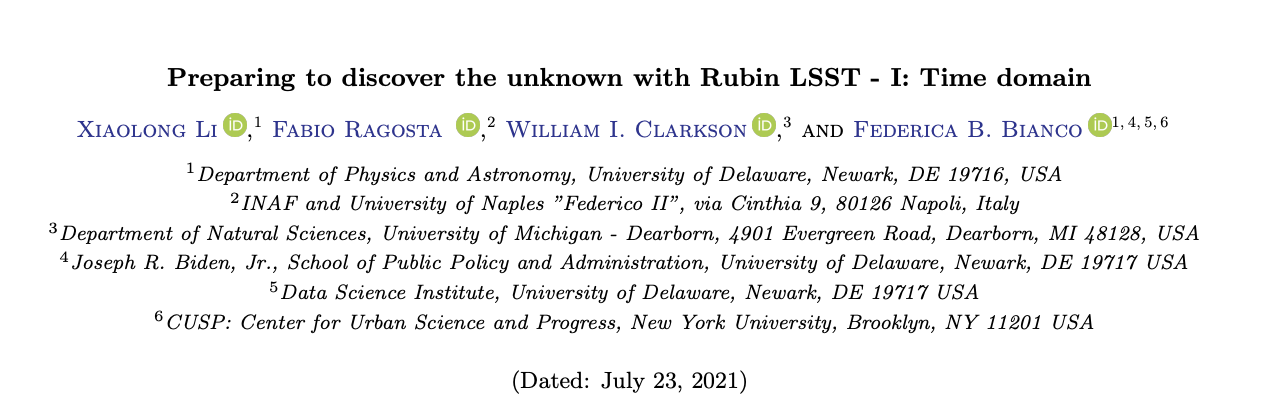

Li, Ragosta, Clarkson, Bianco 2021

A comparative assessment of LSST potential surveys in the discovery of unknown unknowns

Rubin LSST survey design

KN

distributions of time gaps in 76 OpSims

Bianco et al. 2021 https://iopscience.iop.org/article/10.3847/1538-4365/ac3e72

Rubin LSST survey design

Rubin LSST survey design

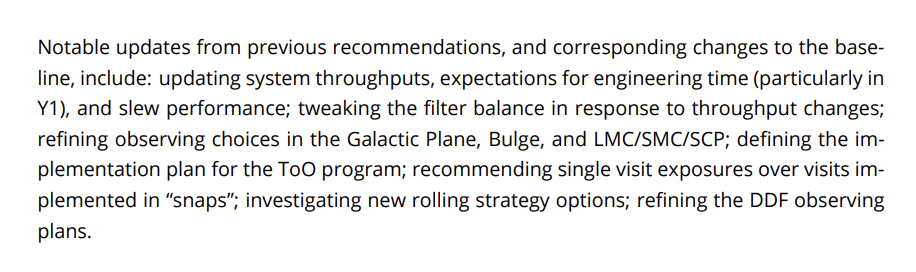

https://www.lsst.org/content/charge-survey-cadence-optimization-committee-scoc

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

Survey Cadence Optimization Committee

Operation Simulator (OpSim)

simulates the catalog of LSST observations + observation properties

Metric Analysi Framwork (MAF)

Python API to interact with OpSims specifying science performance on a science case with a metric

Lynne Jones

Peter Yoachim

~100s simulations

~1000s MAFs

Rubin LSST survey design

Rubin LSST survey design

20+ peer review papers accepted several more under review and in preparation https://iopscience.iop.org/journal/0067-0049/page/rubin_cadence

Rubin LSST survey design

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

2017

Rubin LSST survey design

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

2019

Rubin LSST survey design

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

2023

Rubin LSST survey design

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

2024

Rubin LSST survey design

Rubin has involved the community to an unprecedented level in survey design this is a uniquely "democratic" process!

2024

2024

https://notebooklm.google.com/notebook/c12fc17a-a6ed-4d41-ab85-a389bc8ccd7a/audio?pli=1

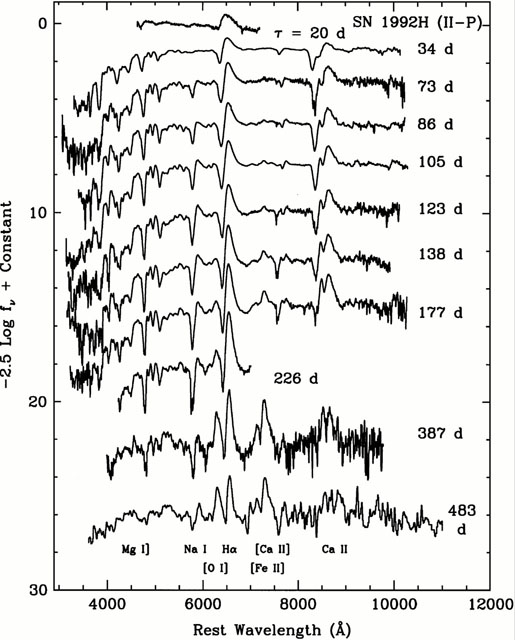

To this day, transient astronomy heavily relies on spectra

Rubin will see ~1000 SN every night!

Too many and too faint to study with traditional means, particularly spectra.

Lots of emphasis in new analysis techniques that rely on "Big Data"

To this day, transient astronomy heavily relies on spectra

To this day, transient astronomy heavily relies on spectra

collected rapidly!

Discovery Engine

10M alerts/night

Community Brokers

target observation managers

Pitt-Google

Broker

BABAMUL

the new astronomy discovery chain

Data Products

described in ls.st/LDM-612

described in ls.st/LDM-612

world public!

10M alerts per night!! anything that changed by >5σ from "how the sky usually looks"

in 60 seconds:

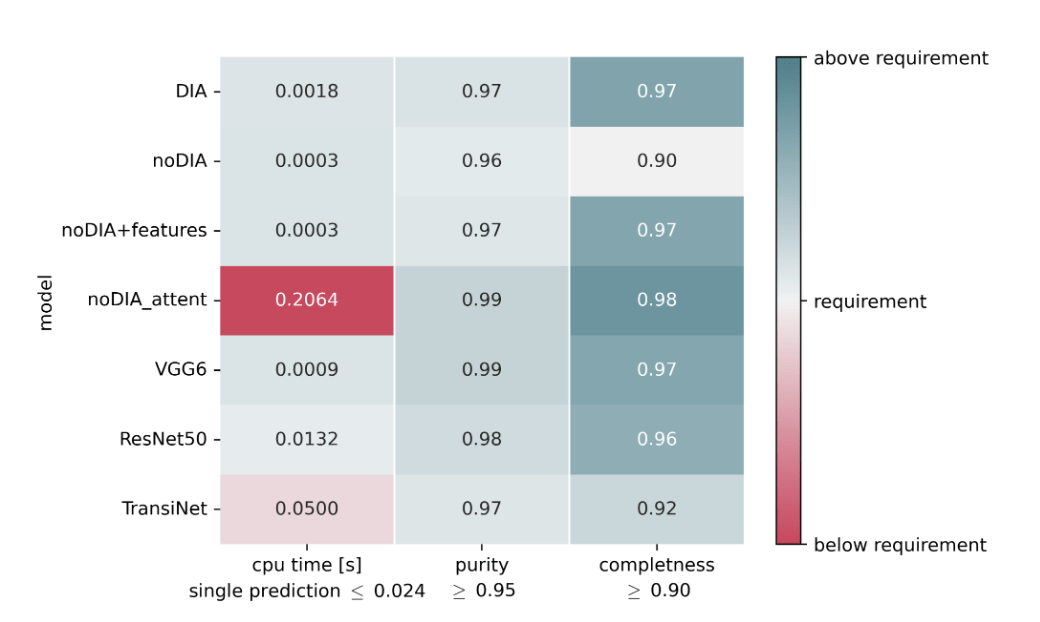

Difference Image Analysis

in 60 seconds:

Difference Image Analysis + Bogus rejection

Rubin Observatory LSST

Tatiana Acero-Cuellar, UNIDEL fellow, LSSTC data science fellow

WORKING WITH RUBIN AP TEAM TO DEVELOP THE ML-RELIABILITY SCORE OF RUBIN ALERTS

search

template

difference

-

=

96% accurate

Tatiana Acero-Cuellar, UNIDEL fellow, LSSTC data science fellow

search

template

difference

-

=

92% accurate

Tatiana Acero-Cuellar, UNIDEL fellow, LSSTC data science fellow

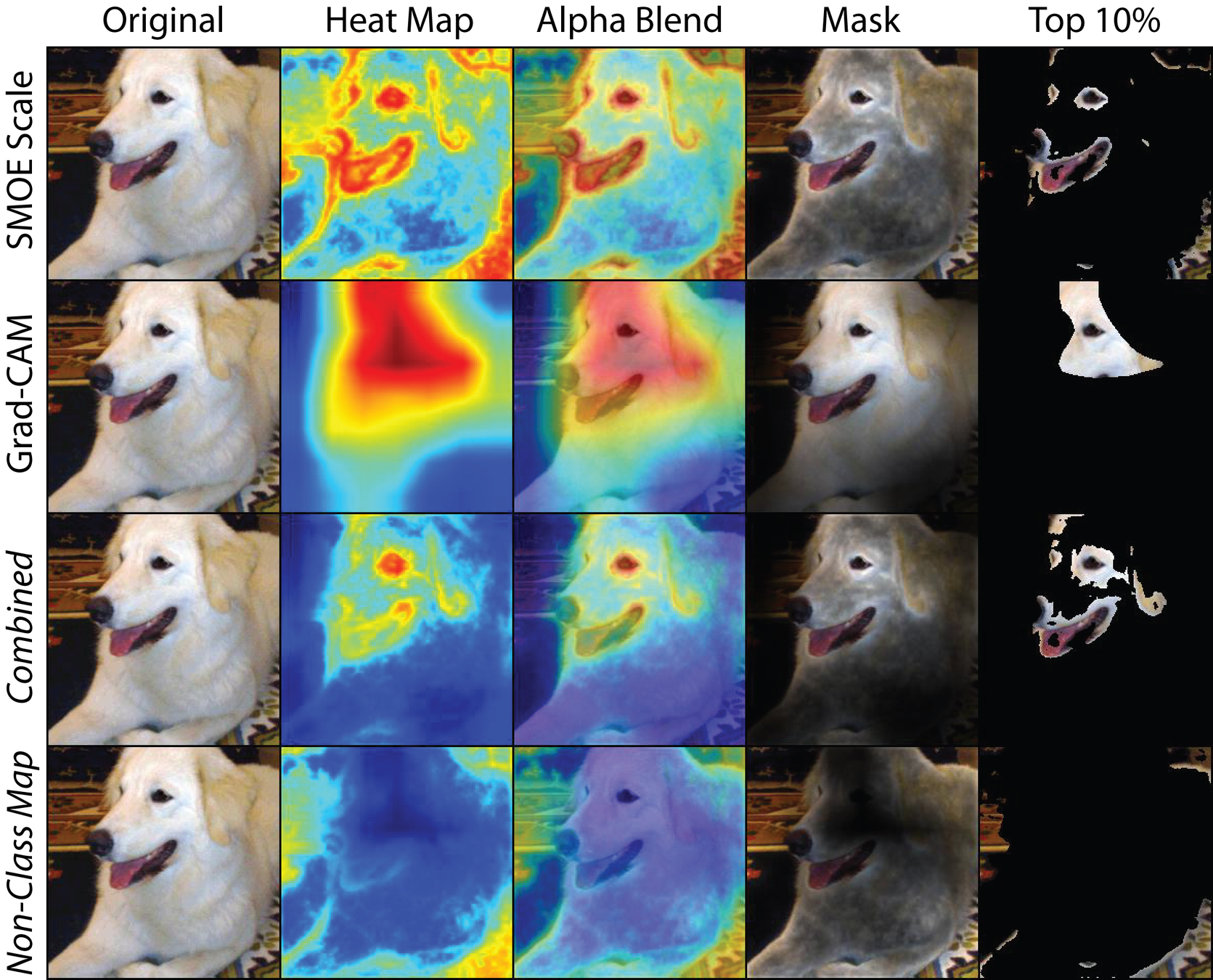

Saliency maps: what pixels matter?

Acero-Cuellar et al. DESC submitted

original paper : Karen Simonyan, Andrea Vedaldi, Andrew Zisserman 2013

What is the network learning?

What can we learn from the AI?

search

template

difference

template

search

Tatiana Acero-Cuellar, UNIDEL fellow, LSSTC data science fellow

What is the network learning?

What can we learn from the AI?

Tatiana Acero-Cuellar, UNIDEL fellow, LSSTC data science fellow

Interpretable AI

Robust AI

Anomaly detection

When they go high, we go low... spectra classification at low resolution

Astrophysical spectra require the capture of enough photons at each wavelength:

large telescopes

long exposure times

bright objects

Photometric Classification of transients

KIC 3858884: A hybrid δ Scuti pulsator in a highly eccentric eclipsing binary Maceroni+2014

Photometric Classification of transients

Kepler satellite EB

LSST (simulated) EB

LSST Deep Drilling Fields

Kaggle PLAsTiCC challenge

AVOCADO classifier

https://arxiv.org/abs/1907.04690

LSST Wide Fast Deep (main survey)

Photometric Classification of transients

Dr. Somayeh Khakpash

LSSTC Catalyst Fellow, Rutgers

Rare classes will become common, but how do we know what we are looking at and classify different objects for sample studies?

Data-Driven Photometric Templates for stripped SESN

on the job market!

Khakpash et al. 2024 ApJS https://arxiv.org/pdf/2405.01672

FASTlab Flash highlight

Somayeh Khakpash

Catalyst Fellow (Rutgers)

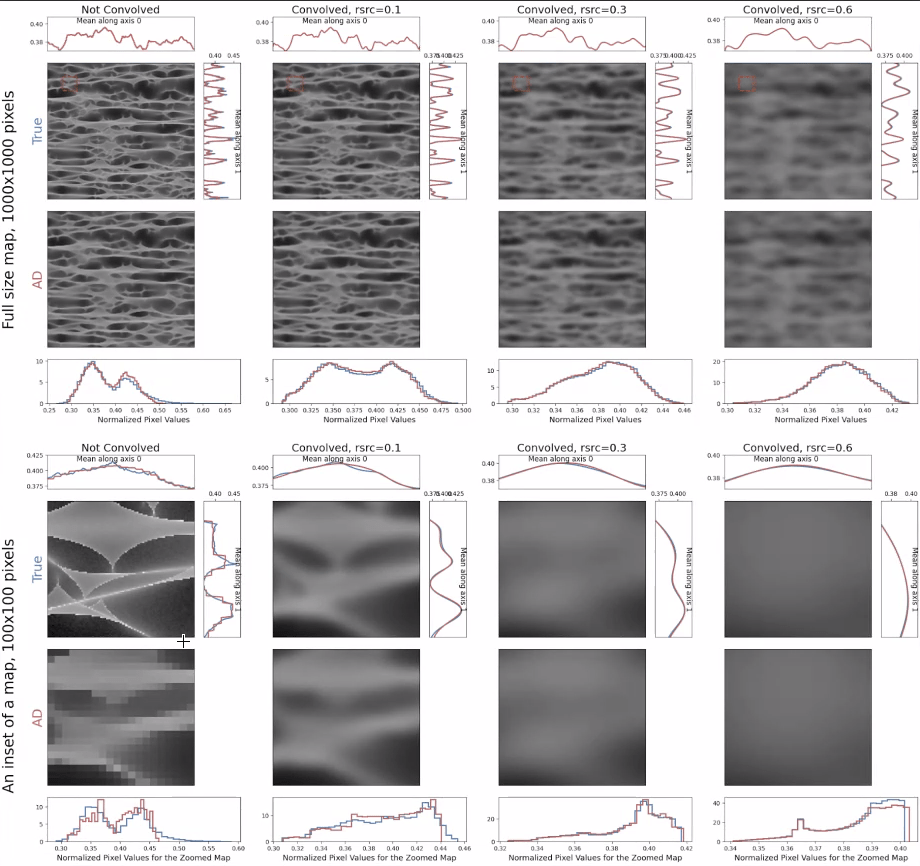

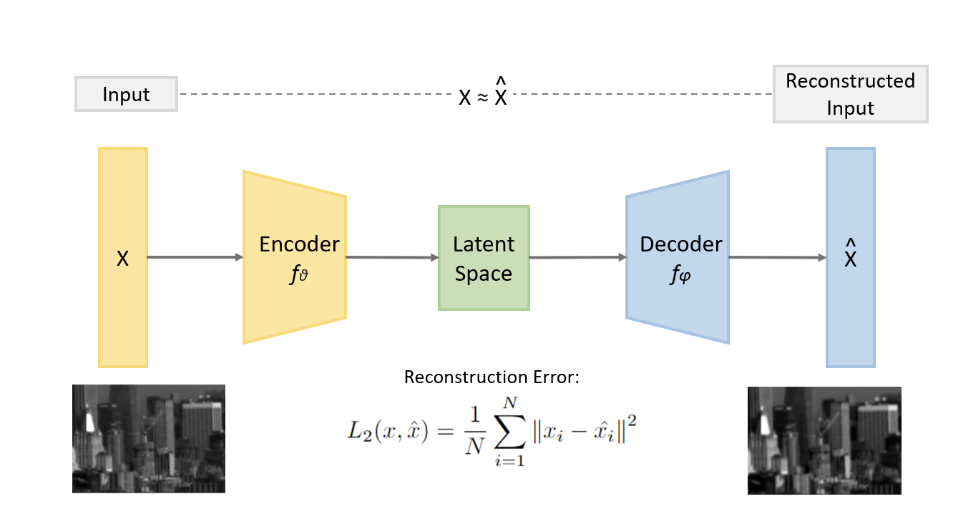

Autoencoders to generate computationally expensive caustic maps for quasar microlensing and infer physical parameters from the latent space

FASTlab Flash highlight

Siddarth Chiaini, UDelaware

Most classifiers for variable stars use Random Forest (not distance based)

In distance based classification, optimal distances can be found for the class of interest: flexible, customizable, efficient

https://pypi.org/project/distclassipy/

https://arxiv.org/pdf/2403.12120.pdf

Astronomy and computing

FASTlab Flash highlight

Willow Fox Fortino

UDelaware

When they go high, we go low

Classification power vs spectral resolution for SNe subtypes

Willow Fox Fortino

UDelaware

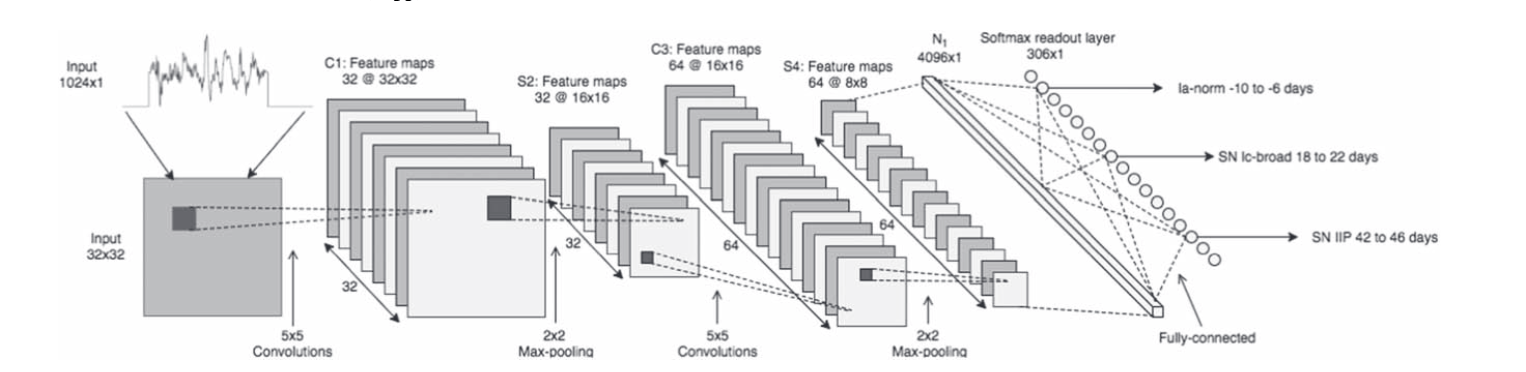

Optimal deep learning architectures for transients' spectral classification

As seen in Muthukrishna+2019

Willow Fox Fortino

UDelaware

Optimal deep learning architectures for transients' spectral classification

As seen in Muthukrishna+2019

Training a NN:

• labels are provided (e.g. SN Ia)
• epoch 1: NN guesses label by setting weights at random
• epoch 2-last: NN adjusts weights based on label distance (gradient descent)

Results are based on test data, unseen in training

Willow Fox Fortino

UDelaware

Optimal deep learning architectures for transients' spectral classification

As seen in Muthukrishna+2019

Training a NN:

• labels are provided (e.g. SN Ia)
• epoch 1: NN guesses label by setting weights at random
• epoch 2-last: NN adjusts weights based on label distance (gradient descent)

Results are based on test data, unseen in training

Willow has discovered that DASH was trainined with spectra of the same object in both training and testing

Willow Fox Fortino

UDelaware

Optimal deep learning architectures for transients' spectral classification

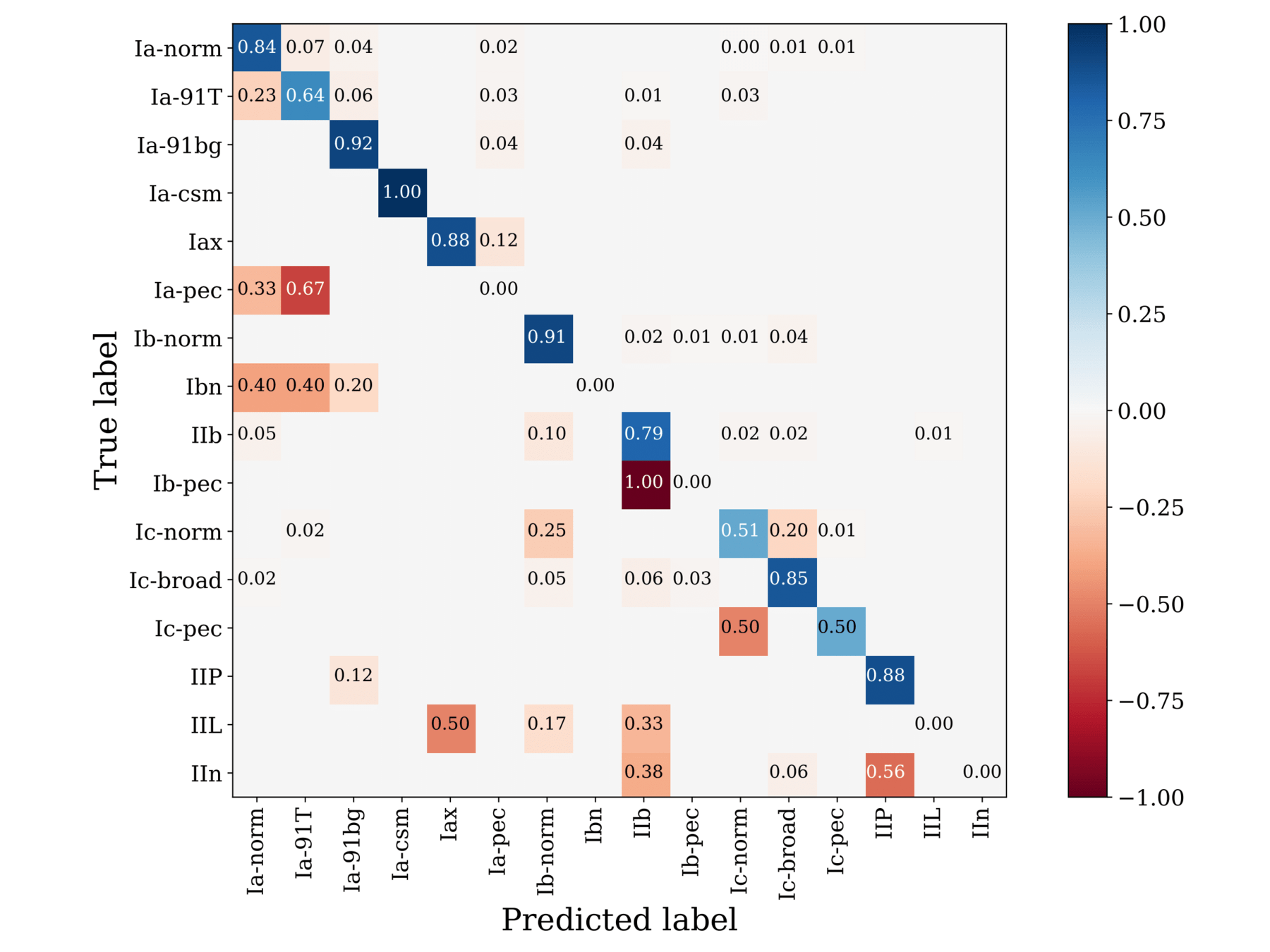

DASH model (M19)

Correcting training mistakes

(new baseline)

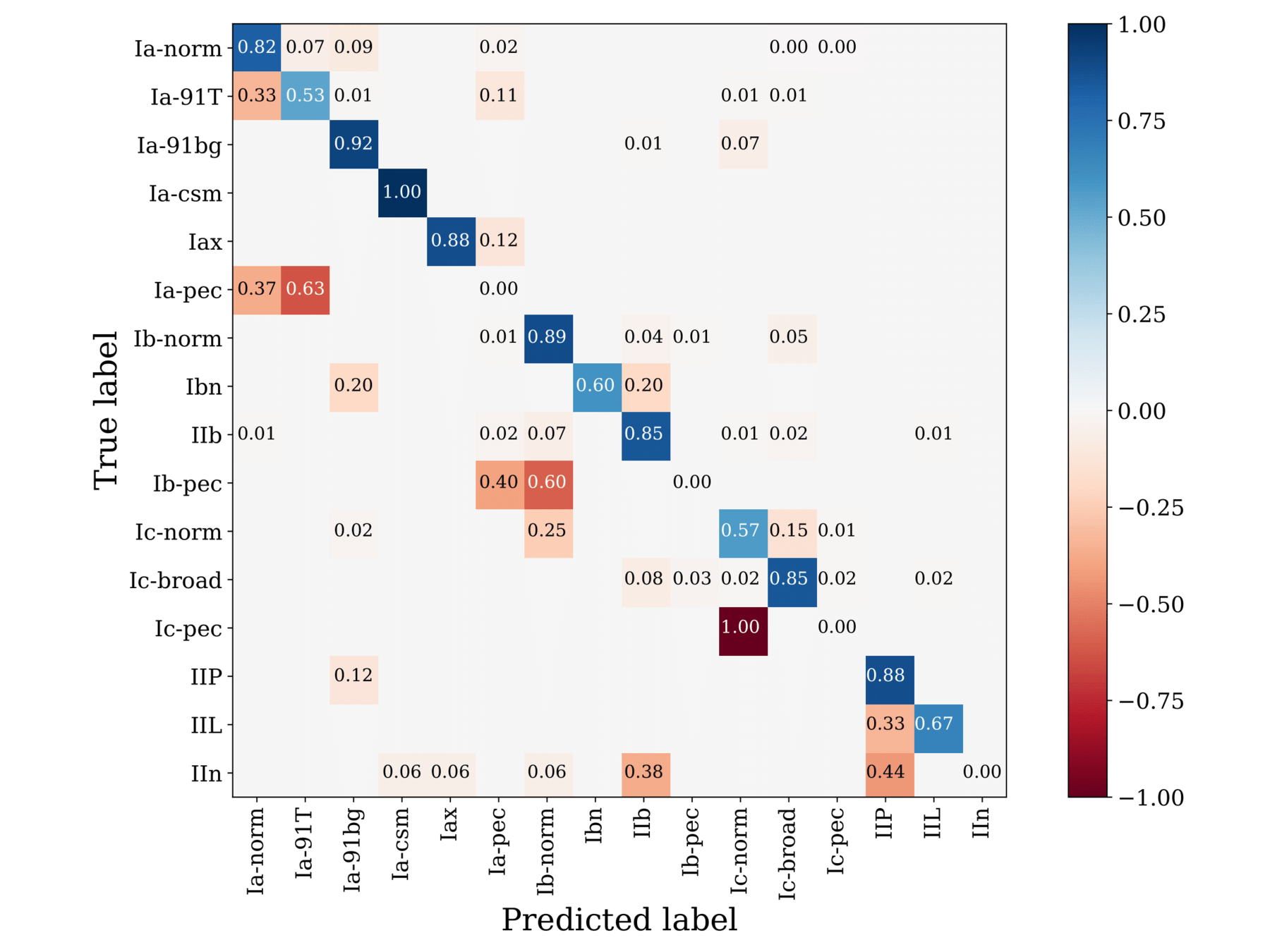

New Transformer model

(Fortino+ in prep)

(Transformer as in... ChatGPT)

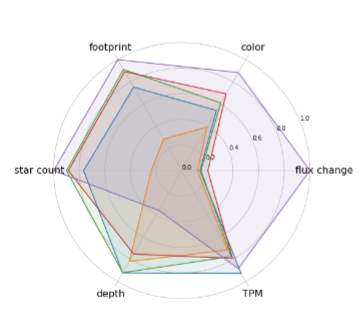

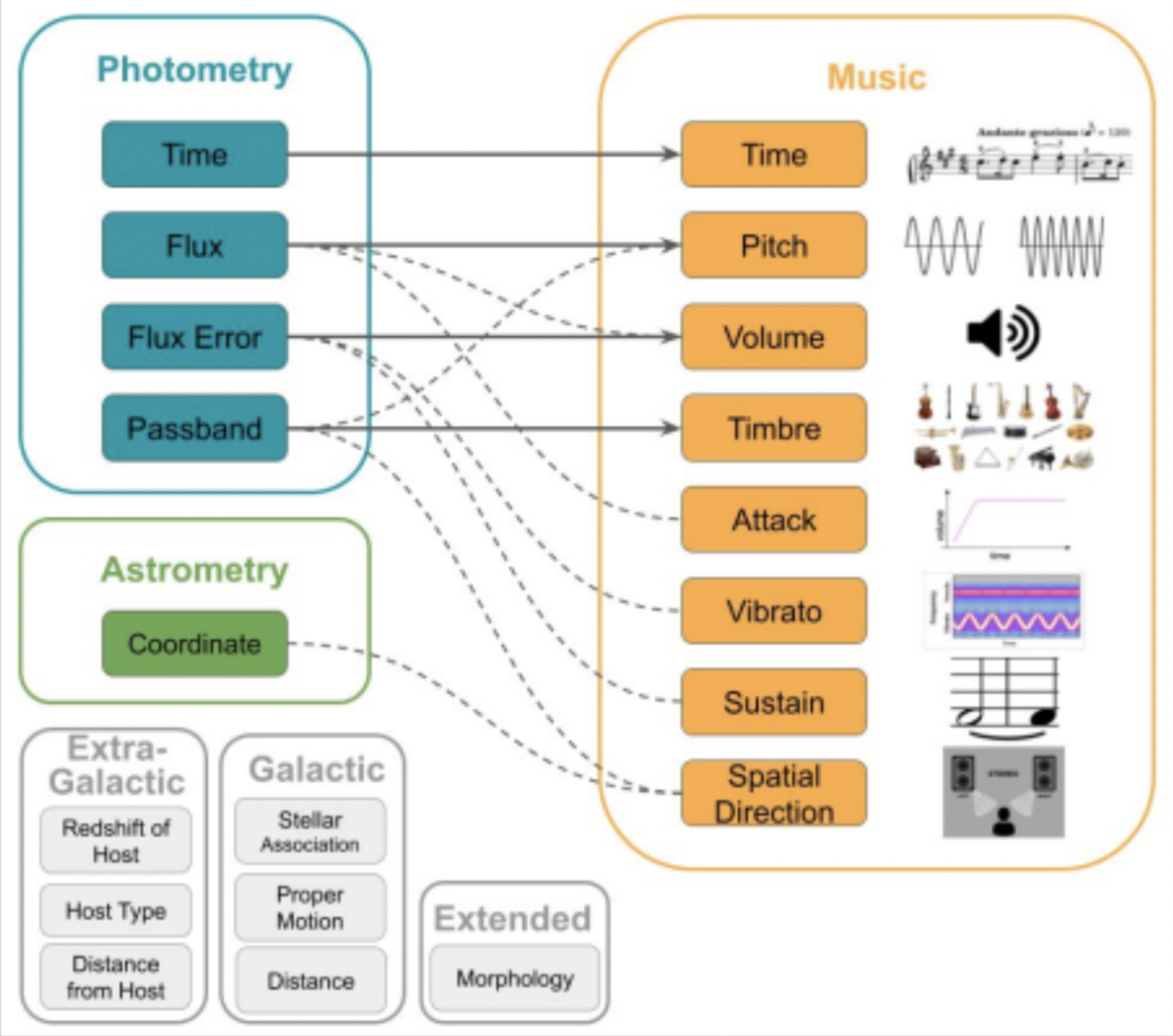

Pies in the LSST sky

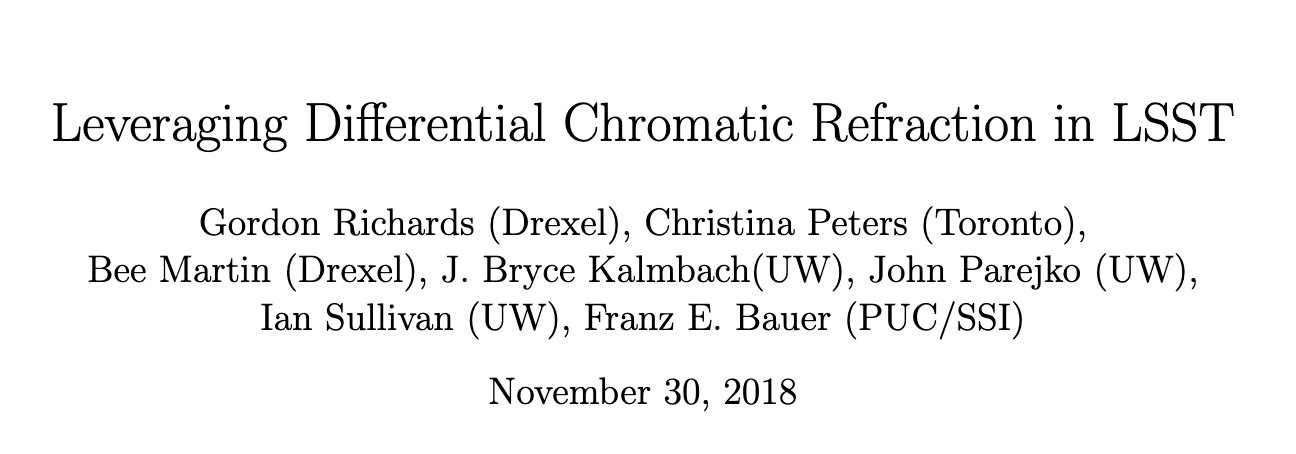

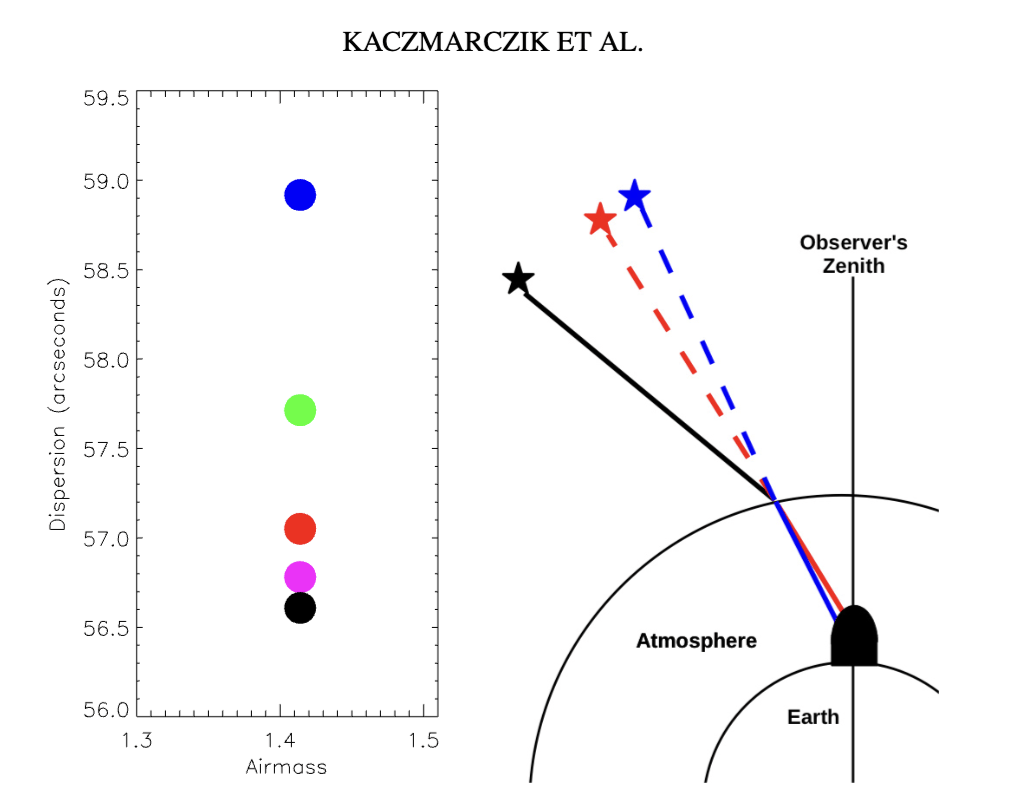

atmosphere-aided studies with LSST

dDCR               color                physical parameters

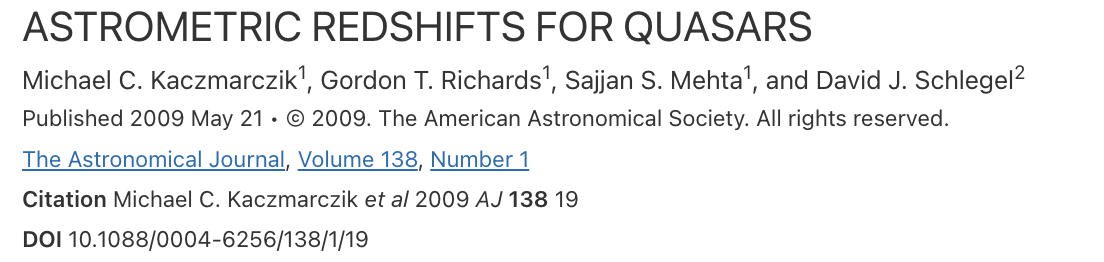

Quasars -> redshift

via spectral features falling in different observation bands

atmosphere-aided studies with LSST

Riley Clarke, UDelware

dM                 Flare energy

dDCR               color                Flare temperature

NSF Award #2308016

P.I. Bianco

Riley Clarke et al. 2024 ApJS

on the job market!

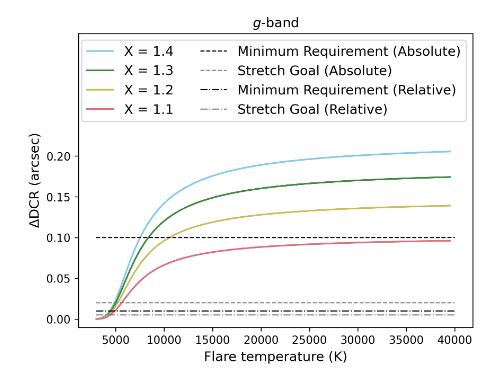

LSST ΔDCR detectability

Riley Clarke, UDelware

Stars that flare ΔDCR

on the job market!

LSST ΔDCR detectability

Riley Clarke, UDelware

Stars that flare ΔDCR

on the job market!

Riley Clarke, UDelware

Stars that flare ΔDCR

Stars that flare ΔDCR

on the job market!

Deeper Wider Faster DECAM team

and it works!!

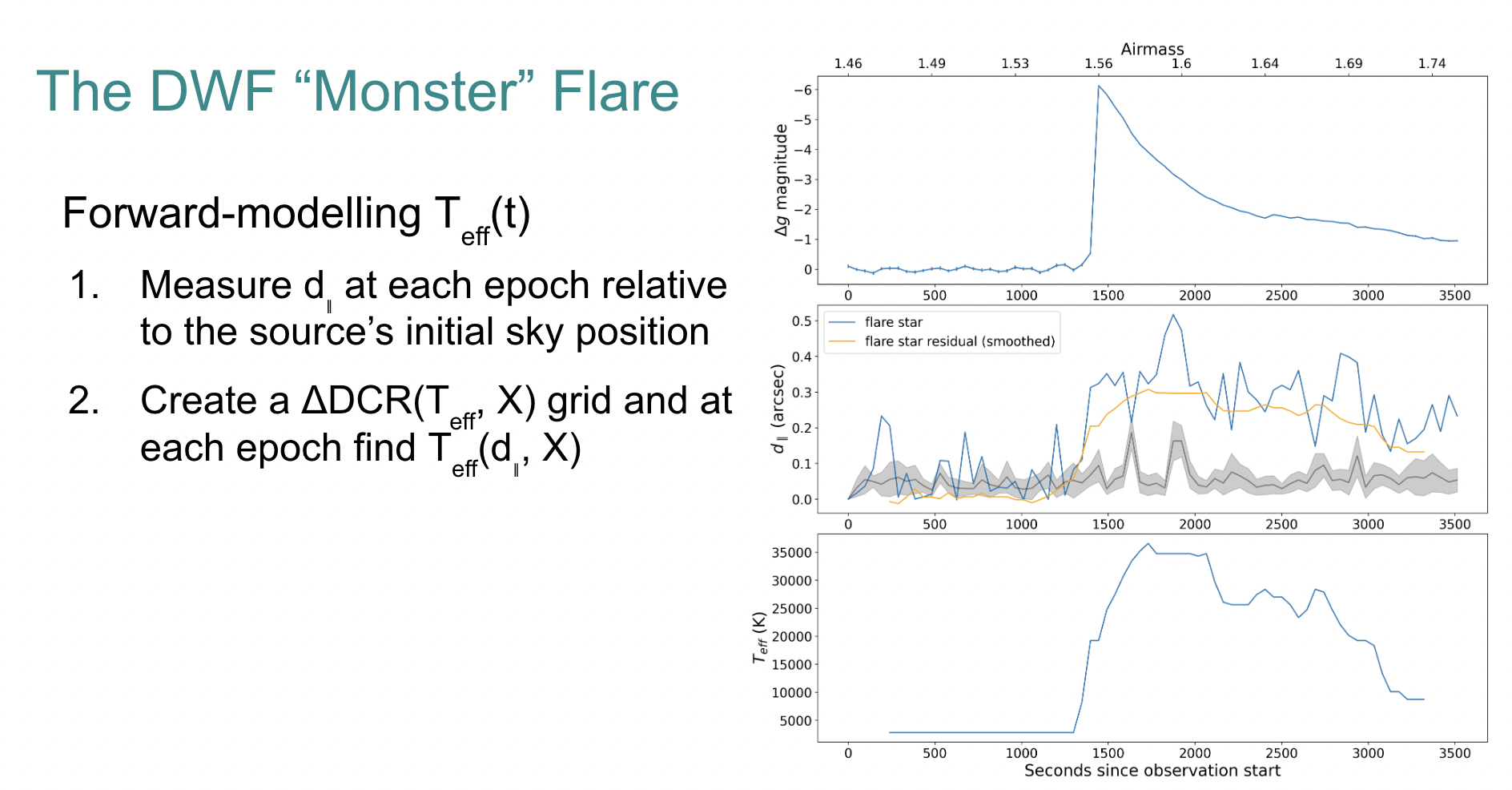

DECAM DWF Monster Flare

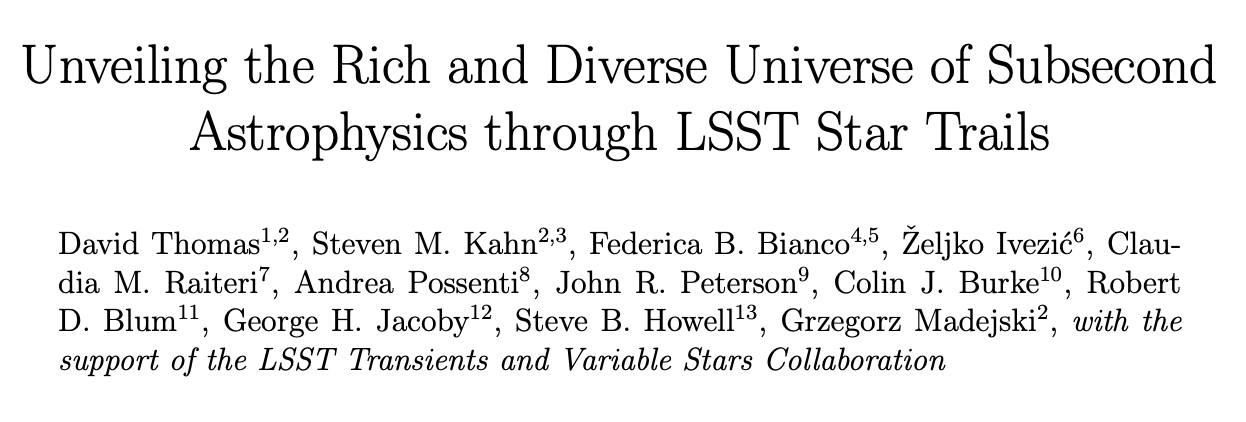

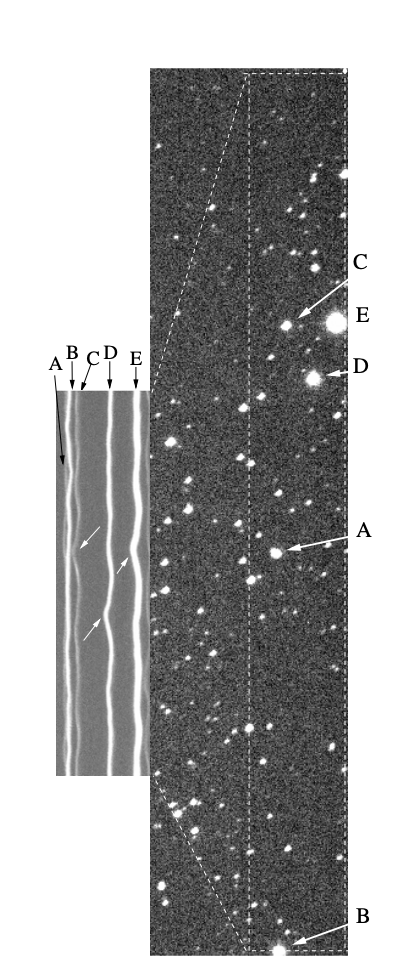

2018 Cadence White Paper

https://iopscience.iop.org/article/10.3847/1538-4357/aae7cf

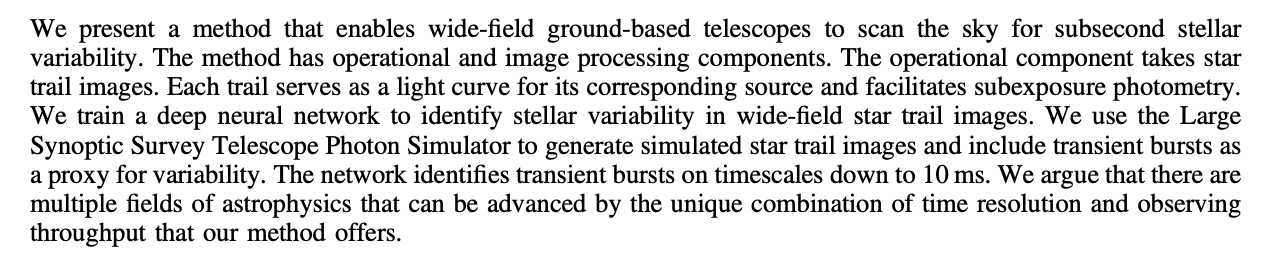

The violent and rapidly varying radiation from black holes, neutron stars, and white dwarfs makes them promising targets for high time resolution imaging.

The rotation, pulsation, and local accretion dynamics of these compact stellar remnants tends to occur on timescales ranging from seconds to milliseconds. Their extreme densities also makes them an excellent testing ground for nuclear, quantum, and gravitational physics.

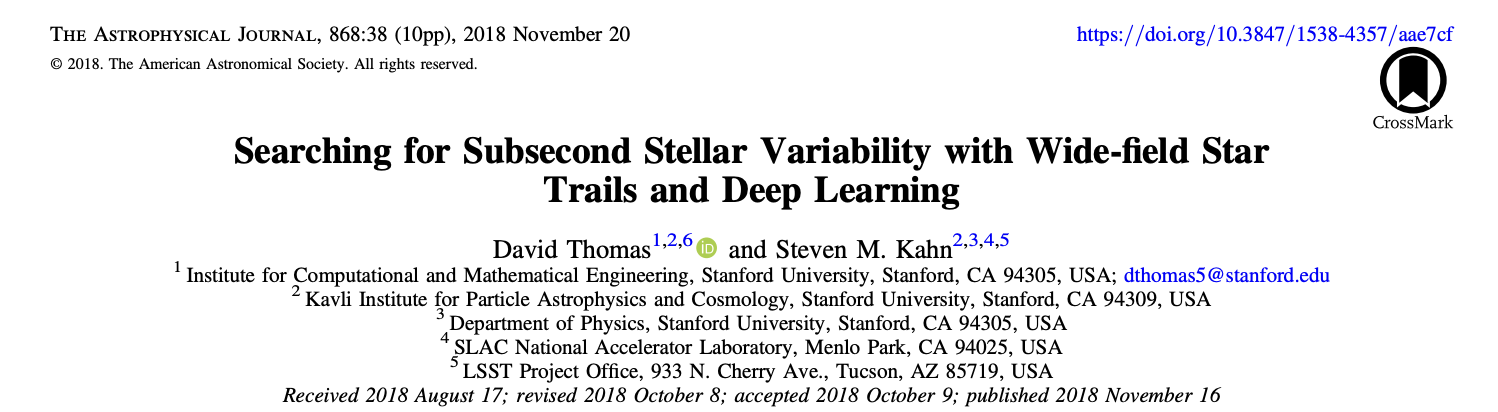

Thomas and Kahn, 2018

Additional targets

• cataclysmic variable stars,
• X-ray binary stars,
• flare stars,
• blazars
• Fast Radio Bursts
• technosignatures

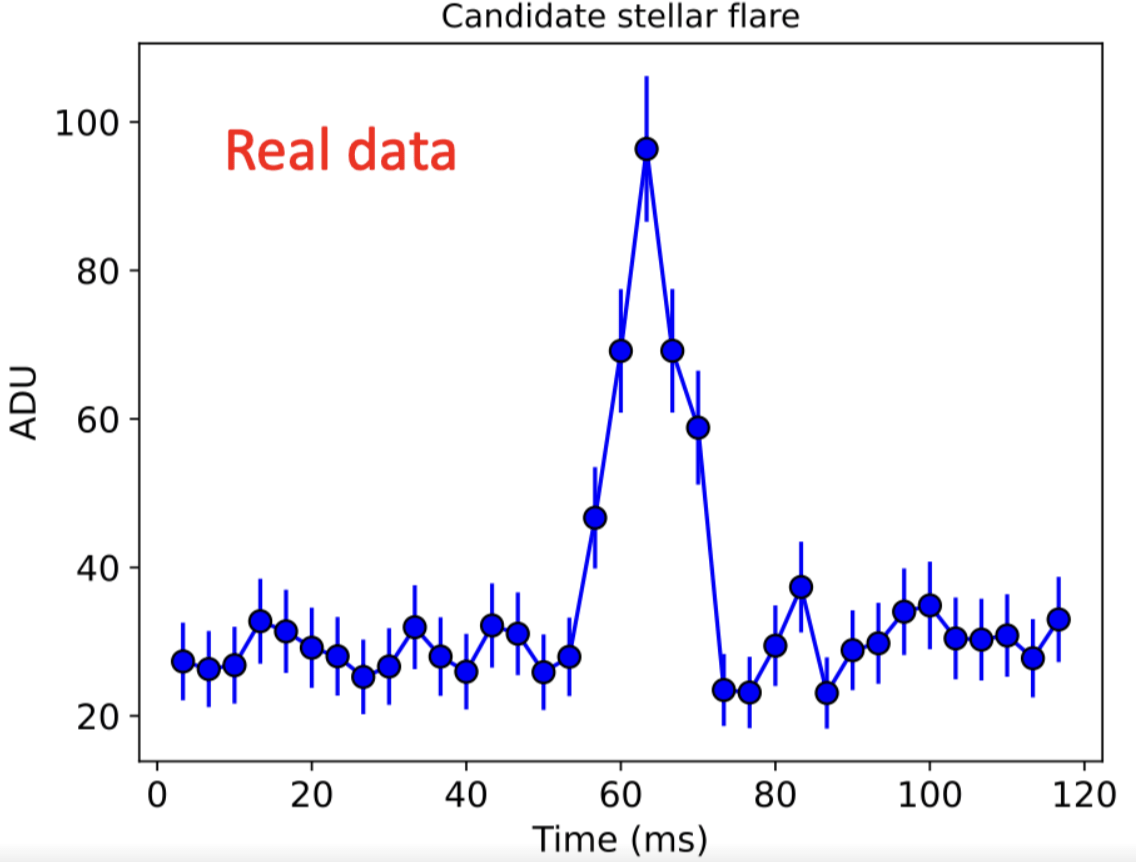

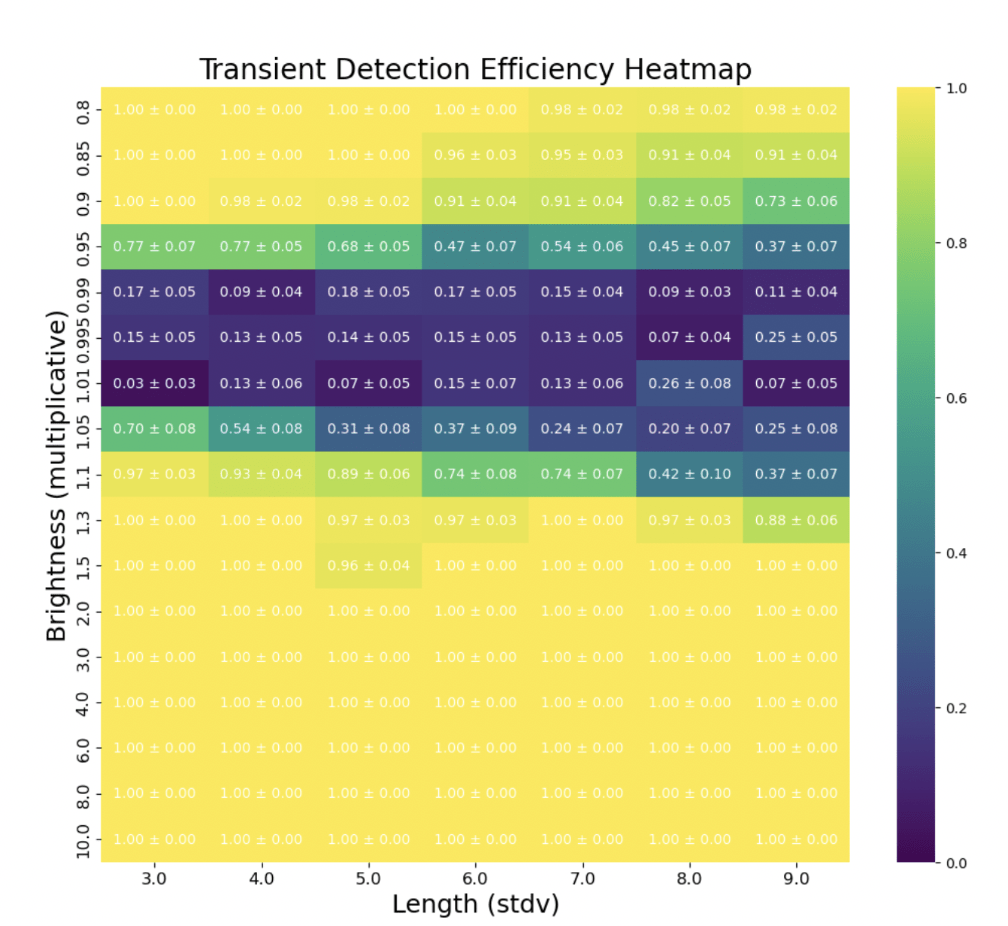

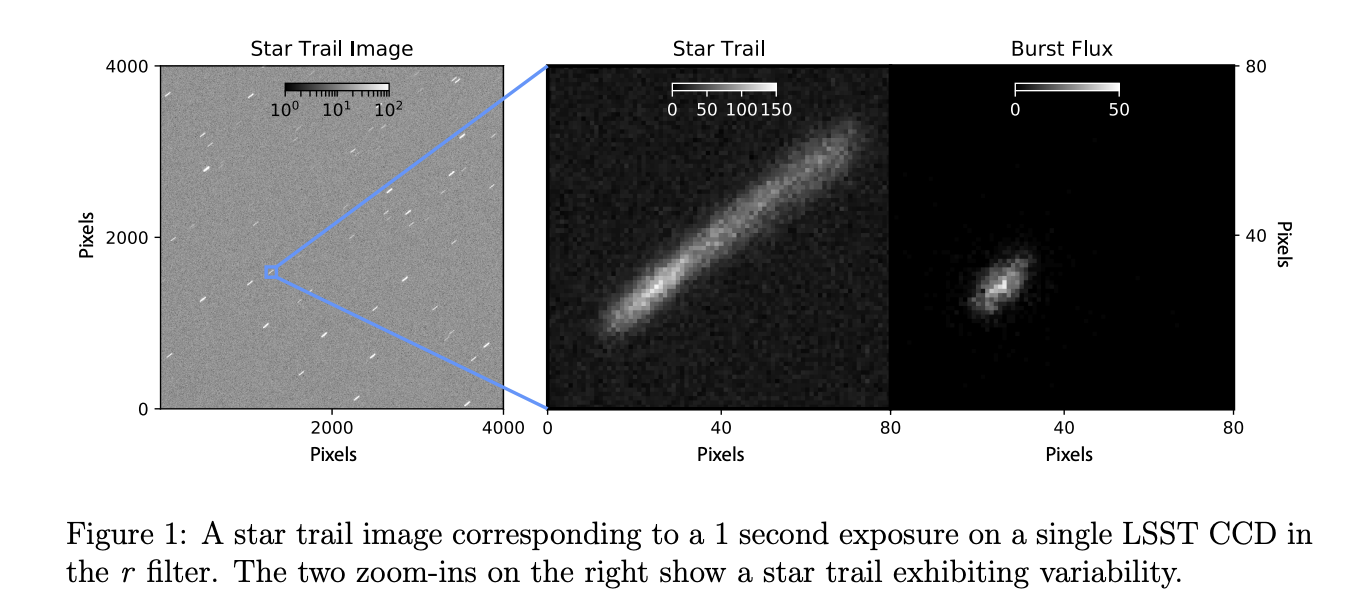

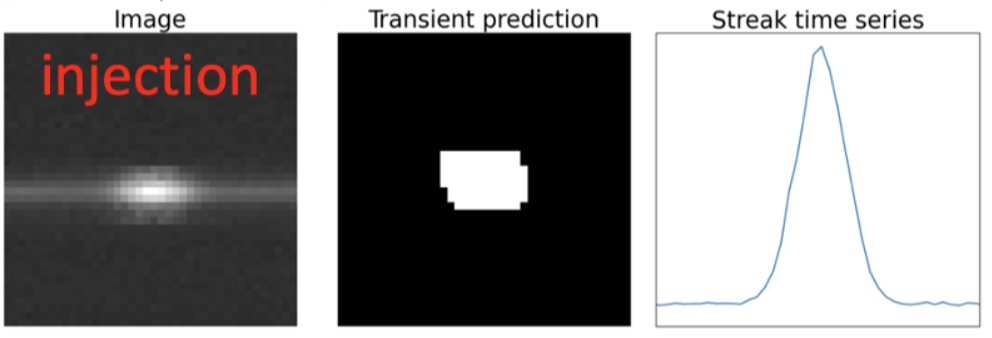

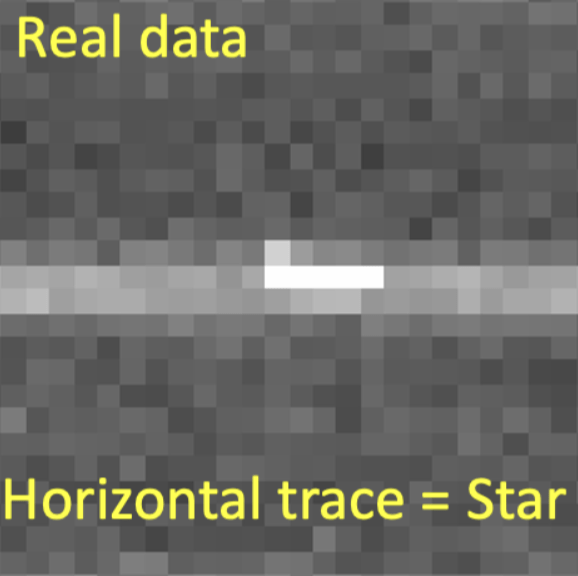

Continuous readout astronomical images for anomaly detection in ZTF

Shar Daniels, NSF GRFP Fellow 2024

new transformer models!

Continuous readout astronomical images for anomaly detection in ZTF

Shar Daniels, NSF GRFP Fellow 2024

new transformer models!

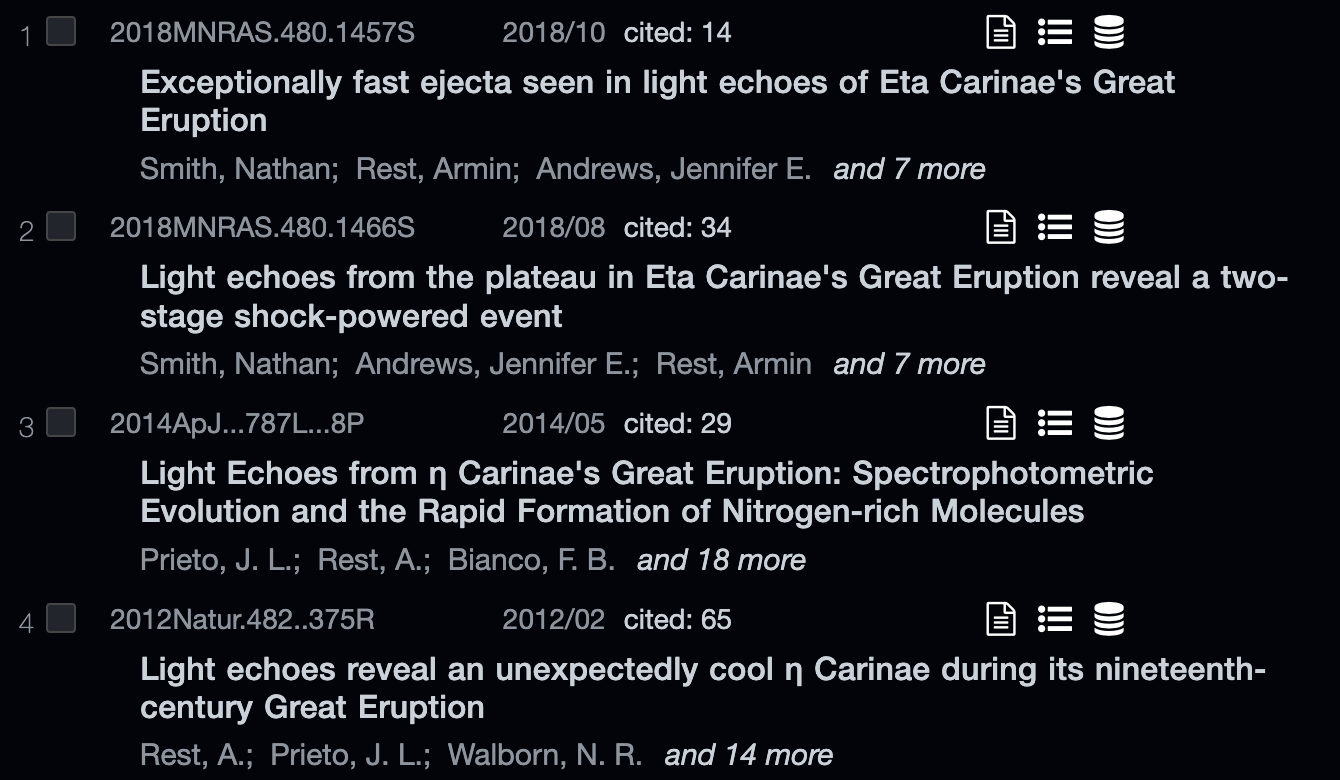

Light Echoes

Light Echoes

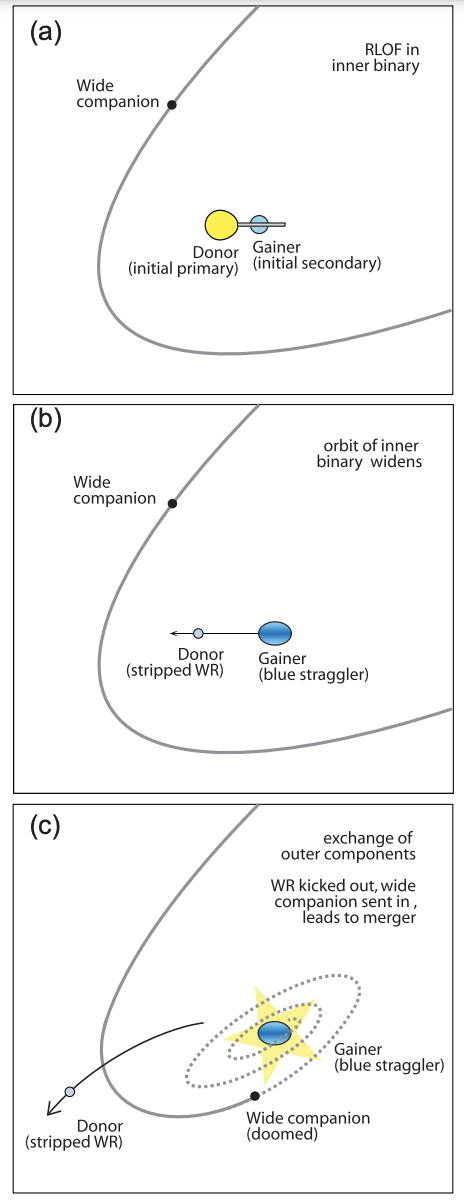

η-Carinae light echoes

Rest et al. (w Bianco) 2012Natur.482..375R​

Light Echoes

η-Carinae light echoes

Frew 2004, Smith & Frew 2011

Light Echoes

η-Carinae light echoes

Light Echoes

η-Carinae light echoes

Xiaolong Li et al. 2022

LSSTC Catalyst Fellow, J. Hopkins

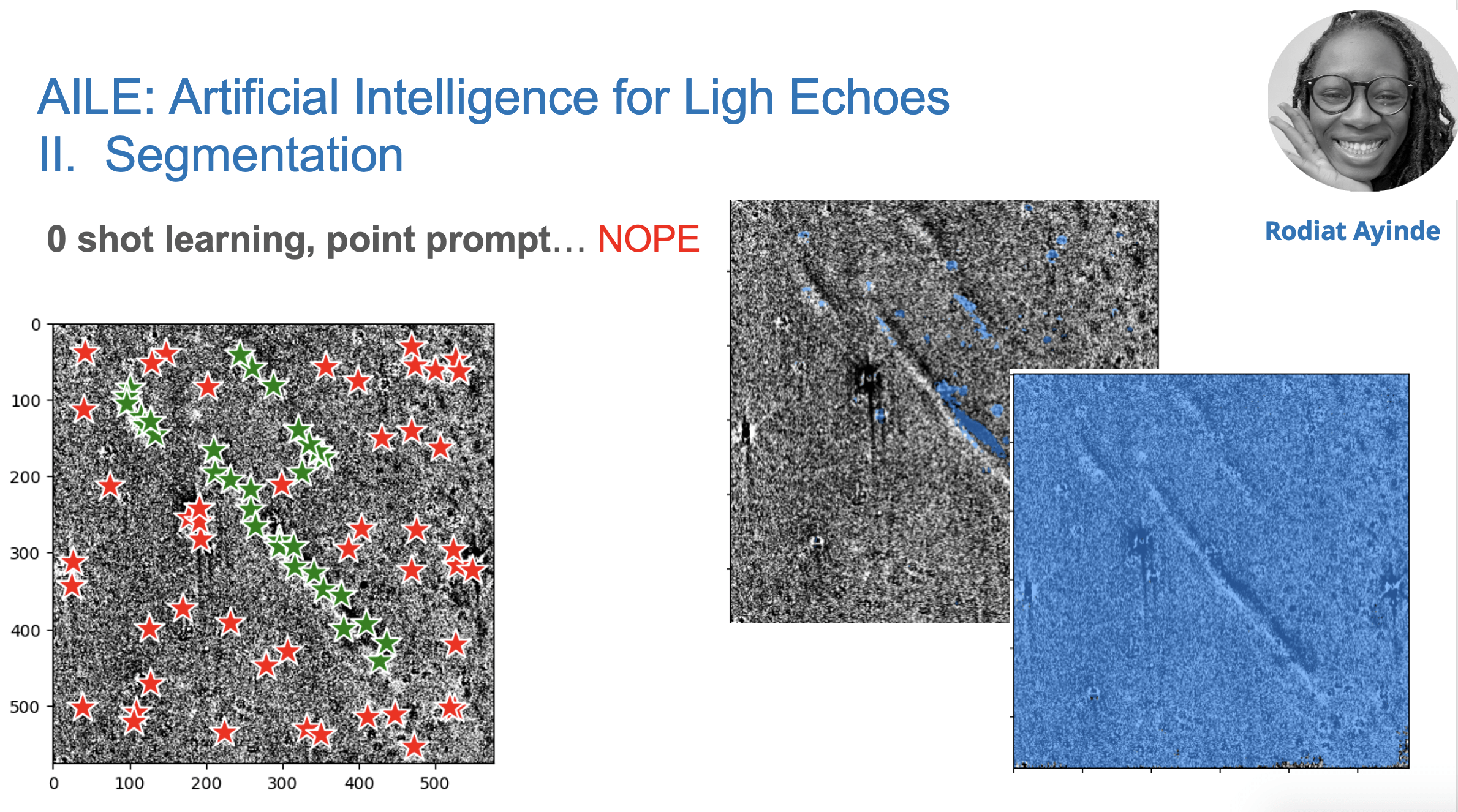

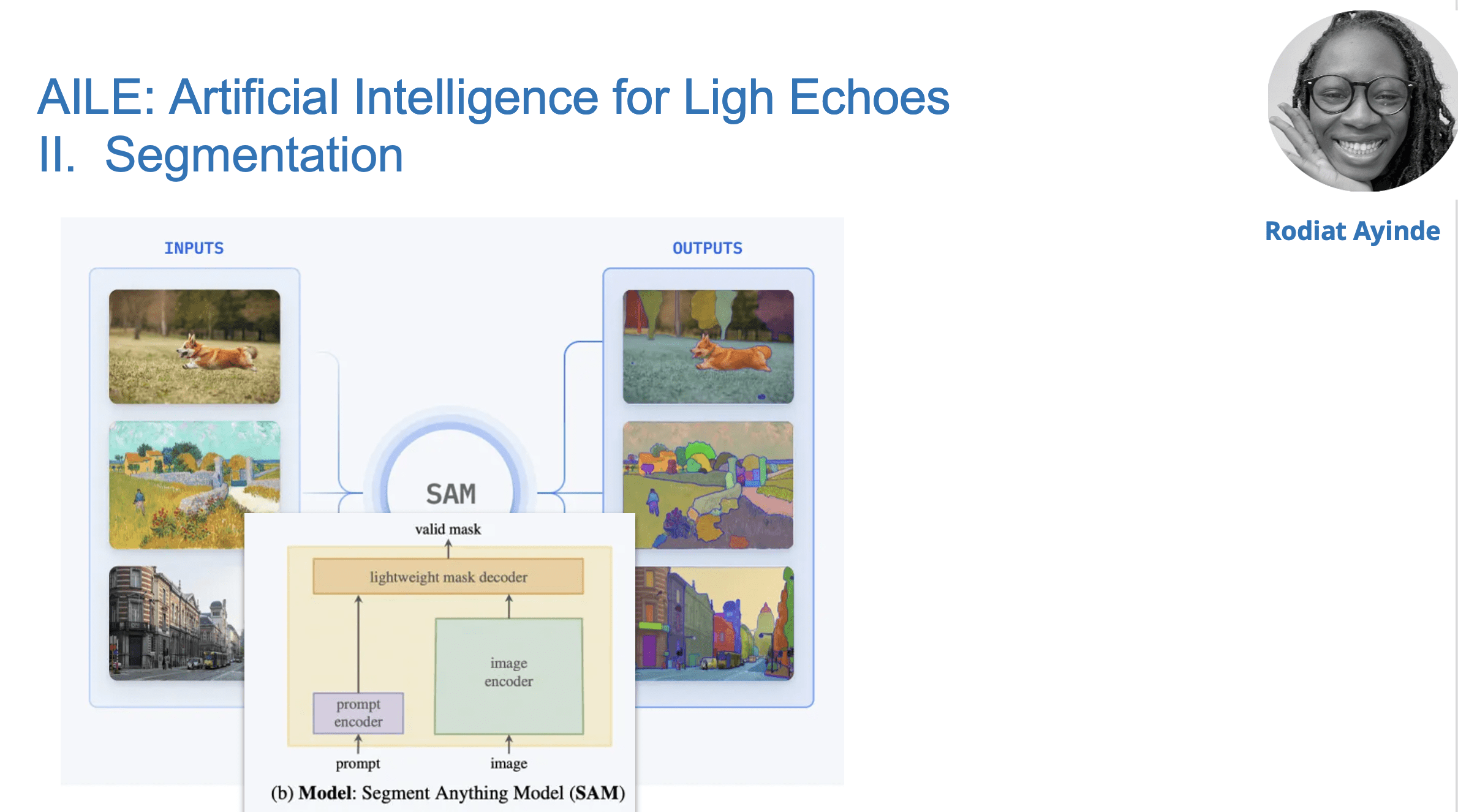

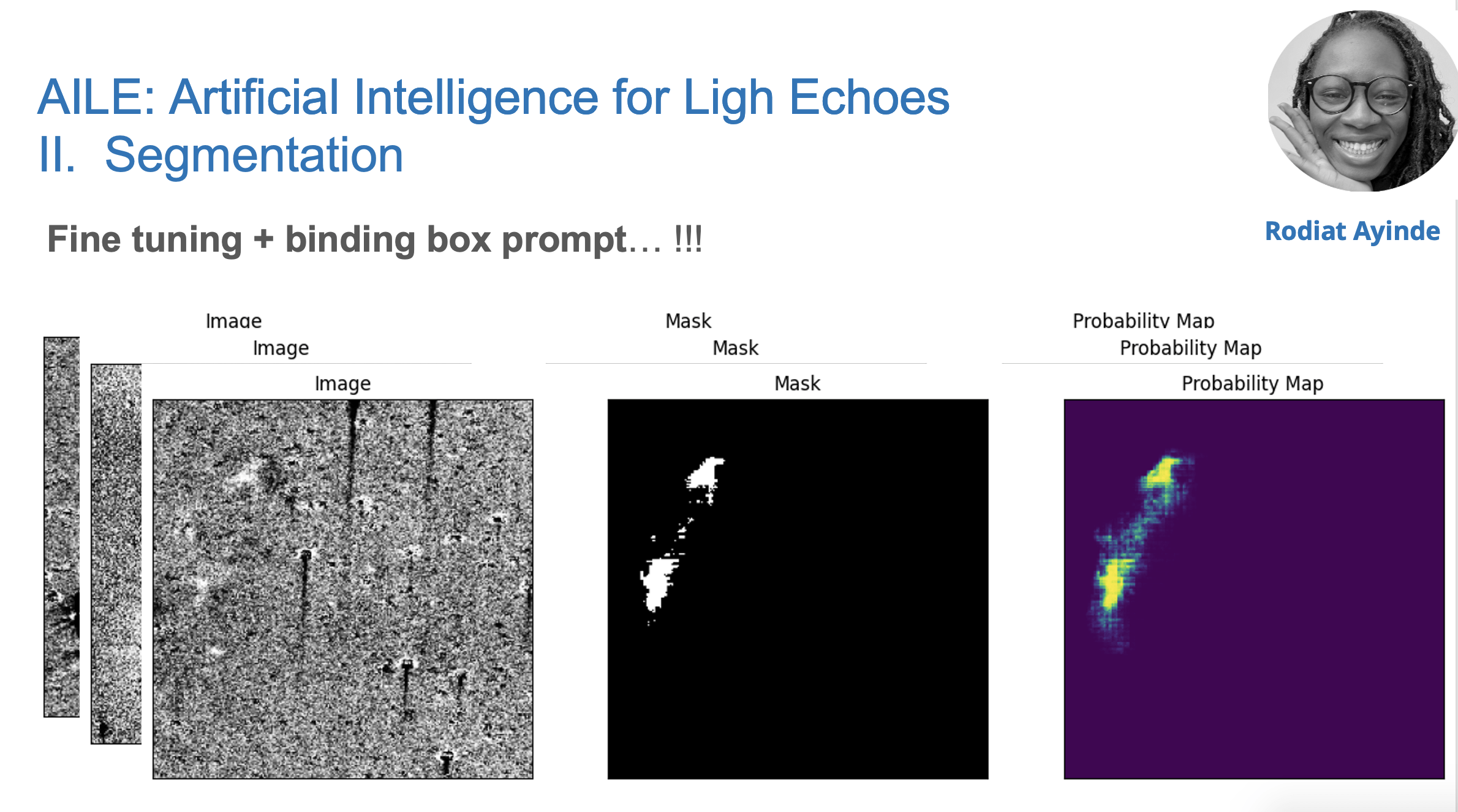

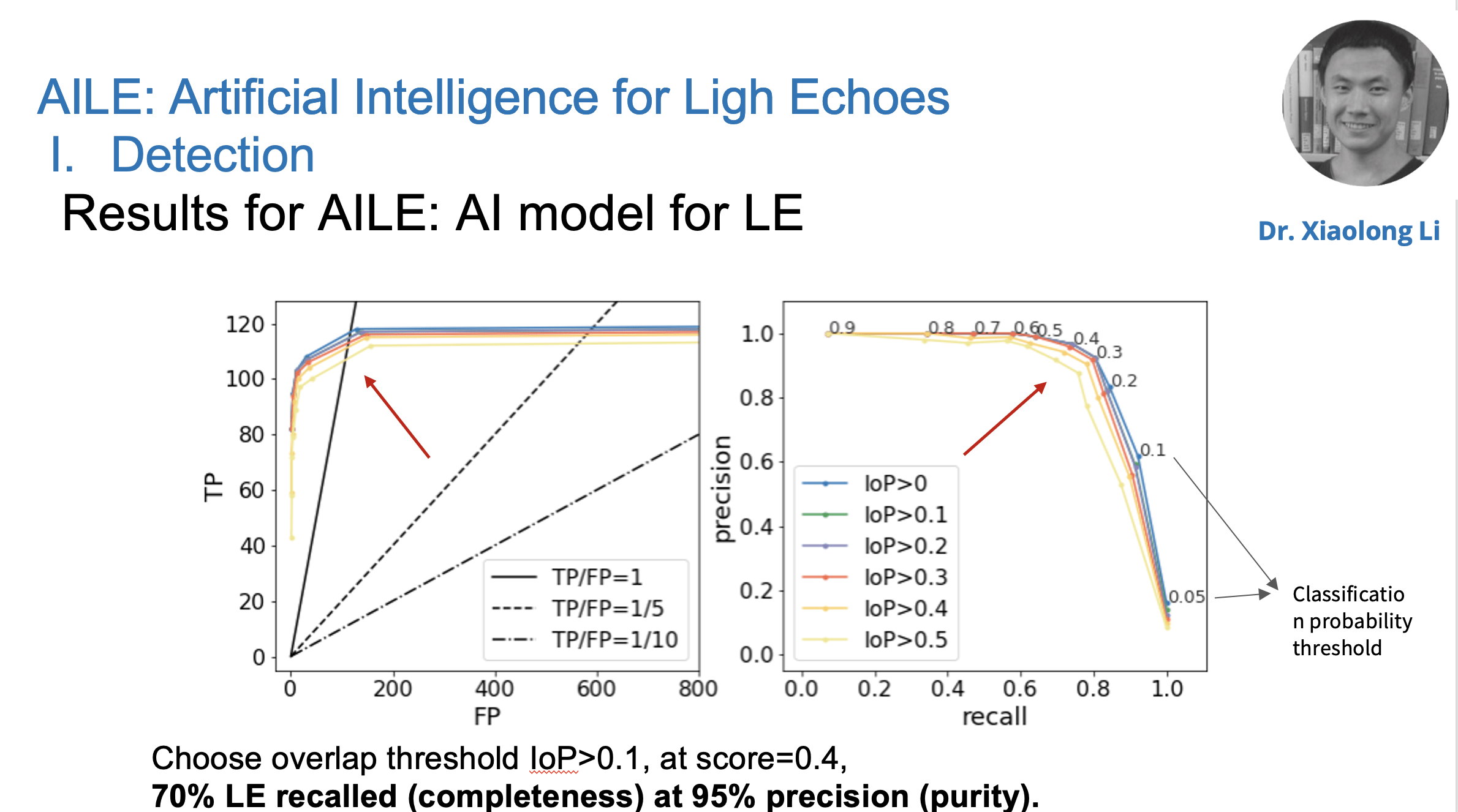

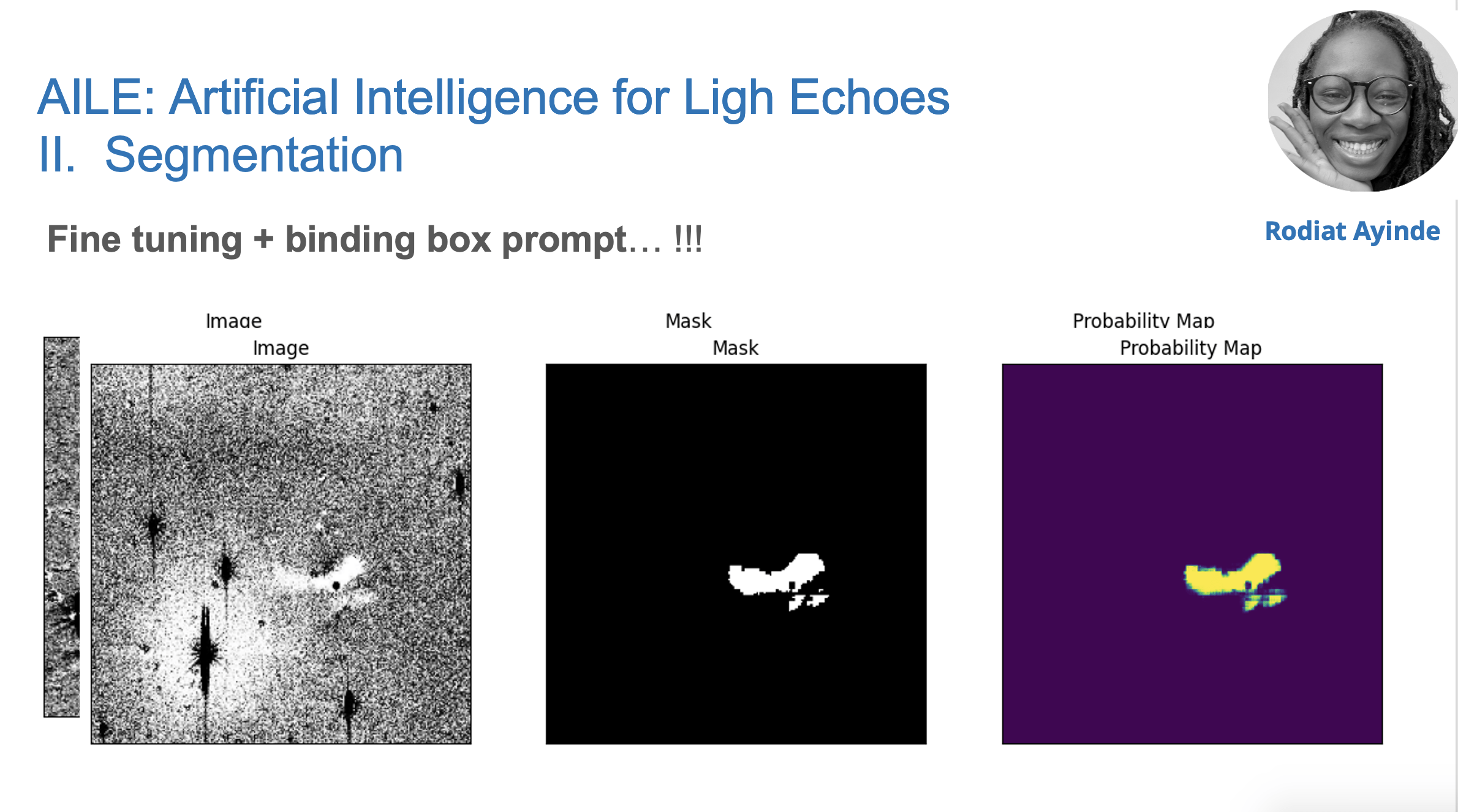

AILE: the first AI-based platform for the detection and study of Light Echoes

NSF Award #2108841

P.I. Bianco

Light Ecoes are rare strophsyical pheonomena and a near-pessimal problem for AI, but with as much data as LSST AI is a necessity

• imbalance classes
• diverse morphology
• low SNR

• small training data
• inaccurate labels

Multi-city Urban Observatory Network

Dobler, Bianco, et al 2021, in Remote Sensing

Studying cities as complex systems through imaging data

Multi-city Urban Observatory Network

Dobler, Bianco, et al 2021, in Remote Sensing

Studying cities as complex systems through imaging data

• energy demand and consumption
• ecology of flora and fauna
• urban metabolism
• circadiem rhythms

Multi-city Urban Observatory Network

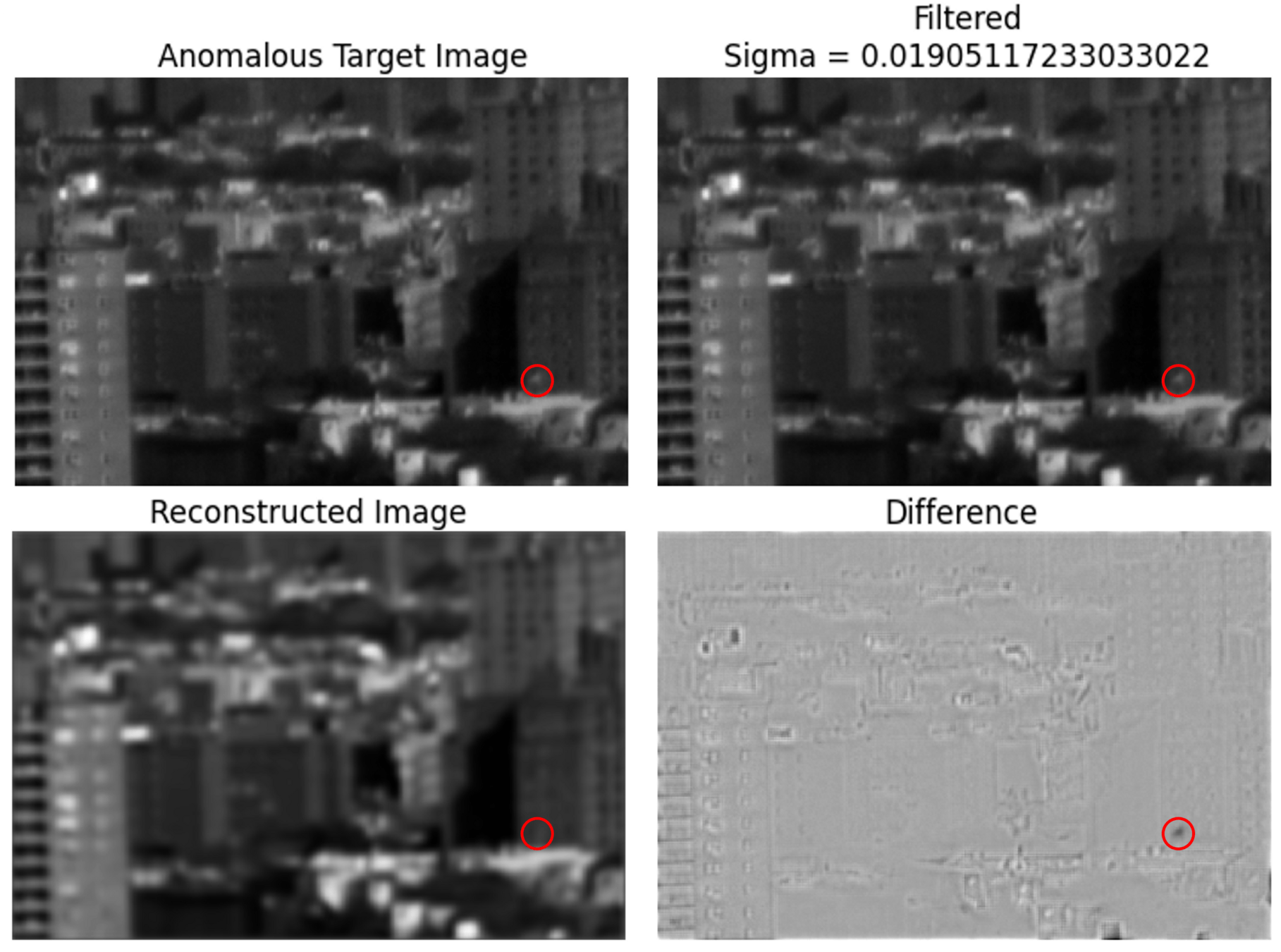

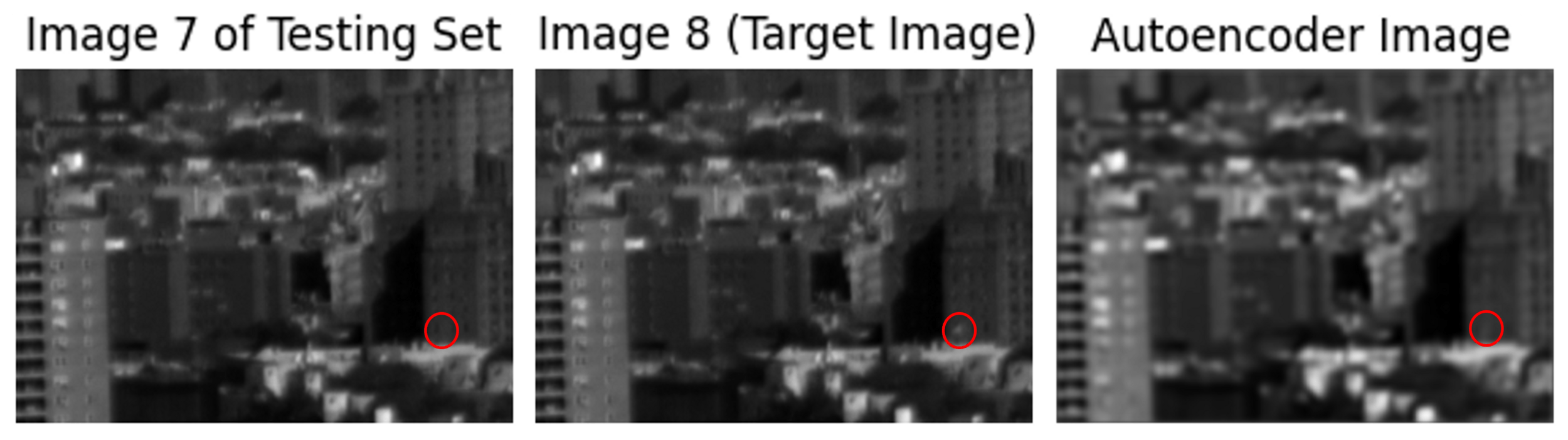

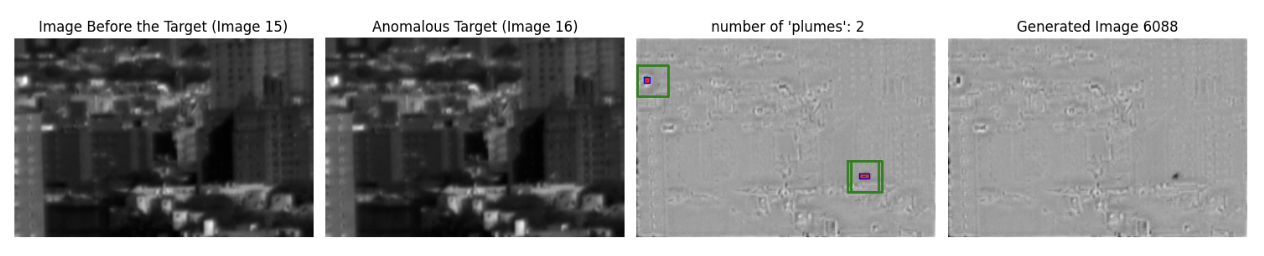

From Light Echoes to Polluting Plumes

Pessimal AI problem:

• small training data
• inaccurate labels
• imbalance classes
• diverse morphology
• low SNR
• complex BG

Jessica Salcido, NYU

From Light Echoes to Polluting Plumes

Pessimal AI problem:

• small training data
• inaccurate labels
• imbalance classes
• diverse morphology
• low SNR
• complex BG

Jessica Salcido, NYU

reconstructed

next in sequence

PCA alligned difference

-

=

Jessica Salcido, NYU

Real Time detection of emerging plumes and other anomalies in city scapes

Research Inclusion: sonification of LSST lightcurves

Riley Clarke, UD grad student Sid Patel, UD undergrad summer research project

Sonification: Data → Sound

New way of understanding data

• Can be complementary to visualizations

• Gives access to people who cannot
  interpret data visually

• Sounds cool! Good for public outreach

Research Inclusion: sonification of LSST lightcurves

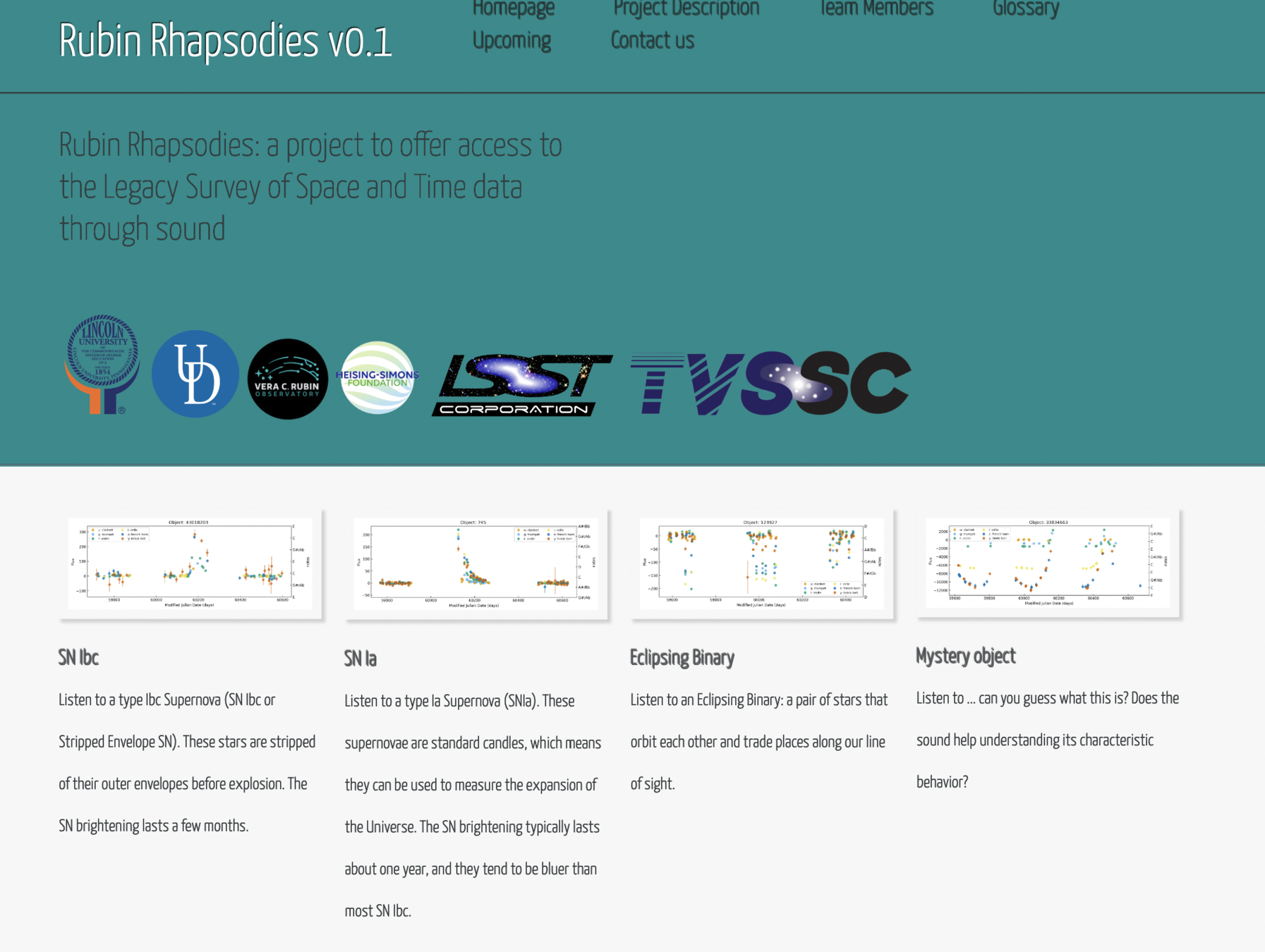

Rubin Rhapsodies

Research Inclusion: sonification of LSST lightcurves

Rubin Rhapsodies

https://lsst-tvssc.github.io/RubinRhapsodies/

Rubin Observatory LSST

Diversity Equity Inclusion

Rubin LSST Science Collaborations

We aspire to be an inclusive, equitable, and ultimately just group and we are working with renewed vigor in the wake of the recent event that exposed inequity and racism in our society to turning this aspiration into action.

Rubin LSST Science Collaborations

what's in a name?

The first ground-based national US observatory named after a woman, Dr. Vera C. Rubin

VRO

In the first 10 years of its life Rubin will conduct the Legacy Survey of Space and Time or LSST
