<Loop/>
BEHIND THE SCENES
The Open Web Device folks
WHAT
WAS
LOOP
...again?

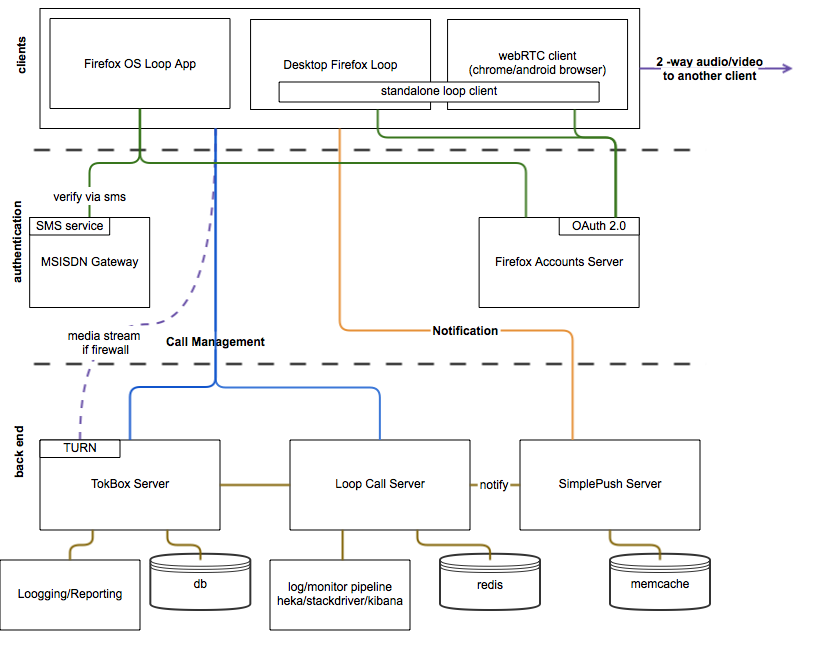

WOW... HOW!?
WEBRTC
LOOP
PUSH
FXA
MSISDN
TOKBOX
STUN/TURN
TELEMETRY
INPUT.MOZILLA
CLIENTS

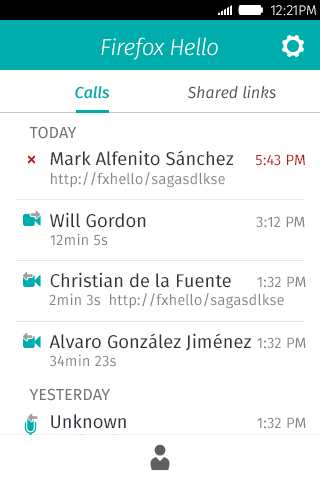

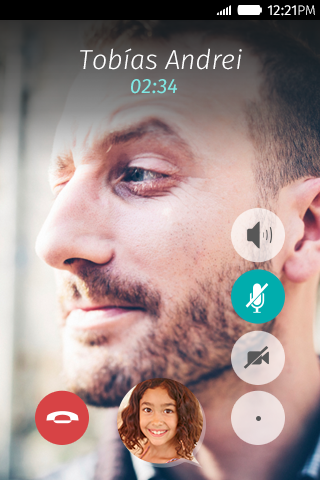

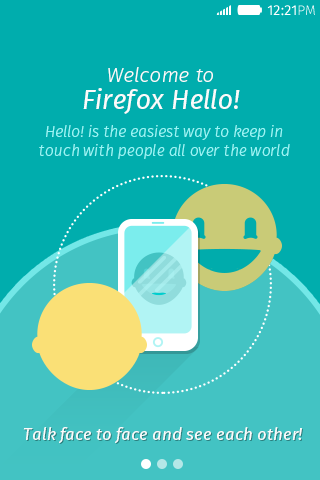

FIREFOX OS
Privileged app
PERMISSIONs model challenge
CONTACTS integration

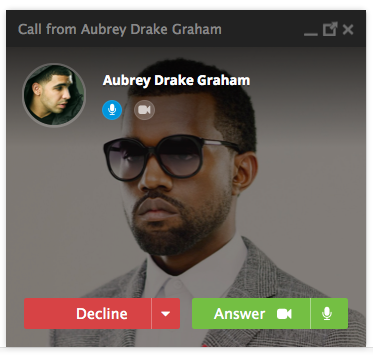

FIREFOX
REACT.js
BACKBONE
Mozilla central
MozLOOP API
CONTACTS IMPORT
SHARED CODE

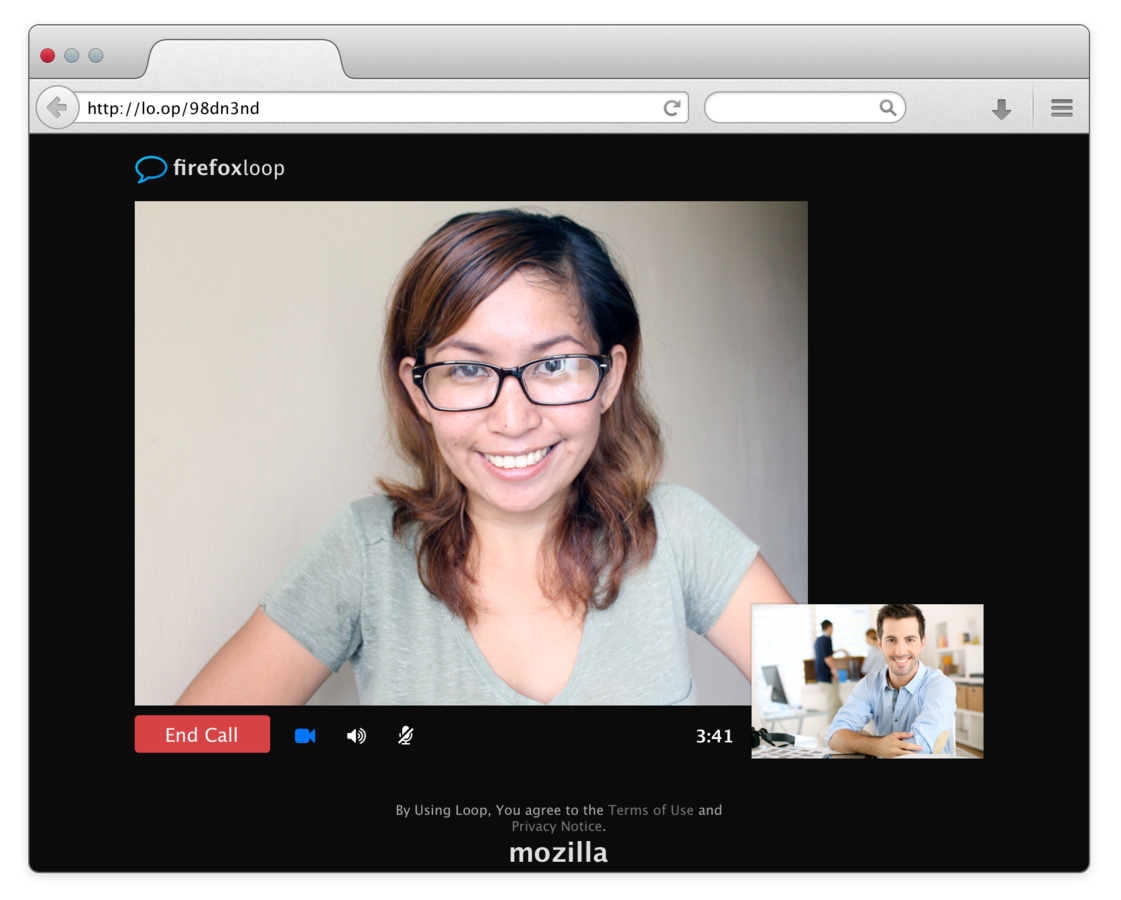

STANDALONE UI
TOKBOX
ICE, TURN, STURN
SIGNALING
SESSIONS
MEDIA SERVER
SDK
<script type="text/javascript">
var apiKey = "YOUR API KEY HERE";
var sessionId = "YOUR SESSION ID HERE";
var token = "YOUR TOKEN HERE";
var session = OT.initSession(apiKey, sessionId);
session.on("streamCreated", function(event) {
session.subscribe(event.stream);
});
session.connect(token, function(error) {
var publisher = OT.initPublisher();
session.publish(publisher);
});
</script>OpenTok.js

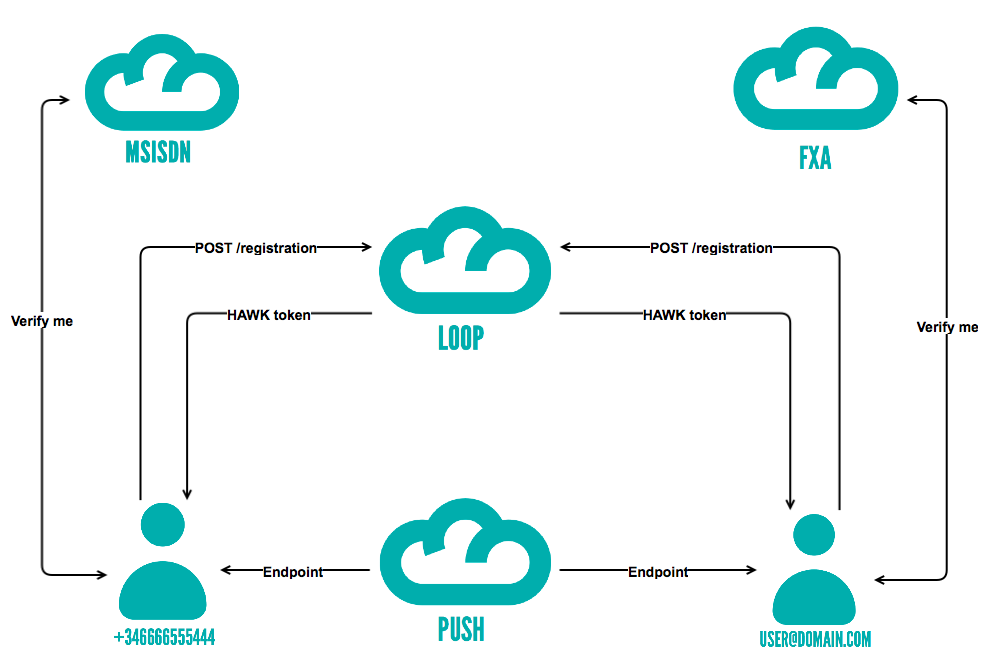

IDENTITY
FIREFOX ACCOUNTS
MOBILE IDENTITY
function _verifyAssertion(aAssertion) {
// Make use of the remote verification API
// and return the verified msisdn.
// NB: This is necessary to make sure that the user
// *really* controls this phone number!
}
// Request a mobile identity assertion and force the chrome
// UI to allow the user to change a possible previous
// selection.
navigator.getMobileIdAssertion({ forceSelection: true })
.then(
(assertion) => {
_verifyAssertion(assertion)
.then(
(msisdn) => {
// Do stuff with the msisdn.
}
);
},
(error) {
// Process error.
};
);HAWK
HTTP/1.1 204 No Content
Access-Control-Expose-Headers: Hawk-Session-Token
Connection: keep-alive
Date: Tue, 26 Aug 2014 11:20:46 GMT
Hawk-Session-Token:
ca13d91d1d4b67edf0b9523a2867b3d1b74eb63823732c441992f813f9da1f76
LOOP SERVER
NODEJS
REDIS
HTTP AND WEBSOCKET APIS

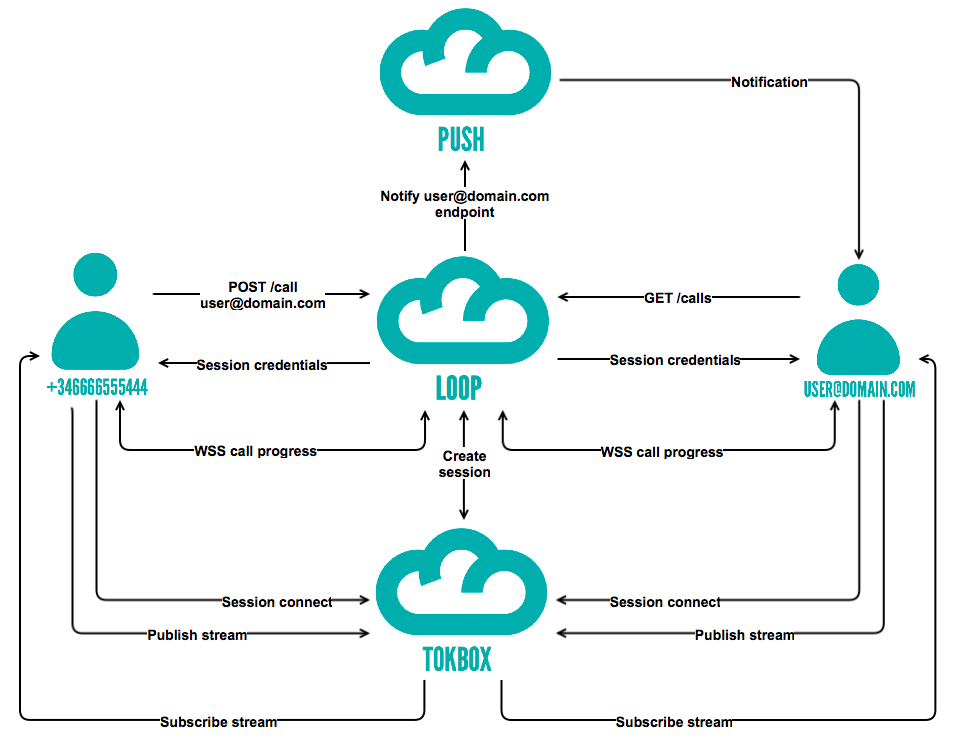

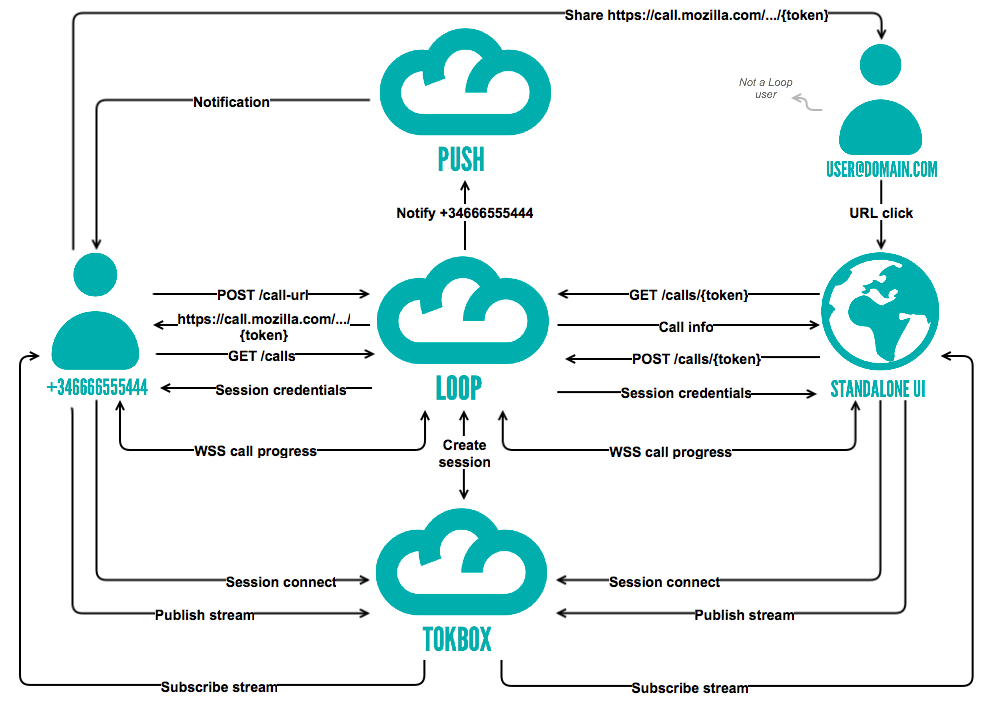

DATA FLOWs
I WANT MORE!
https://wiki.mozilla.org/Loop/Architecture
https://wiki.mozilla.org/Loop/Architecture/MVP
#loop #loop-server #media
loop-services-dev@mozilla.org
dev-media@lists.mozilla.org
QUESTIONS?
THAT's ALL FOLKS!
Loop architecture
By Fernando Jiménez Moreno
