Node.js Web Stack

Jesse Fang

2018.01.02

Web Works Before

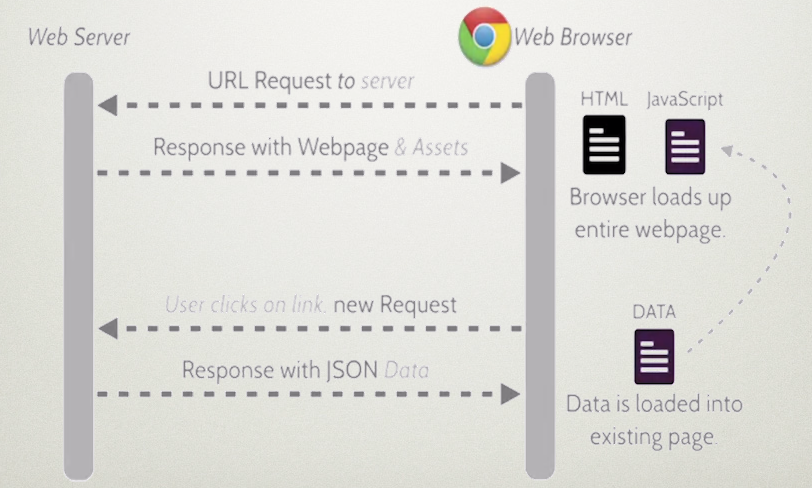

Web Works Now

Client Side

Server Side

Vue

  • Framework
  • Package Manager

Bower

  • Package Manager
  • Framework

Why Angular/React/Vue?

  • MVC / MVVM
  • Data-driven design
  • Template
  • Modularization
  • Easy to maintain and extend
  • Performance (Virtual DOM)
  • Write less code, do more things

Why Bower?

  • Flat dependency graph

Web sites are made of lots of things — frameworks, libraries, assets, and utilities. Bower manages all these things for you.

# install bower
$ npm install -g bower

# Install packages with bower install. Bower installs packages to bower_components/.
$ bower install <package>

# installs the project dependencies listed in bower.json
$ bower install
# registered package
$ bower install jquery
# GitHub shorthand
$ bower install desandro/masonry
# Git endpoint
$ bower install git://github.com/user/package.git
# URL
$ bower install http://example.com/script.js
<!-- Use packages directly -->
<!-- You can also work with require.js/browserify.js together -->
<script src="bower_components/jquery/dist/jquery.min.js"></script>

bower.json

{
  "name": "Pandora",
  "description": "Pandora web site",
  "main": "",
  "authors": [
    "Jesse Fang <jifang@microsoft.com>"
  ],
  "license": "MIT",
  "moduleType": [],
  "homepage": "Pandora",
  "private": true,
  "ignore": [
    "**/.*",
    "node_modules",
    "bower_components",
    "test",
    "tests"
  ],
  "dependencies": {
    "jquery": "~2.1.4",
    "jquery-ui": "~1.11.4",
    "bootstrap": "~3.3.6",
    "angular-bootstrap": "~0.14.3",
    "angular": "~1.4.8",
    "angular-route": "~1.4.8",
    "angular-ui-router": "~0.2.15",
    "angular-deferred-bootstrap": "~0.1.7",
    "highlight": "~9.0.0",
    "angular-resource": "~1.4.8",
    "notie": "~3.1.0",
    "bootstrap-table": "~1.9.1",
    "angular-sanitize": "~1.4.8",
    "toastr": "~2.1.2",
    "json-formatter": "~0.4.2",
    "loading": "*",
    "zeroclipboard": "~2.2.0",
    "ng-clip": "~0.2.6",
    "angular-animate": "1.4.8",
    "angular-aria": "~1.4.8",
    "angular-messages": "~1.4.8",
    "angular-material": "~1.0.1",
    "angular-paging": "~2.1.0",
    "jquery.terminal": "~0.9.3",
    "jquery-sticky": "~1.0.3",
    "angular-ui-ace": "bower",
    "angular-resizable": "^1.2.0",
    "angular-marked": "^1.0.1",
    "angular-cookies": "1.4.8",
    "angular-file-saver": "^1.1.0",
    "jquery-textcomplete": "1.6.1",
    "highcharts": "^4.2.5",
    "highcharts-ng": "^0.0.11",
    "angular-block-ui": "^0.2.2",
    "json5": "^0.5.0"
  },
  "resolutions": {
    "angular": "~1.4.8"
  }
}

Search Packages: https://bower.io/search/

Why Express?

  • Easy APIs
  • Built-in router
  • Lots of middlewares

Fast, unopinionated, minimalist web framework for Node.js

const express = require('express')
const app = express()

app.get('/', (req, res) => res.send('Hello World!'))

app.listen(3000, () => console.log('Example app listening on port 3000!'))

Express app generator

# install express-generator
$ npm install express-generator -g

# Creates an Express app named myapp (set view engine to Pug)
$ express --view=pug myapp

# Then install dependencies:
$ cd myapp
$ npm install

.
├── app.js
├── bin
│   └── www
├── package.json
├── public
│   ├── images
│   ├── javascripts
│   └── stylesheets
│       └── style.css
├── routes
│   ├── index.js
│   └── users.js
└── views
    ├── error.pug
    ├── index.pug
    └── layout.pug

Why Yarn?

  • Offline mode
  • Deterministic
  • Fast (async pulling): install express 9s(npm) vs 1.37s(yarn)
  • Support flat mode

By facebook, aimed to replace NPM, compatible with NPM config

# Starting a new project
$ yarn init
{
  "name": "my-new-project",
  "version": "1.0.0",
  "description": "My New Project description.",
  "main": "index.js",
  "repository": {
    "url": "https://example.com/your-username/my-new-project",
    "type": "git"
  },
  "author": "Your Name <you@example.com>",
  "license": "MIT"
}

# Adding a dependency
$ yarn add [package]
$ yarn add [package]@[version]
$ yarn add [package]@[tag]

# Upgrading a dependency
$ yarn upgrade [package]
$ yarn upgrade [package]@[version]
$ yarn upgrade [package]@[tag]

# Removing a dependency
$ yarn remove [package]

# Installing all the dependencies of project
yarn
yarn install

Thanks
