Building UIs with React

Filip Petkovski

In the 90s it was easy

• No RESTful APIs, no AJAX calls
• Refresh the page whenever the data changes
• JavaScript was simple

Fast forward to 2015

• Building [good] web apps requires teams
• Front end development is an engineering field
• JavaScript has become fast enough for many tasks

Web apps are still slow

• Native apps outperform web apps by a large margin
• Frameworks like AngularJS 1.x make things worse
• JavaScript execution is usually not the issue
• The DOM is used for the wrong purpose

What impedes DOM speed

• Frequent reflows and repaints
• A repaint has to verify the visibility of all other nodes
• A reflow affects the layout of the page

React overview

• React is only a view library
• Components and composition are central
• One way binding
• Virtual DOM

React component basics

• Components are state machines
• A component has internal state and external props
• Components can be nested and reused
• Written entirely in JavaScript or JSX

var Title = React.createClass({
    render: function() {
        return <h2>Form title</h2>
    }
});

var TextInput = React.createClass({
    render: function() {
        return (
            <div>
                <input type="text" />
            </div>
        );
    }
});

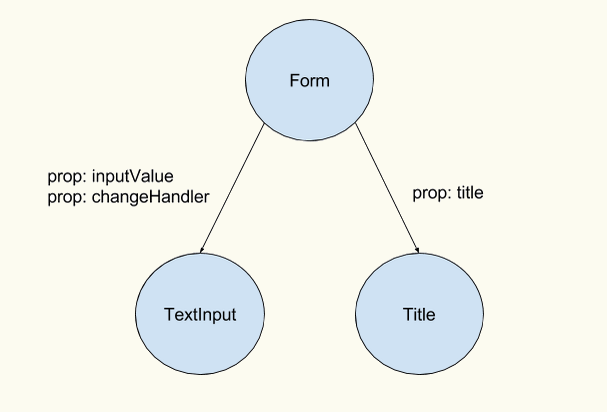

var Form = React.createClass({
    render: function() {
        return (
           <div className="form">
	       <Title />
	       <TextInput />
	   </div>
        );
    }
});

var Title = React.createClass({
    render: function() {
        return <h2>{this.props.title}</h2>
    }
});

var TextInput = React.createClass({
    render: function() {
        return (
            <div>
                <input type="text" />
            </div>
        );
    }
});

var Form = React.createClass({
    render: function() {
        var title = 'Custom title';
        return (
           <div className="form">
	       <Title title={title} />
	       <TextInput />
	   </div>
        );
    }
});

var TextInput = React.createClass({
    render: function() {
        return (
            <input type="text"
                value={this.props.value}
                onChange={this.props.changeHandler} />
        );
    }
});

var Form = React.createClass({
    getInitialState: function() {
        return { inputValue: 'Initial input value' };
    },

    changeInputValue: function(event) {
        this.setState( { inputValue: event.target.value } );
    },

    render: function() {
    	var title = 'Custom title';
        return (
            <div className="form">
	        <Title title={title} />
	        <TextInput
                    value={this.state.inputValue}
                    changeHandler={this.changeInputValue} />
	    </div>
        );
    }
});

Why one-way binding?

• Achieving consistency is easy
• No unexpected performance drops
• Debugging is straightforward

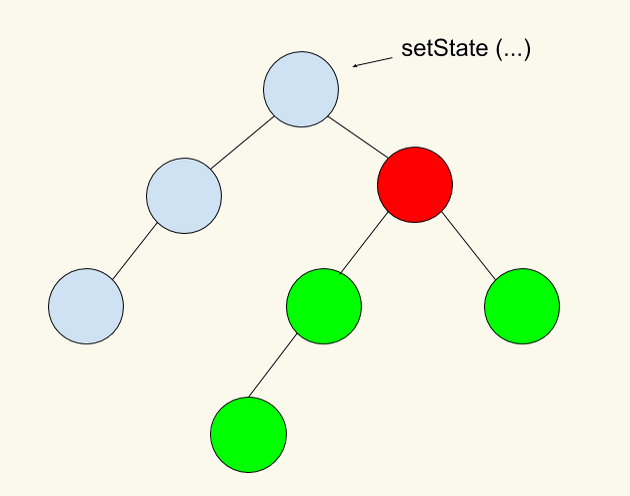

What about performance?

var Form = React.createClass({
    // ...
    shouldComponentUpdate: function(nextProps, nextState) {

    },
    // ...
});

The case for immutability

• Immutable.js for immutable collections
• All modifications return a new collection
• Testing for equality between collections is trivial

Immutable.js in action

var Form = React.createClass({
    // ...
    shouldComponentUpdate: function(nextProps, nextState) {
        return this.props.items !== nextProps.items;
    },
    // ...
});

• A light implementation of the in-browser DOM

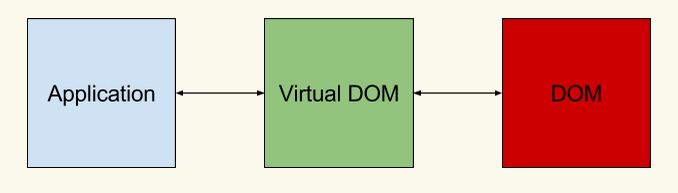

Virtual DOM

First level properties of <div />

align, onwaiting, onvolumechange, ontimeupdate, onsuspend, onsubmit, onstalled, onshow, onselect, onseeking, onseeked, onscroll, onresize, onreset, onratechange, onprogress, onplaying, onplay, onpause, onmousewheel, onmouseup, onmouseover, onmouseout, onmousemove, onmouseleave, onmouseenter, onmousedown, onloadstart, onloadedmetadata, onloadeddata, onload, onkeyup, onkeypress, onkeydown, oninvalid, oninput, onfocus, onerror, onended, onemptied, ondurationchange, ondrop, ondragstart, ondragover, ondragleave, ondragenter, ondragend, ondrag, ondblclick, oncuechange, oncontextmenu, onclose, onclick, onchange, oncanplaythrough, oncanplay, oncancel, onblur, onabort, spellcheck, isContentEditable, contentEditable, outerText, innerText, accessKey, hidden, webkitdropzone, draggable, tabIndex, dir, translate, lang, title, childElementCount, lastElementChild, firstElementChild, children, nextElementSibling, previousElementSibling, onwheel, onwebkitfullscreenerror, onwebkitfullscreenchange, onselectstart, onsearch, onpaste, oncut, oncopy, onbeforepaste, onbeforecut, onbeforecopy, webkitShadowRoot, dataset, classList, className, outerHTML, innerHTML, scrollHeight, scrollWidth, scrollTop, scrollLeft, clientHeight, clientWidth, clientTop, clientLeft, offsetParent, offsetHeight, offsetWidth, offsetTop, offsetLeft, localName, prefix, namespaceURI, id, style, attributes, tagName, parentElement, textContent, baseURI, ownerDocument, nextSibling, previousSibling, lastChild, firstChild, childNodes, parentNode, nodeType, nodeValue, nodeName

Virtual DOM first level props

props, _owner, _lifeCycleState, _pendingProps, _pendingCallbacks, _pendingOwner​

Virtual DOM

• Diffing algorithm.
• Batching DOM read/write operations.
• Efficient update of sub-trees.

Testing components

• Code is modularized and easy to test
• ReactTestUtils provide almost everything you need
• Shallow rendering for isolated structural testing
• JSDom for integration / behavioral tests

React Native

• Native development in JavaScript
• Native UI Views

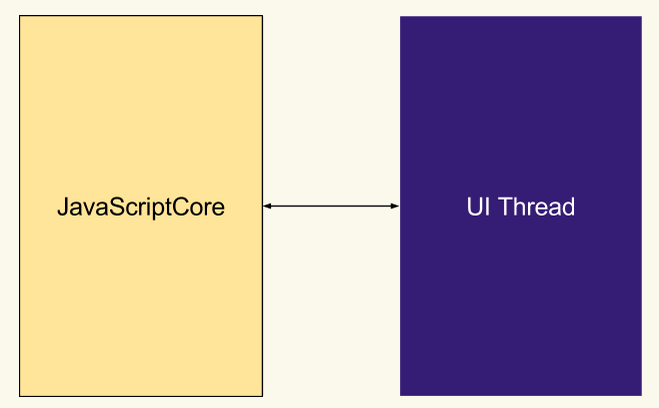

• Layout offloaded to a separate thread
• Performance is top notch

Native Components

• <span> → <Text>
• <div>    → <View>
• <img>   → <Image>

React is:

• Simple
• Fast
• Testable
• Flexible

Thank you
