Our first addon

This addon will take any screnshot taken with out device and will upload it to IMGUR.

It will be attached to the system app: system.gaiamobile.org

That means that it will inherit the permissions of the target app: since system.gaiamobile.org is certified, the addon will inherit the same permissions.

Twiter: #moztechspeakers

IMGUR Addon

It must have a manifest file.

It will be a Chrome manifest, quite different from the manifests used for Firefox OS Webapps.

Manifest File Format: Field summary.

Twiter: #moztechspeakers

IMGUR Addon

The "matches" field is what is used to attach the addon to any app.

It uses origin + entry point (index.html)

The js and css fields are the assets attached to the target.

http://pastebin.com/LSCkDRyU

{
  "manifest_version": 2,
  "version": "2.0",
  "name": "IMGUR Screenshots",
  "description": "Send a screenshot to IMGUR.",
  "author": "Adrian Crespo, Giovanny Gongora",
  "role": "addon",
  "type": "certified",
  "content_scripts": [{
    "matches": ["app://system.gaiamobile.org/index.html"],
    "css": [],
    "js": ["imgur.js"]
  }],
  "icons": {
    "512": "/style/icons/512.png",
    "256": "/style/icons/256.png",
    "128": "/style/icons/128.png",
    "90": "/style/icons/90.png",
    "64": "/style/icons/64.png",
    "48": "/style/icons/48.png",
    "32": "/style/icons/32.png",
    "16": "/style/icons/16.png"
  }
}

Twiter: #moztechspeakers

IMGUR Addon

This manifest.json will be inside the package.

Twiter: #moztechspeakers

Supported Fields

• name
• version
• description
• content_scripts
• permissions
• web_accessible_resources
• background
• browser_action
• default_locale

Twiter: #moztechspeakers

Injecting the code

In the content_script field, we specified our script:

"js": ["imgur.js"]

We are attaching that script to a Web App that whose url matches a regular expresion.

We are matching a local app,

app://system.gaiamobile.org/index.html

but it could be even a Website, like

["http://www.mozilla.com/*"].

For any website or any app it would be:

["<all_urls>"]

Pro tip: match patterns.

Twiter: #moztechspeakers

The window object

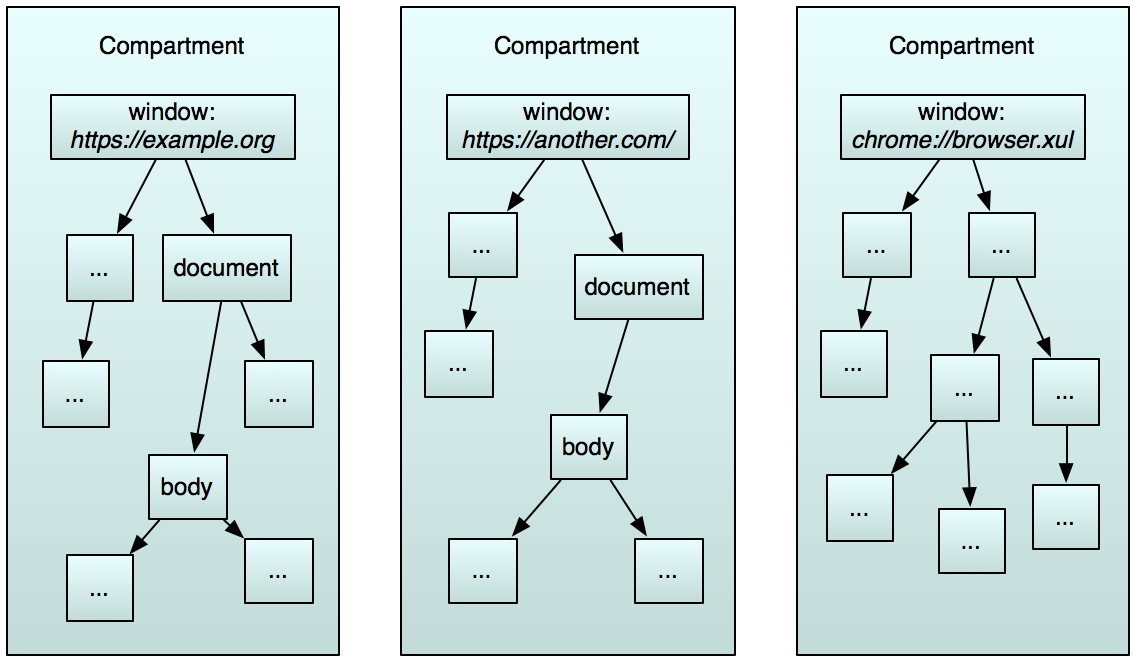

Add-ons only share a proxied version of the content window.

As a result, anything that is written to the window object from an add-on is unavailable to the app code.

Twiter: #moztechspeakers

The window object

If the caller has lower privileges than the target object, then the caller gets an opaque wrapper.

An opaque wrapper denies all access to the target object.

However, the privileged target can use exportFunction() and cloneInto().

Twiter: #moztechspeakers

Loading window object

When an app is already running and an add-on that targets it is enabled. in such a case, a window.onload handler won't work.

Your injected script needs to wait for the dom to be loaded before doing anything.

You can use "load" or "DOMContentLoaded".

if (document.documentElement) {
  initialize();
} else {
  window.addEventListener('load', initialize);
}

function initialize() {
 ..
}

Twiter: #moztechspeakers

Preventing multiple injections

To prevent an add-on from being injected into a single app instance multiple times, you should check whether your add-on is already present.

Think about window.setInterval(), window.setTimeout() or synchronous XMLHttpRequests.

I recommend to set a private propery or variable to check whenever it has been loaded.

I usually do it in a constructor.

The official documentation uses this example:

if (document.querySelector('.fxos-banner'))

Twiter: #moztechspeakers

Example

1. It does not check if the window object was been fully loaded.
2. It prevents multiple injections.
3. It uses mozChromeEvent
   1. volume-up-button-released
   2. handle-crash
   3. Etcetera

(function () {

    function uploader() {
        console.log("Object created!");
        this._started = false;
        uploader.prototype.start();

    }
    uploader.prototype = {
        /**
         * Start to handle screenshot events.
         * @memberof Screenshot.prototype
         */
        start: function () {
            console.log("IMGUR Running");
            if (this._started) {
                throw 'Instance should not be start()\'ed twice.';
            }
            this._started = true;

            window.addEventListener('mozChromeEvent', this);
        },

        /**
         * Stop handling screenshot events.
         * @memberof Screenshot.prototype
         */
        stop: function () {
            if (!this._started) {
                throw 'Instance was never start()\'ed but stop() is called.';
            }
            this._started = false;

            window.removeEventListener('mozChromeEvent', this.handleEvent);
        },

        /**
         * Handle screenshot events.
         * @param  {DOMEvent} evt DOM Event to handle.
         * @memberof Screenshot.prototype
         */
        handleEvent: function (evt) {
            switch (evt.type) {
                case 'mozChromeEvent':
                    if (evt.detail.type === 'take-screenshot-success') {
                        console.log("There is an screenshot available.");
                        if(navigator.onLine){
                            this.handleTakeScreenshotSuccess(evt.detail.file);
                        }
                    } else if (evt.detail.type === 'take-screenshot-error') {
                        this.notify('screenshotFailed', evt.detail.error);
                    }
                    break;

                default:
                    console.debug('Unhandled event: ' + evt.type);
                    break;
            }
        },
        /**
         * Handle the take-screenshot-success mozChromeEvent.
         * @param  {Blob} file Blob object received from the event.
         * @memberof Screenshot.prototype
         */
        handleTakeScreenshotSuccess: function (file) {
            try {
                var self = this;
                var fd = new FormData();
                fd.append("image", file);
                var xhr = new XMLHttpRequest();
                xhr.open('POST', 'https://api.imgur.com/3/image');
                xhr.setRequestHeader('Authorization', 'Client-ID 440d44a2a741339');
                xhr.onload = function() {
                  var data = JSON.parse(xhr.responseText).data;
                  var imgurURL = data.link;
                  console.log(imgurURL);
                    self.notify('Screenshot uploaded: ', imgurURL, null, true);
                    //const gClipboardHelper = Components.classes["@mozilla.org/widget/clipboardhelper;1"].getService(Components.interfaces.nsIClipboardHelper);
                    //gClipboardHelper.copyString(imgurURL);
                };
                xhr.send(fd);
            } catch (e) {
                console.log('exception in screenshot handler', e);
                this.notify('screenshotFailed', e.toString());
            }

        },
        /**
         * Display a screenshot success or failure notification.
         * Localize the first argument, and localize the third if the second is null
         * @param  {String} titleid  l10n ID of the string to show.
         * @param  {String} body     Label to show as body, or null.
         * @param  {String} bodyid   l10n ID of the label to show as body.
         * @param  {String} onClick  Optional handler if the notification is clicked
         * @memberof Screenshot.prototype
         */
        //TODO: l10n
        notify: function (titleid, body, bodyid, onClick) {
            console.log("A notification would be send: " + titleid);
            var notification = new window.Notification(titleid, {
                body: body,
                icon: '/style/icons/Gallery.png'
            });

            notification.onclick = function () {
                notification.close();
                if (onClick) {
                    new MozActivity({
                      name: "view",
                      data: {
                        type: "url",
                        url: body
                      }
                    });
                }
            };
        }
    };

    console.log("Lets start!");
    var uploader = new uploader();
}());

http://pastebin.com/75GNJJcQ

Twiter: #moztechspeakers

Yet another addon

Firefox Adblocker

This is the manifest file:

{
    "manifest_version": 2,
    "version": "1.0",
    "name": "FXOS Adblocker",
    "description": "Block those nasty ads.",
    "author": "Adrian Crespo",
    "role": "addon",
    "type": "certified",
    "content_scripts": [
        {
            "matches": ["<all_urls>"],
            "js": [
                "scripts/blocker.js"
            ]
        }
    ],
    "permissions": ["<all_urls>"],
    "icons": {
        "512": "/style/icons/512.png",
        "256": "/style/icons/256.png",
        "128": "/style/icons/128.png",
        "90": "/style/icons/90.png",
        "64": "/style/icons/64.png",
        "48": "/style/icons/48.png",
        "32": "/style/icons/32.png",
        "16": "/style/icons/16.png"
    }
}

(work in progress, it is the consequence of having too much coffeine)

http://pastebin.com/f2KqYkCF

Twiter: #moztechspeakers

Yet another addon

Firefox Adblocker

1. It checks if the window object was been fully loaded (NEEDED).
2. It prevents multiple injections.
3. It does not remove ads yet, it only remove the pictures from any app (as a proof of concept).
4. It doesn't use "launch_at".

(function () {

    function uploader() {
        console.log("Object created!");
        this._started = false;
        uploader.prototype.start();

    }
    uploader.prototype = {
        /**
         * Start to handle screenshot events.
         * @memberof Screenshot.prototype
         */
        start: function () {
            console.log("IMGUR Running");
            if (this._started) {
                throw 'Instance should not be start()\'ed twice.';
            }
            this._started = true;

            window.addEventListener('mozChromeEvent', this);
        },

        /**
         * Stop handling screenshot events.
         * @memberof Screenshot.prototype
         */
        stop: function () {
            if (!this._started) {
                throw 'Instance was never start()\'ed but stop() is called.';
            }
            this._started = false;

            window.removeEventListener('mozChromeEvent', this.handleEvent);
        },

        /**
         * Handle screenshot events.
         * @param  {DOMEvent} evt DOM Event to handle.
         * @memberof Screenshot.prototype
         */
        handleEvent: function (evt) {
            switch (evt.type) {
                case 'mozChromeEvent':
                    if (evt.detail.type === 'take-screenshot-success') {
                        console.log("There is an screenshot available.");
                        if(navigator.onLine){
                            this.handleTakeScreenshotSuccess(evt.detail.file);
                        }
                    } else if (evt.detail.type === 'take-screenshot-error') {
                        this.notify('screenshotFailed', evt.detail.error);
                    }
                    break;

                default:
                    console.debug('Unhandled event: ' + evt.type);
                    break;
            }
        },
        /**
         * Handle the take-screenshot-success mozChromeEvent.
         * @param  {Blob} file Blob object received from the event.
         * @memberof Screenshot.prototype
         */
        handleTakeScreenshotSuccess: function (file) {
            try {
                var self = this;
                var fd = new FormData();
                fd.append("image", file);
                var xhr = new XMLHttpRequest();
                xhr.open('POST', 'https://api.imgur.com/3/image');
                xhr.setRequestHeader('Authorization', 'Client-ID 440d44a2a741339');
                xhr.onload = function() {
                  var data = JSON.parse(xhr.responseText).data;
                  var imgurURL = data.link;
                  console.log(imgurURL);
                    self.notify('Screenshot uploaded: ', imgurURL, null, true);
                    //const gClipboardHelper = Components.classes["@mozilla.org/widget/clipboardhelper;1"].getService(Components.interfaces.nsIClipboardHelper);
                    //gClipboardHelper.copyString(imgurURL);
                };
                xhr.send(fd);
            } catch (e) {
                console.log('exception in screenshot handler', e);
                this.notify('screenshotFailed', e.toString());
            }

        },
        /**
         * Display a screenshot success or failure notification.
         * Localize the first argument, and localize the third if the second is null
         * @param  {String} titleid  l10n ID of the string to show.
         * @param  {String} body     Label to show as body, or null.
         * @param  {String} bodyid   l10n ID of the label to show as body.
         * @param  {String} onClick  Optional handler if the notification is clicked
         * @memberof Screenshot.prototype
         */
        //TODO: l10n
        notify: function (titleid, body, bodyid, onClick) {
            console.log("A notification would be send: " + titleid);
            var notification = new window.Notification(titleid, {
                body: body,
                icon: '/style/icons/Gallery.png'
            });

            notification.onclick = function () {
                notification.close();
                if (onClick) {
                    new MozActivity({
                      name: "view",
                      data: {
                        type: "url",
                        url: body
                      }
                    });
                }
            };
        }
    };

    console.log("Lets start!");
    var uploader = new uploader();
}());

http://pastebin.com/3YGamy6n

Twiter: #moztechspeakers

But we want to publish it!

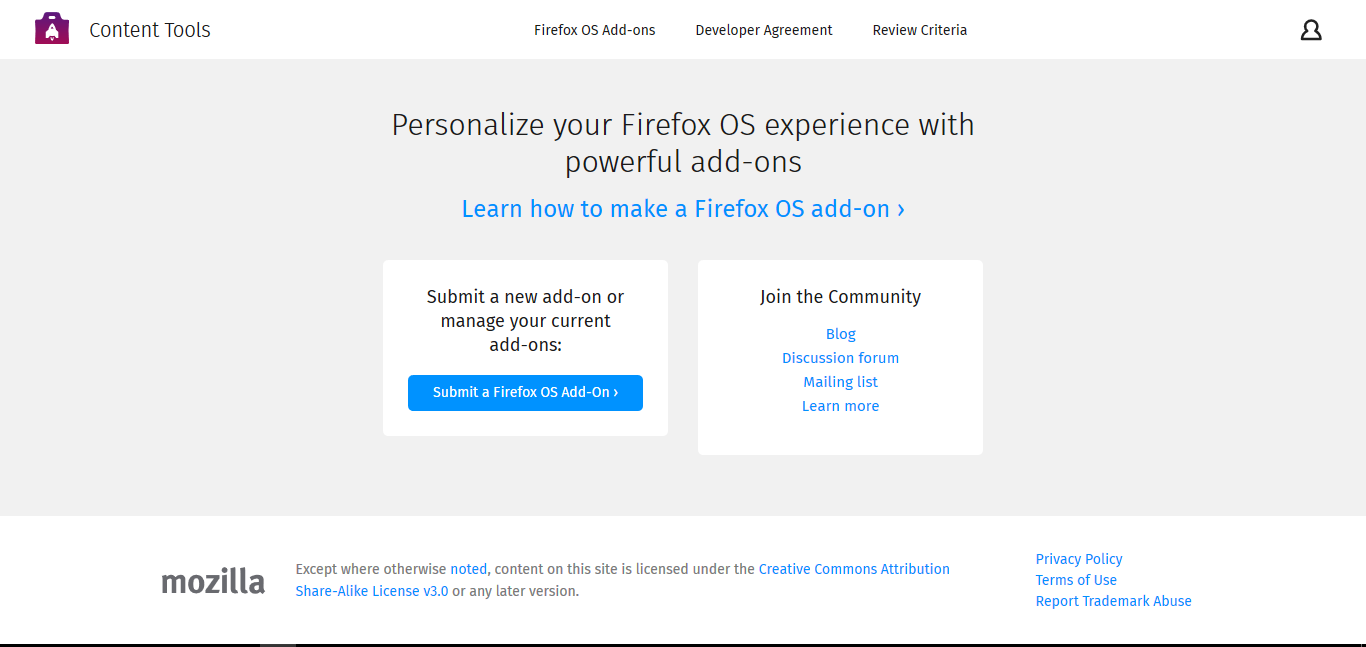

If you use the Hackerplace, you could install addons by their url.

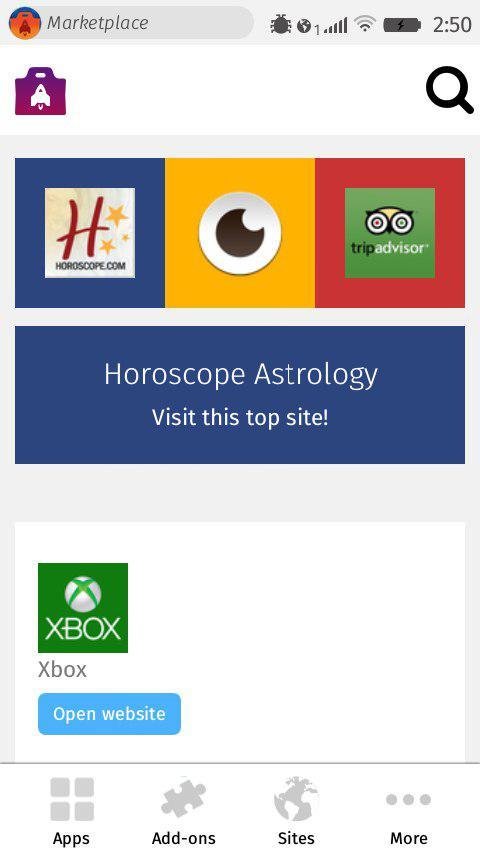

Sadly, it does not work for the Marketplace (yet).

It will be "update.webapp" and it will be hosted in our Web Hosting. That will let the Hackerplace to find it.

You must specify their Content-Type, so check these steps for your hosting.
For example, if you use Apache it would be:

AddType application/x-web-app-manifest+json .webapp

Twiter: #moztechspeakers

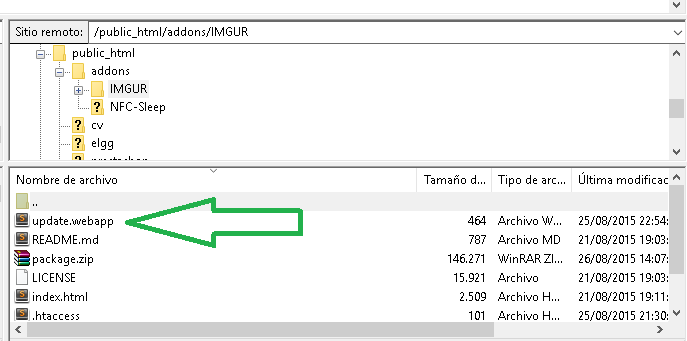

So it will look like...

Twiter: #moztechspeakers

And the content will be...

It is also a JSON document, mostly used to define the icons and where is the package.

{
  "name" : "NFC Sleep",
  "description": "Turn off your WiFi and volume using a NFC Tag.",
  "developer": { "name": "Adrian Crespo" },
  "package_path": "package.zip",
  "icons": {
    "512": "/style/icons/512.png",
    "256": "/style/icons/256.png",
    "128": "/style/icons/128.png",
    "90": "/style/icons/90.png",
    "64": "/style/icons/64.png",
    "48": "/style/icons/48.png",
    "32": "/style/icons/32.png",
    "16": "/style/icons/16.png"
  }
}

http://pastebin.com/cKa0S9Lu

And what about the Marketplace?

There is an open Beta to upload the addons to the Marketplace. Just follow this link.

Twiter: #moztechspeakers

And they are available!

Twiter: #moztechspeakers

Best practices

• Never use synchronous XMLHttpRequests.
• Performing sequential, asynchronous operations can often be greatly simplified using Promises.
• Avoid writing slow CSS.
• Avoid DOM mutation event listeners.
• Using window.setInterval() or window.setTimeout() can be problematic, too.
• Clean up event listeners.
• Don't store references to window objects and DOM nodes for too long.

Twiter: #moztechspeakers

Current status

So, are they currently supported?

Not yet but...

They are a feature for Firefox 42 and Firefox OS 2.5

Also, check the Marketplace API

Twiter: #moztechspeakers
